TOYOTA AVALON 2004 XX30 / 3.G Owners Manual

’04 AVALON U (L/O 0408)
203
2004 AVALON from Aug. ’04 Prod. (OM41412U)
3. Simultaneously press and hold thehandheld garage transmitter button
along with the selected HomeLink
 but-
ton.
4. When the indicator light on the HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.
5. Test the operation of the HomeLink
 by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate, iden-
tify if your garage transmitter is of the
“Rolling C ode” type. Press and hold the
programmed HomeLink
 button. The ga-
rage door has the rolling code feature if
the indicator light (on the HomeLink
)
flashes rapidly and then remains lit after
2 seconds. If your garage transmitter is
the “Rolling Code” type, proceed to the
heading “Programming a rolling code sys-
tem”.
6. Repeat steps 2 through 5 for each re- maining HomeLink
 button to program
another device. Programming a rolling code system
If your device is “Rolling Code”
equipped, it is necessary to follow
steps 1 through 4 under the heading
“Programming the HomeLink
” before
proceeding with the steps listed below.
1. Locate the “training” button on the ceil- ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this “training” button.
2. Press the “training” button on the ceil- ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below. 3. Press and release the vehicle’s pro- grammed HomeLink
 button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door. The ceiling m
ounted garage door opener
motor should now recognize the
HomeLink
 unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re- maining HomeLink
 button to program
another rolling code system.
Programming an entrance gate/Program-
ming all devices in the Canadian market 1. Decide which of the 3 HomeLink
 but-
tons you want to program.
2. Place your handheld gate/device transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
.
Keep the indicator light on the HomeLink

in view while programming. 3. Press and hold the selected HomeLink
 button.
4. Continuously press and release ( cycle)
the handheld gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.

’04 AVALON U (L/O 0408)
204
2004 AVALON from Aug. ’04 Prod. (OM41412U)
6. Test the operation of the HomeLink by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
 button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
 buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink

To operate the HomeLink, press the
appropriate HomeLink button to activate
the programmed device. The HomeLink
indicator light should come on. The
HomeLink continues to send the signal
for up to 20 seconds as long as the
button is pressed. (c) Erasing the entire HomeLink

memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink

memory.

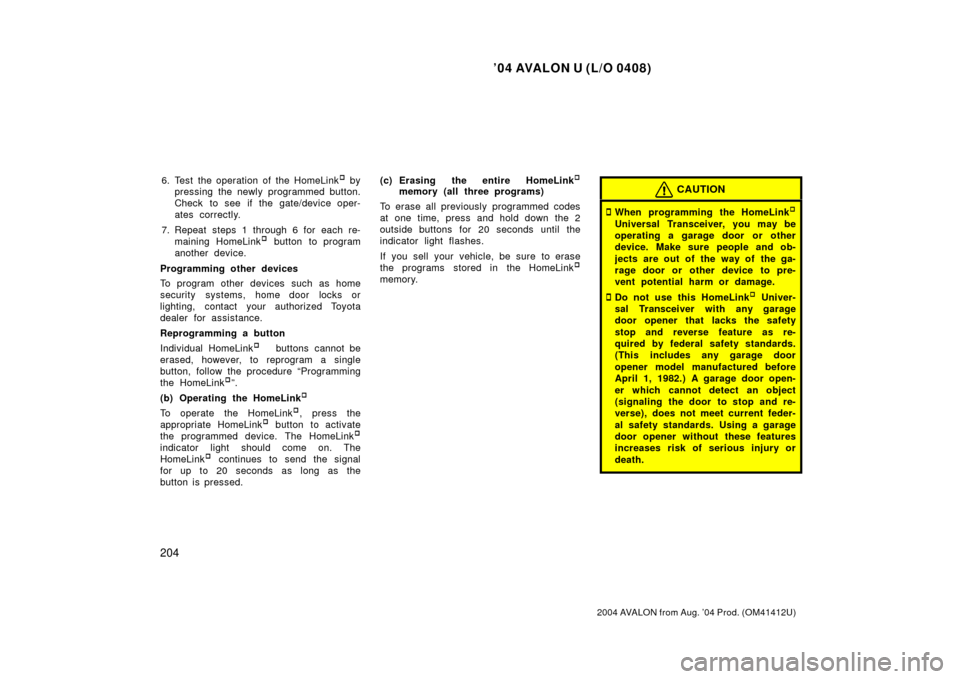

CAUTION
When programming the HomeLink
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.

’04 AVALON U (L/O 0408)
205
2004 AVALON from Aug. ’04 Prod. (OM41412U)

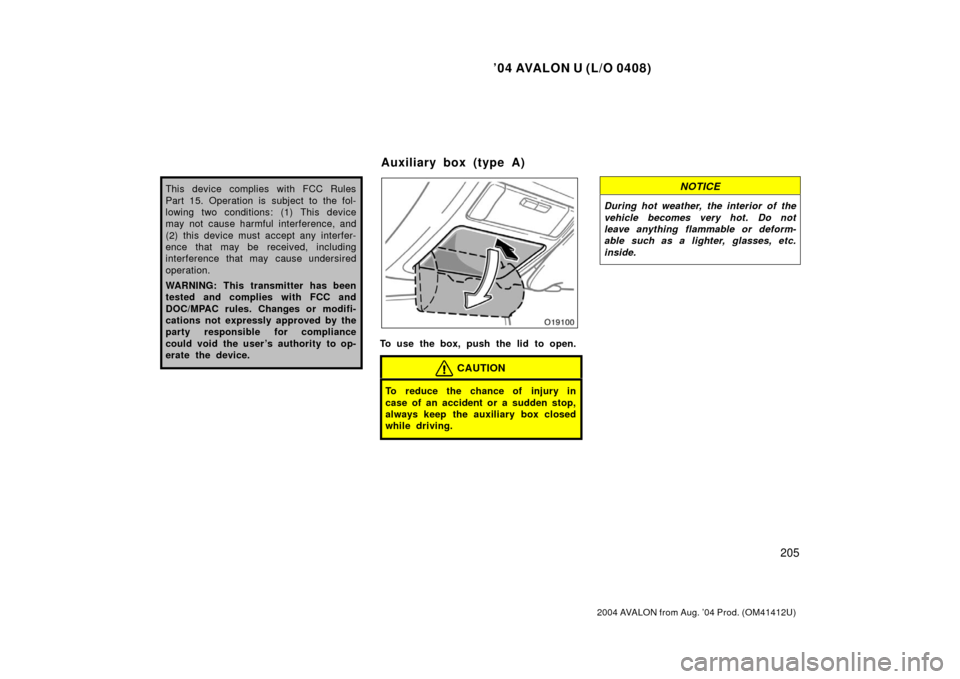

This device complies with FCC Rules
Part 15. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence that may be received, including
interference that may cause undersired
operation.
WARNING: This transmitter has been
tested and complies with FCC and
DOC/MPAC rules. Changes or modifi-
cations not expressly approved by the
party responsible for compliance
could void the user’s authority to op-
erate the device.
To use the box, push the lid to open.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
During hot weather, the interior of the
vehicle becomes very hot. Do not
leave anything flammable or deform-
able such as a lighter, glasses, etc.
inside.
Auxiliary box (type A)

’04 AVALON U (L/O 0408)
206
2004 AVALON from Aug. ’04 Prod. (OM41412U)

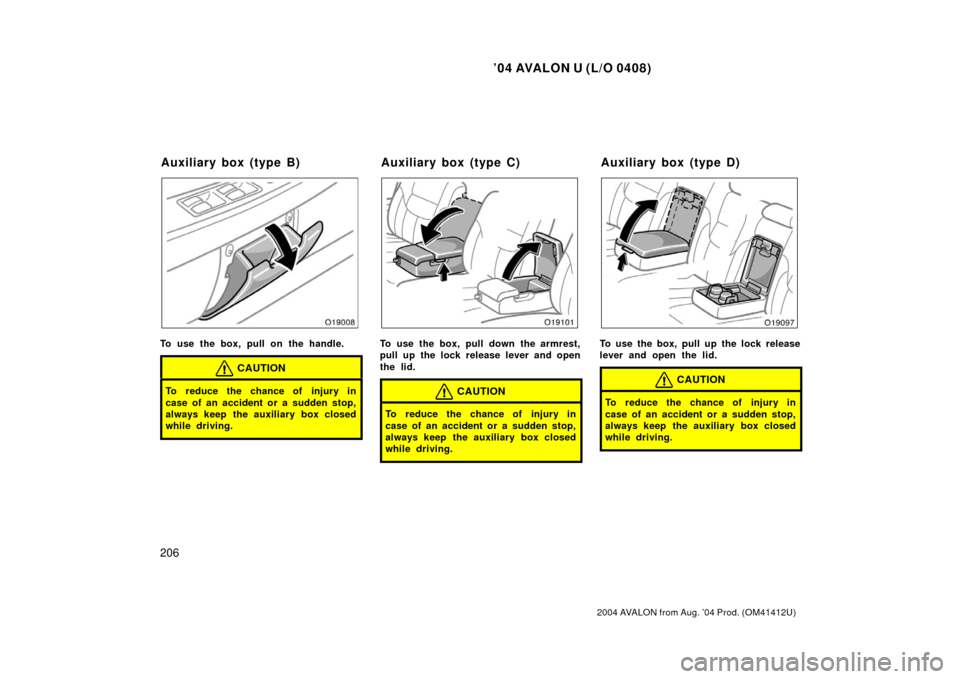

To use the box, pull on the handle.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
To use the box, pull down the armrest,
pull up the lock release lever and open
the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
To use the box, pull up the lock release
lever and open the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
Auxiliary box (type B)Auxiliary box (type C)Auxiliary box (type D)

’04 AVALON U (L/O 0408)
207
2004 AVALON from Aug. ’04 Prod. (OM41412U)

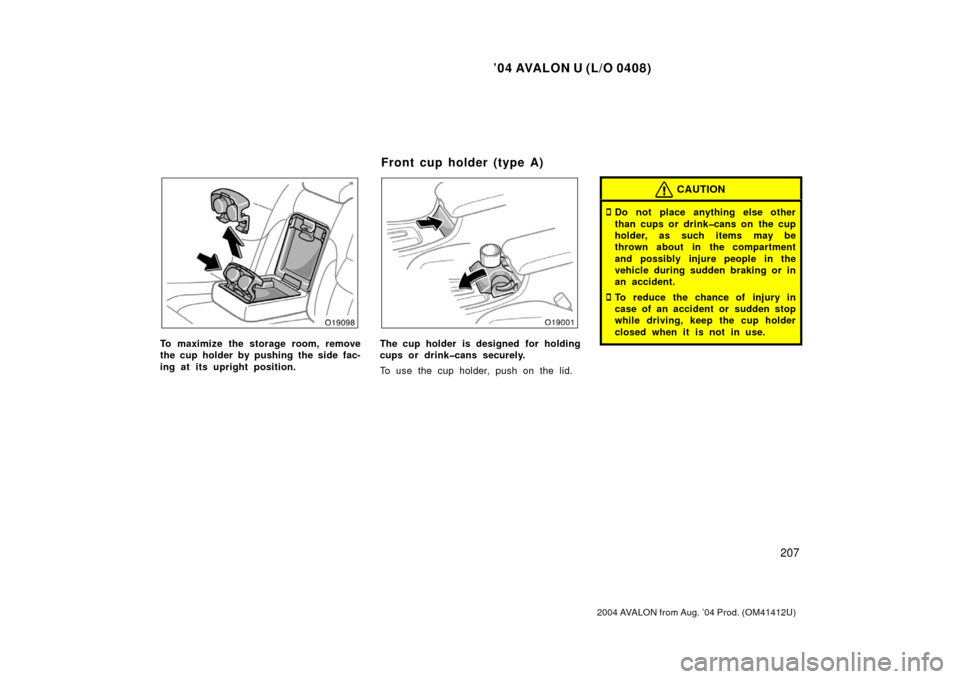

To maximize the storage room, remove
the cup holder by pushing the side fac-
ing at its upright position.The cup holder is designed for holding
cups or drinkcans securely.
To use the cup holder, push on the lid.
CAUTION
Do not place anything else other
than cups or drinkcans on the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
Front cup holder (type A)

’04 AVALON U (L/O 0408)
208
2004 AVALON from Aug. ’04 Prod. (OM41412U)

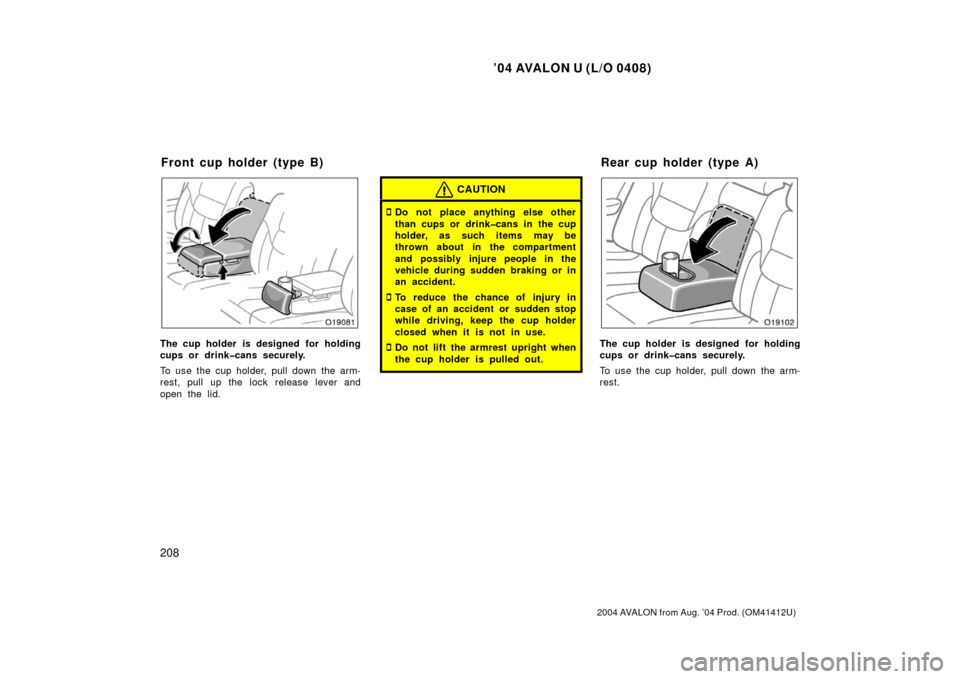

The cup holder is designed for holding
cups or drinkcans securely.
To use the cup holder, pull down the arm-
rest, pull up the lock release lever and
open the lid.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
Do not lift the armrest upright when
the cup holder is pulled out.The cup holder is designed for holding
cups or drinkcans securely.
To use the cup holder, pull down the arm-
rest.
Front cup holder (type B)Rear cup holder (type A)

’04 AVALON U (L/O 0408)
209
2004 AVALON from Aug. ’04 Prod. (OM41412U)
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
Do not lift the armrest upright when
the cup holder is pulled out.

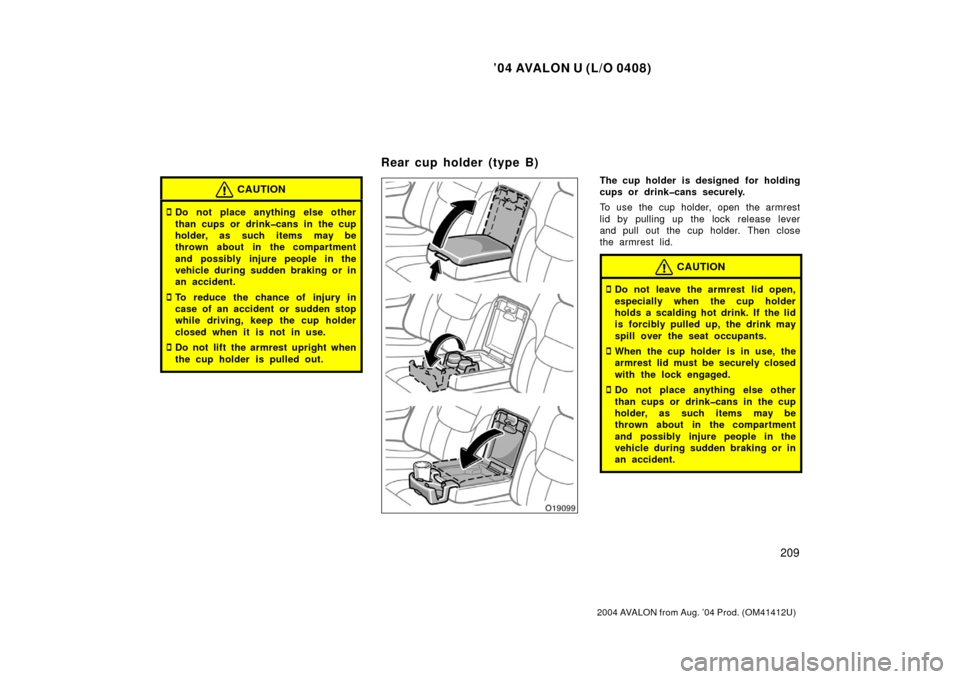

The cup holder is designed for holding
cups or drinkcans securely.
To use the cup holder, open the armrest
lid by pulling up the lock release lever
and pull out the cup holder. Then close
the armrest lid.
CAUTION
Do not leave the armrest lid open,
especially when the cup holder
holds a scalding hot drink. If the lid
is forcibly pulled up, the drink may
spill over the seat occupants.
When the cup holder is in use, the
armrest lid must be securely closed
with the lock engaged.
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
Rear cup holder (type B)

’04 AVALON U (L/O 0408)
210
2004 AVALON from Aug. ’04 Prod. (OM41412U)
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
Do not lift the armrest upright when
the cup holder is pulled out.

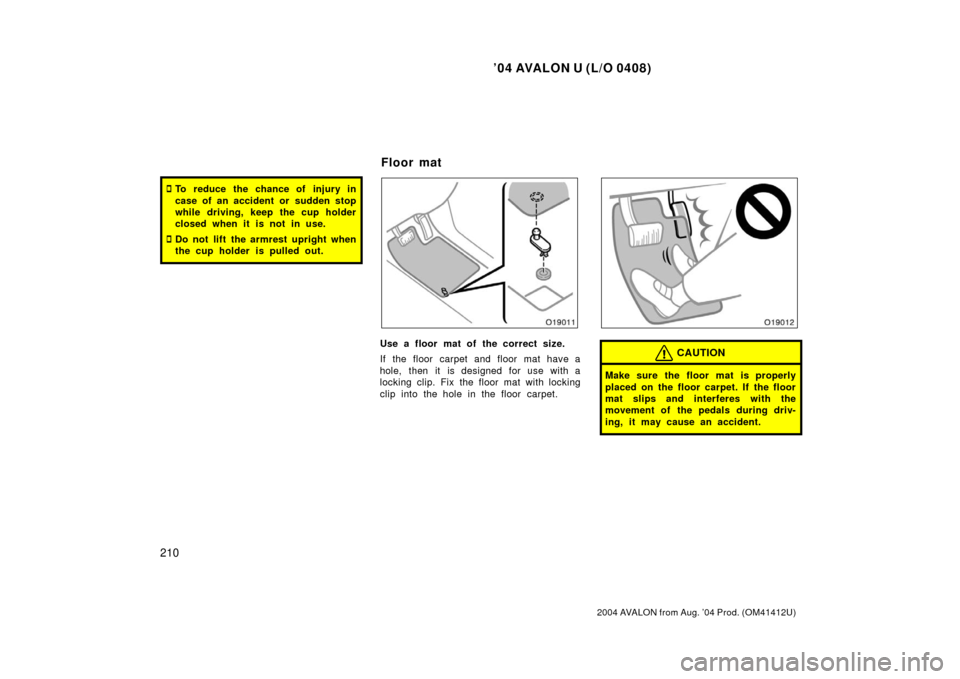

Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
Floor mat

’04 AVALON U (L/O 0408)
211
2004 AVALON from Aug. ’04 Prod. (OM41412U)

’04 AVALON U (L/O 0408)
212
2004 AVALON from Aug. ’04 Prod. (OM41412U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Breakin period213
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Fuel 213
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Operation in foreign countries 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Threeway catalytic converters 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 216
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 217
. . . . . . . . . . . . . . . . . . . . . . . . . .
Iridiumtipped spark plugs 218
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota’s identification 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Tire information 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Vehicle load limits 233
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Cargo and luggage 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Types of tires 236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
