display TOYOTA AVALON 2007 XX30 / 3.G Navigation Manual

xxxi
After you input the destination by one
of the 11 methods, the screen changes
and displays the map location of the
selected destination and the route pref-
erence.
Select the “Map scroll” switch on
the screen to move the cursor
.
You can move and set the cursor
at
a desired point. (For the method of how
to move the cursor, see page xi.)
“Change”: Selecting this switch can
change “Route preference”.
When you select the
“Enter” switch,
the system starts searching for a route to
your destination using the conditions en-
tered.
If you want to set a preferred road point
between the starting point and the destina-
tion or change the search condition, push
the
“ENTER” button on the navigation
controller to display the menu switches.
Select the “Edit route” switch on the
screen. The screen changes and displays
the edit route menu. (For details, see
page xciv.)
You can start the route guidance by se-
lecting the
“Start” switch on the screen
or starting to move your vehicle.
If you continue to push the
“ENTER”
button on the navigation controller until
you hear a beep, the “demo” mode will
start.
Entering destination

xxxiii
Choose one from the three routes.
“Quick”: A route on which you can reach
the destination in the shortest time.
“Short”: A route on which you can reach
the destination in the shortest distance.
“Alternative”: Other route.Select the “Time & distance”
switch to display the time and distance
list.The route guidance system displays two
different screen modes.
Single screen: Only map is shown in a
screen mode like the above.
Route guidance screen

xxxiv
Split screen: Map and guidance screen
are shown in a screen mode like the
above. (For details about guidance screen,
see page xxxv.)
The two route guidance screens have a
number of indicators and switches with
which you should be familiar.Map screen with switch: When the
“ENTER” button on the navigation con-
troller is pushed while the map is dis-
played, the switch screen is displayed on
the right side of the screen.
“GPS”: Upon reception of signals from
the GPS (Global Positioning System), this
mark appears. (For details, see page
lii.)
“Map orient”: To switch the map orienta-
tion between North−up and Heading−up.
(For details, see page l.)
“POI”: Select this switch, and symbols of
points of interest are shown on the
screen. (For details, see page xlv.)
“Chg. route”: The “Change route” screen
appears and the following settings are
available.“Mark”: Select this switch for quick regis-
tration of the marked point. (For details,
see page lxxxiii.)
“Guide”: When POI icons are displayed
on the map, select this switch, and the
name of a POI icon near the cursor is
displayed. Move the select and scroll le-
ver to the right or left, and the name of
the next POI icon is displayed. If no POI
icons are displayed on the screen, “No
guidance information available” is dis-
played. Push the “ENTER” button while
the name of a POI icon is displayed to
see detailed information about that POI
(name, location, phone number, etc.) dis-
played on the screen.
“
”: Select this switch when you
have several destinations to go. The dis-
tance and time from the current position
to the destination can be displayed for
each destination. When you are not travel-
ing on the route, however, only the dis-
tance is displayed.

xxxv
INFORMATION
The distance to your destination ap-
pears on the left of the screen.
The time to your destination can
also be displayed. (For the setting
steps, see page civ.)
Selecting these switches
changes the guidance
screen.
Selecting these switches
changes the map screen.
“Searching condition”: To change the
condition for reroute. (For details, see
page xcvii.)
“Del. next dest.”: To delete the setting of
the next destination.
“Delete preferred road”: To delete the
preferred road that you registered.
“Start from adjacent road”: To start the
route guidance from the adjacent road.
(ex. When the route guidance guides the
route on a freeway, but you drive on the
parallel way along a freeway.)
“Detour for”: To change the condition for
detour. (For details, see page xliv.)
“Whole route”: To calculate an entire
new route to the destination.The right half of the screen can be
used as a guidance screen.
See also “Route guidance screen” on page
xxxiii.
Split screen near the intersection.
The distance to the intersection is shown
at the bottom of the screen.
Guidance screen

xxxvi
Split screen near the exit of the free-
way.You can set the map mode and guid-
ance mode.
1. Push the “MENU” button on the
navigation controller to display the
“Menu” screen and select the
“Map
appearance”
switch.
2. It changes to the “Map appearance”
screen and you can select the “Guid-
ance mode”.
Guidance mode:
To display arrow screen
To display turn list screen
To display map screen
Map appearance

xxxviii
The map screen has 2 modes:
Single mode
Dual mode
The dual mode screen can perform the
following procedures.
Changing the map scale
Displaying the POI icon (See page
xlv.)
Changing the orientation of the mapThe current vehicle position mark ap-
pears in the center of the map screen.
You can return to this map screen
showing your current position at any
time from any screen by pushing the
“MAP/VOICE” button on the naviga-
tion controller.
While driving, the current vehicle position
mark is fixed in the center of the screen
and the map moves.
If you move the map, the current vehicle
position mark continues to track your cur-
rent location.
INFORMATION
When you use the map scroll feature,
the current vehicle position mark may
disappear from the screen. Move the
map again with map scroll or push
the
“MAP/VOICE” button to return
to the current vehicle position map
location display.
The current position is automatically
set as your vehicle receives signals
from the GPS (Global Positioning Sys-
tem). If your current position is not
correct, it is automatically corrected af-
ter your vehicle receives signals from
the GPS.
INFORMATION
After battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the sys-
tem receives signals from the GPS,
the correct current position is dis-
played.
If you must correct the current position
manually, follow the steps on page xc.
Current position display

xxxix
The current street name will be displayed
in the bottom of the screen when the
setting of the current street name is on.
In some areas, the roads have not been
completely digitalized in our database yet.
For this reason, the route guidance may
guide the road that is not allowed to pass.You can use voice guidance while driv-
ing to the destination.
You can adjust the volume of the voice or
turn off voice guidance.

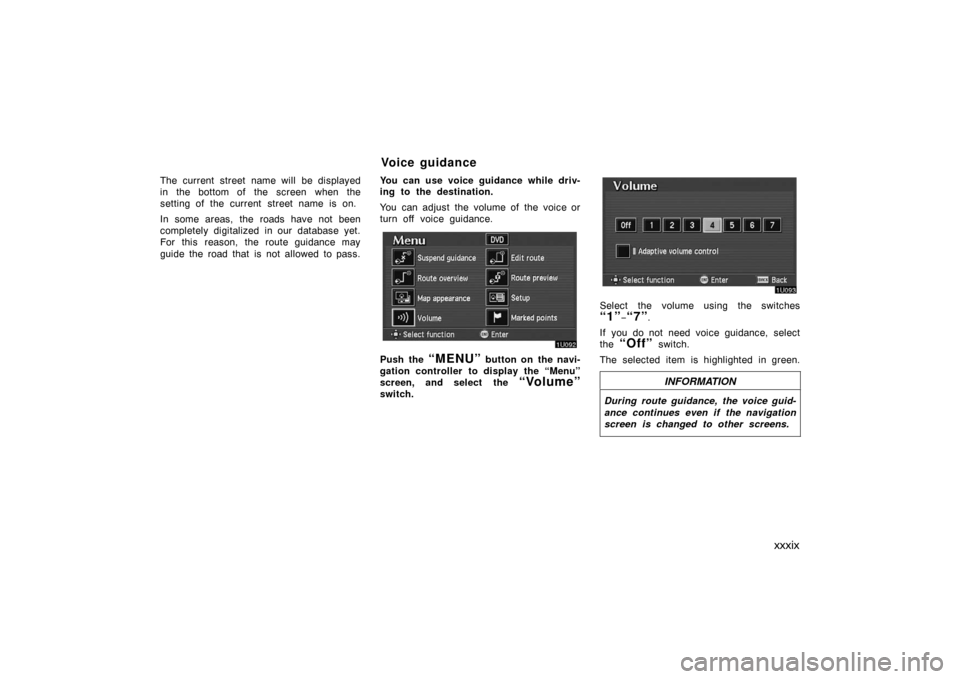

Push the “MENU” button on the navi-
gation controller to display the “Menu”
screen, and select the
“Volume”
switch.
Select the volume using the switches
“1”−“7”.
If you do not need voice guidance, select
the
“Off” switch.
The selected item is highlighted in green.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
Voice guidance

xlii
INFORMATION
Voice guidance may be made early
or delayed.
If the system cannot determine the
current position correctly, you may
not hear voice guidance or may not
see the magnified intersection on
the screen.
If you did not hear voice guidance
command, push the
“MAP/
VOICE”
button to hear it again.
If you register your home address be-
forehand, you can easily set the route
back to your home.
1. Push the “MENU” button on the
navigation controller to display the
“Menu” screen and select the
“Marked points” switch.
2. Select the “Reg. home” switch
for registering your home address.
If your home is already registered, the
“Reg. home” switch changes to the
“Delete home” switch.
Registration of your home

xliii
You may register the location of your
home by some different methods: cur-
rent position, address, map location,
etc. Select your desired method from
the menu on the screen.
Input your home in the same way as the
destination input. (See page xxx.)DELETING YOUR HOME
1. Push the “MENU” button on the
navigation controller to display the
“Menu” screen and select the
“Marked points” switch.
2. Select the “Delete home” switch.
The screen changes and displays the map
location of the home and a message. If
you are sure, select the
“Yes” switch. If
not, select the
“No” switch.

xlv
“Whole route”: If you select this switch,
the system will calculate an entire new
route to the destination.
INFORMATION
When your vehicle is on a freeway,
the detour distance selections are 5,
15 and 25 miles.
The system may not be able to cal-
culate a detour route depending on
the selected distance and surround-
ing road conditions.
“Search condition”: To change the condi-
tions of the searching route. (See page
xcvii.)
“Quick”: A route on which you can reach
the destination in the shortest time.
“Short”: A route on which you can reach
the destination in the shortest distance.
“Alternative”: Other route.Points of interest such as gas stations
and restaurants can be displayed on
the map screen. You can also set their
location as a destination and use them
for route guidance.
To display a particular type of point of
interest on the screen, select the
“POI” switch on the map right side of
the screen.
A window with a limited choice of points
of interest will be displayed. When you
select your desired type of point of inter-
est, icons will appear on the map screen
indicating where the POI addresses are
located.
“More”: If you cannot find your desired
point of interest on the limited choice
screen, select this switch. The screen
then displays the more “Point of Interest”
listing screen.
You can show up to 5 types of icons on
the screen.
Displaying points of interest
