To open the trunk lid, push the trunk
opener switch of the transmitter for 1
second. A long beep will sound.
If the key is in the ignition (vehicles with
key cylinder−type ignition switch) or the
ignition switch is set at ACC or ON (ve-
hicles with smart key system), the trunk
lid cannot be opened by the trunk opener
switch.
Opening of the trunk lid with the wireless
remote control can be changed as follows.
Contact your Toyota dealer for details.
Trunk lid opens by pushing the trunk
opener switch twice in succession.
Trunk lid opens by pushing the trunk
opener switch once regardless of how
long the switch is being pressed.
Opening of the trunk lid is disabled
using the wireless remote control trans-
mitter.
Vehicles with key cylindertype ignition
switch
Vehicles with smart key system

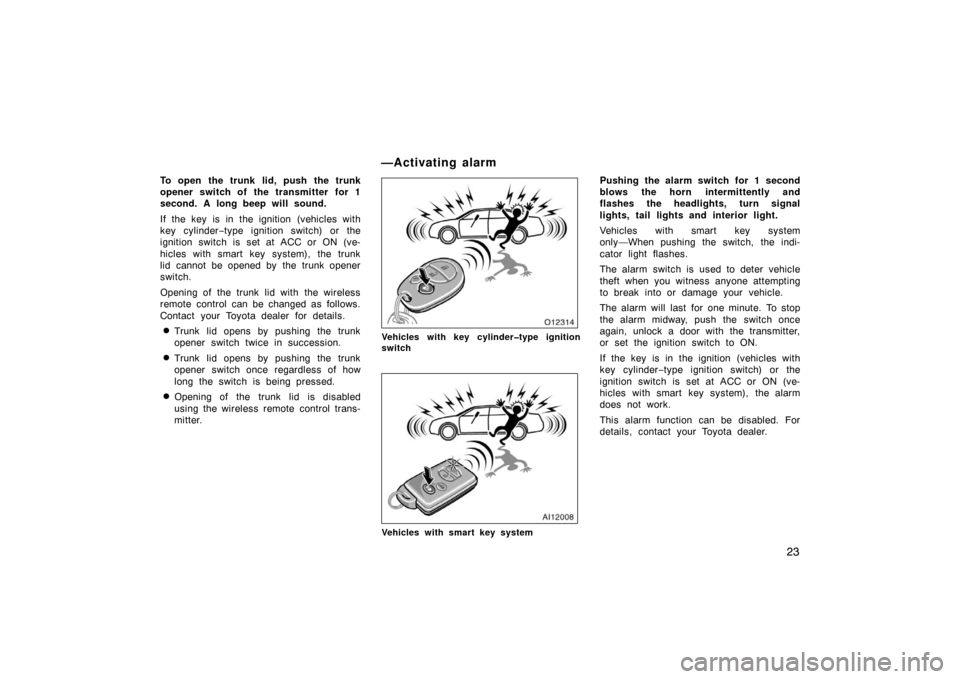

Pushing the alarm switch for 1 second
blows the horn intermittently and
flashes the headlights, turn signal
lights, tail lights and interior light.
Vehicles with smart key system
only—When pushing the switch, the indi-
cator light flashes.
The alarm switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The alarm will last for one minute. To stop
the alarm midway, push the switch once
again, unlock a door with the transmitter,
or set the ignition switch to ON.
If the key is in the ignition (vehicles with
key cylinder −type ignition switch) or the
ignition switch is set at ACC or ON (ve-
hicles with smart key system), the alarm
does not work.
This alarm function can be disabled. For
details, contact your Toyota dealer.
—Activating alarm

24
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
1. Using a coin or equivalent, open the
transmitter case.2. Remove the circuit board, then removethe discharged transmitter battery.
NOTICE
Take care not to damage the circuit
board.
 Do not bend the terminals.
—Replacing battery
(with key cylindertype
ignition switch)

25

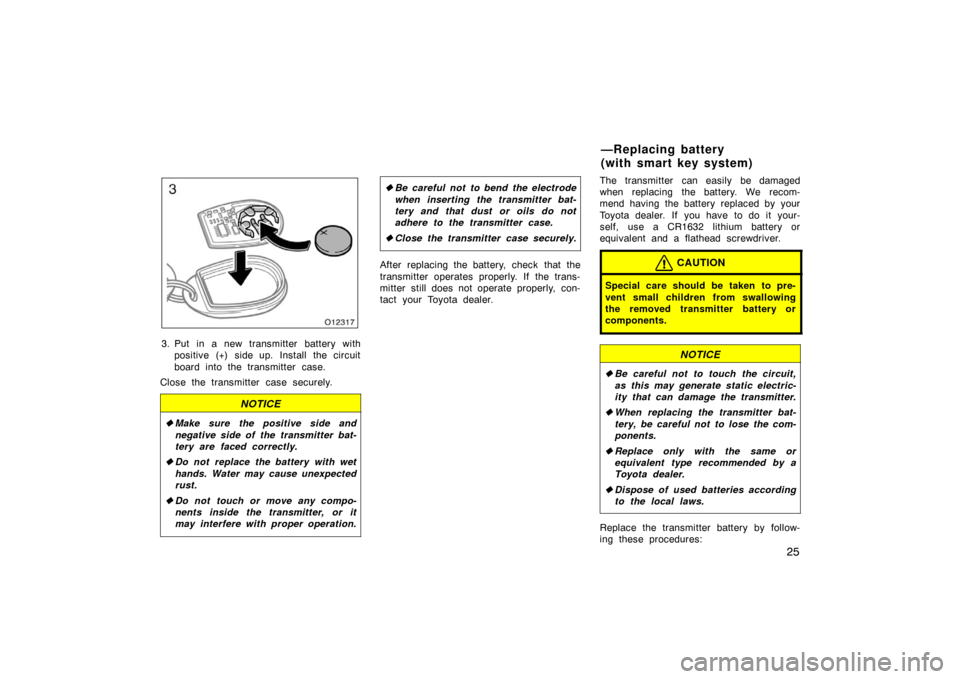

3. Put in a new transmitter battery withpositive (+) side up. Install the circuit
board into the transmitter case.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
 Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer. The transmitter can easily be damaged
when replacing the battery. We recom-
mend having the battery replaced by your
Toyota dealer. If you have to do it your-
self, use a CR1632 lithium battery or
equivalent and a flathead screwdriver.CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE

Be careful not to touch the circuit,
as this may generate static electric-
ity that can damage the transmitter.
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
—Replacing battery
(with smart key system)

26

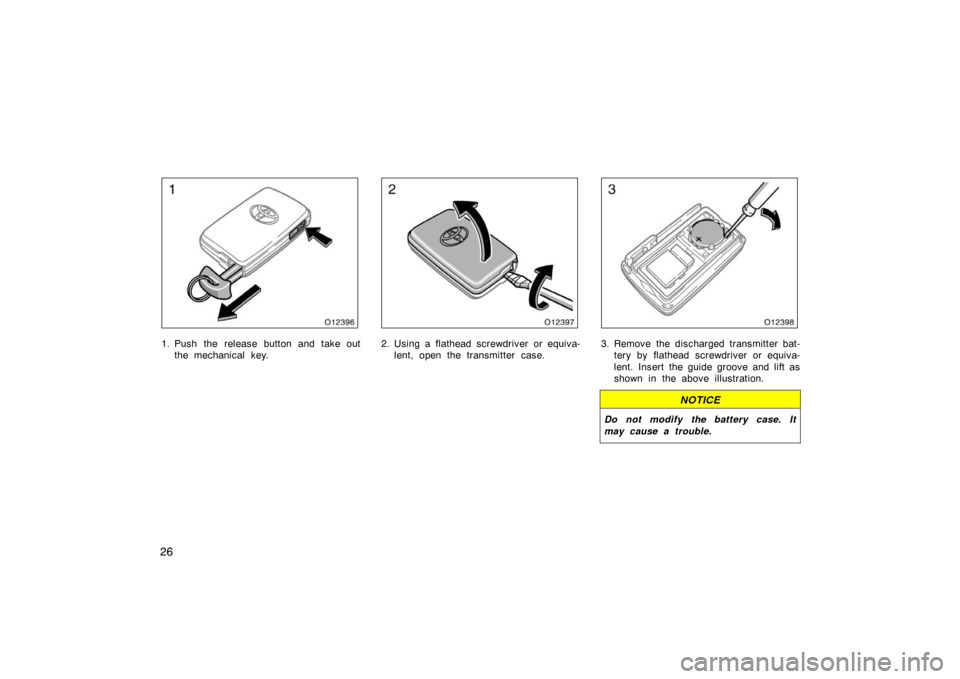

1. Push the release button and take outthe mechanical key.2. Using a flathead screwdriver or equiva-lent, open the transmitter case.3. Remove the discharged transmitter bat-tery by flathead screwdriver or equiva-
lent. Insert the guide groove and lift as
shown in the above illustration.
NOTICE
Do not modify the battery case. It
may cause a trouble.

27

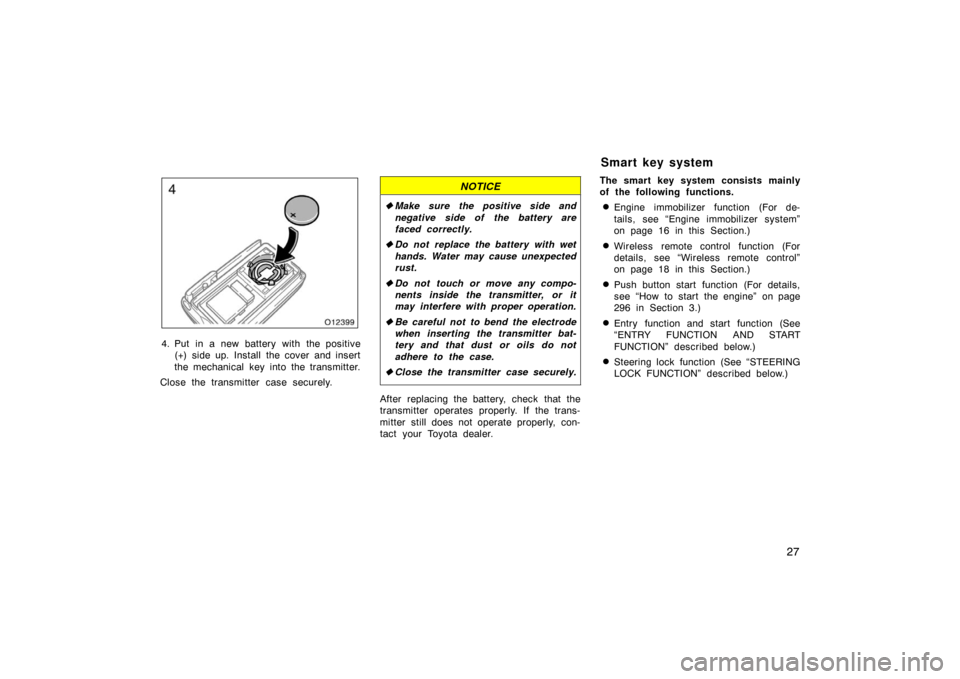

4. Put in a new battery with the positive(+) side up. Install the cover and insert
the mechanical key into the transmitter.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the battery are
faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the case.
 Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer. The smart key system consists mainly
of the following functions.
Engine immobilizer function (For de-
tails, see “Engine immobilizer system”
on page 16 in this Section.)
Wireless remote control function (For
details, see “Wireless remote control”
on page 18 in this Section.)
Push button start function (For details,
see “How to start the engine” on page
296 in Section 3.)
Entry function and start function (See
“ENTRY FUNCTION AND START
FUNCTION” described below.)
Steering lock function (See “STEERING
LOCK FUNCTION” described below.)
Smart key system

28

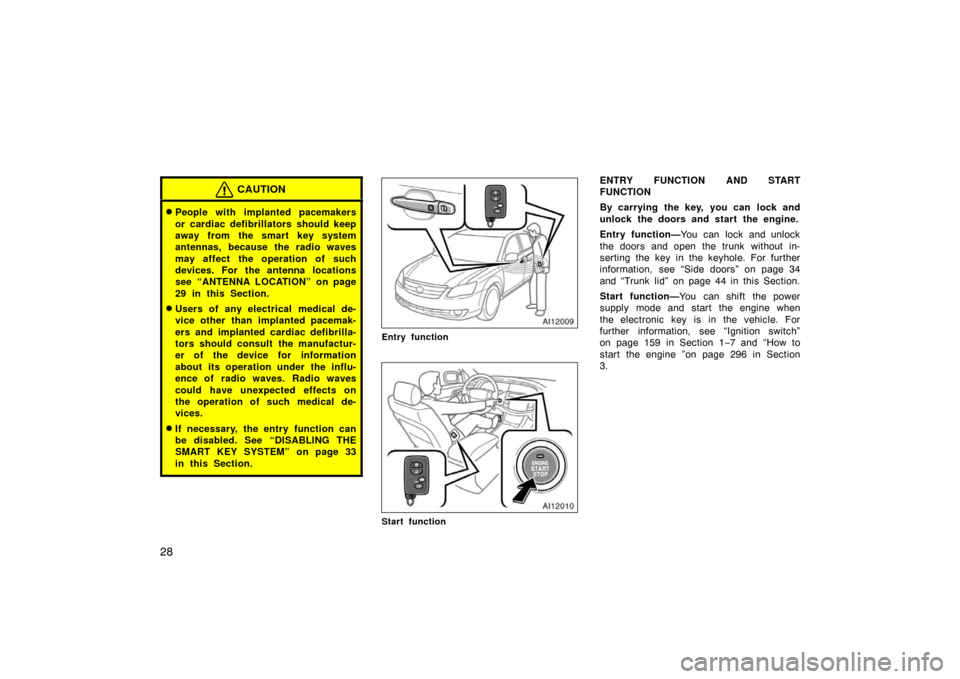

CAUTION
People with implanted pacemakers
or cardiac defibrillators should keep
away from the smart key system
antennas, because the radio waves
may affect the operation of such
devices. For the antenna locations
see “ANTENNA LOCATION” on page
29 in this Section.
Users of any electrical medical de-
vice other than implanted pacemak-
ers and implanted cardiac defibrilla-
tors should consult the manufactur-
er of the device for information
about its operation under the influ-
ence of radio waves. Radio waves
could have unexpected effects on
the operation of such medical de-
vices.
If necessary, the entry function can
be disabled. See “DISABLING THE
SMART KEY SYSTEM” on page 33
in this Section.
Entry function
Start function
ENTRY FUNCTION AND START
FUNCTION
By carrying the key, you can lock and
unlock the doors and start the engine.
Entry function— You can lock and unlock
the doors and open the trunk without in-
serting the key in the keyhole. For further
information, see “Side doors” on page 34
and “Trunk lid” on page 44 in this Section.
Start function— You can shift the power
supply mode and start the engine when
the electronic key is in the vehicle. For
further information, see “Ignition switch”
on page 159 in Section 1 −7 and “How to
start the engine ”on page 296 in Section
3.

29
STEERING LOCK FUNCTION
When the driver ’s door is opened after
turning off the engine, the steering wheel
will lock.
The steering lock is automatically un-
locked when the “ENGINE START STOP”
switch (engine switch) is pressed. If the
indicator light on the “ENGINE START
STOP” switch flashes green, this indicates
that the steering wheel remains locked. If
the amber indicator light flashes, this indi-
cates that the steering lock is malfunction-
ing. For details, see “How to start the
engine” on page 296 and “Driving and
parking using smart key system” on page

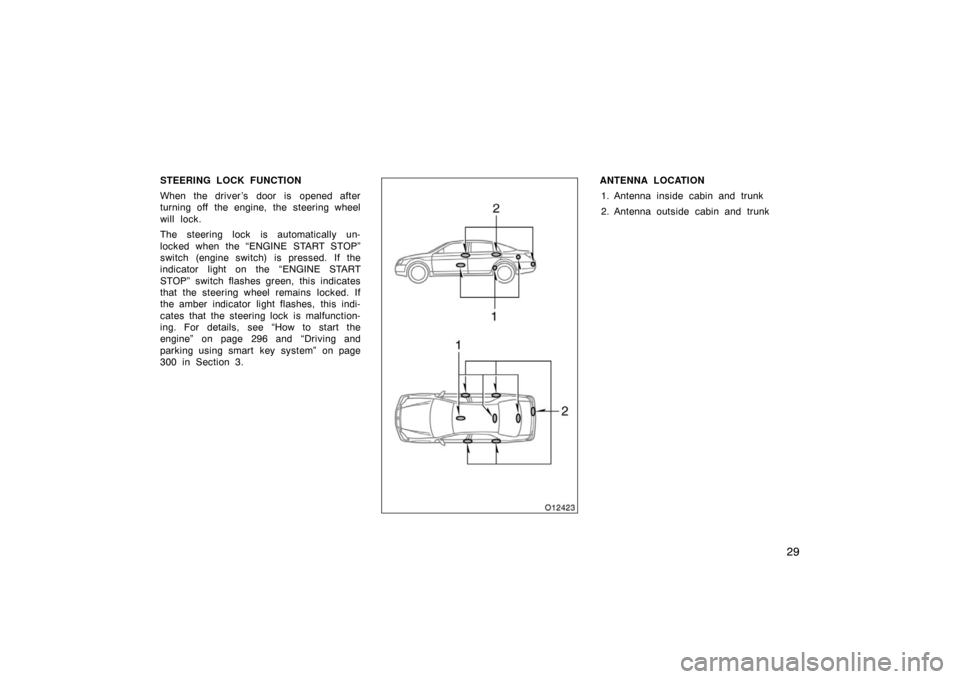

300 in Section 3.ANTENNA LOCATION1. Antenna inside cabin and trunk
2. Antenna outside cabin and trunk

30
ACTUATION AREA
The entry function and start function
are available to use when a registered

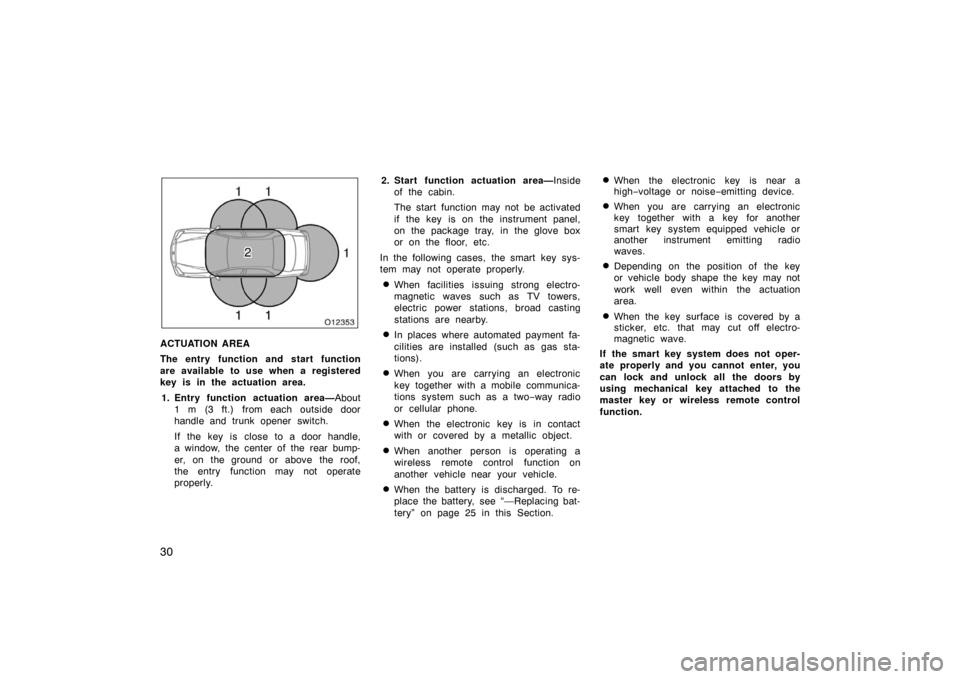

key is in the actuation area.1. Entry function actuation area— About
1 m (3 ft.) from each outside door
handle and trunk opener switch.
If the key is close to a door handle,
a window, the center of the rear bump-
er, on the ground or above the roof,
the entry function may not operate
properly. 2. Start function actuation area—
Inside
of the cabin.
The start function may not be activated
if the key is on the instrument panel,
on the package tray, in the glove box
or on the floor, etc.
In the following cases, the smart key sys-
tem may not operate properly.
When facilities issuing strong electro-
magnetic waves such as TV towers,
electric power stations, broad casting
stations are nearby.
In places where automated payment fa-
cilities are installed (such as gas sta-
tions).
When you are carrying an electronic
key together with a mobile communica-
tions system such as a two −way radio
or cellular phone.
When the electronic key is in contact
with or covered by a metallic object.
When another person is operating a
wireless remote control function on
another vehicle near your vehicle.
When the battery is discharged. To re-
place the battery, see “—Replacing bat-
tery” on page 25 in this Section.
When the electronic key is near a
high− voltage or noise −emitting device.
When you are carrying an electronic
key together with a key for another
smart key system equipped vehicle or
another instrument emitting radio
waves.
Depending on the position of the key
or vehicle body shape the key may not
work well even within the actuation
area.
When the key surface is covered by a
sticker, etc. that may cut off electro-
magnetic wave.
If the smart key system does not oper-
ate properly and you cannot enter, you
can lock and unlock all the doors by
using mechanical key attached to the
master key or wireless remote control
function.

31
STARTING THE ENGINE WHEN THE
ELECTRONIC KEY BATTERY IS
DISCHARGED
If the key indicator does not flash and
the engine cannot be started by using
the start function, the battery may be
discharged. Replace the key battery as
soon as possible. (See “—Replacing
battery” on page 25 in this Section.)However the engine can be started in the
following procedures.

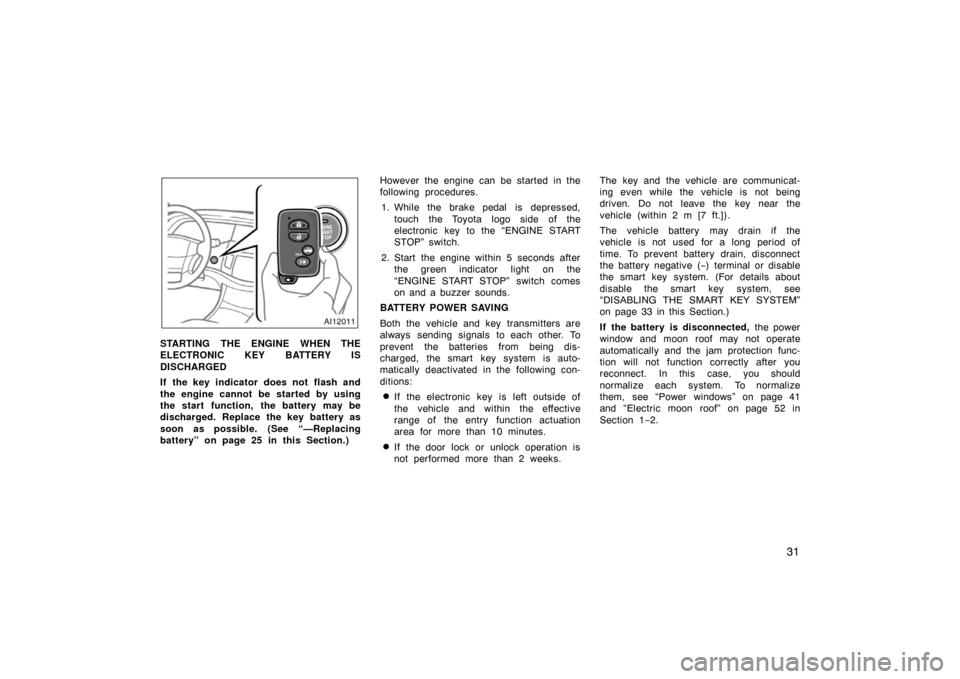

1. While the brake pedal is depressed, touch the Toyota logo side of the
electronic key to the “ENGINE START
STOP” switch.
2. Start the engine within 5 seconds after the green indicator light on the
“ENGINE START STOP” switch comes
on and a buzzer sounds.
BATTERY POWER SAVING
Both the vehicle and key transmitters are
always sending signals to each other. To
prevent the batteries from being dis-
charged, the smart key system is auto-
matically deactivated in the following con-
ditions:
If the electronic key is left outside of
the vehicle and within the effective
range of the entry function actuation
area for more than 10 minutes.
If the door lock or unlock operation is
not performed more than 2 weeks. The key and the vehicle are communicat-
ing even while the vehicle is not being
driven. Do not leave the key near the
vehicle (within 2 m [7 ft.]).
The vehicle battery may drain if the
vehicle is not used for a long period of
time. To prevent battery drain, disconnect
the battery negative (
−) terminal or disable
the smart key system. (For details about
disable the smart key system, see
“DISABLING THE SMART KEY SYSTEM”
on page 33 in this Section.)
If the battery is disconnected, the power
window and moon roof may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect. In this case, you should
normalize each system. To normalize
them, see “Power windows” on page 41
and “Electric moon roof” on page 52 in
Section 1 −2.

32
To reactivate the smart key system, per-
form any of the following:
(a) Press the lock button on the outsidefront door handle while carrying the
electronic key.
(b) Perform a wireless remote control op- eration.
(c) Insert and turn the mechanical key in the keyhole of the driver’s door.
If the electronic key receives strong elec-
tromagnetic waves over a period of time,
the battery can be drastically run down.
You should always keep the at least 1 m
(3 ft.) away from the electronic key follow-
ing electrical appliances.
TV
Personal computer
Cellular phone
Cordless phone recharger unit
Electric light stand
Fluorescent desk light For vehicles sold in U.S.A.
FCC ID: NI4TMLF1
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
