33

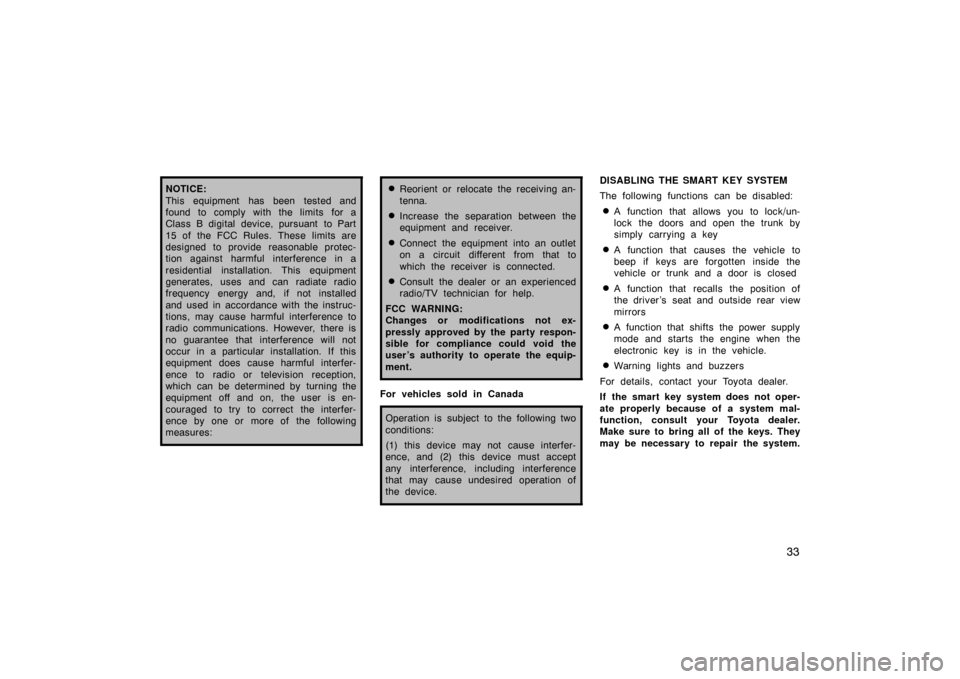

NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
DISABLING THE SMART KEY SYSTEM
The following functions can be disabled:
A function that allows you to lock/un-
lock the doors and open the trunk by
simply carrying a key
A function that causes the vehicle to
beep if keys are forgotten inside the
vehicle or trunk and a door is closed
A function that recalls the position of
the driver’s seat and outside rear view
mirrors
A function that shifts the power supply
mode and starts the engine when the
electronic key is in the vehicle.
Warning lights and buzzers
For details, contact your Toyota dealer.
If the smart key system does not oper-
ate properly because of a system mal-
function, consult your Toyota dealer.
Make sure to bring all of the keys. They
may be necessary to repair the system.

34

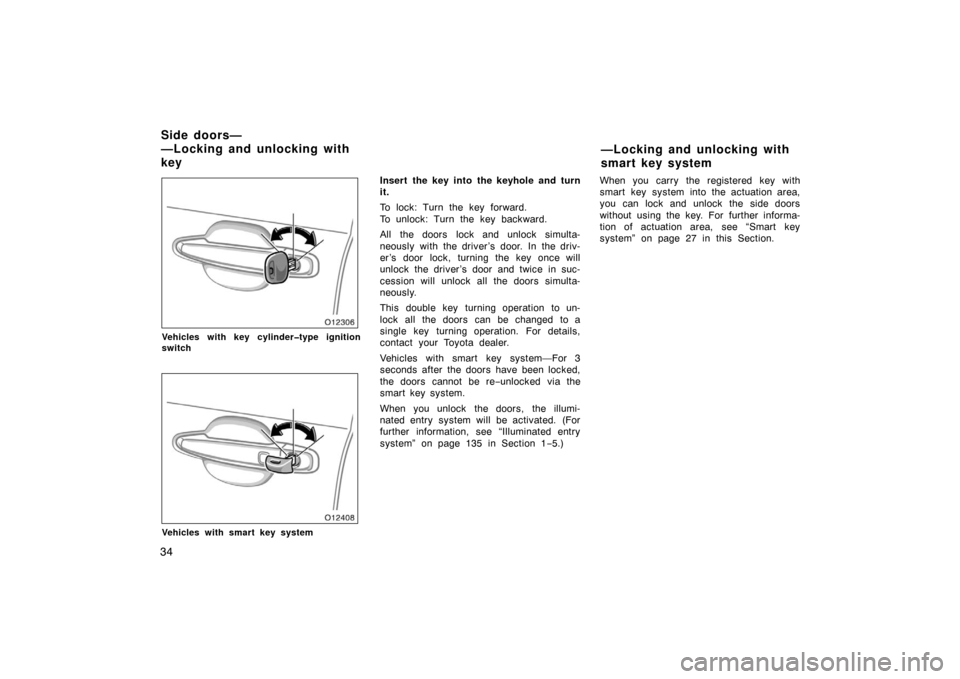

Vehicles with key cylindertype ignition
switch
Vehicles with smart key system
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with the driver ’s door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
This double key turning operation to un-
lock all the doors can be changed to a
single key turning operation. For details,
contact your Toyota dealer.
Vehicles with smart key system—For 3
seconds after the doors have been locked,
the doors cannot be re−unlocked via the
smart key system.
When you unlock the doors, the illumi-
nated entry system will be activated. (For
further information, see “Illuminated entry
system” on page 135 in Section 1 −5.) When you carry the registered key with
smart key system into the actuation area,
you can lock and unlock the side doors
without using the key. For further informa-
tion of actuation area, see “Smart key
system” on page 27 in this Section.
Side doors—
—Locking and unlocking with
key
—Locking and unlocking with
smart key system

35

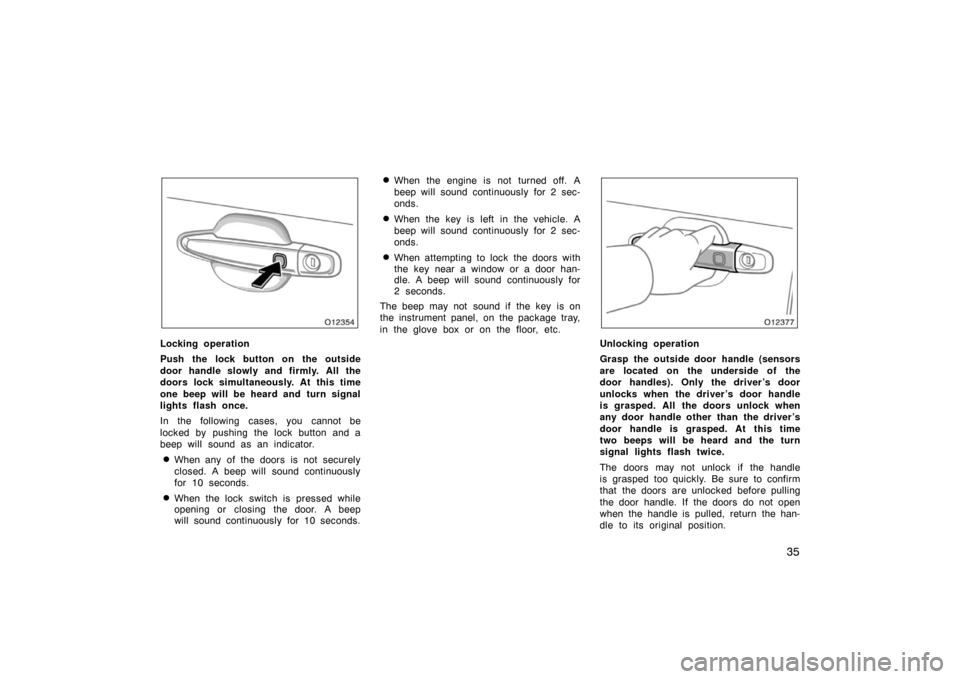

Locking operation
Push the lock button on the outside
door handle slowly and firmly. All the
doors lock simultaneously. At this time
one beep will be heard and turn signal
lights flash once.
In the following cases, you cannot be
locked by pushing the lock button and a
beep will sound as an indicator.
When any of the doors is not securely
closed. A beep will sound continuously
for 10 seconds.
When the lock switch is pressed while
opening or closing the door. A beep
will sound continuously for 10 seconds.
When the engine is not turned off. A
beep will sound continuously for 2 sec-
onds.
When the key is left in the vehicle. A
beep will sound continuously for 2 sec-
onds.
When attempting to lock the doors with
the key near a window or a door han-
dle. A beep will sound continuously for
2 seconds.
The beep may not sound if the key is on
the instrument panel, on the package tray,
in the glove box or on the floor, etc.
Unlocking operation
Grasp the outside door handle (sensors
are located on the underside of the
door handles). Only the driver ’s door
unlocks when the driver ’s door handle
is grasped. All the doors unlock when
any door handle other than the driver’s
door handle is grasped. At this time
two beeps will be heard and the turn
signal lights flash twice.
The doors may not unlock if the handle
is grasped too quickly. Be sure to confirm
that the doors are unlocked before pulling
the door handle. If the doors do not open
when the handle is pulled, return the han-
dle to its original position.

36
Wearing gloves may slow response time.
For 3 seconds after the doors have been
locked, the doors cannot be re−unlocked
via the smart key system.
When you enter the entry function actua-
tion area, the interior and exterior lights
come on for about 15 seconds. After the
lights come on, all the side doors can be
unlocked by grasping the outside door
handle.
You have 30 seconds to open a door after
using the unlocking function. If a door is
not opened by then, all the doors will be
automatically locked again.
The doors may unlock if the key is within
the entry function actuation area and a
large amount of water splashes on the
door handle (for example, in the rain or
in a car wash).
When you unlock the doors, the illumi-
nated entry system will be activated. (For
further information, see “Illuminated entry
system” on page 135 in Section 1 −5.) SELECTING DOORS TO BE UNLOCKED
WITH ENTRY FUNCTION
The unlock operation has 2 modes. To
change the mode, within 1 m (3 ft.) of
the vehicle press the lock switch and
the alarm, the trunk opener or unlock
switch simultaneously for 5 seconds.
In order to change unlock modes, the igni-
tion switch must be turned off.
Repeating this procedure allows you to
toggle between the following 2 modes:
1. Driver ’s door only (default)—In this mode, only the driver ’s door unlocks
when the driver ’s door handle is
grasped. All the doors unlock when any
door handle other than the driver ’s
door handle is grasped. When the set-
ting is complete, you will hear two
beeps. 2. All doors—In this mode, all doors (ex-
cept the trunk) unlocks when any of
the door handles is grasped. When the
setting is complete, you will hear two
beeps.
After the mode change operation is com-
plete, wait 5 seconds before repeating the
operation.

37

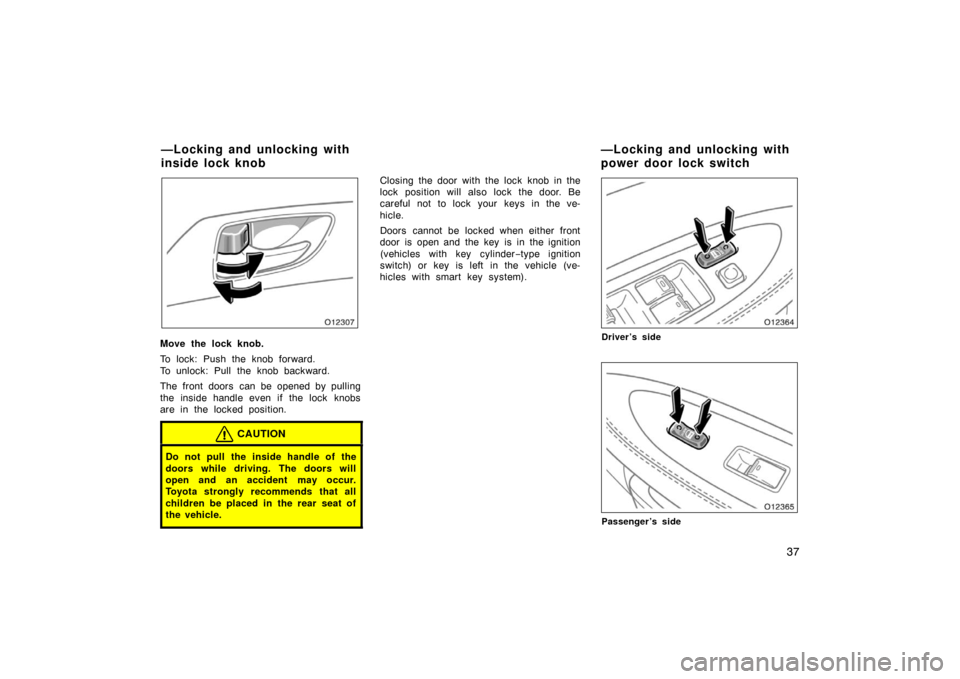

Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
doors while driving. The doors will
open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked when either front
door is open and the key is in the ignition
(vehicles with key cylinder−type ignition
switch) or key is left in the vehicle (ve-
hicles with smart key system).
Driver’s side
Passenger’s side
—Locking and unlocking with
inside lock knob —Locking and unlocking with
power door lock switch

38
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the doors lock or unlock simultaneous-
ly.
When the front doors are locked from the
outside or locked with the wireless remote
control transmitter, the power door lock
switch will not work until either front door
is unlocked with the key, lock knob, or
wireless remote control transmitter.
If the vehicle is subjected to a severe
frontal, rear or side impact with the igni-
tion switch set at ON, all doors will unlock
automatically after a few seconds.AUTOMATIC DOOR LOCKING
You can select the following functions:
Locking linked with the shift position
All doors are automatically locked when
the selector lever is moved out of “P”
position.
Locking linked with vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
You can set or cancel the automatic
door locking functions:
Be sure to apply the parking brake when
performing the following operations. To select the locking linked with the
shift position:
1. Close all doors and turn the ignition switch to ON.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the igni- tion switch to ON, press and hold the
driver’s side power door lock switch in
the lock position for 5 seconds and
then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
—Automatic door locking and
unlocking functions

39
To select the locking linked with the
vehicle speed:1. Close all doors and turn the ignition switch to ON.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion switch to ON, press and hold the
driver’s side power door lock switch in
the lock position for 5 seconds and
then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again. AUTOMATIC DOOR UNLOCKING
You can select the following functions:
Unlocking linked with the shift posi-
tion
All doors are automatically unlocked
when the selector lever is moved to
“P” position.
Unlocking linked with the ignition
switch
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the ignition switch is
set from ON to ACC or OFF.
You can set or cancel the automatic
door unlocking functions:
Be sure to apply the parking brake when
performing the following operations. To select the unlocking linked with the
shift position:
1. Close all doors and turn the ignition switch to ON.
2. Shift the selector lever to the “P” posi- tion.
3. Within 10 seconds of turning the igni- tion switch to ON, press and hold the
driver’s side power door lock switch in
the unlock position for 5 seconds and
then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.

40
To select the unlocking linked with the
ignition switch:1. Close all doors and turn the ignition switch to ON.
2. Shift the selector lever from “P” to the “N” position.
3. Within 10 seconds of turning the igni- tion switch to ON, press and hold the
driver’s side power door lock switch in
the unlock position for 5 seconds and
then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
Move the lock knob to the “LOCK”
position as shown on the label.
When the child −protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
—Rear door childprotectors

41

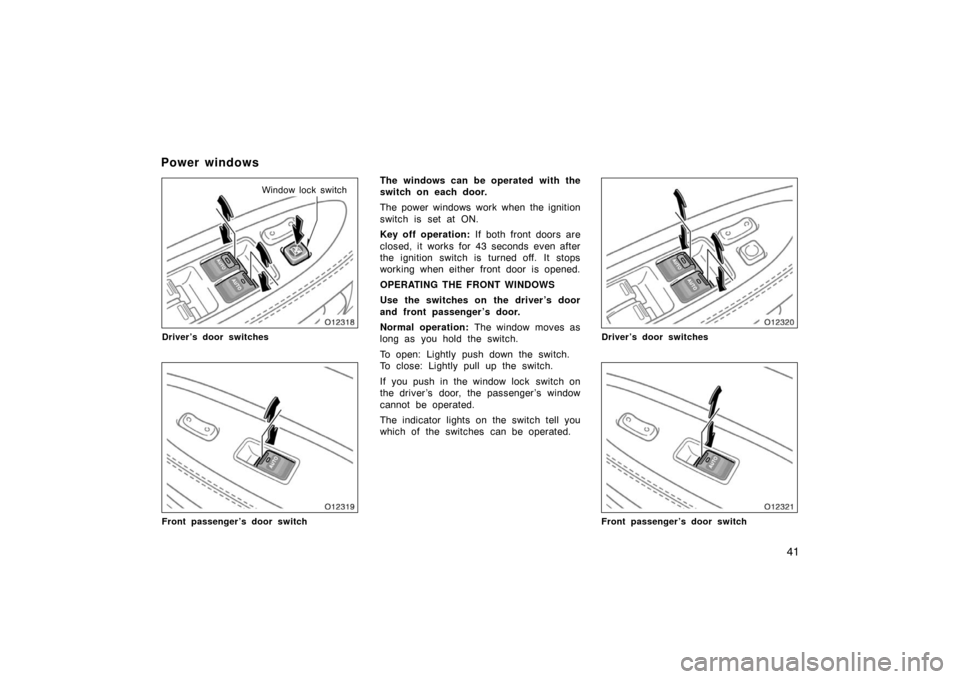

Window lock switch
Driver’s door switches
Front passenger’s door switch
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is set at ON.
Key off operation: If both front doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either front door is opened.
OPERATING THE FRONT WINDOWS
Use the switches on the driver’s door
and front passenger ’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
The indicator lights on the switch tell you
which of the switches can be operated.
Driver’s door switches
Front passenger’s door switch
Power windows

42
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
If you push in the window lock switch on
the driver ’s door, the front passenger ’s
window cannot be operated.
The indicator lights on the switch tell you
which of the switches can be operated.
Jam protection function: If something
gets caught between the window and win-
dow frame, during automatic closing op-
eration or key off closing operation, the
window stops and opens half way.
If the window receives a strong impact,
this function may work even if nothing is
caught. If the power window does not operate
automatically or the jam protection
function does not operate correctly, you
should normalize the power window.
To normalize the power window:
1. Push down the power window switches of each front door and lower the win-
dows halfway.
2. Pull up the switches until the windows close and hold the switches for 1 sec-
ond.
Make sure that the windows open and
close automatically. If the power windows
cannot be operated properly, have it

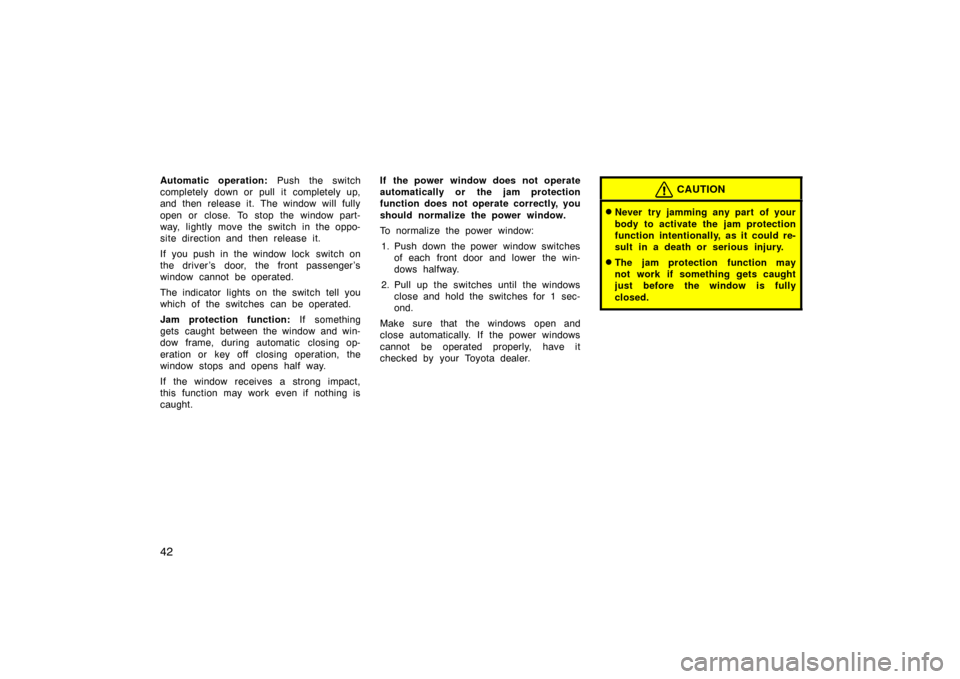

checked by your Toyota dealer.CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
