TOYOTA AVALON 2007 XX30 / 3.G Quick Reference Guide

17 16
FEATURES/OPERATIONS
Audio
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Audio operation screen
Type 3 additional functions
Mode Eject CD
Push to turn
ON/OFFPush to adjust tone &
balance1
Preset buttons - functions in other
modes indicated above number.
Seek stationCD Track select
View CD
text Station/CD
track scan
Select radio
station/CD track
(Type 2 & 3)
Load CD(s)
Select disc
Select disc. View genre with
RDS system.
View radio and CD text
Cassette tape player*
Push
Traffic
information
*
*Type 2 additional functions
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
RDS (Radio Data System-FM only)(Type 3 only)
-Push DISC/TYPE “ ” or “ ” to view current program genre. Push again
within 6 seconds to select new genre.
-Push “SEEK/TRACK” or “SCAN” to find same genre programs.
-Push “TEXT” to receive information transmitted from radio stations.
>>
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD Changer (Type 2 & 3)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Wait until the green indicator illuminates and shutter
opens to insert next disc.
CASSETTE TAPE PLAYER (if equipped)
To fast forward Push “ .”
To rewind Push “ .”
1The mode changes with each push in succession from Bass, Midrange
(Type 3 only), Treble, Fade, Balance. Turn the knob right or left to adjust
each mode.
* If equipped
Ty p e 1

19 18
FEATURES/OPERATIONS
Steering wheel switches
Sunshade-Rear (if equipped)
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat ventilators/heaters (if equipped)
Moonroof (if equipped)
Volume control
“Mode” 2
“”1vv
A/C control Audio control
Temperature selector
Auto A/C ON/OFF
A/C OFF
1
“”
-In radio modePush to select a preset station; push and hold to seek the
next strong station.
-In tape mode
*Push to skip up or down to next/previous track; push
and hold to fast forward or reverse.
-In CD modePush to skip up or down to next/previous track.
2“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system “OFF.”
*If equipped
Heater only
With ventilators
Push knob to pop the controller out. Turn clockwise for heater, counter
clockwise for ventilator.
Sliding operationTilting operation
NOTE:If battery is disconnected, the moonroof needs to be reinitialized.
Refer to the Owner’s Manualfor more details.
Open
CloseCloseTilt
Push
NOTE:Sunshade will automatically go down when vehicle is shifted into
reverse. To raise again, push the button.
Cruise control
Functions
System
ON/OFF
Set/Decrease
speed Resume
2/
Increase speed
Cancel1
1The set speed may also be cancelled by depressing the brake pedal.2If vehicle speed falls below 25 mph, the set speed will not be resumed.
Refer to the Owner’s Manualfor more details.
Turning system ON/OFF
vvRecommended
driving position
to minimize
wind noise.
Door locks
LockUnlock
PushTu r nPush Turn

2021
FEATURES/OPERATIONS
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Light control-Instrument panel
Distance control mode will cruise at a set speed, decelerate to maintain
selected distance from a slower vehicle in front of you, and accelerate
back up to the selected speed if the vehicle in front of you changes lanes
or speeds up.
To select distance control modePush the ON-OFF button. The
“READY” and “CRUISE” indicator lights will come on.
To set, cancel and resume a speed Refer to instructions for Cruise
Controlon the previous page.
Note:Once vehicle speed is set, pushing lever up toward “+ RES” will
increase speed to the nearest 5 mph, and then in 5 mph increments.
Pushing lever down toward “- SET” will reduce speed in the same way.
LONG
MIDDLE
SHORT
To change the vehicle-to-vehicle distance
Pull the distance switch briefly toward you; the setting changes
progressively from LONG to MIDDLE to SHORT.
With the knob turned fully
clockwise, instrument panel
lights will not dim when the
headlights are turned ON.
+Brightness
control
-
Auxiliary box (12V)Console box (12V)
Cup holders
Power outlets
RearRear with console box
NOTE: Designed for car accessories. Ignition/Engine switch must be in the
“ACC” or “ON” position to be used.
Front
Dynamic Laser Cruise Control (if equipped)
To select conventional/fixed speed controlPush the ON-OFF button.
Push the lever forward and hold until the “NORM.” indicator appears.
To set, cancel and resume a speed Refer to instructions for Cruise
Controlabove.
Fixed speed mode
Refer to the Owner’s Manualfor more details and complete safety
precautions before attempting to use “Dynamic Laser Cruise Control.”
Distance control mode
(1)
(1) (2)
(2)
(3)

23
SAFETY AND
EMERGENCY FEATURES
22
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks
Seat belts
Seat belts-Shoulder belt anchor
Seat belt comfort guide
Trunk-Internal release
If belt is fully extended, then retracted even slightly, it cannot be re-
extended beyond that point, unless fully retracted again. This feature is
used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
Moving the lever to “LOCK”
will allow the door to be
opened only from the
outside.Rear seat outside position guides provide added comfort for children who
have outgrown child restraints.
Push up, or squeeze
lock release to lower
Spare tire & tools
Tool location
Removing the spare tire
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Jack handle
Wheel nut wrench
Jack
Spare tire
Pull
Too high
Loosen and remove the nut.
Remove the spare tire cover.
Loosen and remove the bolt.
Remove the spacer.
Rear door
Tire Pressure Warning System reset
If tire pressure becomes critically low on any of the tires (including full-
size spare/excluding compact spare), indicator comes on. Pushing “SET”
button should not turn off the light. Correctly adjusting tire inflation will
turn off the light after a few minutes. After replacing/rotating tire or
wheels, push and hold “SET” button until the indicator light blinks 3 times.

Now that you’re the proud owner of a new Toyota vehicle, you
may have questions about some of its controls and features. This
interactive iGuide is filled with easy-to-understand explanations of
all its key components. Full of helpful demonstrations and tips, its
user-friendly format makes learning all about your new vehicle fun
and easy. (There’s even a copy of your Owner’s Manual on the CD.)
For added convenience, you can also access all of this information as
well as links to additional sources, by going to www.toyotaiguide.com.
Of course, your Toyota dealer is always there to help you with quality
service and support. For additional assistance, please call our toll-free
customer number at 1-800-331-4331.
Thank you for choosing Toyota. We hope this iGuide will help you enjoy
many years of safe and pleasant driving.
Note: All of the information contained in this iGuideand more is also available atwww.toyotaiguide.com.
The Answers to Your Questions
Are Just a Click Away.

2007
Avalon

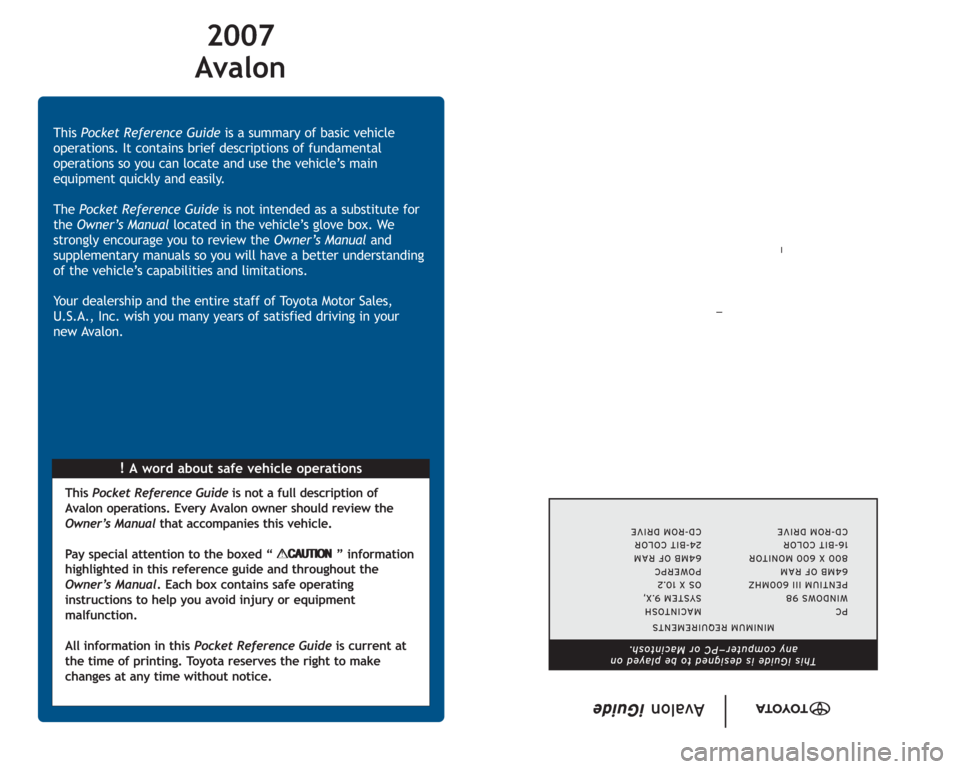

!A word about safe vehicle operations This Pocket Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guideis not intended as a substitute for
theOwner’s Manual located in the vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better understanding
of the vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Avalon.
This Pocket Reference Guideis not a full description of
Avalon operations. Every Avalon owner should review the
Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed “ ” information
highlighted in this reference guide and throughout the
Owner’s Manual. Each box contains safe operating
instructions to help you avoid injury or equipment
malfunction.
All information in this Pocket Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
Avalon iGuide
PC
WINDOWS 98
PENTIUM III 600MHZ
64MB OF RAM
800 X 600 MONITOR
16-BIT COLOR
CD-ROM DRIVEMACINTOSH
SYSTEM 9.X,
OS X 10.2
POWERPC
64MB OF RAM
24-BIT COLOR
CD-ROM DRIVE MINIMUM REQUIREMENTS
This iGuide is designed to be played on
any computer—PC or Macintosh.
