TOYOTA AVALON 2009 XX30 / 3.G Owners Manual

281
3-6. Other interior features
3
Interior features
AVALON_U_OM41430U

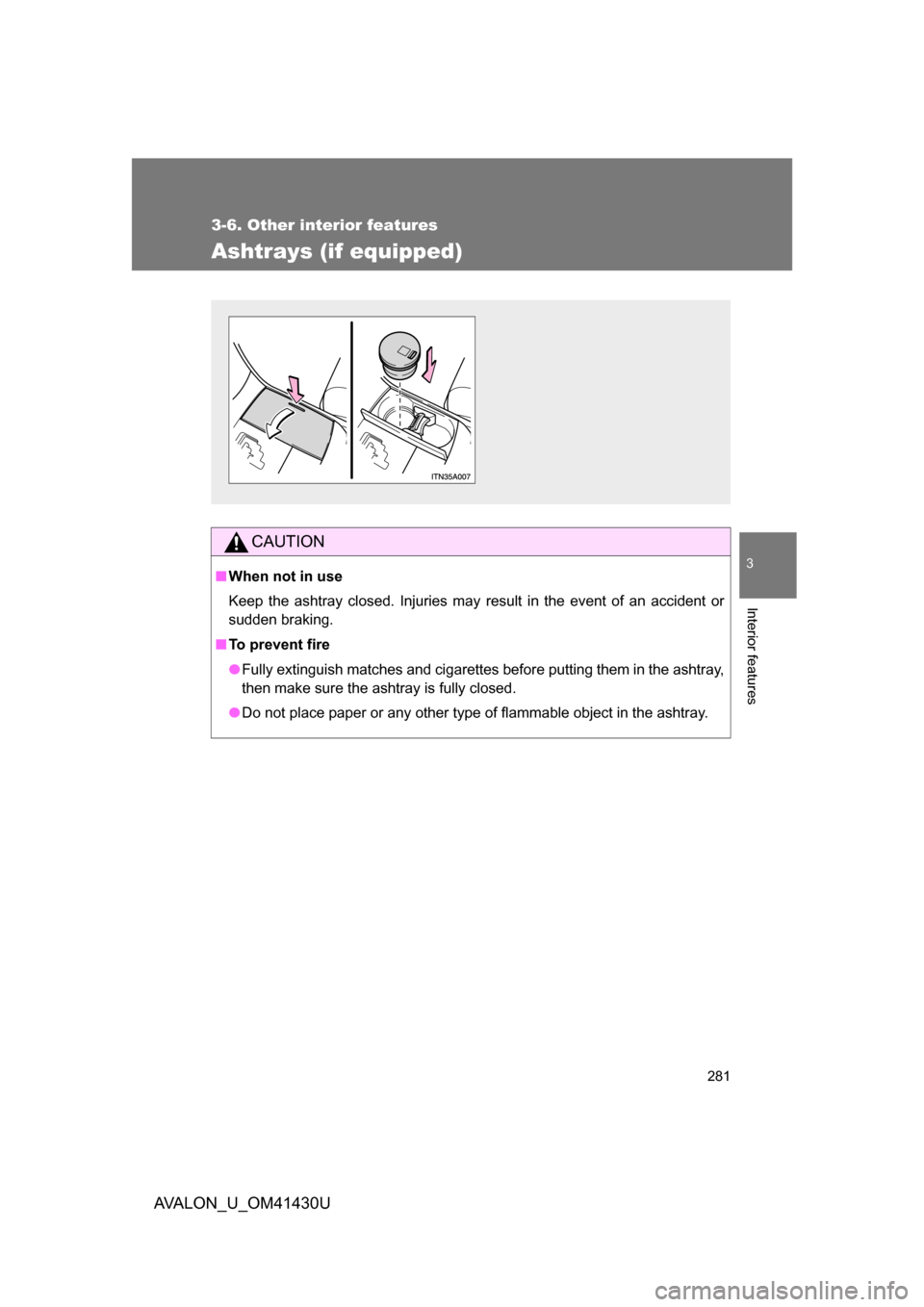

Ashtrays (if equipped)
CAUTION
■When not in use
Keep the ashtray closed. Injuries may result in the event of an accident or
sudden braking.
■ To prevent fire
● Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.

282
3-6. Other interior features
AVALON_U_OM41430U

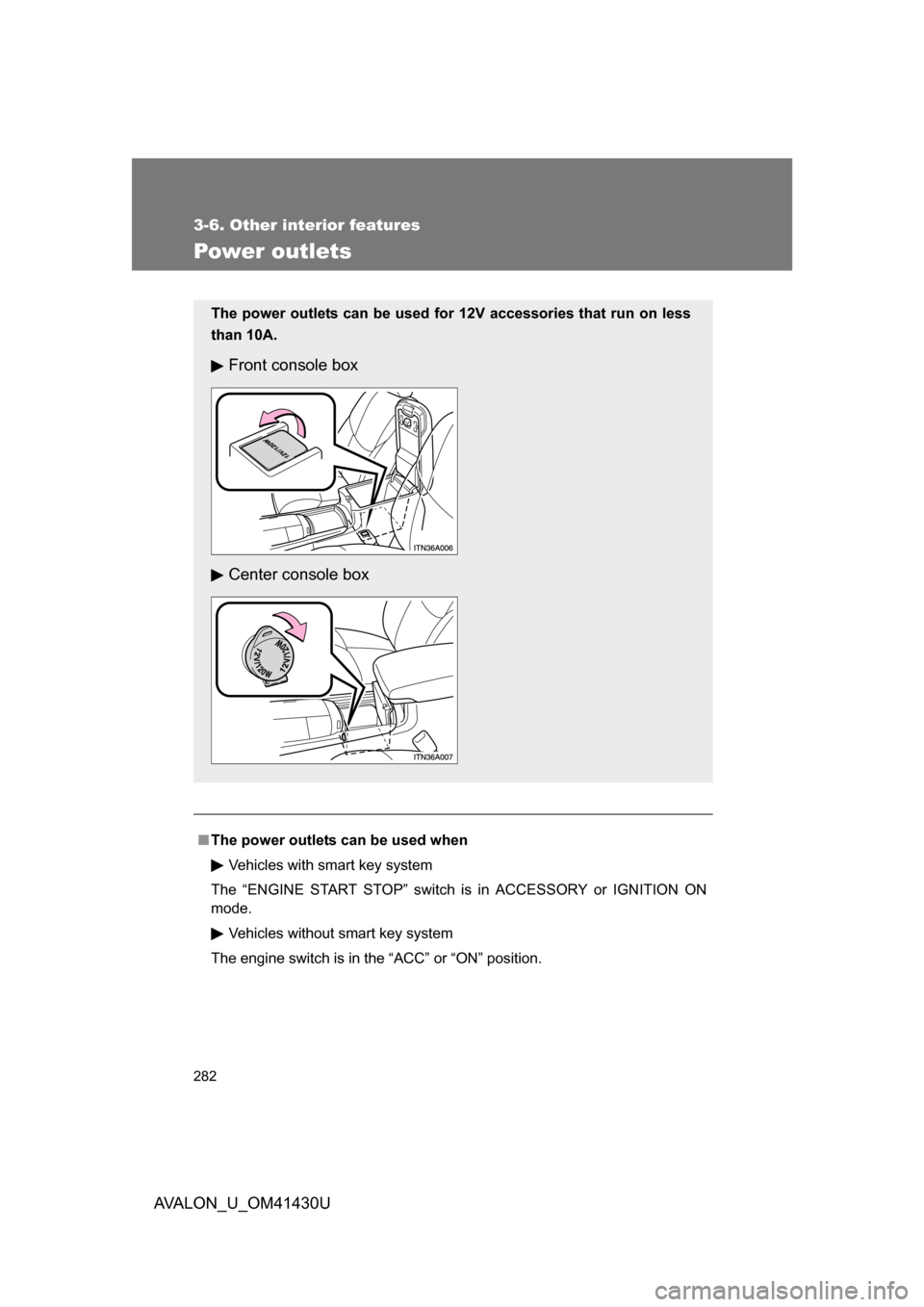

Power outlets
■The power outlets can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode. Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
The power outlets can be used fo r 12V accessories that run on less
than 10A.
Front console box
Center console box

283
3-6. Other interior features
3
Interior features
AVALON_U_OM41430U

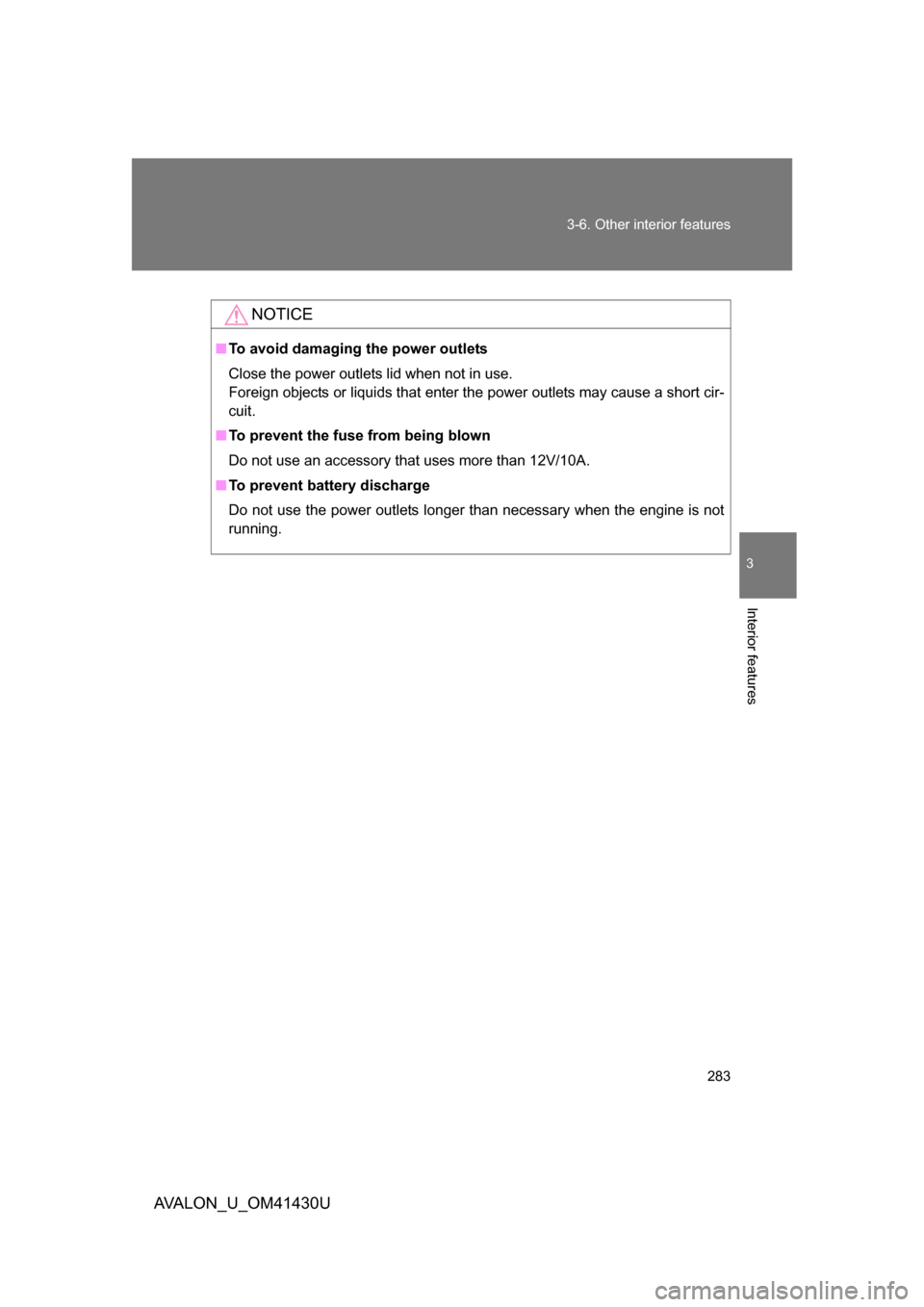

NOTICE
■
To avoid damaging the power outlets
Close the power outlets lid when not in use.
Foreign objects or liquids that enter the power outlets may cause a short cir-
cuit.
■ To prevent the fuse from being blown
Do not use an accessory that uses more than 12V/10A.
■ To prevent battery discharge
Do not use the power outlets longer than necessary when the engine is not
running.

284
3-6. Other interior features
AVALON_U_OM41430U

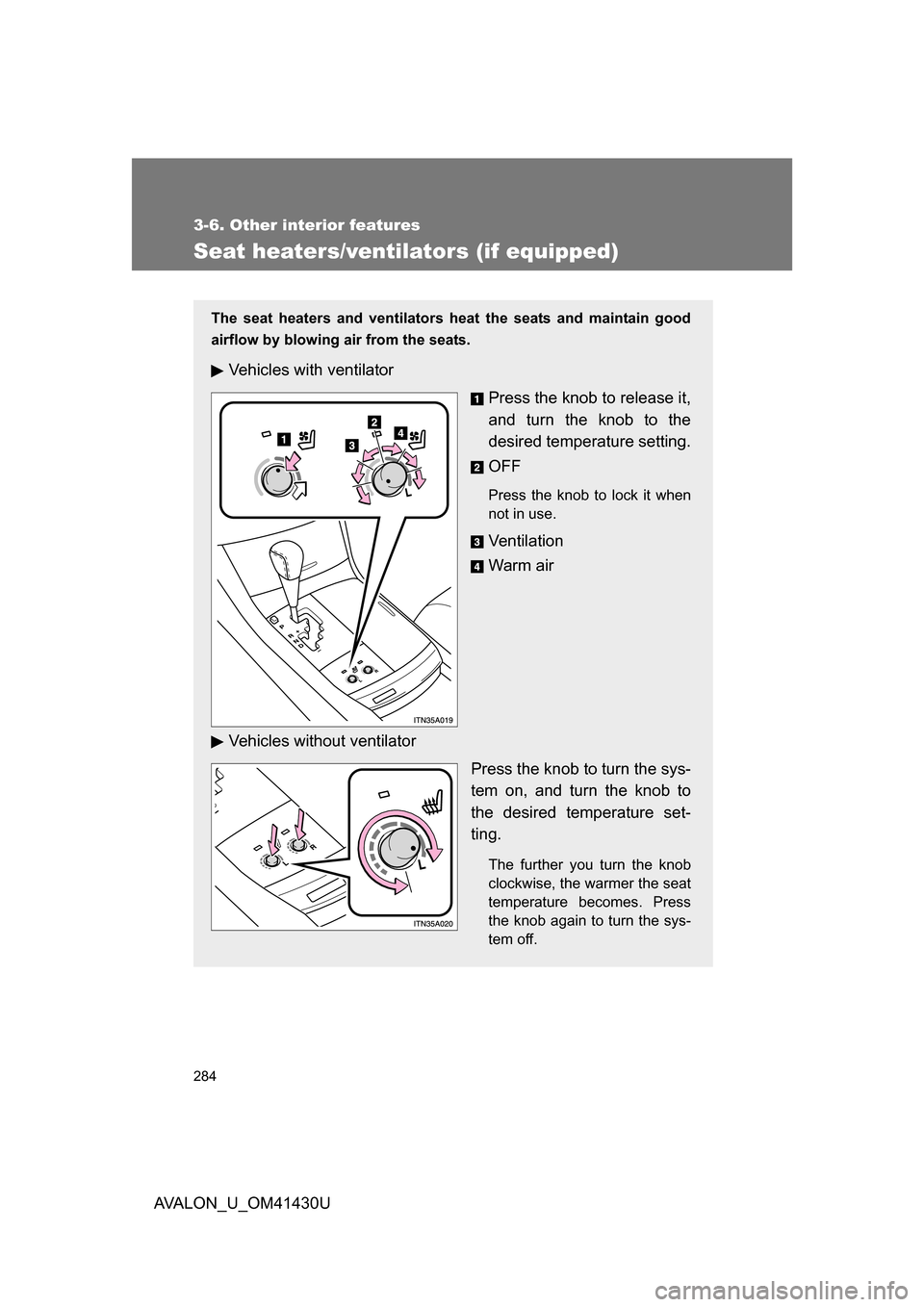

Seat heaters/ventilators (if equipped)
The seat heaters and ventilators heat the seats and maintain good
airflow by blowing air from the seats.
Vehicles with ventilatorPress the knob to release it,
and turn the knob to the
desired temperature setting.
OFF
Press the knob to lock it when
not in use.
Ve n t i l a t i o n
Warm air
Vehicles without ventilator Press the knob to turn the sys-
tem on, and turn the knob to
the desired temperature set-
ting.
The further you turn the knob
clockwise, the warmer the seat
temperature becomes. Press
the knob again to turn the sys-
tem off.

285
3-6. Other interior features
3
Interior features
AVALON_U_OM41430U
■

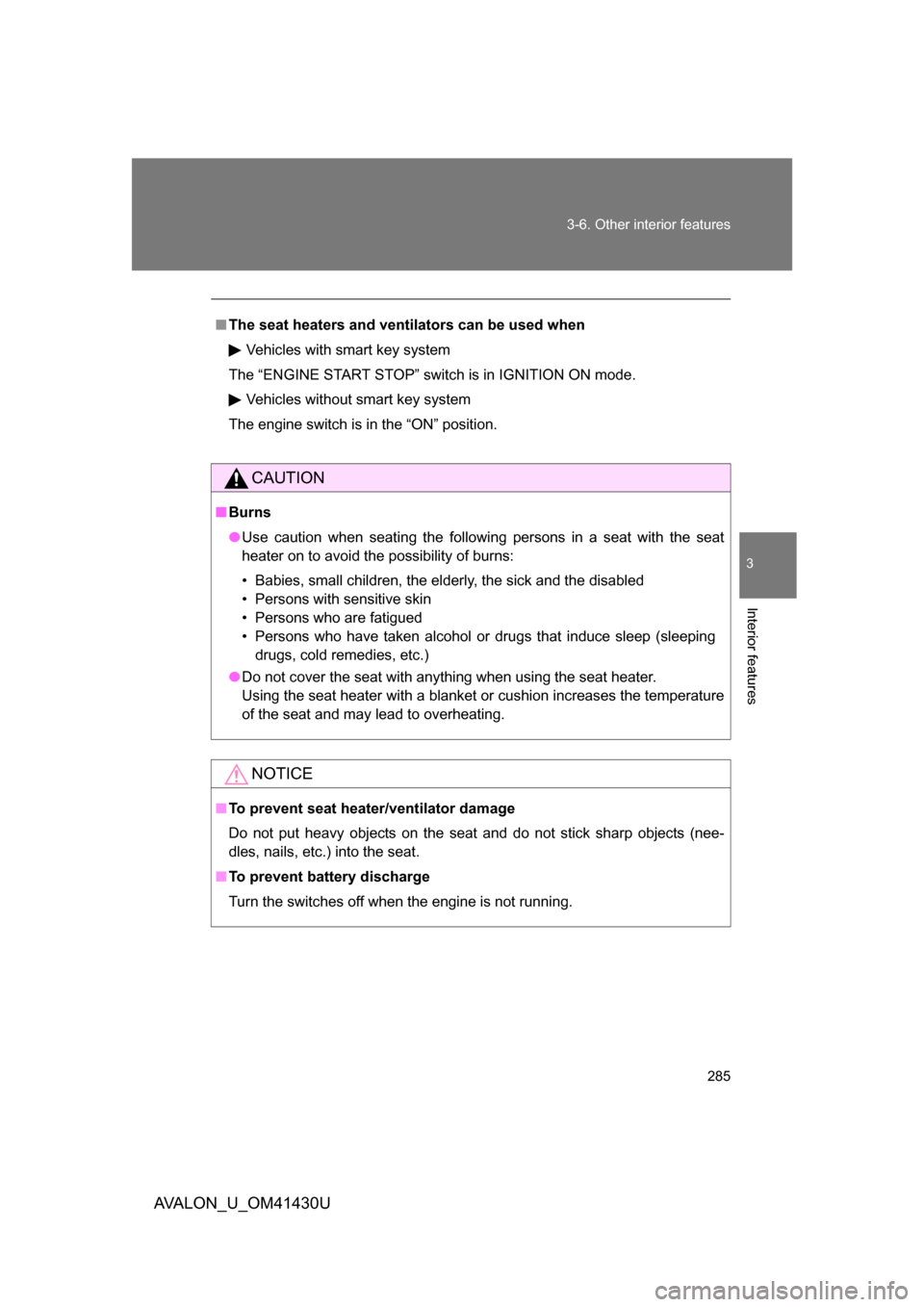

The seat heaters and ventilators can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode. Vehicles without smart key system
The engine switch is in the “ON” position.
CAUTION
■ Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater/ventilator damage
Do not put heavy objects on the seat and do not stick sharp objects (nee-
dles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

286
3-6. Other interior features
AVALON_U_OM41430U

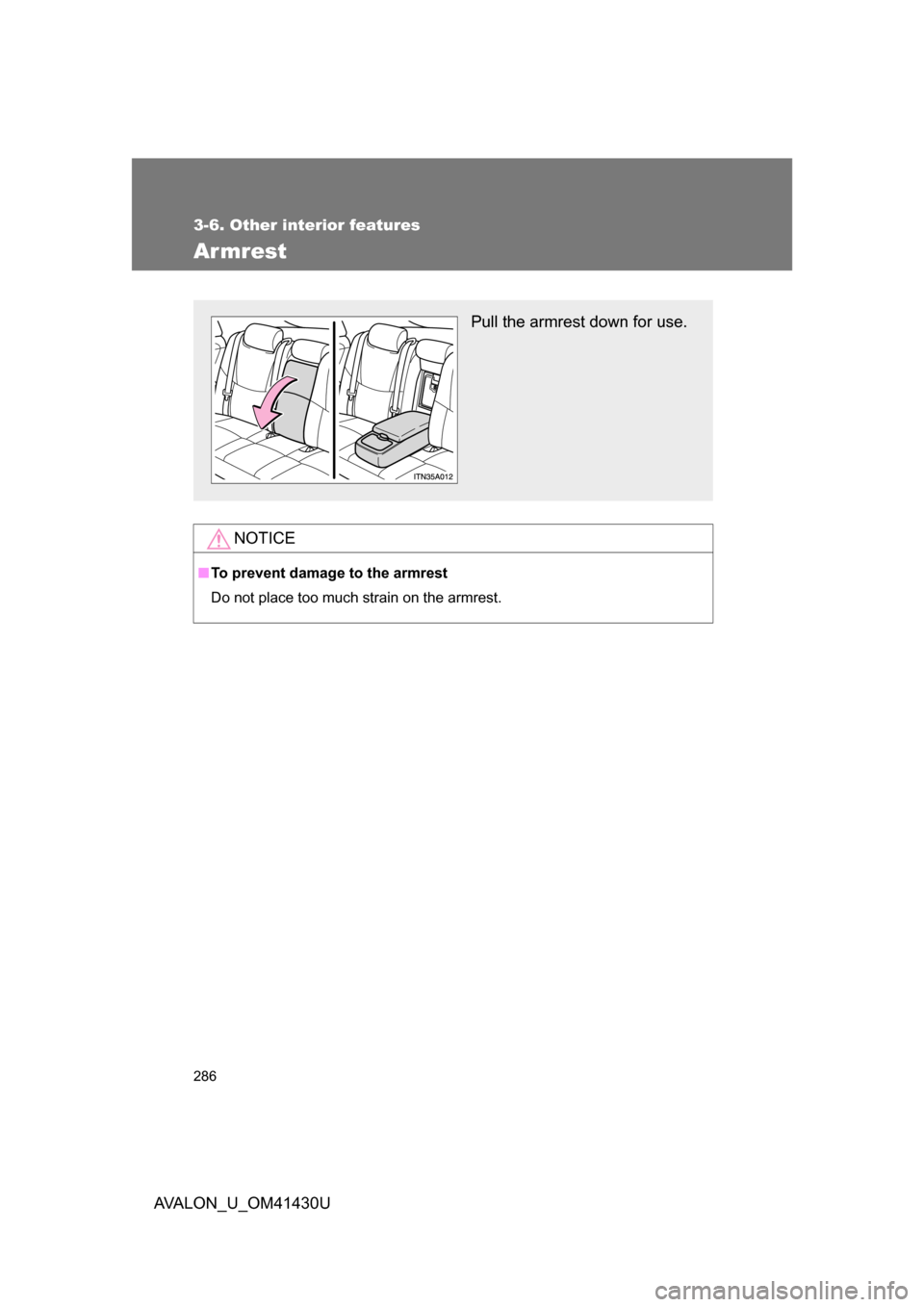

Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.

287
3-6. Other interior features
3
Interior features
AVALON_U_OM41430U

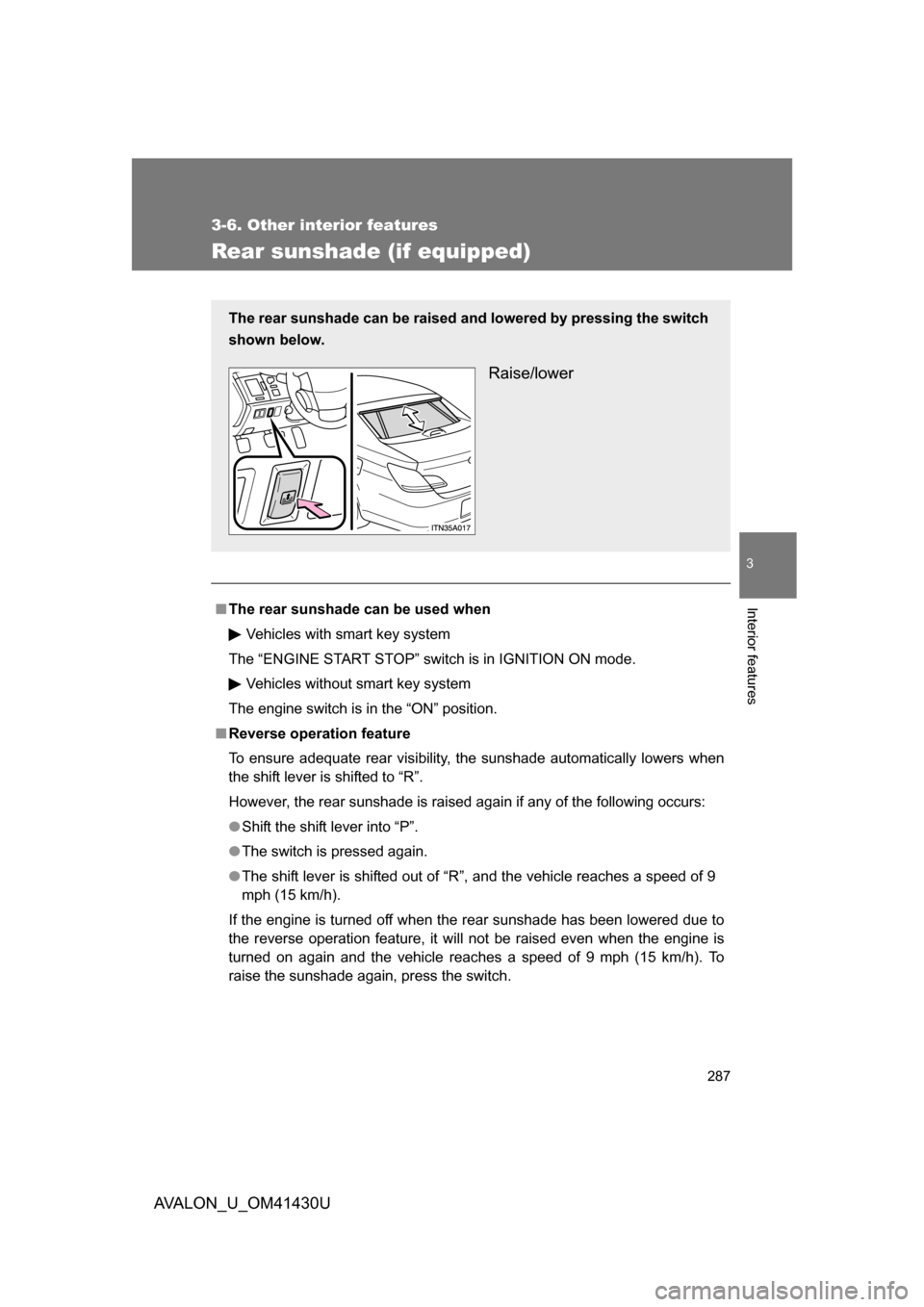

Rear sunshade (if equipped)
■The rear sunshade can be used when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode. Vehicles without smart key system
The engine switch is in the “ON” position.
■ Reverse operation feature
To ensure adequate rear visibility, the sunshade automatically lowers when
the shift lever is shifted to “R”.
However, the rear sunshade is raised again if any of the following occurs:
● Shift the shift lever into “P”.
● The switch is pressed again.
● The shift lever is shifted out of “R”, and the vehicle reaches a speed of 9
mph (15 km/h).
If the engine is turned off when the rear sunshade has been lowered due to
the reverse operation feature, it will not be raised even when the engine is
turned on again and the vehicle reaches a speed of 9 mph (15 km/h). To
raise the sunshade again, press the switch.
The rear sunshade can be raised and lowered by pressing the switch
shown below.
Raise/lower

288 3-6. Other interior features
AVALON_U_OM41430U

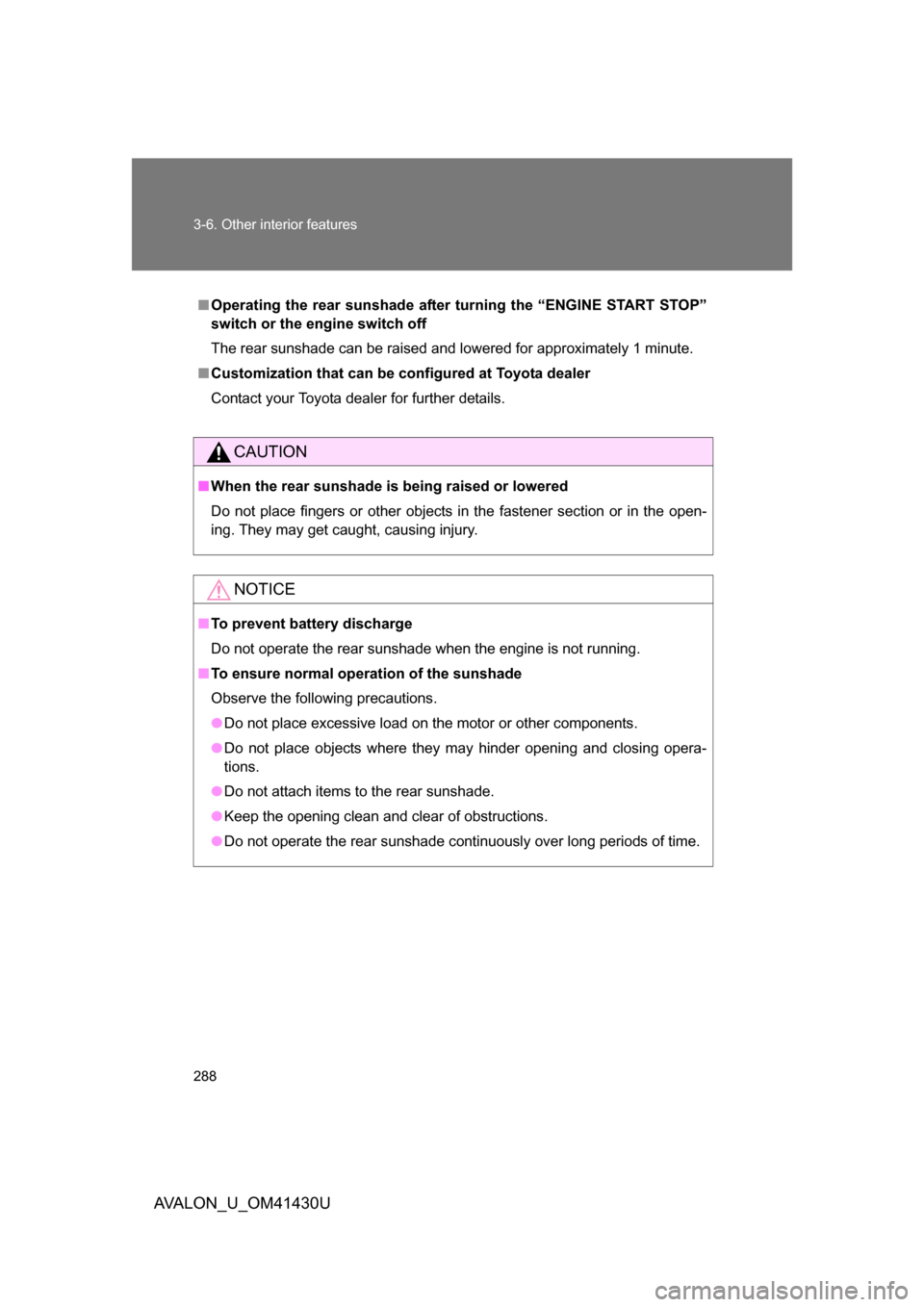

■Operating the rear sunshade afte r turning the “ENGINE START STOP”
switch or the engine switch off
The rear sunshade can be raised and lowered for approximately 1 minute.
■ Customization that can be co nfigured at Toyota dealer
Contact your Toyota dealer for further details.
CAUTION
■ When the rear sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the open-
ing. They may get caught, causing injury.
NOTICE
■To prevent battery discharge
Do not operate the rear sunshade when the engine is not running.
■ To ensure normal operation of the sunshade
Observe the following precautions.
● Do not place excessive load on the motor or other components.
● Do not place objects where they may hinder opening and closing opera-
tions.
● Do not attach items to the rear sunshade.
● Keep the opening clean and clear of obstructions.
● Do not operate the rear sunshade continuously over long periods of time.

289
3-6. Other interior features
3
Interior features
AVALON_U_OM41430U

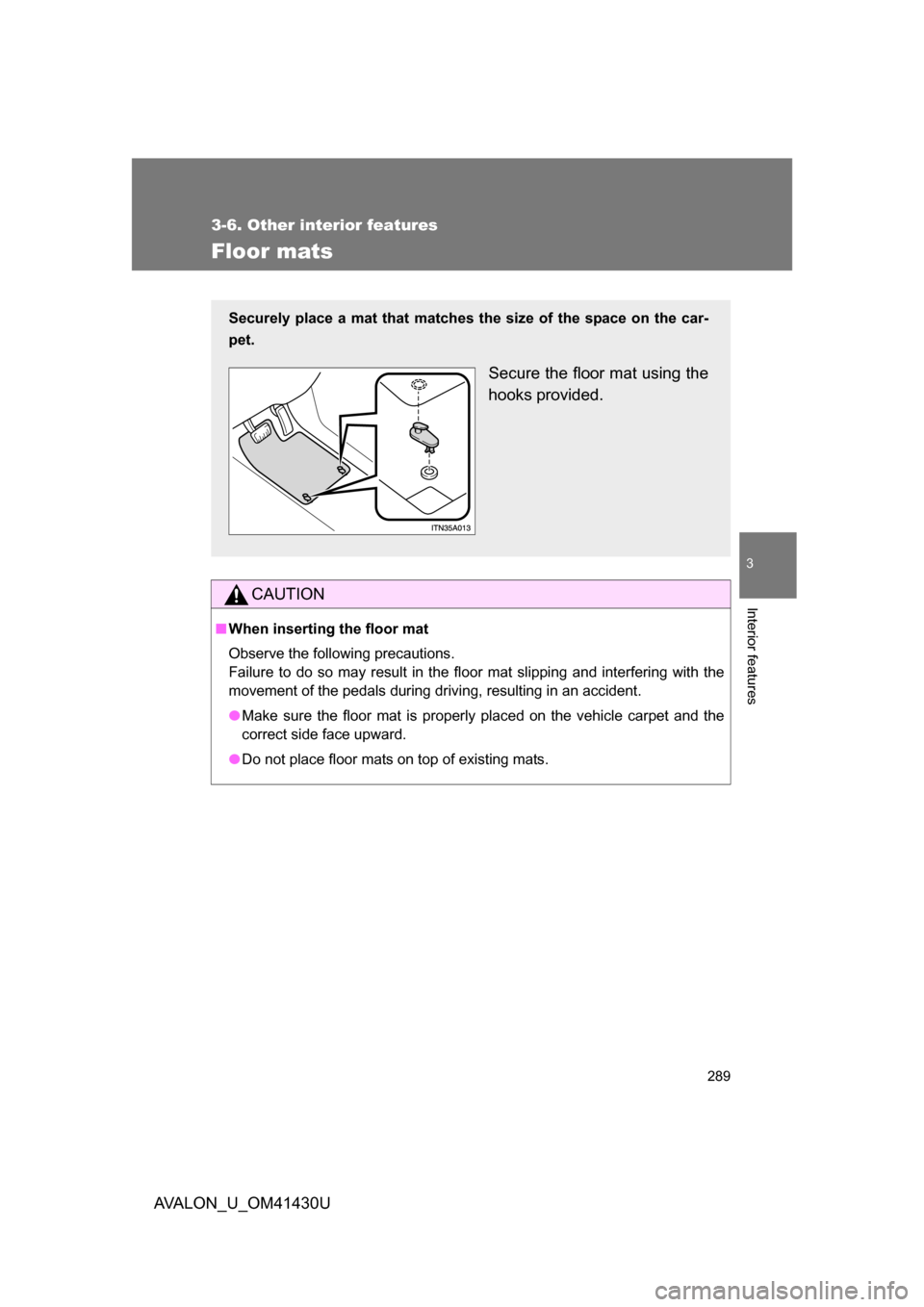

Floor mats
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
● Make sure the floor mat is properly placed on the vehicle carpet and the
correct side face upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the floor mat using the
hooks provided.

290
3-6. Other interior features
AVALON_U_OM41430U

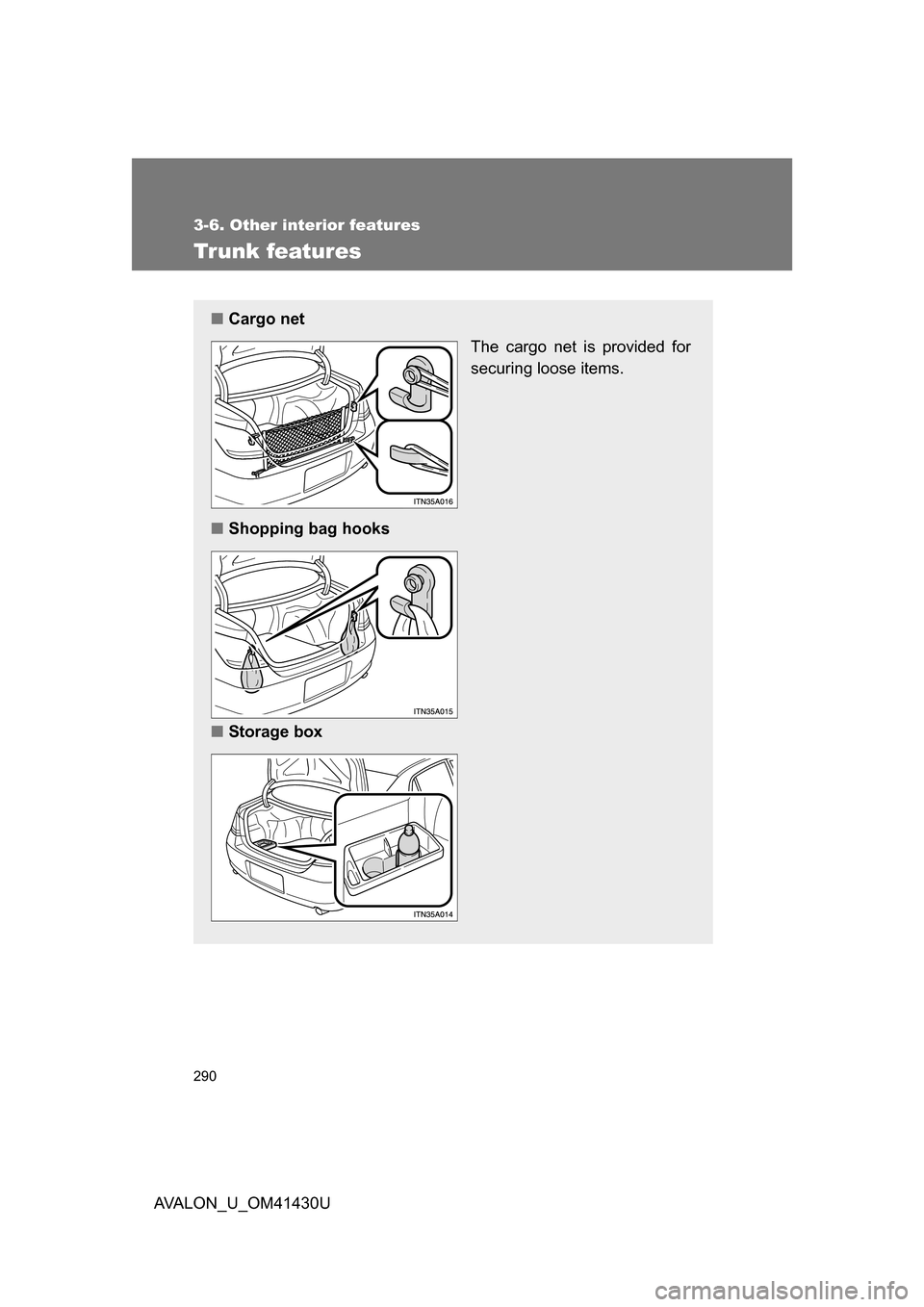

Trunk features
■Cargo net
The cargo net is provided for
securing loose items.
■ Shopping bag hooks
■ Storage box
