TOYOTA AVALON 2009 XX30 / 3.G Owners Manual

4
Maintenance and care
361
4-3. Do-it-yourself maintenance
AVALON_U_OM41430U

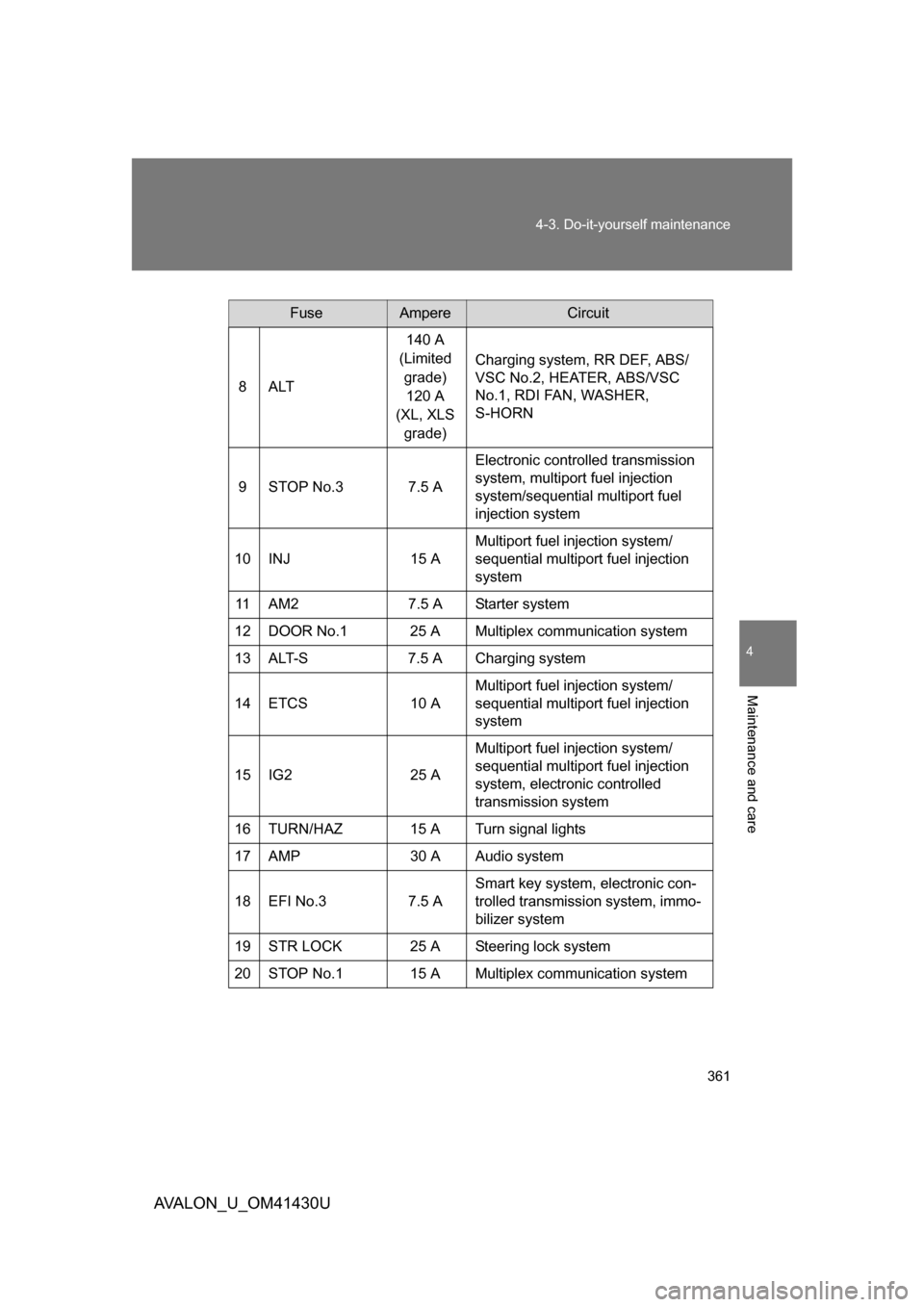

FuseAmpereCircuit
8ALT 140 A
(Limited
grade)120 A
(XL, XLS grade) Charging system, RR DEF, ABS/
VSC No.2, HEATER, ABS/VSC
No.1, RDI FAN, WASHER,
S-HORN
9 STOP No.3 7.5 A Electronic controlled transmission
system, multiport fuel injection
system/sequential multiport fuel
injection system
10 INJ 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
11 AM2 7.5 A Starter system
12 DOOR No.1 25 A Multiplex communication system
13 ALT-S 7.5 A Charging system
14 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
15 IG2 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, electronic controlled
transmission system
16 TURN/HAZ 15 A Turn signal lights
17 AMP 30 A Audio system
18 EFI No.3 7.5 A Smart key system, electronic con-
trolled transmission system, immo-
bilizer system
19 STR LOCK 25 A Steering lock system
20 STOP No.1 15 A Multiplex communication system

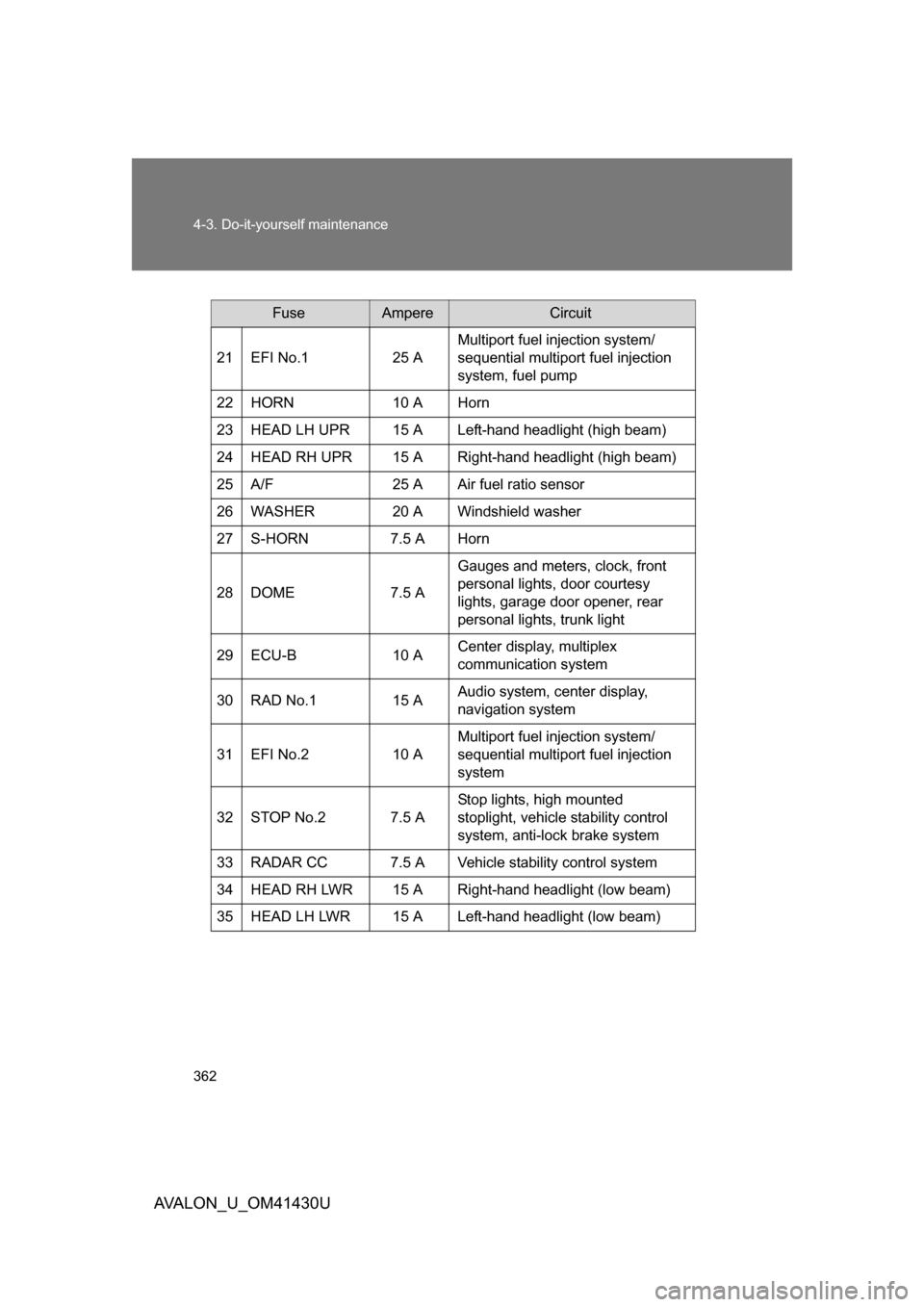

362 4-3. Do-it-yourself maintenance
AVALON_U_OM41430U
FuseAmpereCircuit
21 EFI No.1 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, fuel pump
22 HORN 10 A Horn
23 HEAD LH UPR 15 A Left-hand headlight (high beam)
24 HEAD RH UPR 15 A Right-hand headlight (high beam)
25 A/F 25 A Air fuel ratio sensor
26 WASHER 20 A Windshield washer
27 S-HORN 7.5 A Horn
28 DOME 7.5 A Gauges and meters, clock, front
personal lights, door courtesy
lights, garage door opener, rear
personal lights, trunk light
29 ECU-B 10 A Center display, multiplex
communication system
30 RAD No.1 15 A Audio system, center display,
navigation system
31 EFI No.2 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
32 STOP No.2 7.5 A Stop lights, high mounted
stoplight, vehicle stability control
system, anti-lock brake system
33 RADAR CC 7.5 A Vehicle stability control system
34 HEAD RH LWR 15 A Right-hand headlight (low beam)
35 HEAD LH LWR 15 A Left-hand headlight (low beam)

4
Maintenance and care
363
4-3. Do-it-yourself maintenance
AVALON_U_OM41430U
■

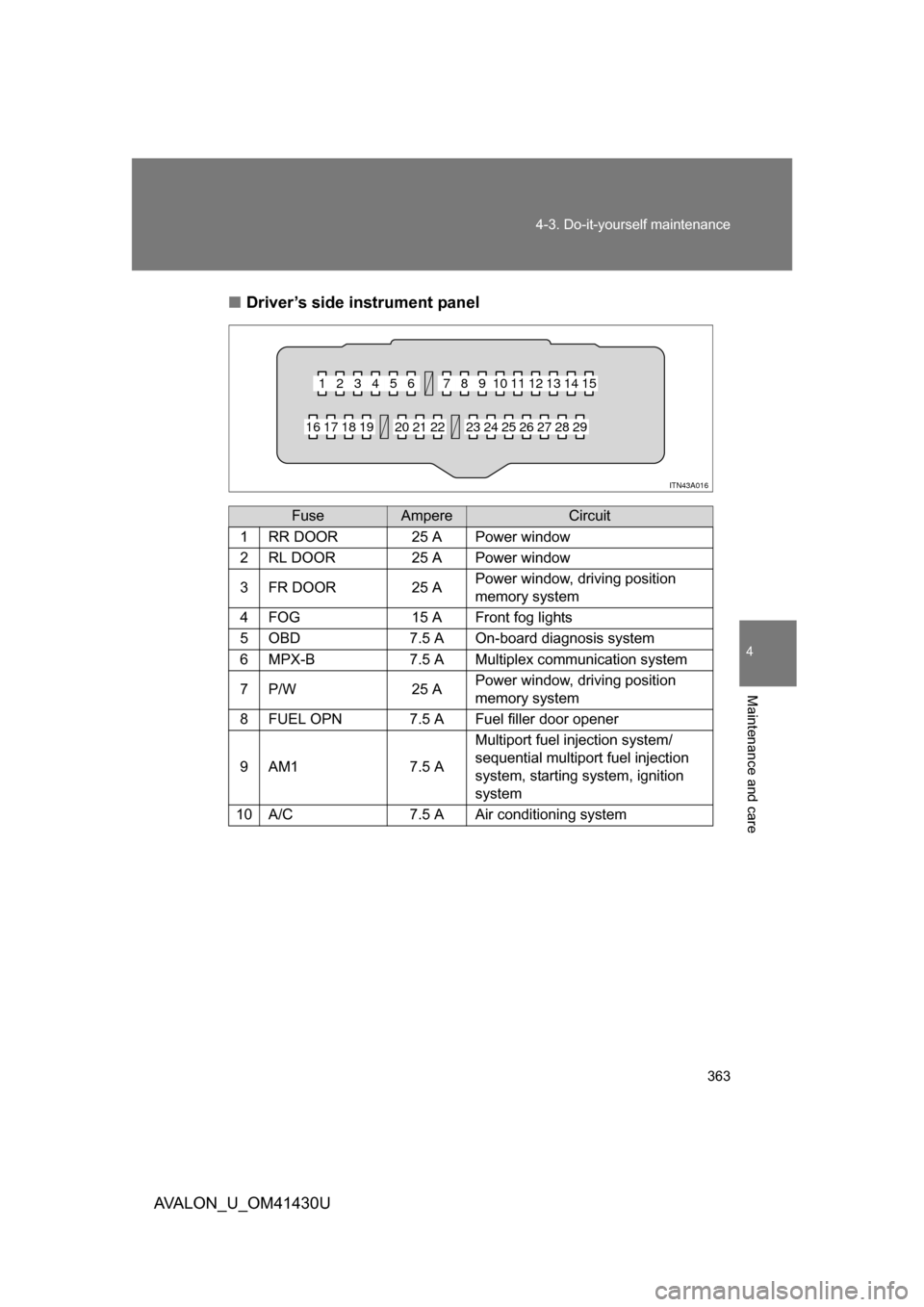

Driver’s side instrument panel
FuseAmpereCircuit
1RR DOOR25 APower window
2RL DOOR25 APower window
3FR DOOR25 APower window, driving position
memory system
4FOG15 AFront fog lights
5OBD7.5 AOn-board diagnosis system
6MPX-B7.5 AMultiplex communication system
7P/W25 APower window, driving position
memory system
8FUEL OPN7.5 AFuel filler door opener
9AM17.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system, starting system, ignition
system
10A/C7.5 AAir conditioning system
123456789101211131415
1617181920212223242526272829
ITN43A016

364 4-3. Do-it-yourself maintenance
AVALON_U_OM41430U

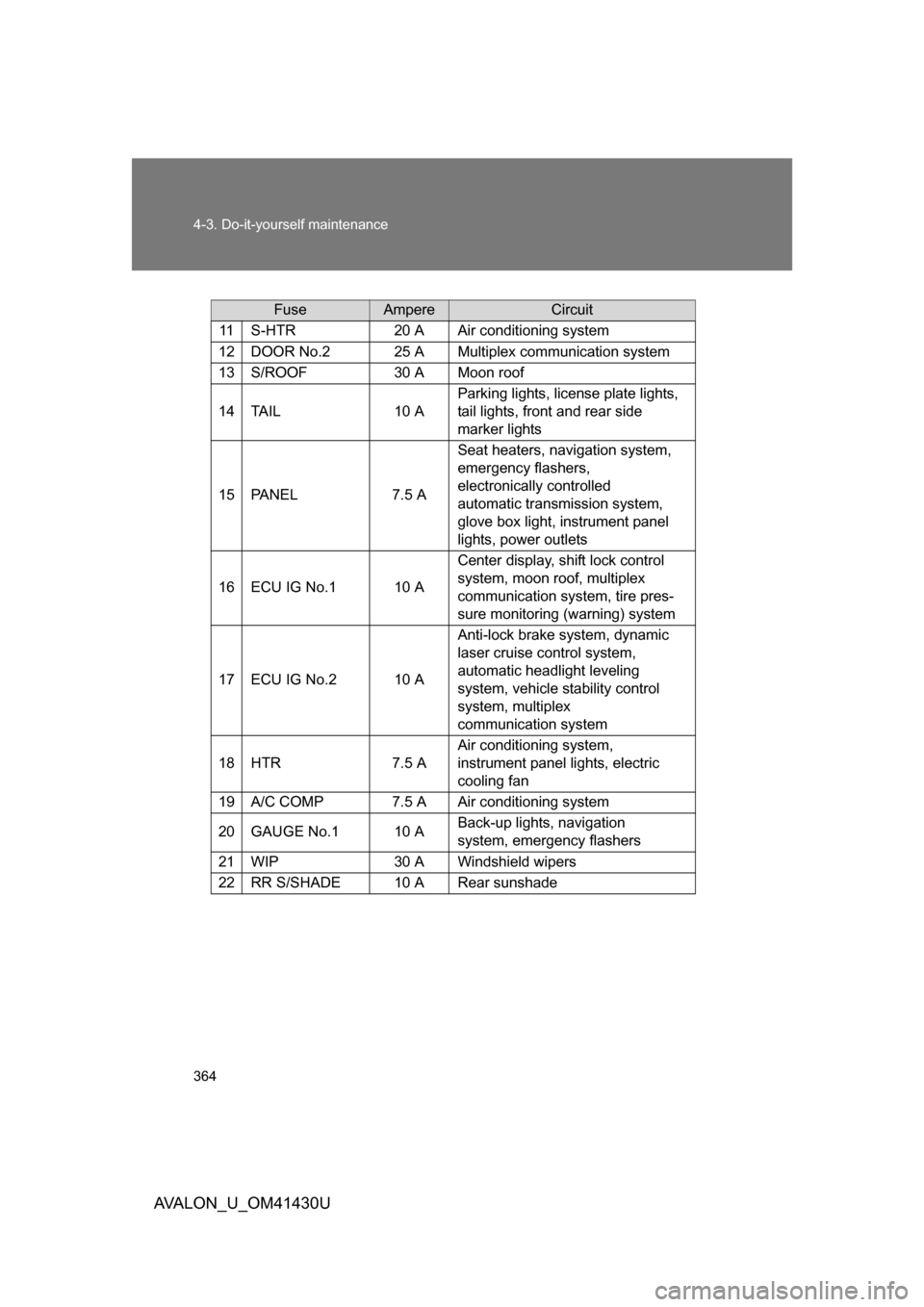

FuseAmpereCircuit
11S-HTR20 AAir conditioning system
12DOOR No.225 AMultiplex communication system
13S/ROOF30 AMoon roof
14TA I L10 A
Parking lights, license plate lights,
tail lights, front and rear side
marker lights
15PA N E L7.5 A
Seat heaters, navigation system,
emergency flashers,
electronically controlled
automatic transmission system,
glove box light, instrument panel
lights, power outlets
16ECU IG No.110 A
Center display, shift lock control
system, moon roof, multiplex
communication system, tire pres-
sure monitoring (warning) system
17ECU IG No.210 A
Anti-lock brake system, dynamic
laser cruise control system,
automatic headlight leveling
system, vehicle stability control
system, multiplex
communication system
18HTR7.5 A
Air conditioning system,
instrument panel lights, electric
cooling fan
19A/C COMP7.5 AAir conditioning system
20GAUGE No.110 ABack-up lights, navigation
system, emergency flashers
21WIP30 AWindshield wipers
22RR S/SHADE10 ARear sunshade

4
Maintenance and care
365
4-3. Do-it-yourself maintenance
AVALON_U_OM41430U

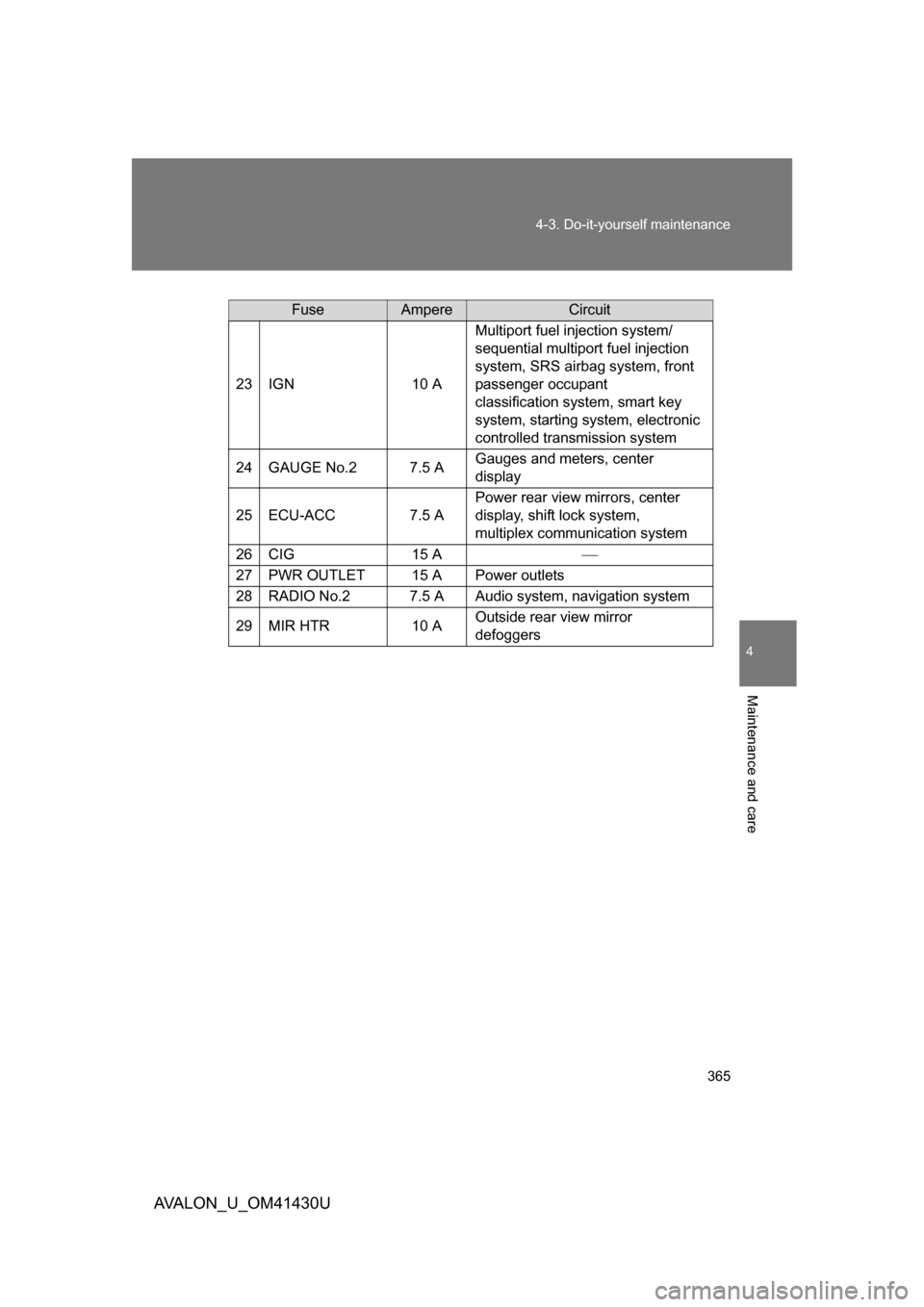

FuseAmpereCircuit
23IGN10 A
Multiport fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, front
passenger occupant
classification system, smart key
system, starting system, electronic
controlled transmission system
24GAUGE No.27.5 AGauges and meters, center
display
25ECU-ACC7.5 A
Power rear view mirrors, center
display, shift lock system,
multiplex communication system
26CIG15 A
27PWR OUTLET15 APower outlets
28RADIO No.27.5 AAudio system, navigation system
29MIR HTR10 AOutside rear view mirror
defoggers

366 4-3. Do-it-yourself maintenance
AVALON_U_OM41430U

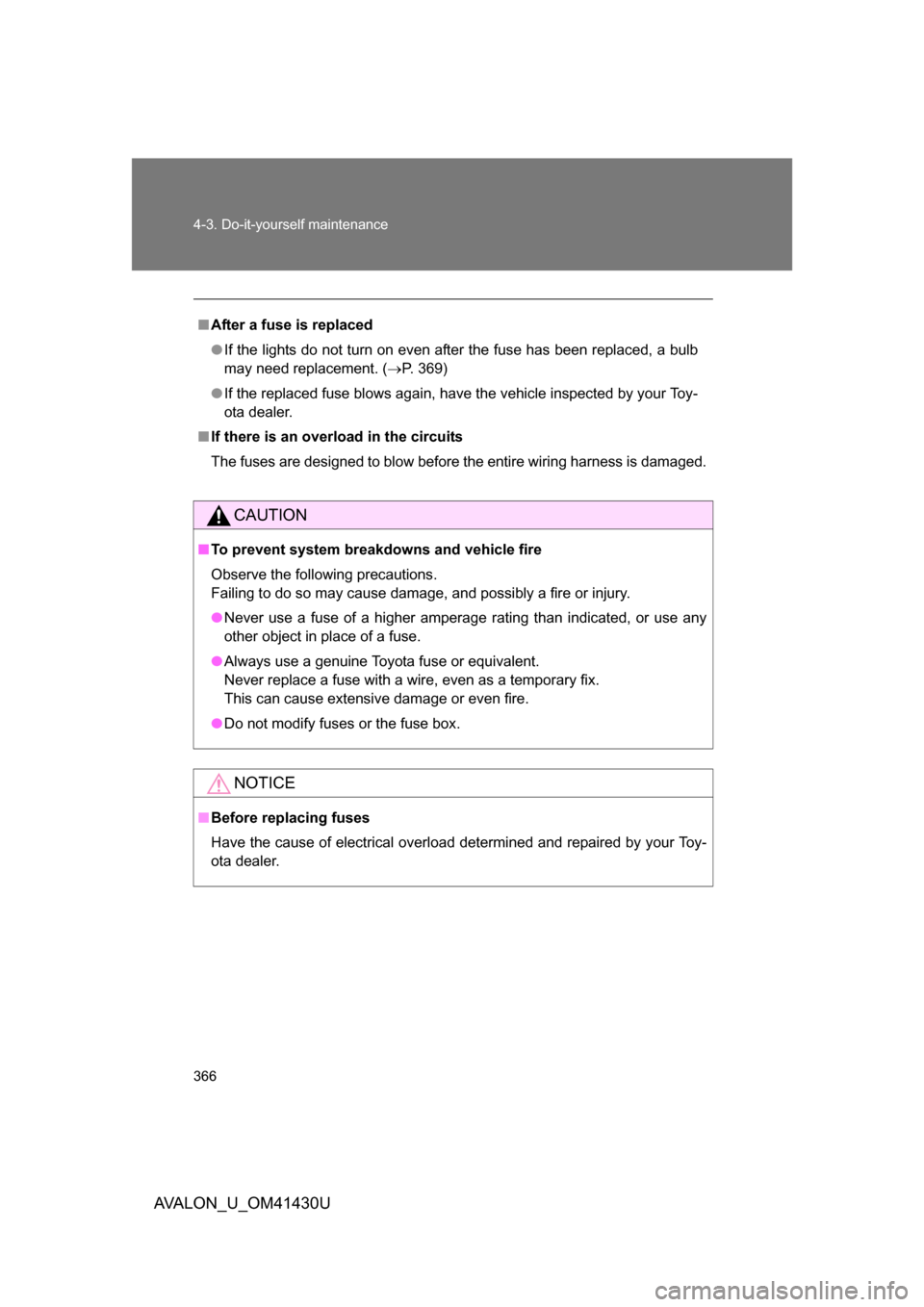

■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 369)
● If the replaced fuse blows again, have the vehicle inspected by your Toy-
ota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer.

367
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVALON_U_OM41430U

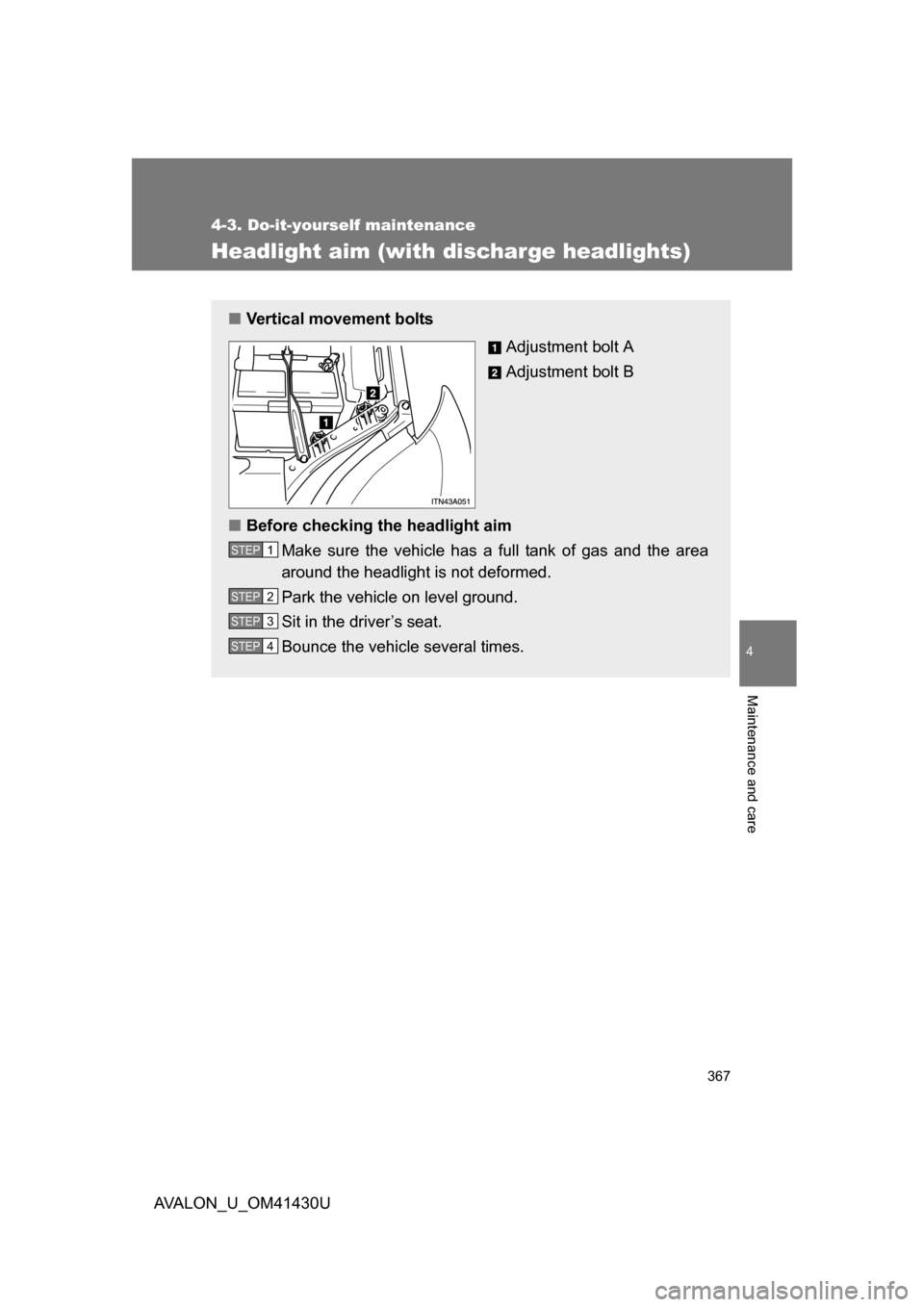

Headlight aim (with discharge headlights)
■Vertical movement bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4

368 4-3. Do-it-yourself maintenance
AVALON_U_OM41430U

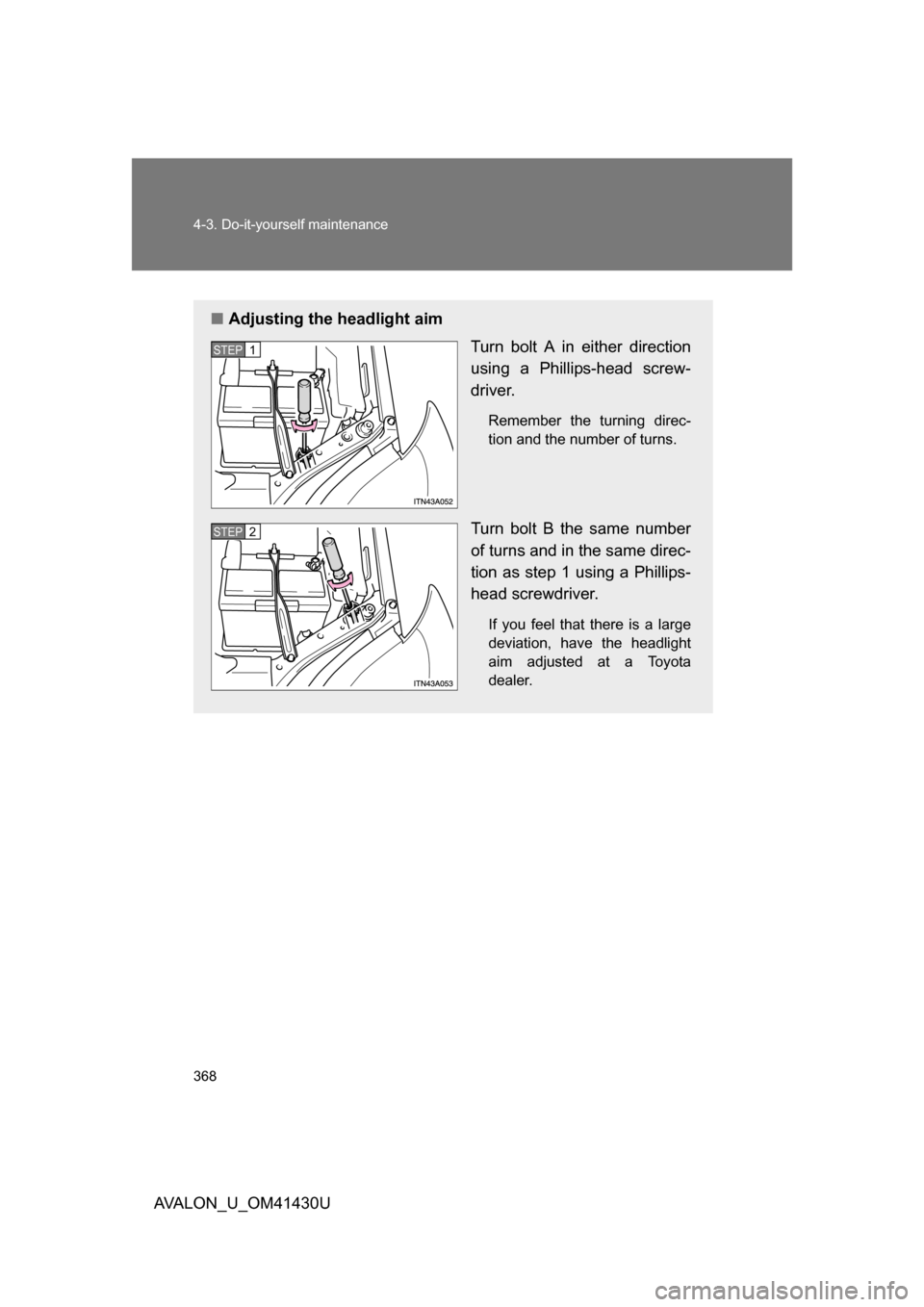

■Adjusting the headlight aim
Turn bolt A in either direction
using a Phillips-head screw-
driver.
Remember the turning direc-
tion and the number of turns.
Turn bolt B the same number
of turns and in the same direc-
tion as step 1 using a Phillips-
head screwdriver.
If you feel that there is a large
deviation, have the headlight
aim adjusted at a Toyota
dealer.
STEP1
STEP2

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVALON_U_OM41430U

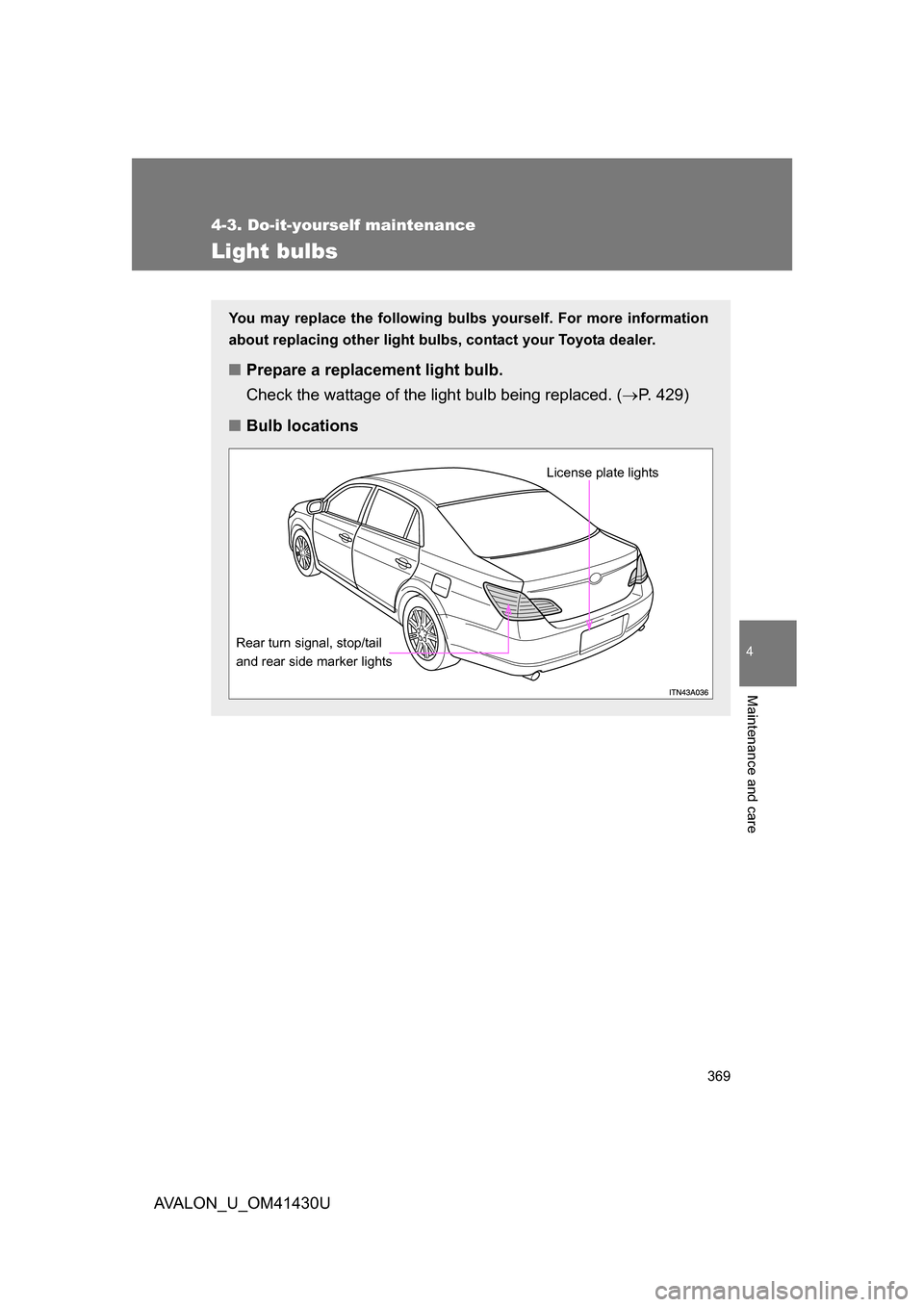

Light bulbs
You may replace the following bulbs yourself. For more information
about replacing other light bulbs, contact your Toyota dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 429)
■ Bulb locations
Rear turn signal, stop/tail
and rear side marker lights License plate lights

370 4-3. Do-it-yourself maintenance
AVALON_U_OM41430U

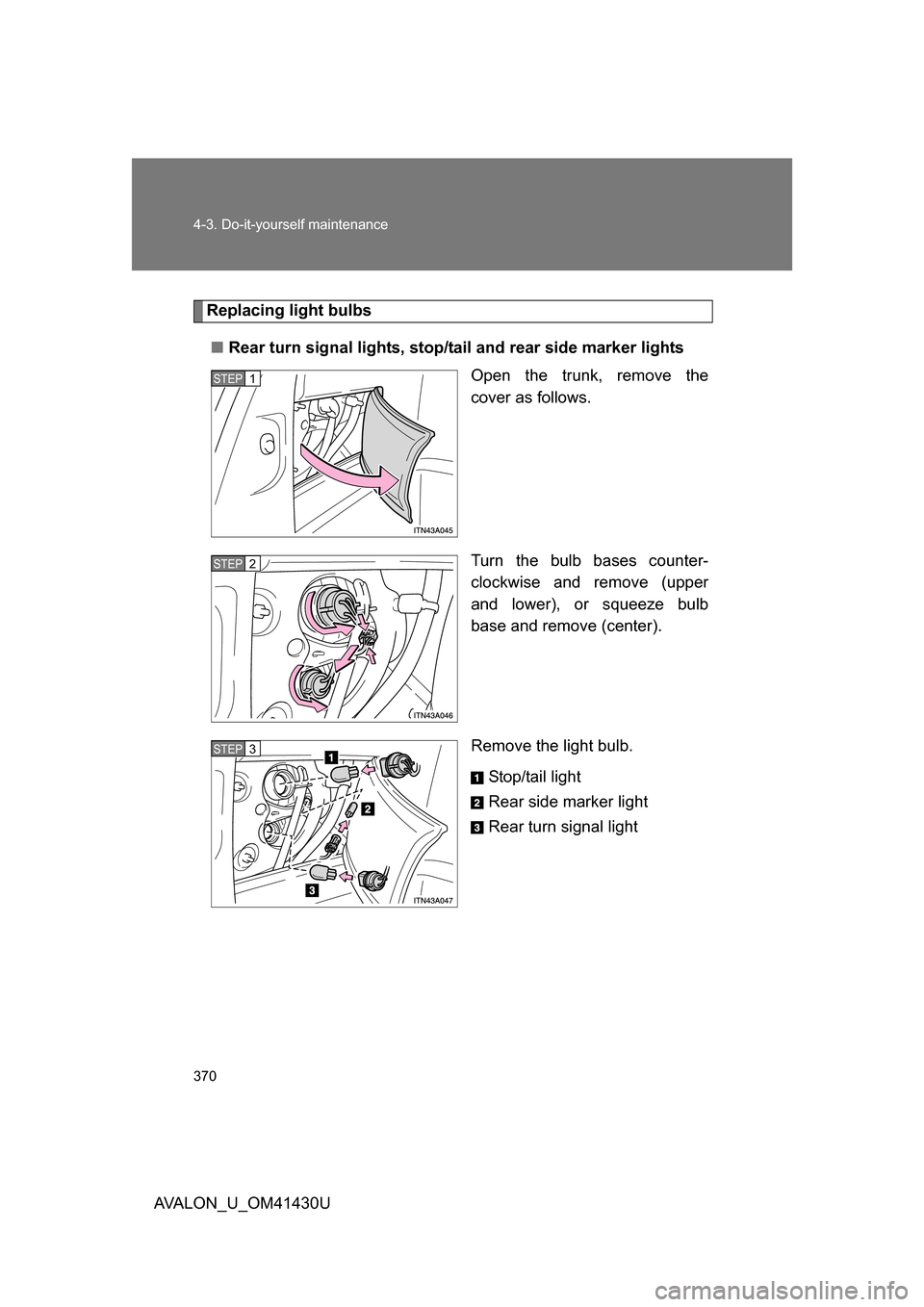

Replacing light bulbs■ Rear turn signal lights, stop/ta il and rear side marker lights
Open the trunk, remove the
cover as follows.
Turn the bulb bases counter-
clockwise and remove (upper
and lower), or squeeze bulb
base and remove (center).
Remove the light bulb.
Stop/tail light
Rear side marker light
Rear turn signal light
STEP1
STEP2
STEP3
