When trouble arises
381
5-1. Essential information
AVALON_U_OM41430U

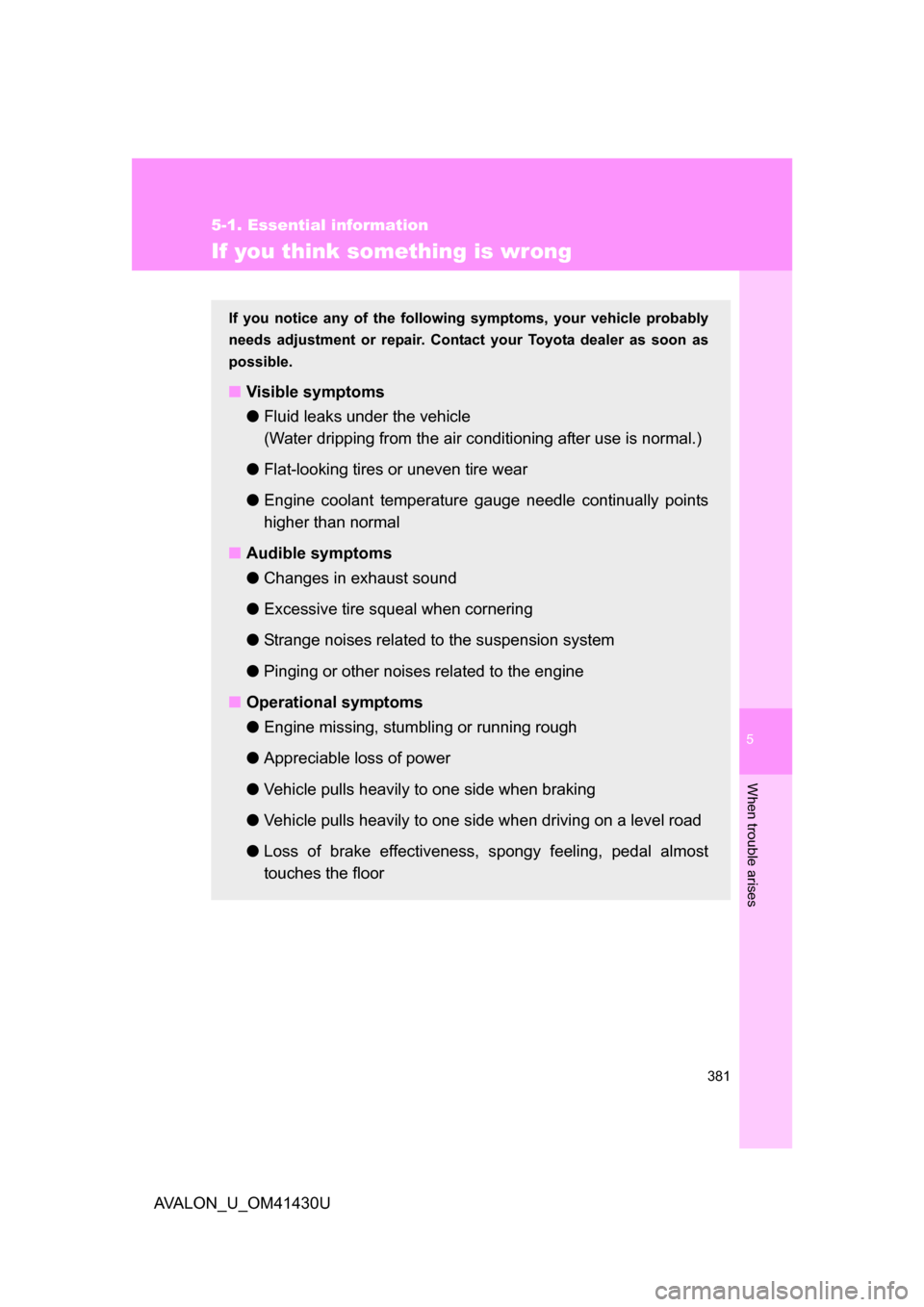

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
■ Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air cond itioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature g auge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, s pongy feeling, pedal almost
touches the floor

382
5-1. Essential information
AVALON_U_OM41430U

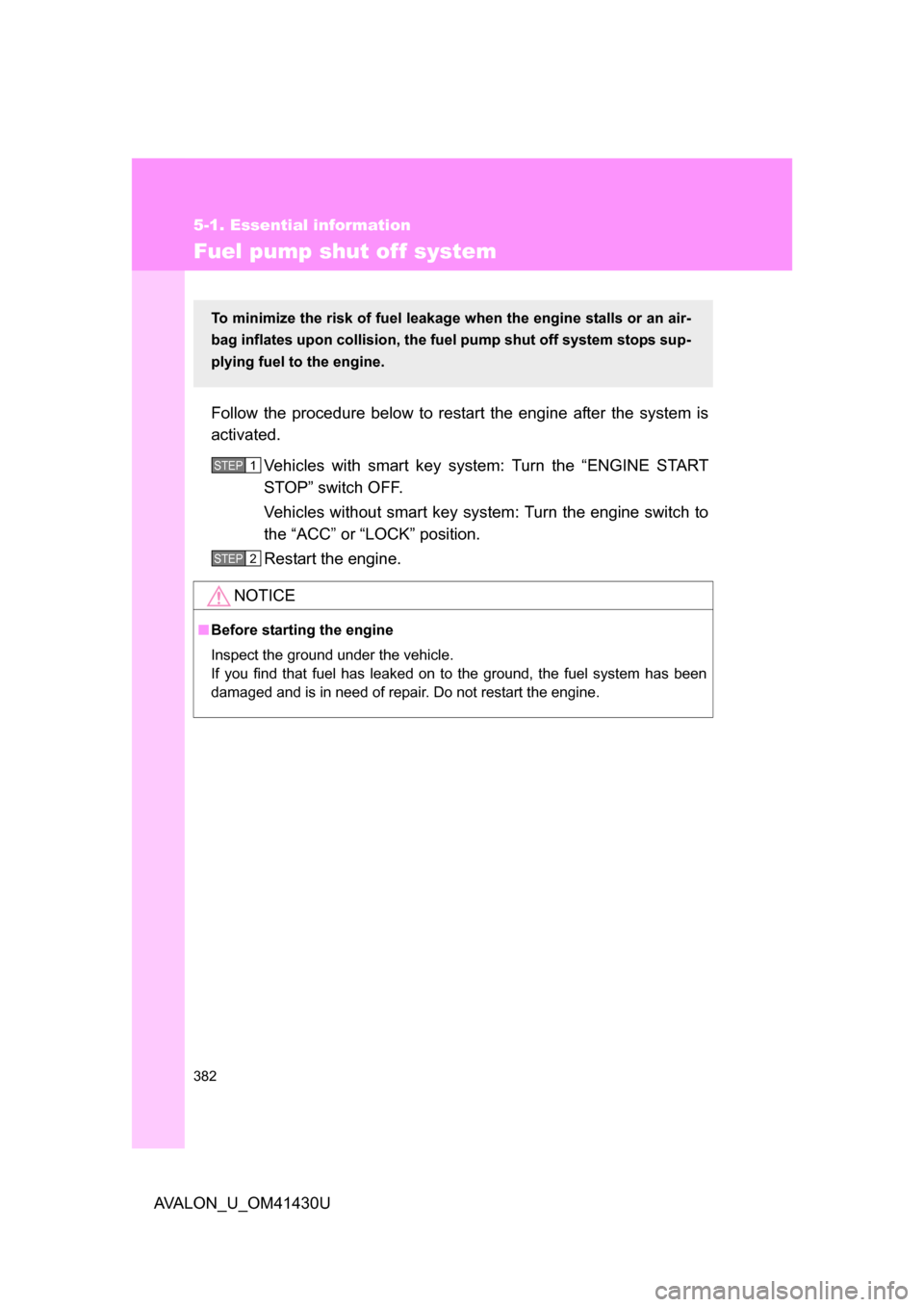

Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch OFF.
Vehicles without smart key syst em: Turn the engine switch to
the “ACC” or “LOCK” position.
Restart the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.
STEP1
STEP2

5
When trouble arises
383
5-1. Essential information
AVALON_U_OM41430U

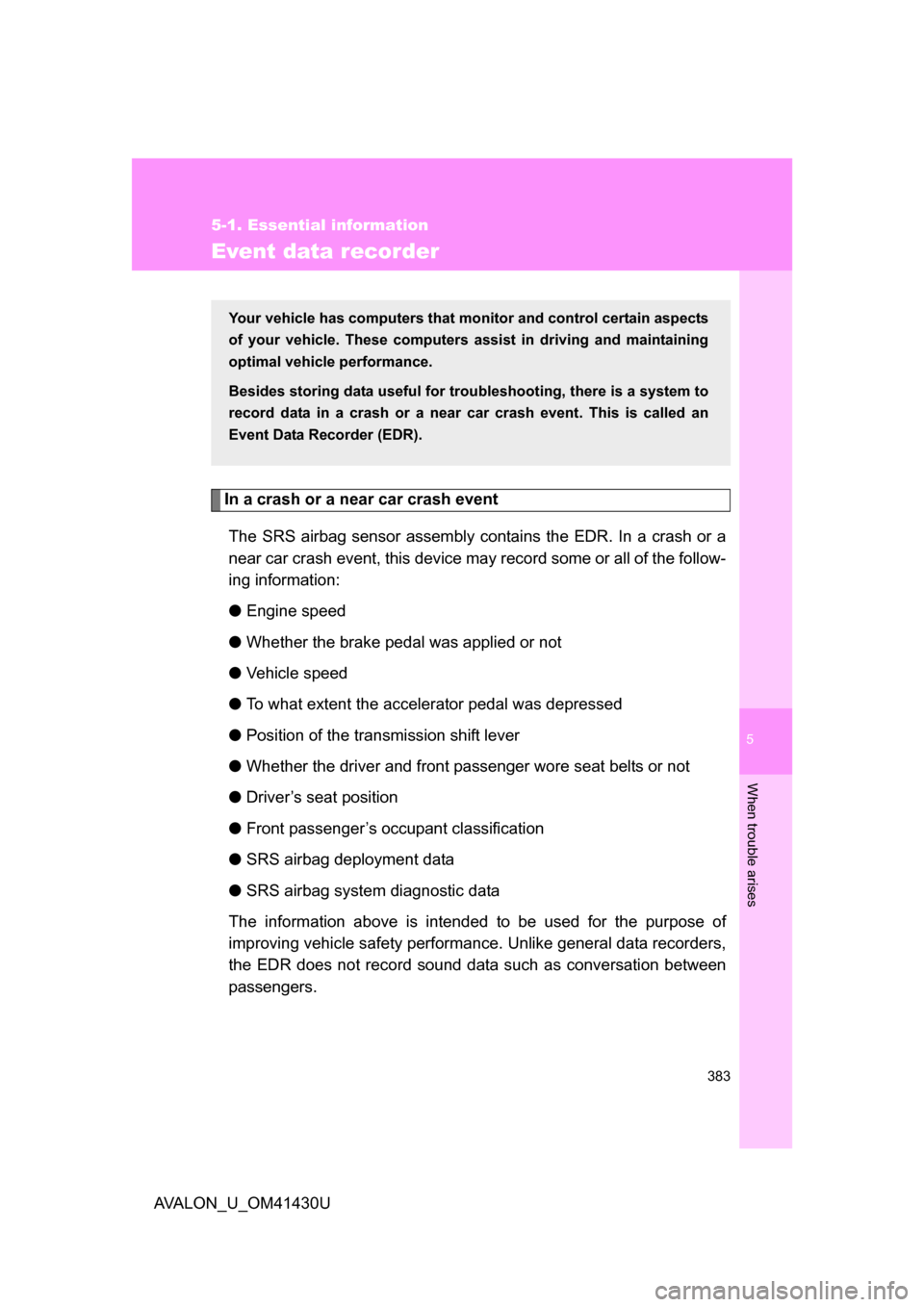

Event data recorder
In a crash or a near car crash eventThe SRS airbag sensor assembly contains the EDR. In a crash or a
near car crash event, this device may record some or all of the follow-
ing information:
● Engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
● Driver’s seat position
● Front passenger’s occupant classification
● SRS airbag deployment data
● SRS airbag system diagnostic data
The information above is intended to be used for the purpose of
improving vehicle safety performance. Unlike general data recorders,
the EDR does not record sound data such as conversation between
passengers.
Your vehicle has computers that monitor and control certain aspects
of your vehicle. These computers assi st in driving and maintaining
optimal vehicle performance.
Besides storing data useful for tr oubleshooting, there is a system to
record data in a crash or a near car crash event. This is called an
Event Data Recorder (EDR).

384 5-1. Essential information
AVALON_U_OM41430U

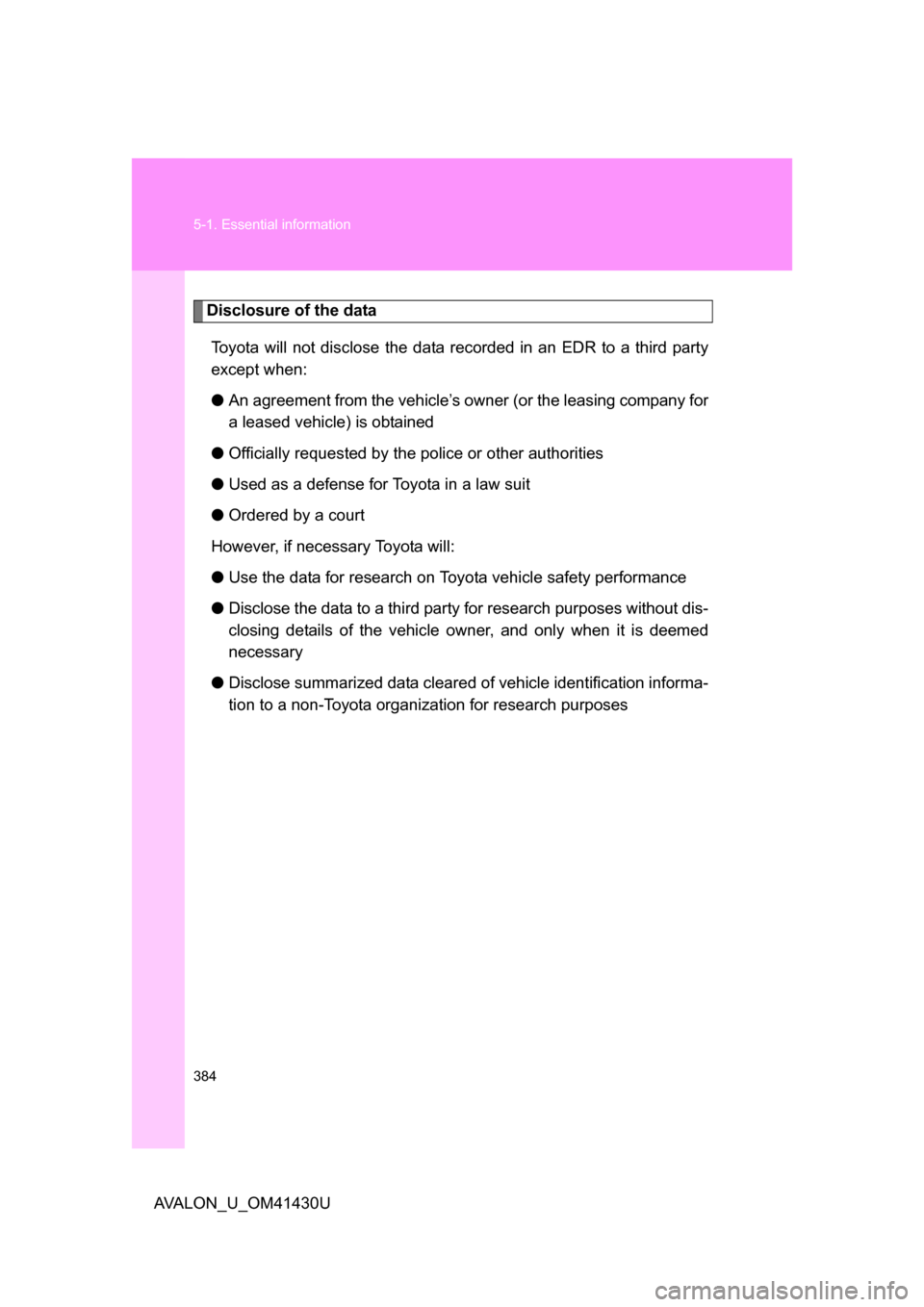

Disclosure of the dataToyota will not disclose the data re corded in an EDR to a third party
except when:
● An agreement from the vehicle’s ow ner (or the leasing company for
a leased vehicle) is obtained
● Officially requested by the police or other authorities
● Used as a defense for Toyota in a law suit
● Ordered by a court
However, if necessary Toyota will:
● Use the data for research on Toyota vehicle safety performance
● Disclose the data to a third party for research purposes without dis-
closing details of the vehicle owner, and only when it is deemed
necessary
● Disclose summarized data cleared of vehicle identification informa-
tion to a non-Toyota organization for research purposes

5
When trouble arises
385
AVALON_U_OM41430U

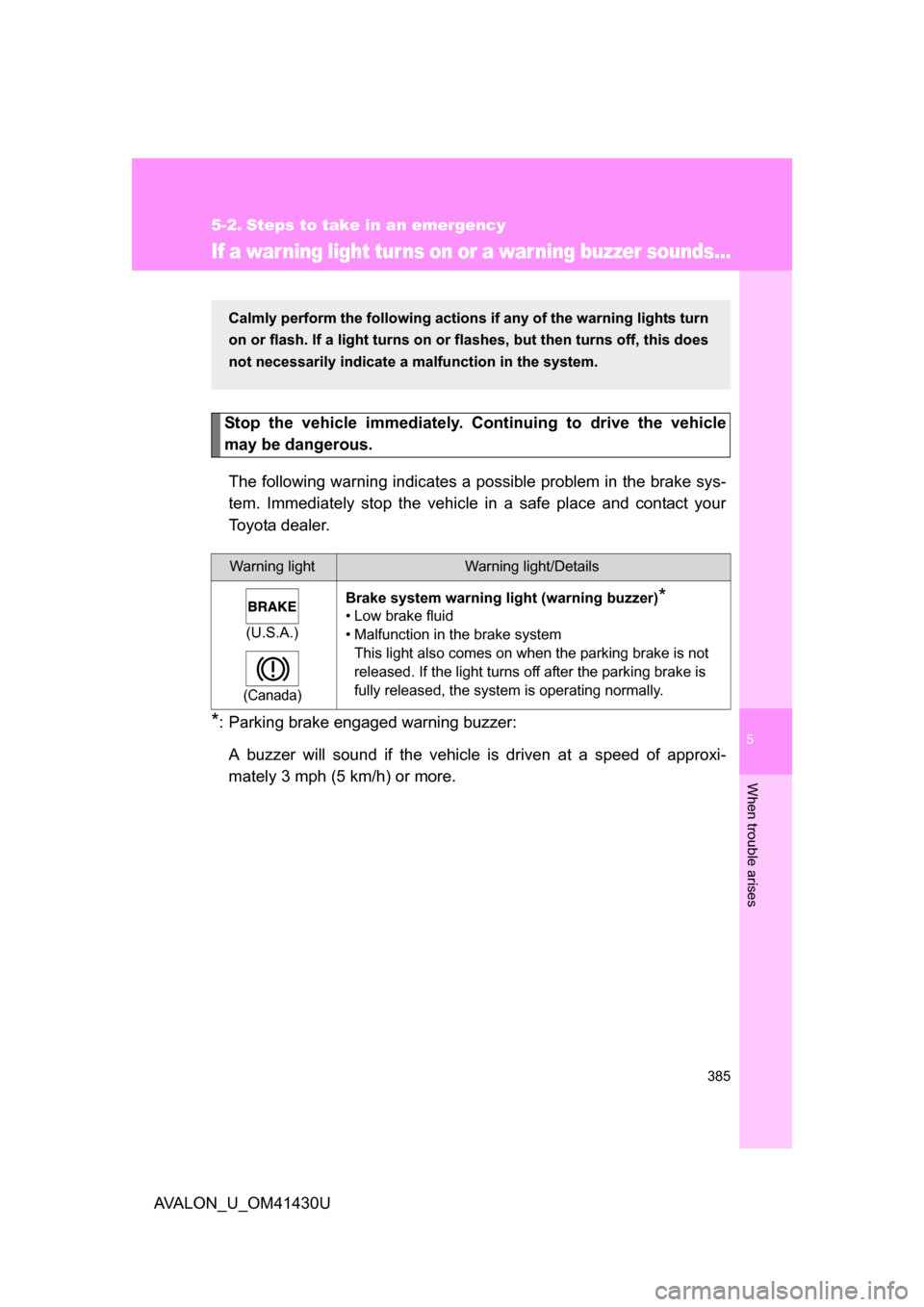

5-2. Steps to take in an emergency
If a war ning light tur ns on or a war ning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
*: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approxi-
mately 3 mph (5 km/h) or more.
Warning lightWarning light/Details

(U.S.A.)

(Canada)
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake systemThis light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released, the system is operating normally.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.

386 5-2. Steps to take in an emergency
AVALON_U_OM41430U

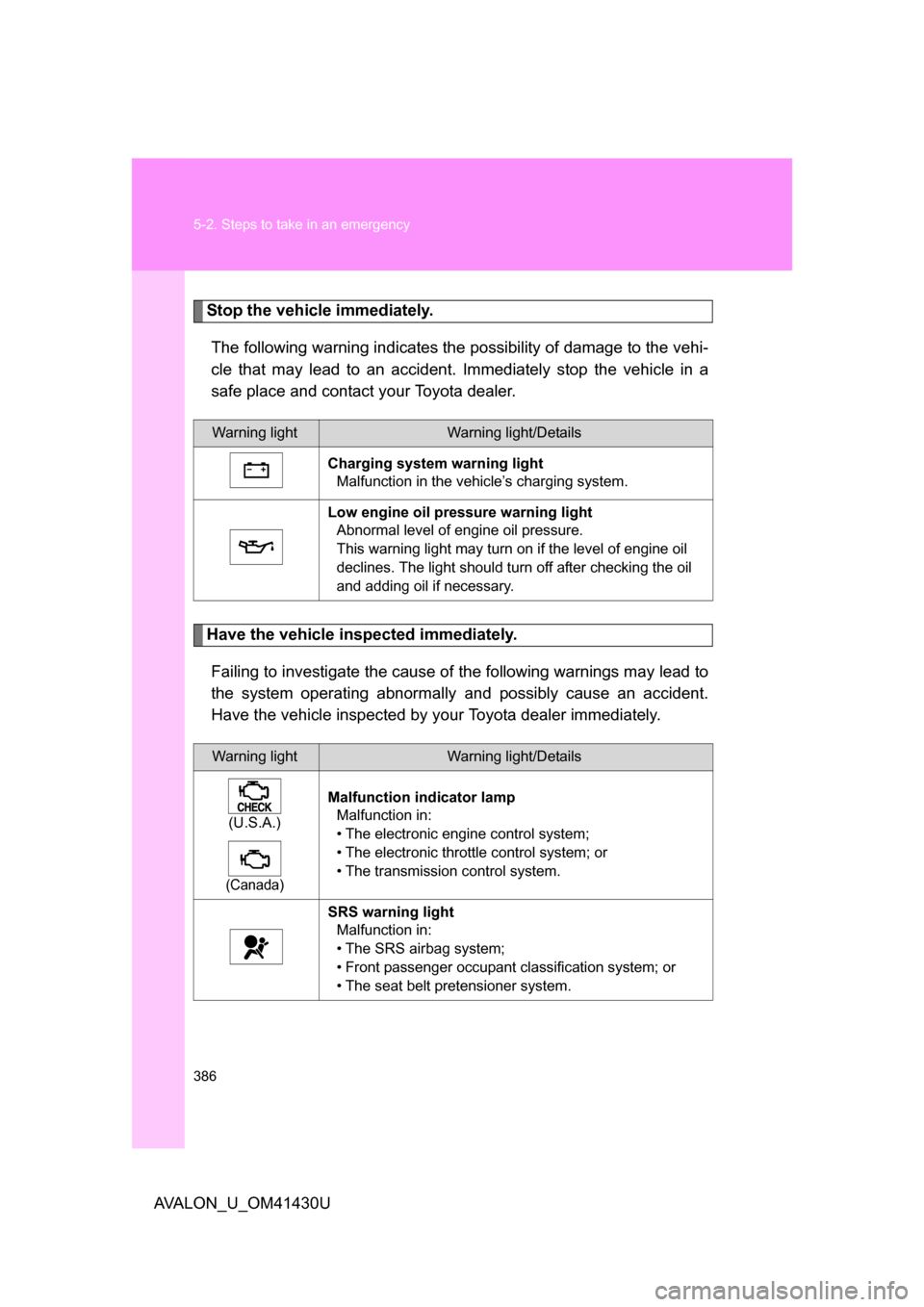

Stop the vehicle immediately.The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Have the vehicle inspected immediately.Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
Charging system warning light Malfunction in the vehicle’s charging system.
Low engine oil pressure warning light Abnormal level of engine oil pressure.
This warning light may turn on if the level of engine oil
declines. The light should turn off after checking the oil
and adding oil if necessary.
Warning lightWarning light/Details

(U.S.A.)

(Canada)
Malfunction indicator lampMalfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The transmission control system.
SRS warning light Malfunction in:
• The SRS airbag system;
• Front passenger occupant classification system; or
• The seat belt pretensioner system.

5
When trouble arises
387
5-2. Steps to take in an emergency
AVALON_U_OM41430U
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.

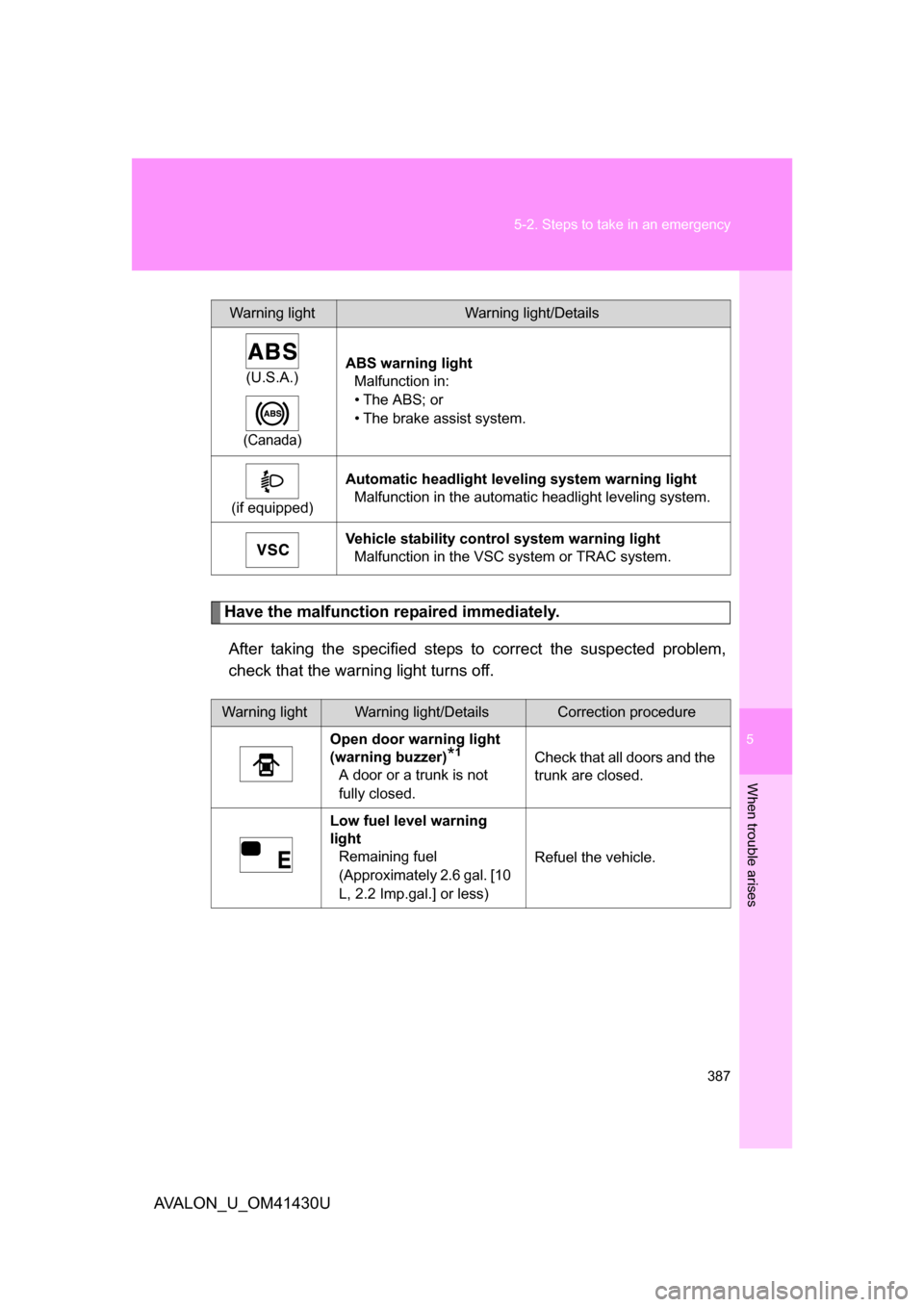

Warning lightWarning light/Details

(U.S.A.)

(Canada)
ABS warning lightMalfunction in:
• The ABS; or
• The brake assist system.

(if equipped) Automatic headlight level
ing system warning light
Malfunction in the automatic headlight leveling system.
Vehicle stability cont
rol system warning light
Malfunction in the VSC system or TRAC system.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
A door or a trunk is not
fully closed. Check that all doors and the
trunk are closed.
Low fuel level warning
light Remaining fuel
(Approximately 2.6 gal. [10
L, 2.2 Imp.gal.] or less) Refuel the vehicle.

388 5-2. Steps to take in an emergency
AVALON_U_OM41430U

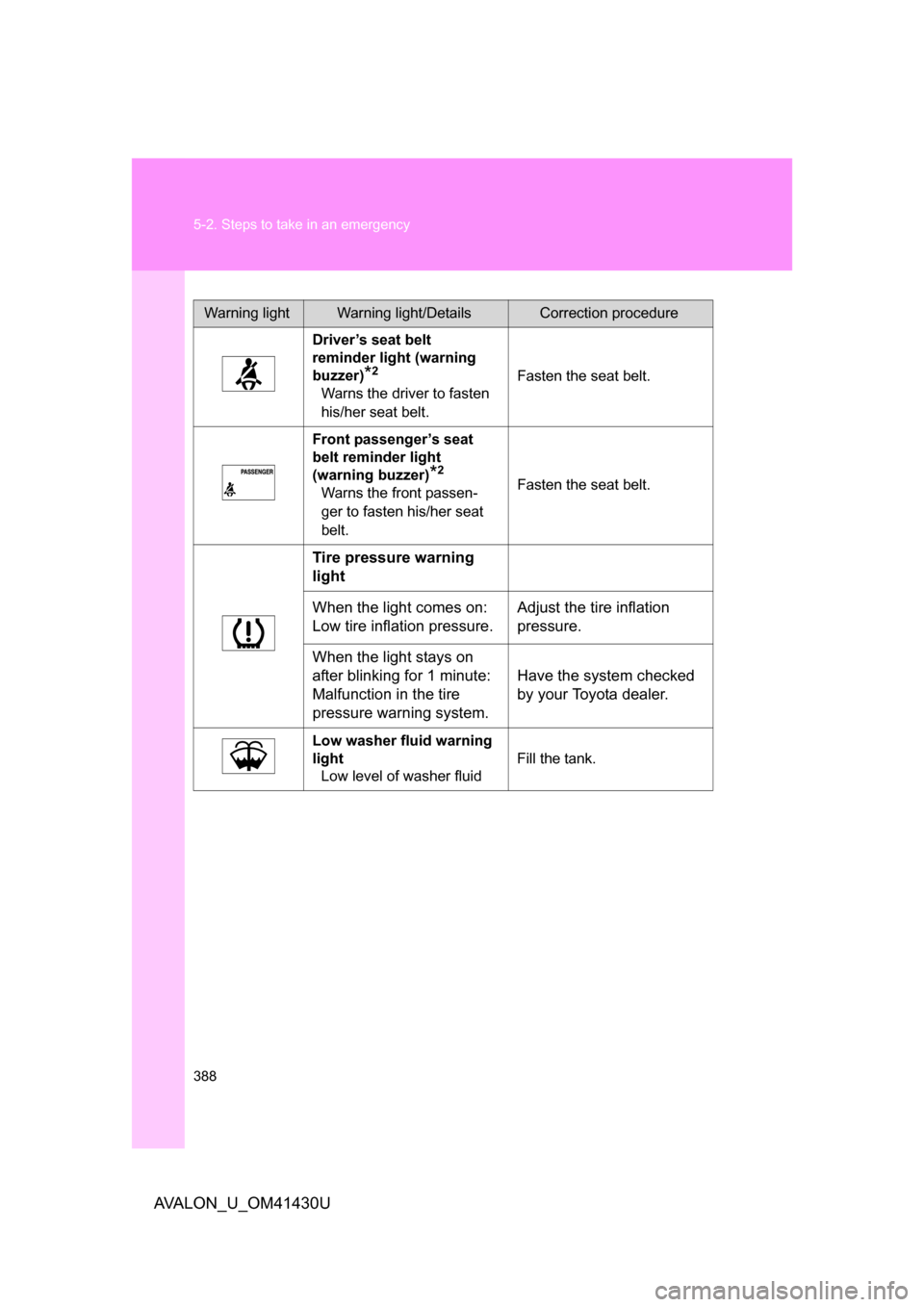

Warning lightWarning light/DetailsCorrection procedure
Driver’s seat belt
reminder light (warning
buzzer)
*2
Warns the driver to fasten
his/her seat belt. Fasten the seat belt.
Front passenger’s seat
belt reminder light
(warning buzzer)
*2
Warns the front passen-
ger to fasten his/her seat
belt. Fasten the seat belt.
Tire pressure warning
light
When the light comes on:
Low tire inflation pressure.
Adjust the tire inflation
pressure.
When the light stays on
after blinking for 1 minute:
Malfunction in the tire
pressure warning system. Have the system checked
by your Toyota dealer.
Low washer fluid warning
light
Low level of washer fluid Fill the tank.

5
When trouble arises
389
5-2. Steps to take in an emergency
AVALON_U_OM41430U

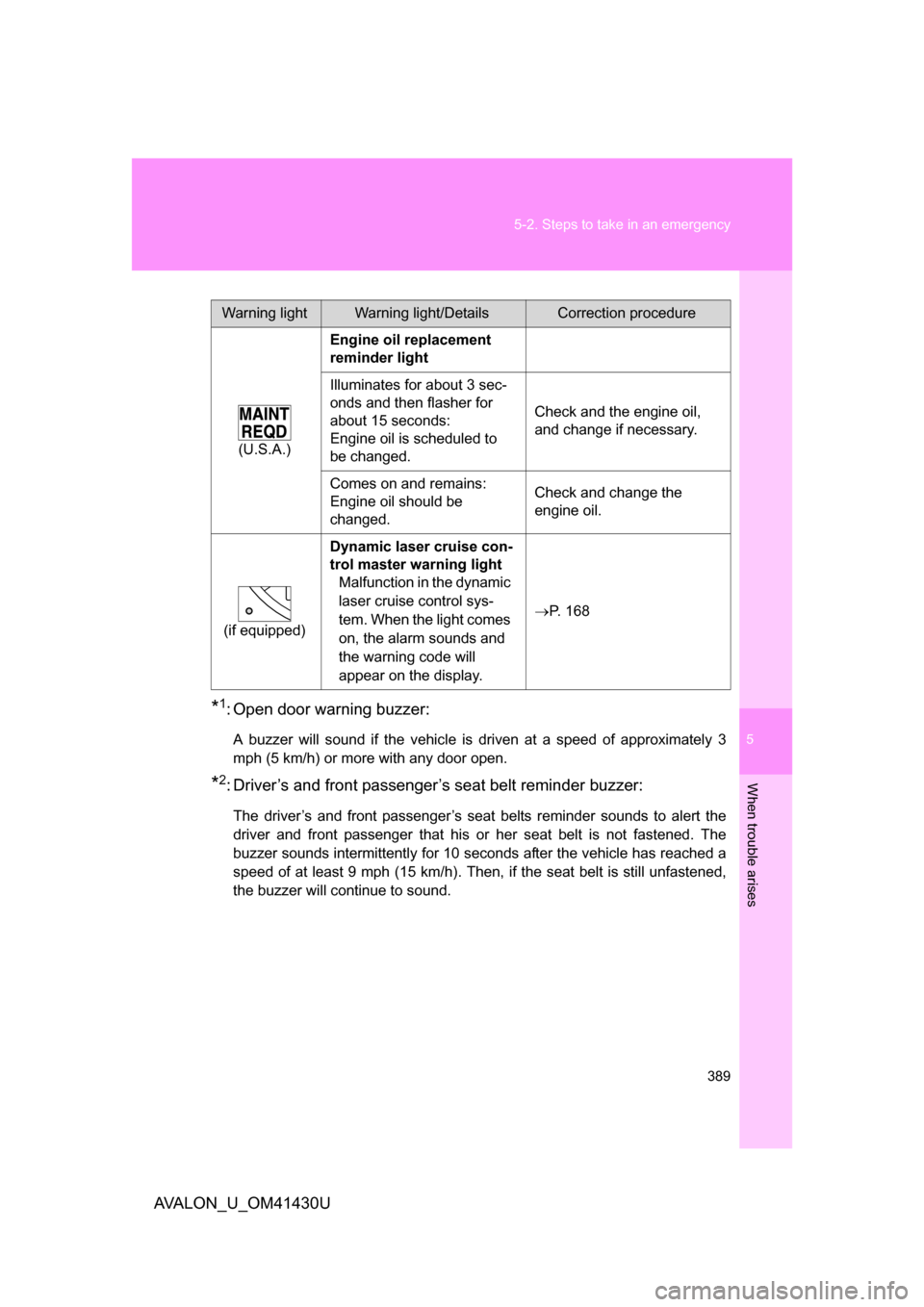

*1: Open door warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately 3
mph (5 km/h) or more with any door open.
*2: Driver’s and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the
driver and front passenger that his or her seat belt is not fastened. The
buzzer sounds intermittently for 10 seconds after the vehicle has reached a
speed of at least 9 mph (15 km/h). Then, if the seat belt is still unfastened,
the buzzer will continue to sound.
Warning lightWarning light/DetailsCorrection procedure

(U.S.A.)
Engine oil replacement
reminder light
Illuminates for about 3 sec-
onds and then flasher for
about 15 seconds:
Engine oil is scheduled to
be changed. Check and the engine oil,
and change if necessary.
Comes on and remains:
Engine oil should be
changed. Check and change the
engine oil.

(if equipped) Dynamic laser cruise con-
trol master warning light
Malfunction in the dynamic
laser cruise control sys-
tem. When the light comes
on, the alarm sounds and
the warning code will
appear on the display. P. 168

390 5-2. Steps to take in an emergency
AVALON_U_OM41430U

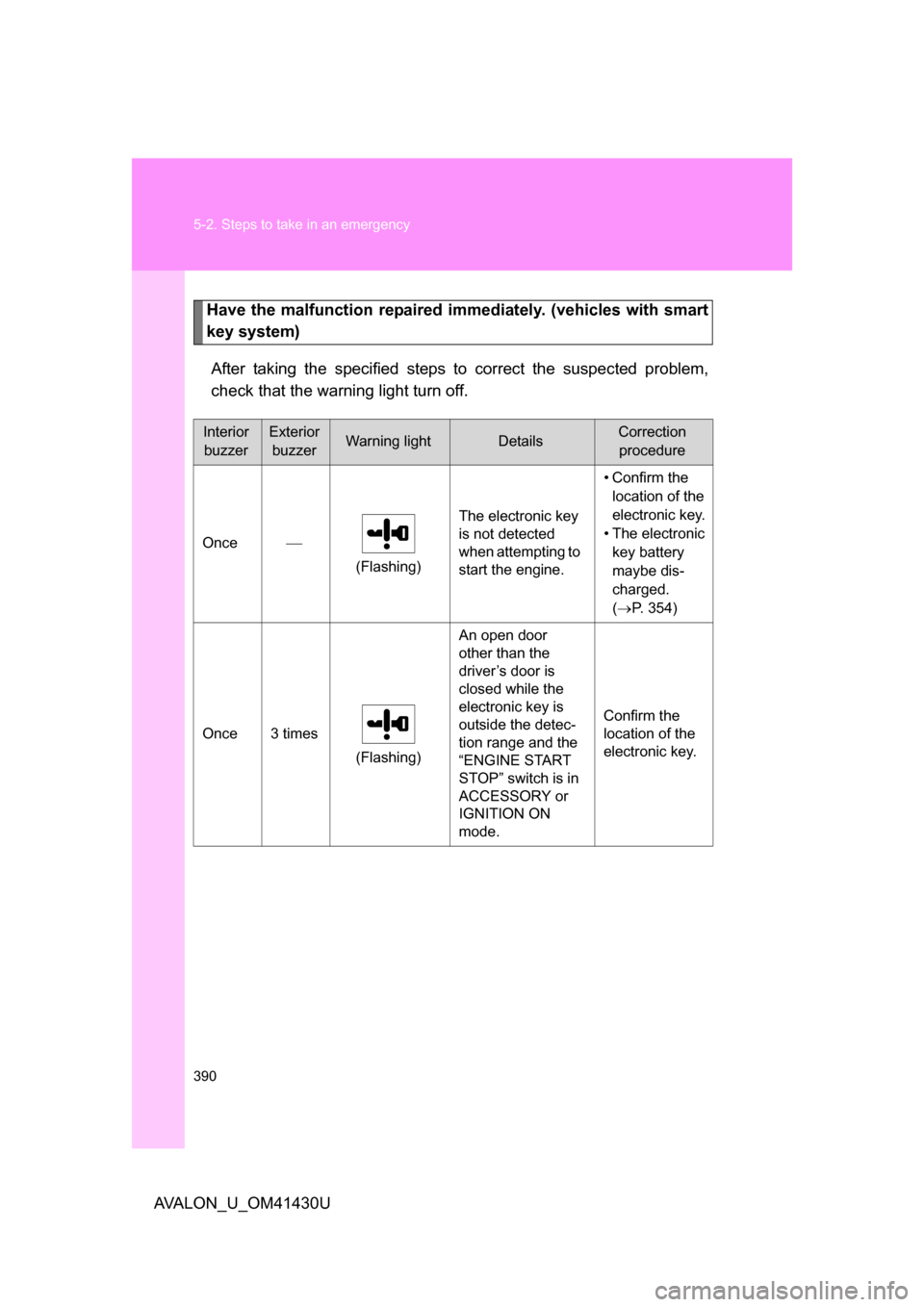

Have the malfunction repaired immediately. (vehicles with smart
key system)After taking the specified steps to correct the suspected problem,
check that the warning light turn off.
Interior buzzerExterior buzzerWarning lightDetailsCorrection procedure
Once
(Flashing)
The electronic key
is not detected
when attempting to
start the engine.
• Confirm the location of the
electronic key.
• The electronic key battery
maybe dis-
charged.
(P. 354)
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode.
Confirm the
location of the
electronic key.
