TOYOTA AVALON 2009 XX30 / 3.G Owners Manual

4
Maintenance and care
371
4-3. Do-it-yourself maintenance
AVALON_U_OM41430U
■

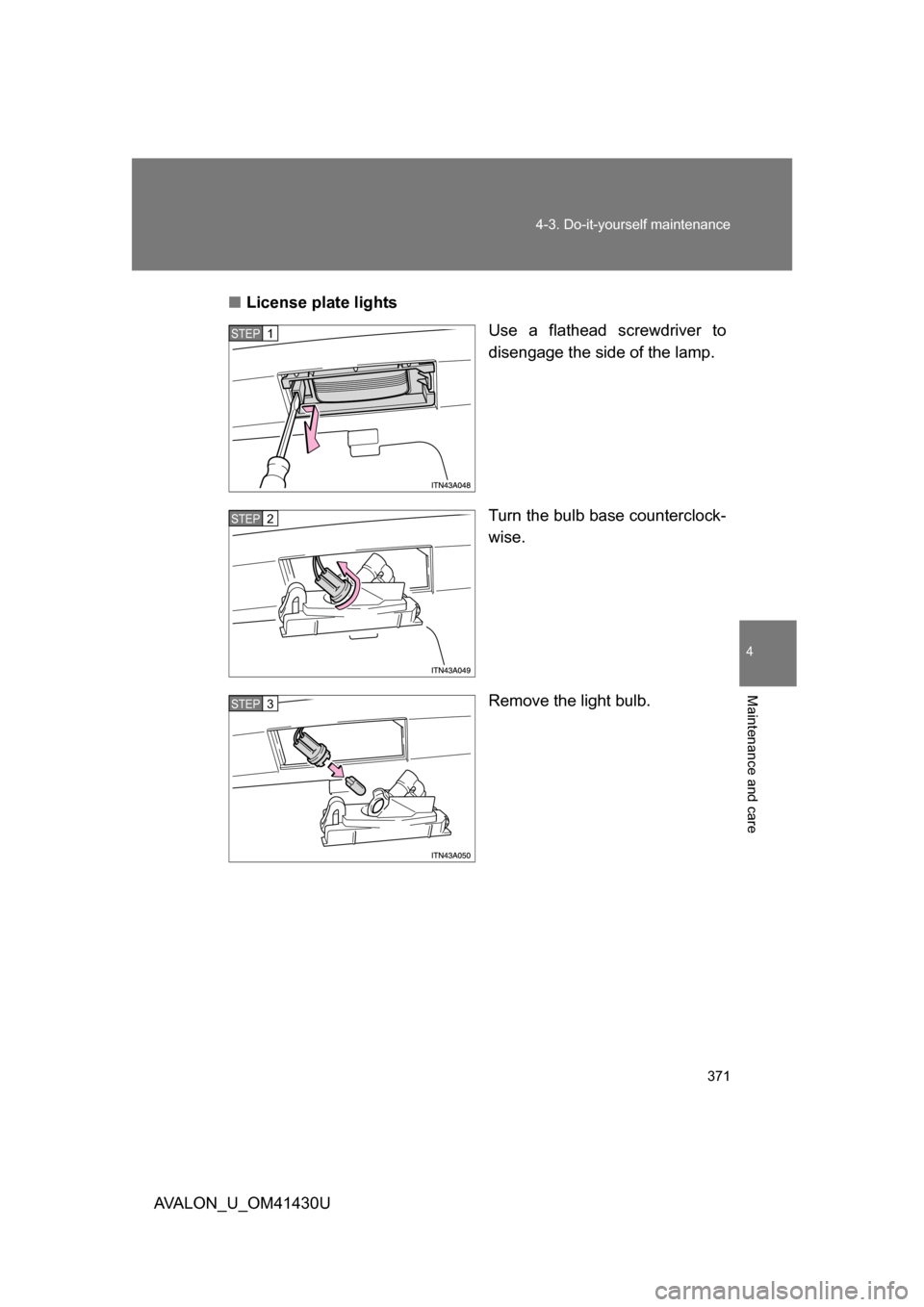

License plate lights
Use a flathead screwdriver to
disengage the side of the lamp.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3

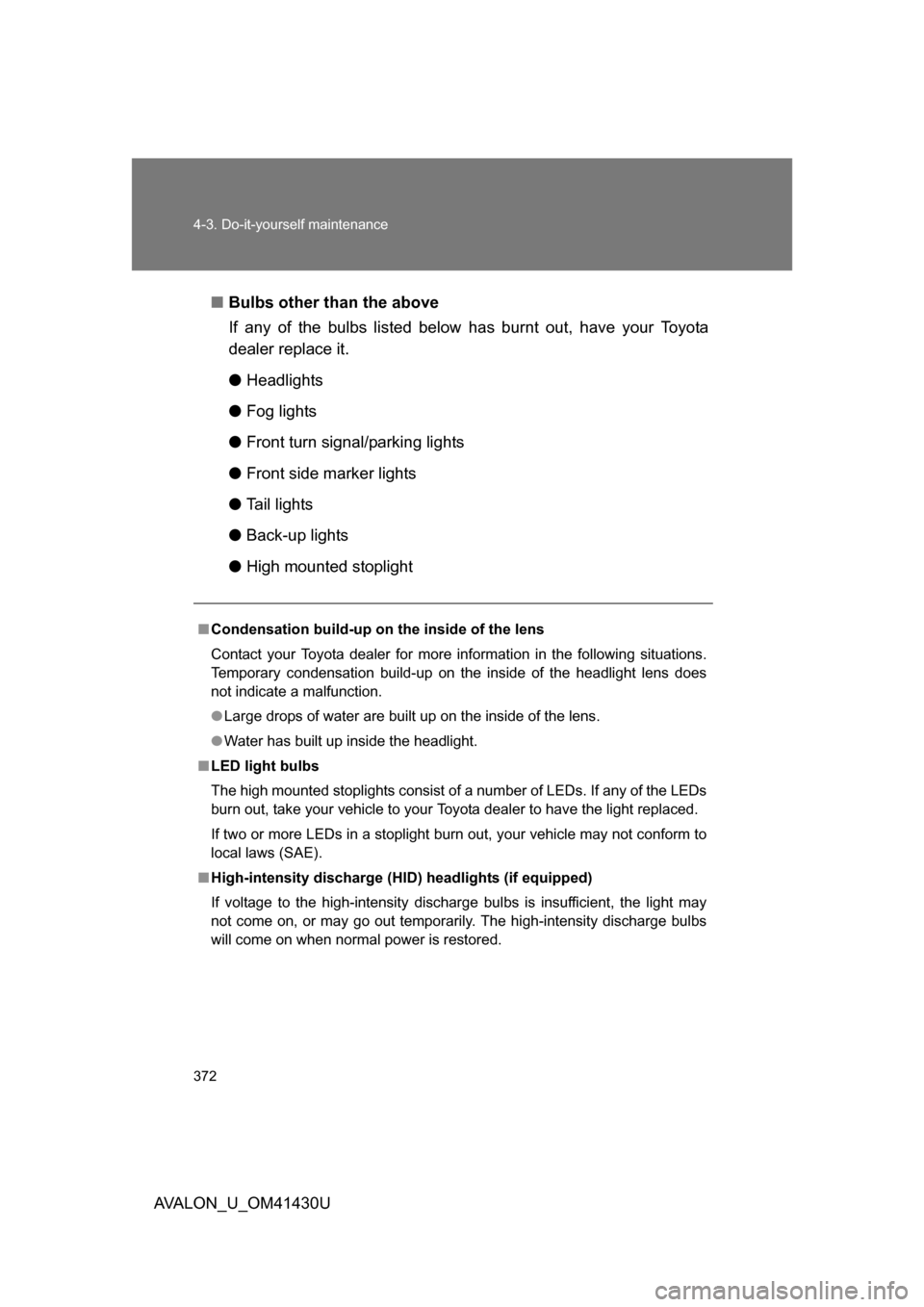

372 4-3. Do-it-yourself maintenance
AVALON_U_OM41430U■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Headlights
● Fog lights
● Front turn signal/parking lights
● Front side marker lights
● Tail lights
● Back-up lights
● High mounted stoplight
■Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The high mounted stoplights consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
If two or more LEDs in a stoplight bur n out, your vehicle may not conform to
local laws (SAE).
■ High-intensity discharge (HID) headlights (if equipped)
If voltage to the high-intensity discharge bulbs is insufficient, the light may
not come on, or may go out temporarily. The high-intensity discharge bulbs
will come on when normal power is restored.

4
Maintenance and care
373
4-3. Do-it-yourself maintenance
AVALON_U_OM41430U

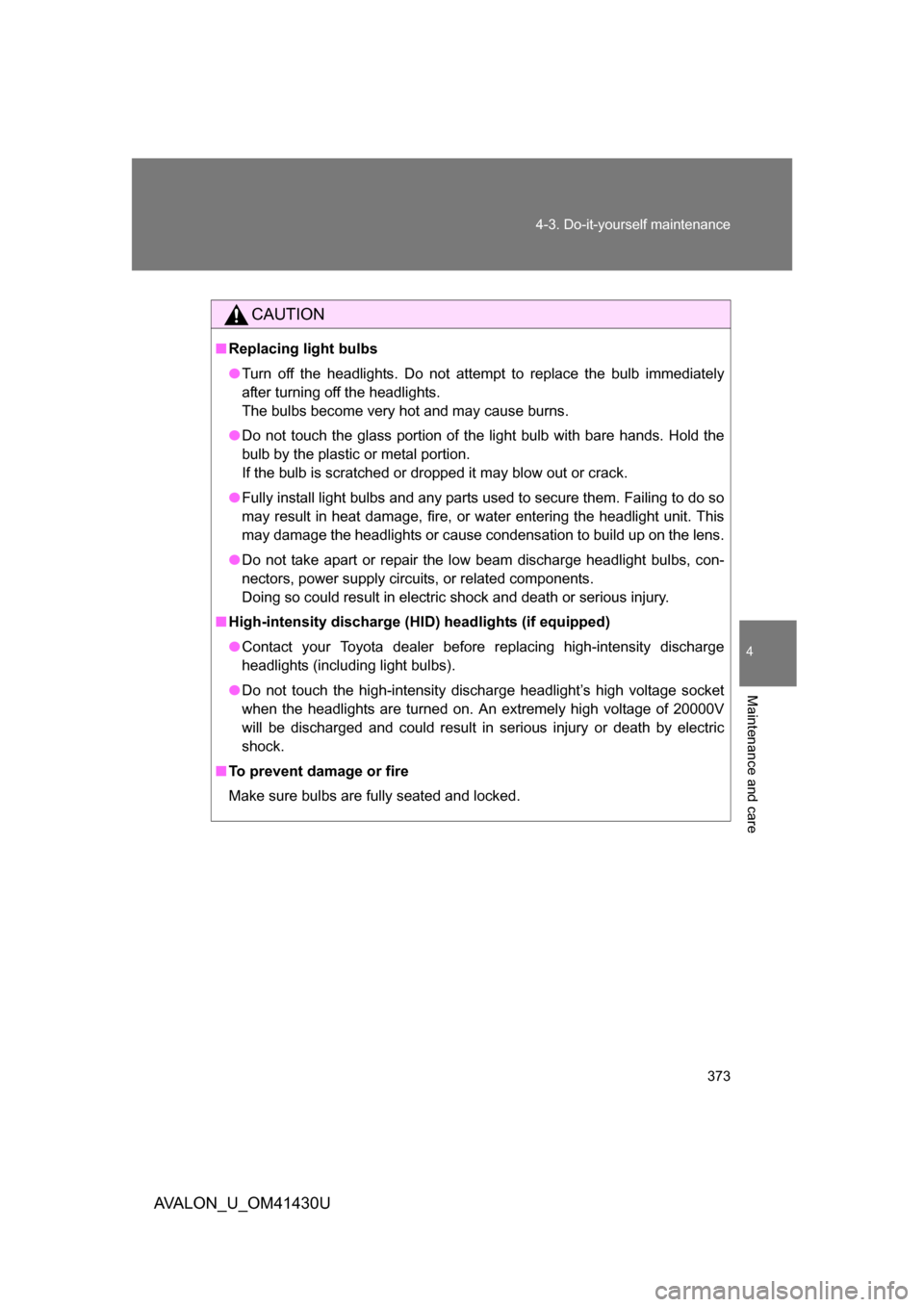

CAUTION
■
Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not take apart or repair the low beam discharge headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■ High-intensity discharge (H ID) headlights (if equipped)
● Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on. An extremely high voltage of 20000V
will be discharged and could result in serious injury or death by electric
shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

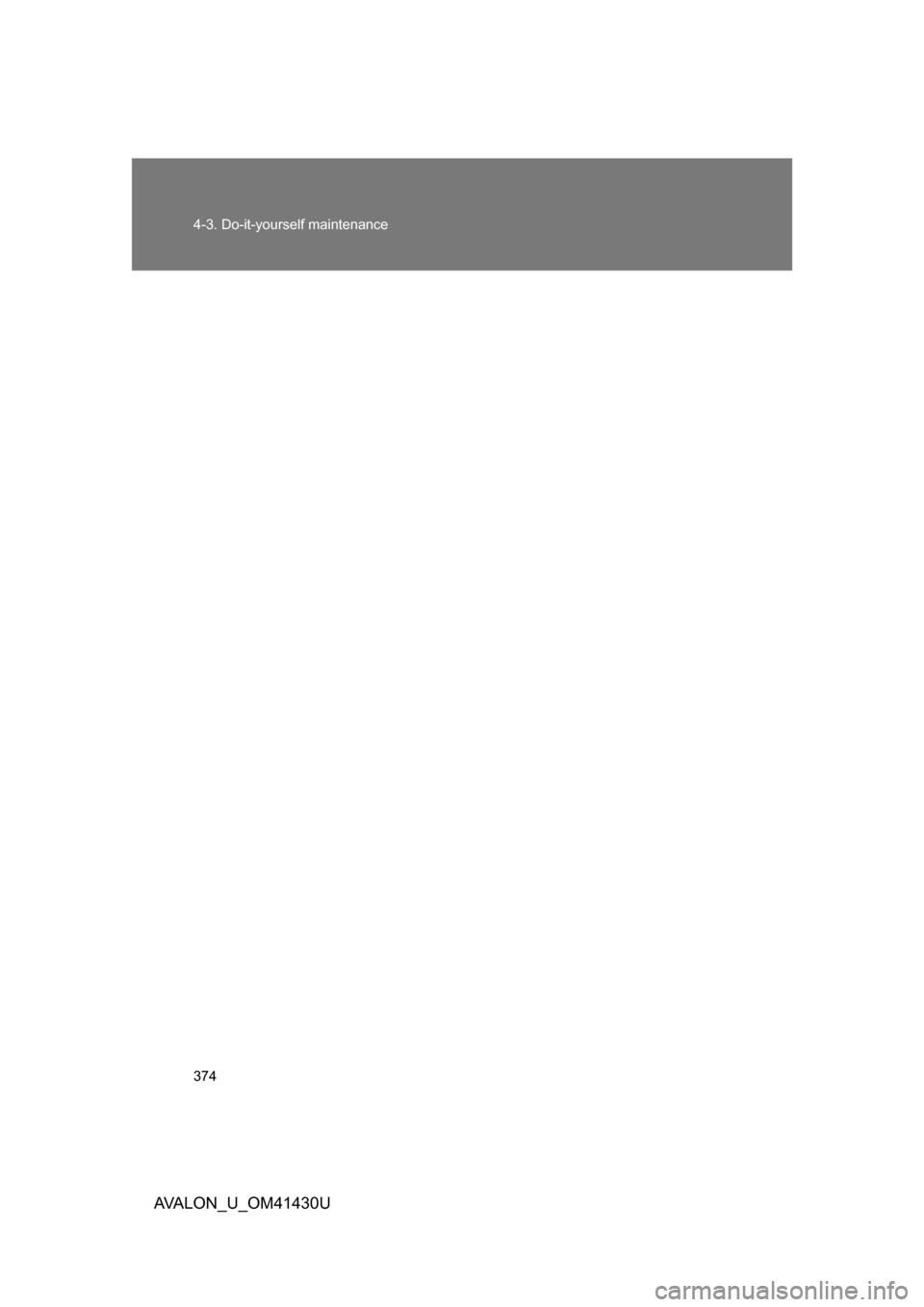

374 4-3. Do-it-yourself maintenance
AVALON_U_OM41430U

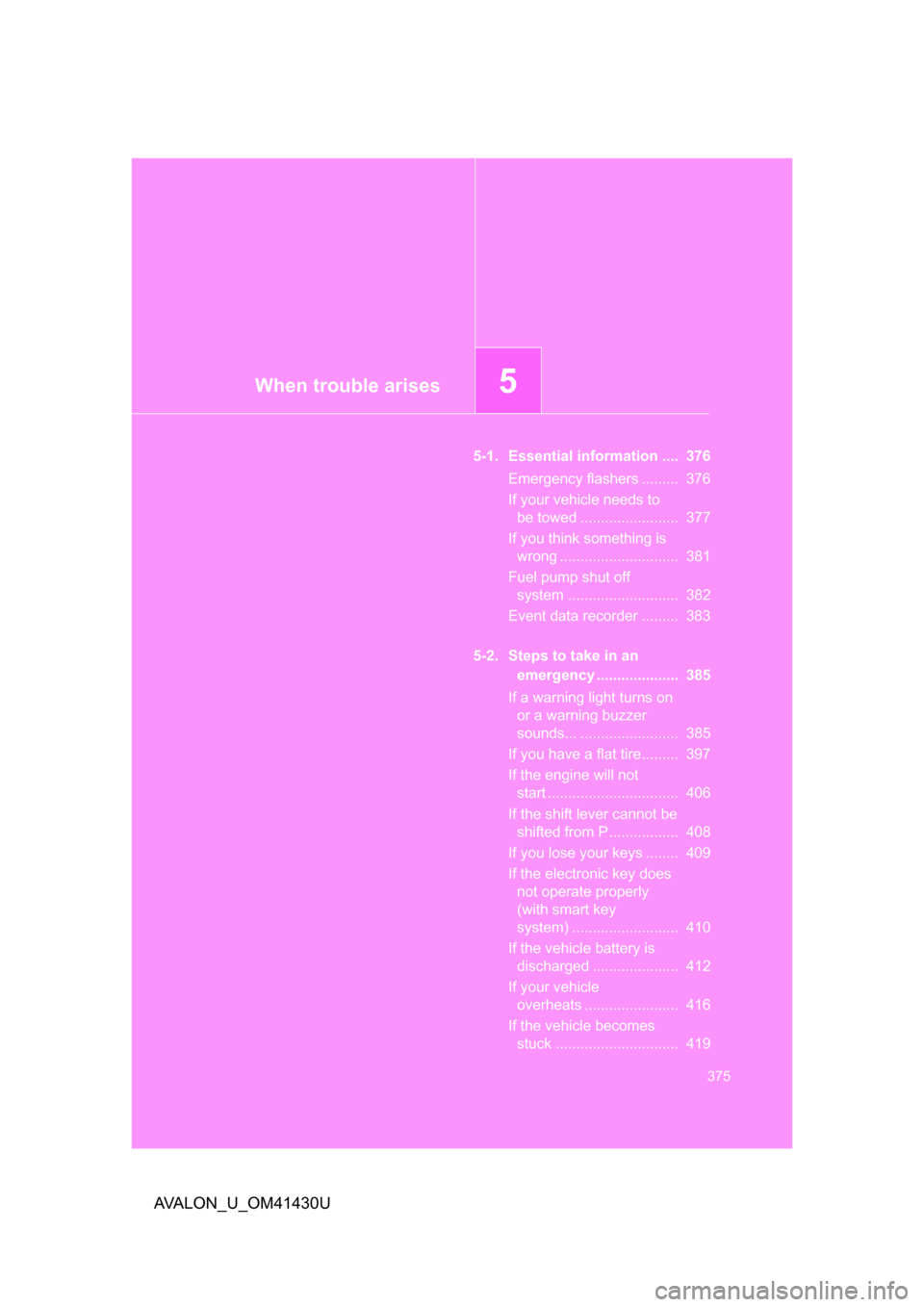

When trouble arises5
375
AVALON_U_OM41430U
5-1. Essential information .... 376Emergency flashers ......... 376
If your vehicle needs to be towed ........................ 377
If you think something is wrong ............................. 381
Fuel pump shut off system ........................... 382
Event data recorder ......... 383
5-2. Steps to take in an emergency .................... 385
If a warning light turns on or a warning buzzer
sounds... ........................ 385
If you have a flat tire......... 397
If the engine will not start ................................ 406
If the shift lever cannot be shifted from P ................. 408
If you lose your keys ........ 409
If the electronic key does not operate properly
(with smart key
system) .......................... 410
If the vehicle battery is discharged ..................... 412
If your vehicle overheats ....................... 416
If the vehicle becomes stuck .............................. 419

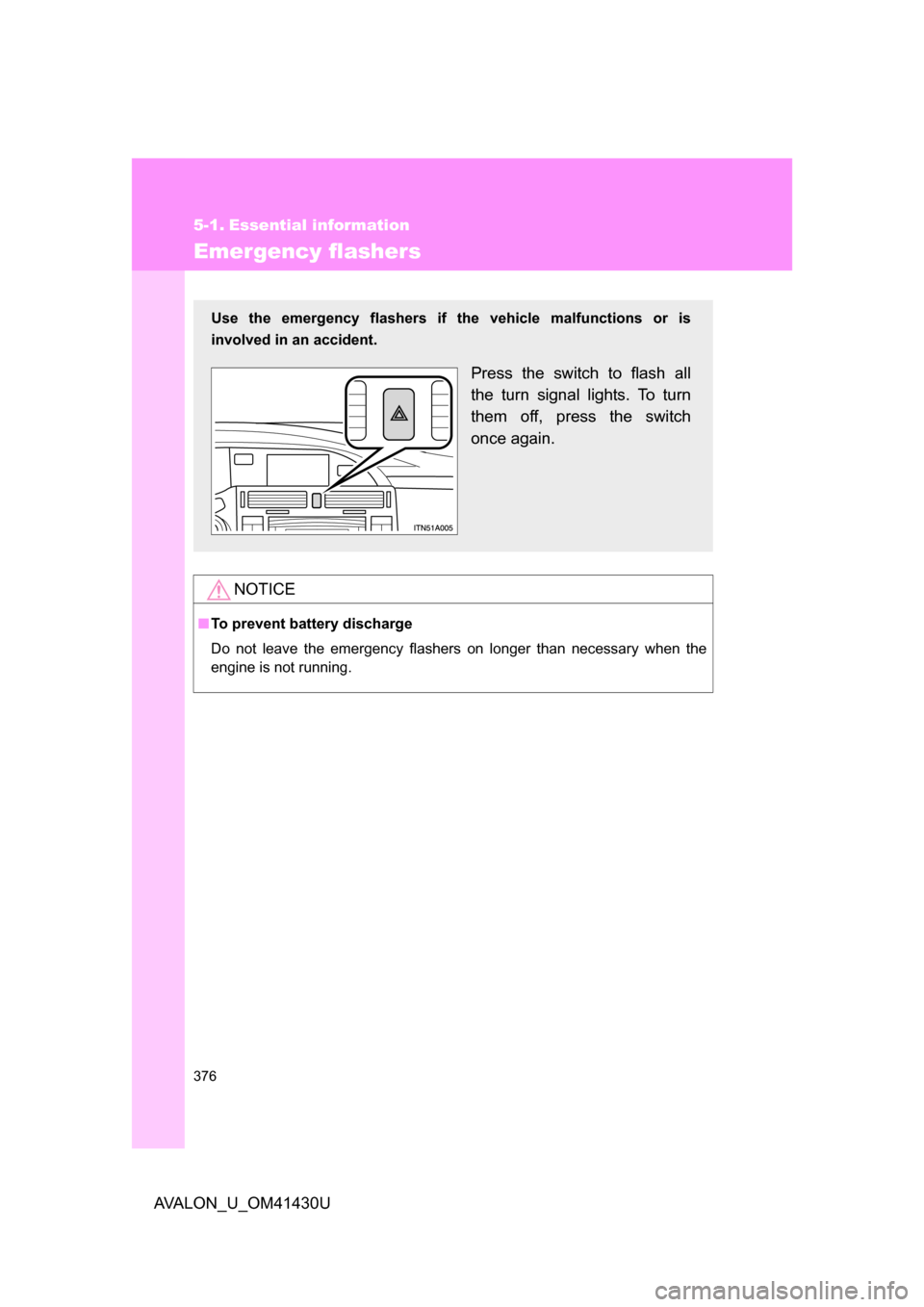

376
AVALON_U_OM41430U
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
377
5-1. Essential information
AVALON_U_OM41430U

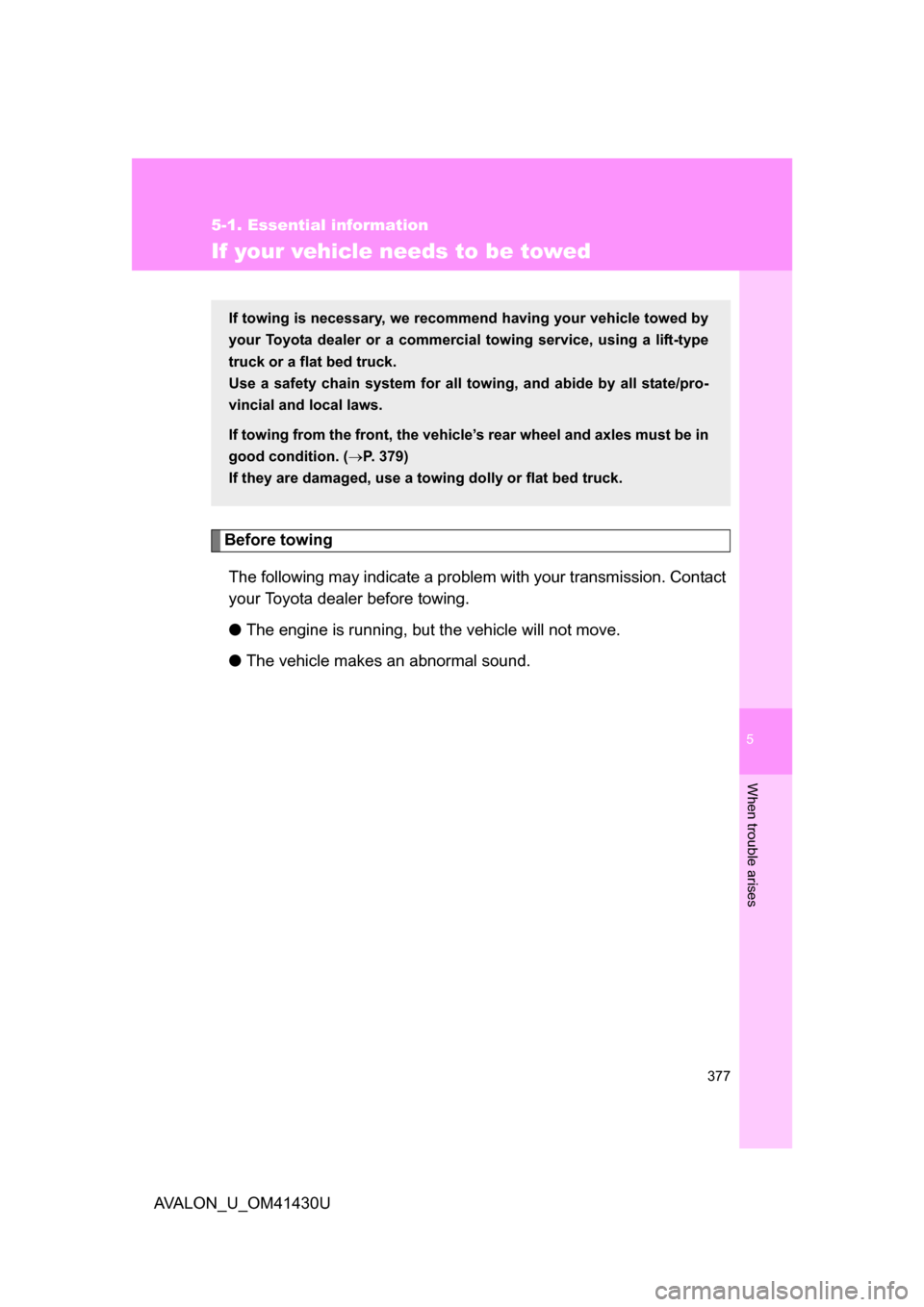

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
If towing from the front, the vehicle ’s rear wheel and axles must be in
good condition. ( P. 379)
If they are damaged, use a towing dolly or flat bed truck.

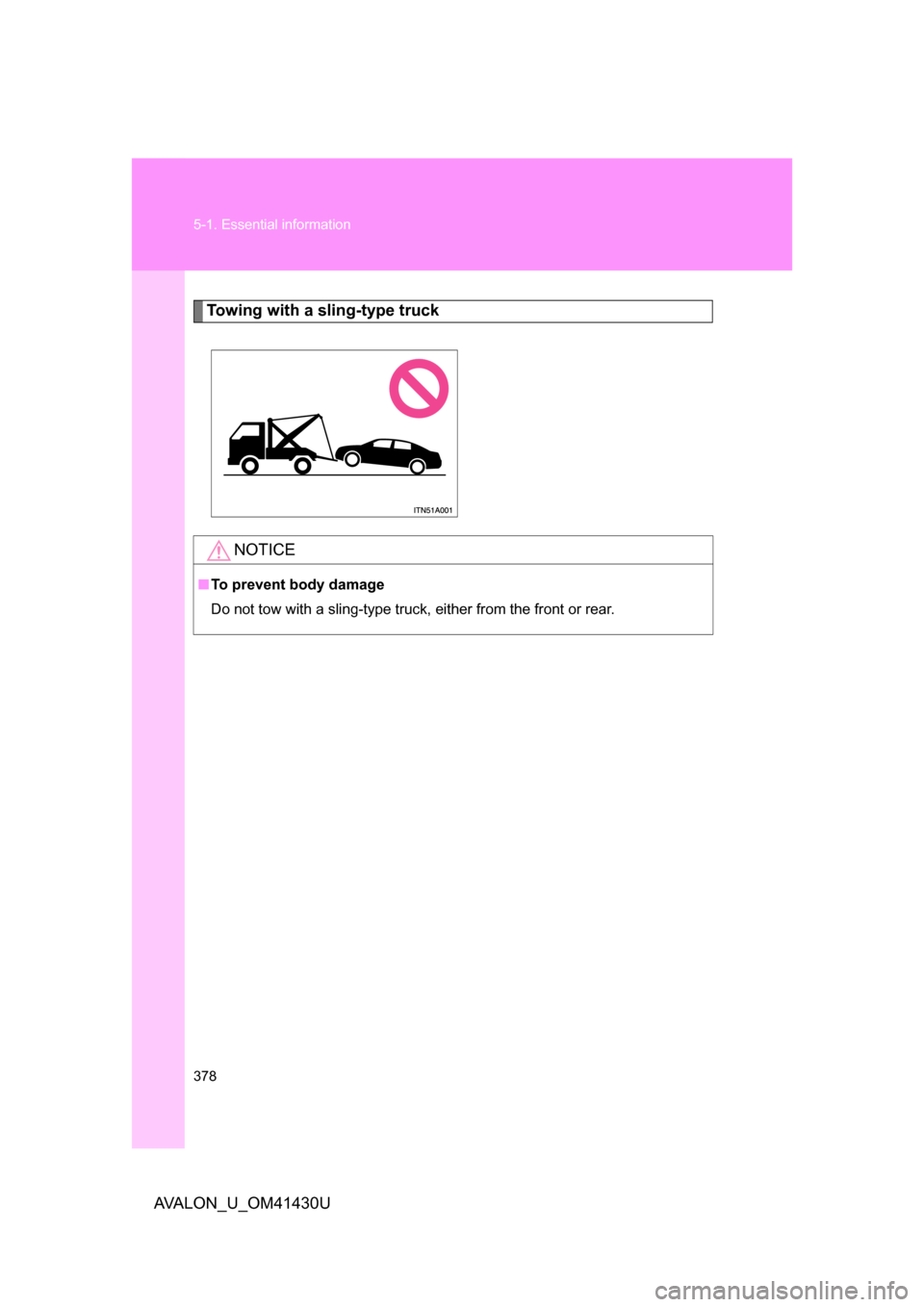

378 5-1. Essential information
AVALON_U_OM41430U
Towing with a sling-type truck
NOTICE
■To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.

5
When trouble arises
379
5-1. Essential information
AVALON_U_OM41430U

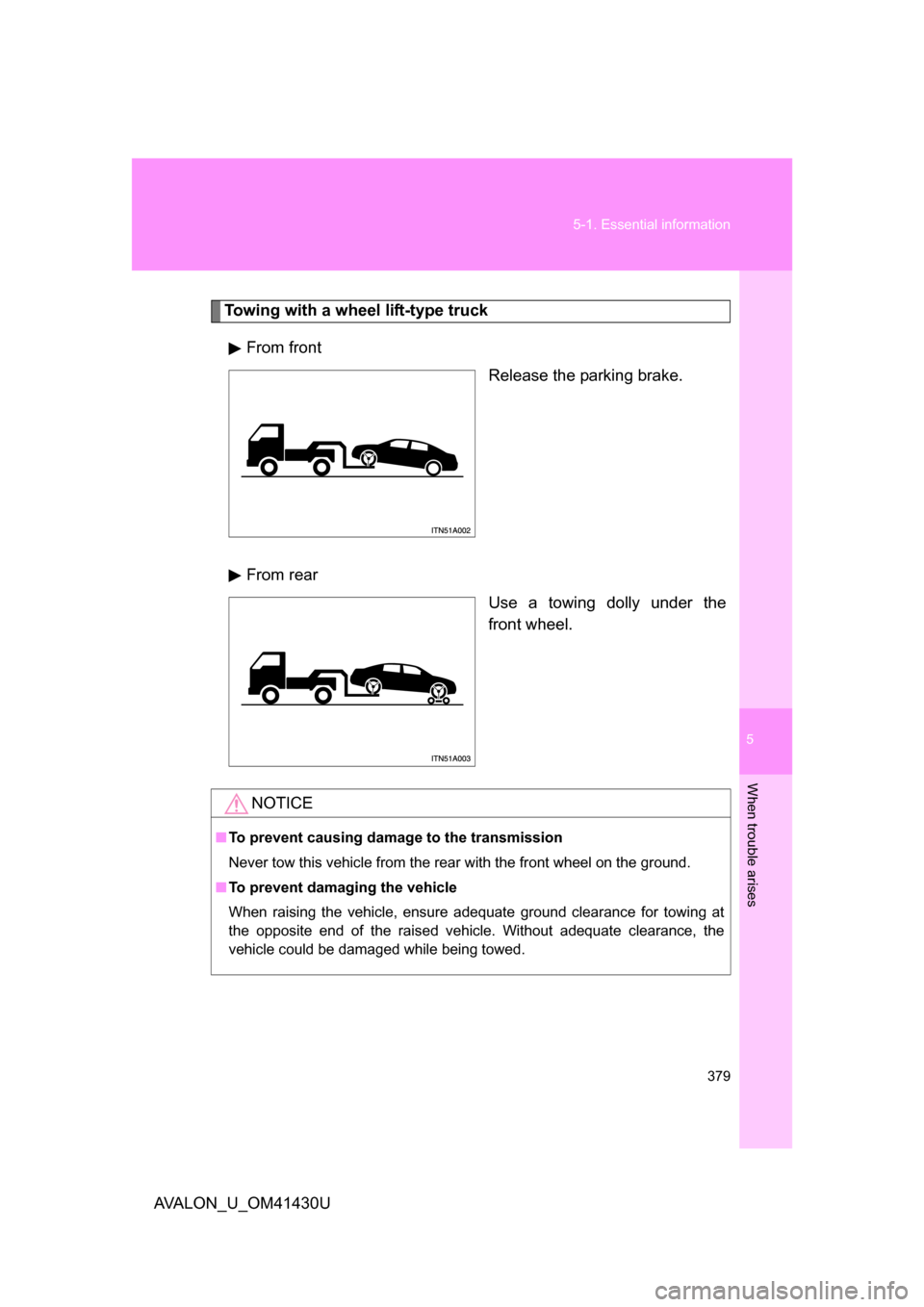

Towing with a wheel lift-type truck
From front Release the parking brake.
From rear Use a towing dolly under the
front wheel.
NOTICE
■To prevent causing damage to the transmission
Never tow this vehicle from the rear with the front wheel on the ground.
■ To prevent damaging the vehicle
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

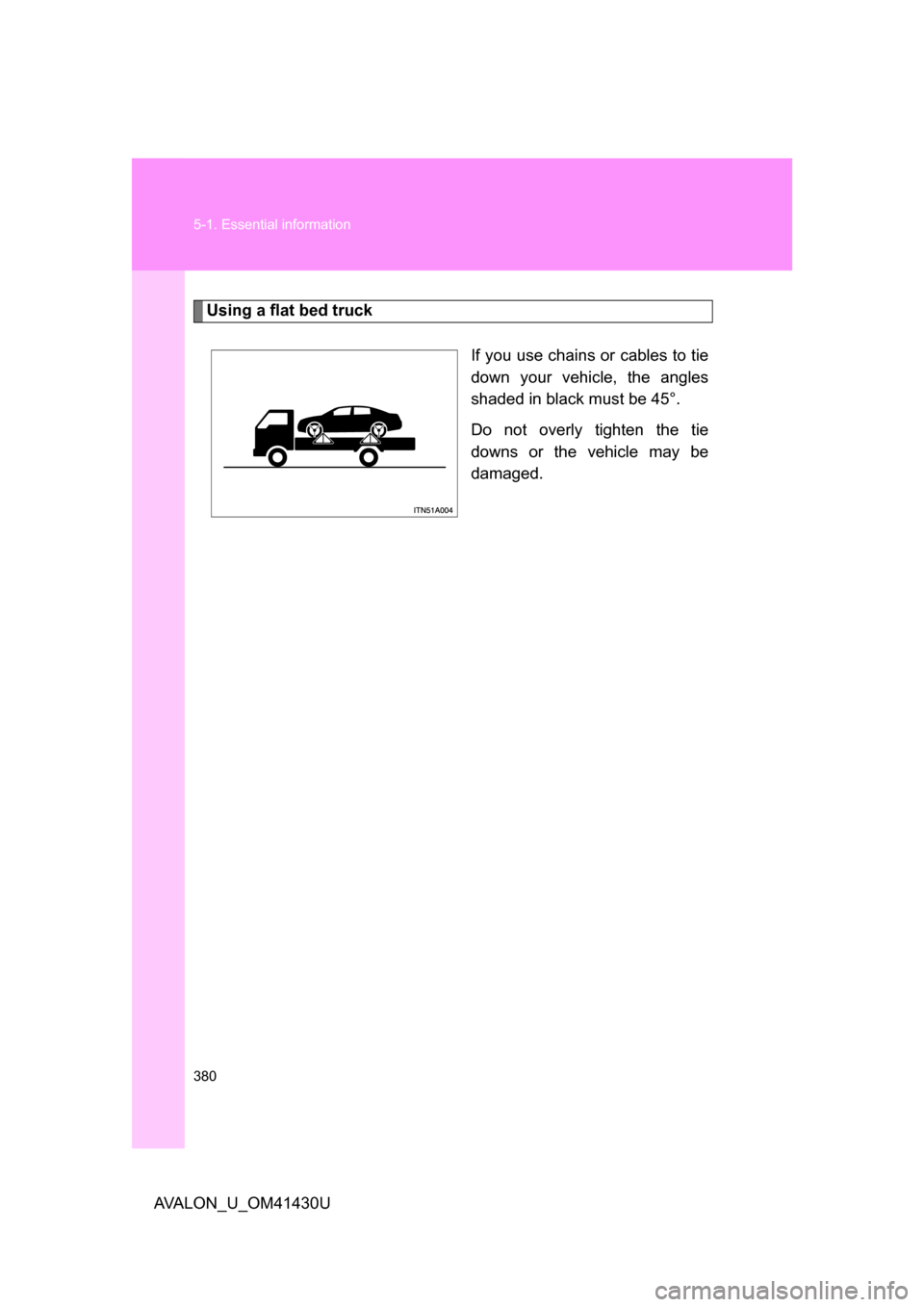

380 5-1. Essential information
AVALON_U_OM41430U
Using a flat bed truckIf you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
