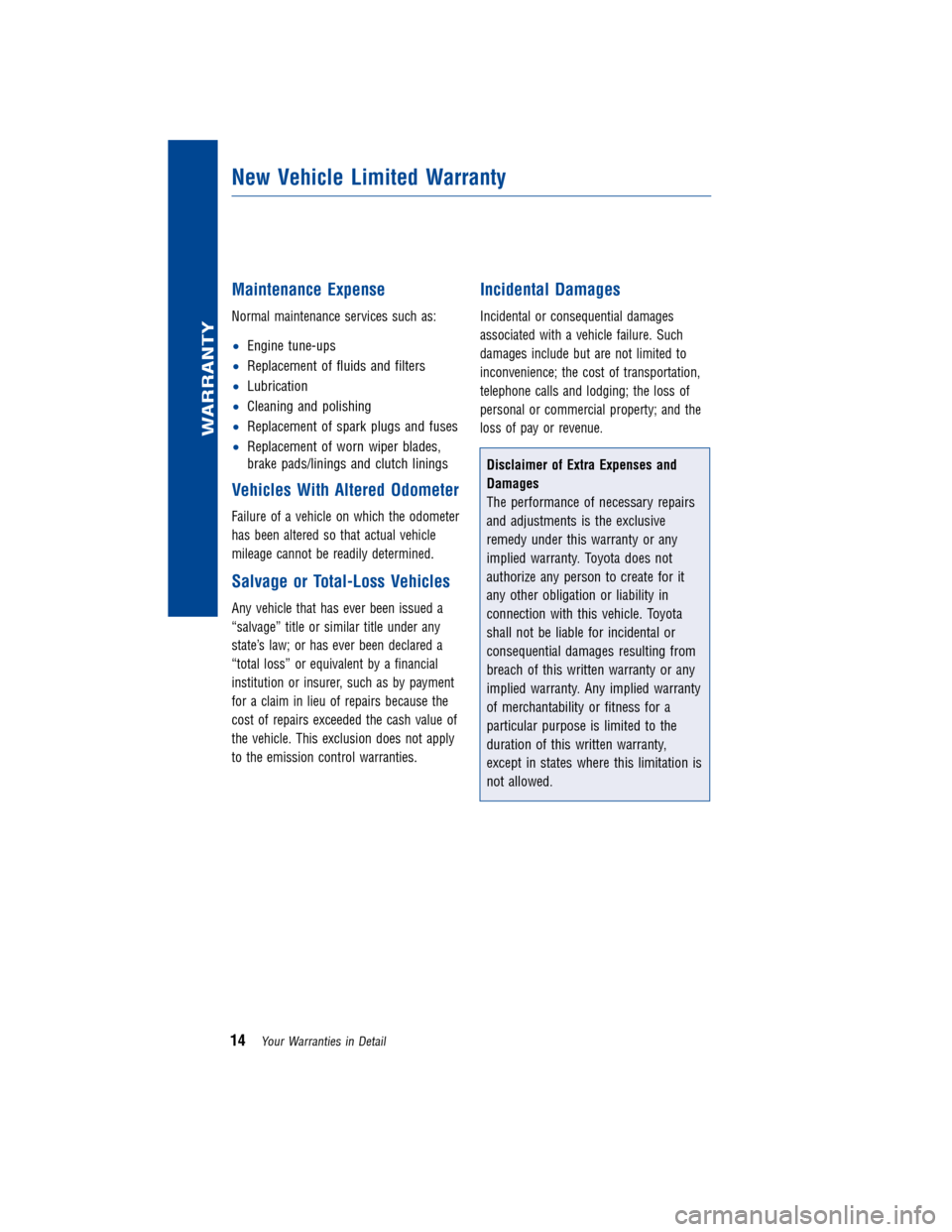

Maintenance ExpenseNormal maintenance services such as:

Engine tune-ups
 Replacement of fluids and filters
 Lubrication
 Cleaning and polishing
 Replacement of spark plugs and fuses
 Replacement of worn wiper blades,
brake pads/linings

and clutch linings
Vehicles With Altered Odometer
Failure of a vehicle on which the odometer
has been altered so that actual vehicle
mileage cannot be readily determined.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued a
“salvage” title or similar title under any
state’s law; or has ever been declared a
“total loss” or equivalent by a financial
institution or insurer, such as by payment
for a claim in lieu of repairs because the
cost of repairs exceeded the cash value of
the vehicle. This exclusion does not apply
to the emission control warranties.
Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited to
inconvenience; the cost of transportation,
telephone calls and lodging; the loss of
personal or commercial property; and the
loss of pay or revenue.
Disclaimer of Extra Expenses and
Damages
The performance of necessary repairs
and adjustments is the exclusive
remedy under this warranty or any
implied warranty. Toyota does not
authorize any person to create for it
any other obligation or liability in
connection with this vehicle. Toyota
shall not be liable for incidental or
consequential damages resulting from
breach of this written warranty or any
implied warranty. Any implied warranty
of merchantability or fitness for a
particular purpose is limited to the
duration of this written warranty,
except in states where this limitation is
not allowed.
New Vehicle Limited Warranty
WARRANTY
14Your Warranties in Detail

120,000 miles or 144 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs3
Rotate tires
Inspect the following:
__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brakepads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
5
__ Exhaust pipes and mountings __ Front differential oil
__ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
DEALER SERVICE VERIFICATION:
DATE:
MILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3It is imperative to use the DENSO-manufactured spark plug FK20HR11 or equivalent, which enables full engine
performance. Maintenance services of spark plugs are required under the terms of the Emission Control Warranty.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information. Maintenance Log
MAINTENANCE
Maintenance Log51

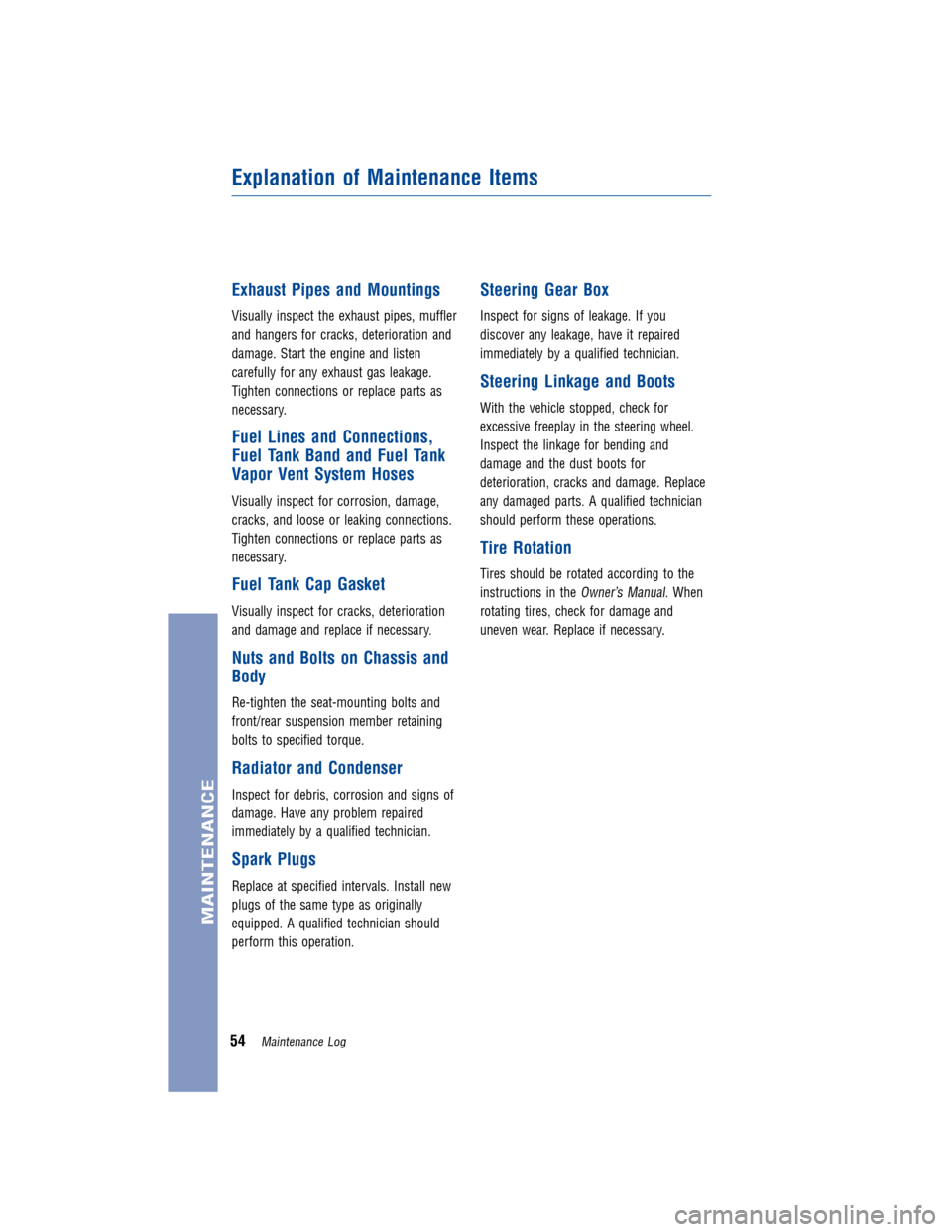

Exhaust Pipes and MountingsVisually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs of
damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear Box
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the
Owner’s Manual.When
rotating tires, check for damage and
uneven wear. Replace if necessary.
