TOYOTA AVALON 2014 XX40 / 4.G Owners Manual

2615-4. Using the storage features
5
Interior features
AVALON (U)_(OM41452U)
Ty p e A
Press in the button.
Ty p e B
Push the lid.
CAUTION
■ Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
■ When not in use (type B)
Keep the cup holders closed. In the event of sudden braking, an accident
may occur due to an occupant being struck by the open cup holders or the
items stored inside.
Auxiliary boxes

2625-4. Using the storage features
AVALON (U)_(OM41452U)
Ty p e C
Opening
Push the tray forward until it locks.
Closing
Push the tray forward to release
the lock and the tray will automati-
cally close.
■ When placing small items on top of the tray
The tray can be opened while small items
are placed on it.
An electronic device on the tray can be
recharged by running a charging cable
through the clearance of the tray and con-
necting it to the AUX/USB port or power
outlet underneath the tray.

2635-4. Using the storage features
5
Interior features
AVALON (U)_(OM41452U)■
When using wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray.
Charging can only be performed with the engine switch in ACCESSORY or
IGNITION ON mode and only on mobile devices with the “ ” logo.
■ If the wireless charger LED indicators flash
If the wireless charging surface of the tray becomes too hot, the LED indica-
tors will flash and charging is canceled. The LED indicators will be illuminated
if the surface of the tray cools down.
If the LED indicators flash even though the surface of the tray is not hot, the
wireless charger may be malfunctioning. Consult your Toyota dealer. Push the tray forward until it locks and
press the wireless charger switch.
Push the tray forward to release the
lock to close the tray and place a
mobile device on the tray as shown in
the illustration.
An amber indicator is illuminated
while charging is in progress. When
charging is complete, a green indica-
tor will also be illuminated.
Some phones, cases or cover type
wireless chargers may not cause the
green indicator to illuminate even
though it is fully charged.
When placing the mobile device on
the wireless charging surface of the
tray, make sure that there are no
objects in-between the mobile device
and the tray. They may interfere with
charging.
1
2

2645-4. Using the storage features
AVALON (U)_(OM41452U)■
When charging of the wirel ess charger stops temporarily
If any of the following operations ar e performed with the electronic key
present, charging may stop temporarily . Charging will start again after a
while.
● Locking/unlocking the doors by touching the door handle
● Opening/closing the doors
● Pressing the trunk opener switch
● Closing the trunk lid
● Starting the engine
● Locking the doors by pressing the lock button on the electronic key
● When the electronic key is out of the detection area
■ Certification for the wireless charger
For vehicles sold in the U.S.A.
This device complies with Part 18 of the FCC Rules.
Toyota Motor Sales, U.S.A., Inc.
19001 S. Western Avenue
Torrance, CA 90501
For vehicles sold in Canada
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.
CAUTION
■ Caution while driving
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.
■ Items unsuitable for storing (type B only)
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

2655-4. Using the storage features
5
Interior features
AVALON (U)_(OM41452U)
CAUTION
■Caution regarding interference with electronic devices (vehicles with a
wireless charger)
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the wireless charger.
The radio waves may affect the operation of such devices.
● Before using the wireless charger, us ers of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
● To avoid interference with other electrical devices, turn the wireless
charger off by turning off the wireless charger switch.
■ When using wireless charger
Avoid placing metal objects between the wireless charger and the mobile
device when charging is active. Doing so may cause metal objects to
become hot and could cause burns.
NOTICE
■To prevent damaging small items
When opening the tray while small items are placed on it, make sure the
items will not get caught.
■ To prevent damaging the tray
Do not pull down the tray to close it. Doing so may damage the tray.
■ When on a steep downward incline
The tray can be closed slowly. In this case, the tray can be pulled down to
close it.
However, make sure the lock has been released before doing so.

2665-4. Using the storage features
AVALON (U)_(OM41452U)

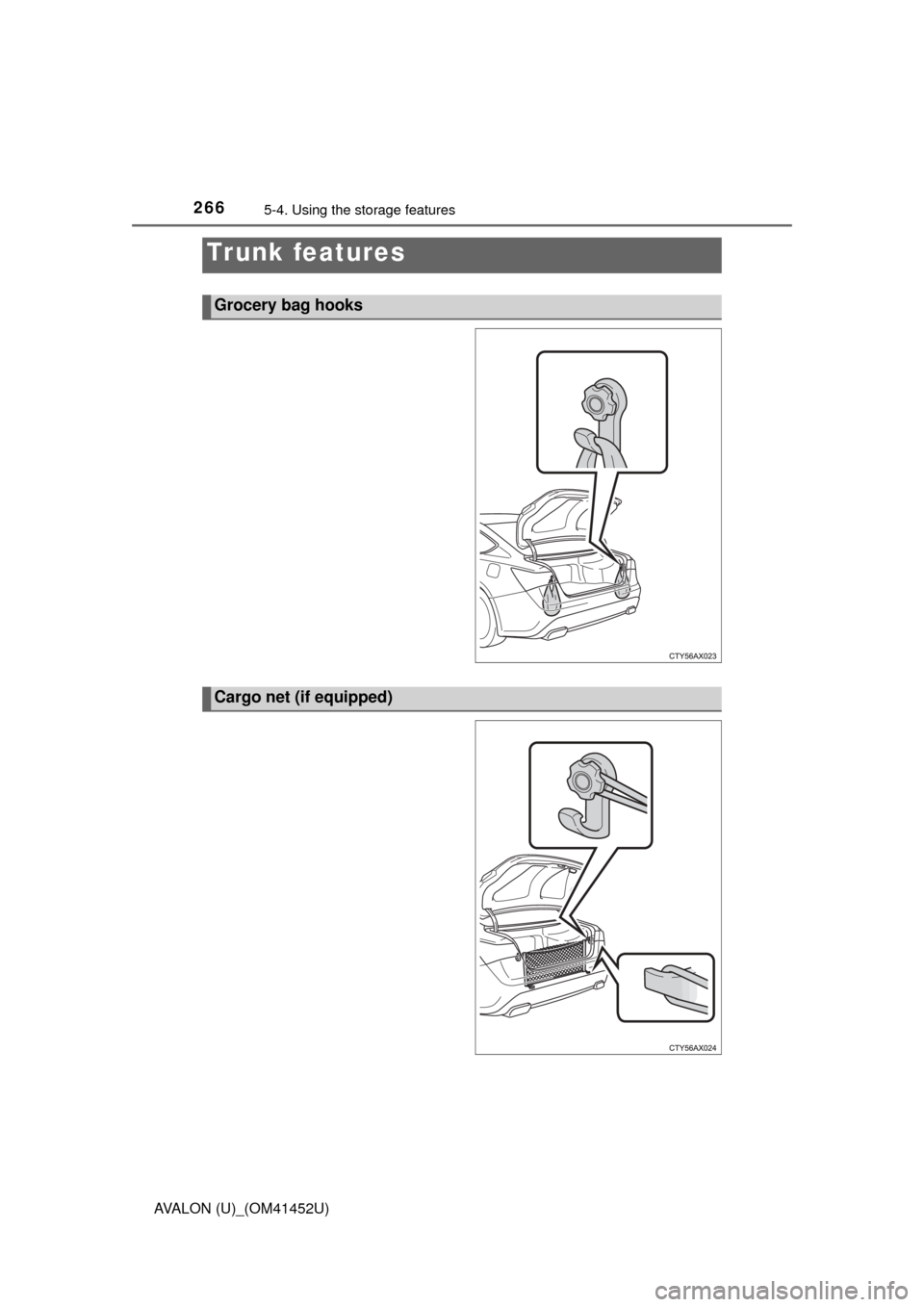

Trunk features
Grocery bag hooks
Cargo net (if equipped)

2675-4. Using the storage features
5
Interior features
AVALON (U)_(OM41452U)
NOTICE
■To prevent damage to the hooks
Do not apply too much load to the hooks.

268
AVALON (U)_(OM41452U)
5-5. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
To use the side extender, place
the visor in the side position,
then slide it backward.
Open the cover to use.
The light turns on when the cover
is opened.
Sun visors and vanity mirrors
Sun visors
1
2
3
Vanity mirrors
NOTICE
■ To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off.

2695-5. Other interior features
5
Interior features
AVALON (U)_(OM41452U)
Ty p e AAdjusts the hours
Pressing and holding the button
adjusts the hours forward
quickly 1 hour at a time.
Adjusts the minutes
Pressing and holding the button
adjusts the minutes forward
quickly by 1 minute at a time. If
the button is pressed and held
for 5 seconds or more, the min-
utes move forward by 5 minutes
at a time.
Ty p e B
Adjusts the hours
Pressing and holding the button
adjusts the hours forward
quickly 1 hour at a time.
Adjusts the minutes
Pressing and holding the button
adjusts the minutes forward
quickly by 1 minute at a time. If
the button is pressed and held
for 5 seconds or more, the min-
utes move forward by 5 minutes
at a time.
Clock
The clock can be adjusted by pressing the buttons.
1
2
1
2

2705-5. Other interior features
AVALON (U)_(OM41452U)
■The clock is displayed when
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When disconnecting and reco nnecting battery terminals
Type A
The time display will automatically be set to 12:00 AM.
Type B
The time display will automatically be set to 12:00.
■ Time display (Type B)
After pressing “H” or “M” to show the setting screen, press “H” and “M” at the
same time to change between the analog and digital displays.
