stop start TOYOTA AVALON 2019 Accessories, Audio & Navigation (in English)

32
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
When the engine switch is turned
to ACCESSORY or IGNITION ON
mode, the initial screen will be displayed
and the system will begin operating.
 After a few seconds, the caution screen
will be displayed.
 After about 5 seconds or selecting “Con-
tinue” , the caution screen automatically
switches to the next screen.
1Press and hold the “PWR VOL” knob
for 3 seconds or more.
WA R N I N G
● When the vehicle is stopped with the
engine running ating>, always apply the parking brake
for safety.
MAINTENANCE
INFORMATION*
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the maintenance remainder screen will
be displayed when the system is
turned on.
 To prevent the screen from being dis-
played again, select “Do Not Tell Me
Again” .
 To register maintenance information:
P. 6 9
 If is selected, the registered
phone number can be called.
RESTARTING THE SYSTEM
When system response is extremely
slow, the system can be restarted.
*: Entune Premium Audio only

227

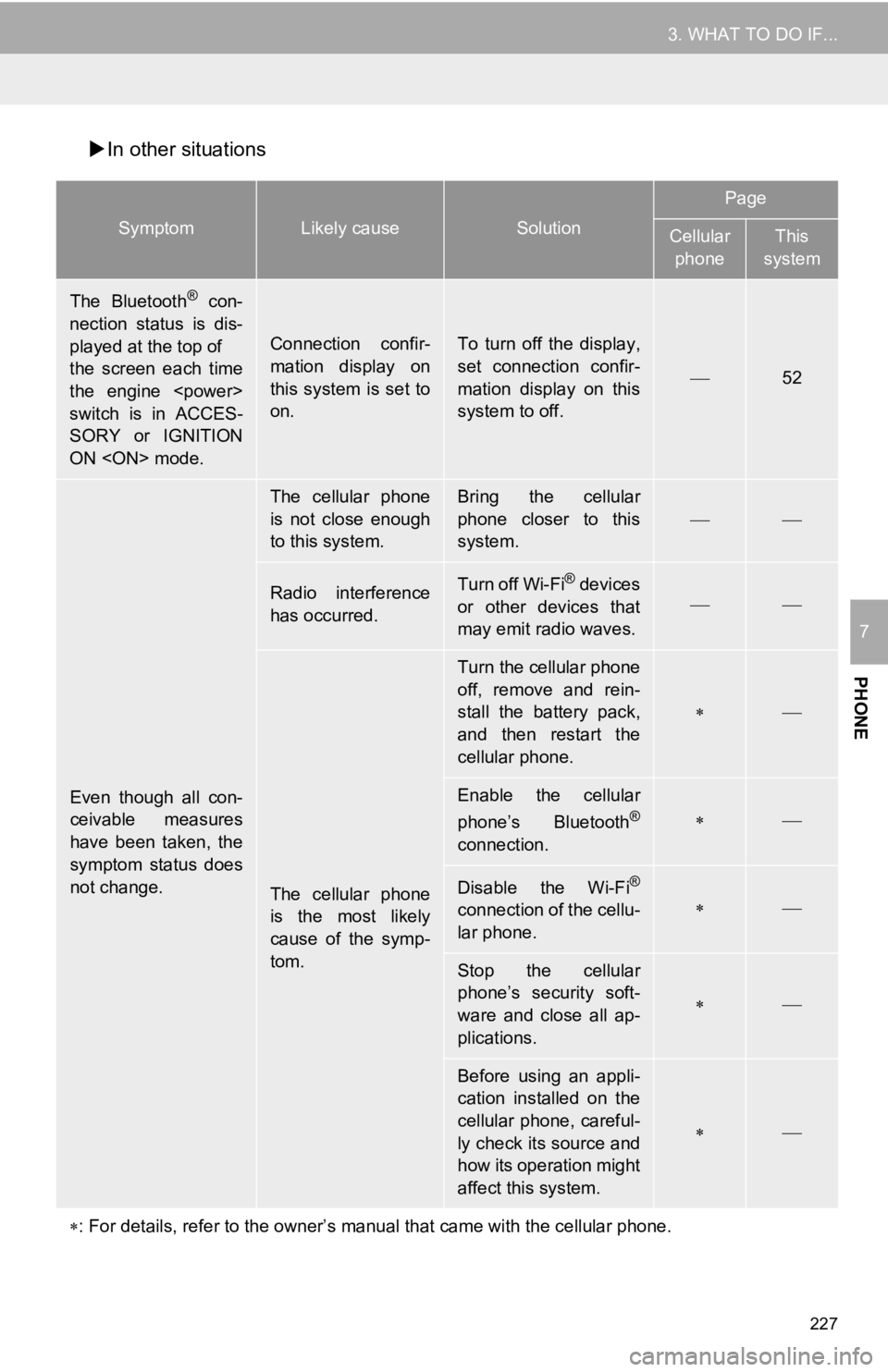

3. WHAT TO DO IF...
PHONE
7
In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine
switch is in ACCES-
SORY or IGNITION
ON mode.
Connection confir-
mation display on
this system is set to
on.To turn off the display,
set connection confir-
mation display on this
system to off.
52
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone
is not close enough
to this system.Bring the cellular
phone closer to this
system.

Radio interference
has occurred.Turn off Wi-Fi® devices
or other devices that
may emit radio waves.
The cellular phone
is the most likely
cause of the symp-
tom.
Turn the cellular phone
off, remove and rein-
stall the battery pack,
and then restart the
cellular phone.

Enable the cellular
phone’s Bluetooth®
connection.

Disable the Wi-Fi®
connection of the cellu-
lar phone.
Stop the cellular
phone’s security soft-
ware and close all ap-
plications.

Before using an appli-
cation installed on the
cellular phone, careful-
ly check its source and
how its operation might
affect this system.

 : For details, refer to the owner’s manual that came with the ce llular phone.

239
1. BASIC OPERATION
NAVIGATION SYSTEM
8
1Select on the map screen.
(P.230)
2Select “Route Trace”.
The route trace starts.
3Check that the traveled line is dis-
played.
1Select on the map screen.
(P.230)
2Select “Route Trace” again.
3A confirmation screen will be dis-
played.
“Yes”: Select to keep the recorded
route trace.
“No” : Select to erase the recorded
route trace.
ROUTE TRACE
The traveled route can be stored and
retraced on the map screen. This fea-
ture is available when the map scale is
30 miles (50 km) or less.
STOP RECORDING THE
ROUTE TRACE
INFORMATION
● The traveled route can be stored up to
621 miles (1000 km).

256
2. DESTINATION SEARCH
■ADDING DESTINATIONS
1Select “Add”.
2Search for an additional destination in
the same way as a de stination search.
(P.243)
 Up to 5 destinations can be set.
When the vehicle is stopped
3Select the “Add Destination Here” at
the position in the r oute which you want
to add the destination.
 While driving
3Select “Beginning” or “End”.
■DELETING DESTINATIONS
1Select “Delete” .
2Select “Yes” when the confirmation
screen appears.
 If more than one destination has been set,
select the destination(s) to be deleted.
(The navigation system will recalculate
route(s) to the remaining set destina-
tion(s).)
A ROUTE FROM THE Toyota
Entune CENTER* (VEHICLES
WITH DCM)
When starting route guidance or re-
routing, a route can be provided auto-
matically by the Toyota Entune center.
This function is available when dynam-
ic route setting is enabled. ( P.274)
*: This function is not availabl e in some countries and areas.
