TOYOTA AVALON 2019 Accessories, Audio & Navigation (in English)

2 0 19
Printed in USA 11/18
18 - M K G - 12 4 7 5
- Audio Sy s tem
- Bluetooth
® Functions
- Entune
™ 3. 0
App Suite Connect
- Dynamic Navigation
EN TUNE™ 3.0
QUICK REFERENCE GUIDE
www.ToyotaOwners.com
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31

1

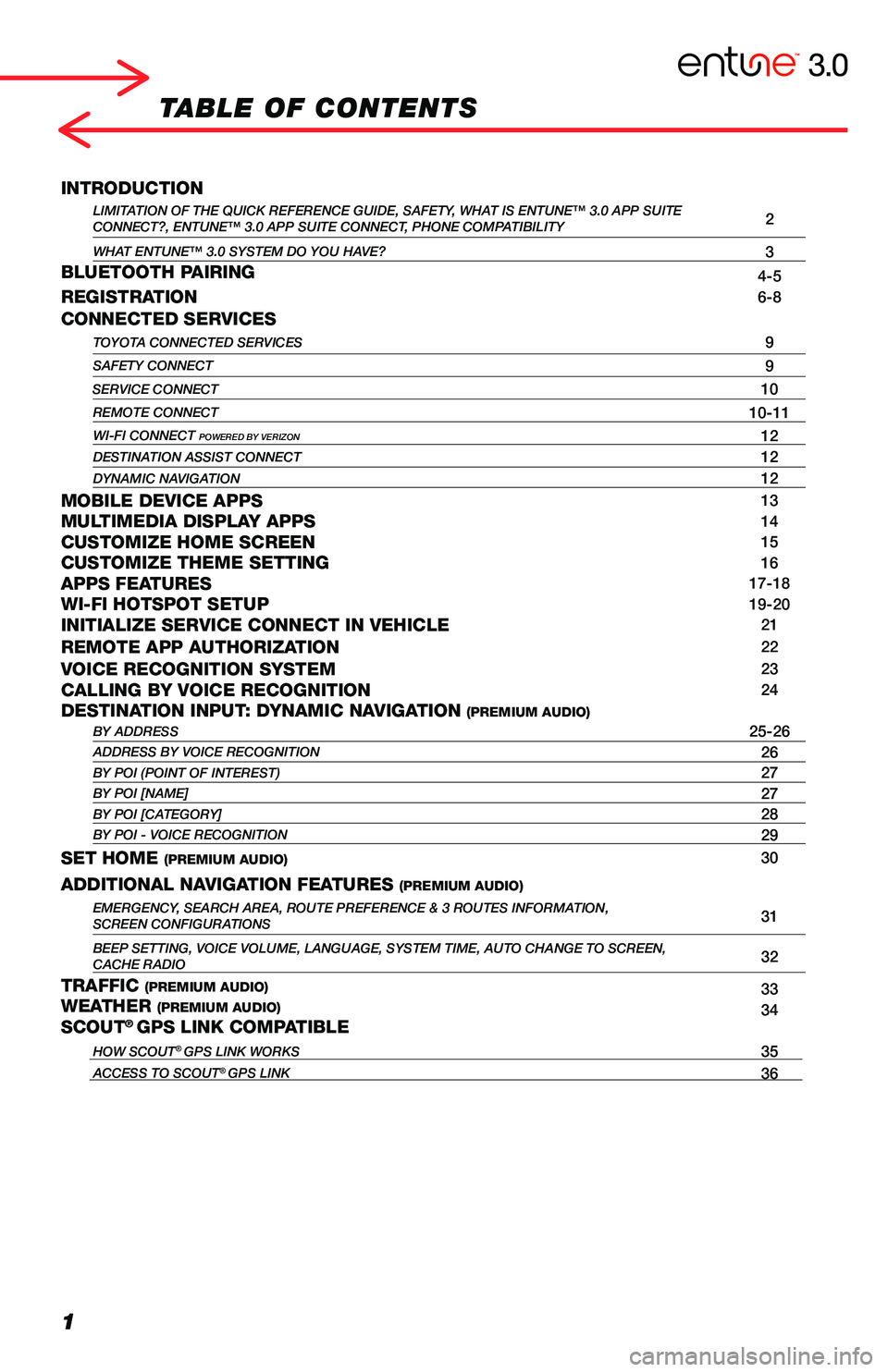

TABLE OF CONTENTS
INTRODUCTIONLIMITATION OF THE QUICK REFERENCE GUIDE, SAFETY, WHAT IS ENTUNE™ 3.0 APP SUITECONNECT?, ENTUNE™ 3.0 APP SUITE CONNECT, PHONE COMPATIBILITY2
WHAT ENTUNE™ 3.0 SYSTEM DO YOU HAVE?3BLUETOOTH PAIRING4-5REGISTRATION6-8
CONNECTED SERVICESTOYOTA CONNECTED SERVICES9
SAFETY CONNECT9
SERVICE CONNECT10
REMOTE CONNECT10-11
WI-FI CONNECT POWERED BY VERIZON12DESTINATION ASSIST CONNECT12DYNAMIC NAVIGATION12
MOBILE DEVICE APPS13MULTIMEDIA DISPLAY APPS14CUSTOMIZE HOME SCREEN15CUSTOMIZE THEME SETTING16APPS FEATURES17-18WI-FI HOTSPOT SETUP19-20INITIALIZE SERVICE CONNECT IN VEHICLE21
REMOTE APP AUTHORIZATION22
VOICE RECOGNITION SYSTEM23CALLING BY VOICE RECOGNITION24DESTINATION INPUT: DYNAMIC NAVIGATION (PREMIUM AUDIO)BY ADDRESS25-26ADDRESS BY VOICE RECOGNITION26BY POI (POINT OF INTEREST)27BY POI [NAME]27BY POI [CATEGORY]28BY POI - VOICE RECOGNITION29
SET HOME (PREMIUM AUDIO)30
ADDITIONAL NAVIGATION FEATURES (PREMIUM AUDIO)EMERGENCY, SEARCH AREA, ROUTE PREFERENCE & 3 ROUTES INFORMATION, SCREEN CONFIGURATIONS31
BEEP SETTING, VOICE VOLUME, LANGUAGE, SYSTEM TIME, AUTO CHANGE TO SCREEN\
,CACHE RADIO32
TRAFFIC (PREMIUM AUDIO)33WEATHER (PREMIUM AUDIO)34SCOUT® GPS LINK COMPATIBLE
HOW SCOUT® GPS LINK WORKS35ACCESS TO SCOUT® GPS LINK36
The Quick Reference Guide is designed to provide information on the basic operation and key features of the navigation system and Entune™. The Quick Reference Guide is not intended as a substitute for the Navigation Owner’s Manual. We strongly encourage you to review the Navigation Owner’s Manual, the quick reference guide and visit www.toyota.com/entune so you will have a better understanding of all your vehicles features and controls.

2

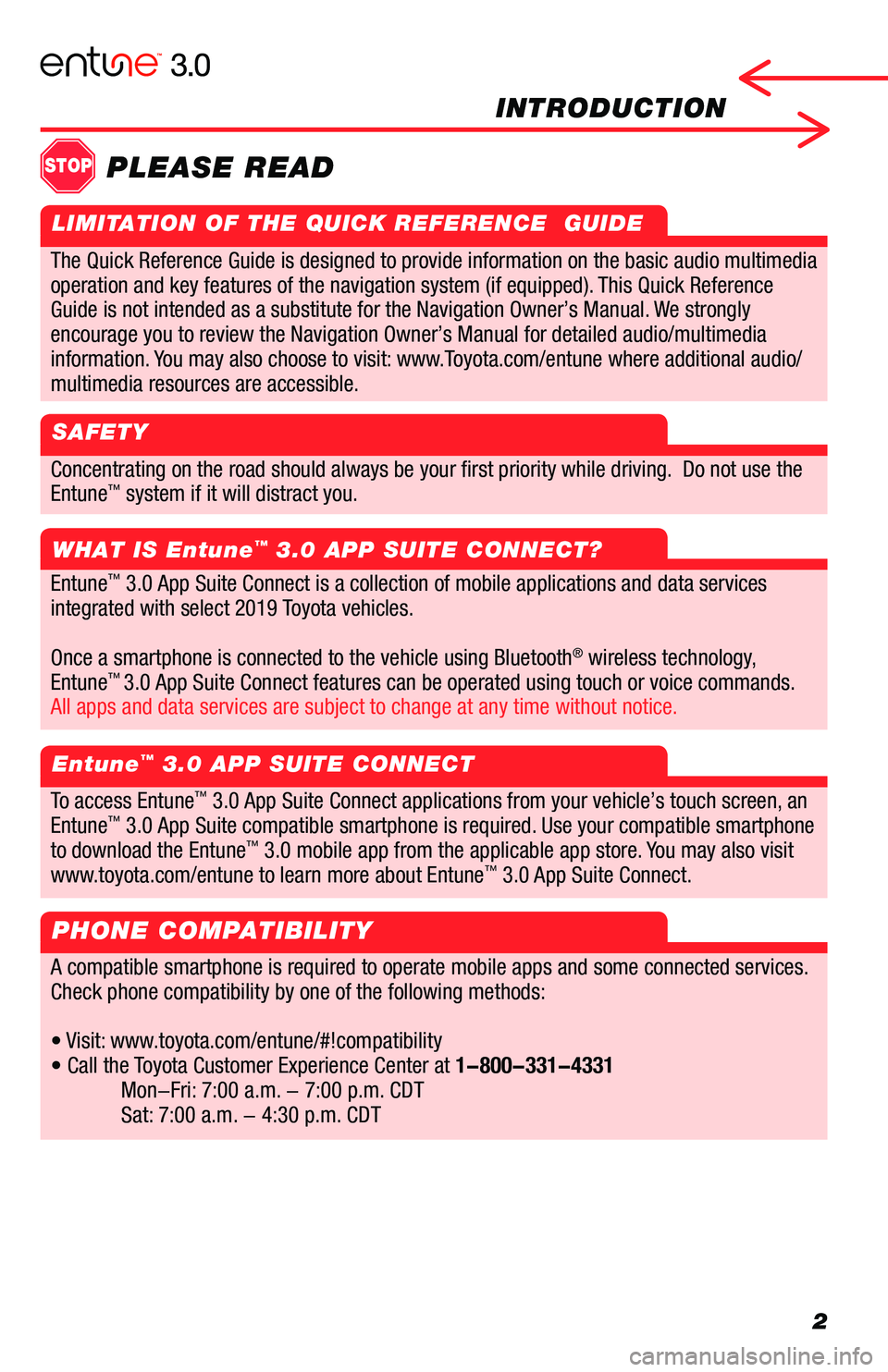

INTRODUCTION
Concentrating on the road should always be your first priority while driving. Do not use the
Entune™ system if it will distract you.
WHAT IS Entune™ 3.0 APP SUITE CONNECT?
Entune™ 3.0 APP SUITE CONNECT
STOPPLEASE READ
Entune™ 3.0 App Suite Connect is a collection of mobile applications and data services
integrated with select 2019 Toyota vehicles.
Once a smartphone is connected to the vehicle using Bluetooth® wireless technology,
Entune™ 3.0 App Suite Connect features can be operated using touch or voice commands.
All apps and data services are subject to change at any time without notice.
To access Entune™ 3.0 App Suite Connect applications from your vehicle’s touch screen, an
Entune™ 3.0 App Suite compatible smartphone is required. Use your compatible smartphone
to download the Entune™ 3.0 mobile app from the applicable app store. You may also visit
www.toyota.com/entune to learn more about Entune™ 3.0 App Suite Connect.
PHONE COMPATIBILITY
A compatible smartphone is required to operate mobile apps and some connected services.
Check phone compatibility by one of the following methods:
• Visit: www.toyota.com/entune/#!compatibility
• Call the Toyota Customer Experience Center at 1-800-331-4331
Mon-Fri: 7:00 a.m. - 7:00 p.m. CDT
Sat: 7:00 a.m. - 4:30 p.m. CDT
The Quick Reference Guide is designed to provide information on the basic audio multimedia
operation and key features of the navigation system (if equipped). This Quick Reference
Guide is not intended as a substitute for the Navigation Owner’s Manual. We strongly
encourage you to review the Navigation Owner’s Manual for detailed audio/multimedia
information. You may also choose to visit: www.Toyota.com/entune where additional audio/
multimedia resources are accessible.
LIMITATION OF THE QUICK REFERENCE GUIDE
SAFETY

3
INTRODUCTION
WHAT ENTUNE™ 3.0 SYSTEM DO YOU HAVE?
Include:
• Touch Screen Display
• Siri® Eyes Free*
• Apple CarPlay®
• Entune™ 3.0 App Suite Connect
• Entune™ 3.0 Safety Connect
• Entune™ 3.0 Wi-Fi Connect Powered by Verizon (trial included)
All apps and data services are subject to change at any time without notice.
Connected Services may vary by vehicle.
Remote & Service Connect not available on 2018–2019 Sienna, Mirai and 2019 C-HR.
(Remote Start/Stop N/A on vehicles equipped with Manual Transmission.)
Safety & Wi-Fi Connect not available on 2019 C-HR.
All apps and data services are subject to change at any time without notice.
Connected Services may vary by vehicle.
Remote & Service Connect not available on 2018–2019 Sienna, Mirai and 2019 C-HR.
(Remote Start/Stop N/A on vehicles equipped with Manual Transmission.)
All apps and data services are subject to change at any time without notice.
Connected Services may vary by vehicle.
Remote & Service Connect not available on 2018–2019 Sienna, Mirai and 2019 C-HR.
(Remote Start/Stop N/A on vehicles equipped with Manual Transmission.)
Includes all of Entune™ 3.0 Audio and adds or replaces:
• AM/FM/HD (replaces AM/FM Radio)
• SiriusXM® with Cache Radio
• Entune™ 3.0 Service Connect
• Entune™ 3.0 Remote Connect
• Entune™ 3.0 Wi-Fi Connect Powered by Verizon (trial included)
• Available JBL® with Clari-Fi™
Be sure to obey traffic regulations and maintain awareness of road and traffic conditions. Select Entune™ App Suite Connect use a large amount of data and you are responsible for all data charges. Apps and services vary by phone and carrier. Not all apps and data services are available at all times and all locations. Apps identified by "™" or "®" are trademarks or registered trademar\
ks of their respective companies and cannot be used without permission. All apps and data services are subject to change at any time without notice. Connected services may vary by vehicle. Remote & Service Connect not available on 2018–2019 Sienna, Mirai and 2019 C-HR. (Remote Start/Stop N/A on vehicles equipped with Manual Transmission.) See toyota.com/entune for the latest information regarding apps and services.
* Siri® Eyes Free is available with iOS devices such as iPhone.
Entune™ 3.0 Audio
Entune™ 3.0 Audio Plus
Includes all of Entune™ 3.0 Audio Plus and adds or replaces:
• Dynamic Voice Recognition (replaces Voice Recognition)
• Dynamic Navigation
• Dynamic POI Search
• Destination Assist Connect
• HD Radio™ with Weather/Traffic
• Available JBL® with Clari-Fi™
Entune™ 3.0 Premium Audio with Integrated Navigation and App Suite

4

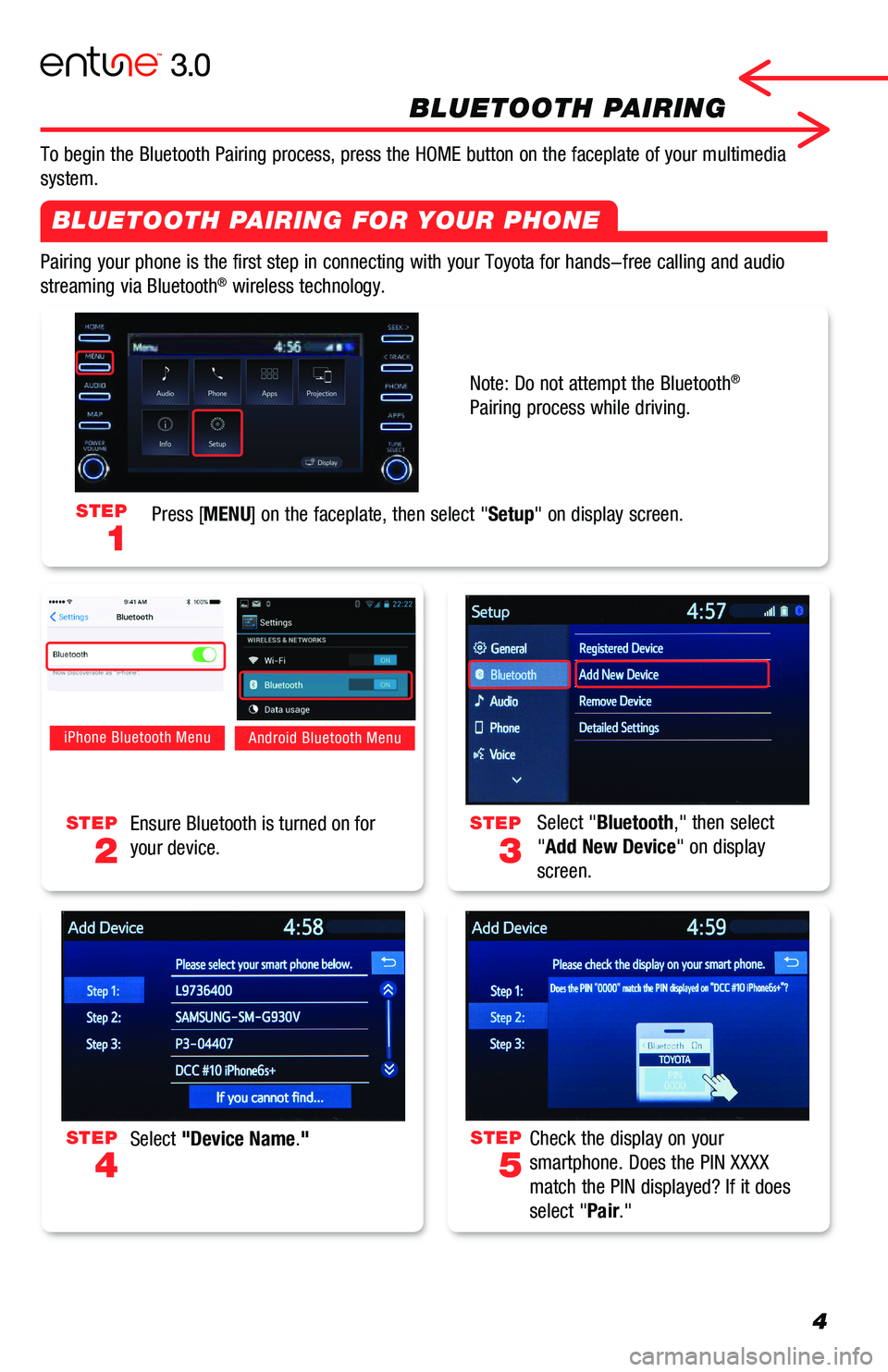

BLUETOOTH PAIRING
Pairing your phone is the first step in connecting with your Toyota for \
hands-free calling and audio
streaming via Bluetooth® wireless technology.
To begin the Bluetooth Pairing process, press the HOME button on the fac\
eplate of your multimedia
system.
Select "Bluetooth," then select
"Add New Device" on display
screen.
Ensure Bluetooth is turned on for
your device.
Select "Device Name."
iPhone Bluetooth MenuAndroid Bluetooth Menu
Check the display on your
smartphone. Does the PIN XXXX
match the PIN displayed? If it does
select "Pair."
STEP
5
STEP
3
STEP
2
STEP
4
STEP
1
Press [MENU] on the faceplate, then select "Setup" on display screen.
BLUETOOTH PAIRING FOR YOUR PHONE
Note: Do not attempt the Bluetooth®
Pairing process while driving.

5

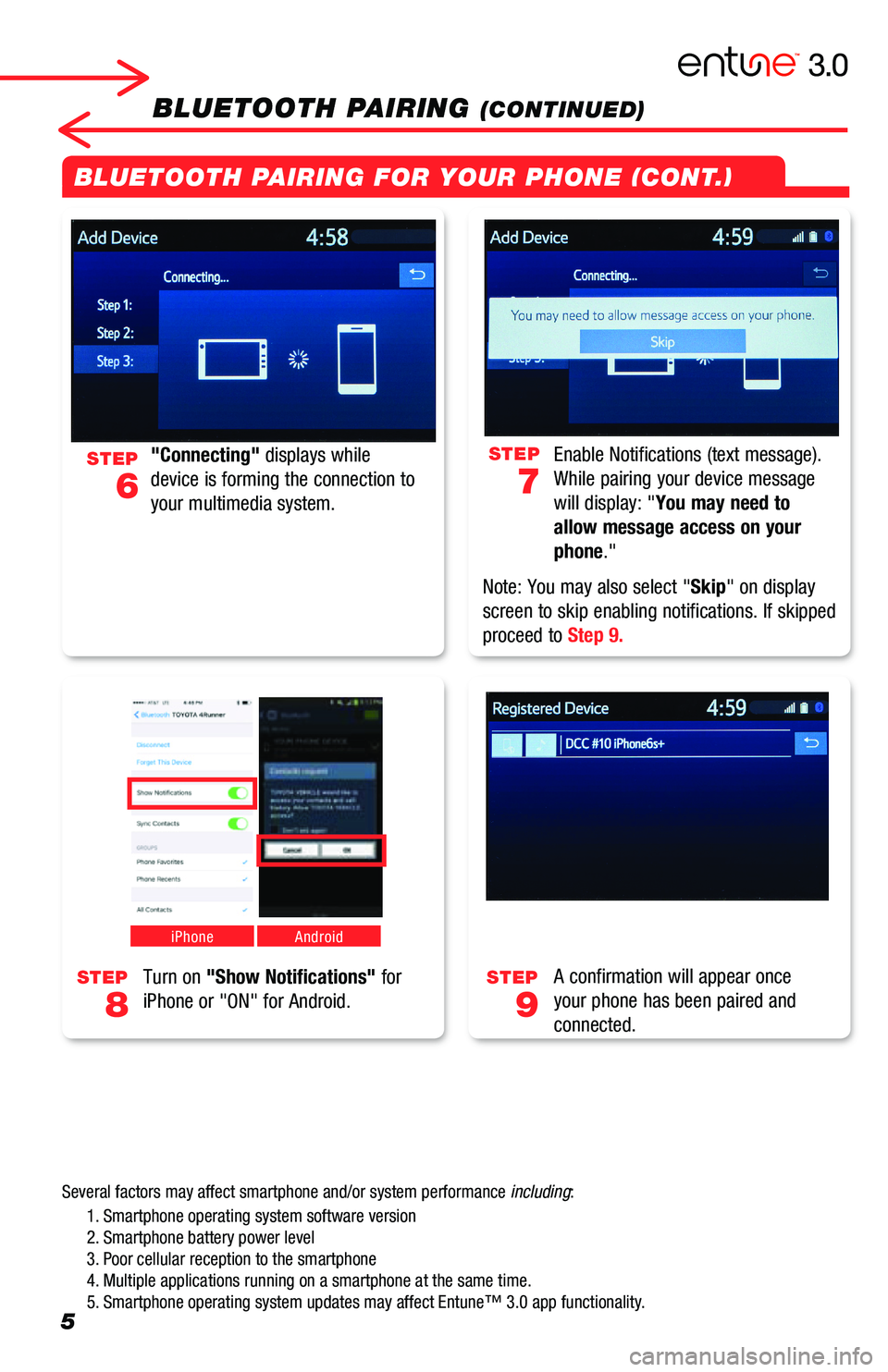

BLUETOOTH PAIRING (CONTINUED)
"Connecting" displays while
device is forming the connection to
your multimedia system.
Enable Notifications (text message).
While pairing your device message
will display: "You may need to
allow message access on your
phone."
Note: You may also select "Skip" on display
screen to skip enabling notifications. If skipped
proceed to Step 9.
STEP
7
STEP
6
Turn on "Show Notifications" for
iPhone or "ON" for Android.
A confirmation will appear once
your phone has been paired and
connected.
iPhoneAndroid
STEP
9
STEP
8
1. Smartphone operating system software version2. Smartphone battery power level 3. Poor cellular reception to the smartphone4. Multiple applications running on a smartphone at the same time.5. Smartphone operating system updates may affect Entune™ 3.0 app functionality.
Several factors may affect smartphone and/or system performance including:
BLUETOOTH PAIRING FOR YOUR PHONE (CONT.)

6
REGISTRATION
Complete the fields and click
CREATE ACCOUNT to register.
Go to www.ToyotaOwners.com.
Click on
The system displays a message that an email
has been sent to complete enrollment.
Note: Check spam folder in case the email
was incorrectly identified.
From the email sent in STEP 2, click ACTIVATE MY ACCOUNT to authenticate
the email and complete the registration
process.
Congratulations! Your account was
created successfully!
Enter your username and password.
If no VIN is attached to the account,
you will be prompted to add a VIN and
click SUBMIT.
Confirm your preferred servicing
Toyota dealer and click
ADD VEHICLE
STEP
1
STEP
2
STEP
3
STEP
5
STEP
4.1
STEP
4.2
STEP
6
To maximize your Entune™ 3.0 experience, begin by downloading the Entune™ 3.0 App Suite Connect
App onto your mobile device.
Then visit www.ToyotaOwners.com to register.
ACTIVATE MY ACCOUNT
JOIN NOW
CREATE ACCOUNT
SUBMIT
ACTIVATE MY ACCOUNT
CONFIRM ORDER SUBMIT
SUBMIT CONTINUE
CREATE ACCOUNT
SIGN IN
SIGN IN
ADD VEHICLE
JOIN NOW
JOIN NOW

7
STEP
8.1
STEP
8.2

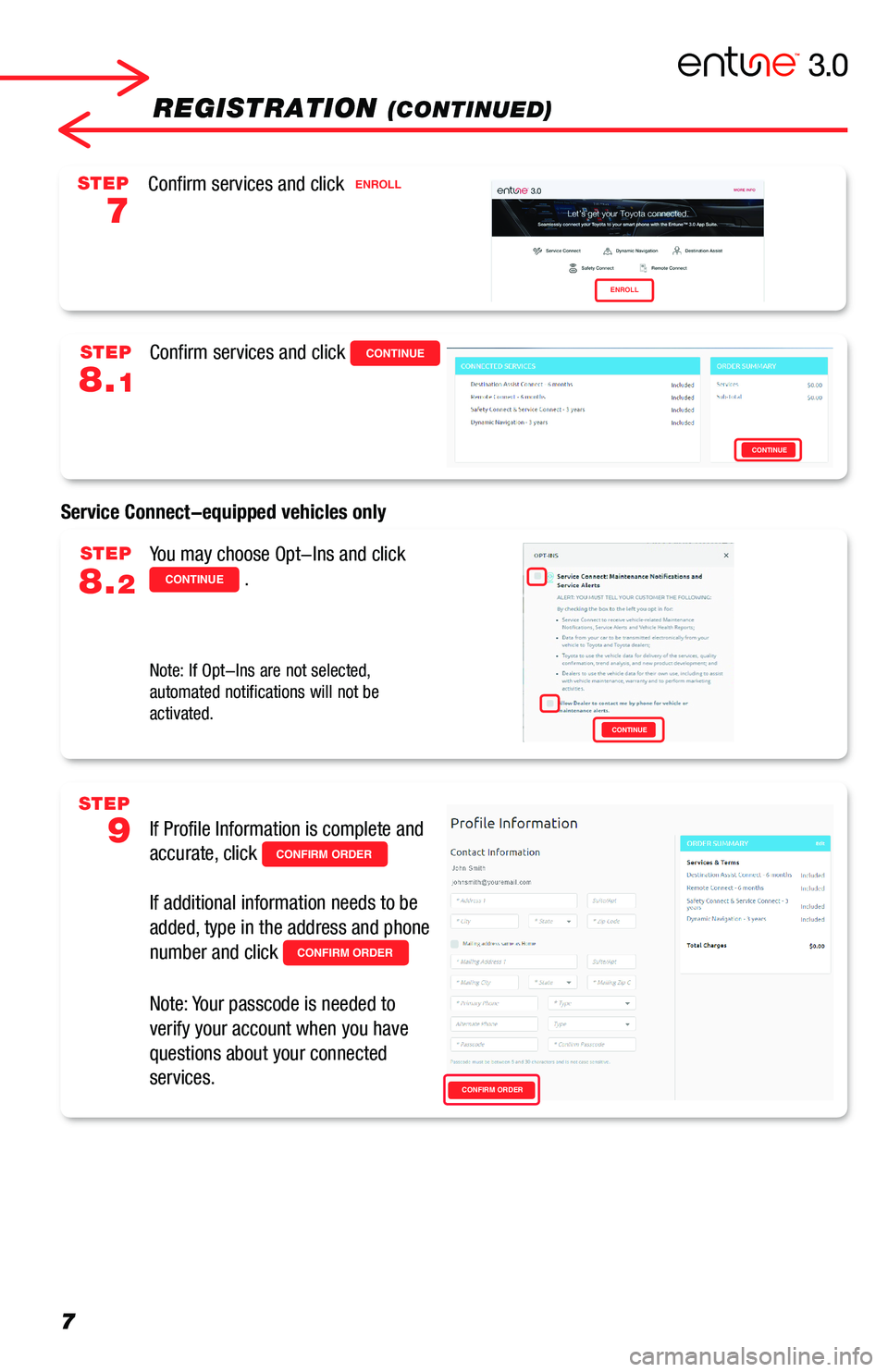

REGISTRATION (CONTINUED)
Confirm services and click CONTINUE
Confirm services and click ENROLL
You may choose Opt-Ins and click
CONTINUE .
If Profile Information is complete and
accurate, click CONFIRM ORDER
If additional information needs to be
added, type in the address and phone
number and click CONFIRM ORDER
ンNote: Your passcode is needed to
verify your account when you have
questions about your connected
services.
STEP
7
STEP
9
CONTINUE
CONFIRM ORDER
CONTINUE
ENROLL
Service Connect-equipped vehicles only
Note: If Opt-Ins are not selected, automated notifications will not be activated.

8
REGISTRATION (CONTINUED)
READ HEREPRINT
SUBMIT
When your profile is complete, you
can either print the agreement or click
READ HERE to display.
Input the 6 digit authorization code you receive via email using the veh\
icle’s multimedia system.
* Once you have received the 6-digit authorization code, follow the steps found on page 22 of this guide to input the code.
If this email and code have not been received you may call 1-800-331-4331 or press the S.O.S button located in the overhead console to reach an agent.
Select the checkbox to authorize
and click SUBMIT.
STEP
10
STEP
12
STEP
11
READ HERE
The system displays a confirmation
screen with all the enrolled services.
STEP
13
Remote Connect-equipped vehicles only

9
CONNECTED SERVICES
Whether you're involved in an accident, your vehicle is stolen, or the u\
nexpected occurs, assistance can
be sent directly to your vehicle's GPS location*.
A registered Toyota Owners account is required to use Toyota Connected S\
ervices trials or subscription
services. Please follow registration steps on page 6 of the guide.
STOLEN VEHICLE LOCATOR
Once a police report is filed, the Safety Connect Response Center can wo\
rk with police
to help track and recover your stolen vehicle using Safety Connect’s \
embedded cellular
and GPS technology. This may help to recover your vehicle more quickly, \
minimizing
the amount of damage incurred. The Stolen Vehicle Location system works \
across the
continental U.S.A. Toyota Entune™ 3.0 Safety Connect subscription is required.
ROADSIDE ASSISTANCE
With the added benefit of GPS technology, Toyota Roadside Assistance mak\
es standard
roadside service even more convenient than other services on the market.\
Whether your
vehicle has run out of gas, has a flat tire, needs to be towed or requir\
es a jump-start,
assistance can be sent to your vehicle's location-all at the press of th\
e Emergency
Assistance button (SOS). A Toyota Entune™ 3.0 Safety Connect subscription is required.
EMERGENCY ASSISTANCE BUTTON (SOS)
Whether it's a health emergency, a traffic accident or some other urgent\
situation
where help is required, a single press of the Emergency Assistance Butto\
n (SOS) can
connect you to a 24-hour Safety Connect response center agent. Using you\
r vehicle's
GPS technology, the agent can send emergency services to your vehicle's \
location while
offering to stay on the line with you until help arrives. Once the 3-yea\
r trial has ended
a Toyota Entune™ 3.0 Safety Connect subscription is required.
AUTOMATIC COLLISION NOTIFICATION
In the event that your vehicle's airbags deploy or you're involved in a \
severe rear-end
collision, you'll be automatically connected to a Toyota Safety Connect \
response
center agent. After attempting to speak to the occupants, the agent will\
notify local
emergency services of the situation and direct them to your vehicle's lo\
cation. A Toyota
Entune™ 3.0 Safety Connect subscription is required.
Note: After successful enrollment, the vehicle transmits data each time the vehicle is driven for about 15 minutes in an area with good cellular coverage. If a maintenance or vehicle alert occurs after the first 15 minutes, the data will transfer next time the vehicle is driven for about 15 minutes in an area with good cellular coverage.
All apps and data services are subject to change at any time without notice. Connected services may vary by vehicle. Remote & Service Connect not available on 2018–2019 Sienna, Mirai and 2019 C-HR. (Remote Start/Stop N/A on vehicles equipped with Manual Transmission.)
* Contact with the response center may not be available in all areas.
Safety Connect not available on Entune™ 3.0 Audio grade 2019 C-HR.
