AVALON
2 0 1 9
QUICK REFERENCE GUIDE
Page 2 of 52

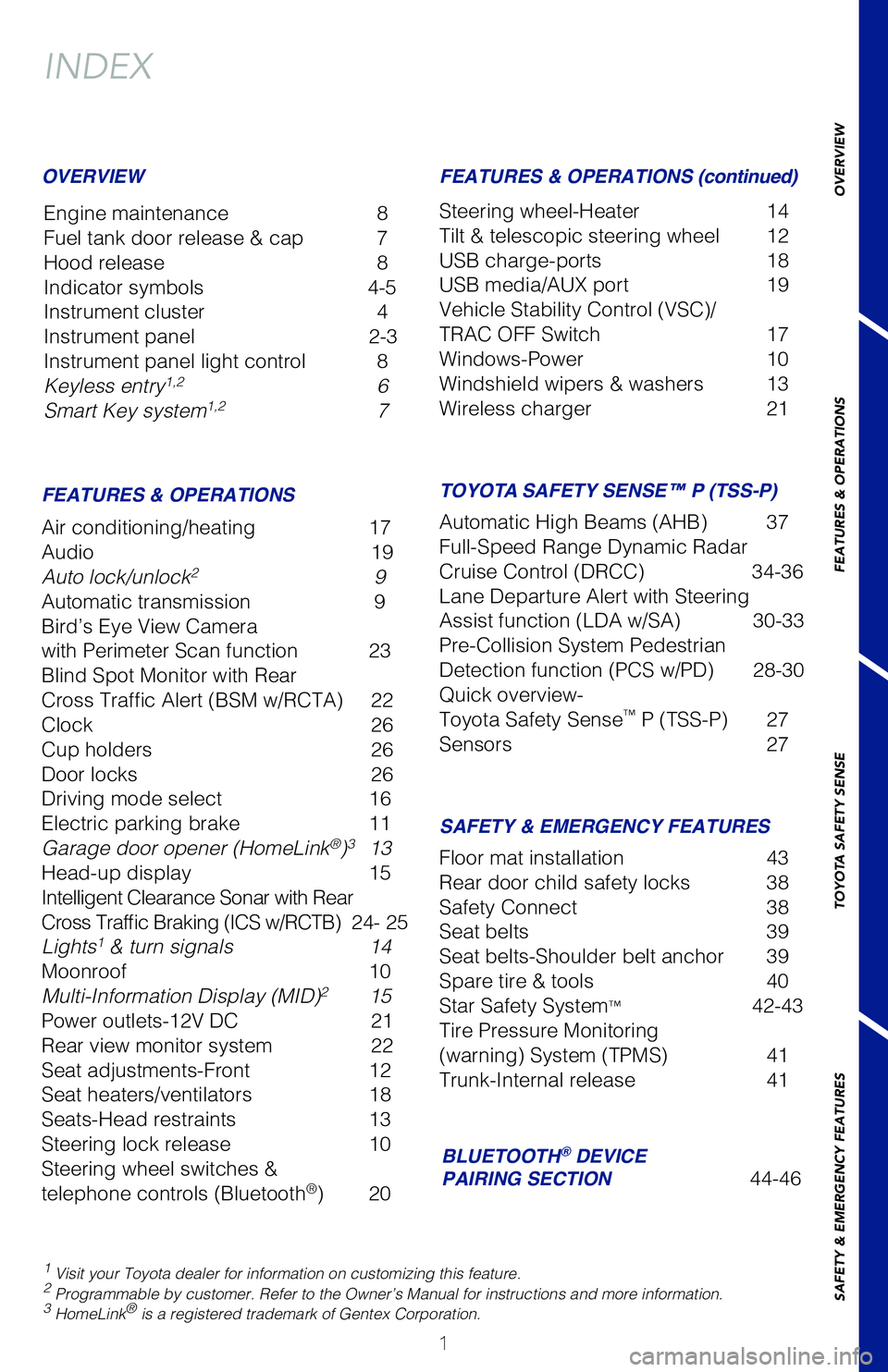

INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 17
Audio 19
Auto lock/unlock
2 9
Automatic transmission 9
Bird’s Eye View Camera
with Perimeter Scan function 23
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 22
Clock 26
Cup holders 26
Door locks 26
Driving mode select 16
Electric parking brake 11
Garage door opener (HomeLink
®)3 13
Head-up display 15
Intelligent Clearance Sonar with Rear
Cross Traffic Braking (ICS w/RCTB) 24- 25
Lights
1 & turn signals 14
Moonroof 10
Multi-Information Display (MID)
2 15
Power outlets-12V DC 21
Rear view monitor system 22
Seat adjustments-Front 12
Seat heaters/ventilators 18
Seats-Head restraints 13
Steering lock release 10
Steering wheel switches &
telephone controls (Bluetooth
®) 20
AVALON 2019

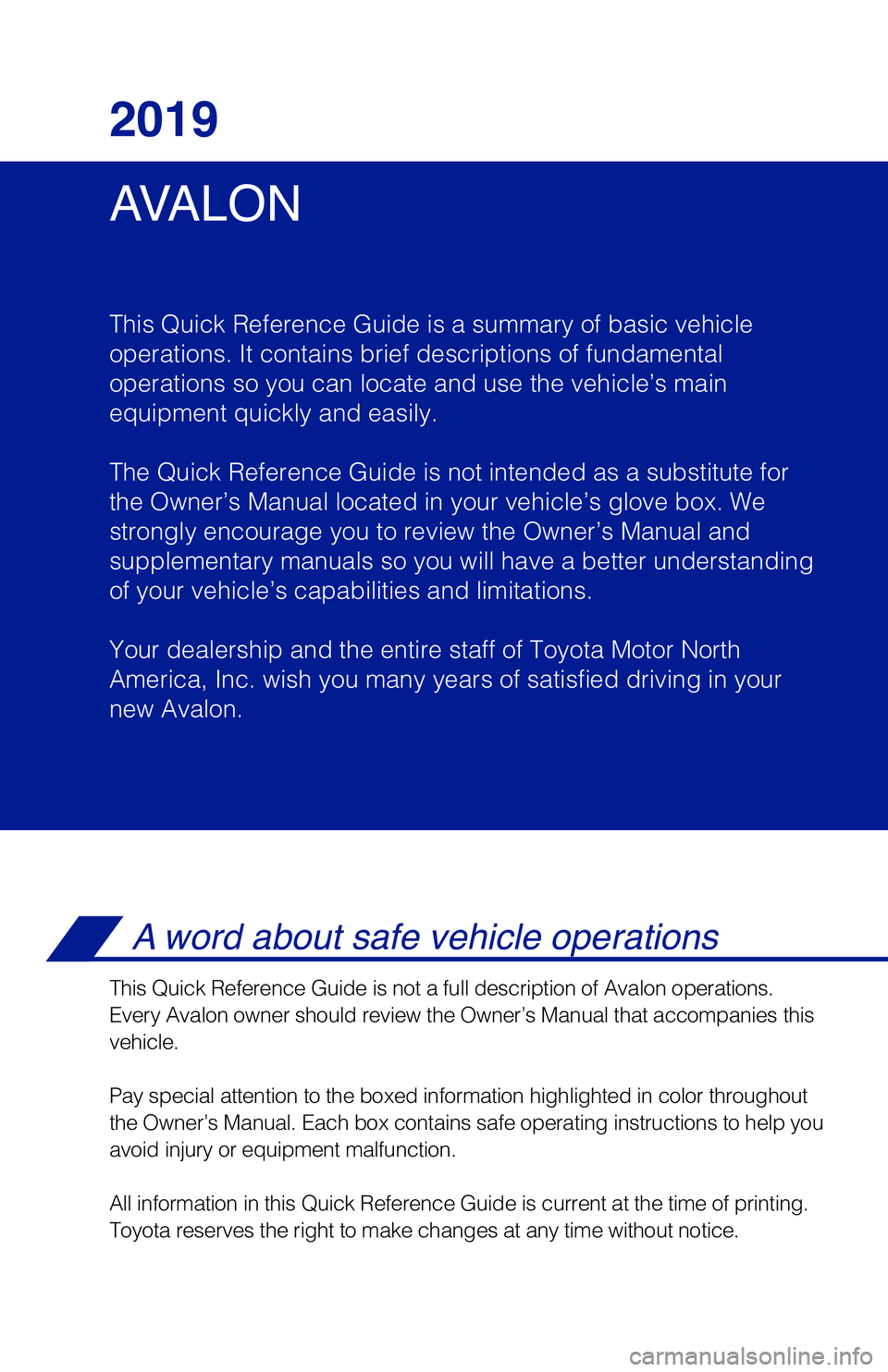

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Avalon.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Avalon operation\
s.
Every Avalon owner should review the Owner’s Manual that accompanies \
this
vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
2019_Avalon_QRG_V3_3_ML_0406.indd 62434/12/18 3:10 PM
Page 3 of 52
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
17
Audio 19
Auto lock/unlock
2 9
Automatic transmission 9
Bird’s Eye View Camera
with Perimeter Scan function 23
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 22
Clock 26
Cup holders 26
Door locks 26
Driving mode select 16
Electric parking brake 11
Garage door opener (HomeLink
®)3 13
Head-up display 15
Intelligent Clearance Sonar with Rear
Cross Traffic Braking (ICS w/RCTB) 24- 25
Lights
1 & turn signals 14
Moonroof 10
Multi-Information Display (MID)
2 15
Power outlets-12V DC 21
Rear view monitor system 22
Seat adjustments-Front 12
Seat heaters/ventilators 18
Seats-Head restraints 13
Steering lock release 10
Steering wheel switches &
telephone controls (Bluetooth
®) 20 Steering wheel-Heater
14
Tilt & telescopic steering wheel 12
USB charge-ports 18
USB media/AUX port 19
Vehicle Stability Control (VSC)/
TRAC OFF Switch 17
Windows-Power 10
Windshield wipers & washers 13
Wireless charger 21
Floor mat installation 43
Rear door child safety locks 38
Safety Connect 38
Seat belts 39
Seat belts-Shoulder belt anchor 39
Spare tire & tools 40
Star Safety System
™ 42-43
Tire Pressure Monitoring
(warning) System (TPMS) 41
Trunk-Internal release 41
AVALON 2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Avalon.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Avalon operation\
s.
Every Avalon owner should review the Owner’s Manual that accompanies \
this
vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
BLUETOOTH® DEVICE
PAIRING SECTION 44-46
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 37
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) 34-36
Lane Departure Alert with Steering
Assist function (LDA w/SA) 30-33
Pre-Collision System Pedestrian
Detection function (PCS w/PD) 28-30
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 27
Sensors 27
2019_Avalon_QRG_V3_3_ML_0406.indd 14/12/18 3:13 PM
Page 4 of 52
2

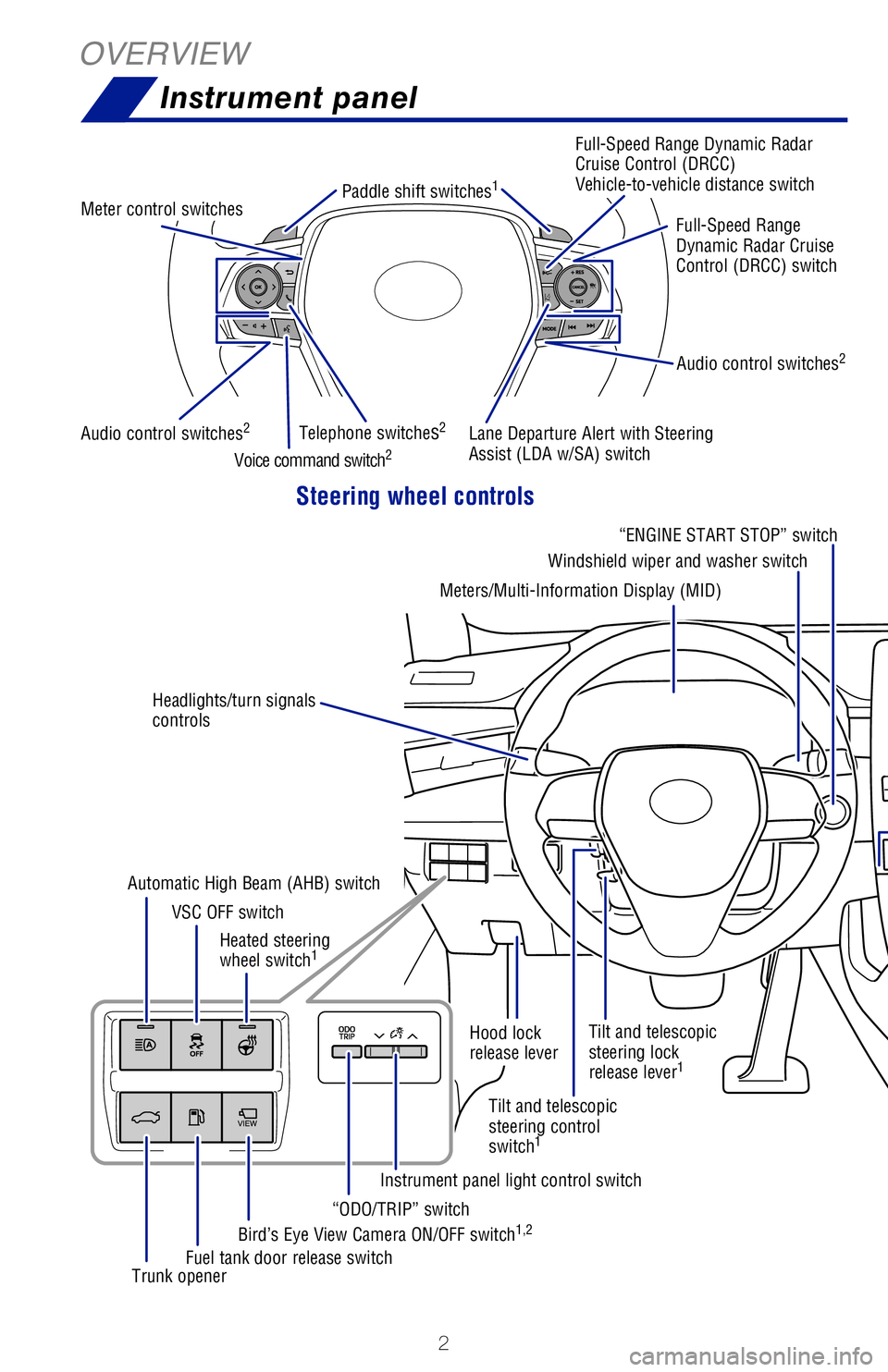

OVERVIEWInstrument panel
Steering wheel controls
Audio control switches2
Audio control switches2
Meter control switches Paddle shift switches
1
Telephone switches2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle distance switch
Tilt and telescopic
steering lock
release lever
1
Tilt and telescopic
steering control
switch
1
Bird’s Eye View Camera ON/OFF switch1,2“ODO/TRIP” switchInstrument panel light control switch
Automatic High Beam (AHB) switch
Heated steering
wheel switch
1
VSC OFF switch
Fuel tank door release switch
Trunk opener
Hood lock
release lever
Meters/Multi-Information Display (MID)
Windshield wiper and washer switch
“ENGINE START STOP” switch
1
If equipped.2 For details, refer to the “Navigation System Owner’s Manual” or visit www.toyota.com/entune
for additional audio/multimedia resources.
Lane Departure Alert with Steering
Assist (LDA w/SA) switch Full-Speed Range
Dynamic Radar Cruise
Control (DRCC) switch
Headlights/turn signals
controls
2019_Avalon_QRG_V3_3_ML_0406.indd 24/12/18 3:13 PM

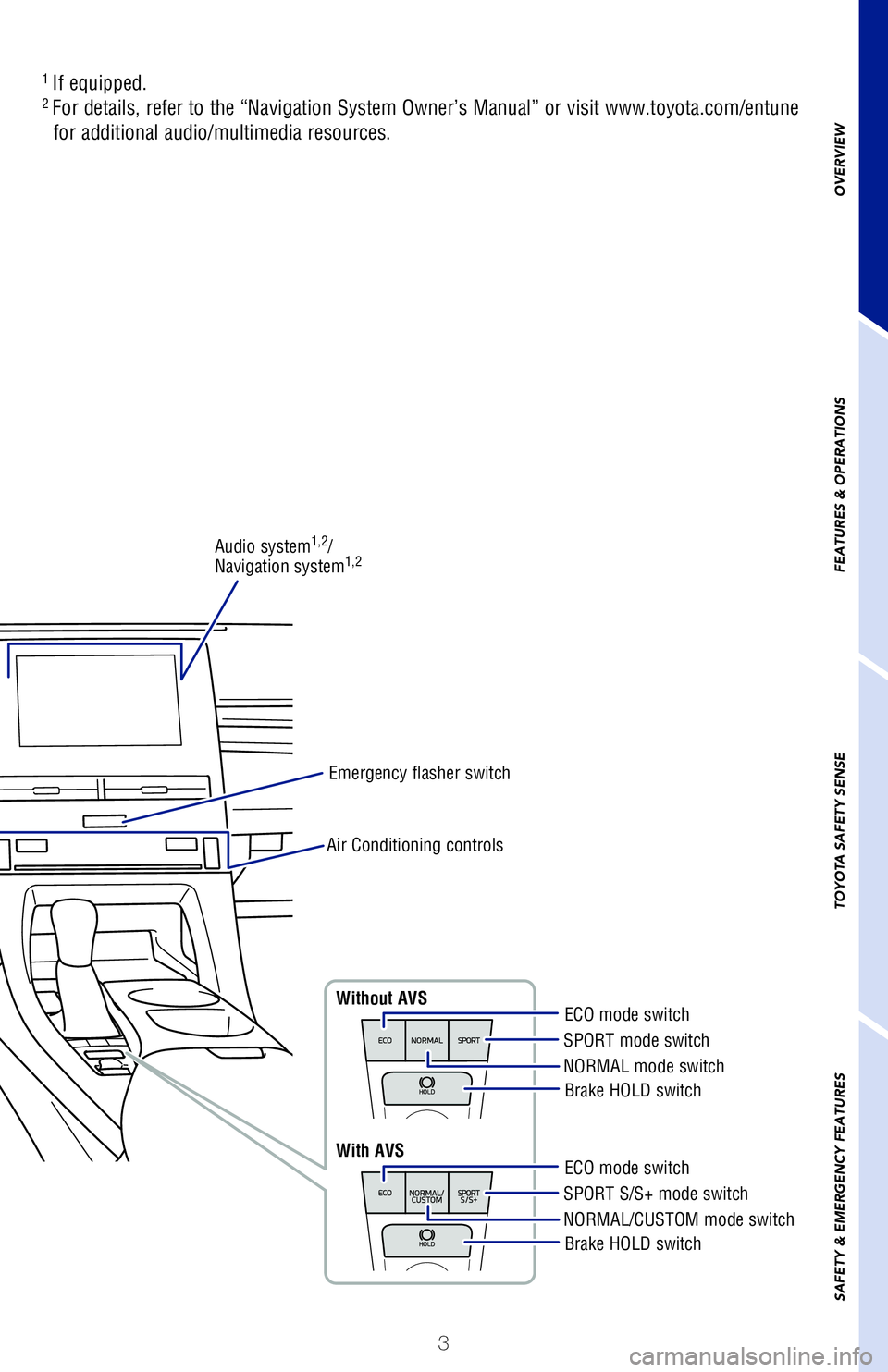

Page 5 of 52
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Audio control switches2
Full-Speed Range Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle distance switch
Windshield wiper and washer switch
Emergency flasher switch
Audio system
1,2/
Navigation system1,2
“ENGINE START STOP” switch
Air Conditioning controls
ECO mode switch
ECO mode switch
Without AVS
With AVS
NORMAL mode switch
NORMAL/CUSTOM mode switch SPORT mode switch
SPORT S/S+ mode switchBrake HOLD switch
Brake HOLD switch
1
If equipped.2 For details, refer to the “Navigation System Owner’s Manual” or visit www.toyota.com/entune
for additional audio/multimedia resources.
Full-Speed Range
Dynamic Radar Cruise
Control (DRCC) switch
2019_Avalon_QRG_V3_3_ML_0406.indd 34/12/18 3:13 PM
Page 6 of 52
4

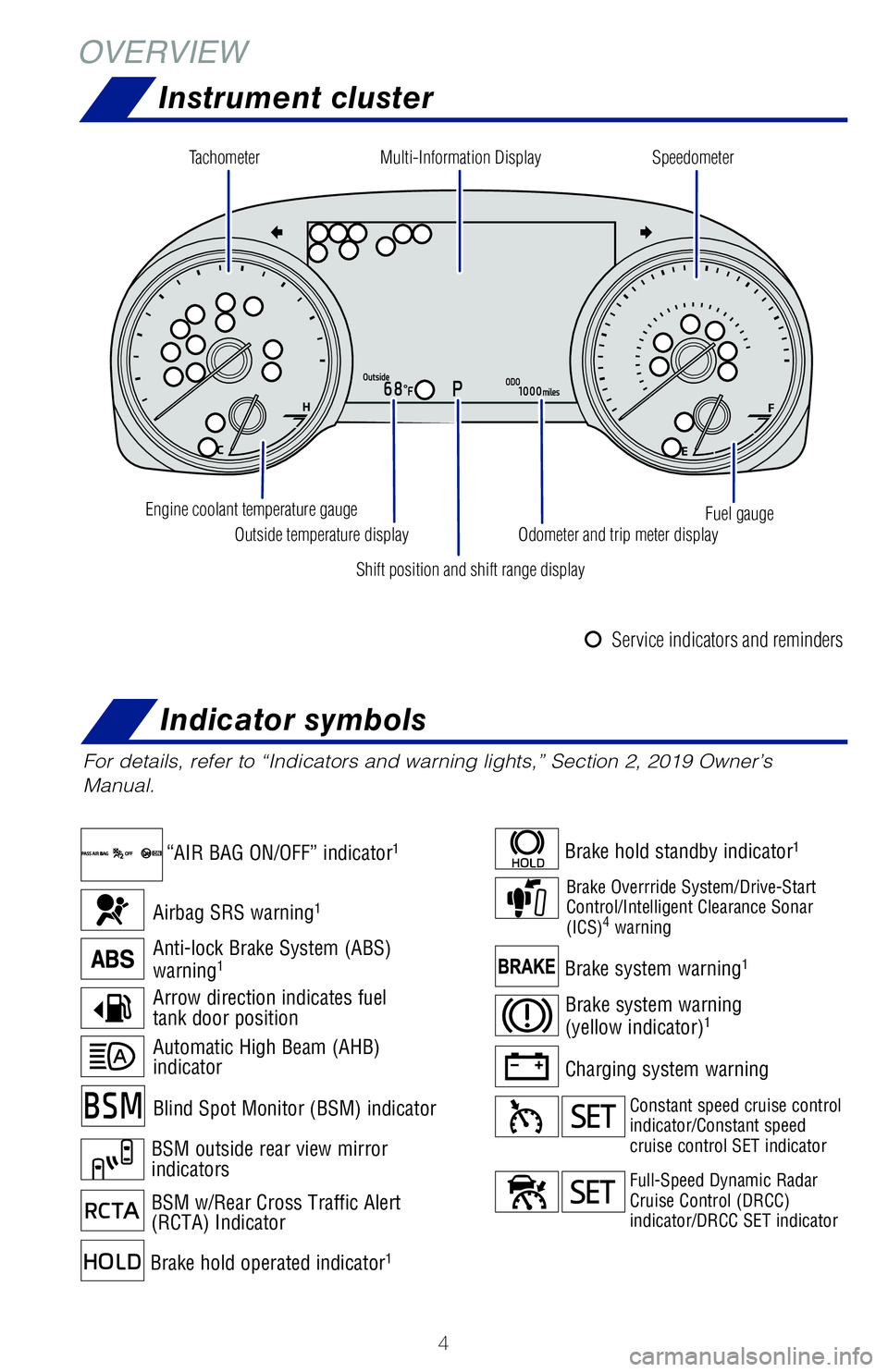

OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2, \
2019 Owner’s
Manual.
Tachometer Speedometer
Multi-Information Display
Engine coolant temperature gauge Outside temperature display Odometer and trip meter display
Shift position and shift range display Fuel gauge
1 If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Airbag SRS warning1
Arrow direction indicates fuel
tank door position
Automatic High Beam (AHB)
indicator
Anti-lock Brake System (ABS)
warning1
“AIR BAG ON/OFF” indicator1
Brake hold operated indicator1
Brake hold standby indicator1
Brake system warning1
Blind Spot Monitor (BSM) indicator
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator
BSM outside rear view mirror
indicators
Brake Overrride System/Drive-Start
Control/Intelligent Clearance Sonar
(ICS)
4 warning
Brake system warning
(yellow indicator)1
Charging system warning
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Indicator symbols
Service indicators and reminders
2019_Avalon_QRG_V3_3_ML_0406.indd 44/12/18 3:14 PM
Page 7 of 52
5
For details, refer to “Indicators and warning lights,” Section 2, \
2019 Owner’s
Manual.

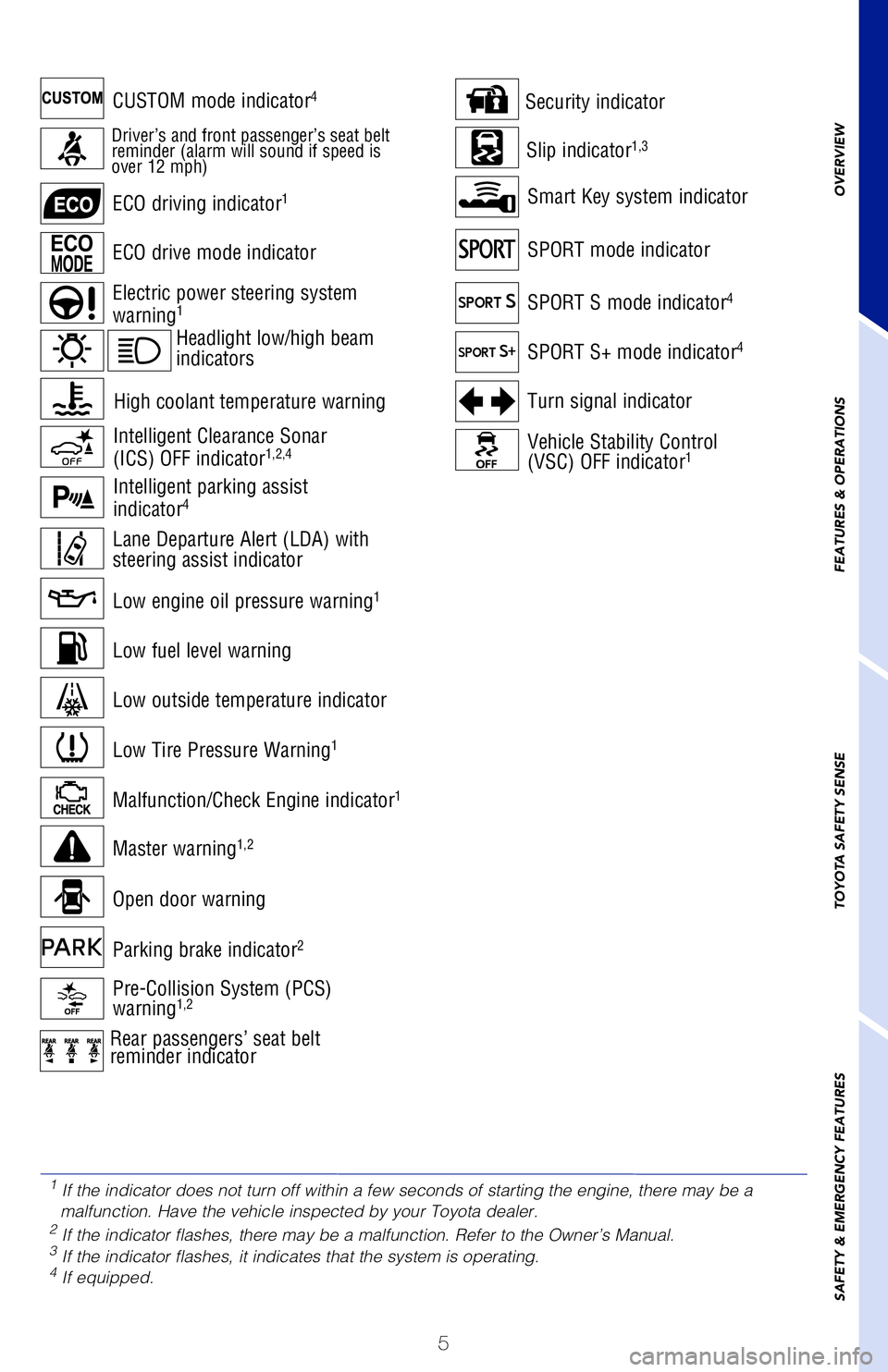

CUSTOM mode indicator4
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Electric power steering system
warning1
Brake hold standby indicator1
Brake system warning1
Turn signal indicator
Vehicle Stability Control
(VSC) OFF indicator1
Security indicator
Smart Key system indicator
SPORT mode indicator
SPORT S mode indicator4
SPORT S+ mode indicator4
Slip indicator1,3
Headlight low/high beam
indicators
ECO driving indicator1
Driver’s and front passenger’s seat belt
reminder (alarm will sound if speed is
over 12 mph)
ECO drive mode indicator
Brake Overrride System/Drive-Start Control/Intelligent Clearance Sonar
(ICS)4 warning
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
High coolant temperature warning
Open door warning
Malfunction/Check Engine indicator1
Master warning1,2
Low engine oil pressure warning1
Low outside temperature indicator
Low Tire Pressure Warning1
Low fuel level warning
Pre-Collision System (PCS)
warning1,2
Parking brake indicator2
Lane Departure Alert (LDA) with
steering assist indicator
Rear passengers’ seat belt
reminder indicator
Intelligent Clearance Sonar
(ICS) OFF indicator1,2,4
Intelligent parking assist
indicator4
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Service indicators and reminders
2019_Avalon_QRG_V3_3_ML_0406.indd 54/12/18 3:14 PM
Page 8 of 52
6

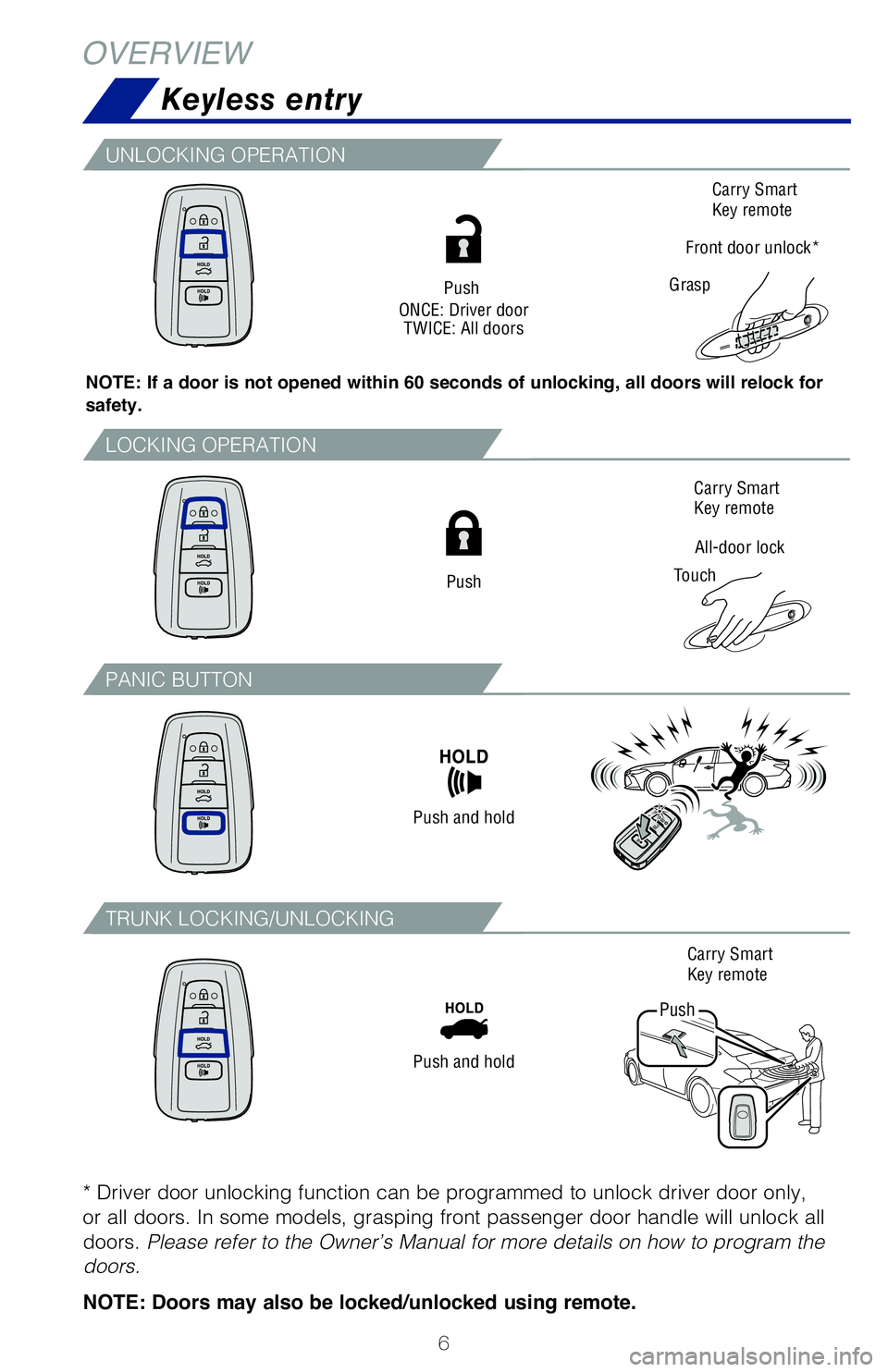

Keyless entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP” swit\
ch
will change the operation mode in succession from:
Push
ONCE: Driver door TWICE: All doors
All-door lock
Touch Carry Smart
Key remote
Carry Smart
Key remote Carry Smart
Key remote
Grasp
Front door unlock*
Push
Push and hold
Push and hold
LOCKING OPERATION
PANIC BUTTON
TRUNK LOCKING/UNLOCKING
UNLOCKING OPERATIONSTART FUNCTION
POWER (WITHOUT STARTING ENGINE)
* Driver door unlocking function can be programmed to unlock driver door \
only,
or all doors. In some models, grasping front passenger door handle will un\
lock all
doors.
Please refer to the Owner’s Manual for more details on how to program the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
2019_Avalon_QRG_V3_3_ML_0406.indd 64/12/18 3:14 PM
Page 9 of 52
7

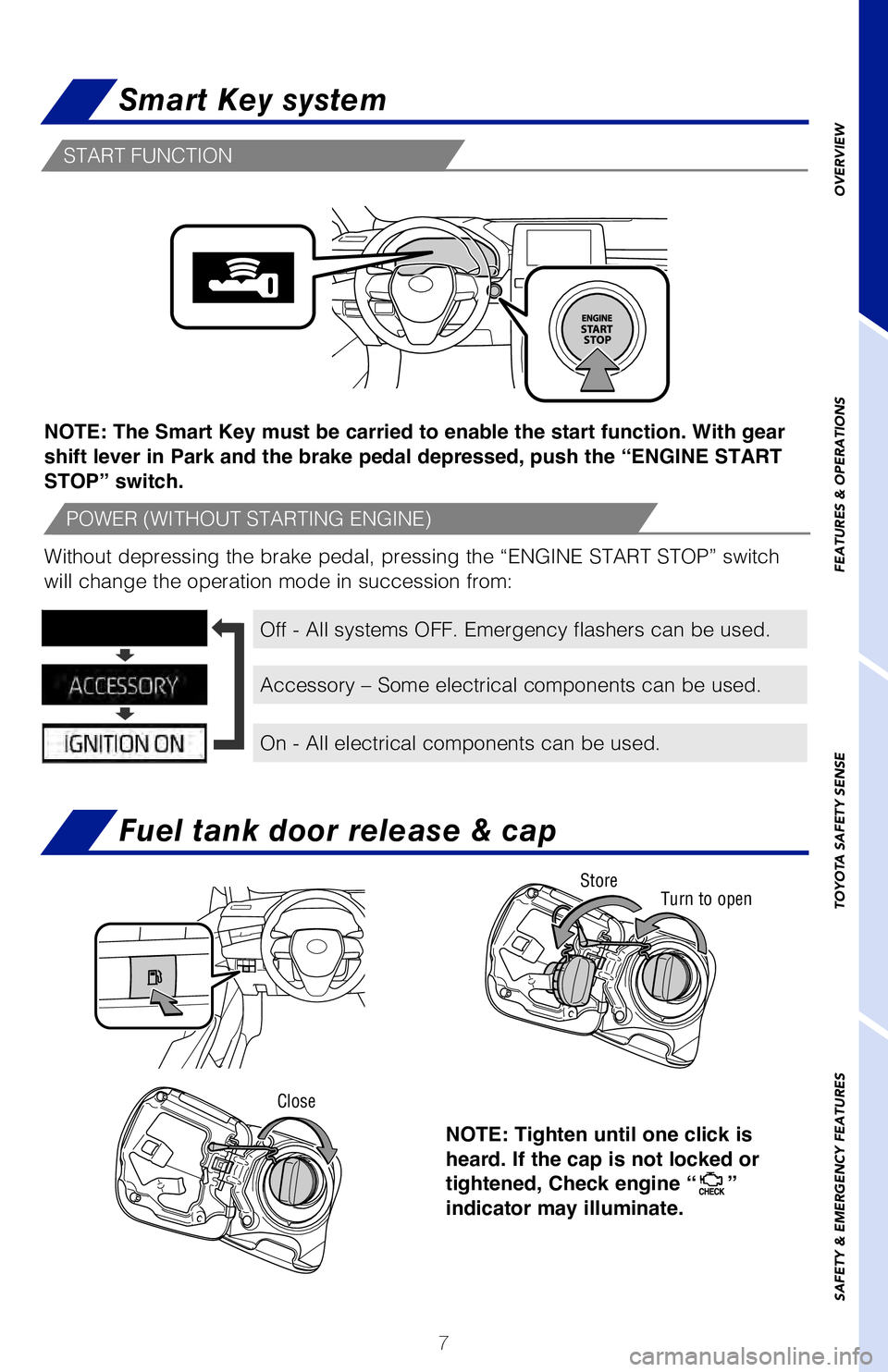

Smart Key system
Fuel tank door release & cap
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
switch
will change the operation mode in succession from:
Front door unlock*
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check engine “
”
indicator may illuminate.
Turn to openStore
Close
* Driver door unlocking function can be programmed to unlock driver door\
only,
or all doors. In some models, grasping front passenger door handle will \
unlock all
doors. Please refer to the Owner’s Manual for more details on how to program\
the
doors.
NOTE: Doors may also be locked/unlocked using remote.
2019_Avalon_QRG_V3_3_ML_0406.indd 74/12/18 3:14 PM
Page 10 of 52
8
OVERVIEWFEATURES & OPERATIONS
NOTE: Regularly scheduled maintenance, including
oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
* The “POWER”switch must be “ON” and the brake pedal depress\
ed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 km/h).
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set to OFF and driver’s door i\
s opened.
Refer to the Owner’s Manual for more details.

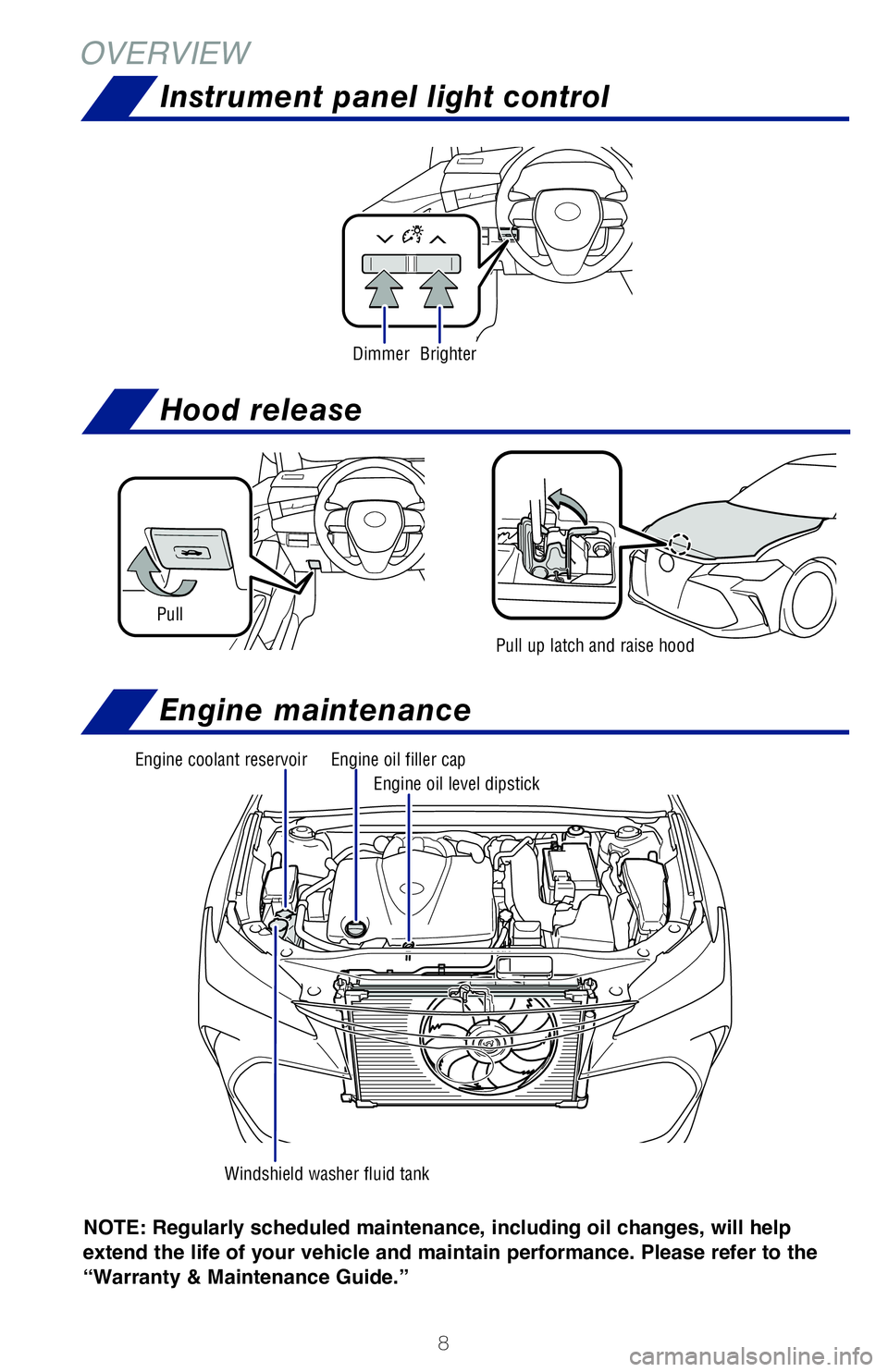

Pull up latch and raise hood
Pull
Hood release
Engine maintenance
DimmerBrighter
Engine oil filler cap Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
“S” (SEQUENTIAL) MODE
Instrument panel light control
2019_Avalon_QRG_V3_3_ML_0406.indd 84/12/18 3:14 PM
