711-2. Theft deterrent system
1
For safety and security
WARNING
■Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party re sponsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

721-2. Theft deterrent system
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the ala rm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock aga in automatically.)
● The trunk is opened in any way other than using the entry funct ion
or wireless remote control.
● The hood is opened.
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to d eactivate or stop the alarm:
● Unlock the doors.
● Open the trunk using the entry function or w ireless remote control.
● Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
Alar m
The alarm
Setting the alarm system
Deactivating or stopping the alarm

731-2. Theft deterrent system
1
For safety and security
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft , make sure of
the following:
● Nobody is in the vehicle.
● The windows and moon roof (if equipped) are closed before the a larm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●The trunk is opened using the mechani-
cal key.
● A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.
● The battery is recharged or replaced
when the vehicle is locked. ( P. 457)

741-2. Theft deterrent system
■Alarm-operated door lock
In the following cases, depending on the situation, the door ma y automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the battery
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

75
Instrument cluster2
2. Instrument clusterWarning lights andindicators .......................... 76
Gauges and meters ............ 82
Multi-information display............................... 85
Head-up display ................ 100
Fuel consumption information ...................... 107

762. Instrument cluster
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, ce n-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, t he following illustrations dis-
play all warning lights a nd indicators illuminated.

772. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

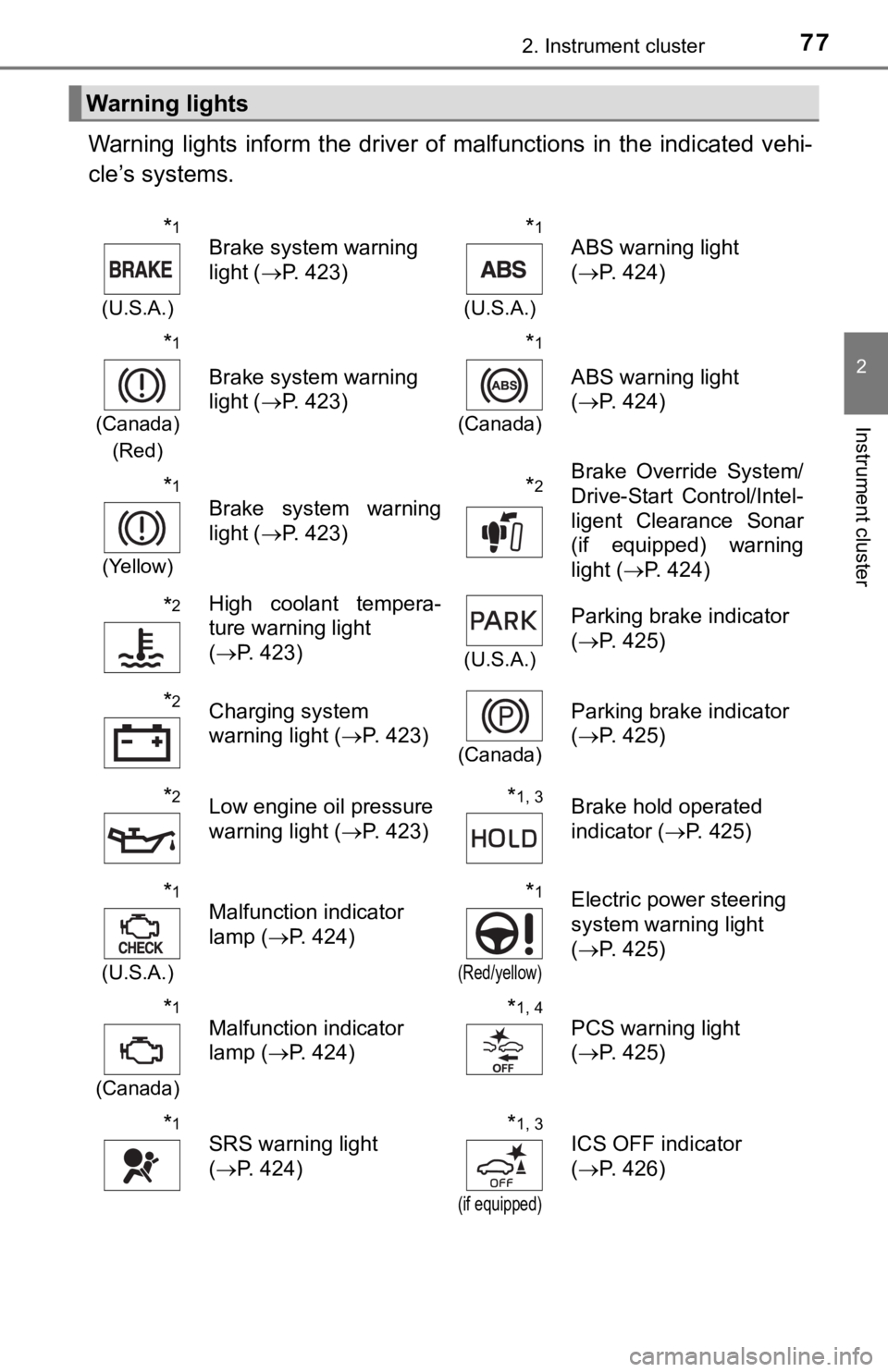

Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 423)*1
(U.S.A.)
ABS warning light
(P. 424)
*1
(Canada)
(Red)
Brake system warning
light ( P. 423)
*1
(Canada)
ABS warning light
(P. 424)
*1
(Yellow)
Brake system warning
light ( P. 423)*2Brake Override System/
Drive-Start Control/Intel-
ligent Clearance Sonar
(if equipped) warning
light (P. 424)
*2High coolant tempera-
ture warning light
(P. 423)
(U.S.A.)
Parking brake indicator
(P. 425)
*2Charging system
warning light ( P. 423)
(Canada)
Parking brake indicator
(P. 425)
*2Low engine oil pressure
warning light ( P. 423)*1, 3Brake hold operated
indicator ( P. 425)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 424)*1
(Red/yellow)
Electric power steering
system warning light
(P. 425)
*1
(Canada)
Malfunction indicator
lamp ( P. 424)*1, 4PCS warning light
(P. 425)
*1SRS warning light
(P. 424)*1, 3
(if equipped)
ICS OFF indicator
(P. 426)

782. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light flashes to indicate a malfunction.
*4: This light flashes or illuminates to indicate a malfunction.
*5: This light illuminates on the center panel.
*2
(Amber)
LDA indicator ( P. 425)
*5Rear passengers’ seat
belt reminder lights
(P. 426)
*1
Slip indicator ( P. 426)*1Master warning light
(P. 426)
Low fuel level warning
light ( P. 426)*1Tire pressure warning
light ( P. 427)
Driver’s and front
passenger’s seat belt
reminder light ( P. 426)

792. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators

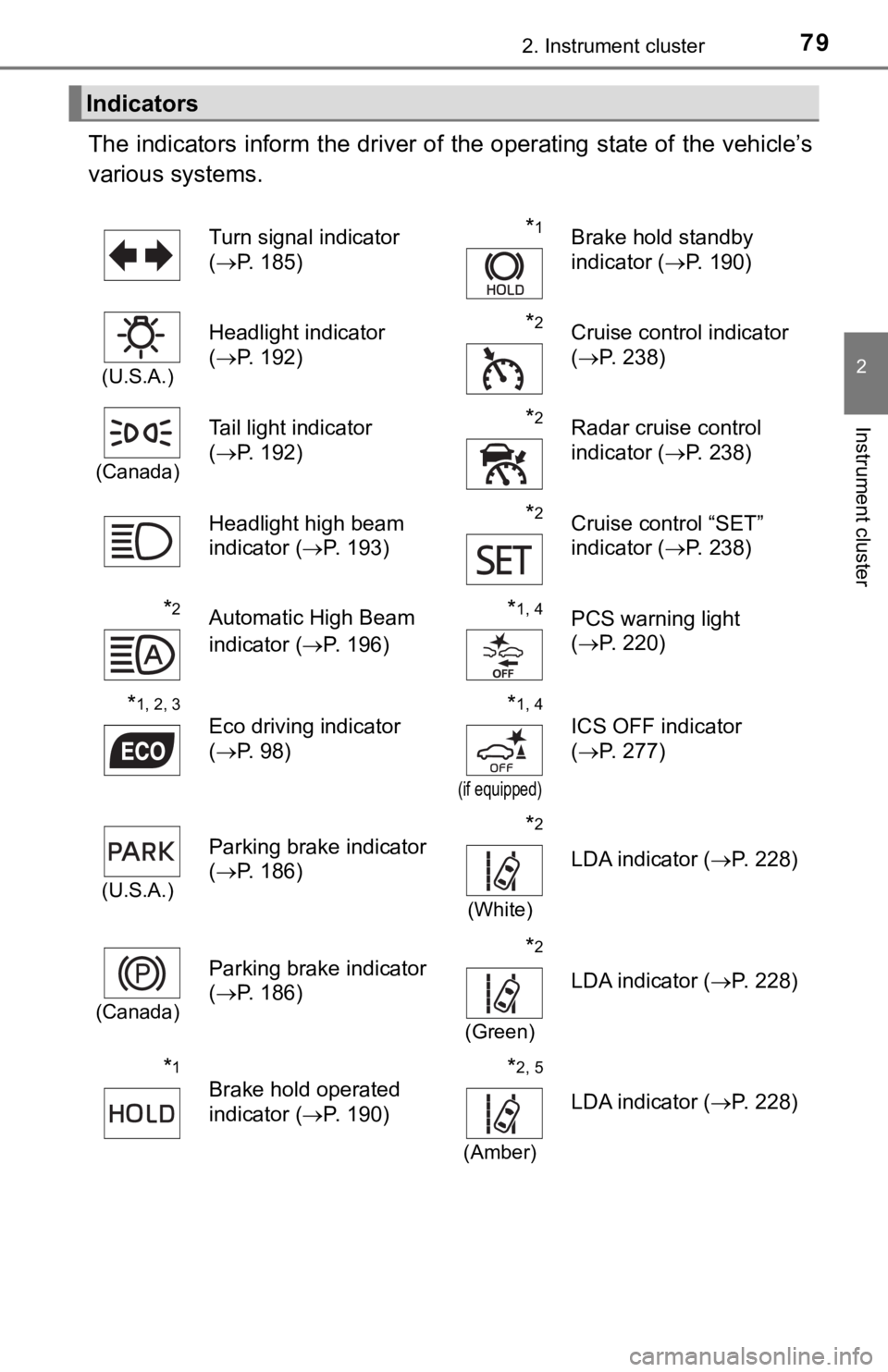

Turn signal indicator
( P. 185)*1Brake hold standby
indicator ( P. 190)
(U.S.A.)
Headlight indicator
(P. 192)*2Cruise control indicator
(P. 238)
(Canada)
Tail light indicator
(P. 192) *2Radar cruise control
indicator ( P. 238)
Headlight high beam
indicator ( P. 193)
*2Cruise control “SET”
indicator (P. 238)
*2Automatic High Beam
indicator ( P. 196)*1, 4PCS warning light
(P. 220)
*1, 2, 3
Eco driving indicator
(P. 98)*1, 4
(if equipped)
ICS OFF indicator
(P. 277)
(U.S.A.)
Parking brake indicator
(P. 186)*2
(White)
LDA indicator ( P. 228)
(Canada)
Parking brake indicator
(P. 186)*2
(Green)
LDA indicator ( P. 228)
*1
Brake hold operated
indicator (P. 190)*2, 5
(Amber)
LDA indicator ( P. 228)

802. Instrument cluster
*1, 5
Slip indicator (P. 300)

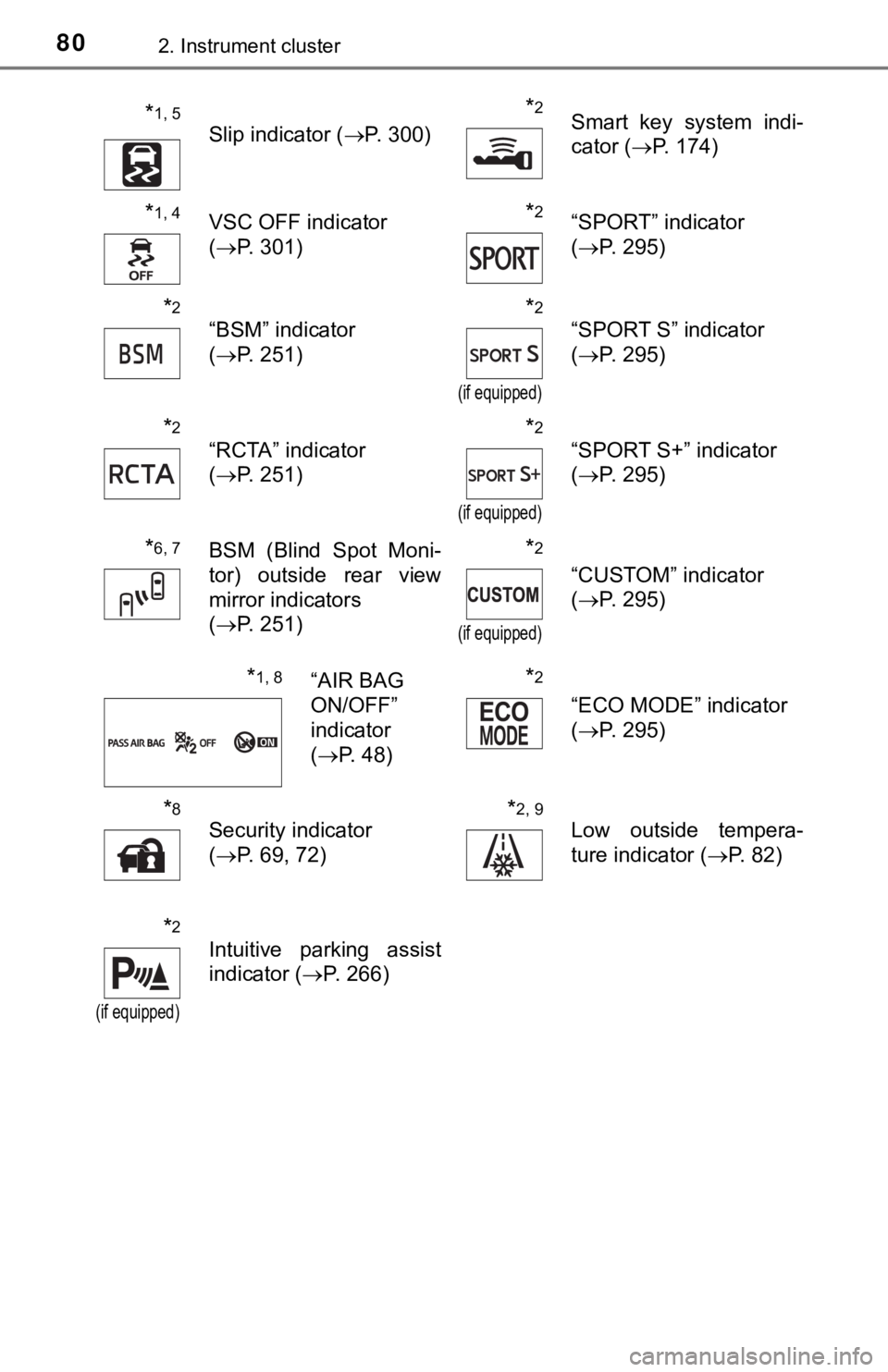

*2Smart key system indi-
cator (P. 174)
*1, 4VSC OFF indicator
(P. 301)*2“SPORT” indicator
(P. 295)
*2
“BSM” indicator
(P. 251)*2
(if equipped)
“SPORT S” indicator
(P. 295)
*2
“RCTA” indicator
(P. 251)*2
(if equipped)
“SPORT S+” indicator
(P. 295)
*6, 7BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 251)*2
(if equipped)
“CUSTOM” indicator
(P. 295)
*1, 8“AIR BAG
ON/OFF”
indicator
(P. 48)*2
“ECO MODE” indicator
(P. 295)
*8
Security indicator
(P. 69, 72)*2, 9
Low outside tempera-
ture indicator ( P. 82)
*2
(if equipped)
Intuitive parking assist
indicator (P. 266)
