TPMS reset TOYOTA AVALON 2021 Owners Manual (in English)

43
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Pull up
Trunk-Internal release

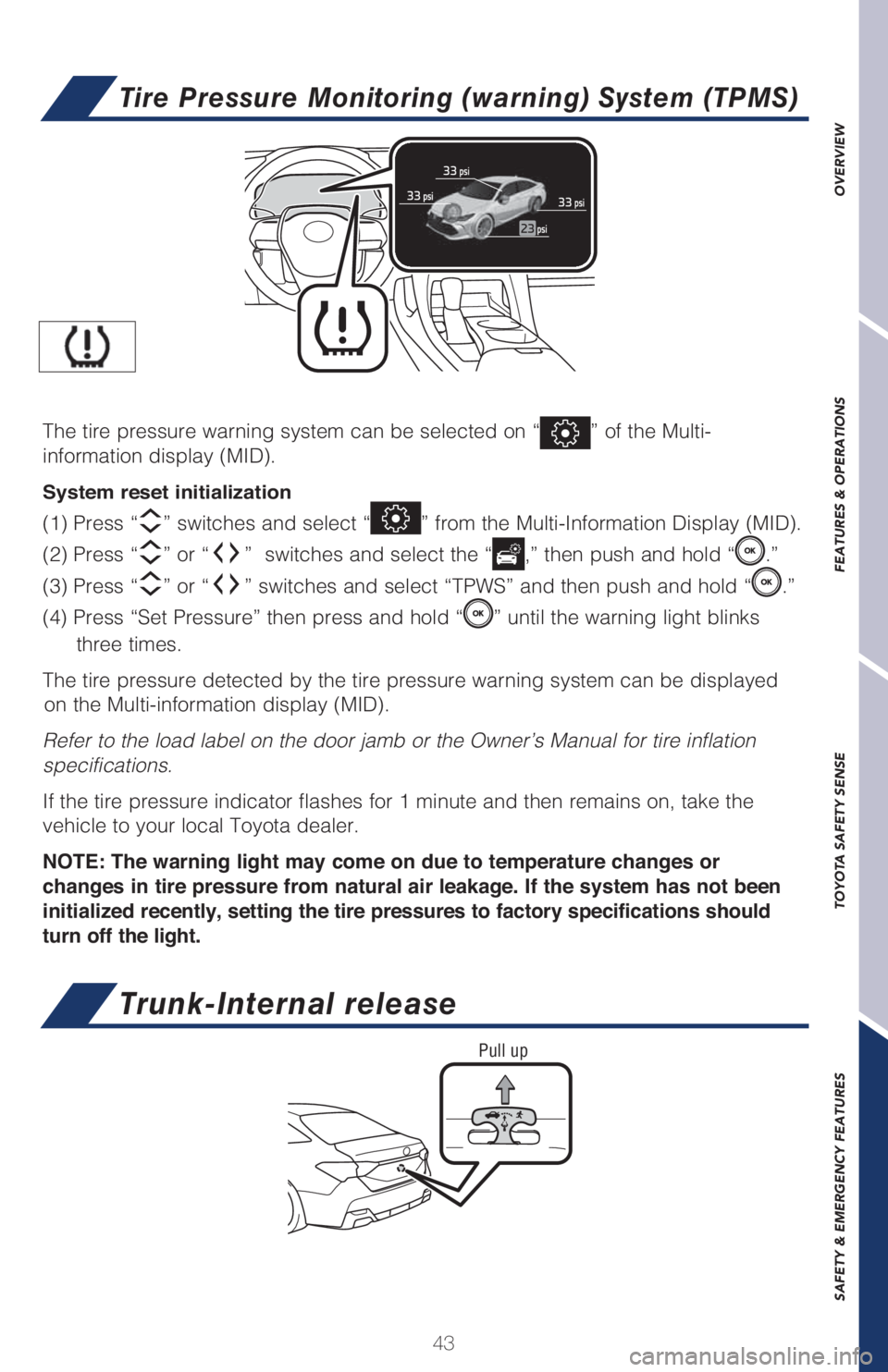

Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure warning system can be selected on “” of the Multi-
JOGPSNBUJPOEJTQMBZ .*%

System reset initialization

1SFTT“” switches and select “”GSPNUIF.VMUJ*OGPSNBUJPO%JTQMBZ .*%


Press “
” or “” switches and select the “,” then push and hold “.”

1SFTT“
” or “” switches and select “TPWS” and then push and hold “.”

1SFTTi4FU1SFTTVSFwUIFOQSFTTBOEIPME“
” until the warning light blinks
three times.
The tire pressure detected by the tire pressure warning system can be displayed
POUIF.VMUJJOGPSNBUJPOEJTQMBZ .*%

Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for 1 minute and then remains on, take the
vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
MY21_Avalon_QRG_V2_ML_0709.indd 437/13/20 1:15 PM
