AVALON 2021

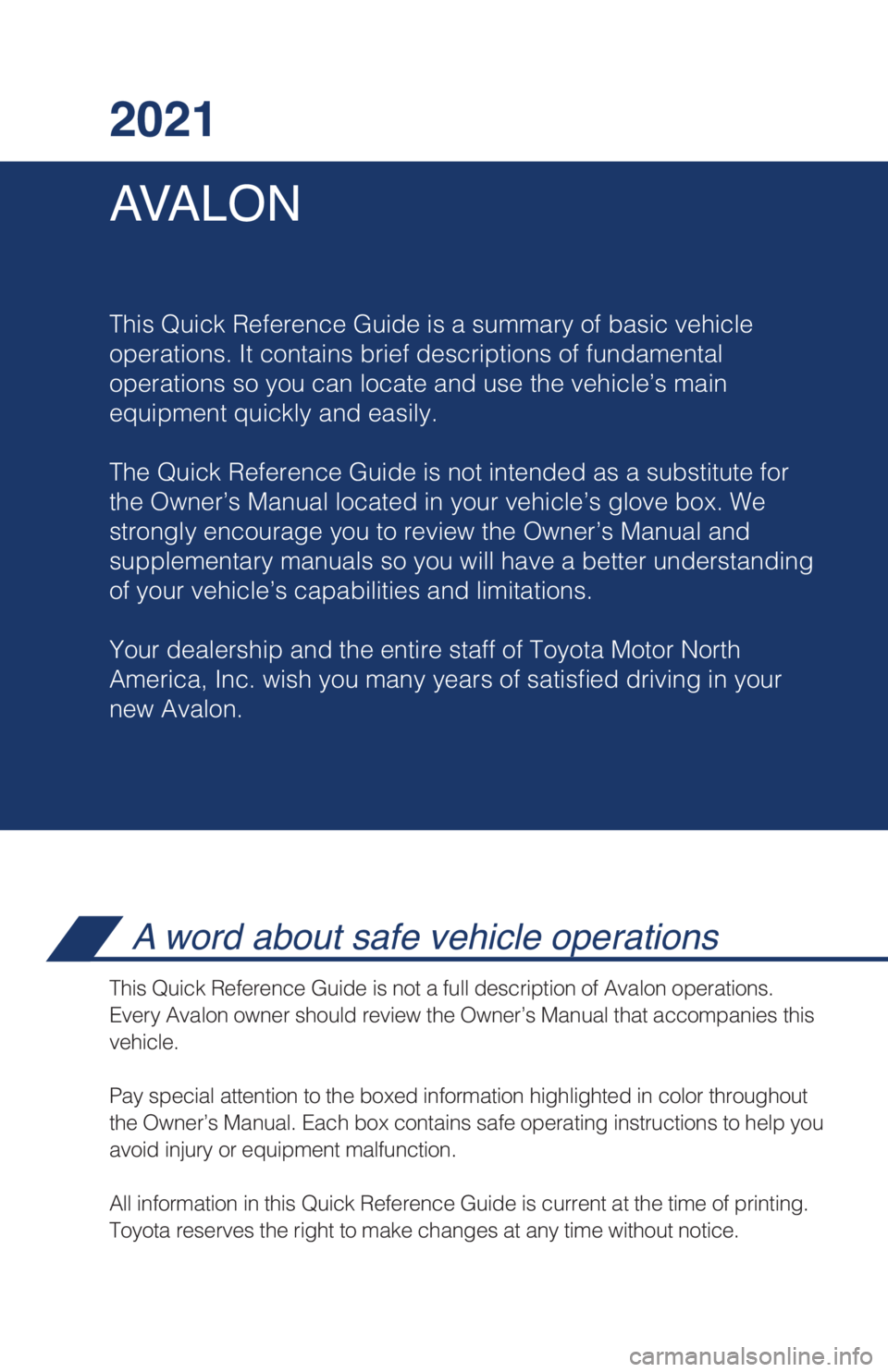

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new Avalon.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Avalon operations.
Every Avalon owner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
MY21_Avalon_QRG_V2_ML_0709.indd 27/13/20 1:11 PM
Page 3 of 56
1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 20
Audio 23
Auto lock/unlock
2 12
Automatic transmission 10
Bird’s Eye View Camera
with Perimeter Scan 27
Blind Spot Monitor with Rear
$ S P T T 5 S B G m D " M F S U # 4 . X 3 $ 5 "
Clock 19
Cup holders 17
Door locks 12
Driving mode select 11
Dynamic Torque Control AWD
system 10
Electric parking brake 14
Garage door opener (HomeLink
®)3 19
Head-Up Display 15
Heated/ventilated seats 21
Heated steering wheel 20
Intelligent Clearance Sonar with Rear
$ S P T T 5 S B G m D # S B L J O H * $ 4 X 3 $ 5 #
Intuitive parking assist 29
Lights
1 & turn signals 18
Moonroof 17
Multi-Information Display (MID)
2 15
Power outlets-12V DC 24
Power windows 12
Qi Wireless charger 24
Rear view monitor system 25
4 F B U B E K V T U N F O U T ' S P O U 4 F B U G P M E J O H 3 F B S
4 F B U T ) F B E S F T U S B J O U T
Steering lock release 13
Steering wheel switches &
U F M F Q I P O F D P O U S P M T # M V F U P P U I
®
Tilt & telescopic steering wheel 13
USB charge ports 21
USB media port 23
7 F I J D M F 4 U B C J M J U Z $ P O U S P M 7 4 $
TRAC OFF Switch 25
Windshield wipers & washers 17
Floor mat installation 47
Rear door child safety locks 41
Safety Connect
® 41
Seat belts 42
Seat belts-Shoulder belt anchor 42
Spare tire & tools 44-45
Star Safety System
™
Tire Pressure Monitoring
X B S O J O H
4 Z T U F N 5 1 . 4
Trunk-Internal release 43
BLUETOOTH® DEVICE
PAIRING SECTION 48-50
TOYOTA SAFETY SENSE™ P (TSS-P)
" V U P N B U J D ) J H I # F B N T " ) #
Full-Speed Range Dynamic Radar
$ S V J T F $ P O U S P M % 3 $ $
Lane Departure Alert with
4 U F F S J O H " T T J T U - % " X 4 "
Pre-Collision System with
1 F E F T U S J B O % F U F D U J P O 1 $ 4 X 1 %
Quick overview-
Toyota Safety Sense
™ 1 5 4 4 1
30
Sensors 30
MY21_Avalon_QRG_V2_ML_0709.indd 17/13/20 1:14 PM
Page 4 of 56
2
OVERVIEW
Instrument panel
Steering wheel controls
Audio volume control
switch2
Audio control switches2
Meter control switchesPaddle shifters
1
Telephone switch2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control (DRCC)
vehicle-to-vehicle distance switch
Tilt and telescopic
steering lock
release lever
1
Power tilt and
telescopic steering
control switch
1
Bird’s Eye View Camera ON/OFF switch1,2“ODO/TRIP” switchInstrument panel light control switch Automatic High Beams (AHB) switch
Heated steering
wheel switch
1
VSC OFF switch
Fuel tank door release switch
Trunk opener switch
Hood lock
release lever Meters/Multi-Information Display (MID)Windshield wiper and washer control“POWER” button Lane Departure Alert with Steering
Assist (LDA w/SA) switchFull-Speed Range
Dynamic Radar Cruise
Control (DRCC) switch
Headlights/turn signals control
MY21_Avalon_QRG_V2_ML_0709.indd 27/13/20 1:14 PM
Page 5 of 56
3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Electric parking
brake switchEmergency flasher switch Audio system
1,2/
Navigation system1,2
Air conditioning/heating controls
ECO mode switch
ECO mode switch Without AVS
With AVSNORMAL mode switch
NORMAL/CUSTOM mode switch SPORT mode switch
SPORT S/S+ mode switchBrake HOLD switch
Brake HOLD switch
1
If equipped.2
For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
MY21_Avalon_QRG_V2_ML_0709.indd 37/13/20 1:14 PM
Page 6 of 56
4
OVERVIEW
Instrument cluster
For details, refer to “Warning lights and indicators,” Section 2, 2021 Owner’s
Manual.
Tachometer SpeedometerMulti-Information Display
Engine coolant temperature gauge
Outside temperature display Odometer and trip meter display
Shift position and shift range displayFuel gauge
Airbag SRS warning1
Arrow direction indicates fuel
tank door position
Automatic High Beams (AHB)
indicator
Anti-lock Brake System (ABS)
warning1
“AIR BAG ON/OFF” indicator1
Brake hold operating indicator1,2
Brake hold standby indicator1
Brake system warning1
Blind Spot Monitor (BSM) indicator
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator
BSM outside rear view mirror
indicators
Brake Override System/Drive-Start
Control/Intelligent Clearance Sonar
(ICS)
4 warning
Brake system warning [yellow]1
Charging system warning
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Indicator symbols
Service indicators and warning lights
MY21_Avalon_QRG_V2_ML_0709.indd 47/13/20 1:14 PM
Page 7 of 56
5
CUSTOM mode indicator4
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Electric power steering system
warning [red/yellow]1
Turn signal indicator
Vehicle Stability Control
(VSC) OFF indicator1
Security indicator
Smart Key system indicator
SPORT mode indicator
SPORT S mode indicator4
SPORT S+ mode indicator4
Slip indicator1,3
Headlight low/high beam
indicators
ECO driving indicator1
Driver’s and front passenger’s seat
belt reminder (alarm will sound when
the vehicle is on)
ECO MODE indicator
High coolant temperature warning
Open door warning
Malfunction/Check Engine indicator1
Master warning1,2
Low engine oil pressure warning
Low outside temperature indicator
Low tire pressure warning1
Low fuel level warning
Pre-Collision System (PCS)
warning1,2
Parking brake indicator2
Lane Departure Alert (LDA) with
steering assist indicator
[white/green/amber
3]
Rear passengers’ seat belt
reminder indicator
Intelligent Clearance Sonar (ICS)
OFF indicator1,2,4
Intuitive parking assist indicator4
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
MY21_Avalon_QRG_V2_ML_0709.indd 57/13/20 1:14 PM
Page 8 of 56
6

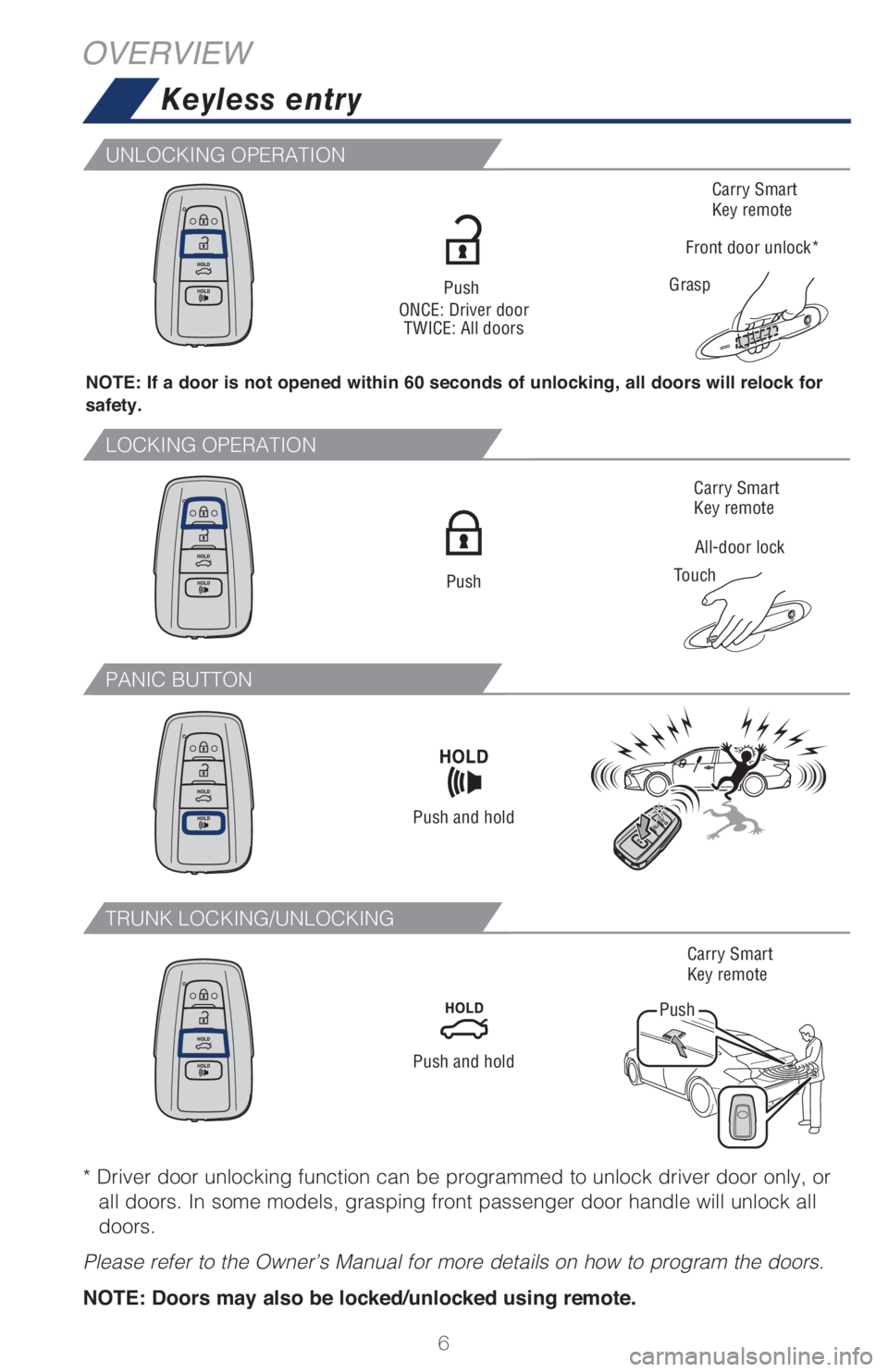

Keyless entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push
ONCE: Driver door
TWICE: All doors
All-door lock
TouchCarry Smart
Key remote
Carry Smart
Key remoteCarry Smart
Key remote
Grasp
Front door unlock*
Push
Push and hold
Push and hold
LOCKING OPERATION
PANIC BUTTON
TRUNK LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. In some models, grasping front passenger door handle will unlock all
doors.
Please refer to the Owner’s Manual for more details on how to program the doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
MY21_Avalon_QRG_V2_ML_0709.indd 67/13/20 1:14 PM
Page 9 of 56
7
Smart Key system
Fuel tank door release & cap
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the power button.
Without depressing the brake pedal, pressing the power button will change the
operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
START FUNCTION
1 0 8 & 3 8 * 5 ) 0 6 5 4 5 " 3 5 * / ( & / ( * / &
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, check engine “
”
indicator may illuminate.
Turn to openStore
Close
MY21_Avalon_QRG_V2_ML_0709.indd 77/13/20 1:14 PM
Page 10 of 56
8
OVERVIEW

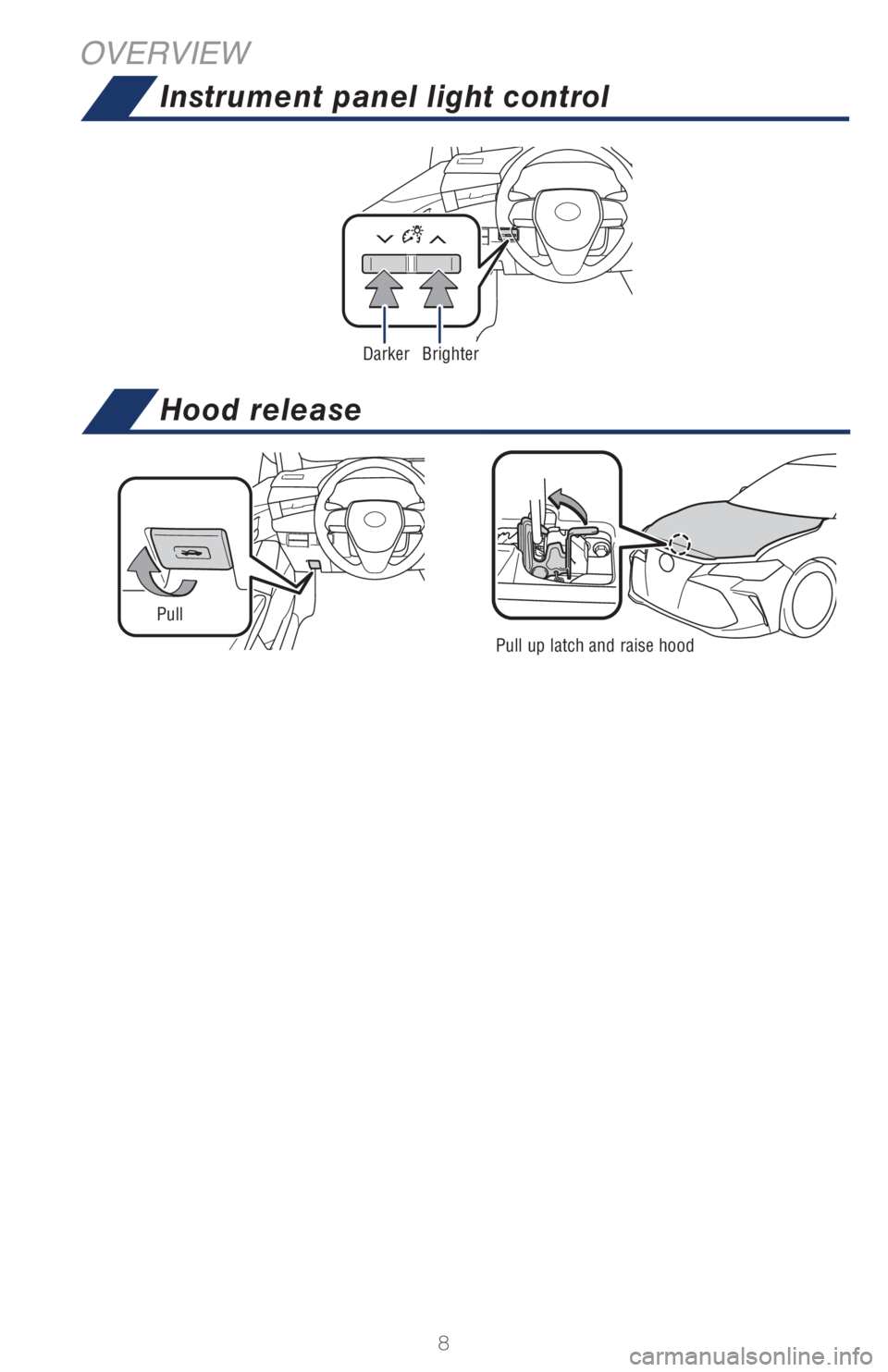

Pull up latch and raise hood
Pull
Hood release
DarkerBrighter
Instrument panel light control
MY21_Avalon_QRG_V2_ML_0709.indd 87/13/20 1:14 PM
