1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

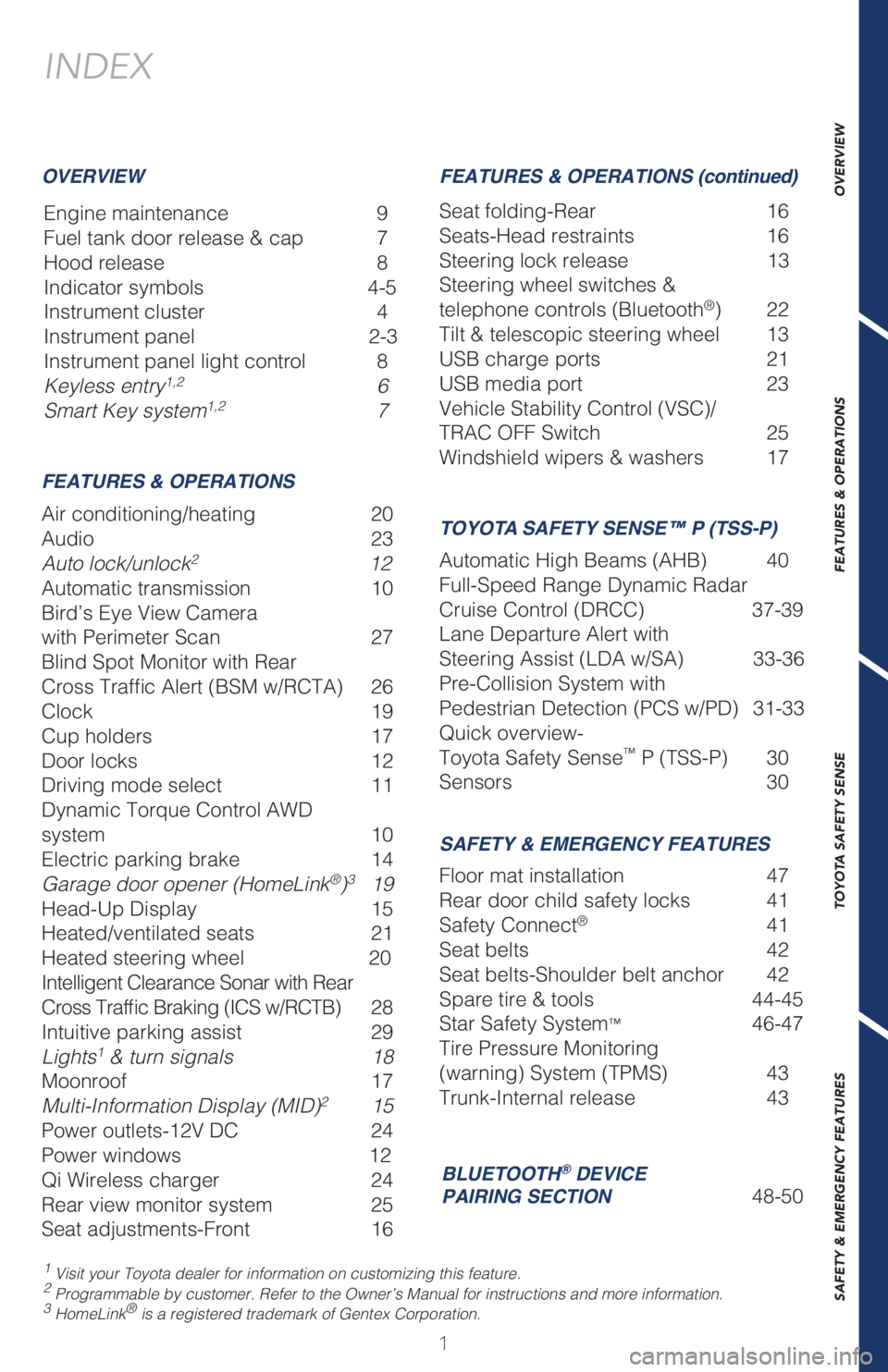

INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 20
Audio 23
Auto lock/unlock
2 12
Automatic transmission 10
Bird’s Eye View Camera
with Perimeter Scan 27
Blind Spot Monitor with Rear
$ S P T T 5 S B G m D " M F S U # 4 . X 3 $ 5 "
Clock 19
Cup holders 17
Door locks 12
Driving mode select 11
Dynamic Torque Control AWD
system 10
Electric parking brake 14
Garage door opener (HomeLink
®)3 19
Head-Up Display 15
Heated/ventilated seats 21
Heated steering wheel 20
Intelligent Clearance Sonar with Rear
$ S P T T 5 S B G m D # S B L J O H * $ 4 X 3 $ 5 #
Intuitive parking assist 29
Lights
1 & turn signals 18
Moonroof 17
Multi-Information Display (MID)
2 15
Power outlets-12V DC 24
Power windows 12
Qi Wireless charger 24
Rear view monitor system 25
4 F B U B E K V T U N F O U T ' S P O U 4 F B U G P M E J O H 3 F B S
4 F B U T ) F B E S F T U S B J O U T
Steering lock release 13
Steering wheel switches &
U F M F Q I P O F D P O U S P M T # M V F U P P U I
®
Tilt & telescopic steering wheel 13
USB charge ports 21
USB media port 23
7 F I J D M F 4 U B C J M J U Z $ P O U S P M 7 4 $
TRAC OFF Switch 25
Windshield wipers & washers 17
Floor mat installation 47
Rear door child safety locks 41
Safety Connect
® 41
Seat belts 42
Seat belts-Shoulder belt anchor 42
Spare tire & tools 44-45
Star Safety System
™
Tire Pressure Monitoring
X B S O J O H
4 Z T U F N 5 1 . 4
Trunk-Internal release 43
BLUETOOTH® DEVICE
PAIRING SECTION 48-50
TOYOTA SAFETY SENSE™ P (TSS-P)
" V U P N B U J D ) J H I # F B N T " ) #
Full-Speed Range Dynamic Radar
$ S V J T F $ P O U S P M % 3 $ $
Lane Departure Alert with
4 U F F S J O H " T T J T U - % " X 4 "
Pre-Collision System with
1 F E F T U S J B O % F U F D U J P O 1 $ 4 X 1 %
Quick overview-
Toyota Safety Sense
™ 1 5 4 4 1
30
Sensors 30
MY21_Avalon_QRG_V2_ML_0709.indd 17/13/20 1:14 PM
Page 4 of 56
2
OVERVIEW

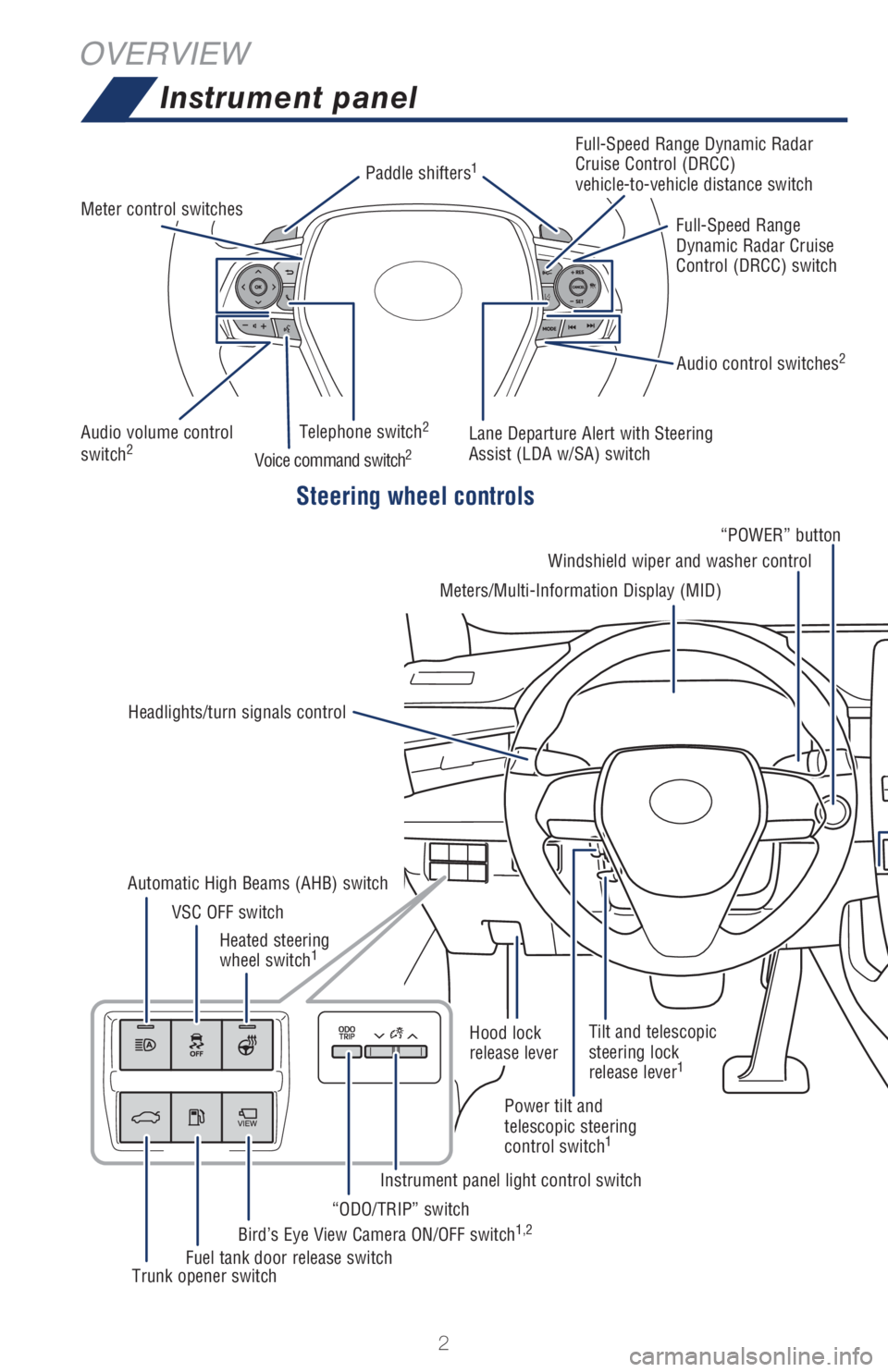

Instrument panel
Steering wheel controls
Audio volume control
switch2
Audio control switches2
Meter control switchesPaddle shifters
1
Telephone switch2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control (DRCC)
vehicle-to-vehicle distance switch
Tilt and telescopic
steering lock
release lever
1
Power tilt and
telescopic steering
control switch
1
Bird’s Eye View Camera ON/OFF switch1,2“ODO/TRIP” switchInstrument panel light control switch Automatic High Beams (AHB) switch
Heated steering
wheel switch
1
VSC OFF switch
Fuel tank door release switch
Trunk opener switch
Hood lock
release lever Meters/Multi-Information Display (MID)Windshield wiper and washer control“POWER” button Lane Departure Alert with Steering
Assist (LDA w/SA) switchFull-Speed Range
Dynamic Radar Cruise
Control (DRCC) switch
Headlights/turn signals control
MY21_Avalon_QRG_V2_ML_0709.indd 27/13/20 1:14 PM
Page 5 of 56
3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Electric parking
brake switchEmergency flasher switch Audio system
1,2/
Navigation system1,2
Air conditioning/heating controls
ECO mode switch
ECO mode switch Without AVS
With AVSNORMAL mode switch
NORMAL/CUSTOM mode switch SPORT mode switch
SPORT S/S+ mode switchBrake HOLD switch
Brake HOLD switch
1
If equipped.2
For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
MY21_Avalon_QRG_V2_ML_0709.indd 37/13/20 1:14 PM
Page 17 of 56
15
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

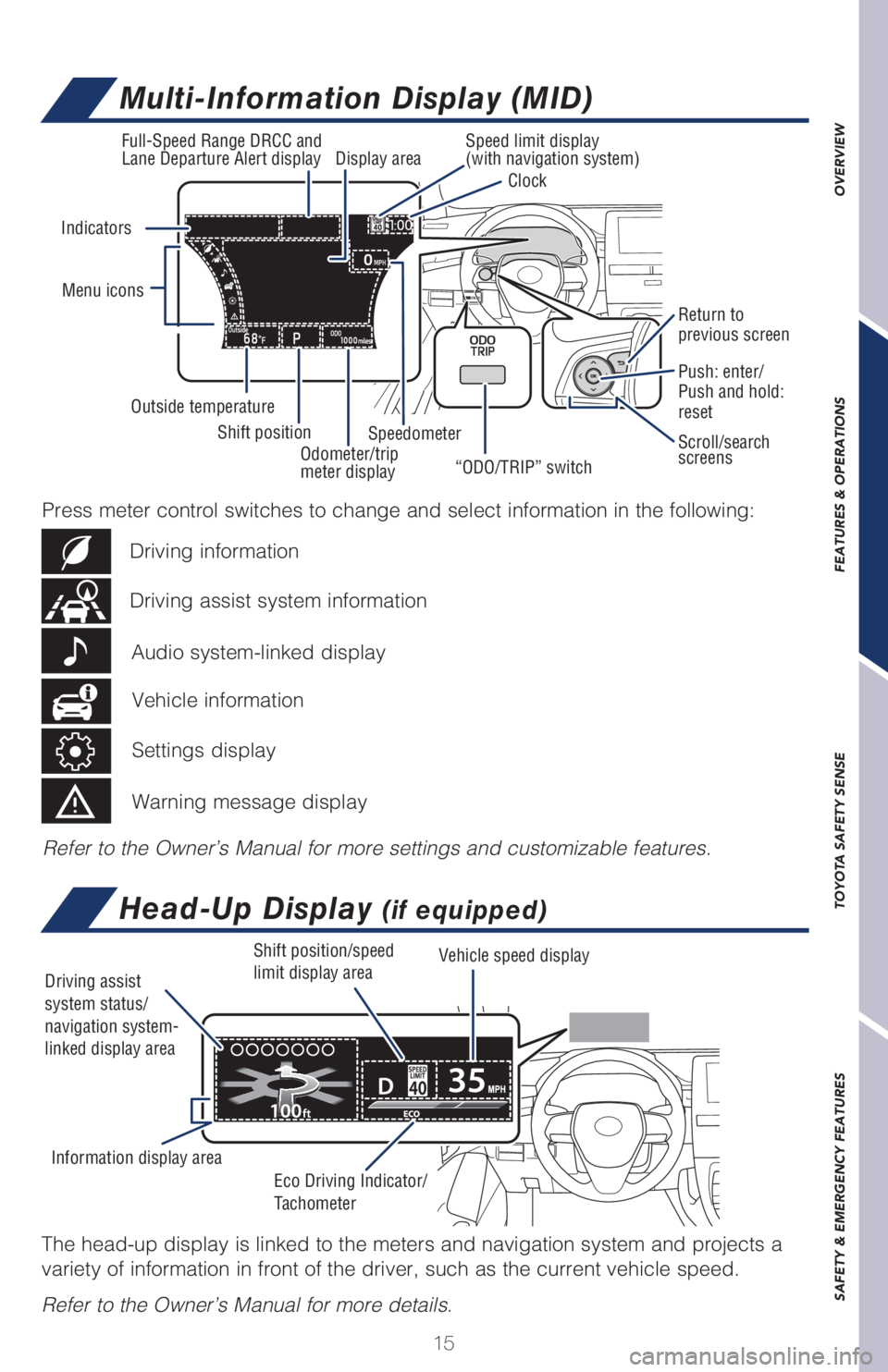

Multi-Information Display (MID)
Head-Up Display (if equipped)
Refer to the Owner’s Manual for more settings and customizable features.
Return to
previous screen
Indicators
Push: enter/
Push and hold:
reset
Scroll/search
screens
“ODO/TRIP” switch
Speed limit display
(with navigation system) Full-Speed Range DRCC and
Lane Departure Alert display
Menu icons
Shift positionDisplay area
Clock
Speedometer Outside temperature
Odometer/trip
meter display
Press meter control switches to change and select information in the following:
Driving assist system information Driving information
Vehicle information Audio system-linked display
Settings display
Warning message display
The head-up display is linked to the meters and navigation system and projects a
variety of information in front of the driver, such as the current vehicle speed.
Refer to the Owner’s Manual for more details.
Driving assist
system status/
navigation system-
linked display areaShift position/speed
limit display area
Eco Driving Indicator/
Tachometer Information display areaVehicle speed display
MY21_Avalon_QRG_V2_ML_0709.indd 157/13/20 1:15 PM
Page 21 of 56
19
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

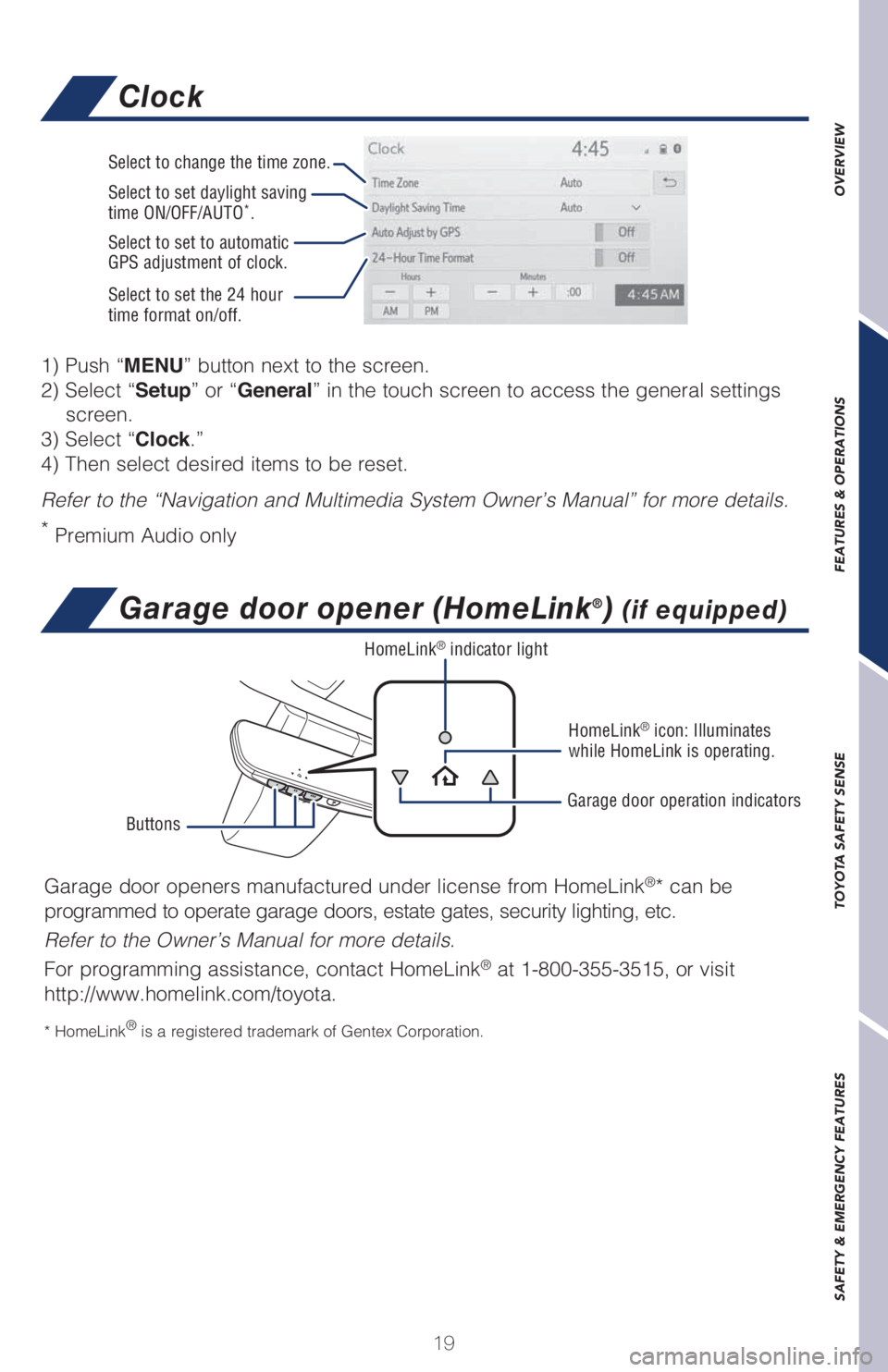

Clock
1 V T I iMENU” button next to the screen.
4 F M F D U iSetup” or “General” in the touch screen to access the general settings
screen.
4 F M F D U iClock.”
5 I F O T F M F D U E F T J S F E J U F N T U P C F S F T F U
Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
*
Premium Audio only
Select to change the time zone.
Select to set daylight saving
time ON/OFF/AUTO*.
Select to set to automatic
GPS adjustment of clock.
Select to set the 24 hour
time format on/off.
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Garage door opener (HomeLink®) (if equipped)
HomeLink® indicator light
Buttons
Garage door operation indicators
HomeLink® icon: Illuminates
while HomeLink is operating.
MY21_Avalon_QRG_V2_ML_0709.indd 197/13/20 1:15 PM
Page 24 of 56
22
FEATURES & OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Always use safe driving practices and follow all traffic rules.
Return to previous screen
Volume control
Microphone Voice command
switch Start and end call“MODE”
Push to change audio mode.
Push and hold to mute or
pause the audio.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)
MY21_Avalon_QRG_V2_ML_0709.indd 227/13/20 1:15 PM
Page 25 of 56
23

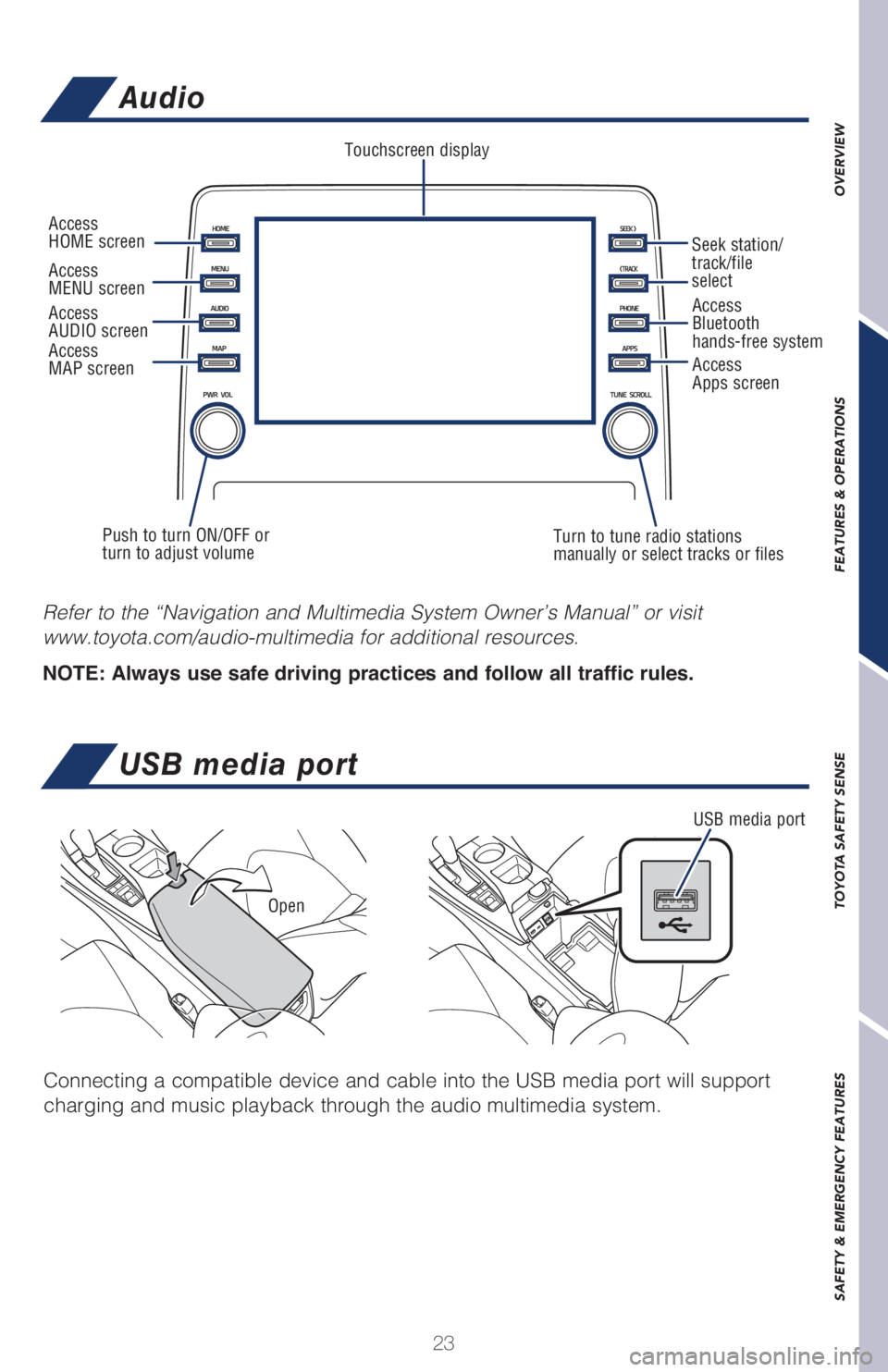

Audio
Touchscreen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volumeTurn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system Seek station/
track/file
select Access
HOME screen
Access
MENU screen
Access
Apps screen
Access
MAP screen
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
Open
USB media port
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
NOTE: Always use safe driving practices and follow all traffic rules.
USB media port
MY21_Avalon_QRG_V2_ML_0709.indd 237/13/20 1:15 PM
Page 28 of 56
26
FEATURES & OPERATIONS

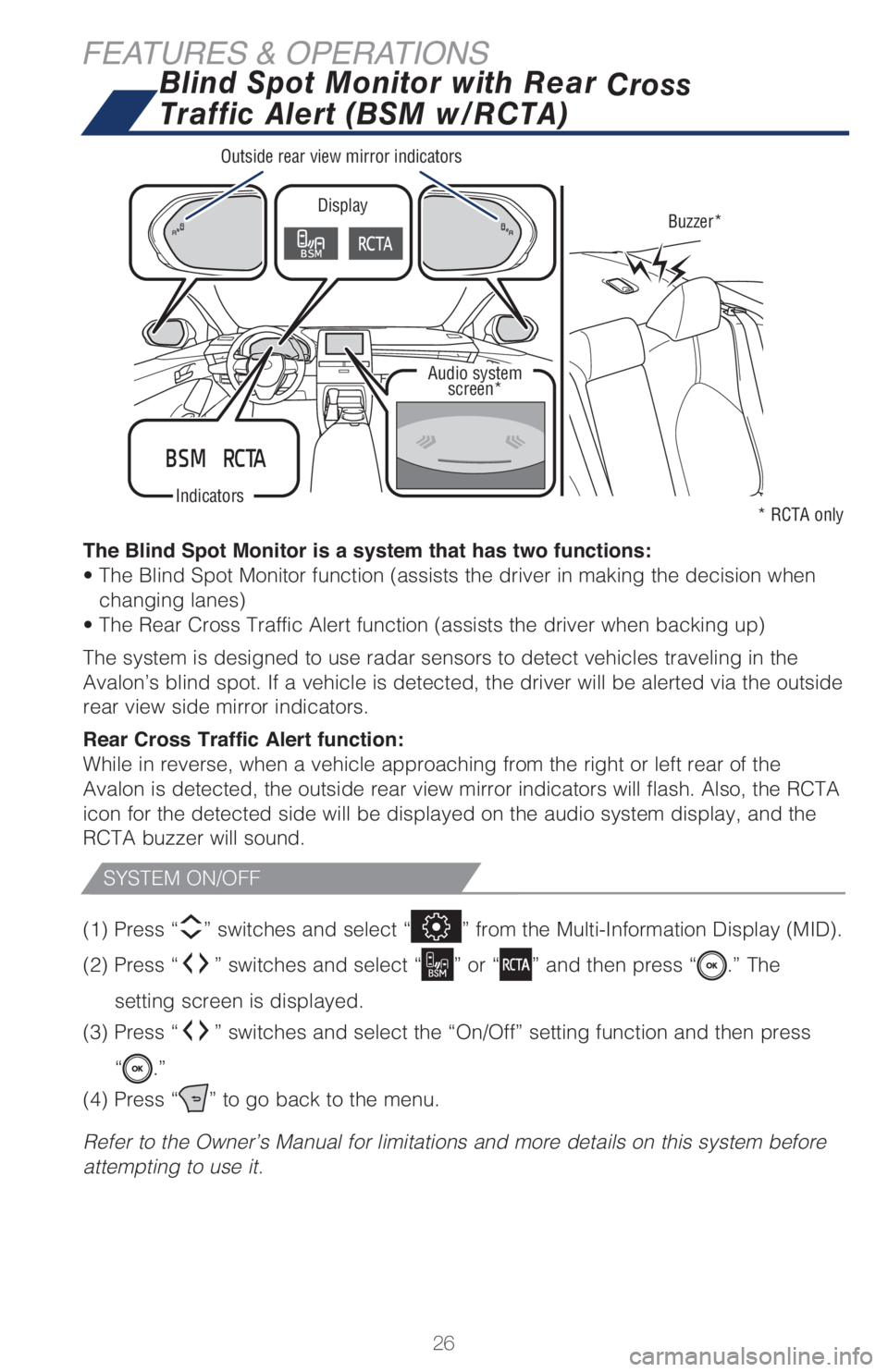

The Blind Spot Monitor is a system that has two functions:
t 5 I F # M J O E 4 Q P U . P O J U P S G V O D U J P O B T T J T U T U I F E S J W F S J O N B L J O H U I F E F D J T J P O X I F O
D I B O H J O H M B O F T
t 5 I F 3 F B S $ S P T T 5 S B G G J D " M F S U G V O D U J P O B T T J T U T U I F E S J W F S X I F O C B D L J O H V Q
The system is designed to use radar sensors to detect vehicles traveling in the
Avalon’s blind spot. If a vehicle is detected, the driver will be alerted via the outside
rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear of the
Avalon is detected, the outside rear view mirror indicators will flash. Also, the RCTA
icon for the detected side will be displayed on the audio system display, and the
RCTA buzzer will sound.
Blind Spot Monitor with Rear
Cross
Traffic Alert (BSM w/RCTA)
Indicators
DisplayBuzzer*
Audio system
screen*
* RCTA only Outside rear view mirror indicators
1 S F T T i” switches and select “ w G S P N U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
1 S F T T i
” switches and select “” or “” and then press “.” The
setting screen is displayed.
1 S F T T i
” switches and select the “On/Off” setting function and then press
“
.”
1 S F T T i
” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
SYSTEM ON/OFF
MY21_Avalon_QRG_V2_ML_0709.indd 267/13/20 1:15 PM
Page 33 of 56
31
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

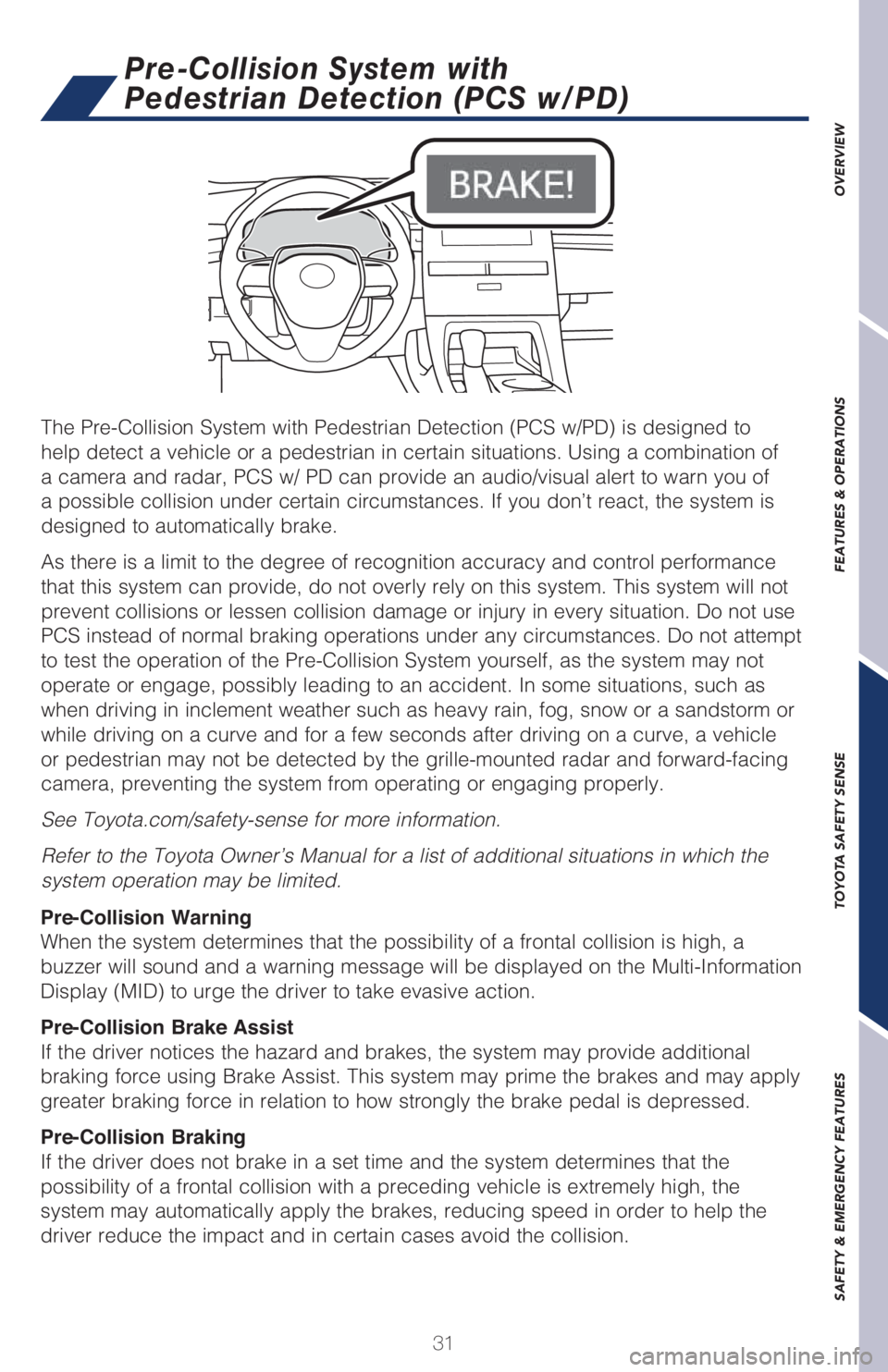

5 I F 1 S F $ P M M J T J P O 4 Z T U F N X J U I 1 F E F T U S J B O % F U F D U J P O 1 $ 4 X 1 %
J T E F T J H O F E U P
help detect a vehicle or a pedestrian in certain situations. Using a combination of
a camera and radar, PCS w/ PD can provide an audio/visual alert to warn you of
a possible collision under certain circumstances. If you don’t react, the system is
designed to automatically brake.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the Pre-Collision System yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
or pedestrian may not be detected by the grille-mounted radar and forward-facing
camera, preventing the system from operating or engaging properly.
See Toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situations in which the
system operation may be limited.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
% J T Q M B Z . * %
U P V S H F U I F E S J W F S U P U B L F F W B T J W F B D U J P O
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)
MY21_Avalon_QRG_V2_ML_0709.indd 317/13/20 1:15 PM
