4
OVERVIEW

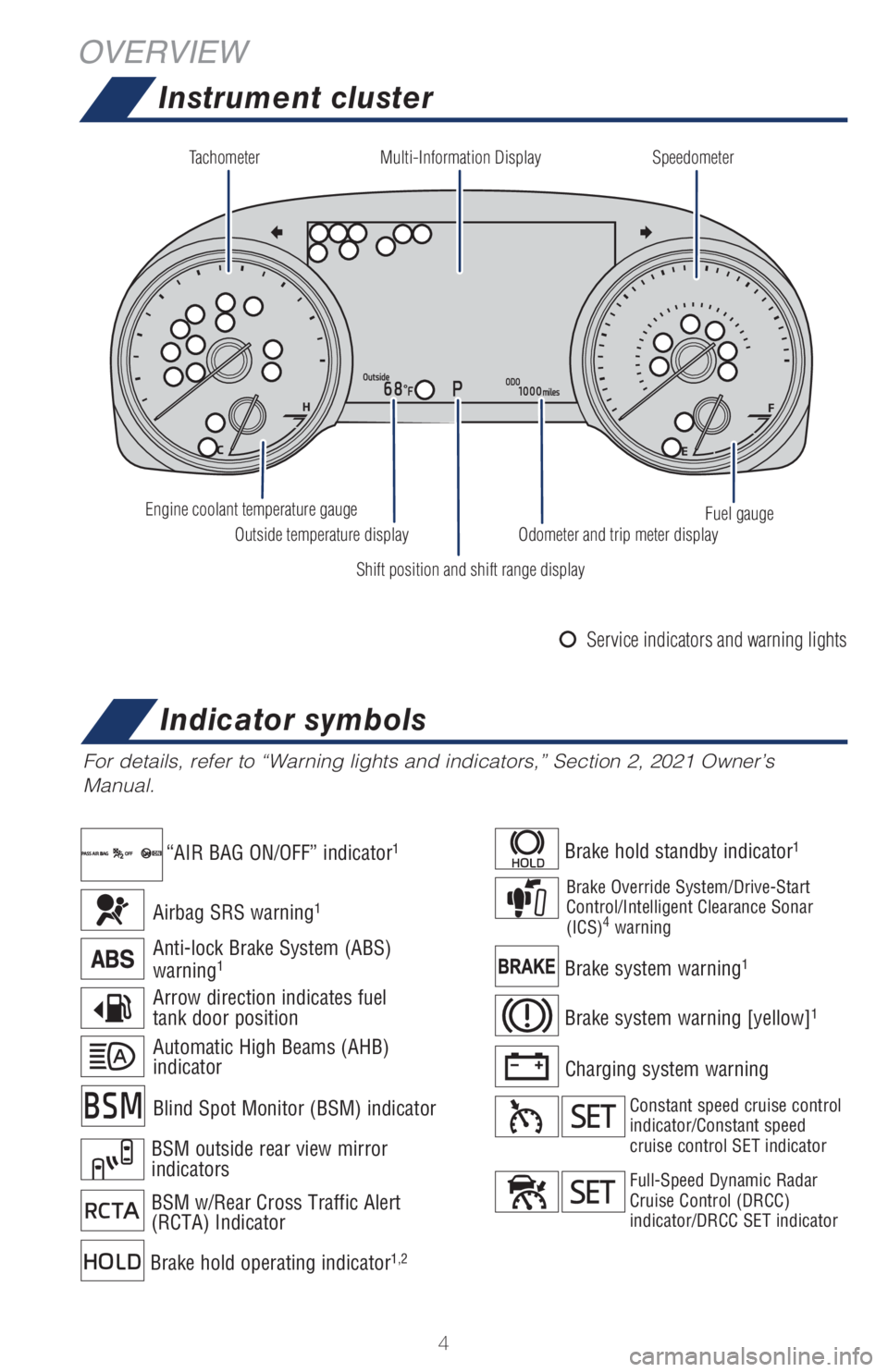

Instrument cluster
For details, refer to “Warning lights and indicators,” Section 2, 2021 Owner’s
Manual.
Tachometer SpeedometerMulti-Information Display
Engine coolant temperature gauge
Outside temperature display Odometer and trip meter display
Shift position and shift range displayFuel gauge
Airbag SRS warning1
Arrow direction indicates fuel
tank door position
Automatic High Beams (AHB)
indicator
Anti-lock Brake System (ABS)
warning1
“AIR BAG ON/OFF” indicator1
Brake hold operating indicator1,2
Brake hold standby indicator1
Brake system warning1
Blind Spot Monitor (BSM) indicator
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator
BSM outside rear view mirror
indicators
Brake Override System/Drive-Start
Control/Intelligent Clearance Sonar
(ICS)
4 warning
Brake system warning [yellow]1
Charging system warning
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Indicator symbols
Service indicators and warning lights
MY21_Avalon_QRG_V2_ML_0709.indd 47/13/20 1:14 PM

15
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Head-Up Display (if equipped)
Refer to the Owner’s Manual for more settings and customizable features.
Return to
previous screen
Indicators
Push: enter/
Push and hold:
reset
Scroll/search
screens
“ODO/TRIP” switch
Speed limit display
(with navigation system) Full-Speed Range DRCC and
Lane Departure Alert display
Menu icons
Shift positionDisplay area
Clock
Speedometer Outside temperature
Odometer/trip
meter display
Press meter control switches to change and select information in the following:
Driving assist system information Driving information
Vehicle information Audio system-linked display
Settings display
Warning message display
The head-up display is linked to the meters and navigation system and projects a
variety of information in front of the driver, such as the current vehicle speed.
Refer to the Owner’s Manual for more details.
Driving assist
system status/
navigation system-
linked display areaShift position/speed
limit display area
Eco Driving Indicator/
Tachometer Information display areaVehicle speed display
MY21_Avalon_QRG_V2_ML_0709.indd 157/13/20 1:15 PM
