Page 16 of 56
14
FEATURES & OPERATIONS
Electric parking brake
Driver sideAutomatic modeManual mode
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switch until
“EPB Shift Interlock Function Activated” displays in the Multi-Information Display
. * %
8 I J M F E F Q S F T T J O H C S B L F
T I J G U J O H J O U P 1 Q P T J U J P O X J M M B V U P N B U J D B M M Z T F U U I F
brake and turn the parking brake indicator and parking brake light on. To release
brake, depress brake and shift out of P. The indicator and the light turn off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator and the light turn off.
Parking brake light
Standby indicatorOperated indicator
Parking brake light
The brake hold system keeps the brake applied when the shift lever is in D, S or N
with the system on and the brake pedal has been depressed to stop the vehicle.
The system releases the brake when the accelerator pedal is depressed with the
shift lever in D or S to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
BRAKE HOLD
PARKING BRAKE
MY21_Avalon_QRG_V2_ML_0709.indd 147/13/20 1:15 PM

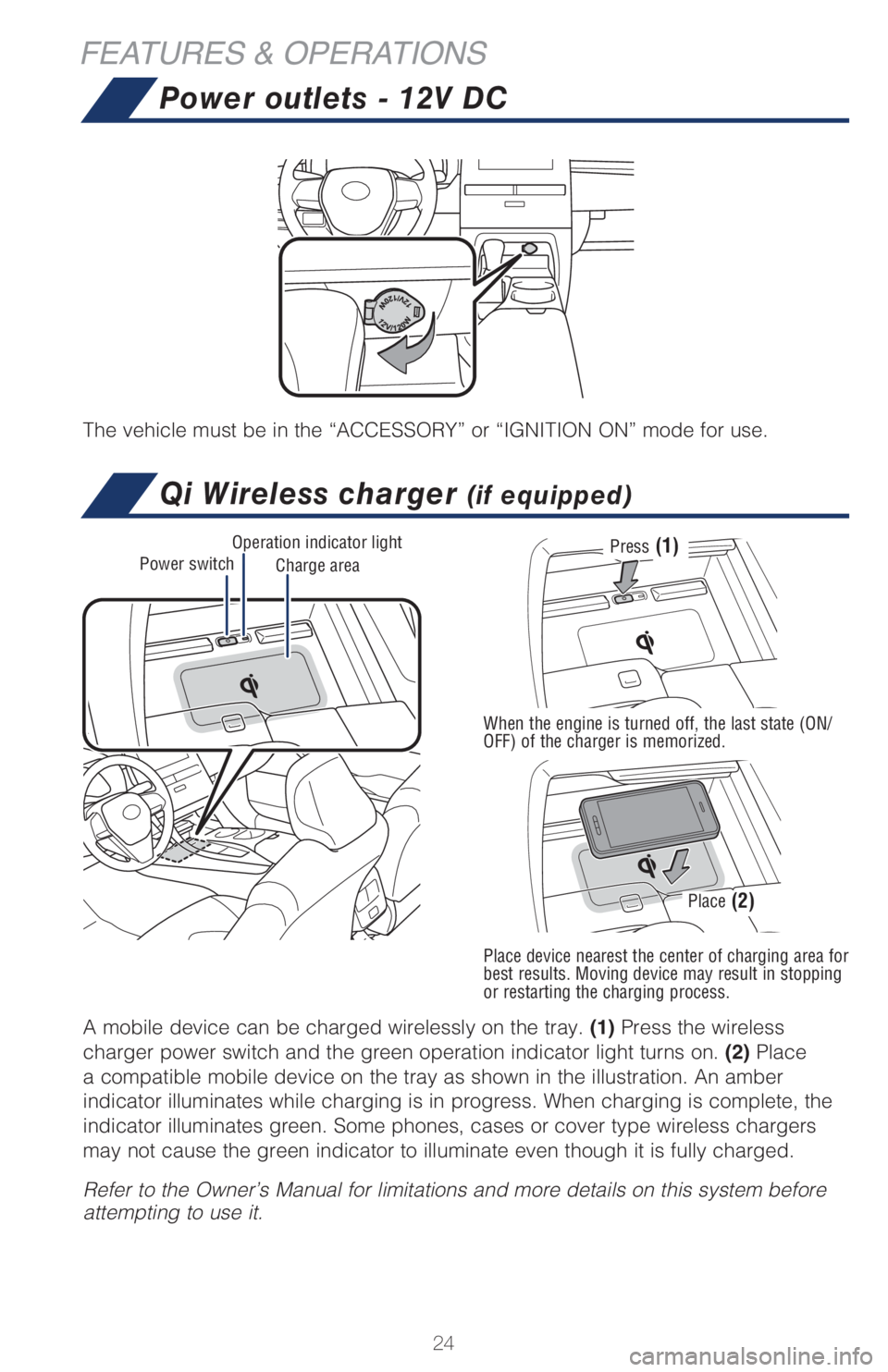

Page 26 of 56
24
FEATURES & OPERATIONS
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully charged.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
Power switchCharge area
Operation indicator lightPress
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place
(1)
(2) The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode for use.
Power outlets - 12V DC
MY21_Avalon_QRG_V2_ML_0709.indd 247/13/20 1:15 PM
