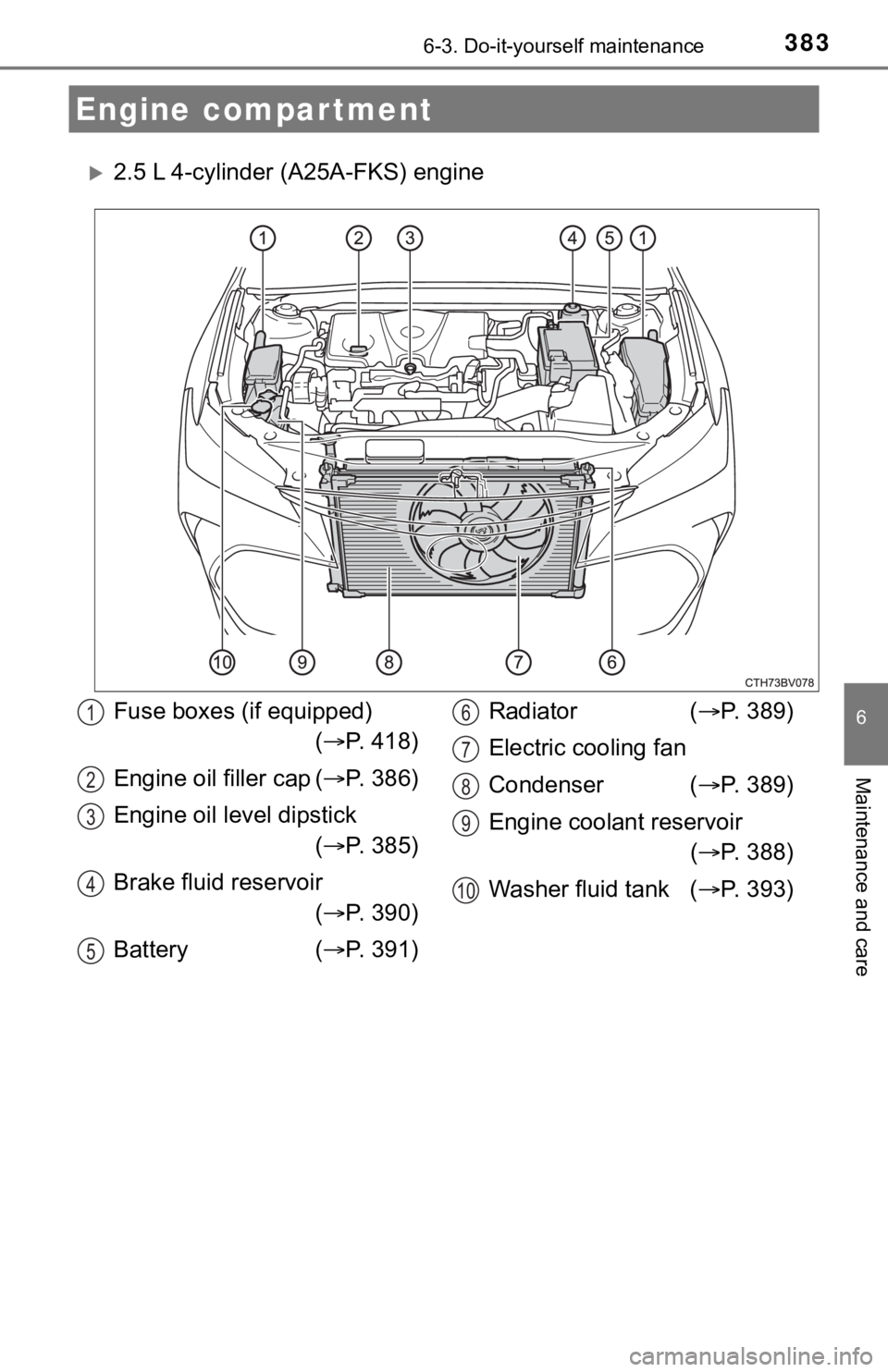

Page 383 of 548

3836-3. Do-it-yourself maintenance
6
Maintenance and care
2.5 L 4-cylinder (A25A-FKS) engine
Engine compartment
Fuse boxes (if equipped)
(P. 418)
Engine oil filler cap (P. 386)
Engine oil level dipstick
(P. 385)
Brake fluid reservoir
(P. 390)
Battery (P. 391)Radiator (P. 389)
Electric cooling fan
Condenser (P. 389)
Engine coolant reservoir
(P. 388)
Washer fluid tank (P. 393)1
2
3
4
5
6
7
8
9
10

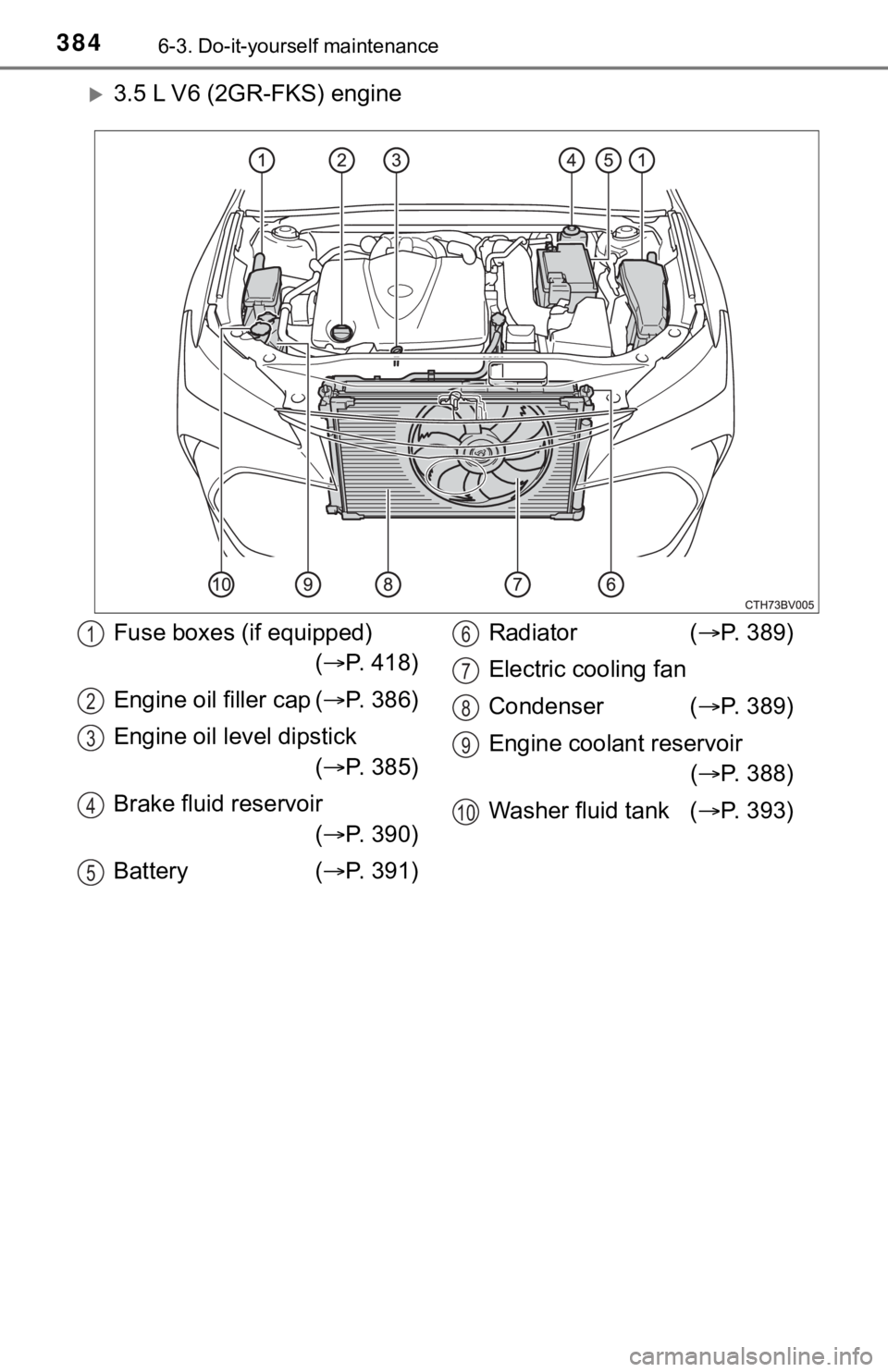

Page 384 of 548

3846-3. Do-it-yourself maintenance
3.5 L V6 (2GR-FKS) engine
Fuse boxes (if equipped)
(P. 418)
Engine oil filler cap (P. 386)
Engine oil level dipstick
(P. 385)
Brake fluid reservoir
(P. 390)
Battery (P. 391)Radiator (P. 389)
Electric cooling fan
Condenser (P. 389)
Engine coolant reservoir
(P. 388)
Washer fluid tank (P. 393)1
2
3
4
5
6
7
8
9
10

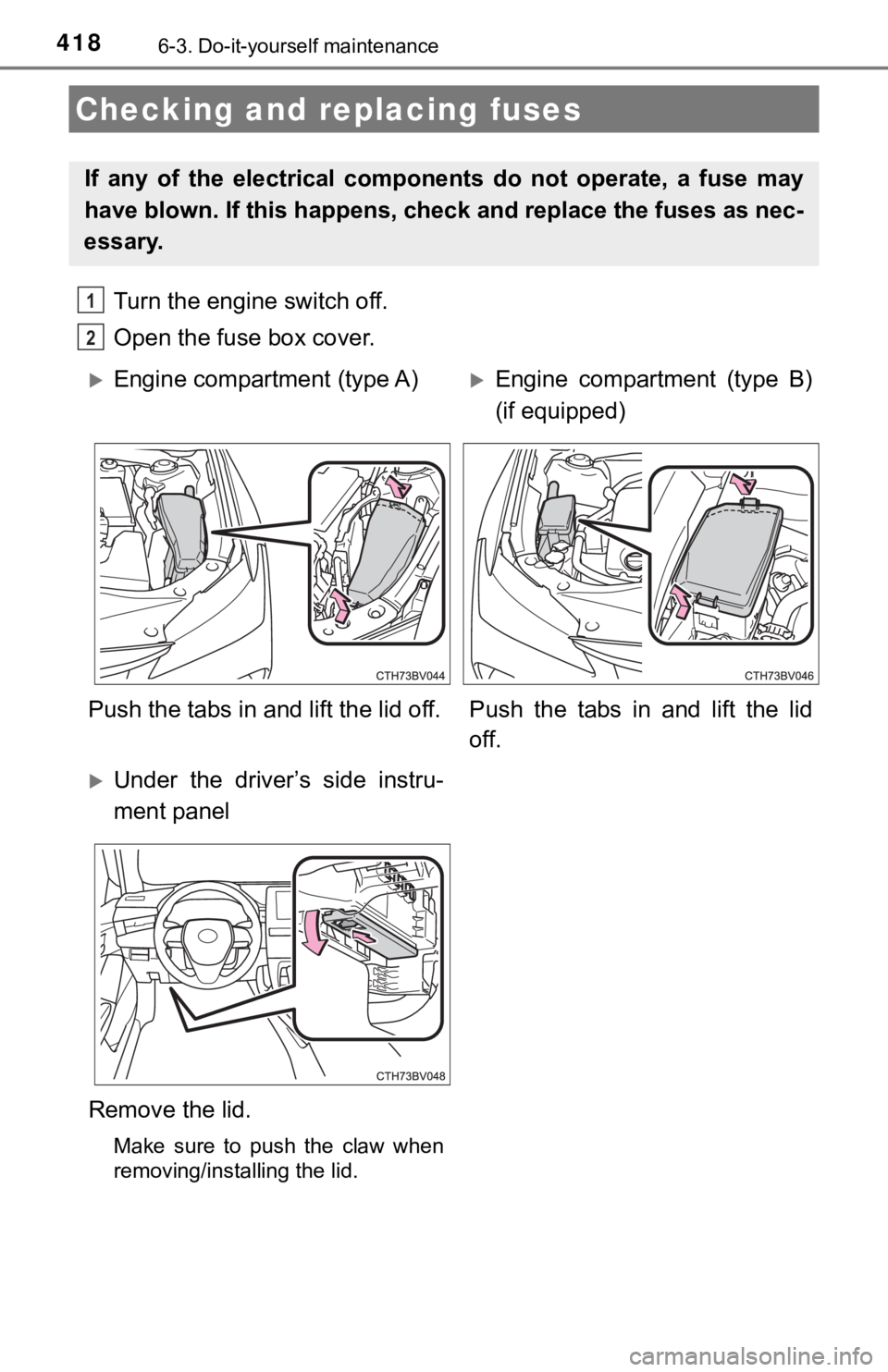

Page 418 of 548

4186-3. Do-it-yourself maintenance
Turn the engine switch off.
Open the fuse box cover.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartment (type A)Engine compartment (type B)
(if equipped)
Push the tabs in and lift the lid off. Push the tabs in and lift the lid
off.
Under the driver’s side instru-
ment panel
Remove the lid.
Make sure to push the claw when
removing/installing the lid.

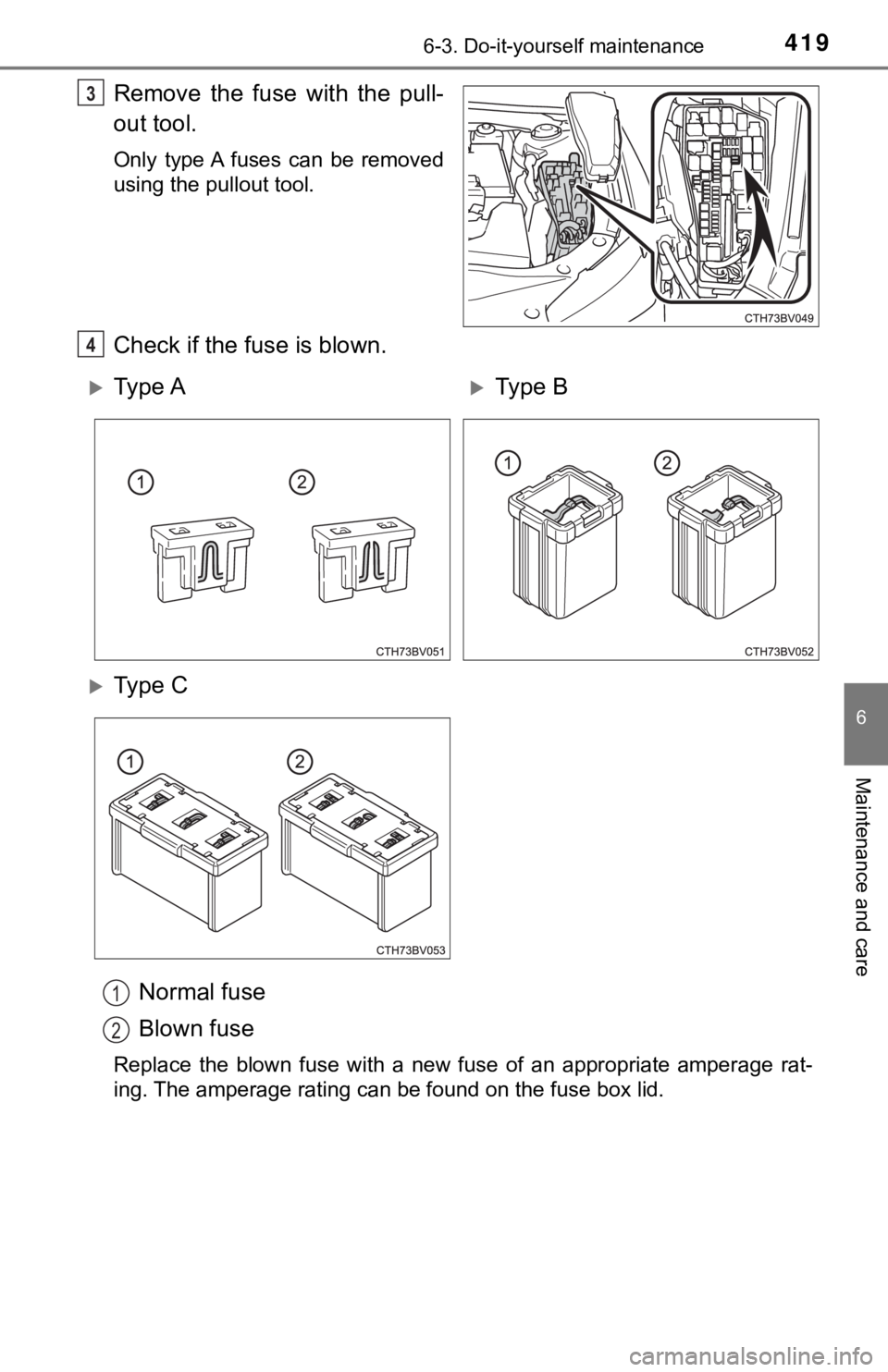

Page 419 of 548

4196-3. Do-it-yourself maintenance
6
Maintenance and care
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
Check if the fuse is blown.
Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
3
4
Ty p e AType B
Ty p e C
1
2
Page 420 of 548

4206-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 421)
●If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
Page 538 of 548
