4036-3. Do-it-yourself maintenance
6
Maintenance and care

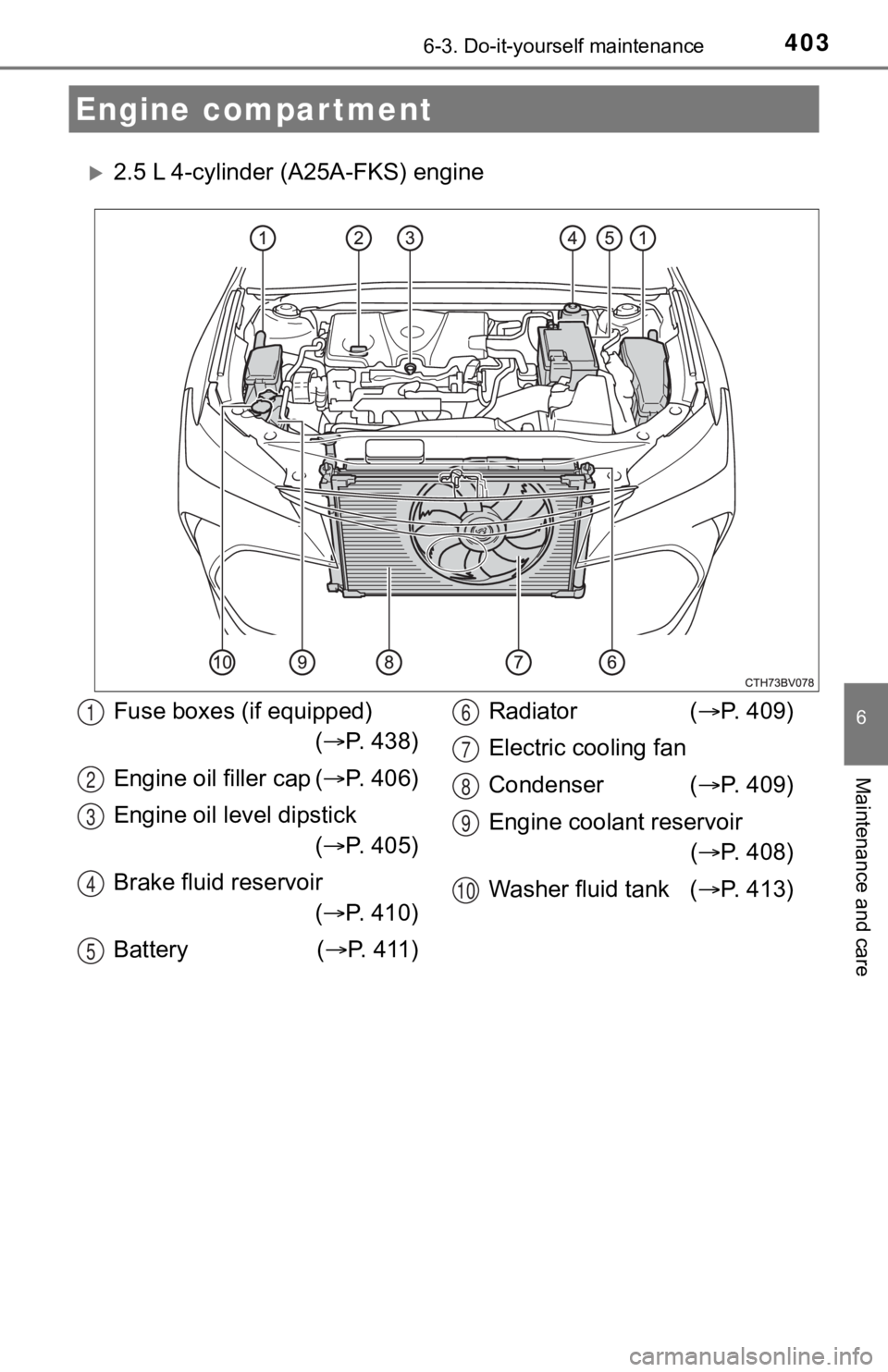

2.5 L 4-cylinder (A25A-FKS) engine
Engine compartment
Fuse boxes (if equipped)( P. 438)
Engine oil filler cap ( P. 406)
Engine oil level dipstick ( P. 405)
Brake fluid reservoir ( P. 410)
Battery ( P. 4 11 ) Radiator (
P. 409)
Electric cooling fan
Condenser ( P. 409)
Engine coolant reservoir ( P. 408)
Washer fluid tank ( P. 413)1
2
3
4
5
6
7
8
9
10

4046-3. Do-it-yourself maintenance

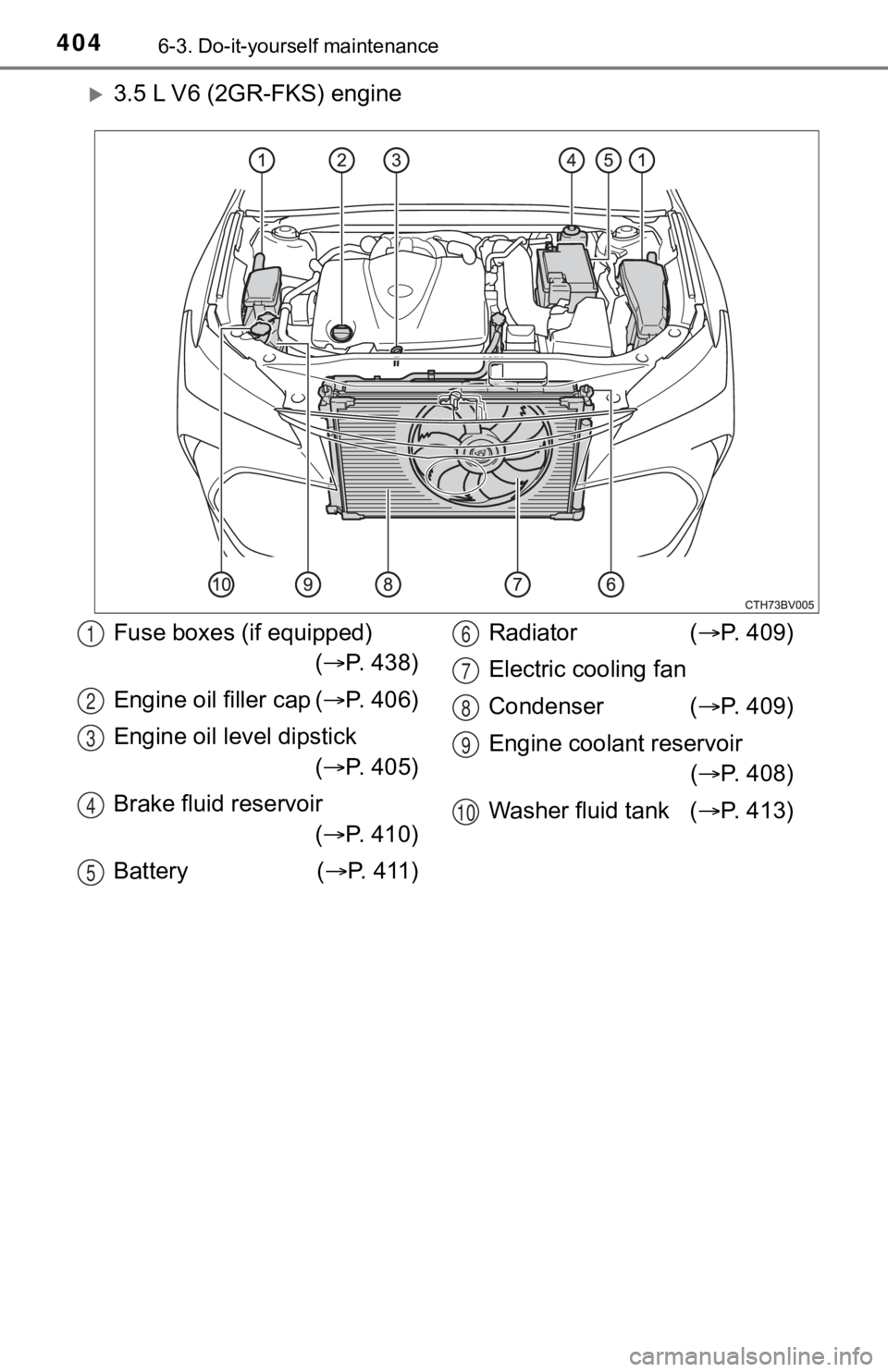

3.5 L V6 (2GR-FKS) engine
Fuse boxes (if equipped)( P. 438)
Engine oil filler cap ( P. 406)
Engine oil level dipstick ( P. 405)
Brake fluid reservoir ( P. 410)
Battery ( P. 4 11 ) Radiator (
P. 409)
Electric cooling fan
Condenser ( P. 409)
Engine coolant reservoir ( P. 408)
Washer fluid tank ( P. 413)1
2
3
4
5
6
7
8
9
10

4386-3. Do-it-yourself maintenance
Turn the engine switch off.
Open the fuse box cover.

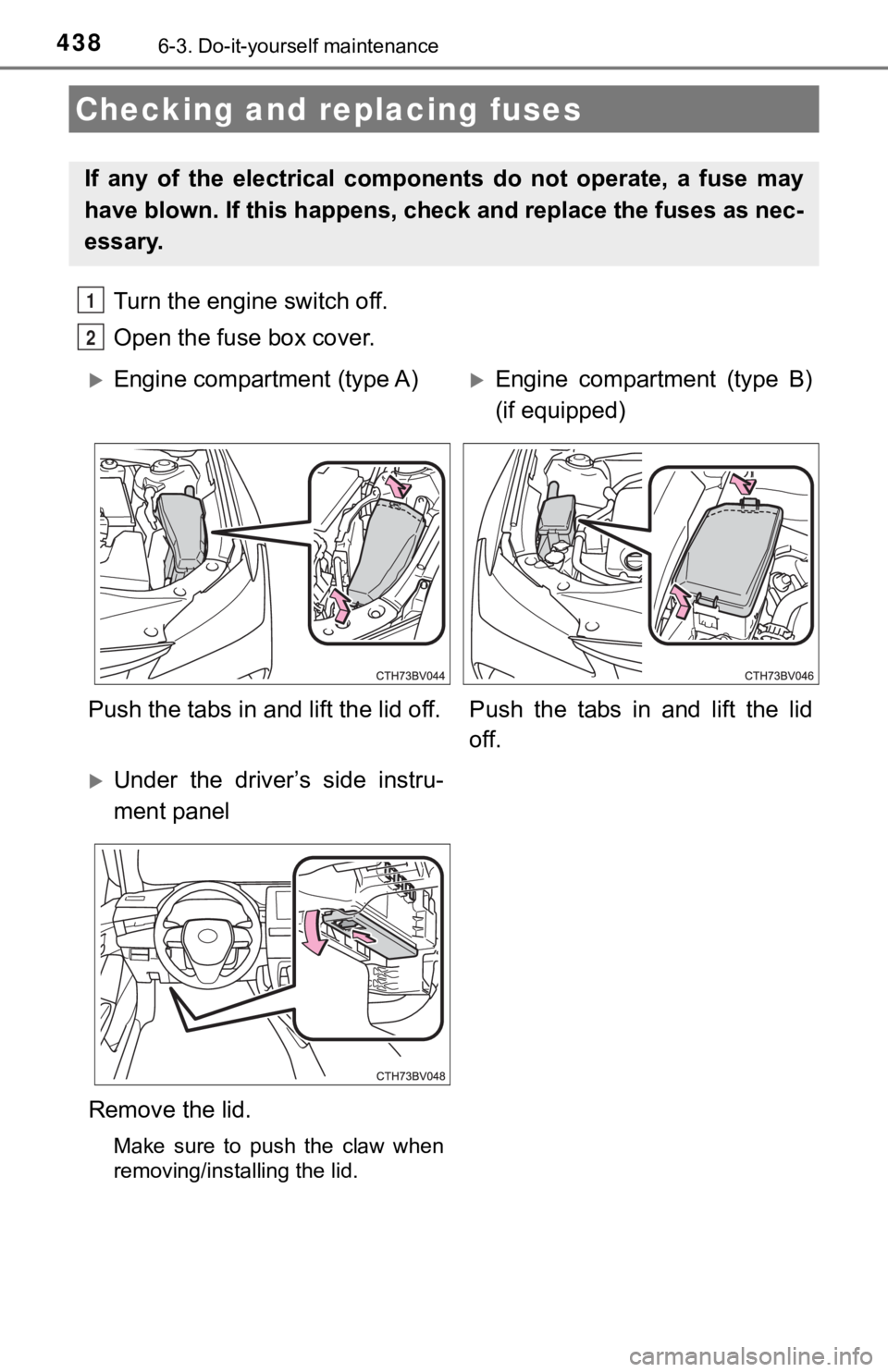

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartment (type A)Engine compartment (type B)
(if equipped)
Push the tabs in and lift the lid off. Push the tabs in and lift the lid
off.
Under the driver’s side instru-
ment panel
Remove the lid.
Make sure to push the claw when
removing/installing the lid.

4396-3. Do-it-yourself maintenance
6
Maintenance and care

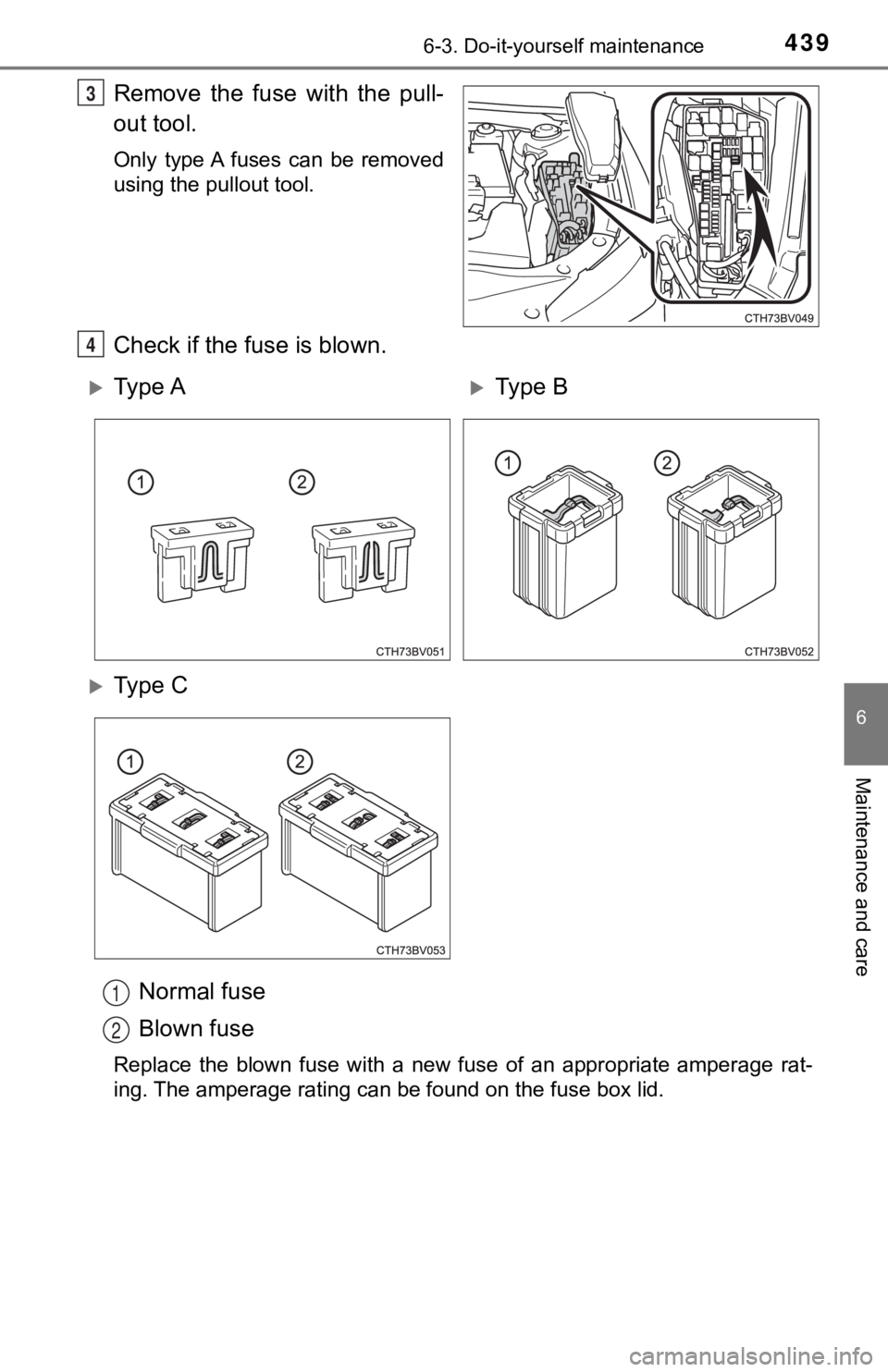

Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
3
4
Ty p e AType B
Ty p e C
1
2

4406-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 441)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicate d, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.
