1112. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41451U)
Display Audio system
Press “INFO”. (P. 103)
If the “Energy Monitor” or “Trip In formation” screen is displayed, touch
“Past Record”.
Best past fuel consumption
Update
The average fuel consumption and
graph are updated, and a new
average fuel consumption record
begins.
Average fuel consumption
Displays a maximum of five past
record of the average fuel con-
sumption.
The image is example only, and may vary slightly from actual conditions.
■Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “Past Record” screen will reset the past records and best past fuel con-
sumption. Selecting “Yes” on the following screen will confirm resetting of all
the data.
1
2
3
Page 112 of 512
1122. Instrument cluster
AVALON_HV_U (OM41451U)
Page 113 of 512
113
3
Operation of
each component
AVALON_HV_U (OM41451U) 3-1. Key information
Keys .................................. 114
3-2. Opening, closing and locking the doors and
trunk
Smart key system ............. 117
Wireless remote control .... 132
Doors ................................ 135
Trunk ................................. 138
3-3. Adjusting the seats Front seats ........................ 142
Driving position memory ........................... 144
Head restraints.................. 148
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 151
Inside rear view mirror ...... 152
Outside rear view mirrors ............................. 154
3-5. Opening, closing the windows and moon roof
Power windows ................. 157
Moon roof .......................... 160
Page 114 of 512
114
AVALON_HV_U (OM41451U)
3-1. Key information
The following keys are provided with the vehicle.Electronic keys
• Operating the smart key system ( P. 117)
• Operating the wireless remote control function ( P. 132)
Mechanical keys
Key number plate
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
( P. 438)
Keys
The keys
1
2
3
Using the mechanical key
Page 115 of 512
1153-1. Key information
3
Operation of each component
AVALON_HV_U (OM41451U)
■When required to leave the vehicle’s key with a parking attendant
Turn the trunk opener main switch off and lock the glove box as circum-
stances demand. ( P. 139, 288)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ If you lose your mechanical keys
New genuine mechanical keys can be made by your Toyota dealer using the
other mechanical key and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.
Page 116 of 512
1163-1. Key information
AVALON_HV_U (OM41451U)
NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cooker s, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer imm ediately with all remaining electronic
keys that was provided with your vehicle.
Page 117 of 512
117
3
Operation of each component
AVALON_HV_U (OM41451U)
3-2. Opening, closing and locking the doors and trunk
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket. (The driver
should always carry the electronic key.)
■ Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Smar t key system

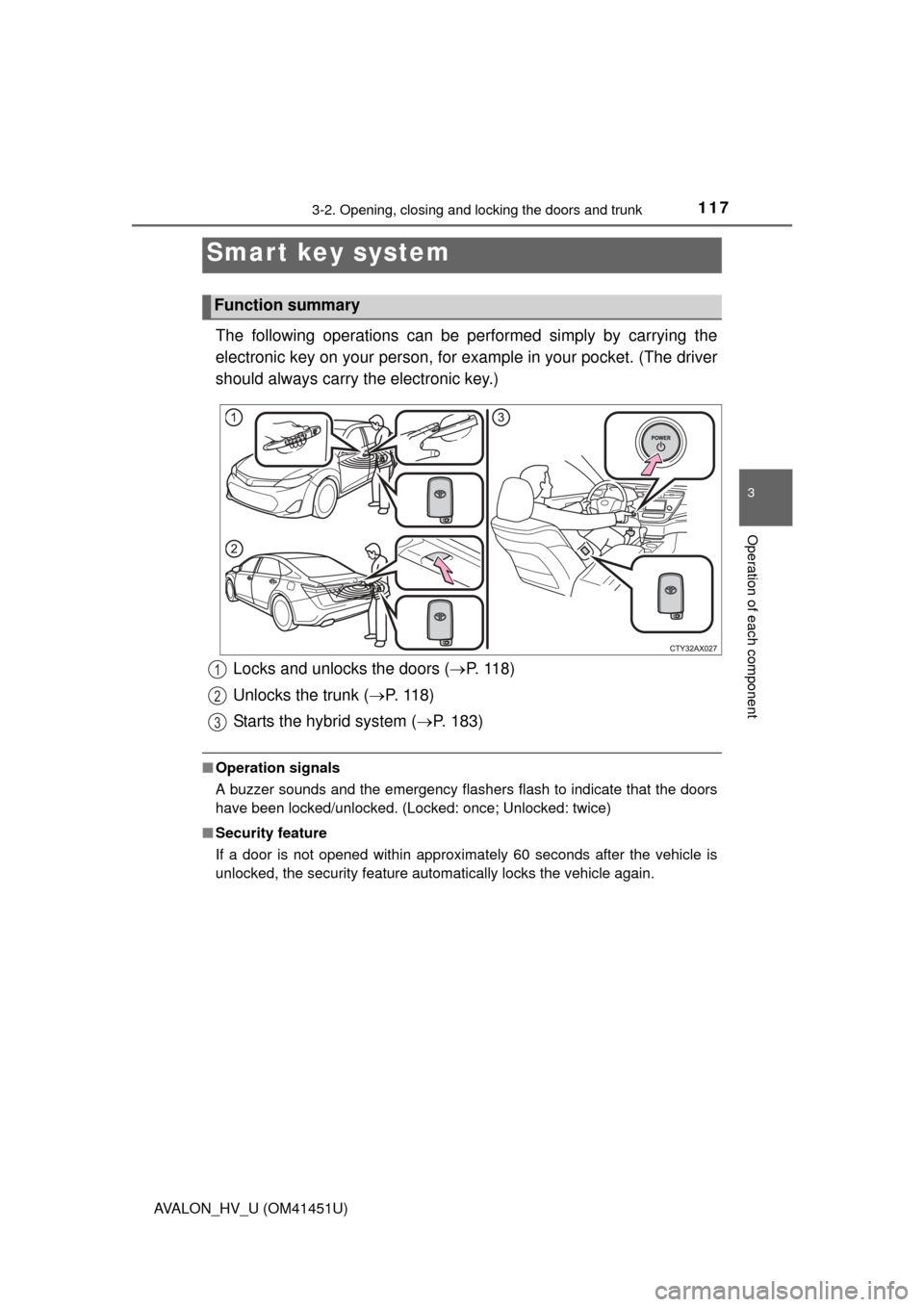

Function summary
Locks and unlocks the doors ( P. 1 1 8 )
Unlocks the trunk ( P. 11 8 )
Starts the hybrid system ( P. 183)1
2
3
Page 118 of 512
1183-2. Opening, closing and locking the doors and trunk
AVALON_HV_U (OM41451U)
Grip the driver’s door handle to
unlock the door. Some models,
grip the passenger’s door handle
to unlock all the doors.
*
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
*: The door unlock settings can bechanged. ( P. 124)
Touch the lock sensor (the inden-
tation on the upper part of the
door handle) to lock all the doors.
Press the button to unlock the
trunk.

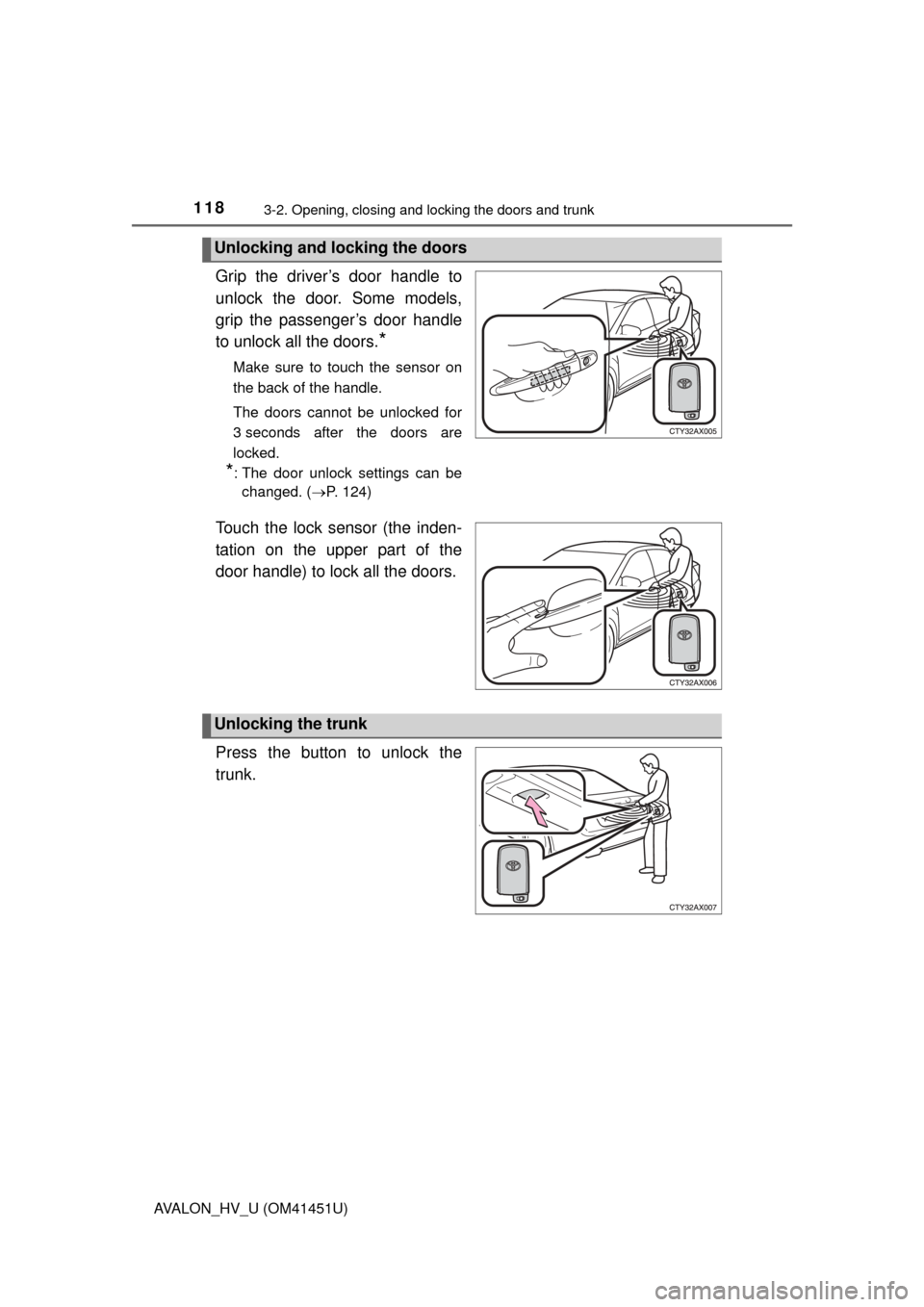

Unlocking and locking the doors
Unlocking the trunk
Page 119 of 512
1193-2. Opening, closing and locking the doors and trunk
3
Operation of each component
AVALON_HV_U (OM41451U)■

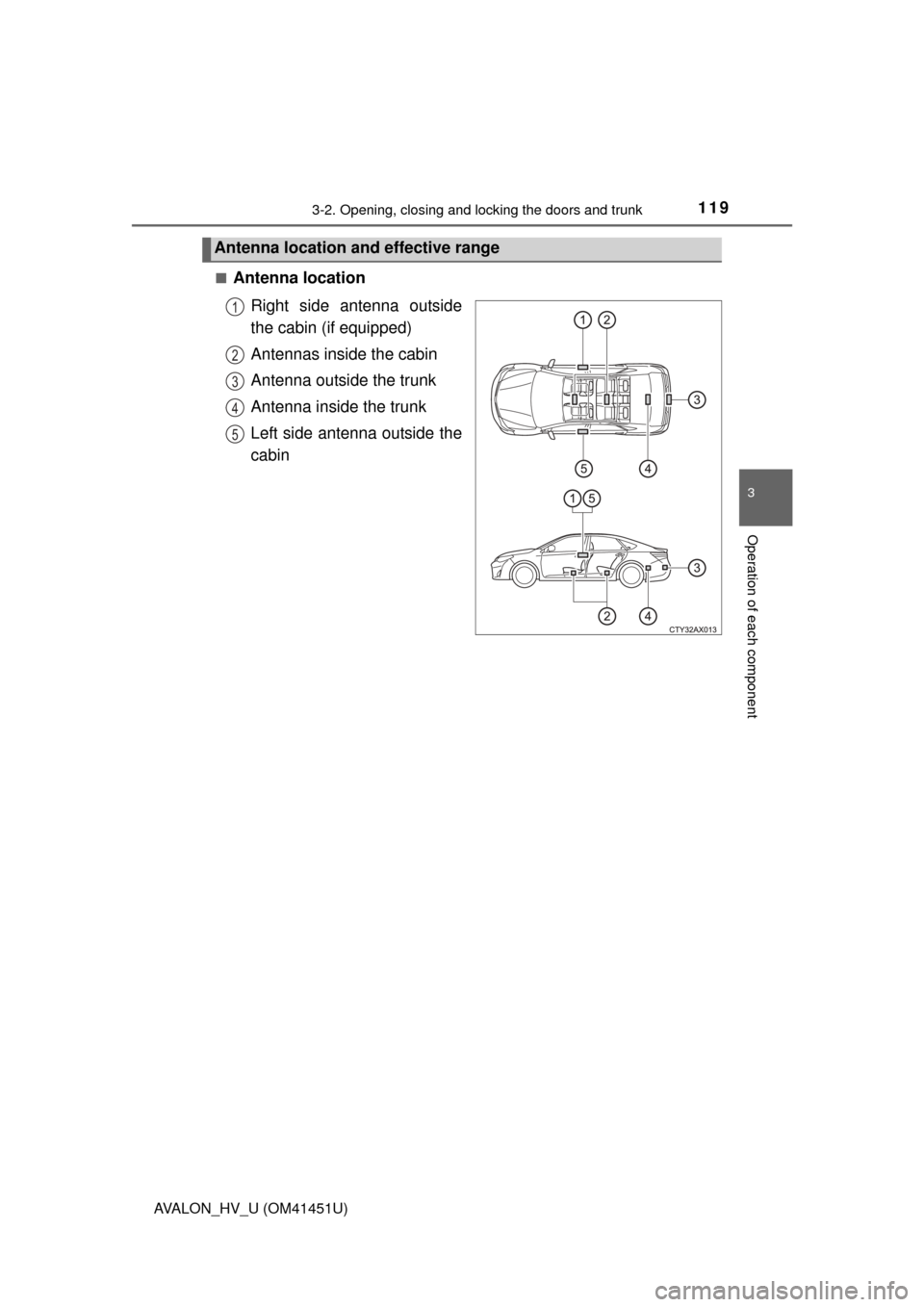

Antenna location
Right side antenna outside
the cabin (if equipped)
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk
Left side antenna outside the
cabin
Antenna location and effective range
1
2
3
34
35
Page 120 of 512
1203-2. Opening, closing and locking the doors and trunk
AVALON_HV_U (OM41451U)■

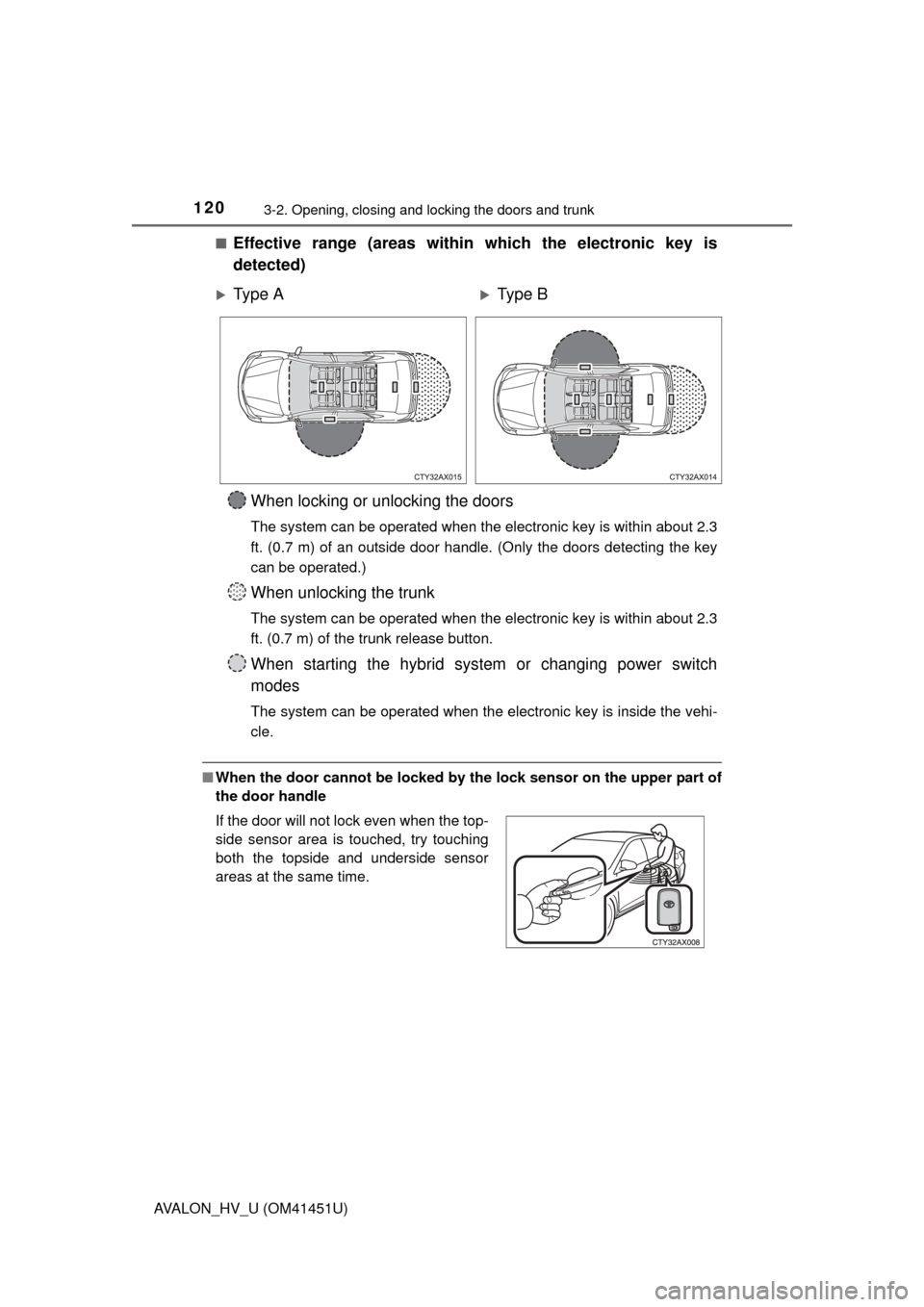

Effective range (areas within which the electronic key is
detected)
■
When the door cannot be locked by the lock sensor on the upper part of
the door handle
Ty p e AType B
When locking or unlocking the doors
The system can be operated when the electronic key is within about 2.3
ft. (0.7 m) of an outside door handle. (Only the doors detecting the key
can be operated.)
When unlocking the trunk
The system can be operated when the electronic key is within about 2.3
ft. (0.7 m) of the trunk release button.
When starting the hybrid system or changing power switch
modes
The system can be operated when the electronic key is inside the vehi-
cle.
If the door will not lock even when the top-
side sensor area is touched, try touching
both the topside and underside sensor
areas at the same time.
