Page 101 of 512
1012. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41451U)
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.
Page 102 of 512
1022. Instrument cluster
AVALON_HV_U (OM41451U)
Navigation system or Display
Audio system
Multi-information display

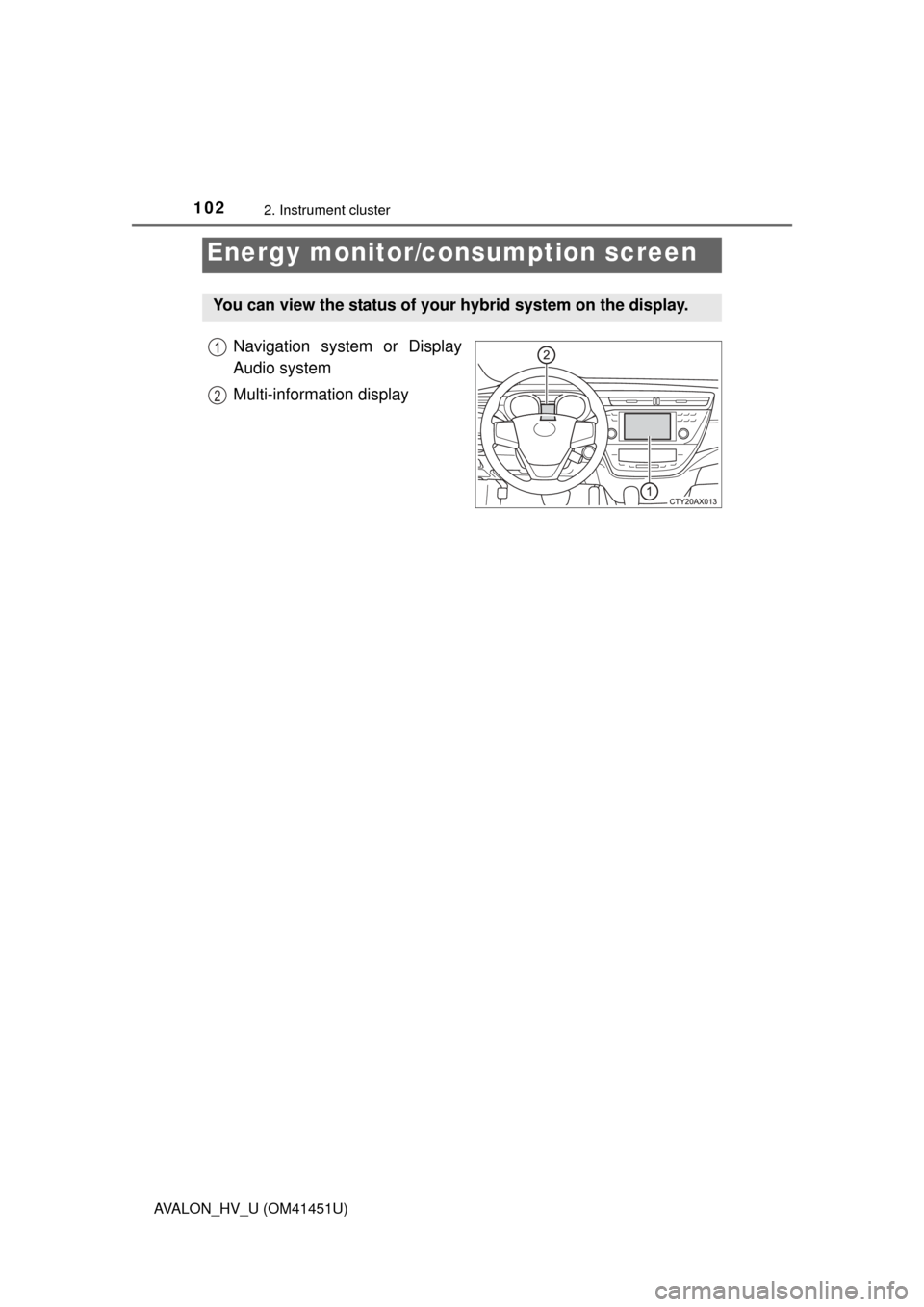

Energy monitor/consumption screen
You can view the status of your hybrid system on the display.
1
2

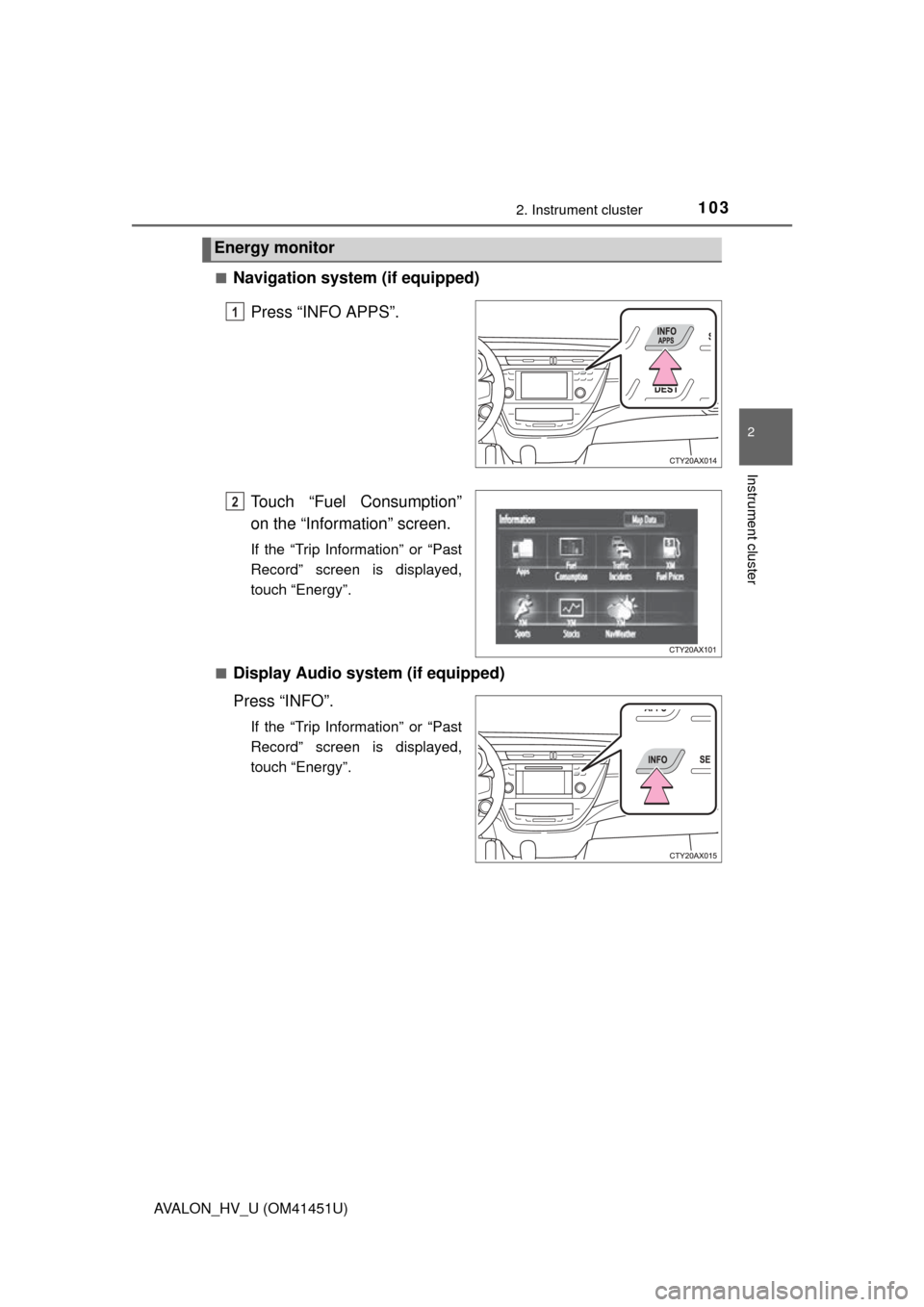

Page 103 of 512
1032. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41451U)■
Navigation system (if equipped)
Press “INFO APPS”.
Touch “Fuel Consumption”
on the “Information” screen.
If the “Trip Information” or “Past
Record” screen is displayed,
touch “Energy”.
■
Display Audio system (if equipped)
Press “INFO”.
If the “Trip Information” or “Past
Record” screen is displayed,
touch “Energy”.
Energy monitor
1
2
Page 104 of 512
1042. Instrument cluster
AVALON_HV_U (OM41451U)■

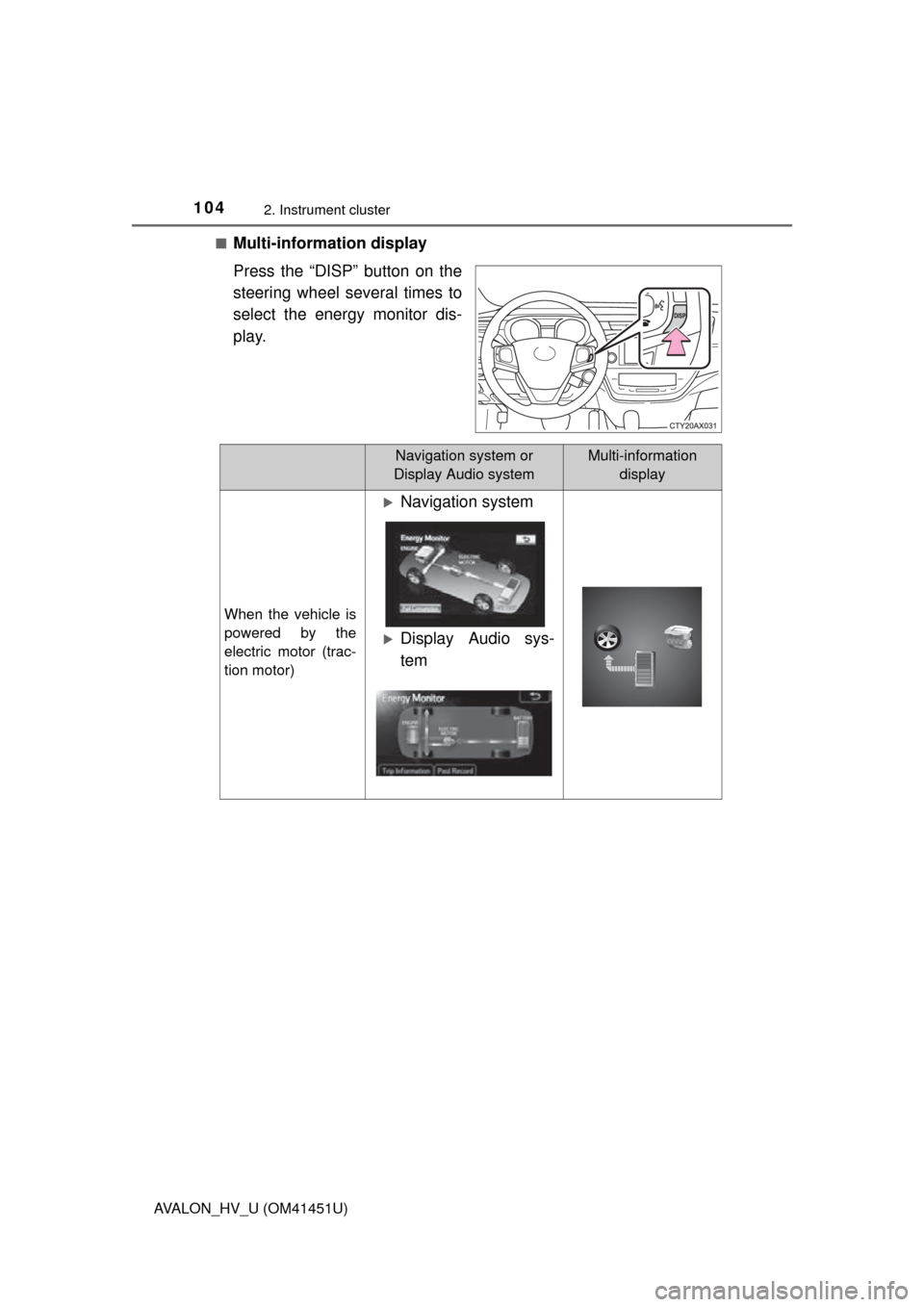

Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor dis-
play.
Navigation system or
Display Audio systemMulti-information display
When the vehicle is
powered by the
electric motor (trac-
tion motor)
Navigation system
Display Audio sys-
tem
Page 105 of 512
1052. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41451U)

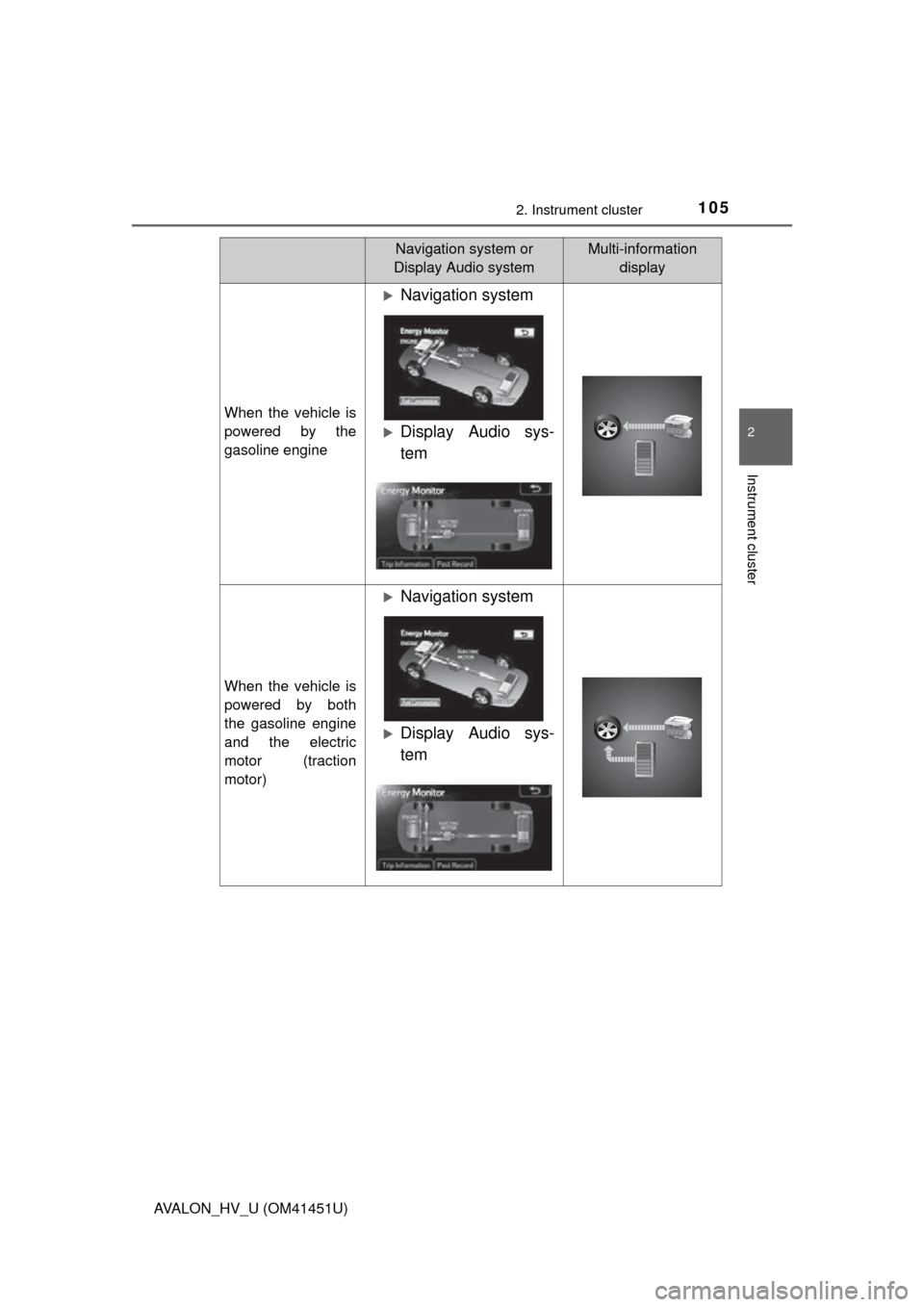

When the vehicle is
powered by the
gasoline engine
Navigation system
Display Audio sys-
tem
When the vehicle is
powered by both
the gasoline engine
and the electric
motor (traction
motor)
Navigation system
Display Audio sys-
tem
Navigation system or
Display Audio systemMulti-information display
Page 106 of 512
1062. Instrument cluster
AVALON_HV_U (OM41451U)

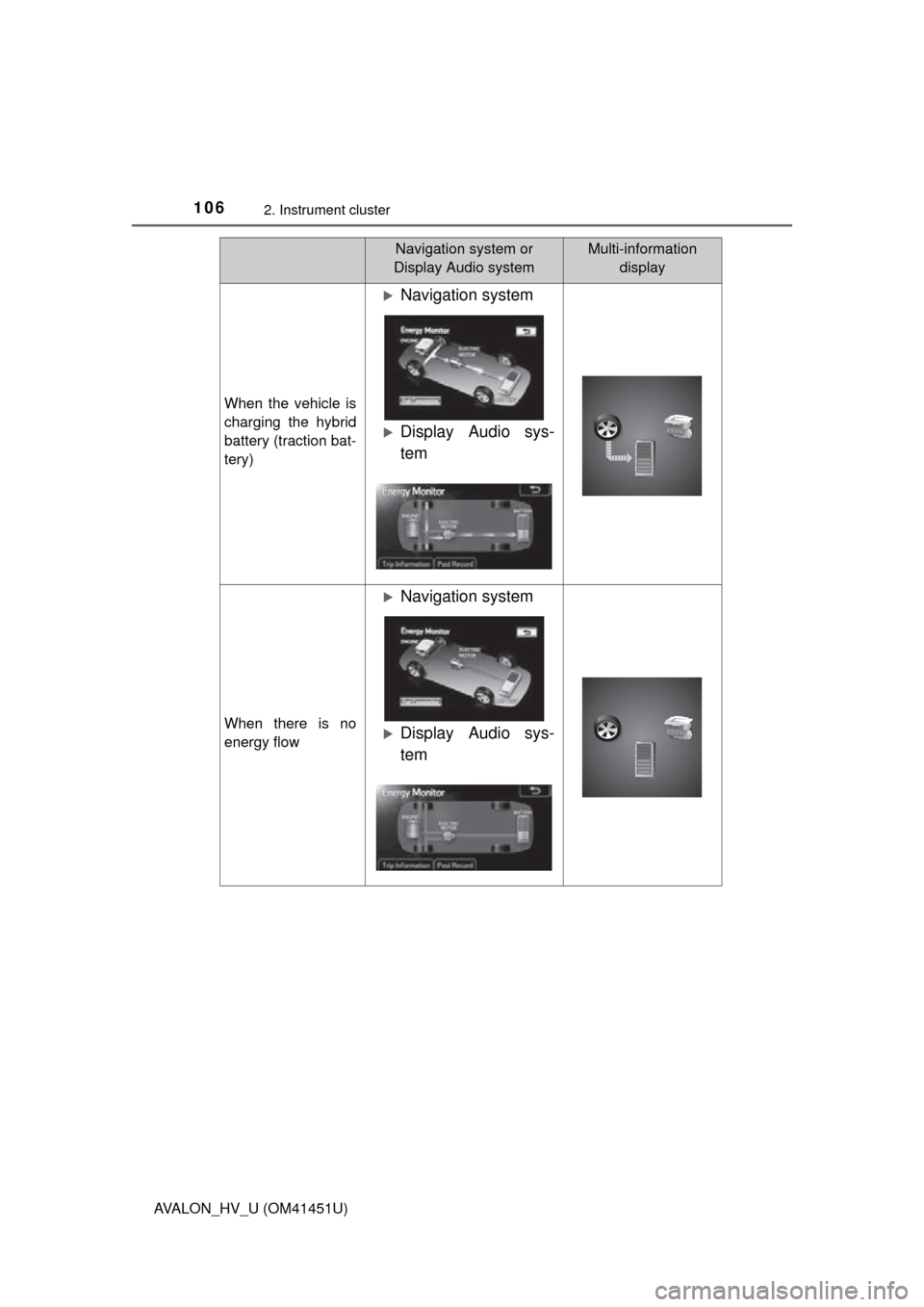

When the vehicle is
charging the hybrid
battery (traction bat-
tery)
Navigation system
Display Audio sys-
tem
When there is no
energy flow
Navigation system
Display Audio sys-
tem
Navigation system or
Display Audio systemMulti-information display
Page 107 of 512
1072. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41451U)

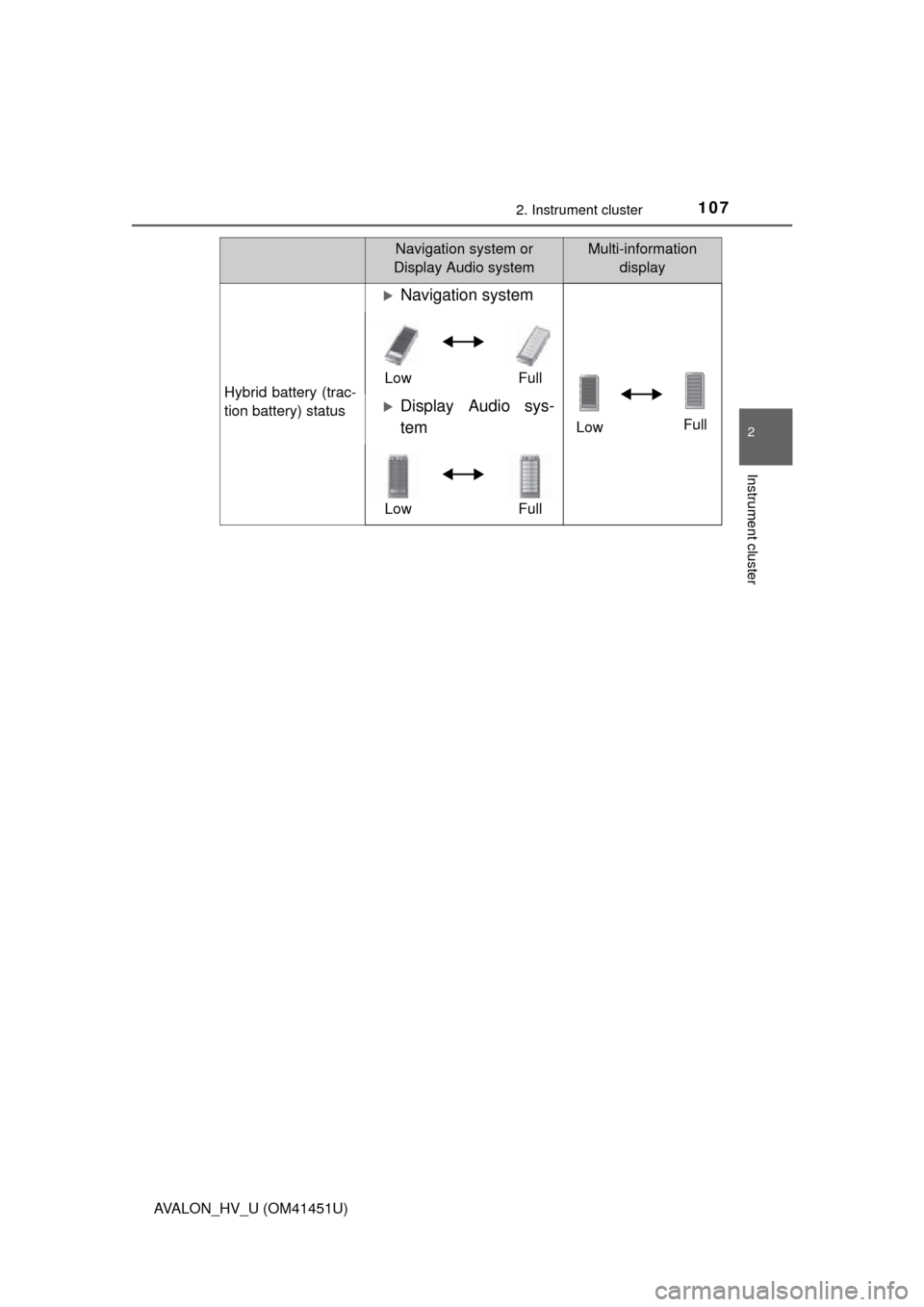

Hybrid battery (trac-
tion battery) status
Navigation system
LowFull
Low Full
Display Audio sys-
tem
Low
Full
Navigation system or
Display Audio systemMulti-information display
Page 108 of 512
1082. Instrument cluster
AVALON_HV_U (OM41451U)
Navigation system
Press “INFO APPS”. (P. 103)
Touch “Fuel Consumption” on the information screen.
If “Energy Monitor” screen is di splayed, touch “Fuel Consumption”.
If “Past Record” screen is displayed, touch “Trip Information”.
Fuel consumption in the past 15
minutes
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time since
the hybrid system was started.
Cruising range
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual conditions.

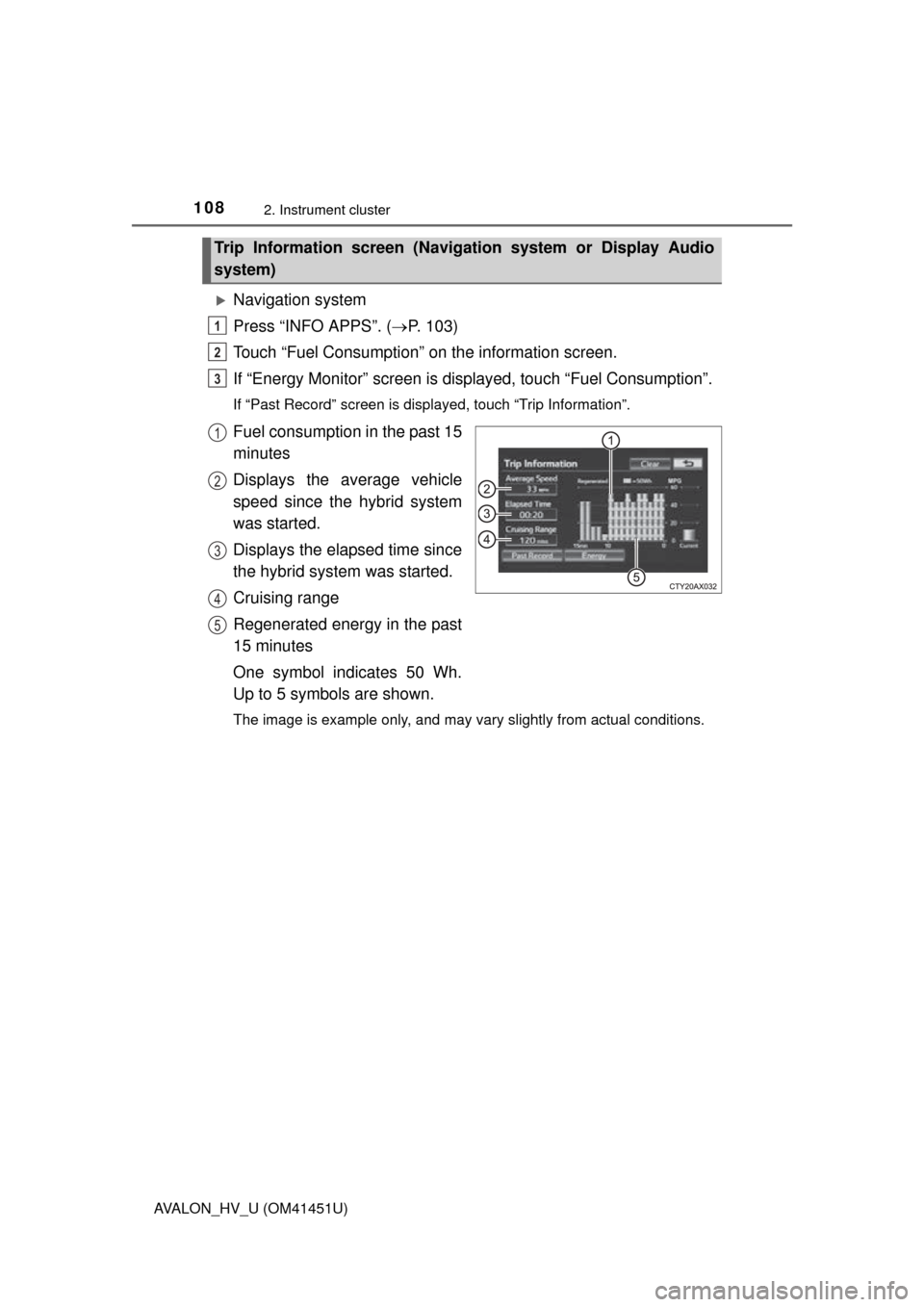

Trip Information screen (Navigation system or Display Audio
system)
1
2
3
1
2
3
4
5
Page 109 of 512
1092. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41451U)
Display Audio system
Press “INFO”. (P. 103)
If the “Energy Monitor” or “Past Re cord” screen is displayed, touch “Trip
Information”.
Fuel consumption in the past 15
minutes
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time since
the hybrid system was started.
Cruising range
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual conditions.
1
2
3
4
5
Page 110 of 512
1102. Instrument cluster
AVALON_HV_U (OM41451U)
Navigation system
Press “INFO APPS”. (P. 103)
Touch “Fuel Consumption” on the information screen.
If “Energy Monitor” screen is di splayed, touch “Fuel Consumption”.
If “Trip Information” screen is displayed, touch “Past Record”.
Best past fuel consumption
Update
The average fuel consumption and
graph are updated, and a new
average fuel consumption record
begins.
Average fuel consumption
Displays a maximum of five past
record of the average fuel con-
sumption.
The image is example only, and may vary slightly from actual conditions.

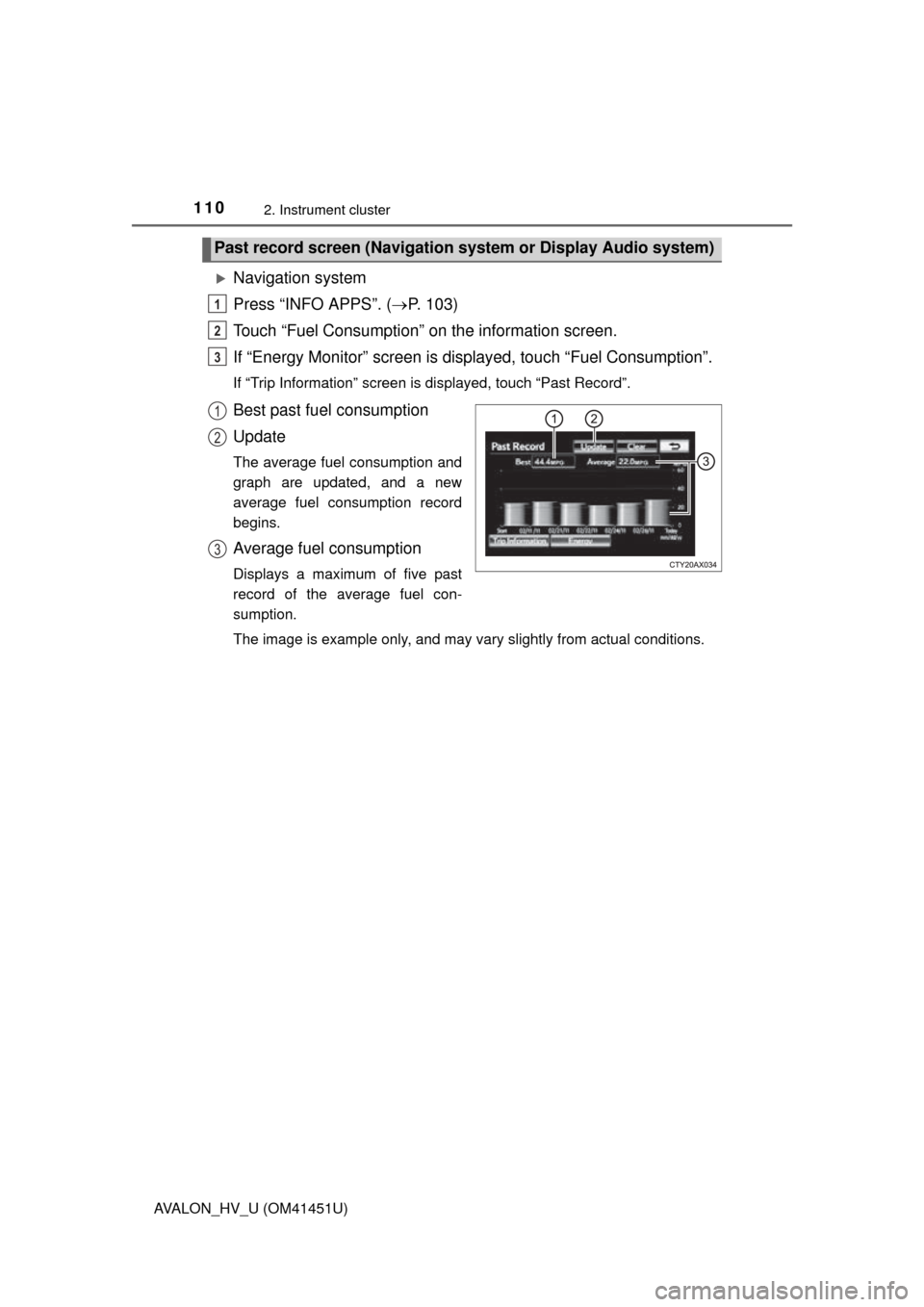

Past record screen (Navigation system or Display Audio system)
1
2
3
1
2
3
