TOYOTA AVALON HYBRID 2018 Owners Manual (in English)

2915-3. Using the storage features
5
Interior features
Lift the lid while pulling up the
lever to release the lock.
■When using the console box lid as an armrest
■ Tray in the console box
Console box
Slide the console box lid forward as
needed. Slide the lid forward while pulling
up the lever.
The lid can also be opened from the for-
wardmost position.
The tray slides forward/backward. To
remove the tray slide it forward and lift it.

2925-3. Using the storage features
Cup holders
FrontRear (type A)
Pull down the armrest.
Rear (type B)
Pull down the armrest and open
the lid.
WARNING
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

2935-3. Using the storage features
5
Interior features
Auxiliary boxes
Ty p e AType B
Press in the button. Push the lid.
Ty p e C
Opening
Push the tray forward until it locks.
Closing
Push the tray forward to release the lock and the tray will automatically
close.

2945-3. Using the storage features
■When placing small items on top of the tray
■ When using wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray.
Charging can only be performed with the power switch in ACCESSORY or
ON mode and only on mobile devices with the “ ” logo.
When placing the mobile device on the wireless charging surface of the
tray, make sure that there are no objects in-between the mobile device
and the tray. They may interfere with charging.
■ If the wireless charger LED indicators flash
If the wireless charging surface of the tray becomes too hot, the LED indica-
tors will flash and charging is canceled. The LED indicators will be illuminated
if the surface of the tray cools down.
If the LED indicators flash even though the surface of the tray is not hot, the
wireless charger may be malfunctioning. Consult your Toyota dealer. The tray can be opened while small items
are placed on it.
An electronic device on the tray can be
recharged by running a charging cable
through the clearance of the tray and con-
necting it to the AUX/USB port or power
outlet underneath the tray.
Push the tray forward until it locks and
press the wireless charger switch.
Push the tray forward to release the
lock to close the tray and place a
mobile device on the tray as shown in
the illustration.
An amber indicator is illuminated
while charging is in progress. When
charging is complete, a green indica-
tor will also be illuminated.
Some phones, cases or cover type
wireless chargers may not cause the
green indicator to illuminate even
though it is fully charged.
1
2

2955-3. Using the storage features
5
Interior features
■When charging of the wireless charger stops temporarily
If any of the following operations are performed with the electronic key pres-
ent, charging may stop temporarily. C harging will start again after a while.
● Locking/unlocking the doors by touching the door handle
● Opening/closing the doors
● Pressing the trunk opener switch
● Closing the trunk lid
● Starting the hybrid system
● Locking the doors by pressing the lock button on the electronic key
● When the electronic key is out of the detection area
■ Certification for the wireless charger
This device complies with Part 18 of the FCC Rules.
Toyota Motor Sales, U.S.A., Inc.
19001 S. Western Avenue
Torrance, CA 90501
WARNING
■Items unsuitable for storing (type B)
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.
■ Caution regarding interference with electronic devices (vehicles with a
wireless charger)
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the wireless charger.
The radio waves may affect the operation of such devices.
● Before using the wireless charger, us ers of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con\
-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
● To avoid interference with other electrical devices, turn the wireless char-
ger off by turning off the wireless charger switch.

2965-3. Using the storage features
WARNING
■When using wireless charger
Avoid placing metal objects between the wireless charger and the mobile
device when charging is active. Doing so may cause metal objects to
become hot and could cause burns.
NOTICE
● To prevent damaging small items, when opening the tray while small items
are placed on it, make sure the items will not get caught.
● To prevent damaging the tray, do not pull down the tray to close it. Doing
so may damage the tray.
● When on a steep downward incline, the tray can be closed slowly. In this
case, the tray can be pulled down to close it.
However, make sure the lock has been released before doing so.

2975-3. Using the storage features
5
Interior features

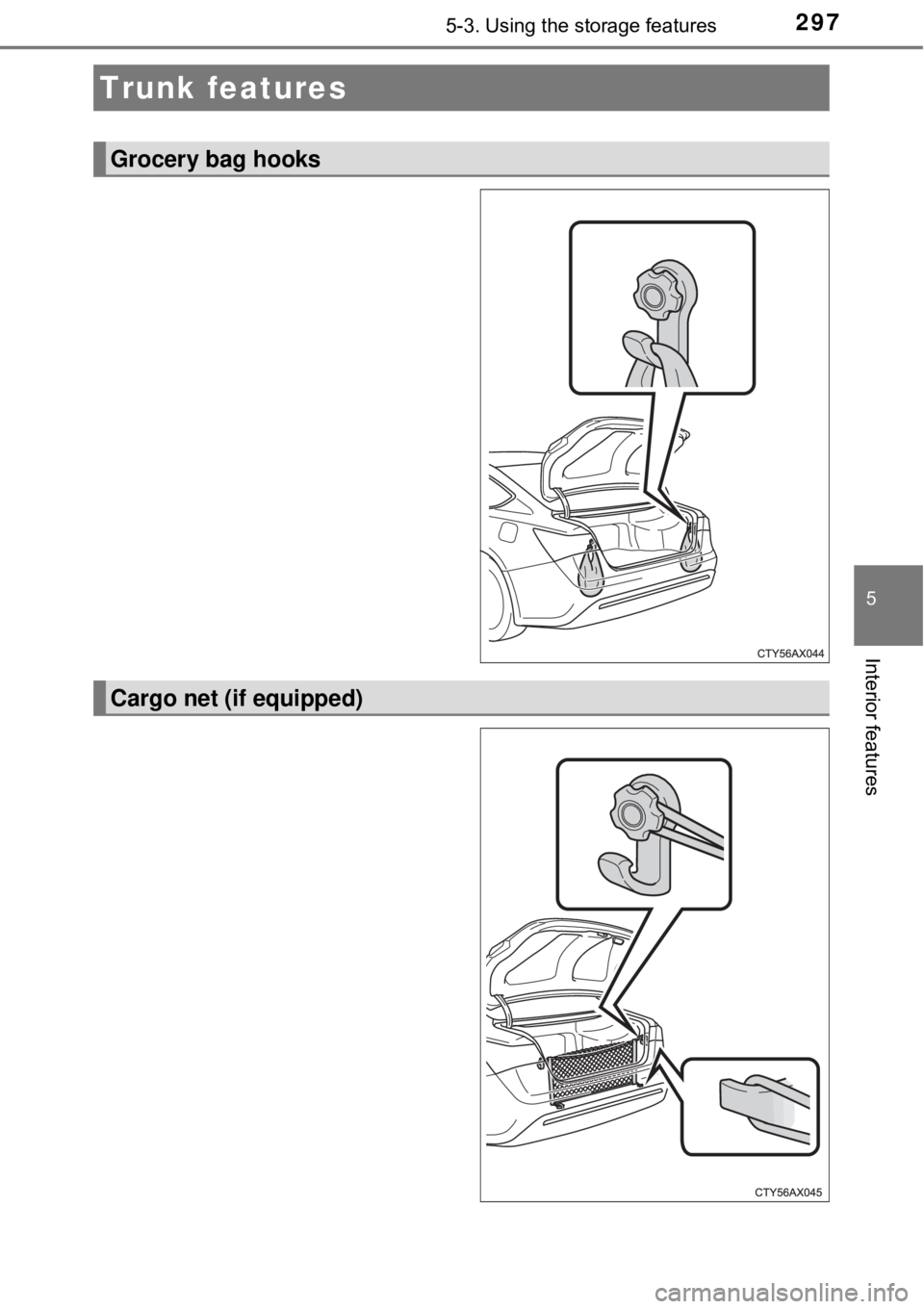

Trunk features
Grocery bag hooks
Cargo net (if equipped)

2985-3. Using the storage features
NOTICE
To prevent damage to the hooks, do not apply too much load to the hooks.

299
5
Interior features
5-4. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
To use the side extender, place
the visor in the side position,
then slide it backward.
Open the cover to use.
The light turns on when the cover
is opened.
Other interior features
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for
extended periods while the hybrid system is off.

3005-4. Other interior features
The clock can be adjusted by pressing the buttons.
■The clock is displayed when
The power switch is in ACCESSORY or ON mode.
■ When disconnecting and reconnect ing 12-volt battery terminals
Type A
The time display will automatically be set to 12:00 AM.
Type B
The time display will automatically be set to 12:00.
■ Time display (Type B)
After pressing “H” or “M” to show the setting screen, press “H” and “M” at the
same time to change between the analog and digital displays.
Clock
Ty p e AType B
Adjusts the hours
Pressing and holding the button adjusts the hours forward quickly 1
hour at a time.
Adjusts the minutes
Pressing and holding the button adjusts the minutes forward quickly by
1 minute at a time. If the button is pressed and held for 5 seconds or
more, the minutes move forward by 5 minutes at a time.
1
2
