Page 11 of 52
9
FEATURES & OPERATIONS

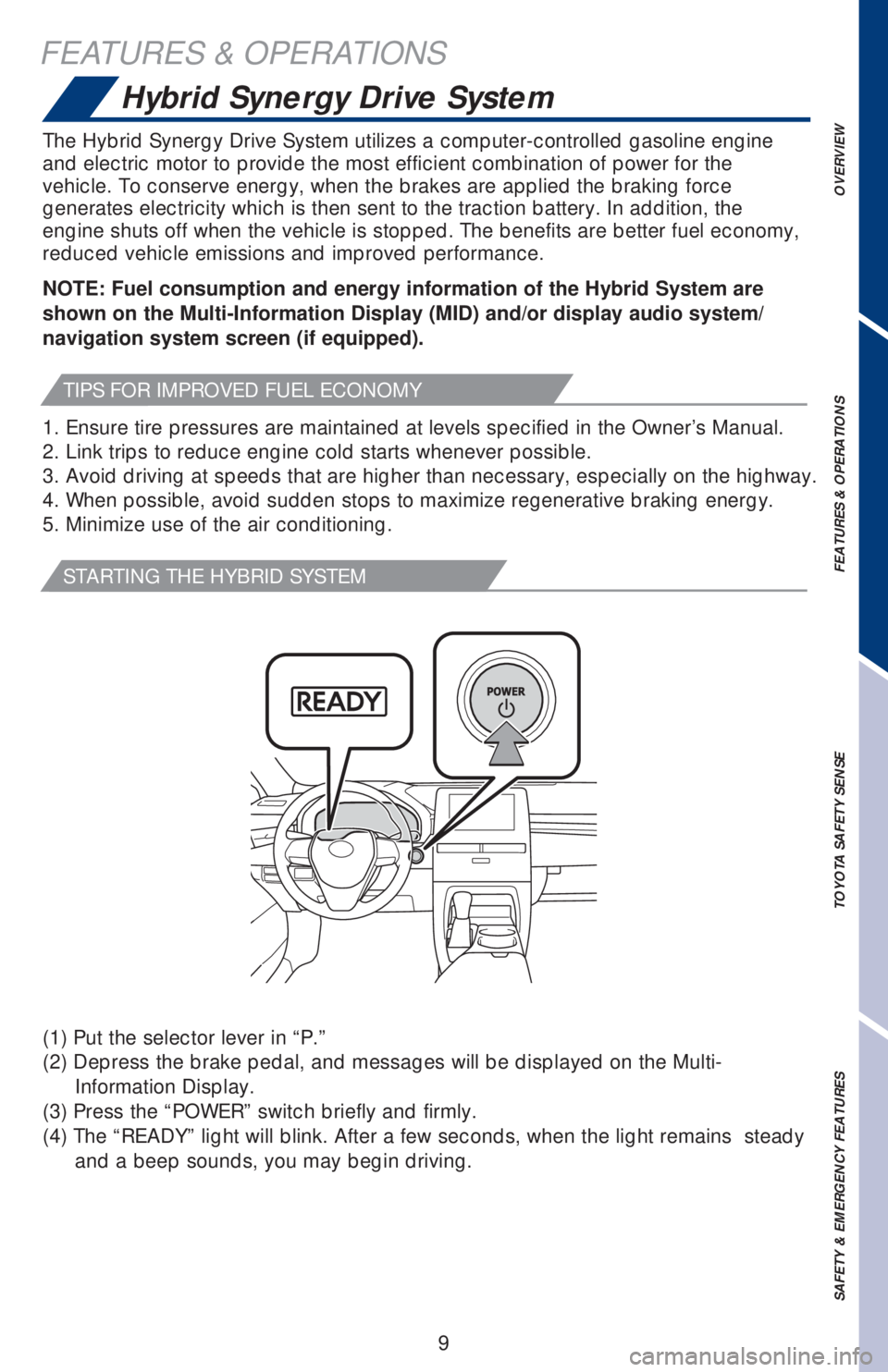

The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition, the
engine shuts off when the vehicle is stopped. The benefits are better fuel economy,
reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Multi-Information Display (MID) and/or display audio system/
navigation system screen (if equipped).
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the air conditioning.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Hybrid Synergy Drive System
TIPS FOR IMPROVED FUEL ECONOMY
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and messages will be displayed on the Multi-
Information Display.
(3) Press the “POWER” switch briefly and firmly.
(4) The “READY” light will blink. After a few seconds, when the light remains steady
and a beep sounds, you may begin driving.
STARTING THE HYBRID SYSTEM
Page 12 of 52
10

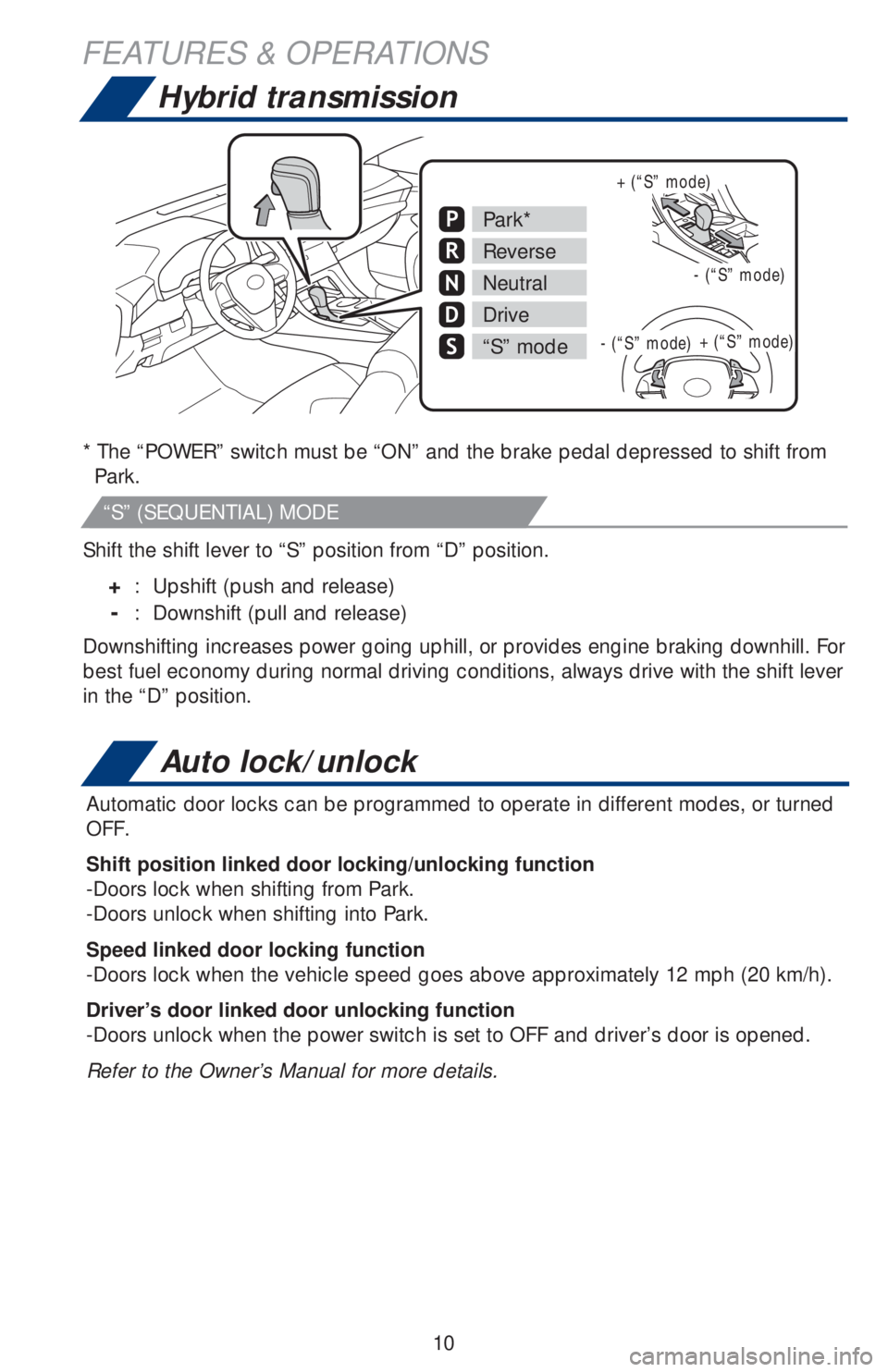

Hybrid transmission
* The “POWER” switch must be “ON” and the brake pedal depressed to shift from
Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 km/h).
' U L Y H U
Page 13 of 52
11

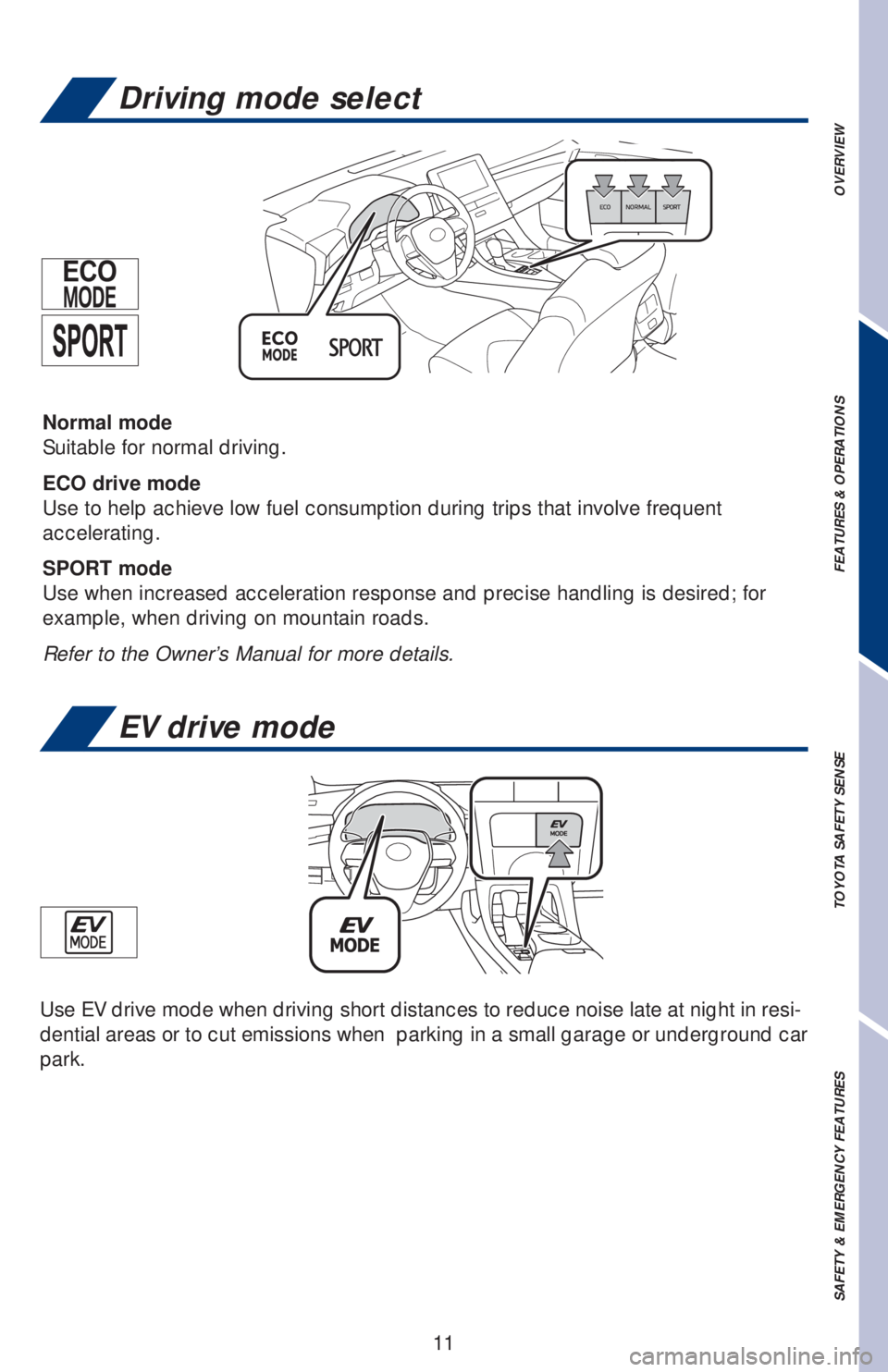

Driving mode select
EV drive mode
Normal mode
Suitable for normal driving.
ECO drive mode
Use to help achieve low fuel consumption during trips that involve frequent
accelerating.
SPORT mode
Use when increased acceleration response and precise handling is desired; for
example, when driving on mountain roads.
Refer to the Owner’s Manual for more details.
Use EV drive mode when driving short distances to reduce noise late at night in resi-
dential areas or to cut emissions when parking in a small garage or underground car
park.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 14 of 52
12

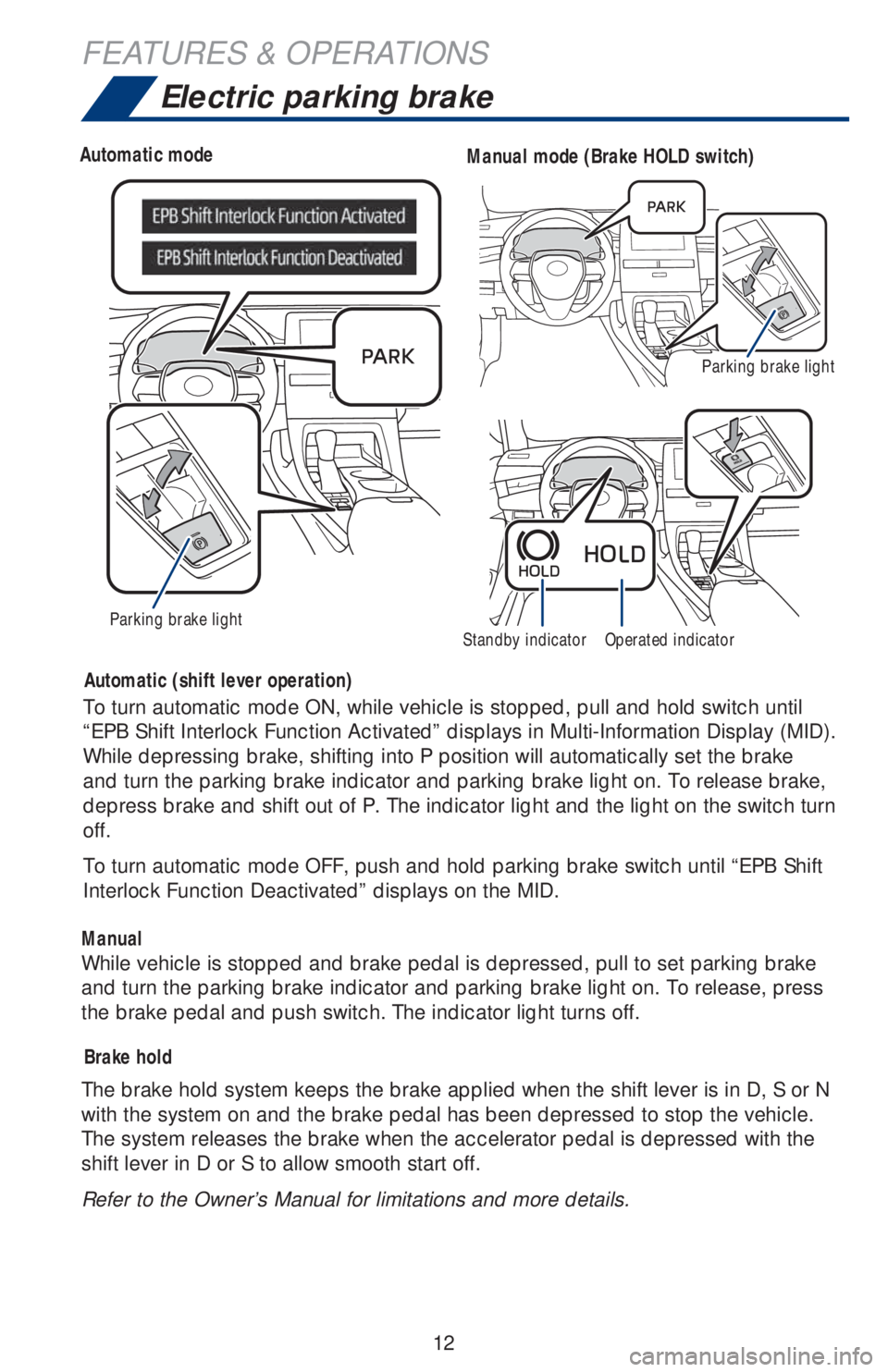

Electric parking brake
Driver sideAutomatic modeManual mode (Brake HOLD switch)
Parking brake lightStandby indicatorOperated indicator
Automatic (shift lever operation)
Brake hold
ManualTo turn automatic mode ON, while vehicle is stopped, pull and hold switch until
“EPB Shift Interlock Function Activated” displays in Multi-Information Display (MID).
While depressing brake, shifting into P position will automatically set the brake
and turn the parking brake indicator and parking brake light on. To release brake,
depress brake and shift out of P. The indicator light and the light on the switch turn
off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator light turns off.
The brake hold system keeps the brake applied when the shift lever is in D, S or N
with the system on and the brake pedal has been depressed to stop the vehicle.
The system releases the brake when the accelerator pedal is depressed with the
shift lever in D or S to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Parking brake light
FEATURES & OPERATIONS
Page 15 of 52
13

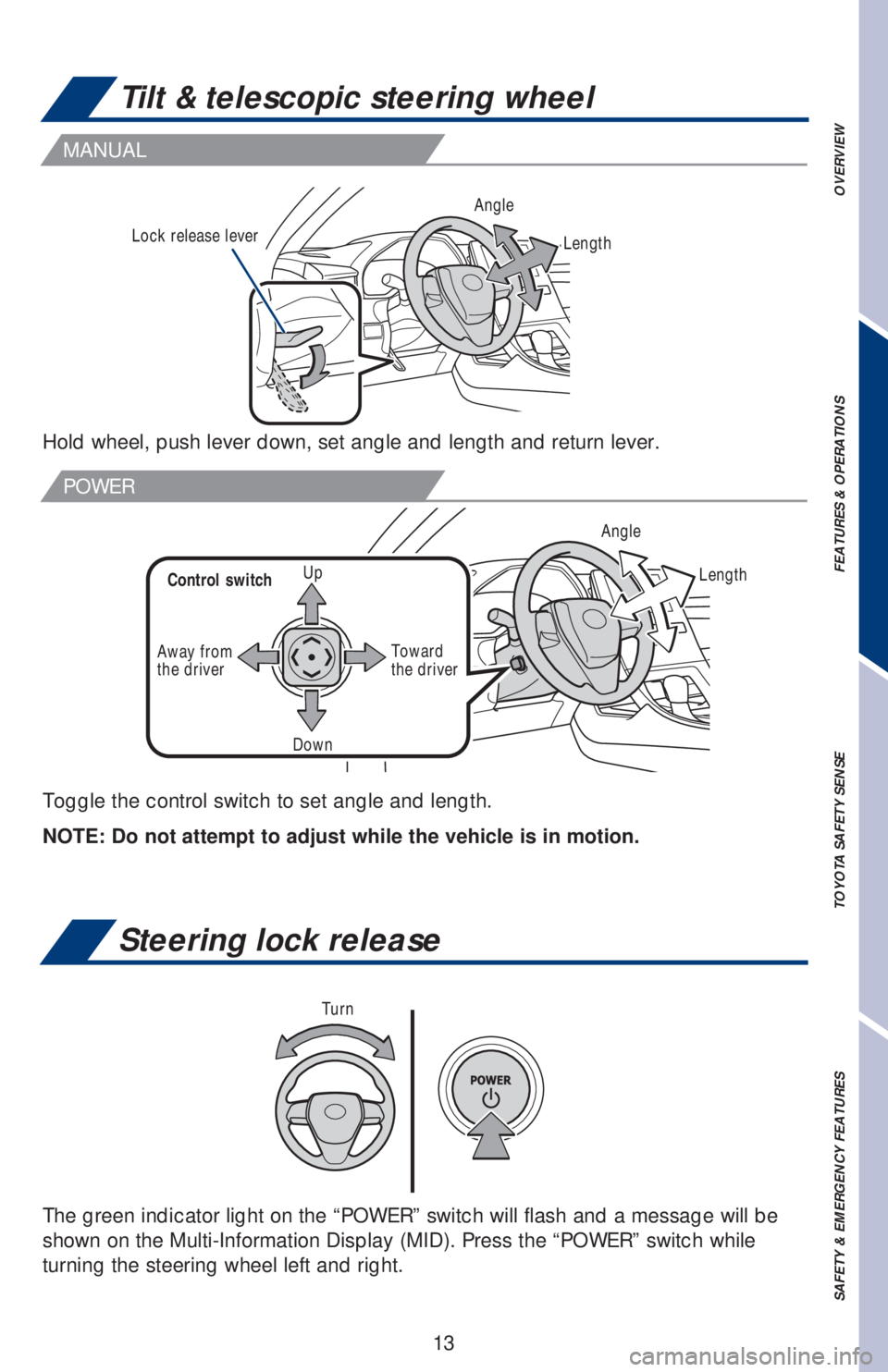

Tilt & telescopic steering wheel
Steering lock release
The green indicator light on the “POWER” switch will flash and a message will be
shown on the Multi-Information Display (MID). Press the “POWER” switch while
turning the steering wheel left and right.
Turn
MANUAL
POWER
Hold wheel, push lever down, set angle and length and return lever.
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
UpControl switch
Away from
the driver
Length
Toward
the driver
DownAngle
Length
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 16 of 52
14

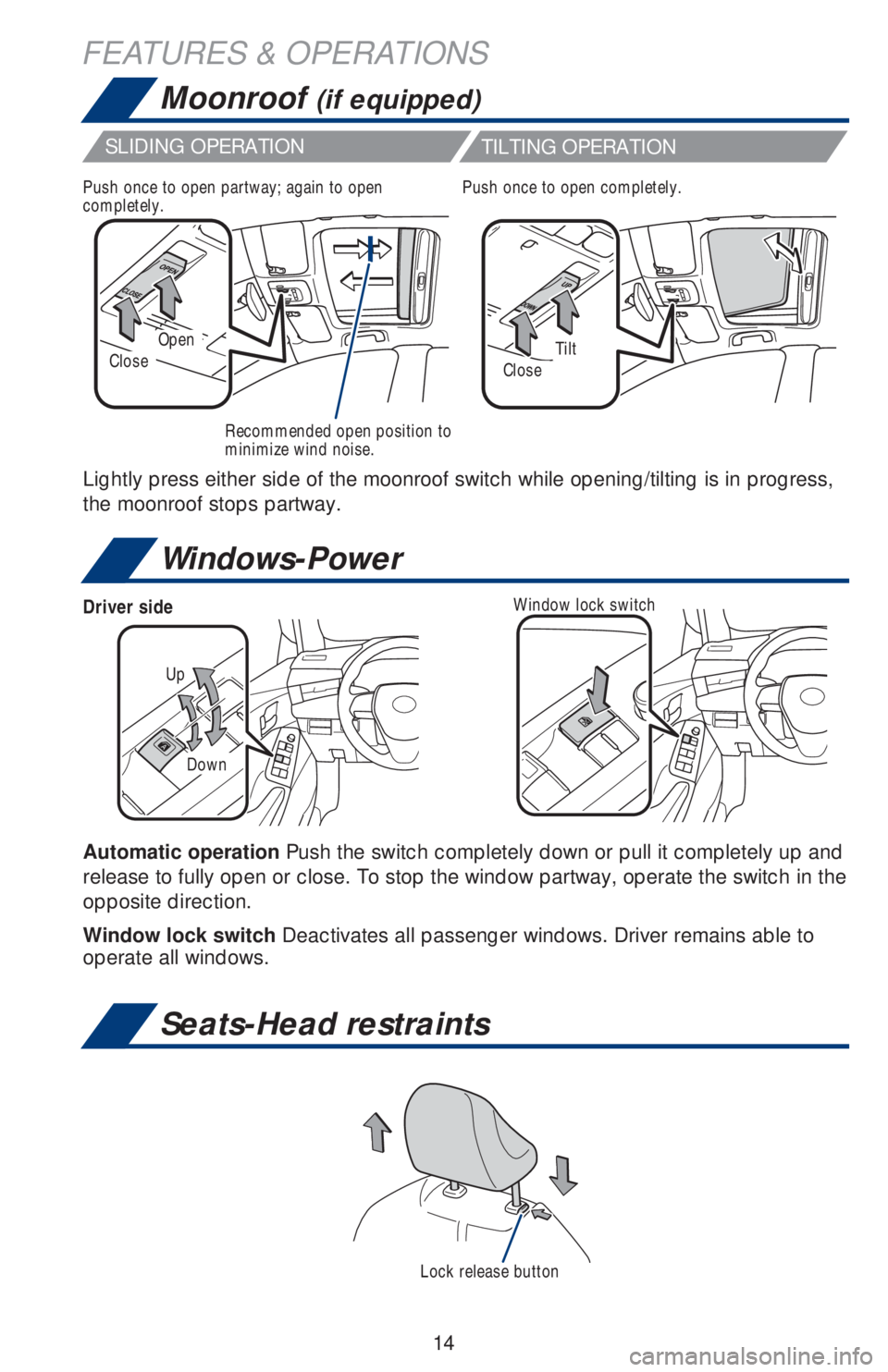

Windows-Power
Moonroof (if equipped)
Seats-Head restraints
FEATURES & OPERATIONS
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver remains able to
operate all windows.
OpenTiltCloseClose
Recommended open position to
minimize wind noise.
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
Push once to open partway; again to open
completely.Push once to open completely.
SLIDING OPERATION
TILTING OPERATION
Up
Down
Driver sideWindow lock switch
Lock release button
Page 17 of 52
15
Seat adjustments-Front
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit http://
www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®) (if equipped)
HomeLink® indicator light
Buttons
Garage door operation indicators
Icon
Seat position (forward/backward)
Seat cushion (front) angleSeat height Lumber support
(if equipped) Seatback angle
Windshield wipers & washers
* Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
Refer to the Owner’s Manual for more information.
Adjust frequency*
Pull to wash and wipeMist
Interval wipe
Slow
Fast
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 18 of 52
16
FEATURES & OPERATIONS

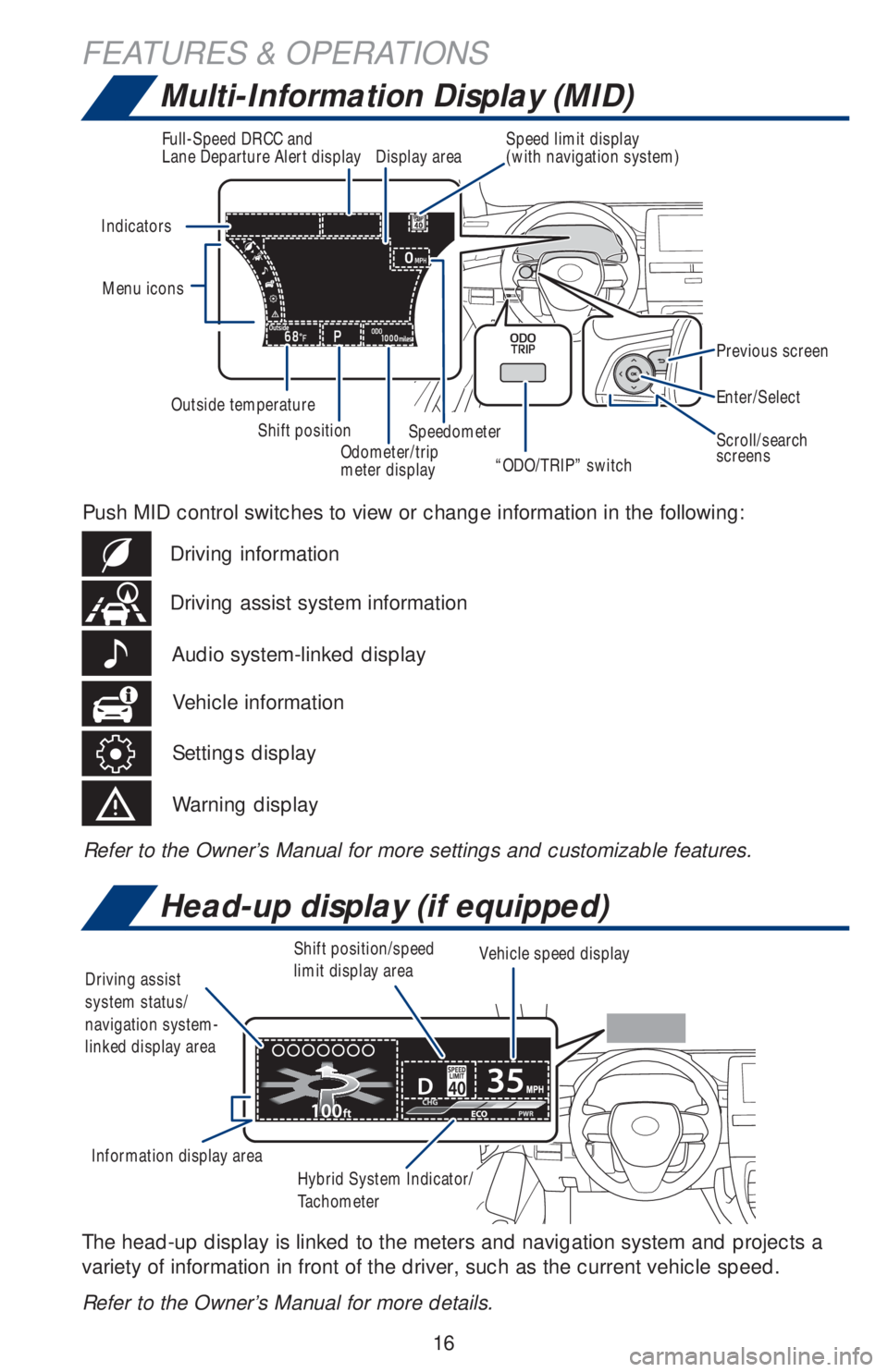

Multi-Information Display (MID)
Head-up display (if equipped)
Refer to the Owner’s Manual for more settings and customizable features.
Previous screen
Indicators
Enter/Select
Scroll/search
screens
“ODO/TRIP” switch
Speed limit display
(with navigation system) Full-Speed DRCC and
Lane Departure Alert display
Menu icons
Shift positionDisplay area
Speedometer Outside temperature
Odometer/trip
meter display
Push MID control switches to view or change information in the following:
Driving assist system information Driving information
Vehicle information Audio system-linked display
Settings display
Warning display
The head-up display is linked to the meters and navigation system and projects a
variety of information in front of the driver, such as the current vehicle speed.
Refer to the Owner’s Manual for more details.
Driving assist
system status/
navigation system-
linked display areaShift position/speed
limit display area
Hybrid System Indicator/
Tachometer Information display areaVehicle speed display
Page 19 of 52
17

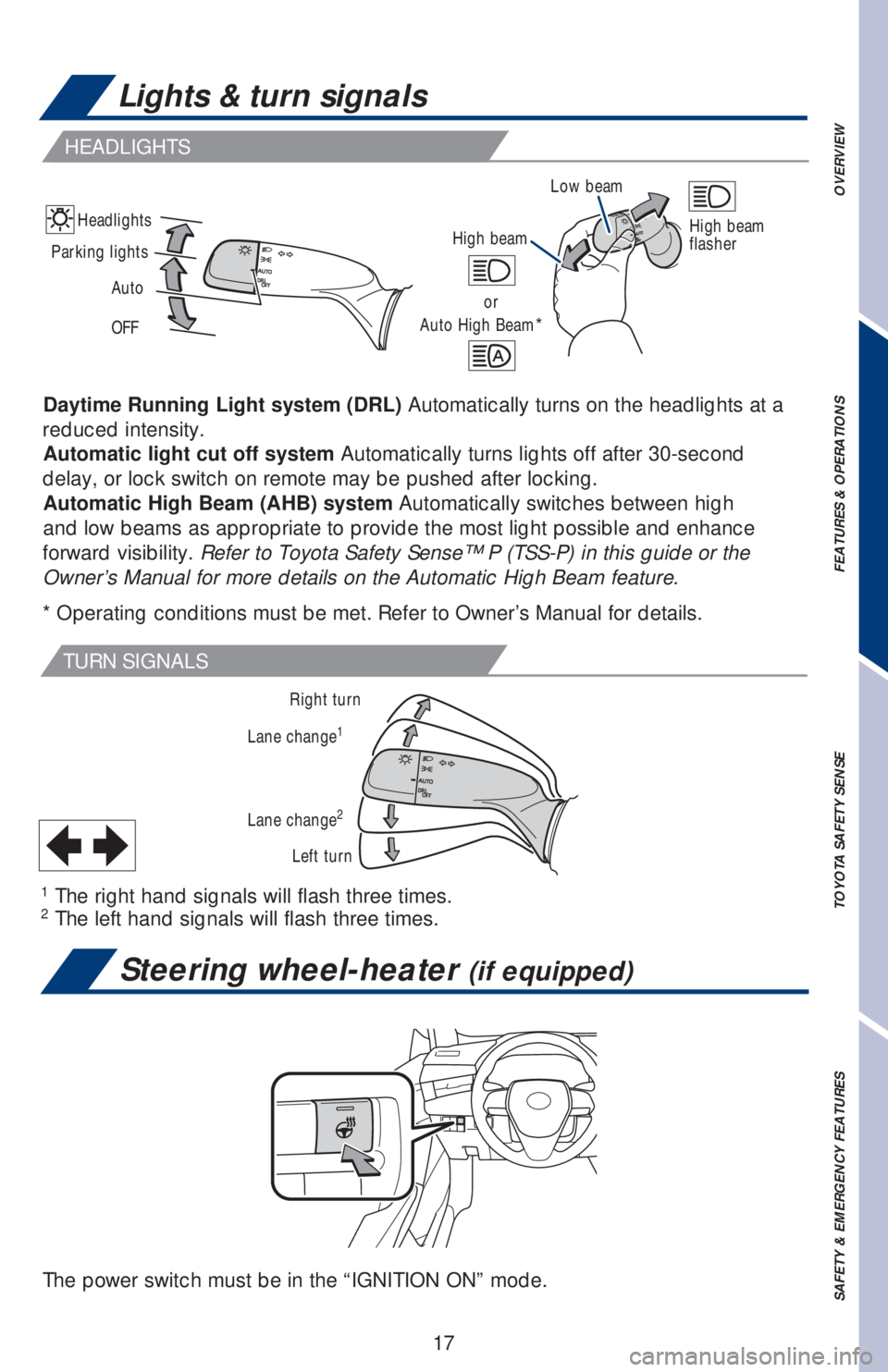

High beam
or
Auto High Beam*
Headlights
Parking lightsHigh beam
flasher
Auto
OFFLow beam
Right turn
Lane change
1
Lane change2
Left turn
1
The right hand signals will flash three times.
2
The left hand signals will flash three times. Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enhance
forward visibility. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the
Owner’s Manual for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for details.
TURN SIGNALS
The power switch must be in the “IGNITION ON” mode.
Steering wheel-heater (if equipped)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Lights & turn signals
HEADLIGHTS

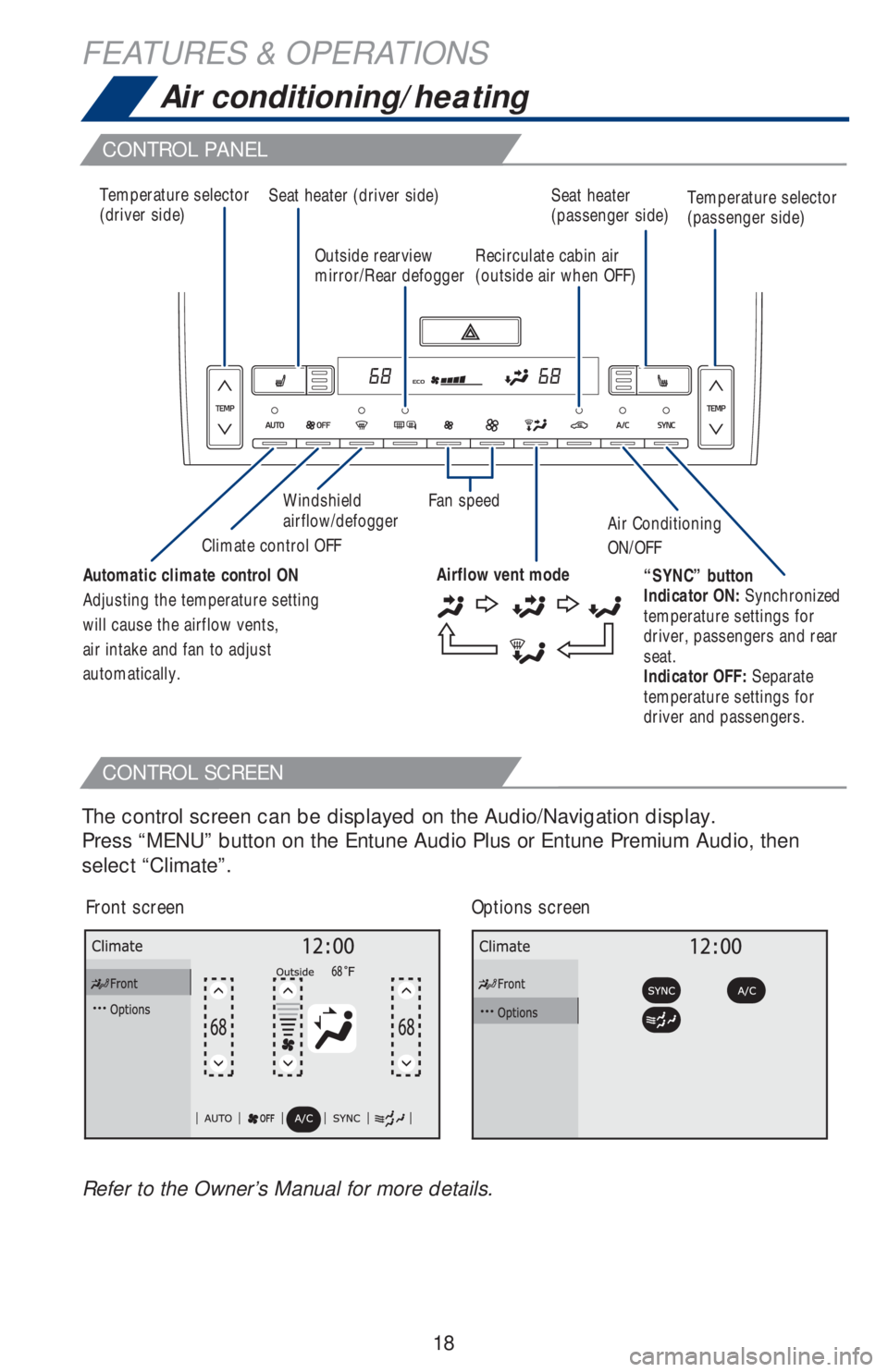

Page 20 of 52
18
FEATURES & OPERATIONS
CONTROL PANEL
CONTROL SCREEN
Air conditioning/heating
Temperature selector
(driver side)Seat heater (driver side) Seat heater
(passenger side)
Windshield
airflow/defogger
Air Conditioning
ON/OFF Climate control OFFFan speed Outside rearview
mirror/Rear defoggerRecirculate cabin air
(outside air when OFF)Temperature selector
(passenger side)
“SYNC” button
Indicator ON: Synchronized
temperature settings for
driver, passengers and rear
seat.
Indicator OFF: Separate
temperature settings for
driver and passengers. Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically.
Airflow vent mode
The control screen can be displayed on the Audio/Navigation display.
Press “MENU” button on the Entune Audio Plus or Entune Premium Audio, then
select “Climate”.
Front screenOptions screen
Refer to the Owner’s Manual for more details.
