QUICK REFERENCE GUIDE
Page 2 of 52
AVA L O N H V 2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new Avalon HV.

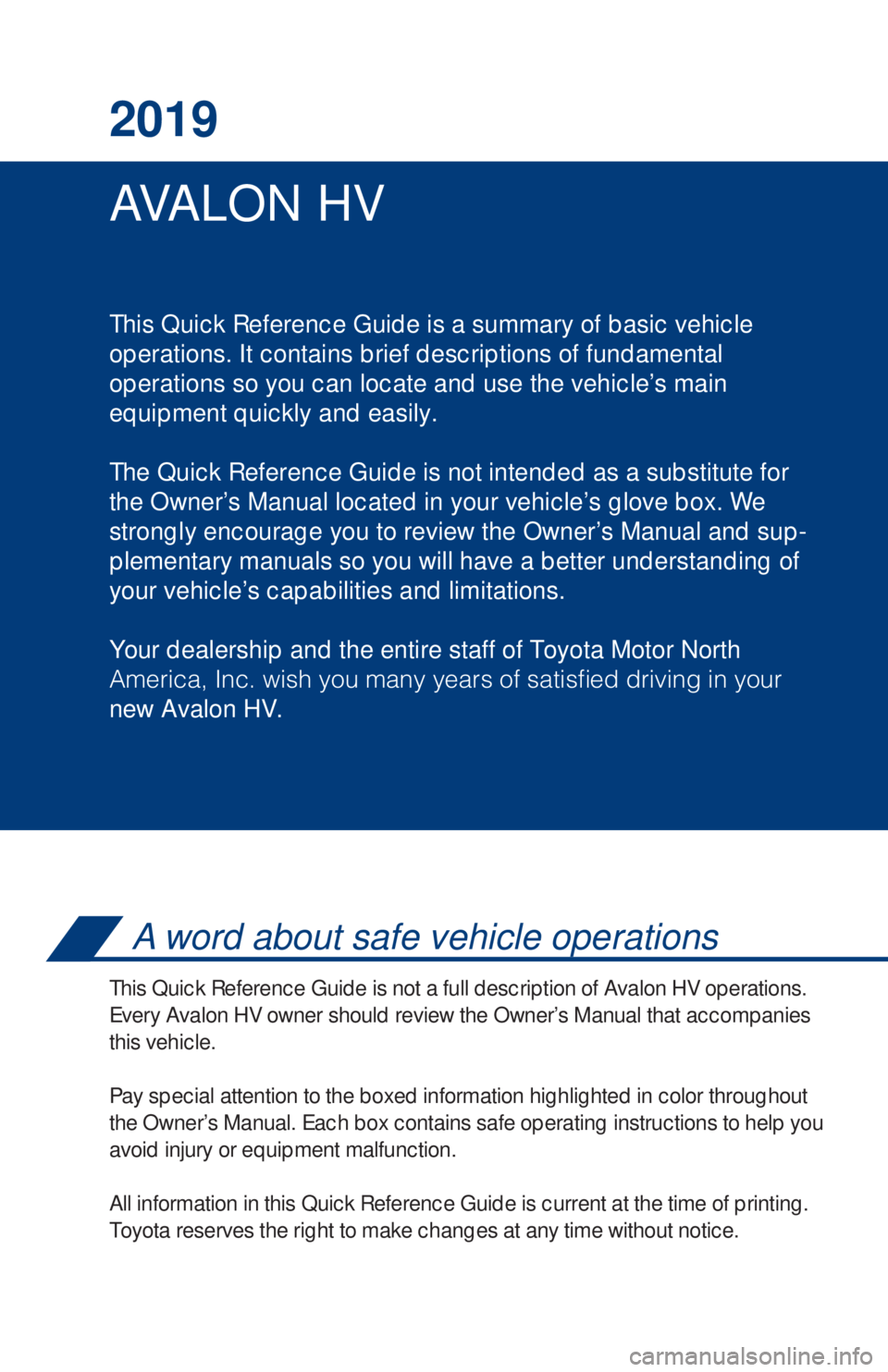

A word about safe vehicle operations
This Quick Reference Guide is not a full description of Avalon HV operations.
Every Avalon HV owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 52
1

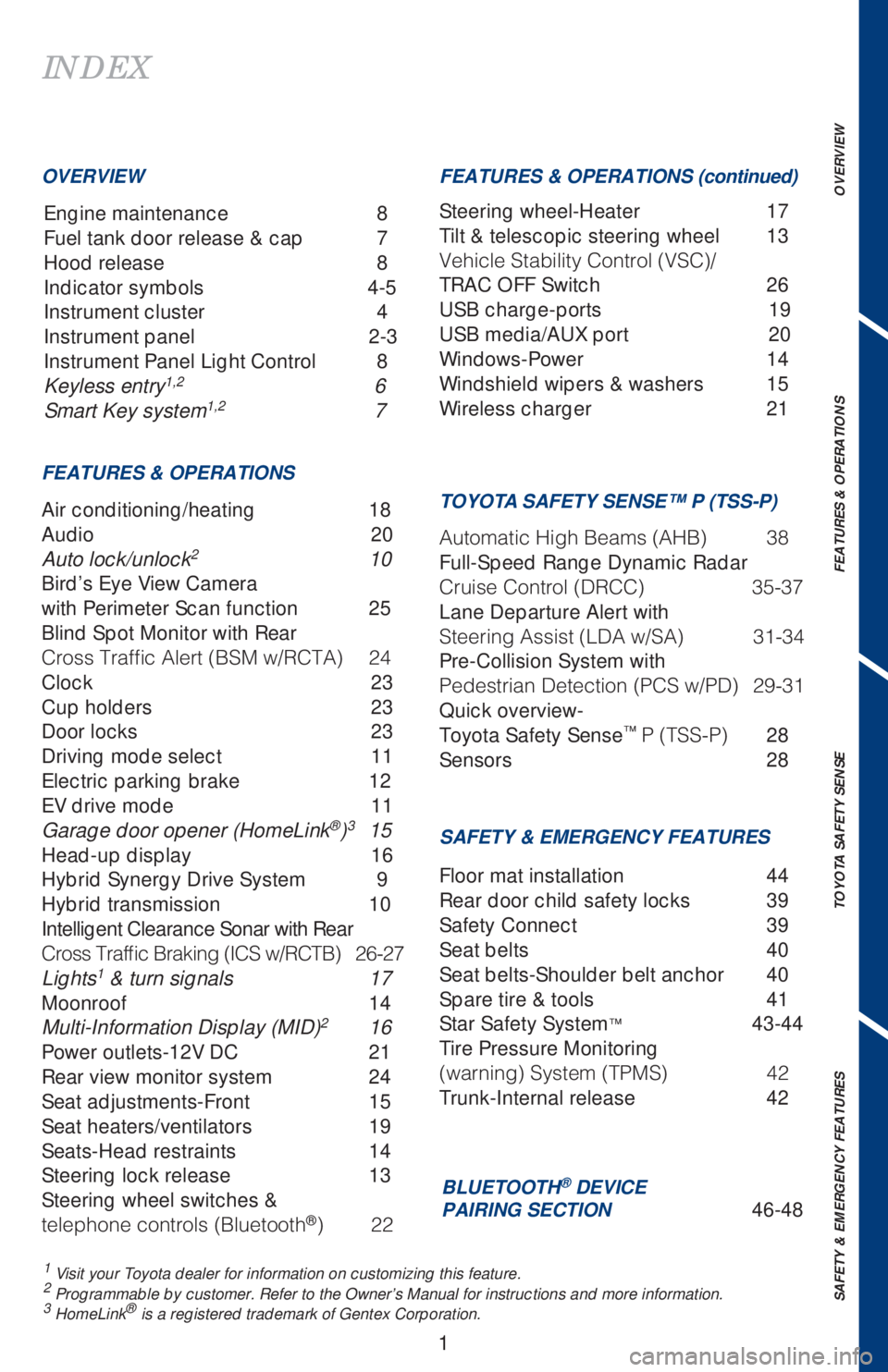

INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument Panel Light Control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 18
Audio 20
Auto lock/unlock
2 10
Bird’s Eye View Camera
with Perimeter Scan function 25
Blind Spot Monitor with Rear
$ S P T T 5 S B G m D " M F S U # 4 . X 3 $ 5 "
Clock 23
Cup holders 23
Door locks 23
Driving mode select 11
Electric parking brake 12
EV drive mode 11
Garage door opener (HomeLink
®)3 15
Head-up display 16
Hybrid Synergy Drive System 9
Hybrid transmission 10
Intelligent Clearance Sonar with Rear
$ S P T T 5 S B G m D # S B L J O H * $ 4 X 3 $ 5 #
Lights
1 & turn signals 17
Moonroof 14
Multi-Information Display (MID)
2 16
Power outlets-12V DC 21
Rear view monitor system 24
Seat adjustments-Front 15
Seat heaters/ventilators 19
Seats-Head restraints 14
Steering lock release 13
Steering wheel switches &
U F M F Q I P O F D P O U S P M T # M V F U P P U I
®
Steering wheel-Heater 17
Tilt & telescopic steering wheel 13
7 F I J D M F 4 U B C J M J U Z $ P O U S P M 7 4 $
TRAC OFF Switch 26
USB charge-ports 19
USB media/AUX port 20
Windows-Power 14
Windshield wipers & washers 15
Wireless charger 21
Floor mat installation 44
Rear door child safety locks 39
Safety Connect 39
Seat belts 40
Seat belts-Shoulder belt anchor 40
Spare tire & tools 41
Star Safety System
™ 43-44
Tire Pressure Monitoring
X B S O J O H
4 Z T U F N 5 1 . 4
Trunk-Internal release 42
BLUETOOTH® DEVICE
PAIRING SECTION 46-48
TOYOTA SAFETY SENSE™ P (TSS-P)
" V U P N B U J D ) J H I # F B N T " ) #
Full-Speed Range Dynamic Radar
$ S V J T F $ P O U S P M % 3 $ $
Lane Departure Alert with
4 U F F S J O H " T T J T U - % " X 4 "
Pre-Collision System with
1 F E F T U S J B O % F U F D U J P O 1 $ 4 X 1 %
Quick overview-
Toyota Safety Sense
™ 1 5 4 4 1
28
Sensors 28
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 4 of 52
2
OVERVIEW

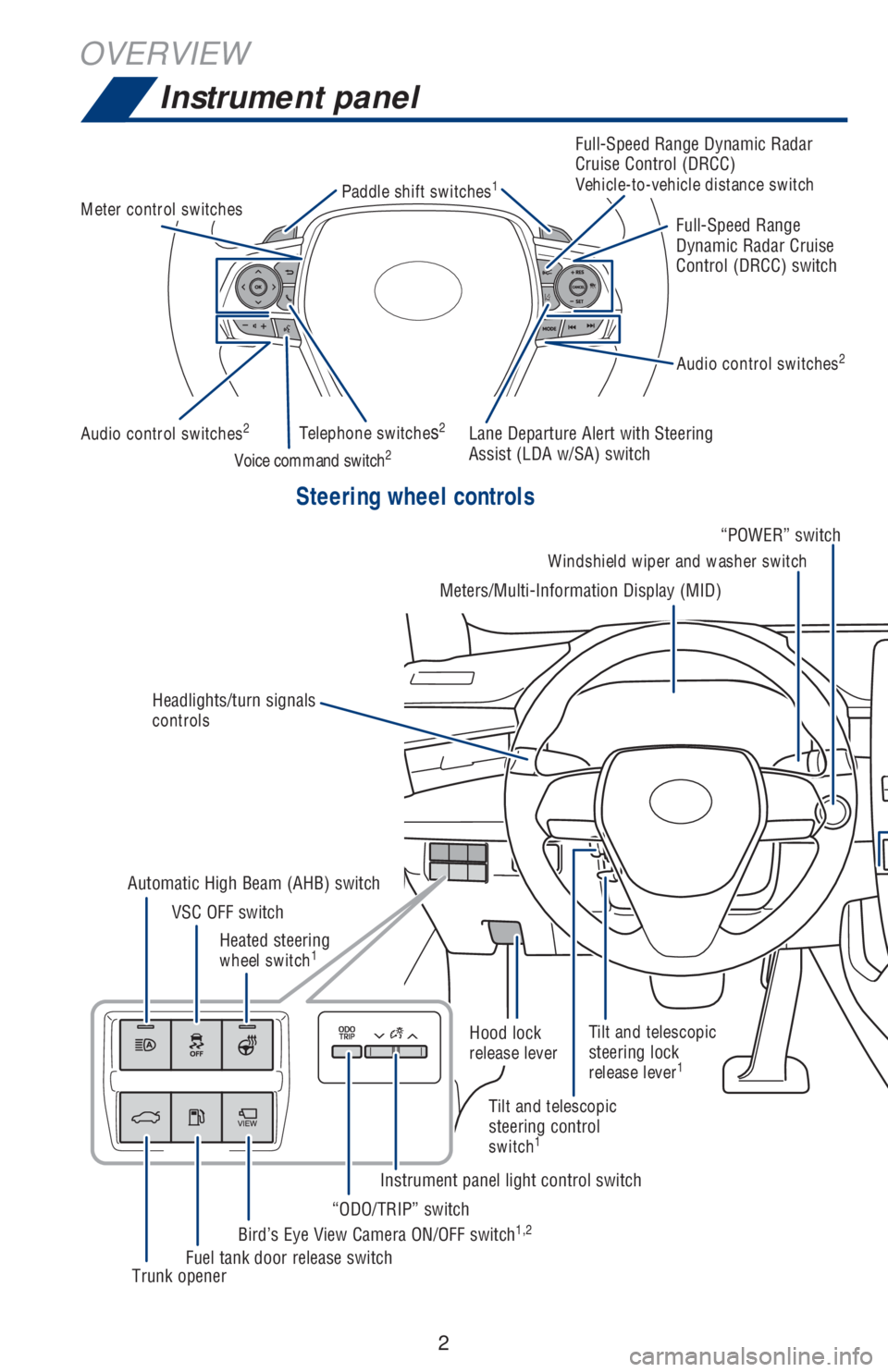

Instrument panel
Steering wheel controls
Audio control switches2
Audio control switches2
Meter control switchesPaddle shift switches
1
Telephone switches2
Voice command switch2
& U L L
3 P E E D 2 A N G E $ Y N A M I C 2 A D A R
# R U I S E # O N T R O L $ 2 # #
Vehicle-to-vehicle distance switch
, A N E $ E P A R T U R E ! L E R T W I T H 3 T E E R I N G
! S S I S T , $ ! W 3 ! S W I T C H & U L L
3 P E E D 2 A N G E
$ Y N A M I C 2 A D A R # R U I S E
# O N T R O L $ 2 # # S W I T C H
Tilt and telescopic
S T E E R I N G L O C K
release lever
1
Tilt and telescopic
S T E E R I N G C O N T R O L
switch
1
" I R D S % Y E 6 I E W # A M E R A / . / & & S W I T C H1,2 h / $ / 4 2 ) 0 v S W I T C H ) N S T R U M E N T P A N E L L I G H T C O N T R O L S W I T C H ! U T O M A T I C ( I G H " E A M ! ( " S W I T C H
( E A T E D S T E E R I N G
wheel switch
1
6 3 # / & & S W I T C H
& U E L T A N K D O O R R E L E A S E S W I T C H
4 R U N K O P E N E R
( O O D L O C K
release lever - E T E R S - U L T I
) N F O R M A T I O N $ I S P L A Y - ) $ Windshield wiper and washer switch h 0 / 7 % 2 v S W I T C H
( E A D L I G H T S T U R N S I G N A L S
controls
Page 5 of 52

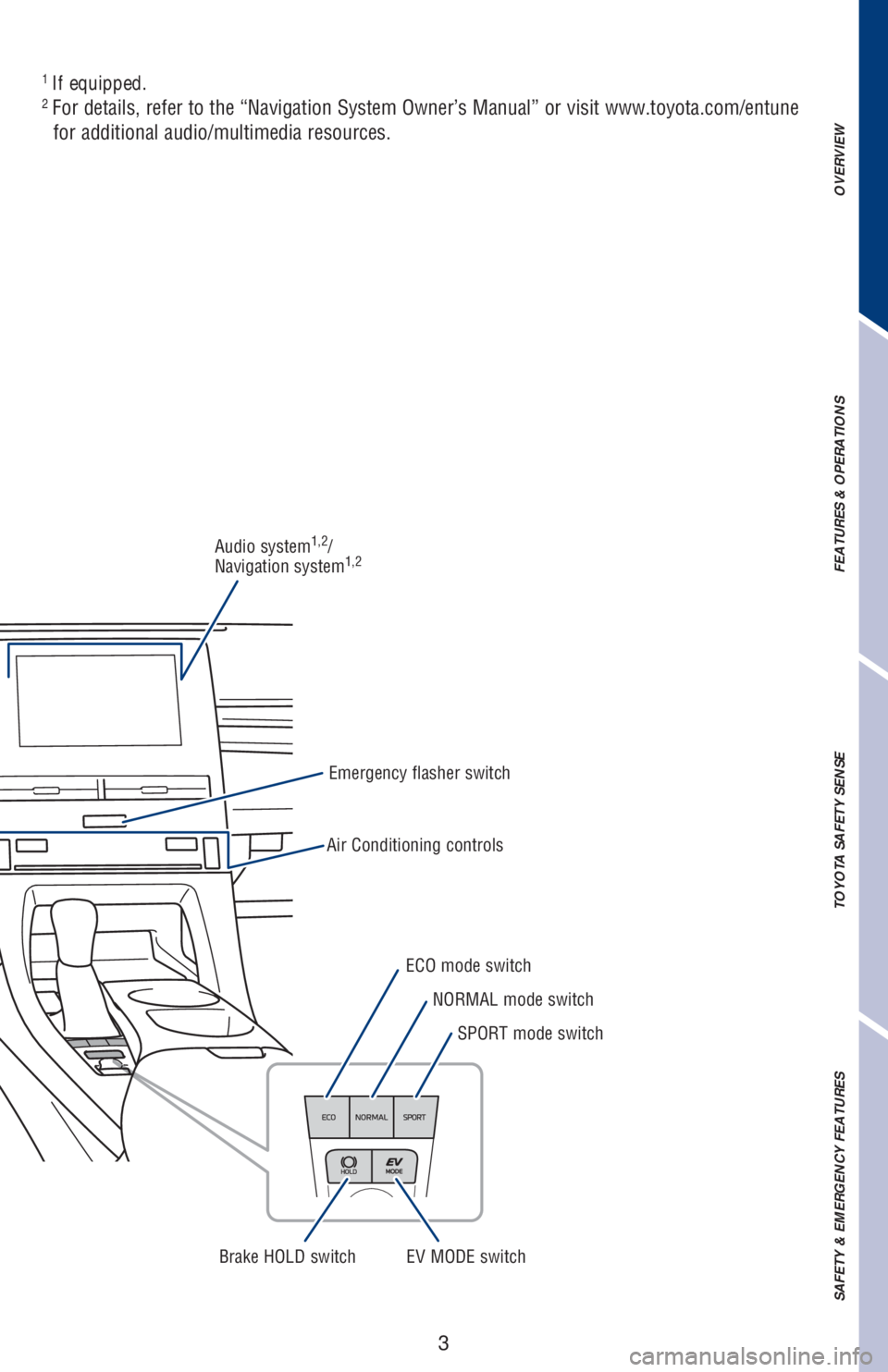

3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
1
If equipped.2
& O R D E T A I L S R E F E R T O T H E h . A V I G A T I O N 3 Y S T E M / W N E R S - A N U A L v O R V I S I T W W W T O Y O T A C O M E N T U N E
F O R A D D I T I O N A L A U D I O M U L T I M E D I A R E S O U R C E S
% M E R G E N C Y F L A S H E R S W I T C H ! U D I O S Y S T E M
. A V I G A T I O N S Y S T E M
! I R # O N D I T I O N I N G C O N T R O L S
% # / M O D E S W I T C H
. / 2 - ! , M O D E S W I T C H
3 0 / 2 4 M O D E S W I T C H
" R A K E ( / , $ S W I T C H % 6 - / $ % S W I T C H
Page 6 of 52
4
OVERVIEW

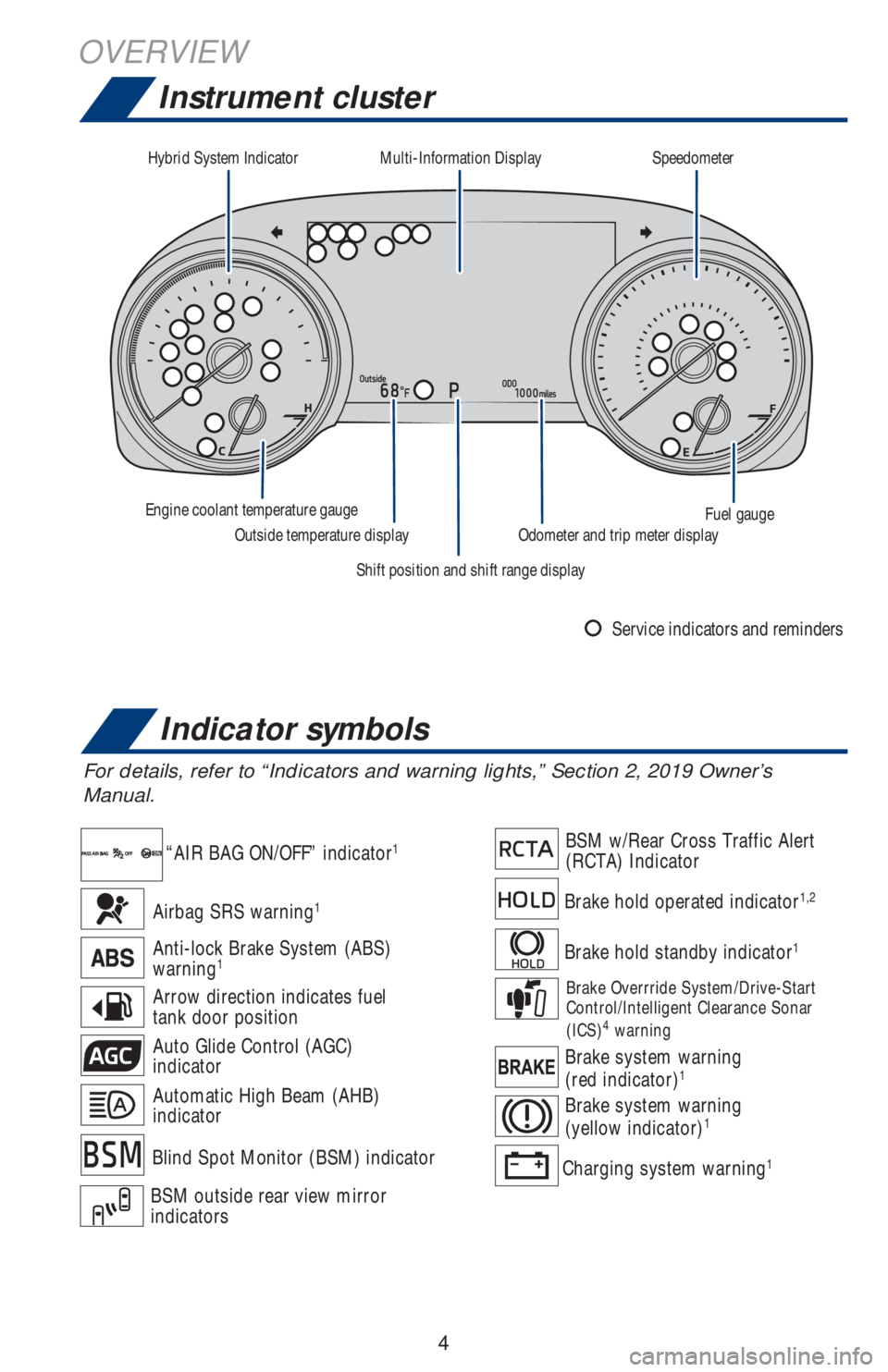

Instrument cluster
For details, refer to “Indicators and warning lights,” Section 2, 2019 Owner’s
Manual.
Airbag SRS warning1
Arrow direction indicates fuel
tank door position
Auto Glide Control (AGC)
indicator
Automatic High Beam (AHB)
indicator
Anti-lock Brake System (ABS)
warning1
“AIR BAG ON/OFF” indicator1
Blind Spot Monitor (BSM) indicator
Brake hold operated indicator1,2
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator
BSM outside rear view mirror
indicators
Brake hold standby indicator1
Brake Overrride System/Drive-Start
Control/Intelligent Clearance Sonar
(ICS)
4 warning
Brake system warning
(yellow indicator)1
Brake system warning
(red indicator)1
Charging system warning1

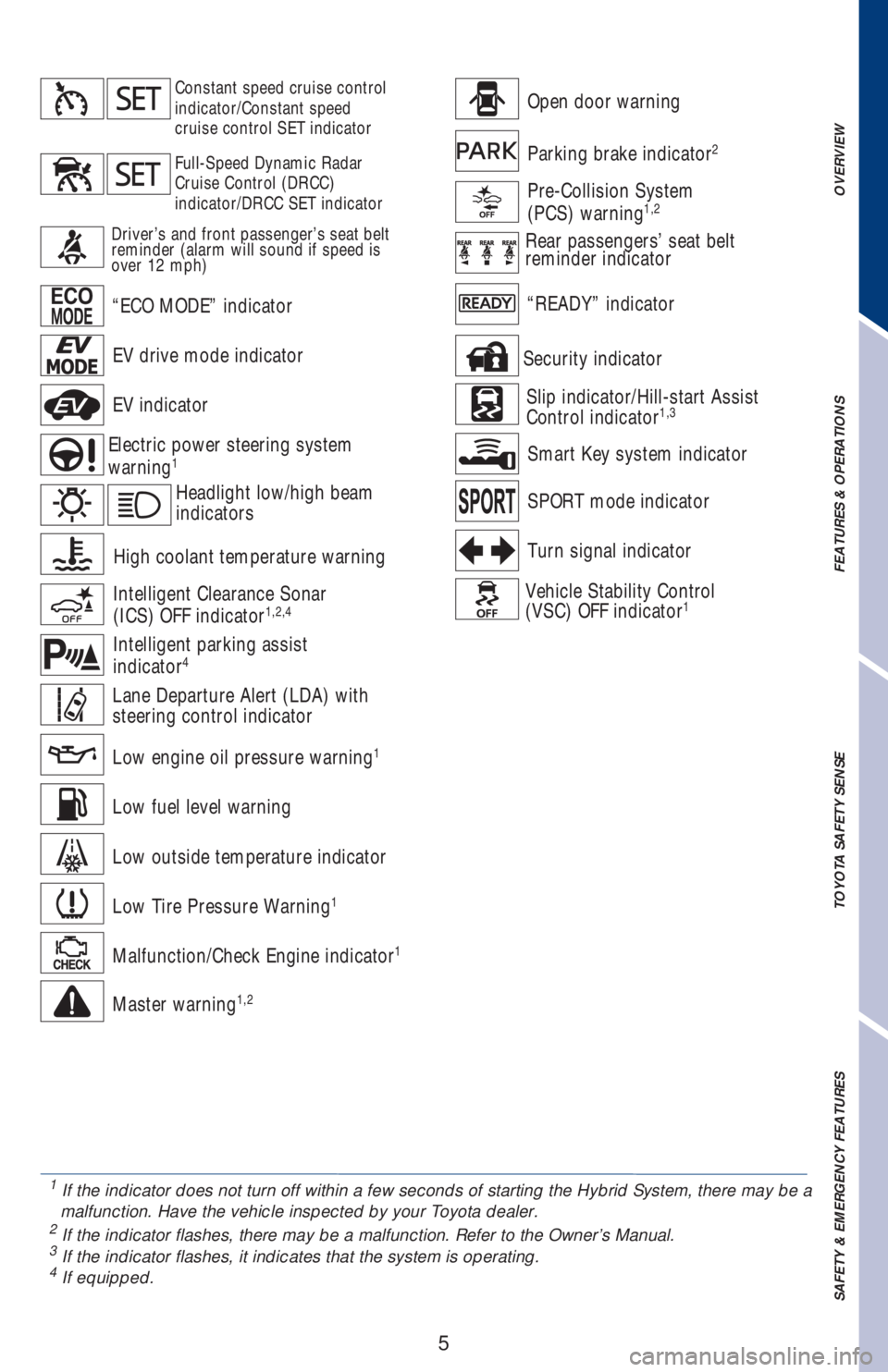

Indicator symbols
Hybrid System Indicator SpeedometerMulti-Information Display
Engine coolant temperature gauge
Outside temperature display Odometer and trip meter display
Shift position and shift range displayFuel gauge
Service indicators and reminders
Page 7 of 52
5
Open door warning
Malfunction/Check Engine indicator1
Master warning1,2
Electric power steering system
warning1
“ECO MODE” indicator
EV drive mode indicator
EV indicator
Low engine oil pressure warning
1
Low Tire Pressure Warning1
Low fuel level warning
Lane Departure Alert (LDA) with
steering control indicator
Pre-Collision System
(PCS) warning1,2
“READY” indicator
Turn signal indicator
Vehicle Stability Control
(VSC) OFF indicator1
Security indicator
SPORT mode indicator
Slip indicator/Hill-start Assist
Control indicator1,3
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Headlight low/high beam
indicators
High coolant temperature warning
Intelligent Clearance Sonar
(ICS) OFF indicator1,2,4
Intelligent parking assist
indicator4
Low outside temperature indicatorParking brake indicator
2
Rear passengers’ seat belt
reminder indicatorDriver’s and front passenger’s seat belt
reminder (alarm will sound if speed is
over 12 mph)
Smart Key system indicator
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the Hybrid System, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Page 8 of 52
6

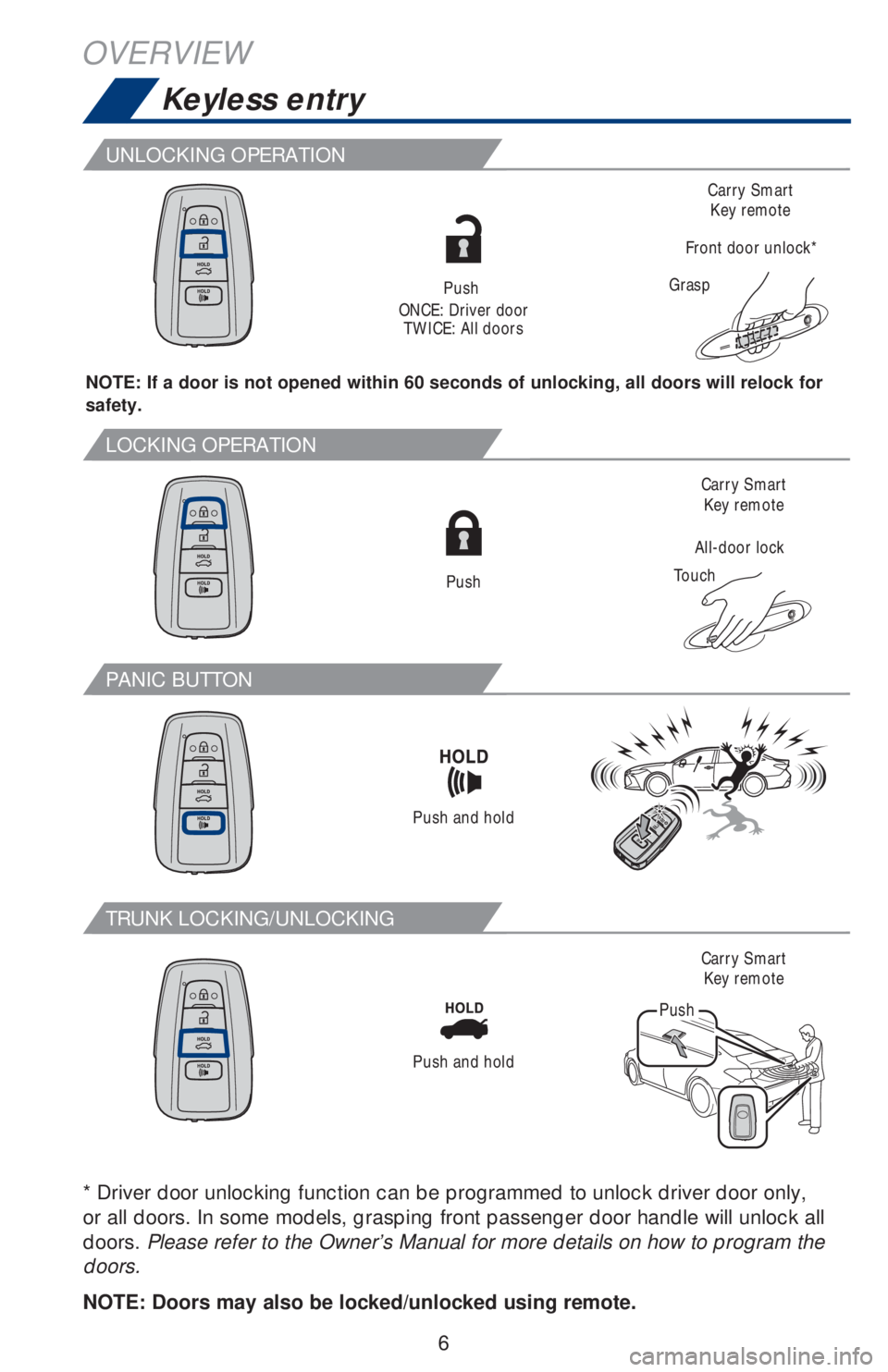

Keyless entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push
ONCE: Driver door
TWICE: All doors
Carry Smart
Key remote
Carry Smart
Key remote
Push
Push and hold
All-door lock
Touch
Grasp
Front door unlock*
LOCKING OPERATION
PANIC BUTTON
TRUNK LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door only,
or all doors. In some models, grasping front passenger door handle will unlock all
doors. Please refer to the Owner’s Manual for more details on how to program the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Push and hold
Push
Carry Smart
Key remote
Page 9 of 52
7

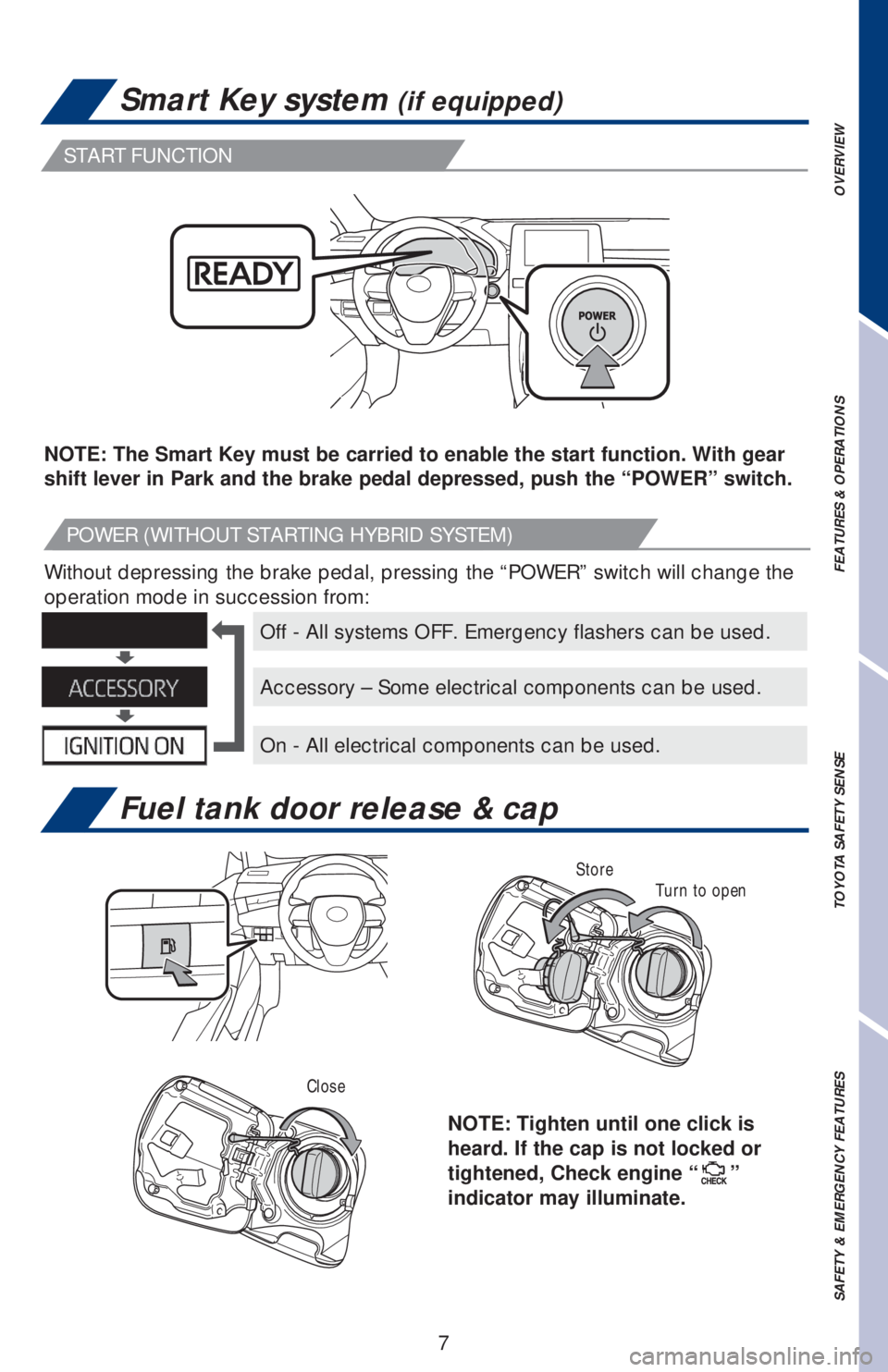

Smart Key system (if equipped)
Fuel tank door release & cap
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “POWER” switch.
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
START FUNCTION
POWER (WITHOUT STARTING HYBRID SYSTEM)
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check engine “
”
indicator may illuminate.
Turn to open
Close
Store
Page 10 of 52
8
OVERVIEW
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”

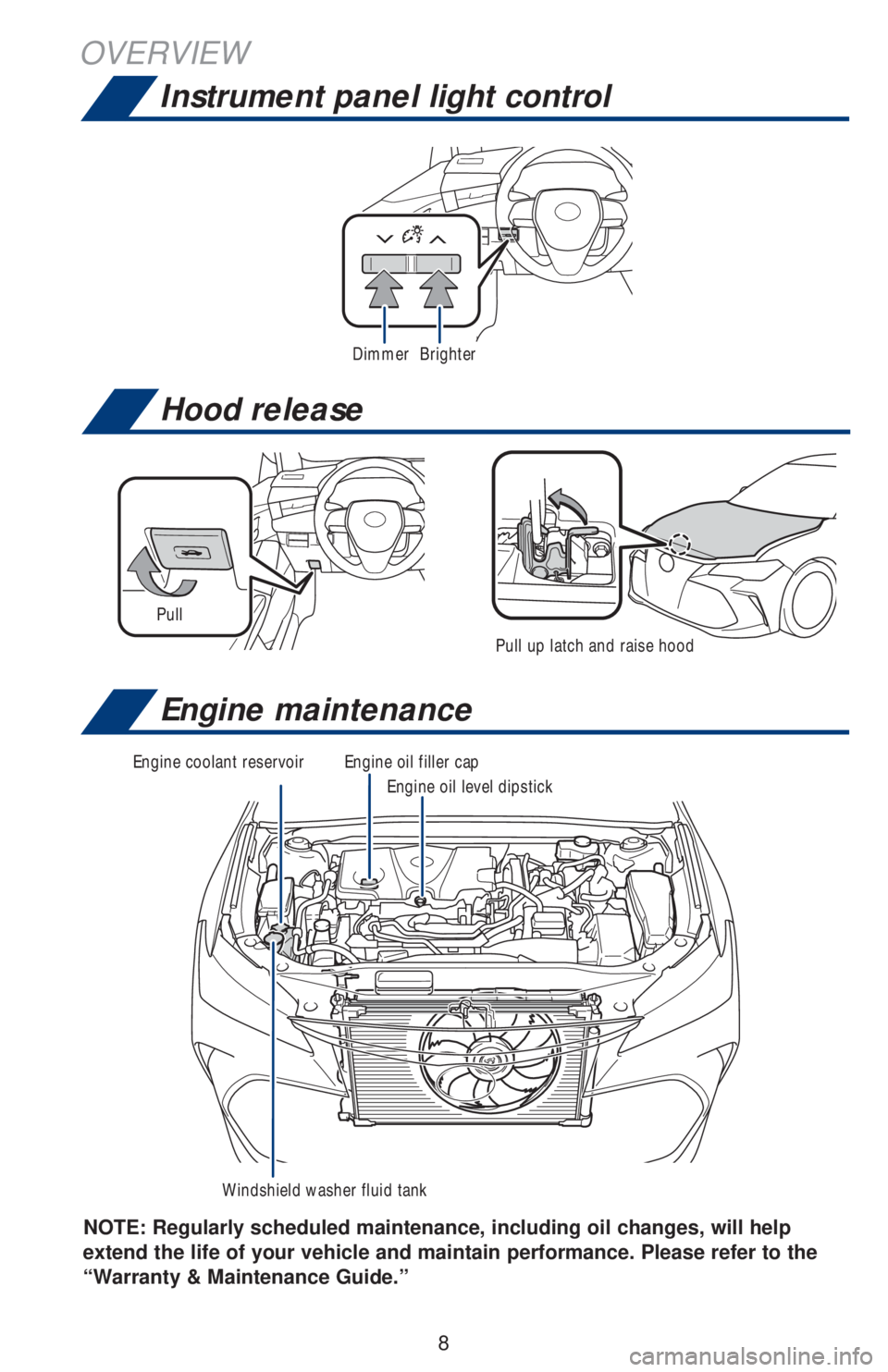

Pull up latch and raise hood
Pull
Hood release
Engine maintenance
Instrument panel light control
DimmerBrighter
Engine oil filler cap
Engine oil level dipstick Engine coolant reservoir
Windshield washer fluid tank
