Page 21 of 52
19
FRONT
REAR (IF EQUIPPED)

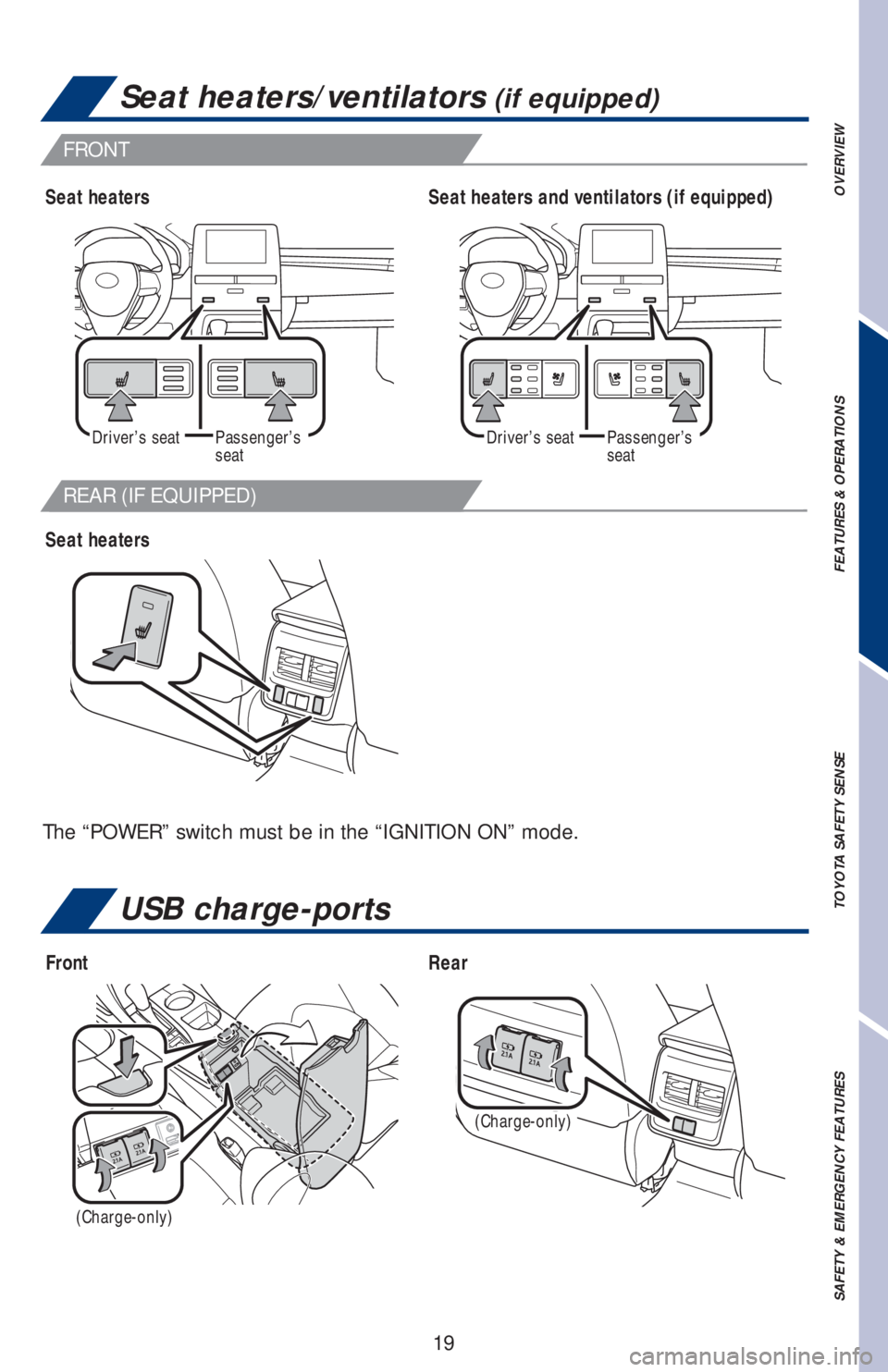

Seat heaters/ventilators (if equipped)
Seat heaters
Seat heatersSeat heaters and ventilators (if equipped)
Driver’s seatPassenger’s
seatPassenger’s
seatDriver’s seat
The “POWER” switch must be in the “IGNITION ON” mode.
USB charge-ports
FrontRear
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
(Charge-only)
(Charge-only)
Page 22 of 52
20

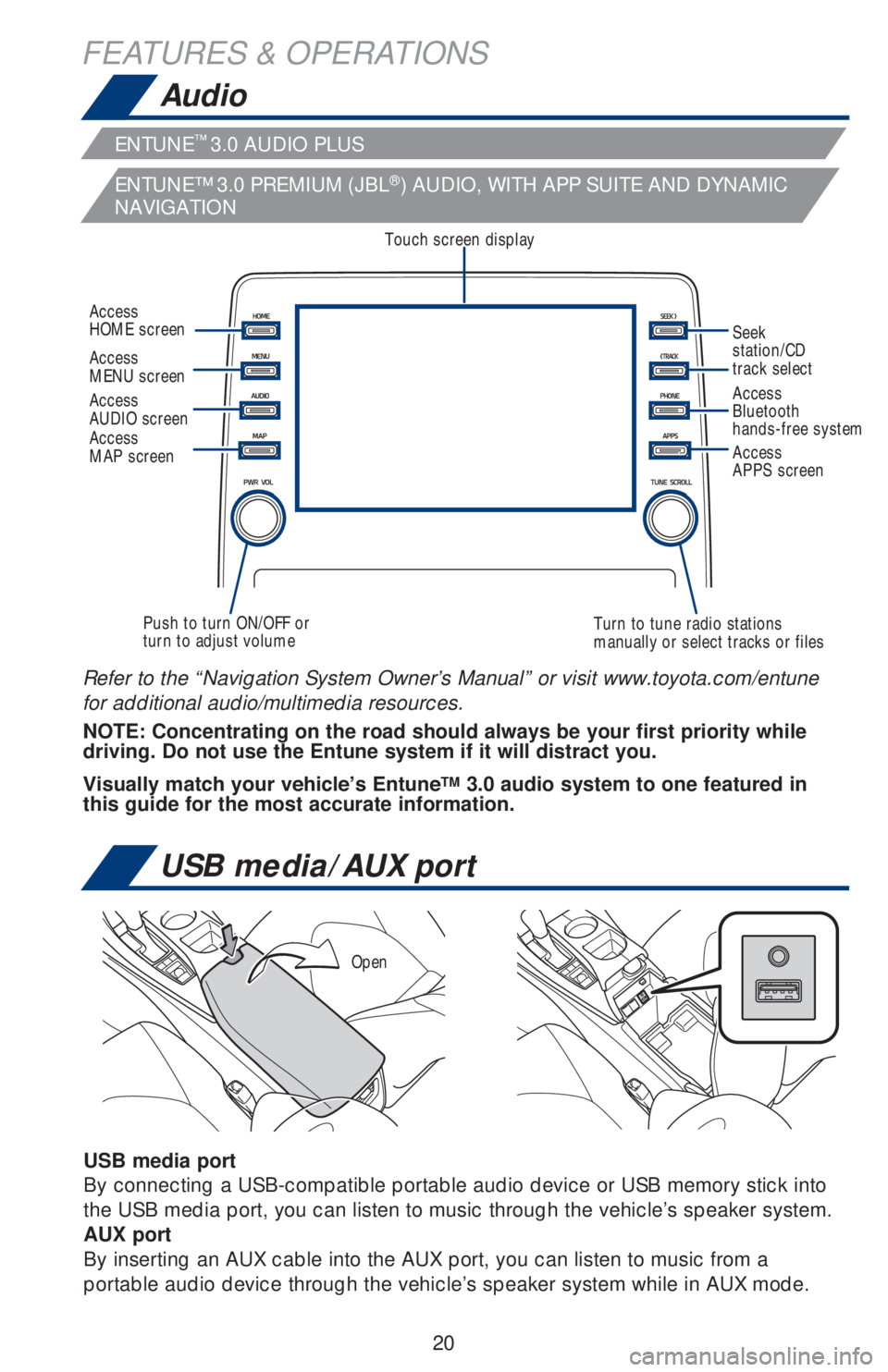

FEATURES & OPERATIONS
Audio
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volumeTurn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system Seek
station/CD
track select Access
HOME screen
Access
MENU screen
Access
APPS screen
ENTUNE™
3.0 AUDIO PLUS
ENTUNE™ 3.0 PREMIUM (JBL®) AUDIO, WITH APP SUITE AND DYNAMIC
NAVIGATION
Access
MAP screen
USB media port
By connecting a USB-compatible portable audio device or USB memory stick into
the USB media port, you can listen to music through the vehicle’s speaker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
Open
USB media/AUX port
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
9 L V X D O O \ P D W F K \ R X U Y H K L F O H
Page 23 of 52
21

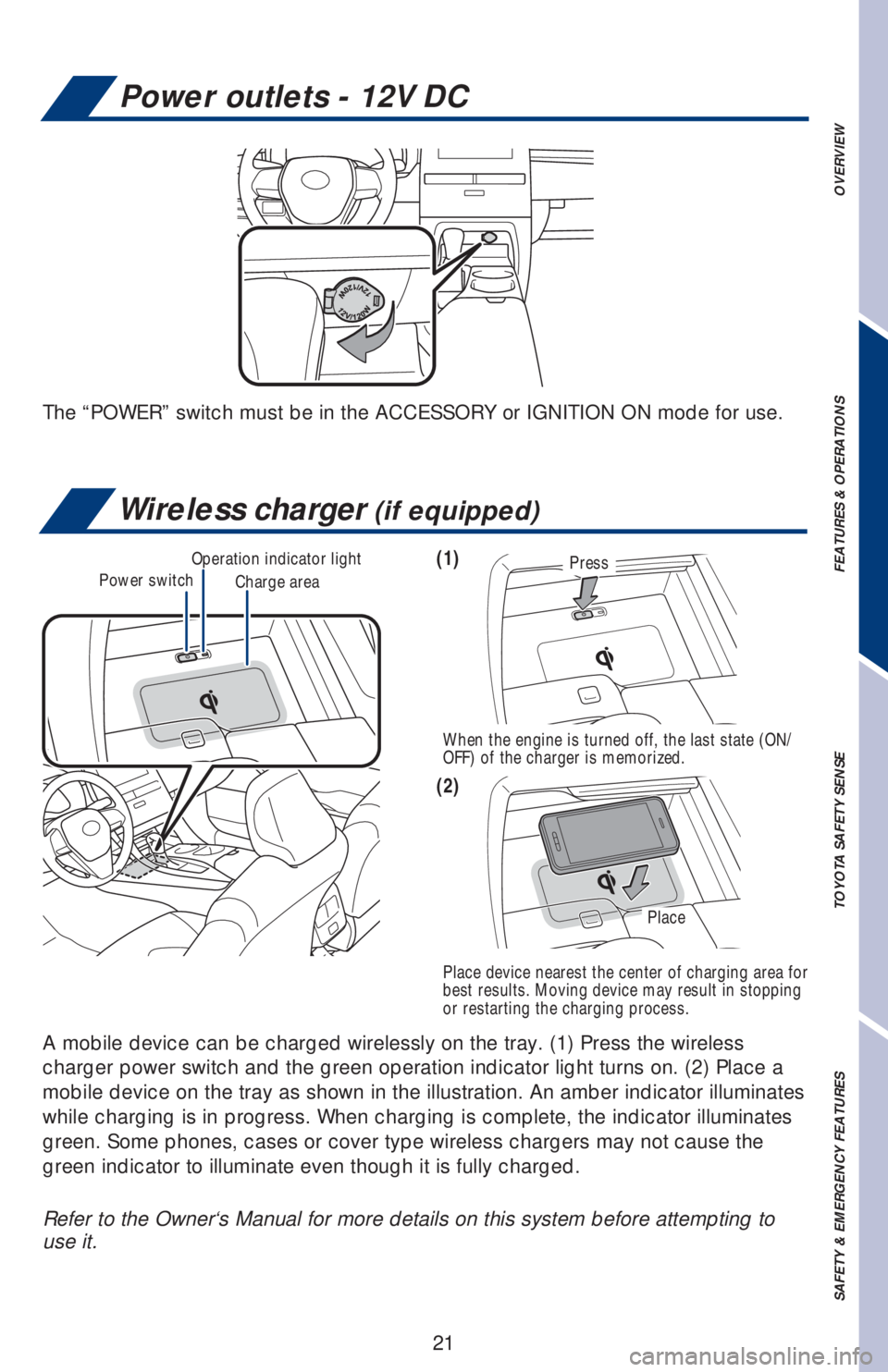

Power outlets - 12V DC
The “POWER” switch must be in the ACCESSORY or IGNITION ON mode for use.
Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place a
mobile device on the tray as shown in the illustration. An amber indicator illuminates
while charging is in progress. When charging is complete, the indicator illuminates
green. Some phones, cases or cover type wireless chargers may not cause the
green indicator to illuminate even though it is fully charged.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
Power switchCharge area
Operation indicator lightPress
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place
(1)
(2)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 24 of 52
22
FEATURES & OPERATIONS

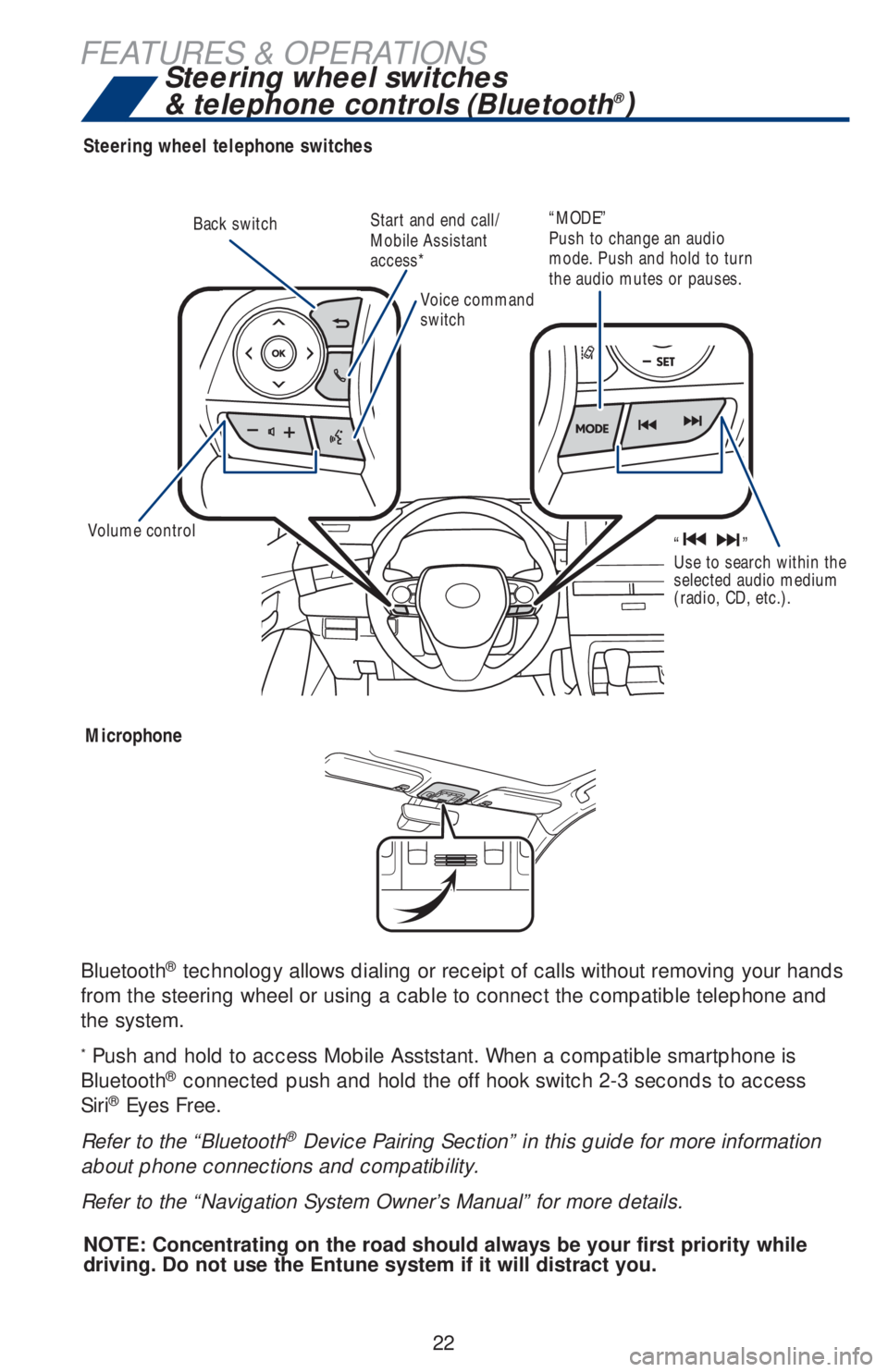

Steering wheel telephone switches
Microphone
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel or using a cable to connect the compatible telephone and
the system.
* Push and hold to access Mobile Asststant. When a compatible smartphone is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to the “Bluetooth
® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Navigation System Owner’s Manual” for more details.
Back switch
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune system if it will distract you.
Volume control
Voice command
switch
Start and end call/
Mobile Assistant
access*“MODE”
Push to change an audio
mode. Push and hold to turn
the audio mutes or pauses.
“ ”
Use to search within the
selected audio medium
(radio, CD, etc.).
Steering wheel switches
& telephone controls (Bluetooth®)
Page 25 of 52
23

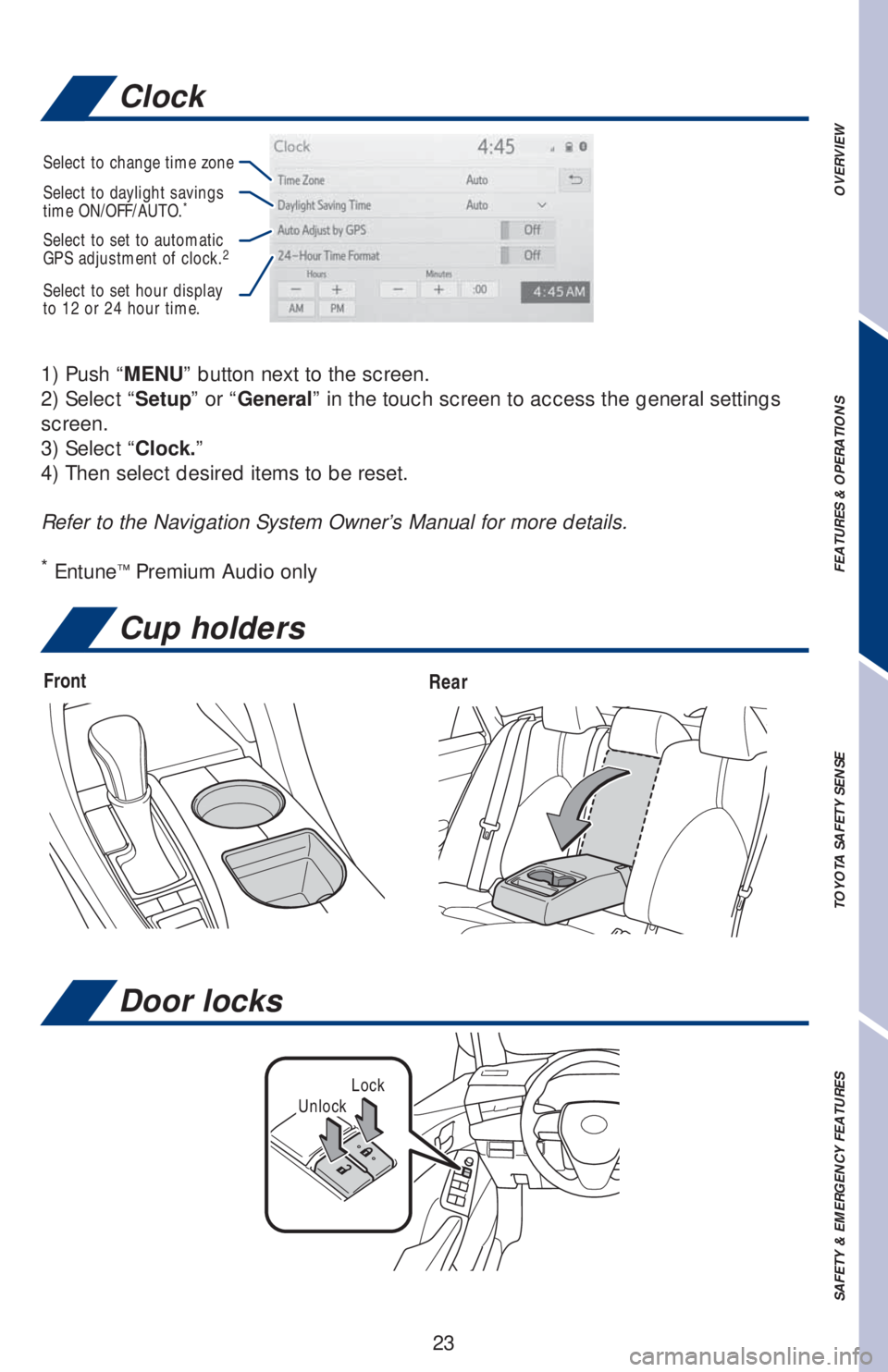

Clock
Cup holders
FrontRear
LockUnlock
Door locks
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touch screen to access the general settings
screen.
3) Select “Clock.”
4) Then select desired items to be reset.
Refer to the Navigation System Owner’s Manual for more details.
* Entune™ Premium Audio only
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO.*
Select to set to automatic
GPS adjustment of clock.2
Select to set hour display
to 12 or 24 hour time.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 26 of 52
24
FEATURES & OPERATIONS

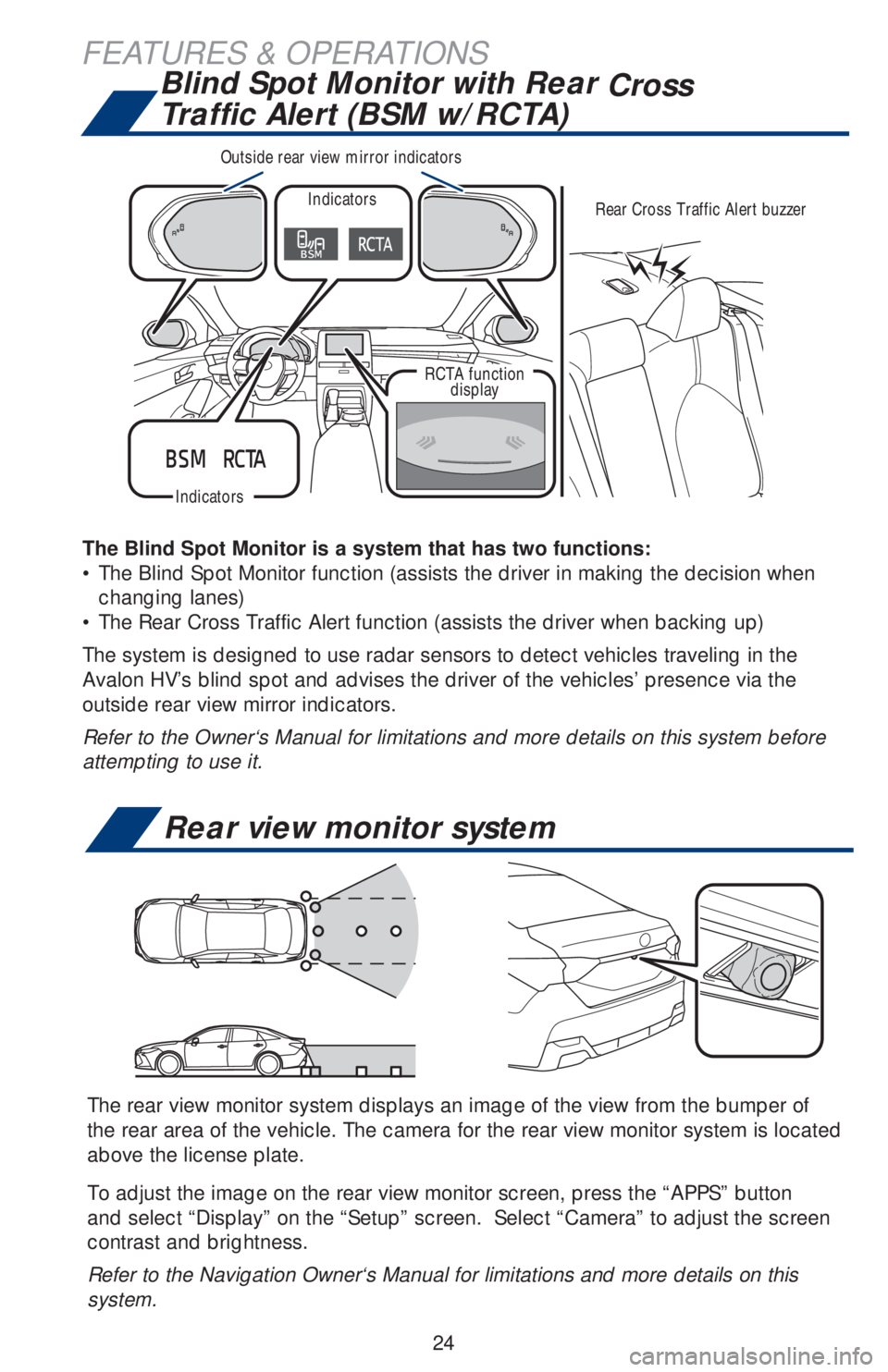

The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Avalon HV’s blind spot and advises the driver of the vehicles’ presence via the
outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Blind Spot Monitor with Rear
Cross
Traffic Alert (BSM w/RCTA)
Indicators
Indicators
RCTA function
displayRear Cross Traffic Alert buzzer Outside rear view mirror indicators
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “APPS” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Navigation Owner‘s Manual for limitations and more details on this
system.
Page 27 of 52
25 Display mode change switch Display mode change switchRotation pause switch Body color setting switch Body color setting switch
Rotation pause switch

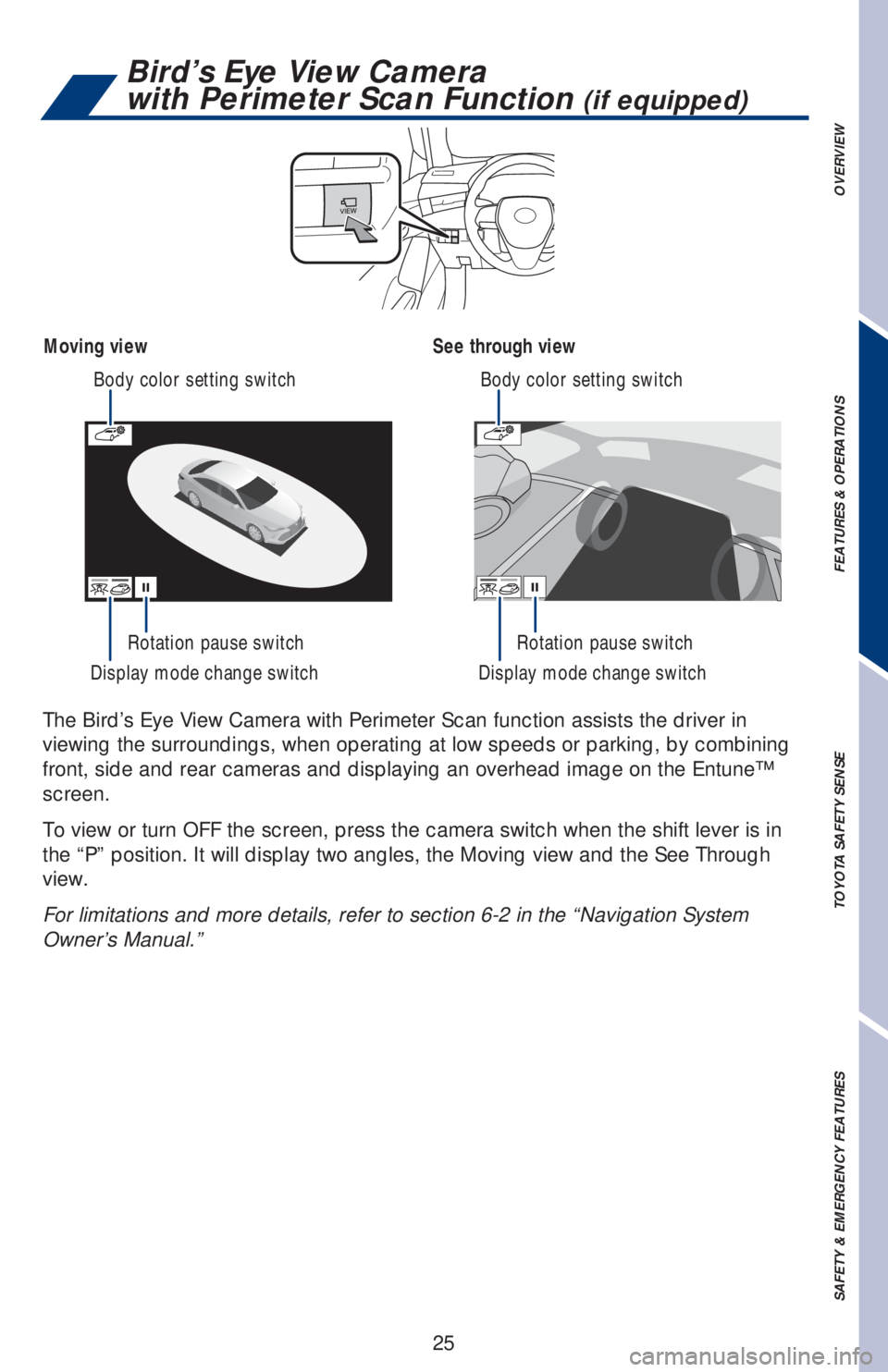

The Bird’s Eye View Camera with Perimeter Scan function assists the driver in
viewing the surroundings, when operating at low speeds or parking, by combining
front, side and rear cameras and displaying an overhead image on the Entune™
screen.
To view or turn OFF the screen, press the camera switch when the shift lever is in
the “P” position. It will display two angles, the Moving view and the See Through
view.
For limitations and more details, refer to section 6-2 in the “Navigation System
Owner’s Manual.”
Moving viewSee through view
Bird’s Eye View Camera
with Perimeter Scan Function
(if equipped)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 28 of 52
26
FEATURES & OPERATIONS

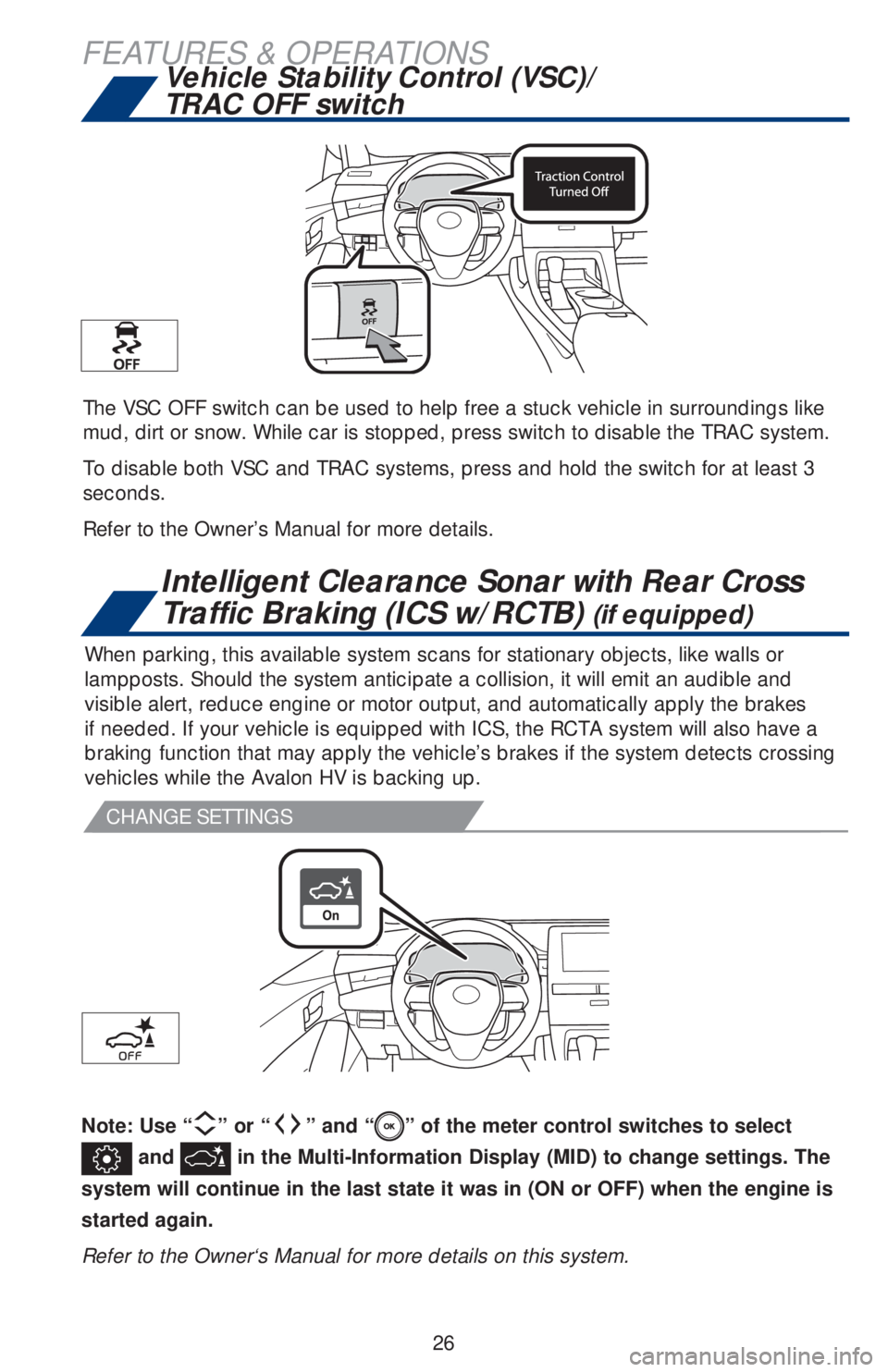

The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While car is stopped, press switch to disable the TRAC system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for more details.
Vehicle Stability Control (VSC)/
TRAC OFF switch
When parking, this available system scans for stationary objects, like walls or
lampposts. Should the system anticipate a collision, it will emit an audible and
visible alert, reduce engine or motor output, and automatically apply the brakes
if needed. If your vehicle is equipped with ICS, the RCTA system will also have a
braking function that may apply the vehicle’s brakes if the system detects crossing
vehicles while the Avalon HV is backing up.
Note: Use “” or “” and “” of the meter control switches to select
and in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Owner‘s Manual for more details on this system.
CHANGE SETTINGS
Intelligent Clearance Sonar with Rear Cross
Traffic Braking (ICS w/RCTB)
(if equipped)
Page 29 of 52

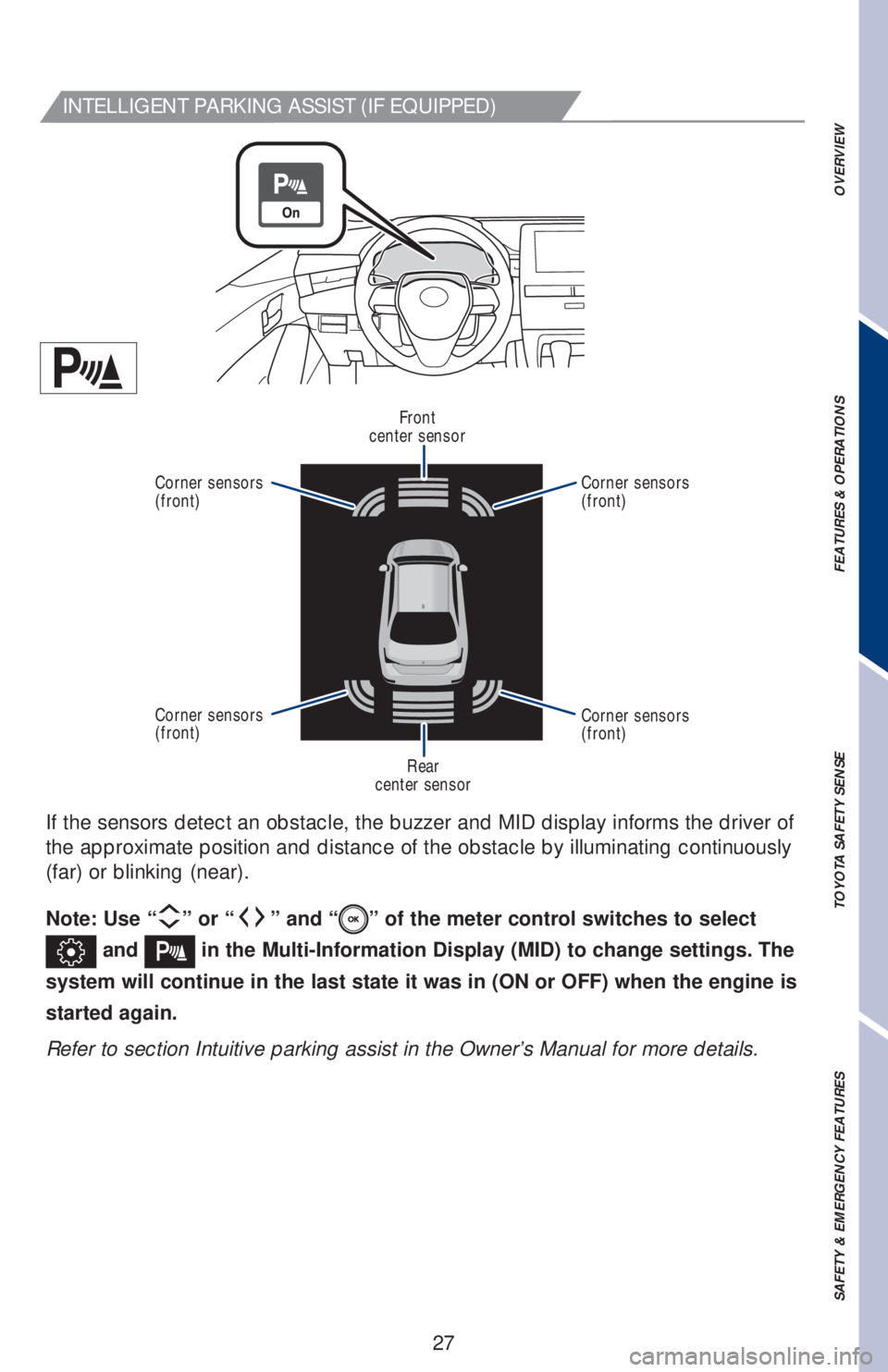

27 If the sensors detect an obstacle, the buzzer and MID display informs the driver of
the approximate position and distance of the obstacle by illuminating continuously
(far) or blinking (near).
Note: Use “
” or “” and “” of the meter control switches to select
and in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to section Intuitive parking assist in the Owner’s Manual for more details.
INTELLIGENT PARKING ASSIST (IF EQUIPPED)
Front
center sensor
Rear
center sensor Corner sensors
(front)
Corner sensors
(front)Corner sensors
(front)
Corner sensors
(front)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 30 of 52
28

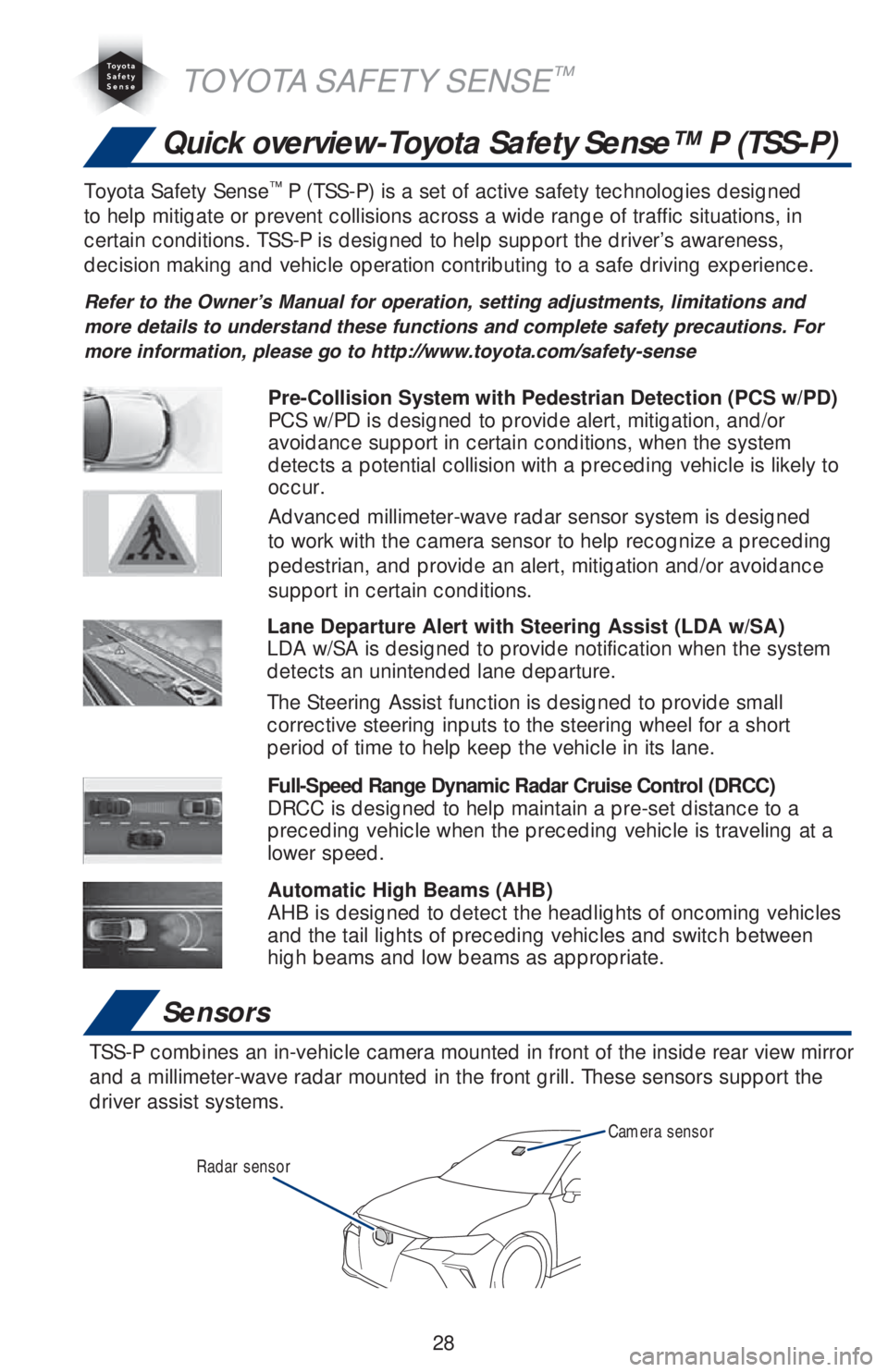

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems. Toyota Safety Sense
™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
