811-3. Theft deterrent system
1
For safety and security

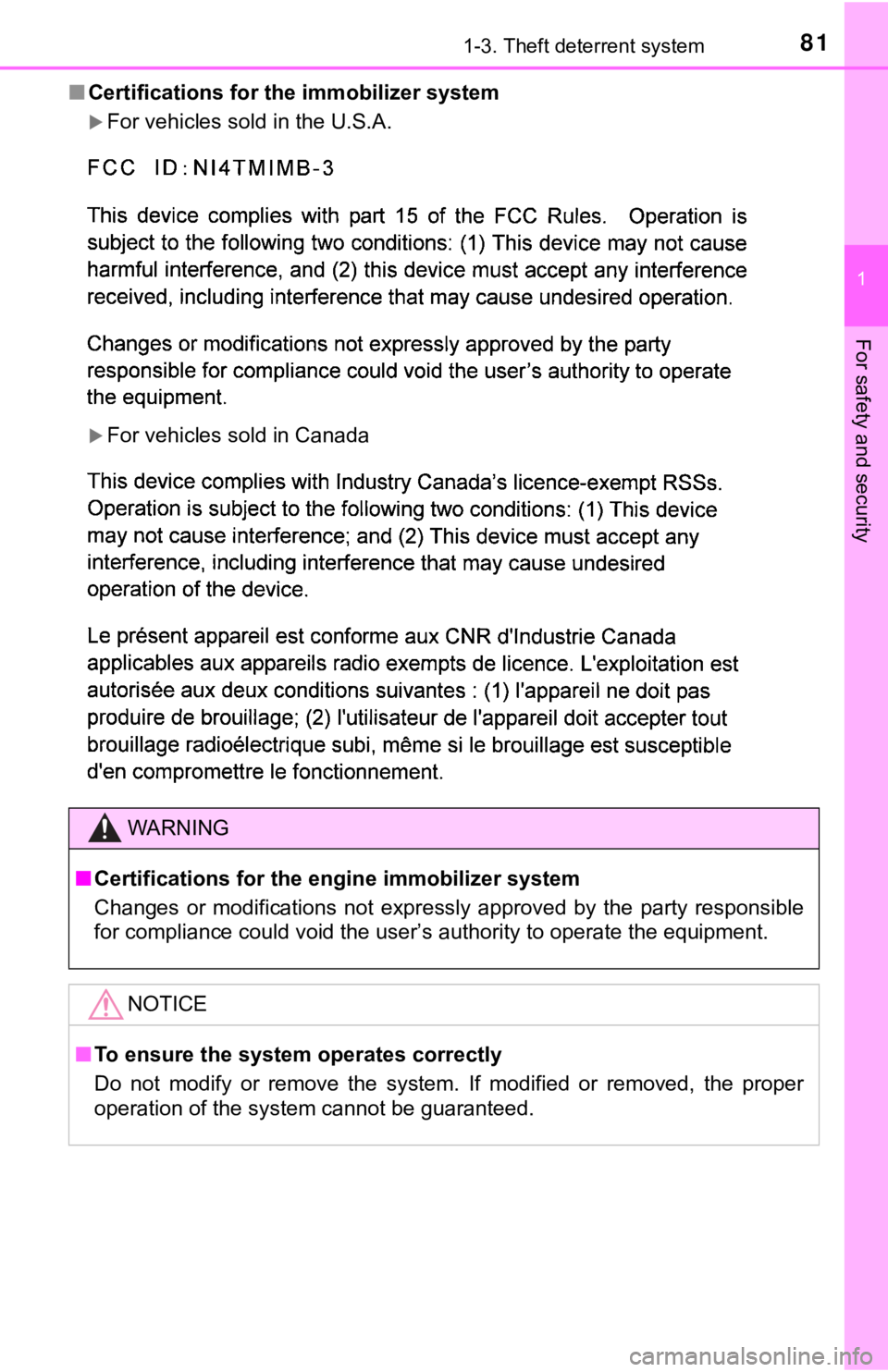

■Certifications for the immobilizer system
For vehicles sold in the U.S.A.
For vehicles sold in Canada
WARNING
■Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party re sponsible
for compliance could void the user’s authority to operate the e quipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

821-3. Theft deterrent system
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the ala rm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function, wireless re mote control or mechanical key.
(The doors will lock a gain automatically.)
● The trunk is opened in any way other than using the entry funct ion
or wireless remote control.
● The hood is opened.
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to d eactivate or stop the alarm:
● Unlock the doors.
● Open the trunk using the entry function or w ireless remote control.
● Turn the power switch to ACCESSORY or ON mode, or start the
hybrid system. ( The alarm will be deactivated or stopped after a few
seconds.)

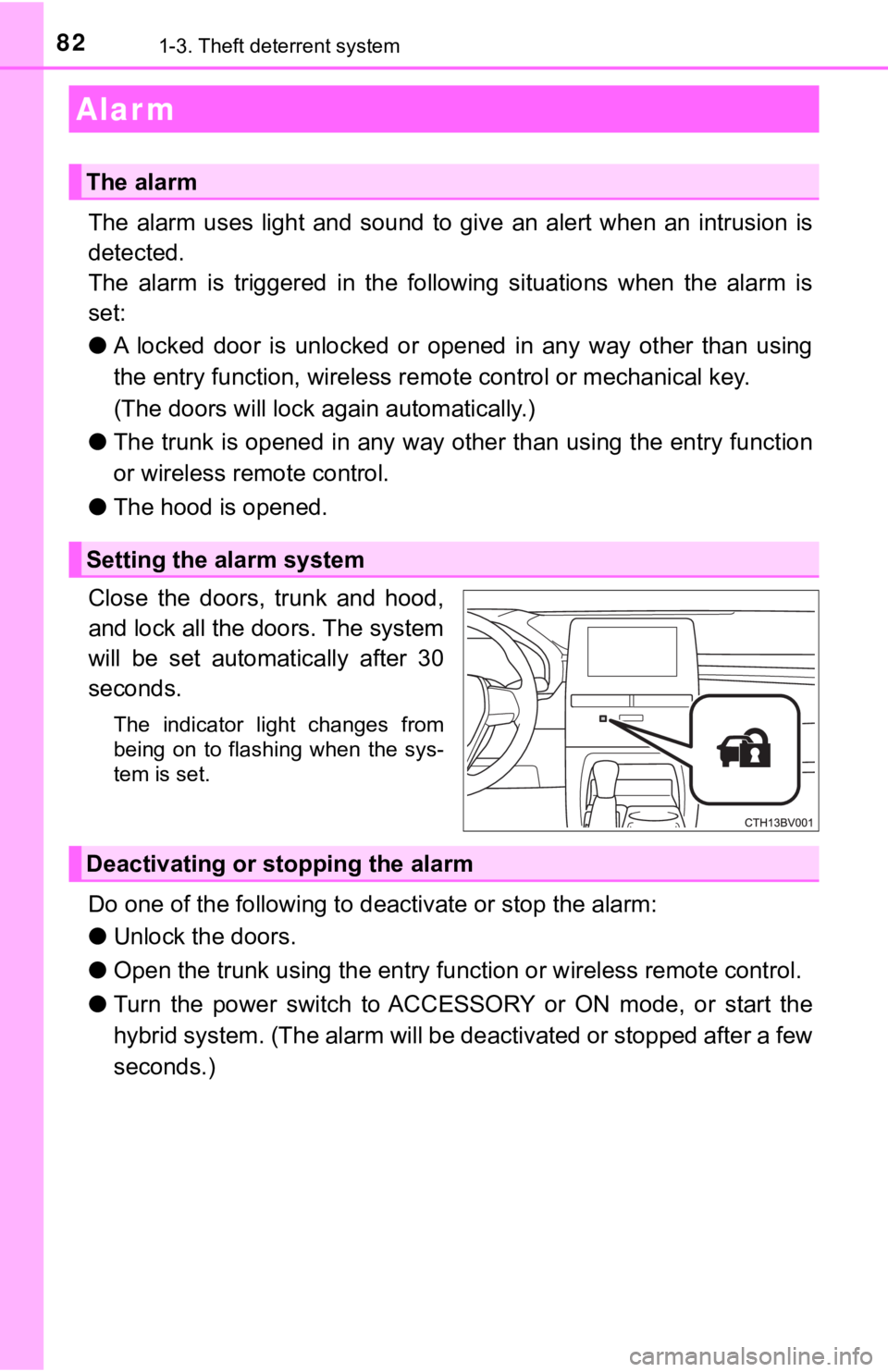

Alar m
The alarm
Setting the alarm system
Deactivating or stopping the alarm

831-3. Theft deterrent system
1
For safety and security
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft , make sure of
the following:
● Nobody is in the vehicle.
● The windows and moon roof (if equipped) are closed before the a larm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

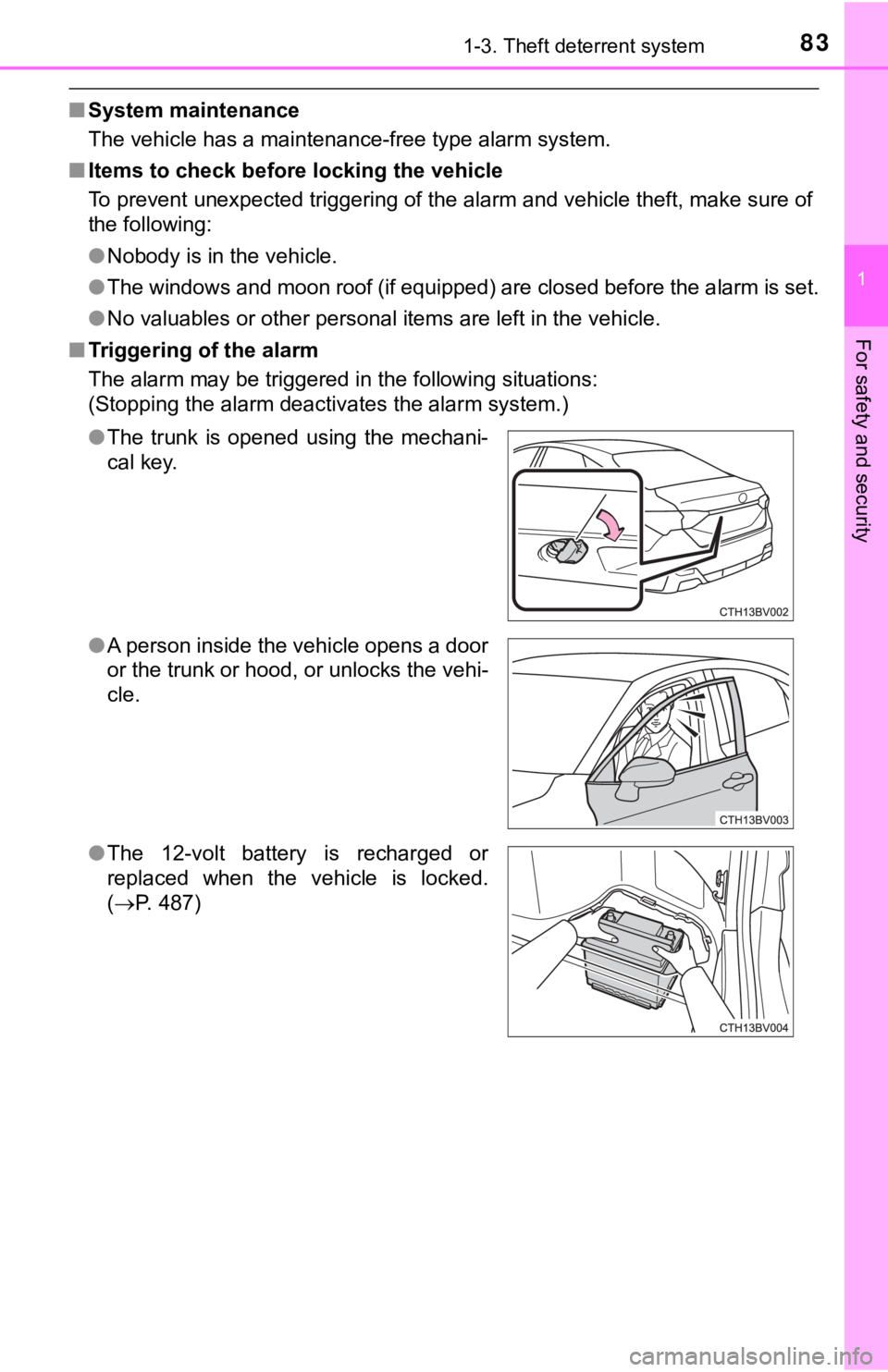

●The trunk is opened using the mechani-
cal key.
● A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.
● The 12-volt battery is recharged or
replaced when the vehicle is locked.
(P. 487)

841-3. Theft deterrent system
■Alarm-operated door lock
In the following cases, depending on the situation, the door ma y automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the 12-volt battery
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

85
Instrument cluster2
2. Instrument clusterWarning lights andindicators .......................... 86
Gauges and meters ............ 92
Multi-information display............................... 96
Head-up display ................ 115
Energy monitor/ consumption screen ........ 122

862. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, t he following illustrations dis-
play all warning lights a nd indicators illuminated.

872. Instrument cluster
2
Instrument cluster

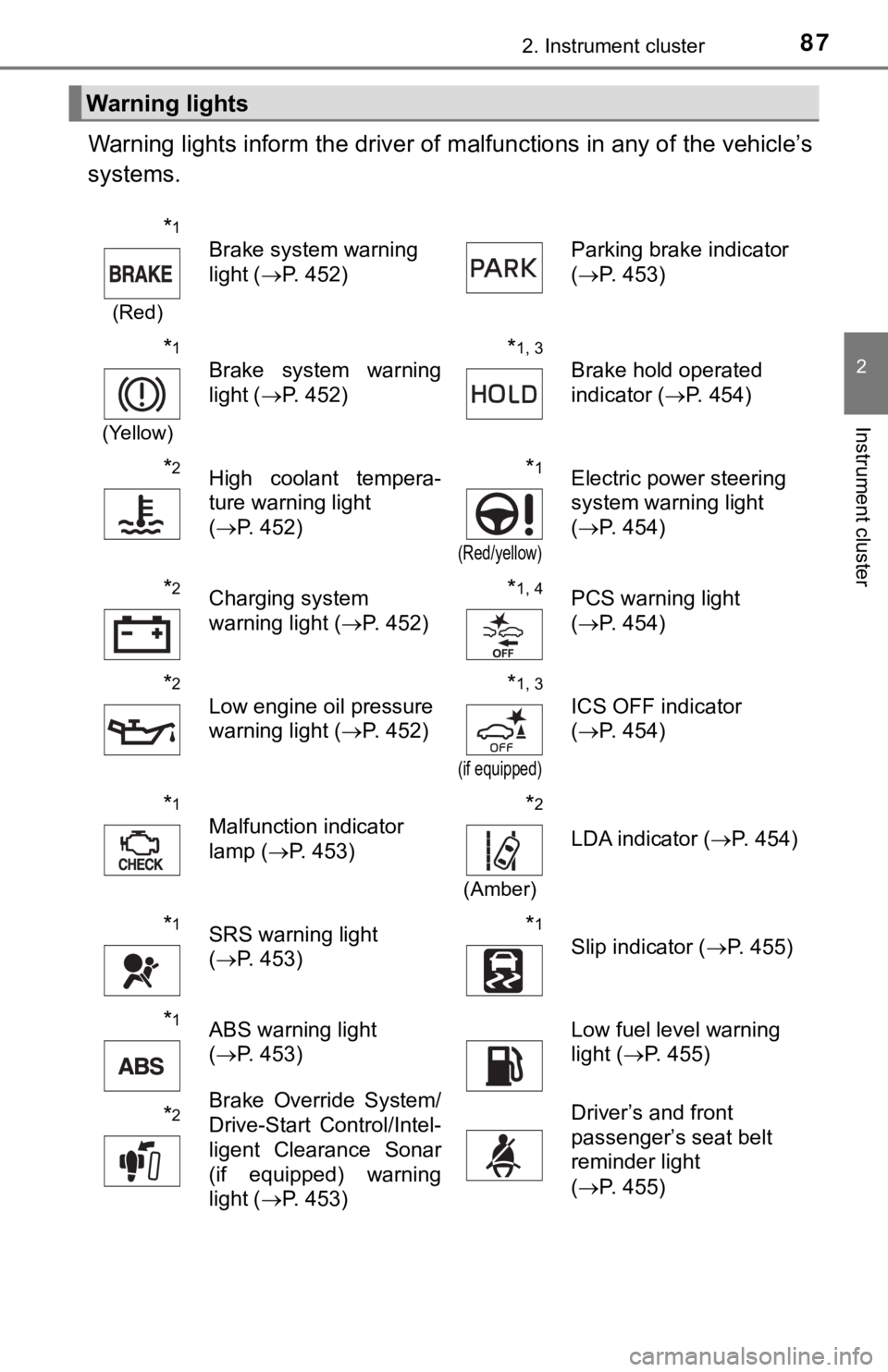

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(Red)
Brake system warning
light ( P. 452) Parking brake indicator
(
P. 453)
*1
(Yellow)
Brake system warning
light ( P. 452)*1, 3
Brake hold operated
indicator ( P. 454)
*2High coolant tempera-
ture warning light
(P. 452)*1
(Red/yellow)
Electric power steering
system warning light
(P. 454)
*2Charging system
warning light ( P. 452)*1, 4PCS warning light
(P. 454)
*2
Low engine oil pressure
warning light ( P. 452)*1, 3
(if equipped)
ICS OFF indicator
(P. 454)
*1
Malfunction indicator
lamp ( P. 453)*2
(Amber)
LDA indicator ( P. 454)
*1SRS warning light
(P. 453)*1
Slip indicator ( P. 455)
*1ABS warning light
(P. 453)Low fuel level warning
light ( P. 455)
*2Brake Override System/
Drive-Start Control/Intel-
ligent Clearance Sonar
(if equipped) warning
light (P. 453)Driver’s and front
passenger’s seat belt
reminder light
(P. 455)

882. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a mal function in
a system if a light does not come on, or turn off. Have the veh icle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light flashes to indicate a malfunction.
*4: This light flashes or illuminates to indicate a malfunction.
*5: This light illuminates on the center panel.

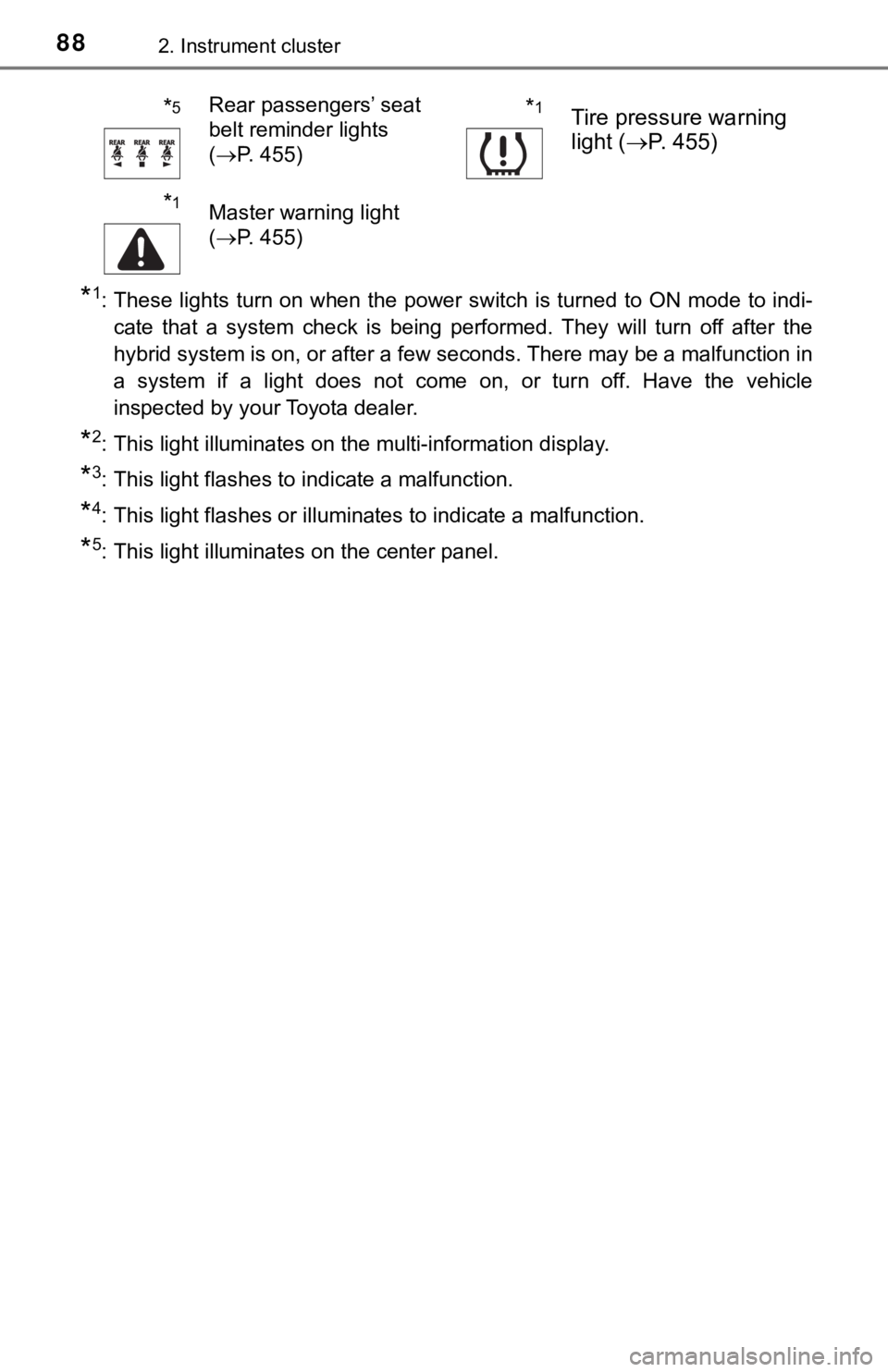

*5Rear passengers’ seat
belt reminder lights
( P. 455)*1Tire pressure warning
light ( P. 455)
*1Master warning light
(P. 455)

892. Instrument cluster
2
Instrument cluster

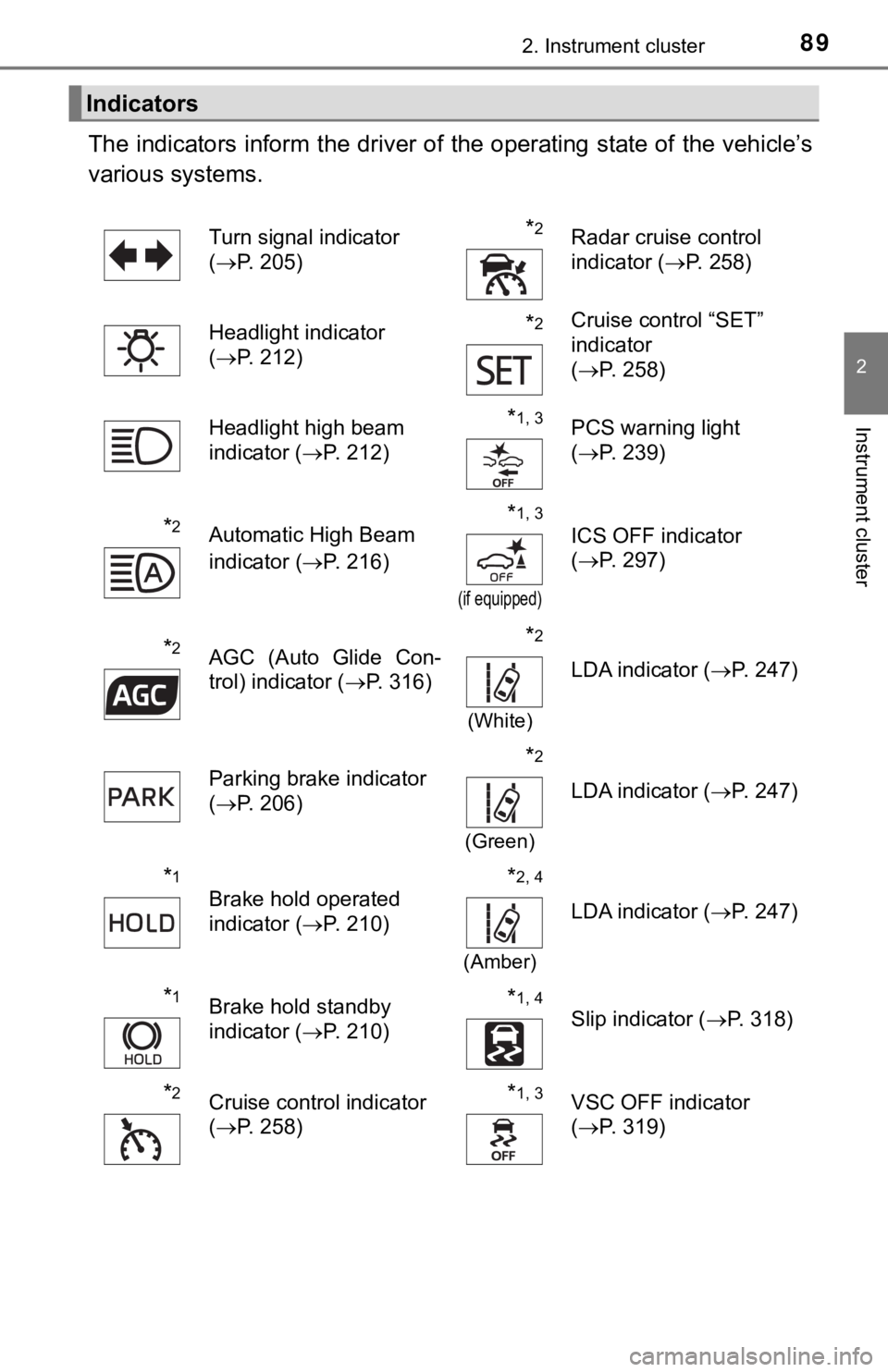

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 205)*2Radar cruise control
indicator ( P. 258)
Headlight indicator
( P. 212)
*2Cruise control “SET”
indicator
(P. 258)
Headlight high beam
indicator ( P. 212)
*1, 3PCS warning light
(P. 239)
*2Automatic High Beam
indicator ( P. 216)*1, 3
(if equipped)
ICS OFF indicator
(P. 297)
*2AGC (Auto Glide Con-
trol) indicator ( P. 316)*2
(White)
LDA indicator ( P. 247)
Parking brake indicator
( P. 206)
*2
(Green)
LDA indicator ( P. 247)
*1
Brake hold operated
indicator (P. 210)*2, 4
(Amber)
LDA indicator ( P. 247)
*1Brake hold standby
indicator (P. 210)*1, 4
Slip indicator ( P. 318)
*2Cruise control indicator
(P. 258)*1, 3VSC OFF indicator
(P. 319)

902. Instrument cluster

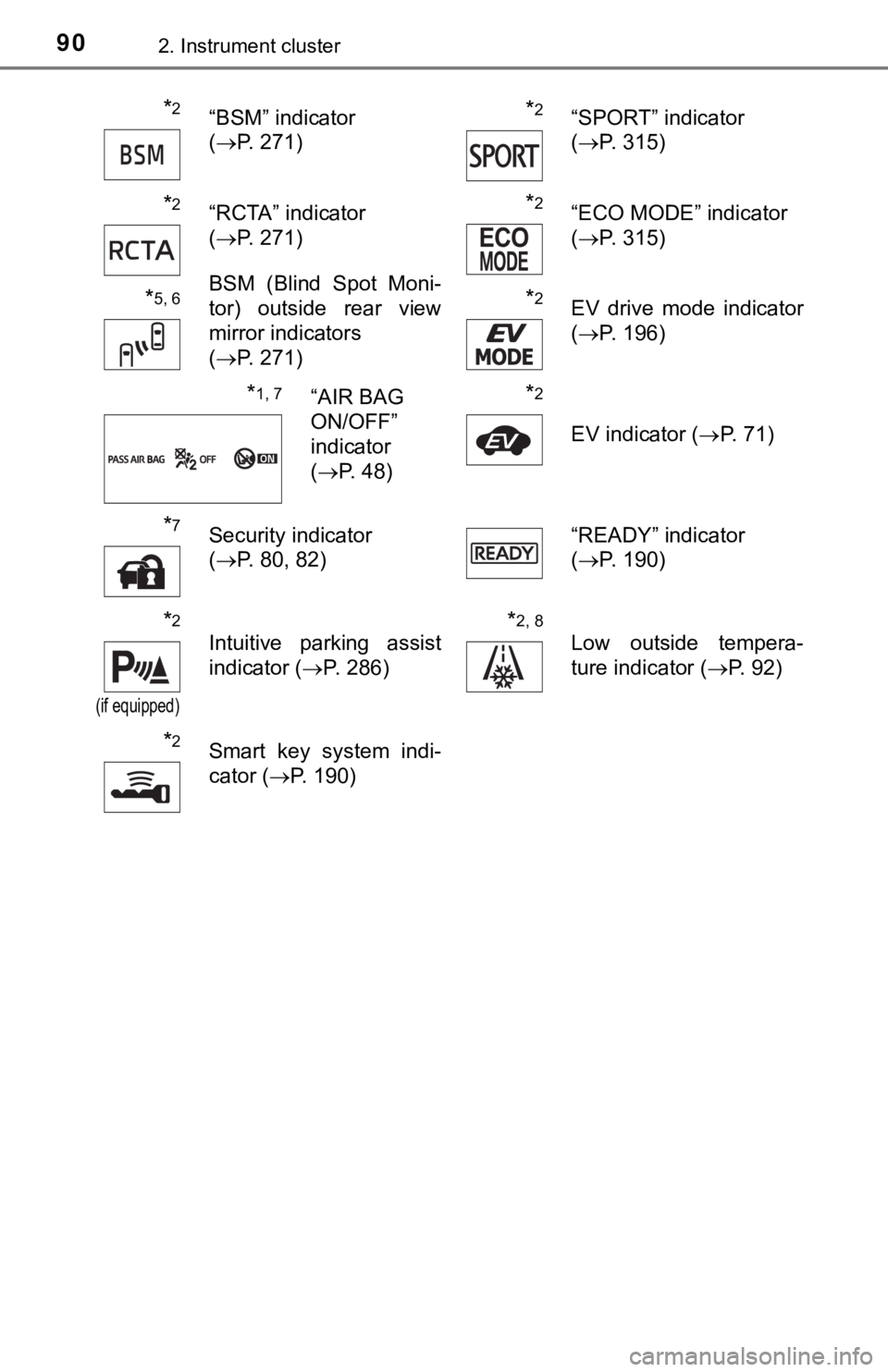

*2“BSM” indicator
(P. 271)*2“SPORT” indicator
(P. 315)
*2“RCTA” indicator
(P. 271)*2“ECO MODE” indicator
(P. 315)
*5, 6BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 271)*2EV drive mode indicator
(P. 196)
*1, 7“AIR BAG
ON/OFF”
indicator
(P. 48)*2
EV indicator ( P. 71)
*7Security indicator
(P. 80, 82) “READY” indicator
(
P. 190)
*2
(if equipped)
Intuitive parking assist
indicator ( P. 286)*2, 8
Low outside tempera-
ture indicator ( P. 92)
*2Smart key system indi-
cator (P. 190)
