1112. Instrument cluster
2
Instrument cluster
◆Changing settings
Use the meter control switches on the steering wheel to change
settings.
Press or to select .
Operate the switches to select a desired item.
Press or press and hold .
The available settings will differ depending on if is pressed or
pressed and held. Follow the instructions on the display.
◆Setting items
■ LDA (Lane Departure Alert with steering control) (P. 252)
Press and hold to change the settings of the following items:
Settings display ( )
1
2
3
ItemSettingsDetails
Steering assistOn
Select to enable/disable steering
wheel assistance.
Off
Alert sensitivity
(High)Select to set the warning sensi-
tivity.
(Normal)
Sway warningOnSelect to enable/disable the vehi-
cle sway warning.
Off
Sway sensitivity
(High)
Select to set the vehicle sway
warning sensitivity. (Normal)
(Low)

1122. Instrument cluster
■ PCS (Pre-Collision System) (P. 242)
Press to enable/disable the pre-collision system.
Press and hold to change the settings of the following item:
■ BSM (Blind Spot Monitor) (P. 276)
Press to enable/disable the Blind Spot Monitor function.
Press and hold to change the settings of the following item:
ItemSettingsDetails
PCSOn
Select to enable/disable the pre-
collision system.
Off
ItemSettingsDetails
Warning sensitivity
(Warning timing) (Far)
Select to change the warning
timing. (Middle)
(Near)
ItemSettingsDetails
BSMOn
Select to enable/disable the
Blind Spot Monitor function.
Off
ItemSettingsDetails
Outside rear view
mirror indicator
brightness (Bright)Select to change the brightness
of the outside rear view mirror
indicators.
(Dim)
Sensitivity
(Early)
Select to change the alert sensi-
tivity for an approaching vehicle.
(Interme-
diate)
(Late)
(Only
when
vehicle
detected
in blind
spot)

1132. Instrument cluster
2
Instrument cluster
■ RCTA (Rear Cross Traffic Alert) (P. 2 7 6 )
Press to enable/disable the Rear Cross Traffic Alert function.
Press and hold to change the settings of the following item:
■ ICS (Intelligent Clearance Sonar) (if equipped) (P. 300)
Press to enable/disable the Intelligent Clearance Sonar.
■ Parking assist (Intuitive parking assist) (if equipped)
(P. 292)
Press to enable/disable the Intuitive parking assist.
Press and hold to change the settings of the following item:
ItemSettingsDetails
RCTAOn
Select to enable/disable the Rear
Cross Traffic Alert function.
Off
ItemSettingsDetails
RCTA buzzer vol-
ume (Low)
Select to change the volume of
the RCTA buzzer.
(Medium)
(Loud)
ItemSettingsDetails
ICSOn Select to enable/disable the
Intelligent Clearance Sonar sys-
tem.
Off
ItemSettingsDetails
Intuitive parking
assistOn
Select to enable/disable the intui-
tive parking assist.
Off
ItemSettingsDetails
Vol u me (Low)
Select to change the volume of
the intuitive parking assist
buzzer. (Medium)
(Loud)

1142. Instrument cluster
■ HUD (Head-up display) (if equipped) (P. 121)
Press to enable/disable the head-up display.
Press and hold to change the settings of the following items:
ItemSettingsDetails
HUDOn
Select to enable/disable the
head-up display.
Off
ItemSettingsDetails
HUD Brightness/PositionSelect to adjust the brightness/
position of the head-up display.
• Press the / switch to
adjust the display brightness.
• Press the / switch to
adjust the display position.
HUD Driving sup-
port
Tachometer set-
tings
Select to change the display
between the following:
• Hybrid System Indicator
• Tachometer
• No content
Navigation sys-
tem
Select to enable/disable head-up
display content.
Driving Assist
Compass
RotationSelect to adjust the angle of the
head-up display.
Press the / switch to
adjust the display angle.

1152. Instrument cluster
2
Instrument cluster
■ Vehicle settings
Press and hold to change the settings of the following items:
ItemSettingsDetails
TPWS (Tire pressure warning system) (P. 416)
Set pressure (tire pressure warning sys-
tem initialization)
Select to initialize the tire pres-
sure warning system. To per-
form initialization, press and hold
the switch.
Before performing initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (P. 417)
Change wheel (register tire pressure
warning system sensor ID codes)
Select to register the ID codes of
the tire pressure sensors to the
tire pressure warning system. To
register the ID codes, press and
hold the switch.
(P. 419)
Scheduled maintenance display
Maintenance data reset
Select to reset the message indi-
cating maintenance is required,
after the required maintenance is
performed. (P. 393)

1162. Instrument cluster

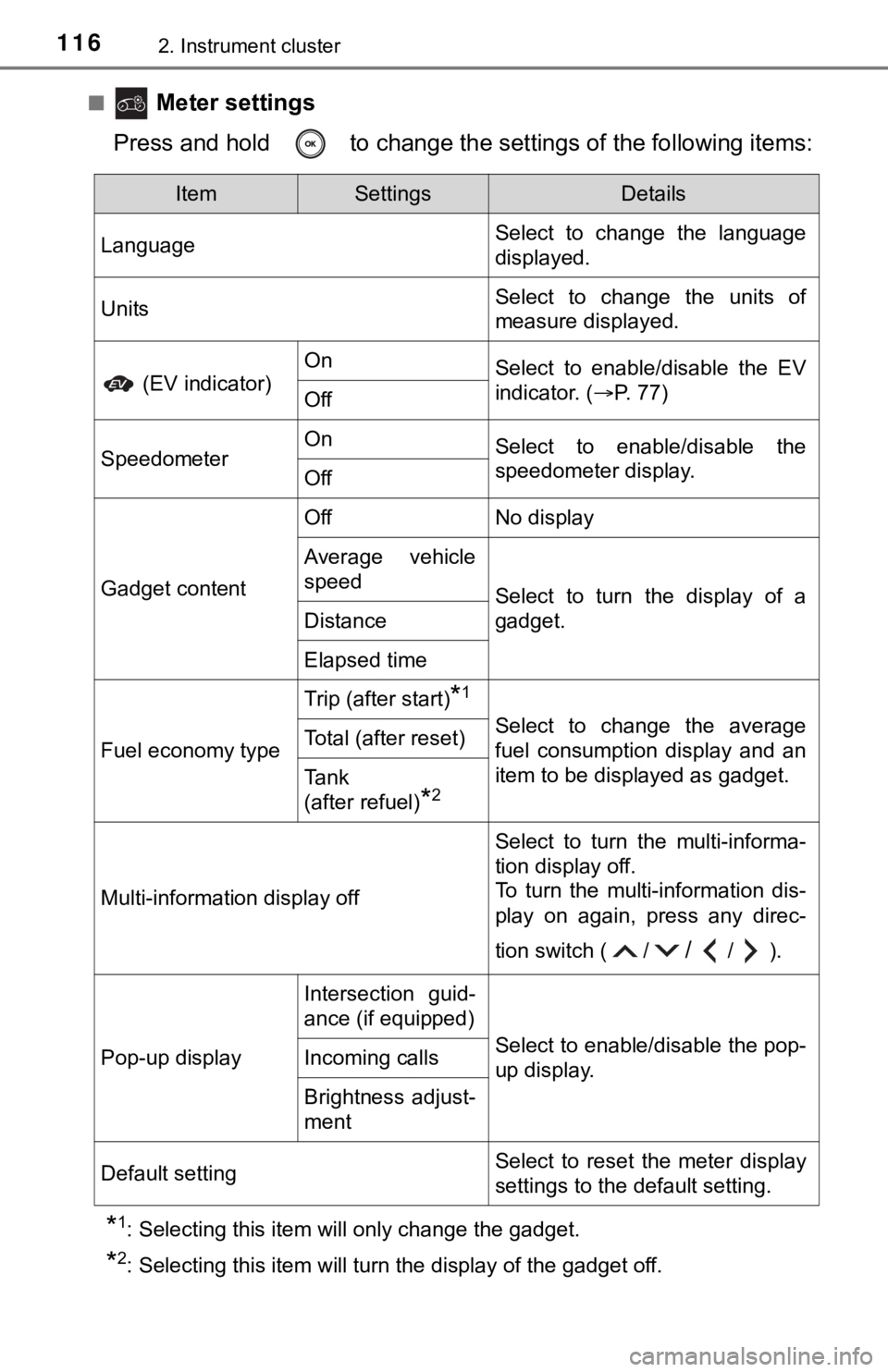

■ Meter settings
Press and hold to change the settings of the following items:
*1: Selecting this item will only change the gadget.
*2: Selecting this item will turn the display of the gadget off.
ItemSettingsDetails
LanguageSelect to change the language
displayed.
UnitsSelect to change the units of
measure displayed.
(EV indicator)
OnSelect to enable/disable the EV
indicator. (P. 77)
Off
SpeedometerOnSelect to enable/disable the
speedometer display.
Off
Gadget content
OffNo display
Average vehicle
speed
Select to turn the display of a
gadget.
Distance
Elapsed time
Fuel economy type
Trip (after start)*1
Select to change the average
fuel consumption display and an
item to be displayed as gadget.Total (after reset)
Tank
(after refuel)
*2
Multi-information display off
Select to turn the multi-informa-
tion display off.
To turn the multi-information dis-
play on again, press any direc-
tion switch ( /
//).
Pop-up display
Intersection guid-
ance (if equipped)
Select to enable/disable the pop-
up display.Incoming calls
Brightness adjust-
ment
Default settingSelect to reset the meter display
settings to the default setting.

1172. Instrument cluster
2
Instrument cluster
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.
Odometer/trip meter

1182. Instrument cluster
Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.
The suggestion function can be turned on/off.
(Customizable features:P. 526)
■
Suggestion to turn off the headlights
If the headlights are left on for a certain amount of time after the
power switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.
If a front door is opened after the power switch is turned off, this sugges-
tion message will not be displayed.
Suggestion function

1192. Instrument cluster
2
Instrument cluster
■The Eco guide will not operate when
The Eco guide will not operate in the following situations:
●The Hybrid System Indicator is not operating.
●The vehicle is being driven using the dynamic radar cruise control with full-
speed range.
■Suspension of the settings display
●Some settings cannot be changed while driving. When changing settings,
park the vehicle in a safe place.
●If a warning message is displayed, operation of the settings display will be
suspended.
■Tire pressure
●It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to dis-
<0053004f0044005c00030057004b004800030057004c005500480003004c00510049004f00440057004c005200510003005300550048005600560058005500480003004400490057004800550003004c00510049004f00440057004c005200510003005300
550048005600560058005500480003004b0044005600030045[een adjusted.
●“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■Customization
Some functions can be customized. (P. 111, 526)

1202. Instrument cluster
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■Cautions during setting up the display
As the hybrid system needs to be running during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.
