Page 321 of 1690

TOYOTA AVENSIS 2002  Repair Manual B66894
B56613
1
2
B70122
Screw
B57102
B68928
75±12
± ENGINE HOOD/DOORFRONT DOOR
AVENSIS REPAIR MANUAL   (RM1018E)
18. REMOVE FRONT DOOR W/MOTOR LOCK ASSY LH
(a) Disconnect the door lock connector.
(

Page 322 of 1690

TOYOTA AVENSIS 2002  Repair Manual B68928
Adhesive
B70122
Screw
B64044
1 2
± ENGINE HOOD/DOORFRONT DOOR
75±13
AVENSIS REPAIR MANUAL   (RM1018E)
22. REMOVE FRONT DOOR WEATHERSTRIP LH
(a) Using a clip remover, disengage the clips and r

Page 323 of 1690

TOYOTA AVENSIS 2002  Repair Manual B65961
Rod
B66894
Adhesive
Adhesive
B68932Hole Plug
B62425
B66972
75±14
± ENGINE HOOD/DOORFRONT DOOR
AVENSIS REPAIR MANUAL   (RM1018E)

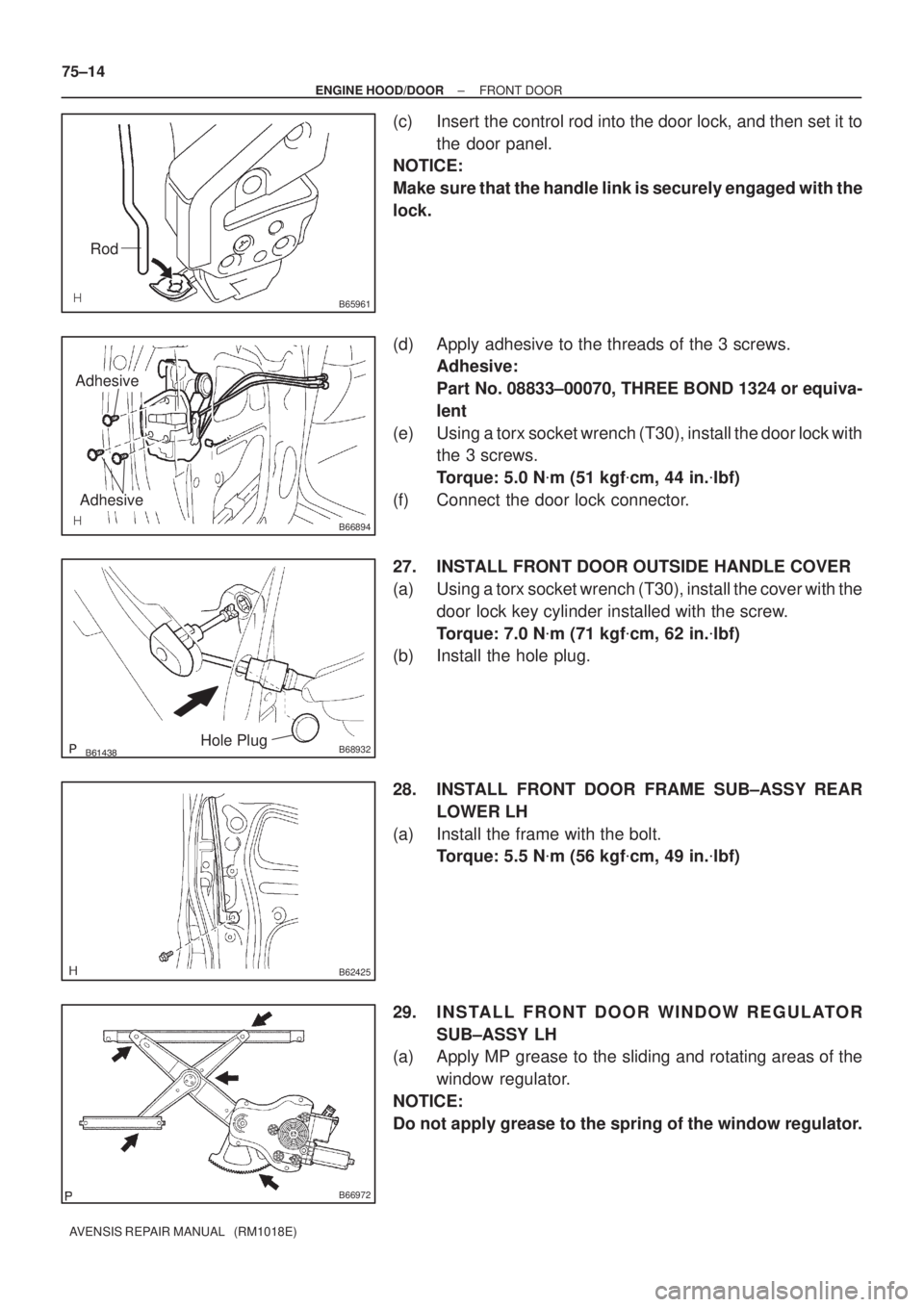

(c) Insert the control rod into the door lock, and then s

Page 324 of 1690

TOYOTA AVENSIS 2002  Repair Manual B66968
B62423
1
2
B62422
B61441
±
ENGINE HOOD/DOOR FRONT DOOR
75±15
AVENSIS REPAIR MANUAL   (RM1018E)

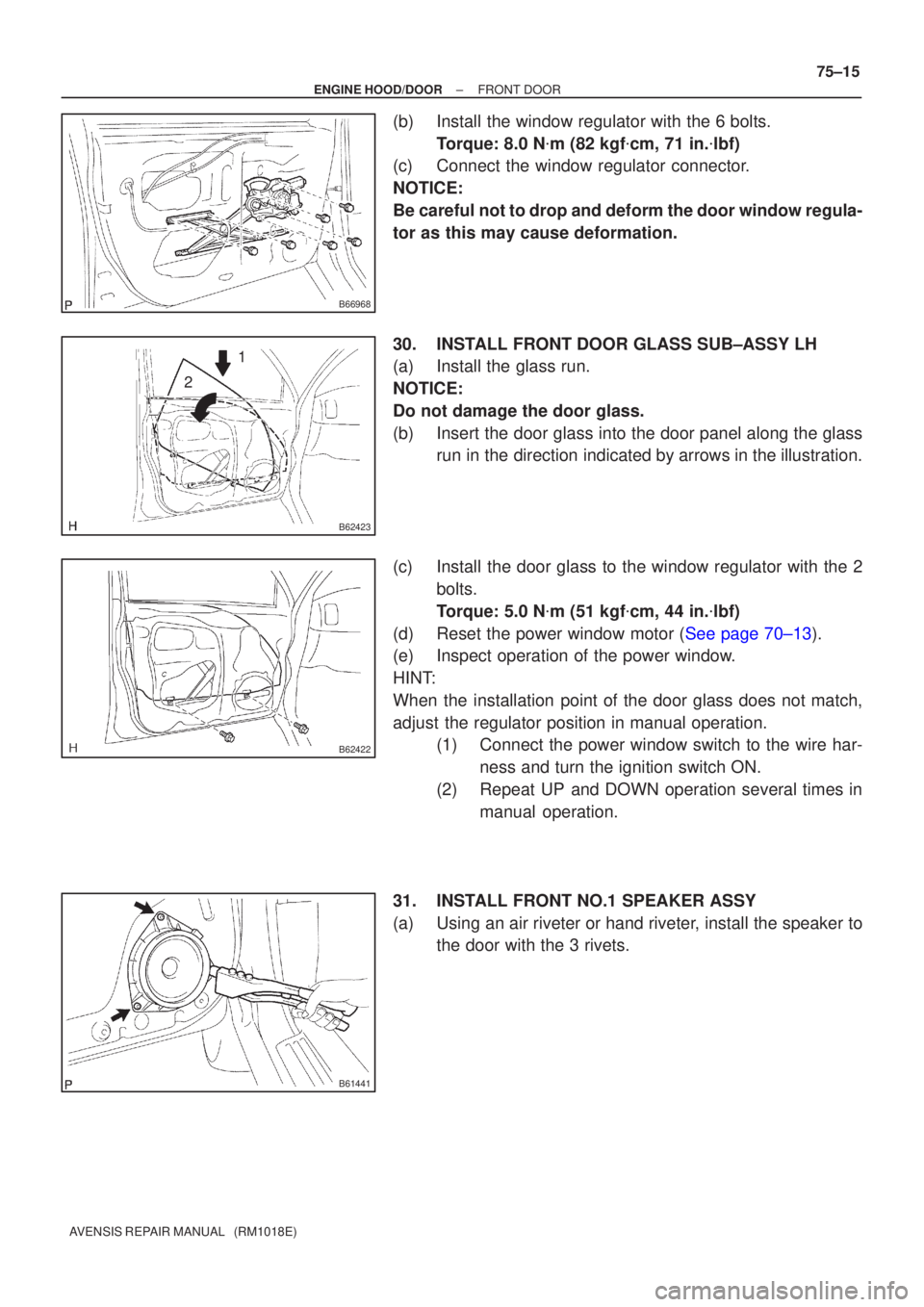

(b)Install the window regulator with the 6 bolts.
Torque: 8.0 N m (82 kgf cm, 71 in. lbf)
(c)

Page 325 of 1690

TOYOTA AVENSIS 2002  Repair Manual H02440Mandrel
RiveterWRONG
H02441
Riveter
Riveter
WRONG
WRONG
H02442
Riveter
WRONG
B68929
B69067
Butyl Tape
75±16
± ENGINE HOOD/DOORFRONT DOOR
AVENSIS REPAIR MANUAL   (RM1018E)

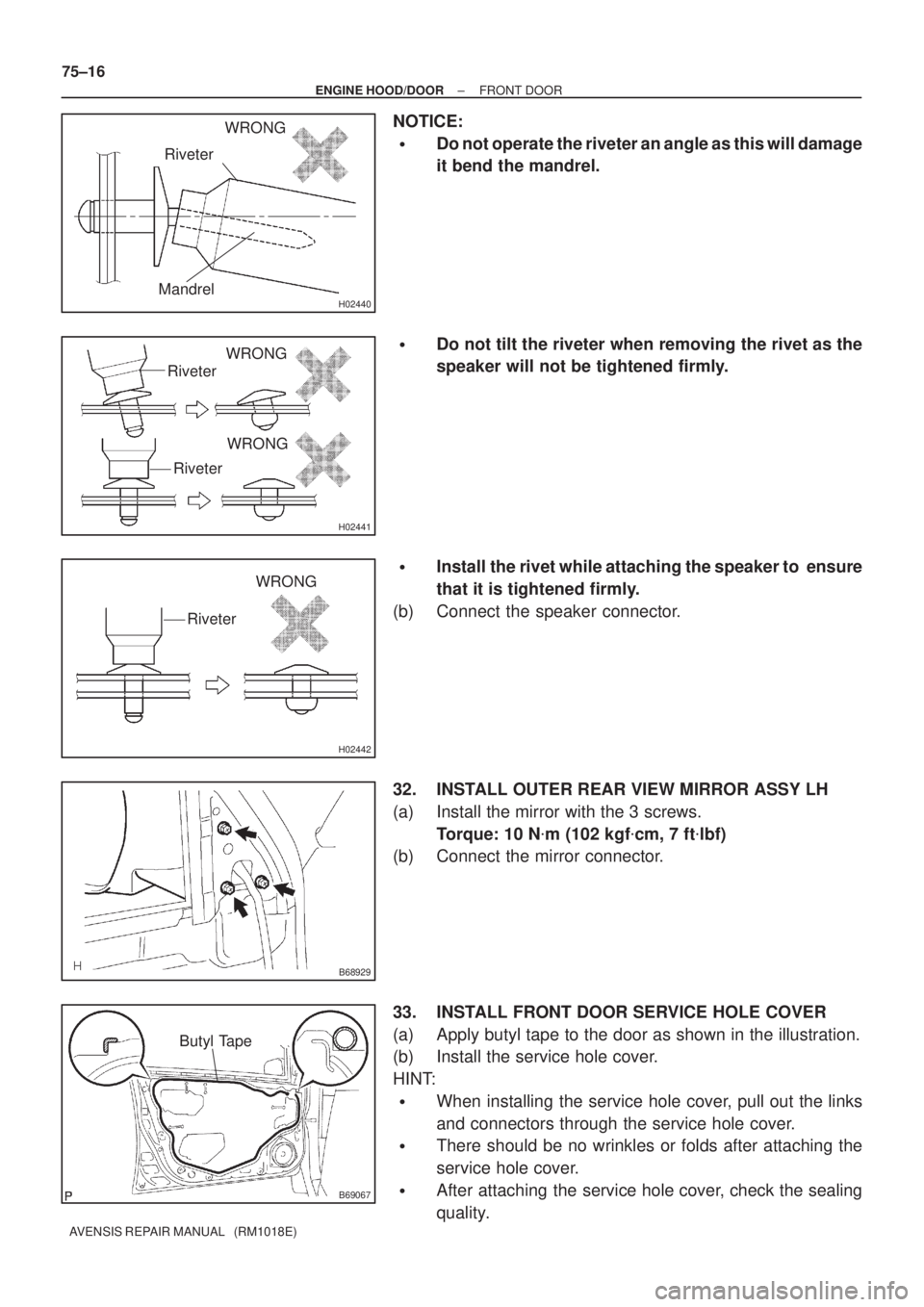

NOTICE:
Do not opera

Page 326 of 1690

TOYOTA AVENSIS 2002  Repair Manual B66981
± ENGINE HOOD/DOORFRONT DOOR
75±17
AVENSIS REPAIR MANUAL   (RM1018E)

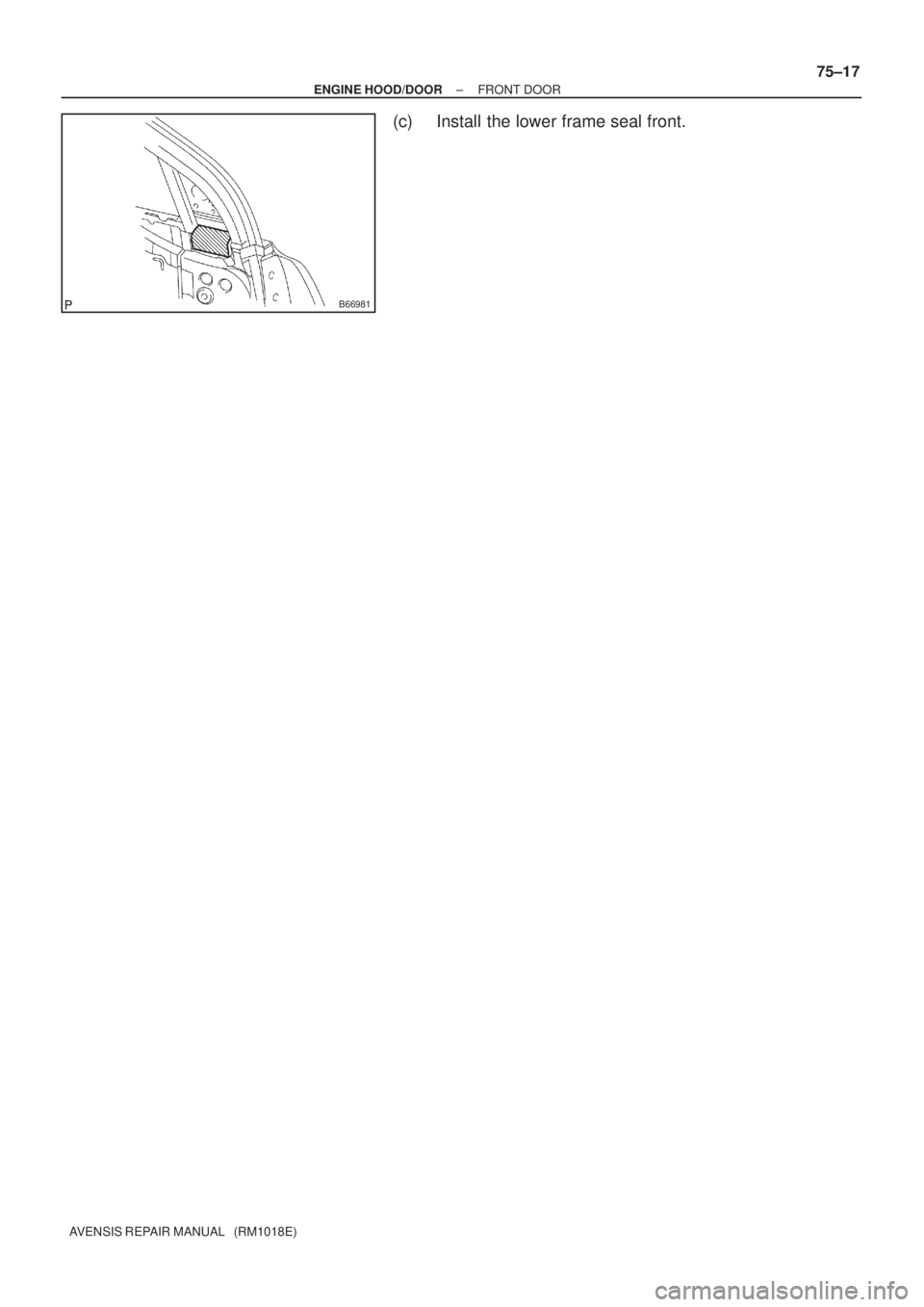

(c) Install the lower frame seal front.

Page 327 of 1690

TOYOTA AVENSIS 2002  Repair Manual 750MT±01
B67533

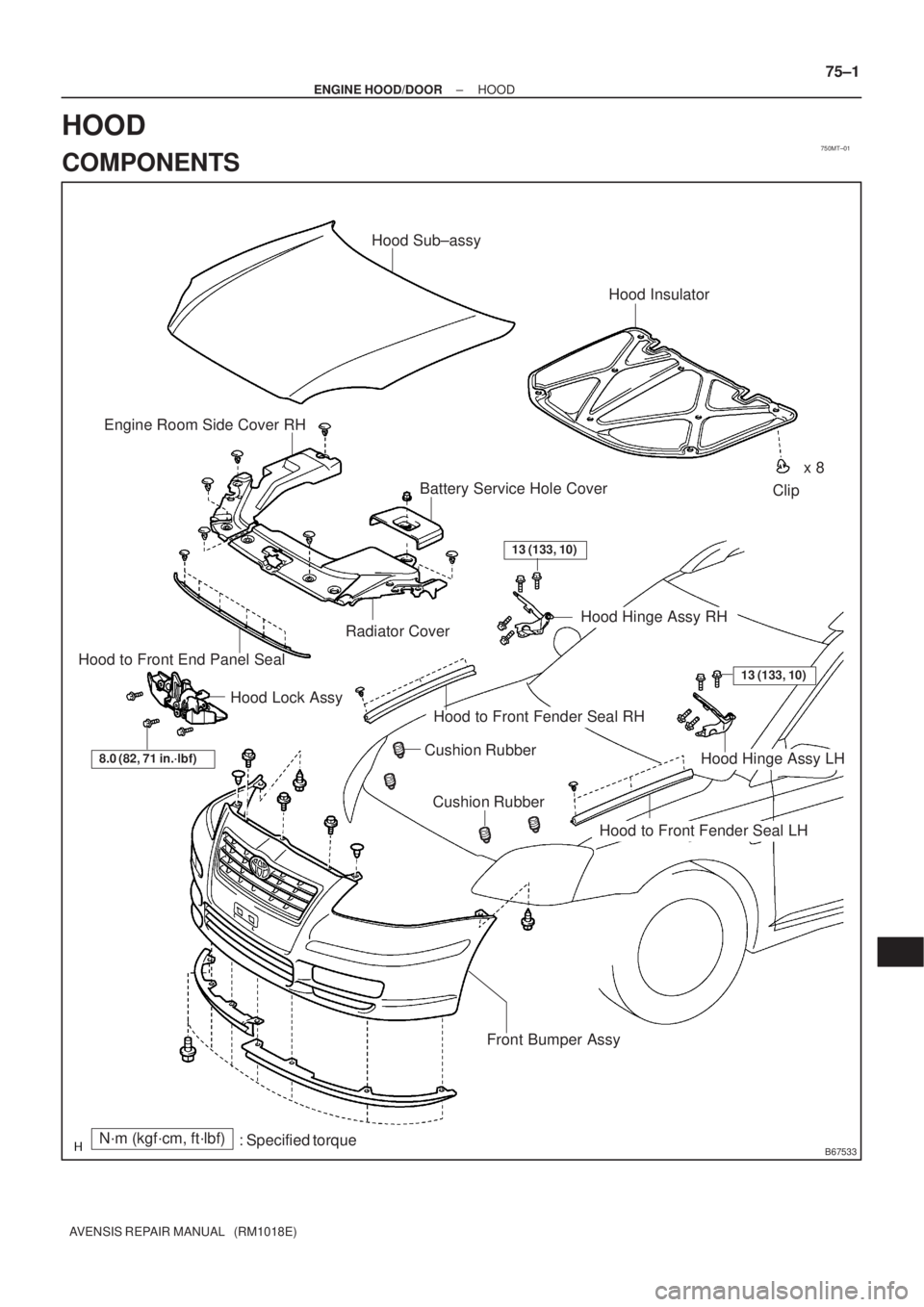

Hood Sub±assy
Hood Insulator
Engine Room Side Cover RH
Radiator CoverBattery Service Hole Cover
Hood Hinge Assy RH
Hood to Front Fender Seal RH Hood Lock Assy
Front Bumper Assy
Hood

Page 328 of 1690

TOYOTA AVENSIS 2002  Repair Manual 750MU±01
B57104
Centering BoltStandard Bolt
B66962
AB
B61420
75±2
± ENGINE HOOD/DOORHOOD
AVENSIS REPAIR MANUAL   (RM1018E)

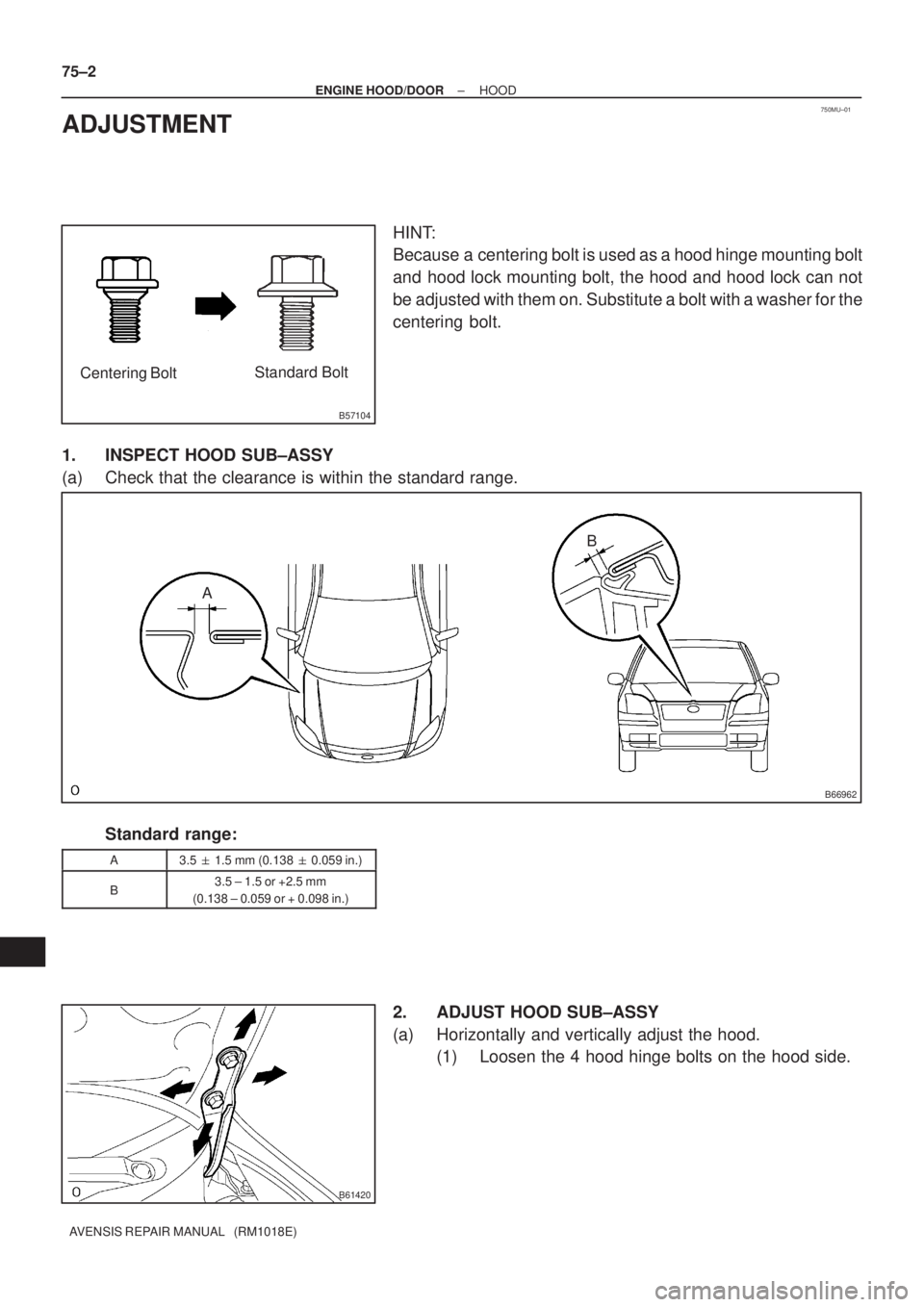

ADJUSTMENT
HINT:
Because a centering bolt is used as a hood hinge mounting

Page 329 of 1690

TOYOTA AVENSIS 2002  Repair Manual B66963
A
Aligned
B66964
B62401
±
ENGINE HOOD/DOOR HOOD
75±3
AVENSIS REPAIR MANUAL   (RM1018E)

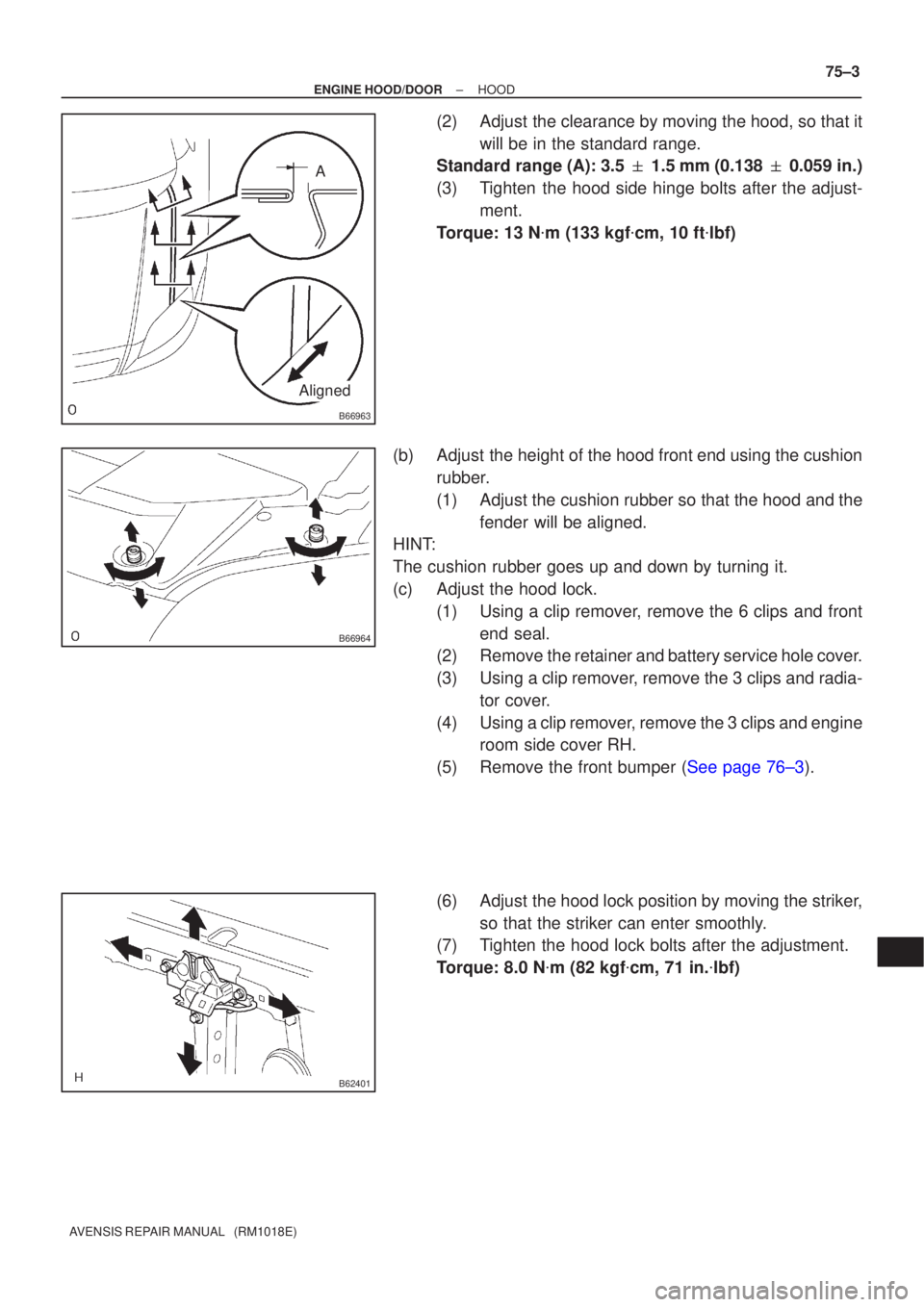

(2)Adjust the clearance by moving the hood, so that it
will be in the standard range.
Standard range (A)

Page 330 of 1690

TOYOTA AVENSIS 2002  Repair Manual 750N1±01
B66985

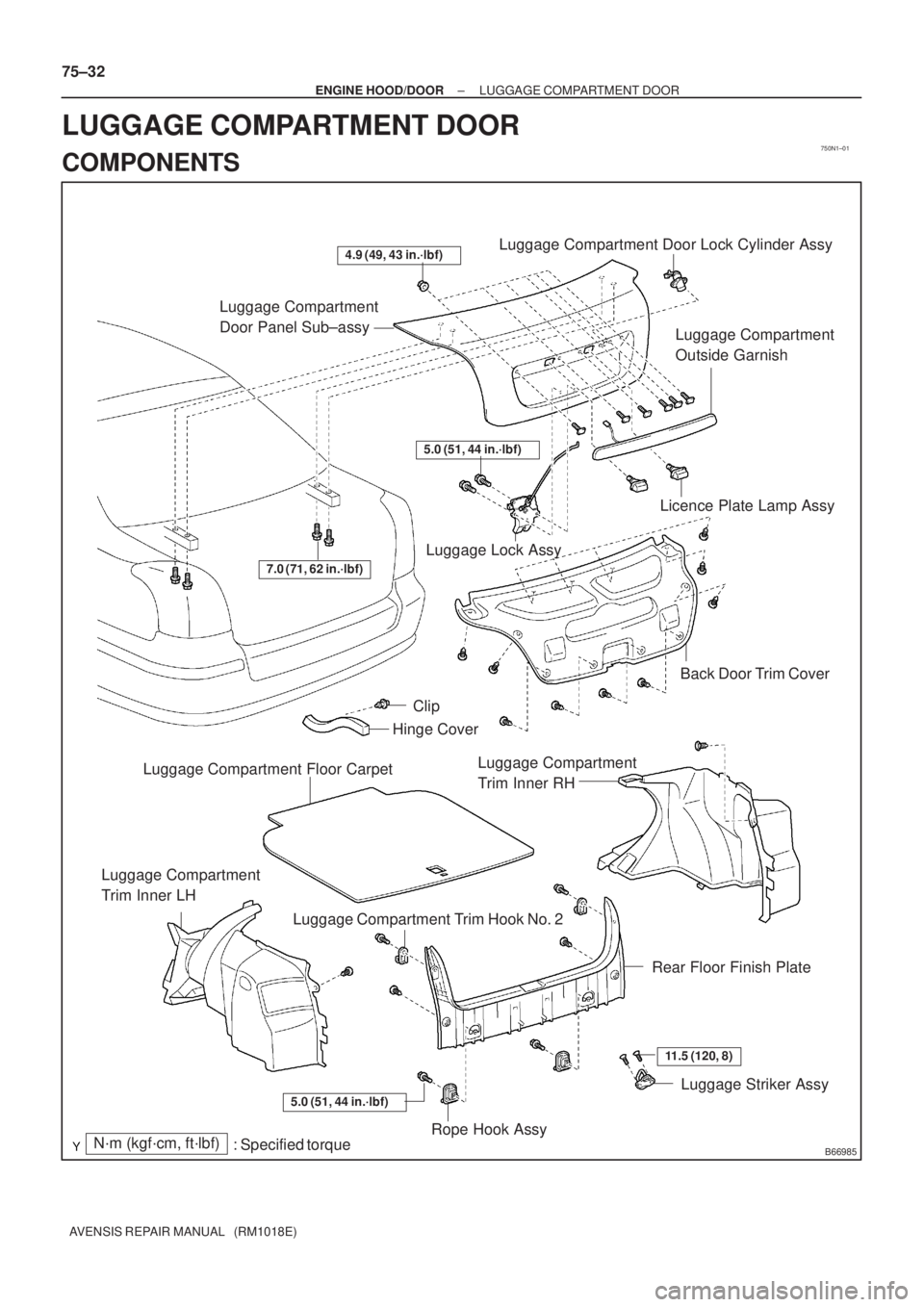

Luggage Compartment
Door Panel Sub±assy
Luggage Compartment
Outside Garnish
Licence Plate Lamp Assy Luggage Compartment Door Lock Cylinder Assy
Luggage Compartment Trim Hook No. 2
