A77392
Seal Packing6mm
A64641
A77393
SST
A77394
Raise
PinHook
Push 14±150
± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
48. INSTALL OIL PAN SUB±ASSY
NOTICE:
Remove any oil from the contact surface.
Install the oil pan within 3 minutes after applying seal
packing.
Do not start the engine within 2 hours after installing.
(a) Remove any old packing (FIPG) material and be careful
not to drop any oil on the contact surface of the cylinder
block and oil pan.
(b) Apply a continuous bead (Diameter 3 mm to 4 mm (0.157
in.)) of seal packing as shown in the illustration, and install
the oil pan.
Seal packing: part No. 08826 ± 00080 or equivalent
(c) Install the oil pan with the 12 bolts and 2 nuts.
Torque: 9.0 Nm (92 kgfcm, 80 in.lbf)
49. INSTALL CRANKSHAFT POSITION SENSOR
50. INSTALL CRANKSHAFT PULLEY
(a) Using SST, tighten the set bolt.
SST 09213±54015 (91651±60855), 09330±00021
Torque: 170 Nm (1,733 kgfcm, 125 ftlbf)
51. INSTALL CHAIN TENSIONER ASSY NO.1
(a) Release the ratchet pawl, fully push in the plunger and ap-
ply the hook to the pin so that the plunger is located in
position.
Page 412 of 1690
A77395
Engine
Front
A77396
Hook
Pin
Turn
Disconnect
A77397
Push
Turn
Plunger
A77398
A
B
A
A
± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FE)
14±151
AVENSIS REPAIR MANUAL (RM1018E)

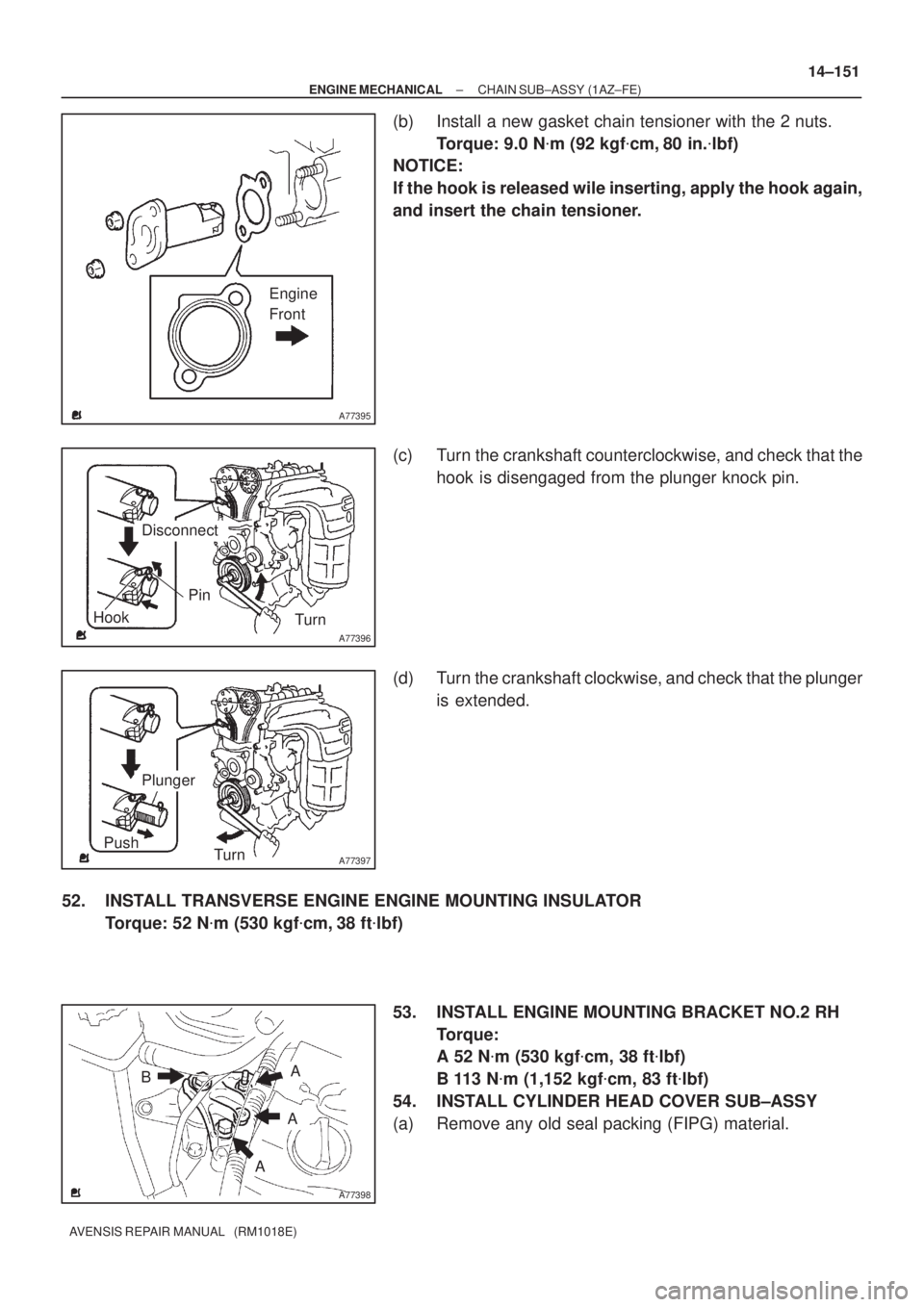

(b) Install a new gasket chain tensioner with the 2 nuts.
Torque: 9.0 Nm (92 kgfcm, 80 in.lbf)
NOTICE:
If the hook is released wile inserting, apply the hook again,
and insert the chain tensioner.
(c) Turn the crankshaft counterclockwise, and check that the
hook is disengaged from the plunger knock pin.
(d) Turn the crankshaft clockwise, and check that the plunger
is extended.
52. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR
Torque: 52 Nm (530 kgfcm, 38 ftlbf)
53. INSTALL ENGINE MOUNTING BRACKET NO.2 RH
Torque:
A 52 Nm (530 kgfcm, 38 ftlbf)
B 113 Nm (1,152 kgfcm, 83 ftlbf)
54. INSTALL CYLINDER HEAD COVER SUB±ASSY
(a) Remove any old seal packing (FIPG) material.
Page 413 of 1690
A77399
Seal Packing
A77400NutNut
A
BC
A A
AAB
14±152
±
ENGINE MECHANICAL CHAIN SUB±ASSY(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

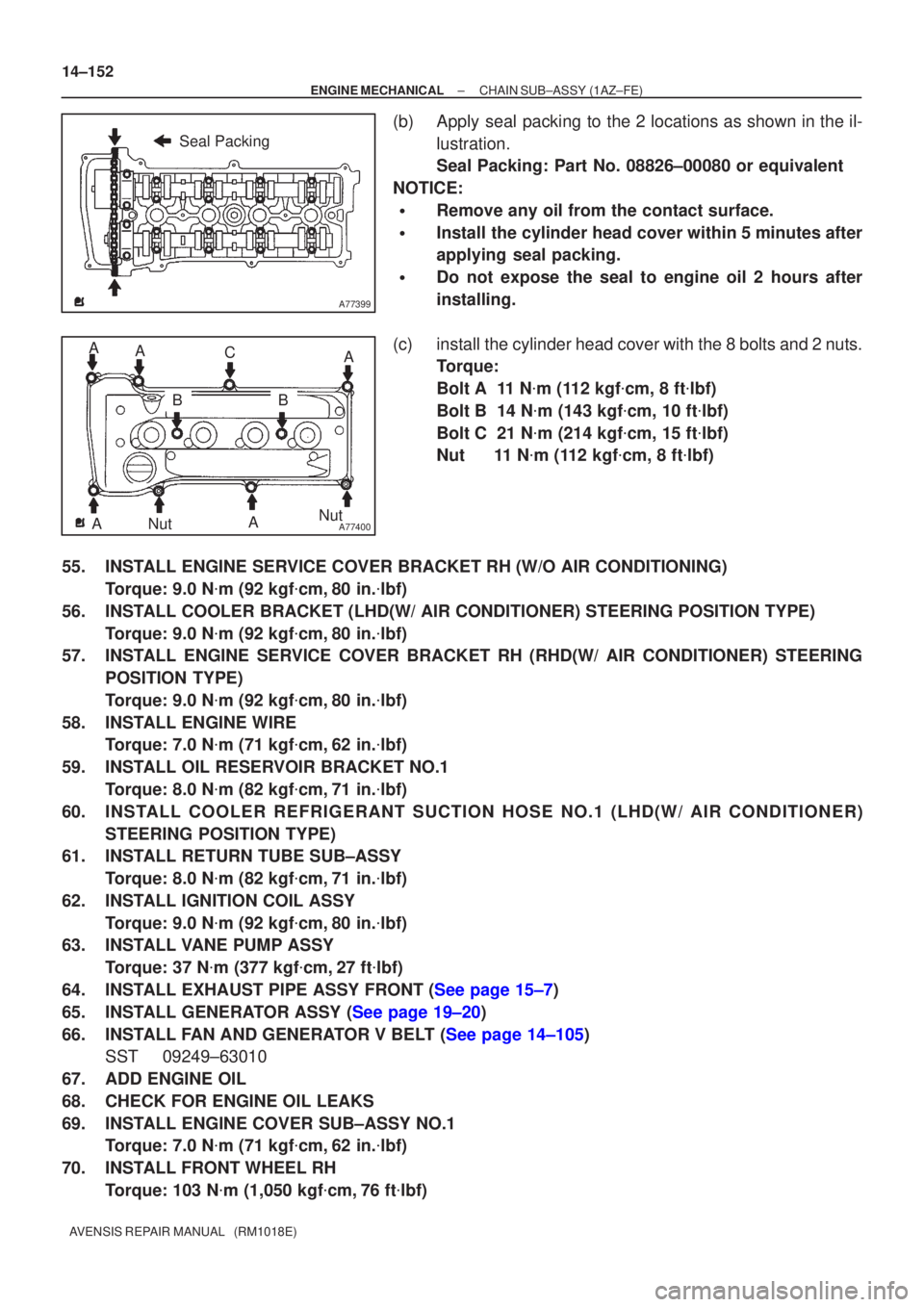

(b)Apply seal packing to the 2 locations as shown in the il- lustration.
Seal Packing: Part No. 08826±00080 or equivalent
NOTICE:
Remove any oil from the contact surface.
Install the cylinder head cover within 5 minutes after
applying seal packing.
Do not expose the seal to engine oil 2 hours after
installing.
(c)install the cylinder head cover with the 8 bolts and 2 nuts. Torque:
Bolt A 11 N m (112 kgf cm, 8 ft lbf)
Bolt B 14 N m (143 kgf cm, 10 ft lbf)
Bolt C 21 N m (214 kgf cm, 15 ft lbf)
Nut 11 N m (112 kgf cm, 8 ft lbf)
55.INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING) Torque: 9.0 N m (92 kgf cm,80 in. lbf)
56.INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N m (92 kgf cm,80 in. lbf)
57.INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING
POSITION TYPE)
Torque: 9.0 N m (92 kgf cm,80 in. lbf)
58.INSTALL ENGINE WIRE Torque: 7.0 N m (71 kgf cm,62 in. lbf)
59.INSTALL OIL RESERVOIR BRACKET NO.1 Torque: 8.0 N m (82 kgf cm,71 in. lbf)
60.IN STALL COOL ER REFRIGERANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITION ER)
STEERING POSITION TYPE)
61.INSTALL RETURN TUBE SUB±ASSY
Torque: 8.0 N m (82 kgf cm,71 in. lbf)
62.INSTALL IGNITION COIL ASSY Torque: 9.0 N m (92 kgf cm,80 in. lbf)
63.INSTALL VANE PUMP ASSY
Torque: 37 N m (377 kgf cm,27 ft lbf)
64.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±7)
65.INSTALL GENERATOR ASSY (See page 19±20)
66.INSTALL FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
67. ADD ENGINE OIL
68. CHECK FOR ENGINE OIL LEAKS
69. INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
70. INSTALL FRONT WHEEL RH Torque: 103 N m (1,050 kgf cm, 76 ft lbf)
Page 414 of 1690
141BC±01
A77310
Engine Cover Sub±assy No. 1
Radiator Support
Opening Cover
Engine Room
Cover Side
Fan and Generator V Belt
Engine Under Cover RH
Engine Under Cover LH
N´m (kgf´cm, ft´lbf)
: Specified torque
7.0 (71, 62 in.lbf)
7.0 (71, 62 in.lbf)
14±218
± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
CHAIN SUB±ASSY (1AZ±FSE)
COMPONENTS
Page 415 of 1690

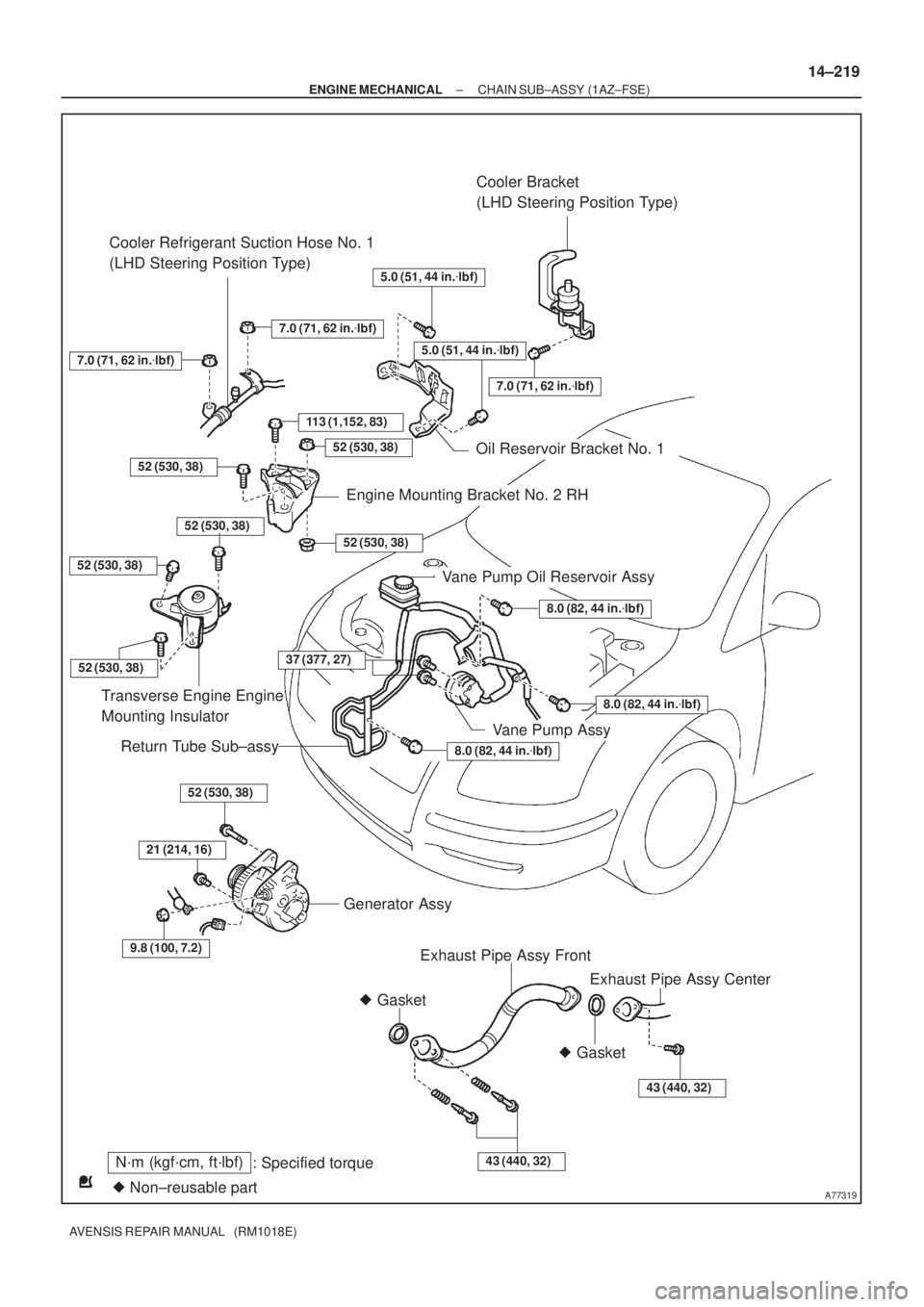

A77319
N´m (kgf´cm, ft´lbf)
: Specified torque
Non±reusable part GasketCooler Bracket
(LHD Steering Position Type)
113 (1,152, 83)
Cooler Refrigerant Suction Hose No. 1
(LHD Steering Position Type)
8.0 (82, 44 in.lbf)
8.0 (82, 44 in.lbf)
8.0 (82, 44 in.lbf)
52 (530, 38)
Transverse Engine Engine
Mounting Insulator
Vane Pump Oil Reservoir Assy
Return Tube Sub±assy
52 (530, 38)
21 (214, 16)
9.8 (100, 7.2)
Generator Assy
Exhaust Pipe Assy Front
43 (440, 32)
Gasket
43 (440, 32)
7.0 (71, 62 in.lbf)
52 (530, 38)
7.0 (71, 62 in.lbf)
Oil Reservoir Bracket No. 1
52 (530, 38)
52 (530, 38)
Engine Mounting Bracket No. 2 RH
7.0 (71, 62 in.lbf)
5.0 (51, 44 in.lbf)
5.0 (51, 44 in.lbf)
52 (530, 38)
Exhaust Pipe Assy Center
52 (530, 38)
Vane Pump Assy
37 (377, 27)
± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FSE)
14±219
AVENSIS REPAIR MANUAL (RM1018E)
Page 416 of 1690

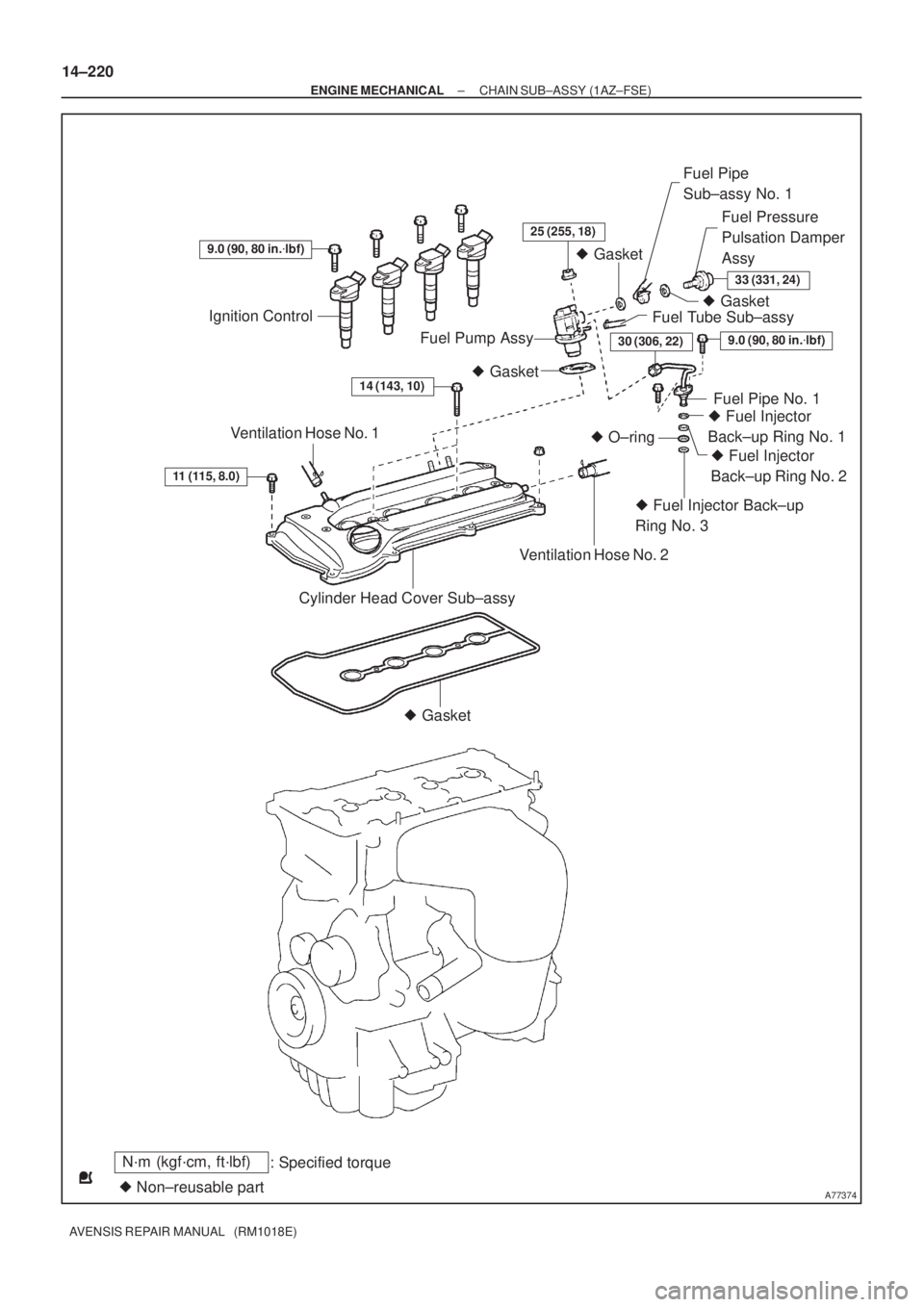

A77374
N´m (kgf´cm, ft´lbf)
: Specified torque
Non±reusable part Gasket
Cylinder Head Cover Sub±assy
11 (115, 8.0)
Ventilation Hose No. 1 Gasket
Fuel Tube Sub±assy Gasket Fuel Pipe
Sub±assy No. 1
Fuel Pressure
Pulsation Damper
Assy
Fuel Pump Assy
Gasket14 (143, 10)
Ignition Control
9.0 (90, 80 in.lbf)
9.0 (90, 80 in.lbf)
O±ring
Ventilation Hose No. 2
33 (331, 24)
25 (255, 18)
Fuel Pipe No. 1
Fuel Injector
Back±up Ring No. 1
Fuel Injector Back±up
Ring No. 3 Fuel Injector
Back±up Ring No. 2
30 (306, 22)
14±220
± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
Page 417 of 1690
A77321
N´m (kgf´cm, ft´lbf)
: Specified torque
Non±reusable part
43 (440, 32)
Gasket
Chain Tensioner Assy No. 1
Timing Chain or Belt Cover
Sub±assy
Crankshaft Position
Sensor
9.0 (90, 80 in.lbf)
V±ribbed Belt
Tensioner Assy
60 (610, 44)
60 (610, 44)
43 (440, 32)
43 (440, 32)
170 (1,735, 125)
Crank Shaft Pulley
Oil Seal
43 (440, 32)
Chain Sub±assy
Chain Tensioner
Slipper
Chain Vibration
Damber No. 1
Crankshaft
Timing Gear
or Sprocket
19 (195, 14)
Crankshaft Position
Sensor Plate No. 1
Timing Chain Guide
Oil Pump
Drive Gear
12 (122, 9.0)
Spring
Chain Tensioner
Oil Pump Drive Shaft Gear
Oil Pan Sub±assy
9.0 (90, 80 in.lbf)
9.0 (90, 80 in.lbf)
9.0 (90, 80 in.lbf)
30 (301, 22)
No. 2 Chain Sub±assy
9.0 (90, 80 in.lbf)
9.0 (90, 80 in.lbf)
± ENGINE MECHANICALCHAIN SUB±ASSY (1AZ±FSE)
14±221
AVENSIS REPAIR MANUAL (RM1018E)
Page 418 of 1690
141CH±01
A79321
Clip
Engine Room Side Cover RH
Retainer Clip
Radiator Cover Assy
Clip
Engine Under Cover RH
Engine Under Cover No. 1
Clip
± ENGINE MECHANICALCHAIN SUB±ASSY (1ZZ±FE/3ZZ±FE)
14±45
AVENSIS REPAIR MANUAL (RM1018E)
CHAIN SUB±ASSY (1ZZ±FE/3ZZ±FE)
COMPONENTS
Page 419 of 1690

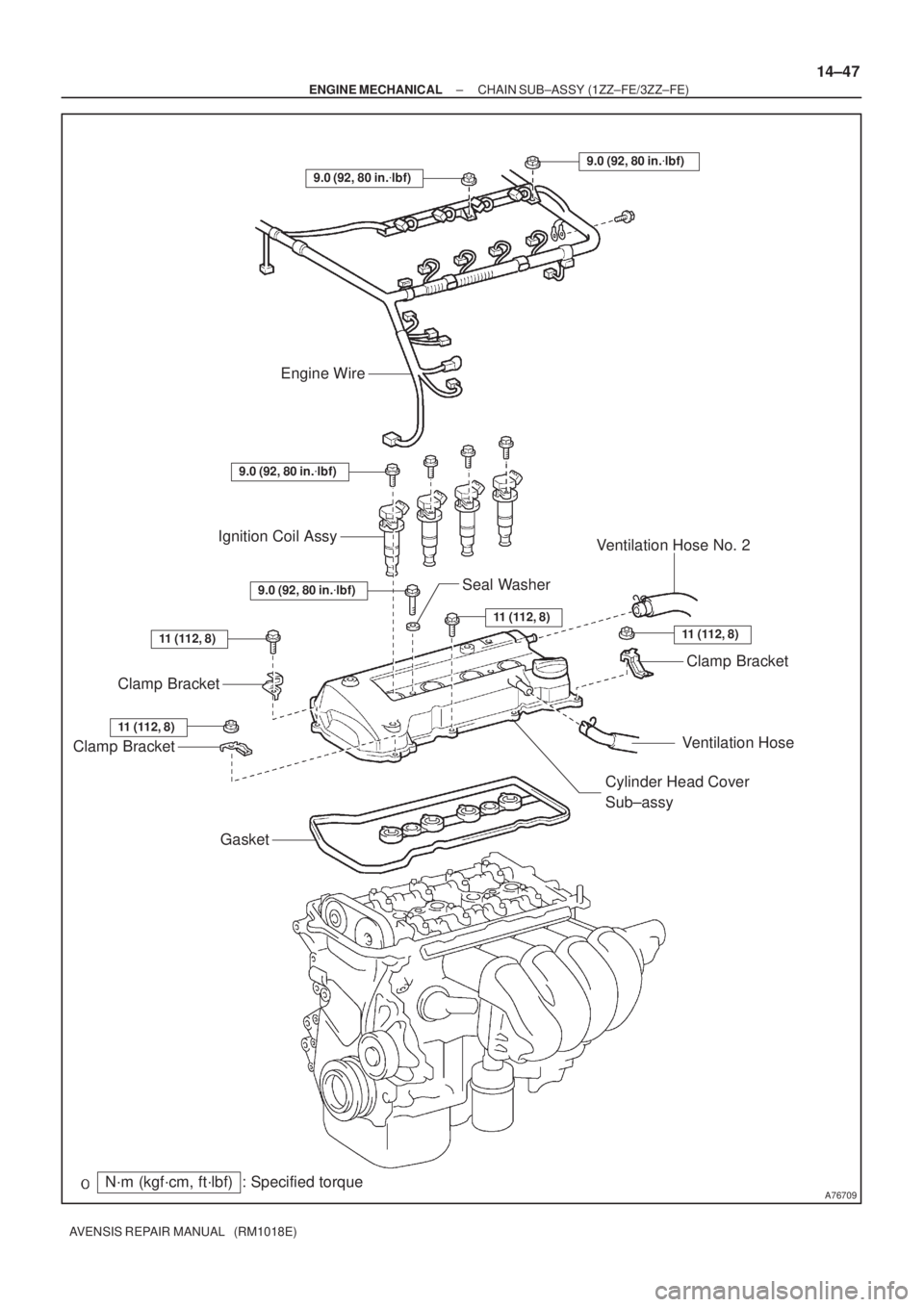

A76708
Fan and Generator V Belt
V±Ribbed Idler Assy No. 1
Generator Assy Terminal Cap
No. 1
Cylinder Head Cover No. 2 Clip
Engine Mounting
Insulator RH
N´m (kgf´cm, ft´lbf) : Specified torque
54 (551, 40)
25 (255, 18)
39.2 (400, 29)
7.0 (71, 62 in.lbf)52 (530, 38)
52 (530, 38)
9.8 (100, 7)
Tube 14±46
± ENGINE MECHANICALCHAIN SUB±ASSY (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
Page 420 of 1690
A76709
Ventilation Hose No. 2
Clamp Bracket
Ventilation Hose Ignition Coil AssyEngine Wire
Clamp Bracket
Clamp Bracket
Gasket
Cylinder Head Cover
Sub±assy
Seal Washer
N´m (kgf´cm, ft´lbf) : Specified torque
9.0 (92, 80 in.lbf)
9.0 (92, 80 in.lbf)
9.0 (92, 80 in.lbf)
9.0 (92, 80 in.lbf)
11 (112, 8)
11 (112, 8)11 (112, 8)
11 (112, 8)
± ENGINE MECHANICALCHAIN SUB±ASSY (1ZZ±FE/3ZZ±FE)
14±47
AVENSIS REPAIR MANUAL (RM1018E)
