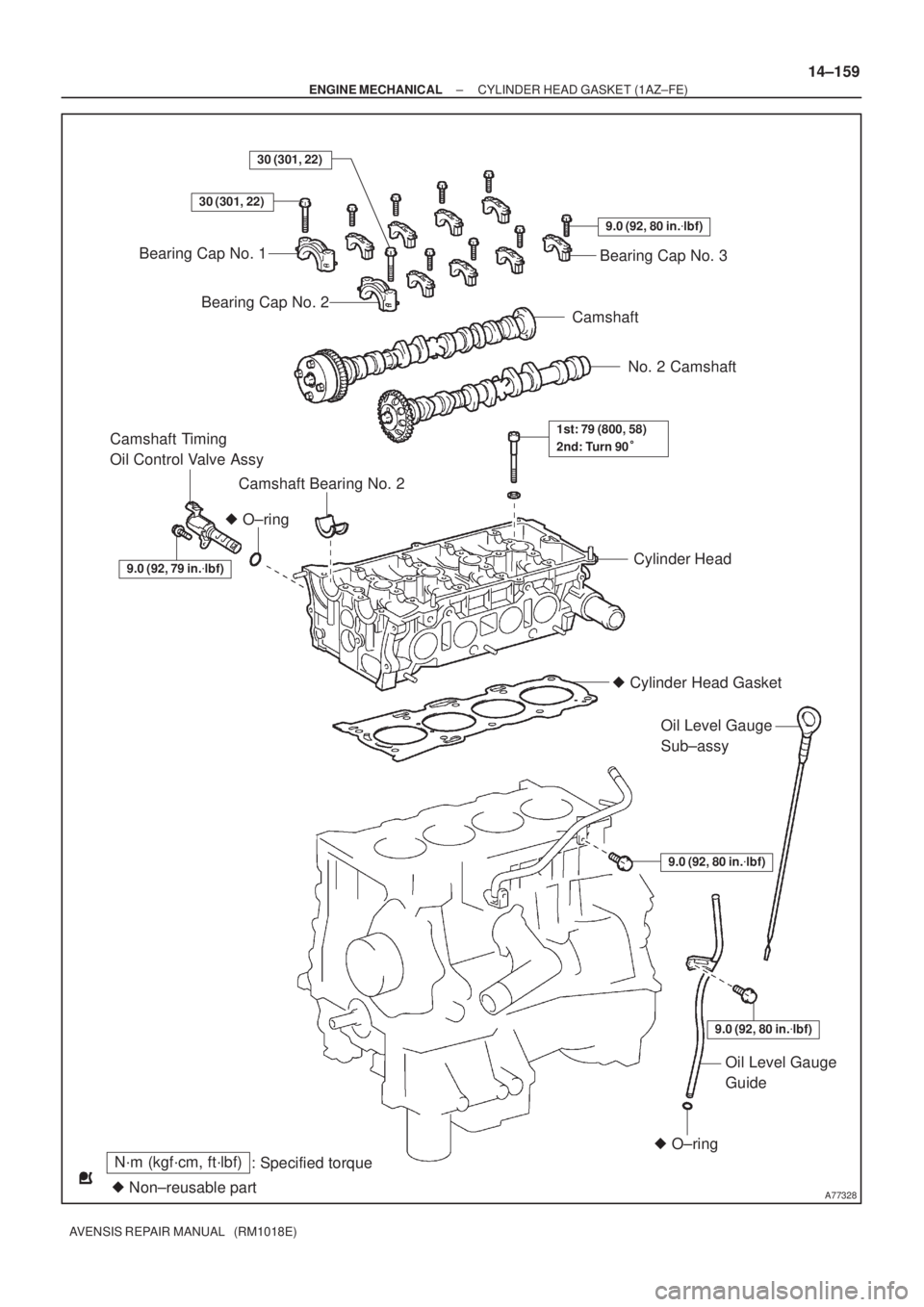

TOYOTA AVENSIS 2002 Repair Manual

A77328
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
30 (301, 22)

O±ring
Bearing Cap No. 1
Bearing Cap No. 2
9.0 (92, 80 in.
lbf)
Bearing Cap No. 3
Camshaft
No. 2 Camshaft
Camshaft Bearing No. 2
Camshaft Timing
Oil Control Valve Assy
Cylinder Head

Cylinder Head Gasket
9.0 (92, 80 in.
lbf)
Oil Level Gauge
Sub±assy
9.0 (92, 80 in.
lbf)

O±ring
Oil Level Gauge
Guide
1st: 79 (800, 58)
2nd: Turn 90

30 (301, 22)
9.0 (92, 79 in.
lbf)
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
14±159
AVENSIS REPAIR MANUAL (RM1018E)

141BB±01
A77292
A77299
14±160
±
ENGINE MECHANICAL CYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15)
2. REMOVE FRONT WHEEL RH
3. REMOVE RADIATOR SUPPORT OPENING COVER
4. REMOVE ENGINE ROOM COVER SIDE
5. REMOVE ENGINE UNDER COVER RH
6. REMOVE ENGINE UNDER COVER LH
7.DRAIN COOLANT (See page 16±19)
8. DRAIN ENGINE OIL
(a) Install a new gasket and the drain plug after draining engine oil. Torque: 25 N
m (255 kgf
cm, 18 ft
lbf)
9.REMOVE ENGINE COVER SUB±ASSY NO.1 (See page 14±121)
10.REMOVE FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
11.REMOVE GENERATOR ASSY (See page 19±20)
12.REMOVE EXHAUST PIPE ASSY FRONT (See page 15±7)
13. SEPARATE VANE PUMP ASSY
(a) Remove the 2 bolts and separate the vane pump.
14. REMOVE IGNITION COIL ASSY
(a) Remove the 4 bolts and 4 ignition coils. 15. SEPARATE RETURN TUBE SUB±ASSY
(a) Remove the 3 bolts and separate the return tube asshown in the illustration.

A77303
A77308
A77306
A77307
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
14±161
AVENSIS REPAIR MANUAL (RM1018E)

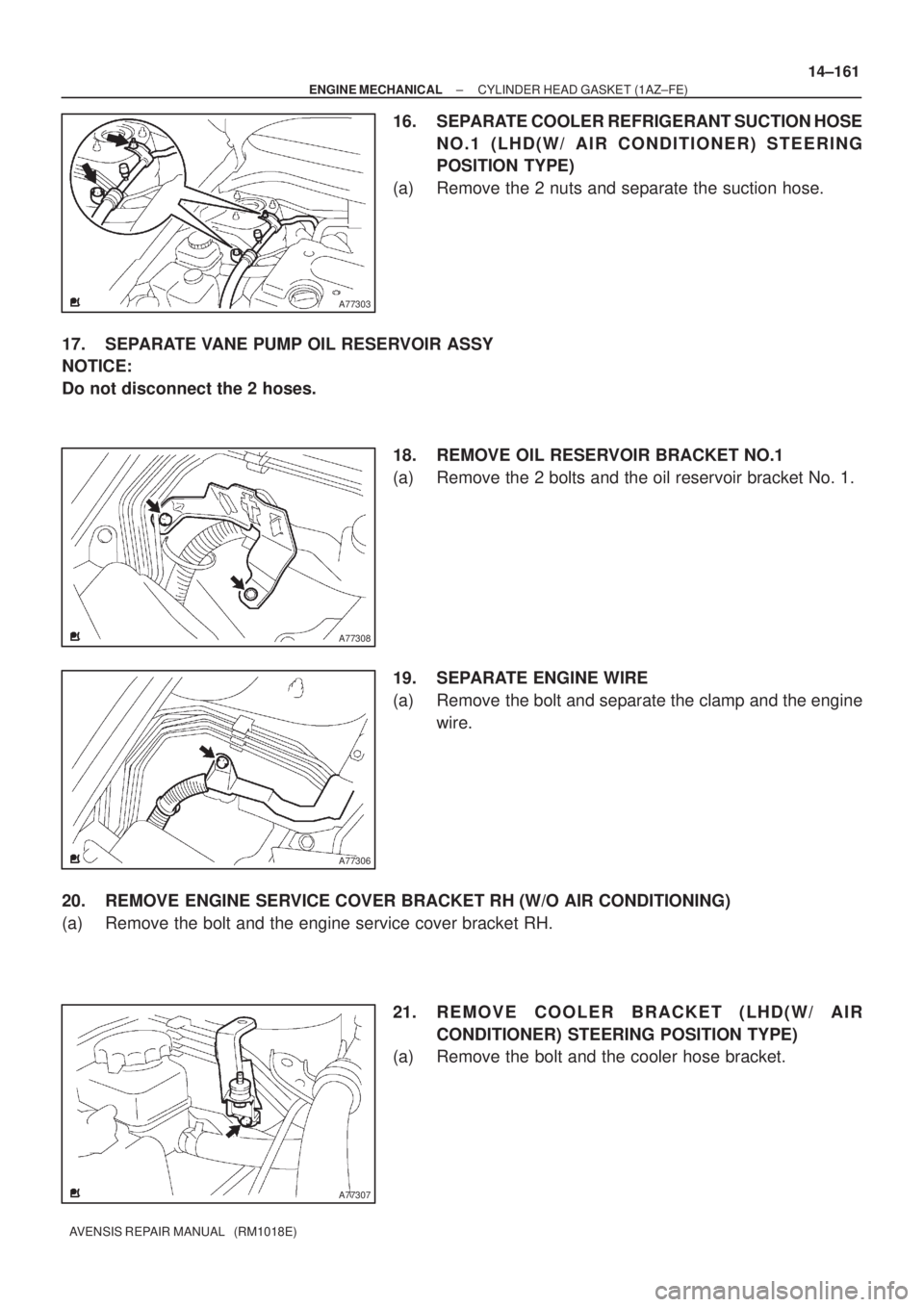

16. SEPARATE COOLER REFRIGERANT SUCTION HOSE
NO.1 (LHD(W/ AIR CONDITIONER) STEERING
POSITION TYPE)
(a) Remove the 2 nuts and separate the suction hose.
17. SEPARATE VANE PUMP OIL RESERVOIR ASSY
NOTICE:
Do not disconnect the 2 hoses.
18. REMOVE OIL RESERVOIR BRACKET NO.1
(a) Remove the 2 bolts and the oil reservoir bracket No. 1.
19. SEPARATE ENGINE WIRE
(a) Remove the bolt and separate the clamp and the engine
wire.
20. REMOVE ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING)
(a) Remove the bolt and the engine service cover bracket RH.
21. REMOVE COOLER BRACKET (LHD(W/ AIR
CONDITIONER) STEERING POSITION TYPE)
(a) Remove the bolt and the cooler hose bracket.

A77302
14±162
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
22.REMOVE ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
(a)Remove the bolt and the engine service cover bracket RH.
23.REMOVE CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
24.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±139)
25.REMOVE ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
26.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR (See page 14±139)
27.REMOVE CRANKSHAFT PULLEY (See page 14±139)
SST09213±54015 (91651±60855), 09330±00021, 09950±50013 (0995\
1±05010, 09952±05010, 09953±05020, 09954±05021)
28.REMOVE CHAIN TENSIONER ASSY NO.1 (See page 14±139)
29.REMOVE CRANKSHAFT POSITION SENSOR (See page 18±17)
30.REMOVE OIL PAN SUB±ASSY (See page 14±139) SST09032±00100
31.REMOVE V±RIBBED BELT TENSIONER ASSY (See page 14±139)
32.REMOVE TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
33.REMOVE CRANKSHAFT POSITION SENSOR PLATE NO.1
34.REMOVE CHAIN TENSIONER SLIPPER
35.REMOVE CHAIN VIBRATION DAMPER NO.1
36.REMOVE TIMING CHAIN GUIDE (See page 14±139)
37.REMOVE CHAIN SUB±ASSY
38.REMOVE BATTERY 39.REMOVE AIR CLEANER ASSEMBLY WITH HOSE
(a)Disconnect the 2 connectors.
(b)Disconnect the air cleaner hose from the throttle body.
(c)Raise a clamp up, and slide it toward the air cleaner cap,then remove the air cleaner cap from its case.
(d)Remove the air cleaner element.
(e)Remove the 4 bolts and the air cleaner case.
40.DISCONNECT RADIATOR HOSE INLET
41.DISCONNECT UNION TO CONNECTOR TUBE HOSE
42.DISCONNECT HEATER INLET WATER HOSE (W/ AIR CONDITIONING)
43.SEPARATE FUEL TUBE SUB±ASSY (See page 11±26)
44. SEPARATE ENGINE WIRE

A56446
A52499
A52497
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FE)

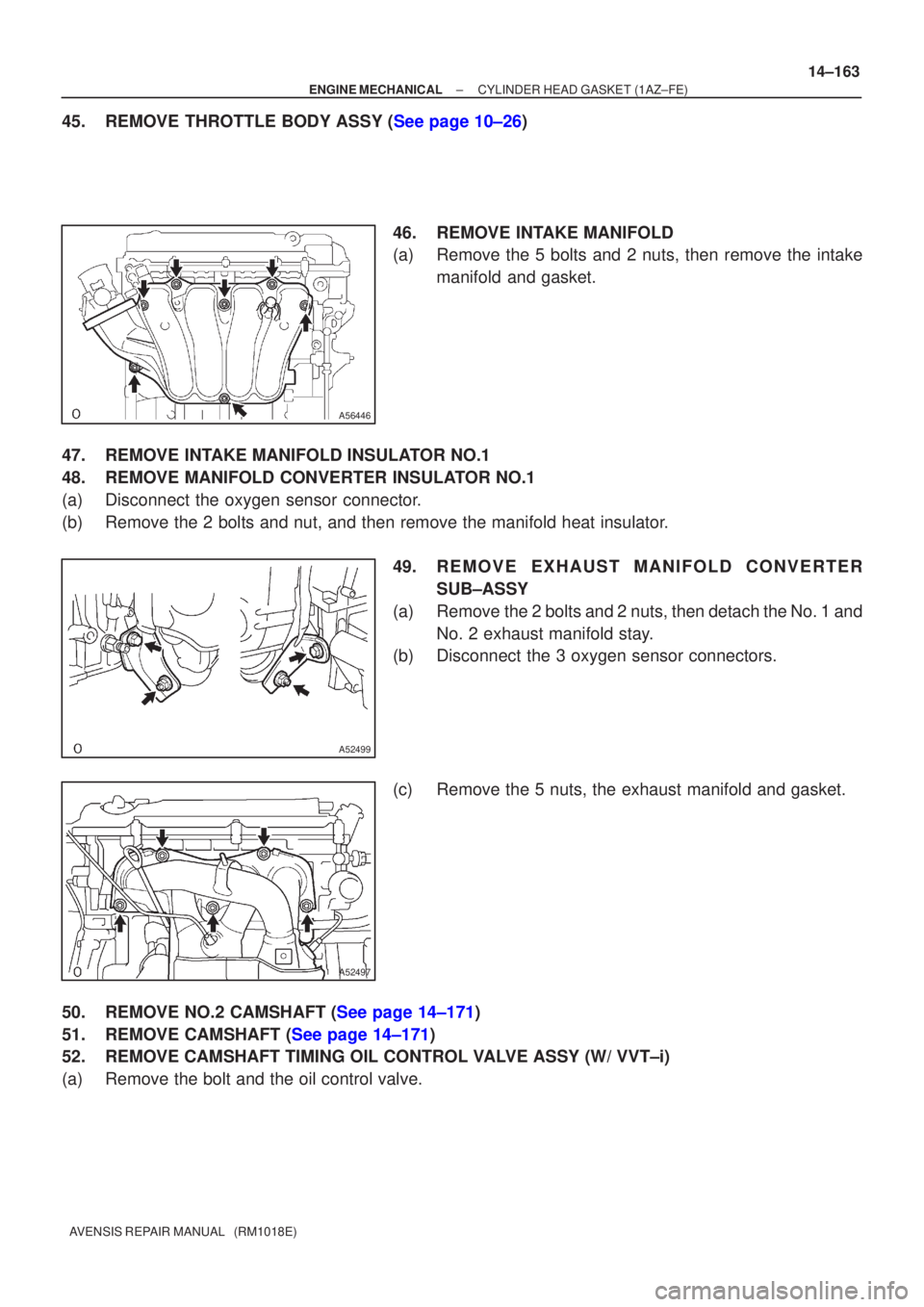

14±163
AVENSIS REPAIR MANUAL (RM1018E)
45.REMOVE THROTTLE BODY ASSY (See page 10±26)
46.REMOVE INTAKE MANIFOLD
(a)Remove the 5 bolts and 2 nuts, then remove the intakemanifold and gasket.
47.REMOVE INTAKE MANIFOLD INSULATOR NO.1
48.REMOVE MANIFOLD CONVERTER INSULATOR NO.1
(a)Disconnect the oxygen sensor connector.
(b)Remove the 2 bolts and nut, and then remove the manifold heat insulator. 49.REMOVE EXHAUST MANIFOLD CONVERTERSUB±ASSY
(a)Remove the 2 bolts and 2 nuts, then detach the No. 1 and No. 2 exhaust manifold stay.
(b)Disconnect the 3 oxygen sensor connectors.
(c)Remove the 5 nuts, the exhaust manifold and gasket.
50.REMOVE NO.2 CAMSHAFT (See page 14±171)
51.REMOVE CAMSHAFT (See page 14±171)
52. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSY (W/ VVT±i)
(a) Remove the bolt and the oil control valve.

A32664
A56213
A7740612 3
4 109
8 56 7
A77407

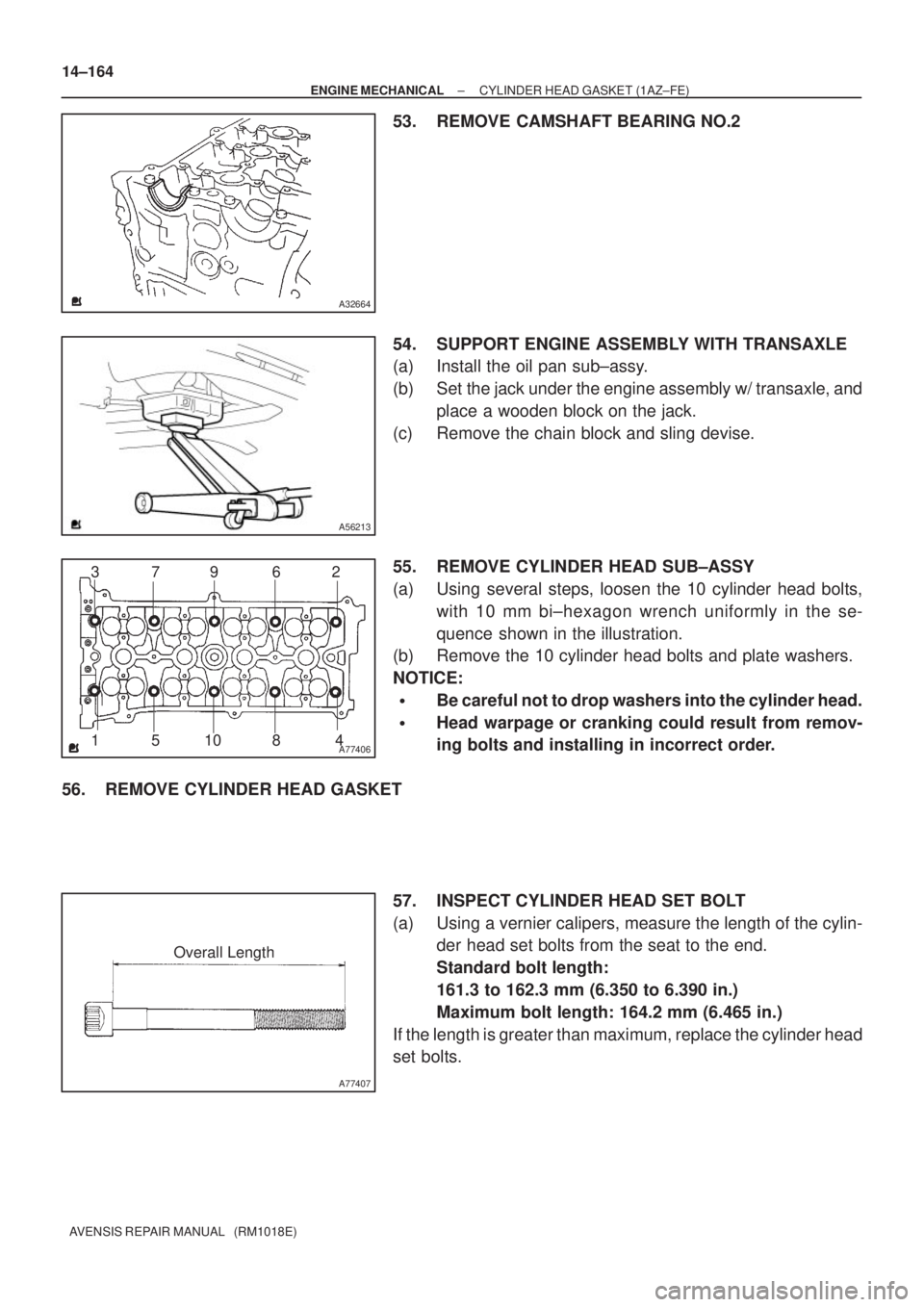

Overall Length 14±164
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
53. REMOVE CAMSHAFT BEARING NO.2
54. SUPPORT ENGINE ASSEMBLY WITH TRANSAXLE
(a) Install the oil pan sub±assy.
(b) Set the jack under the engine assembly w/ transaxle, and
place a wooden block on the jack.
(c) Remove the chain block and sling devise.
55. REMOVE CYLINDER HEAD SUB±ASSY
(a) Using several steps, loosen the 10 cylinder head bolts,
with 10 mm bi±hexagon wrench uniformly in the se-
quence shown in the illustration.
(b) Remove the 10 cylinder head bolts and plate washers.
NOTICE:

Be careful not to drop washers into the cylinder head.

Head warpage or cranking could result from remov-
ing bolts and installing in incorrect order.
56. REMOVE CYLINDER HEAD GASKET
57. INSPECT CYLINDER HEAD SET BOLT
(a) Using a vernier calipers, measure the length of the cylin-
der head set bolts from the seat to the end.
Standard bolt length:
161.3 to 162.3 mm (6.350 to 6.390 in.)
Maximum bolt length: 164.2 mm (6.465 in.)
If the length is greater than maximum, replace the cylinder head
set bolts.

A77408
Lot No.
A77437
Cylinder Head
Cylinder Block
Seal Packing
Cylinder
Head Gasket
2.5 to 3 mm
12.5 to 1.5 mm
A7741012
3 4
109 85
67
A00976A77411
90
Engine
Front
Paint Mark
± ENGINE MECHANICALCYLINDER HEAD GASKET (1AZ±FE)

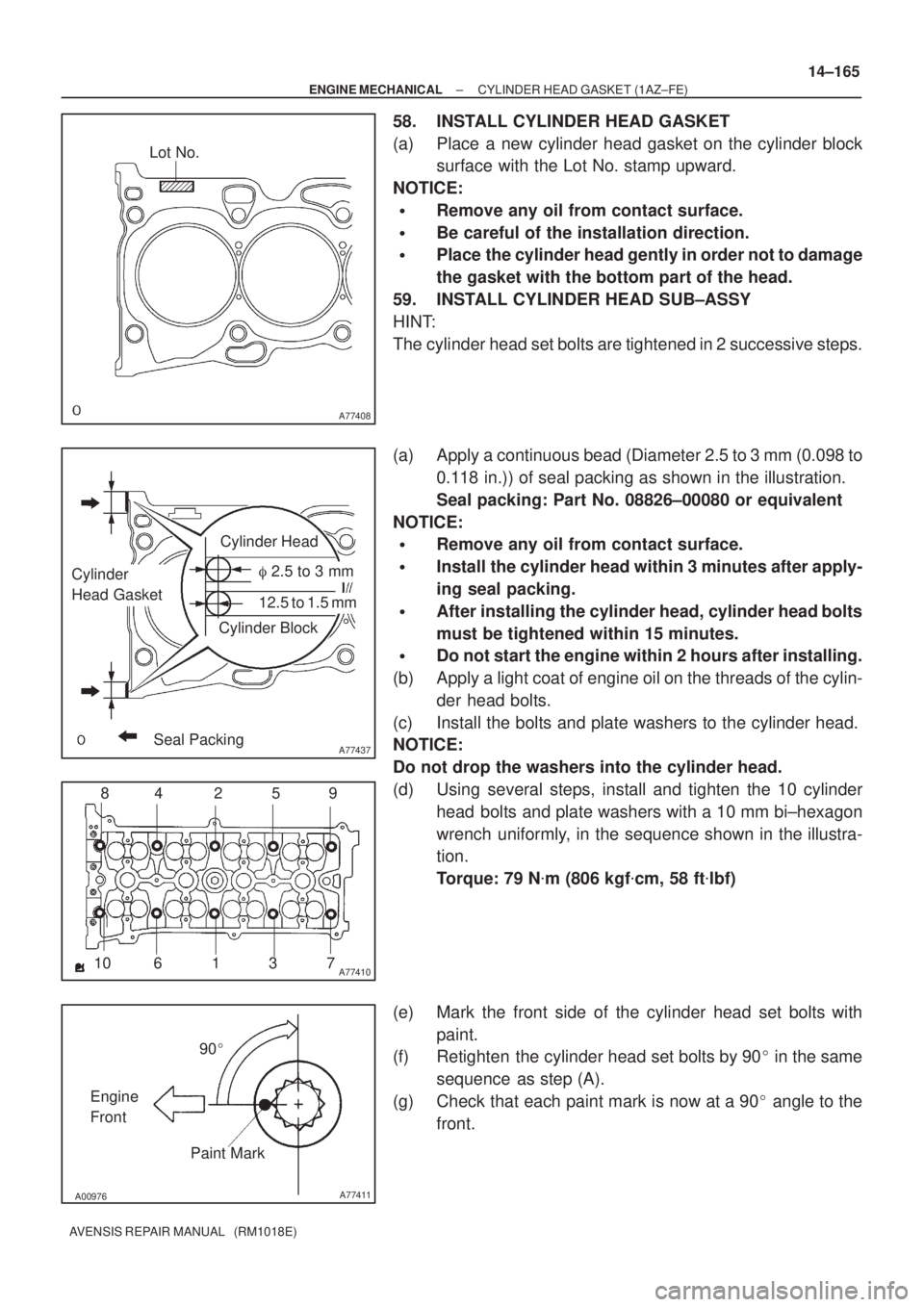

14±165
AVENSIS REPAIR MANUAL (RM1018E)
58. INSTALL CYLINDER HEAD GASKET
(a) Place a new cylinder head gasket on the cylinder block
surface with the Lot No. stamp upward.
NOTICE:

Remove any oil from contact surface.

Be careful of the installation direction.

Place the cylinder head gently in order not to damage
the gasket with the bottom part of the head.
59. INSTALL CYLINDER HEAD SUB±ASSY
HINT:
The cylinder head set bolts are tightened in 2 successive steps.
(a) Apply a continuous bead (Diameter 2.5 to 3 mm (0.098 to
0.118 in.)) of seal packing as shown in the illustration.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:

Remove any oil from contact surface.

Install the cylinder head within 3 minutes after apply-
ing seal packing.

After installing the cylinder head, cylinder head bolts
must be tightened within 15 minutes.

Do not start the engine within 2 hours after installing.
(b) Apply a light coat of engine oil on the threads of the cylin-
der head bolts.
(c) Install the bolts and plate washers to the cylinder head.
NOTICE:
Do not drop the washers into the cylinder head.
(d) Using several steps, install and tighten the 10 cylinder
head bolts and plate washers with a 10 mm bi±hexagon
wrench uniformly, in the sequence shown in the illustra-
tion.
Torque: 79 N
m (806 kgf
cm, 58 ft
lbf)
(e) Mark the front side of the cylinder head set bolts with
paint.
(f) Retighten the cylinder head set bolts by 90 in the same
sequence as step (A).
(g) Check that each paint mark is now at a 90 angle to the
front.

A77332
23
145
A52499
A56446

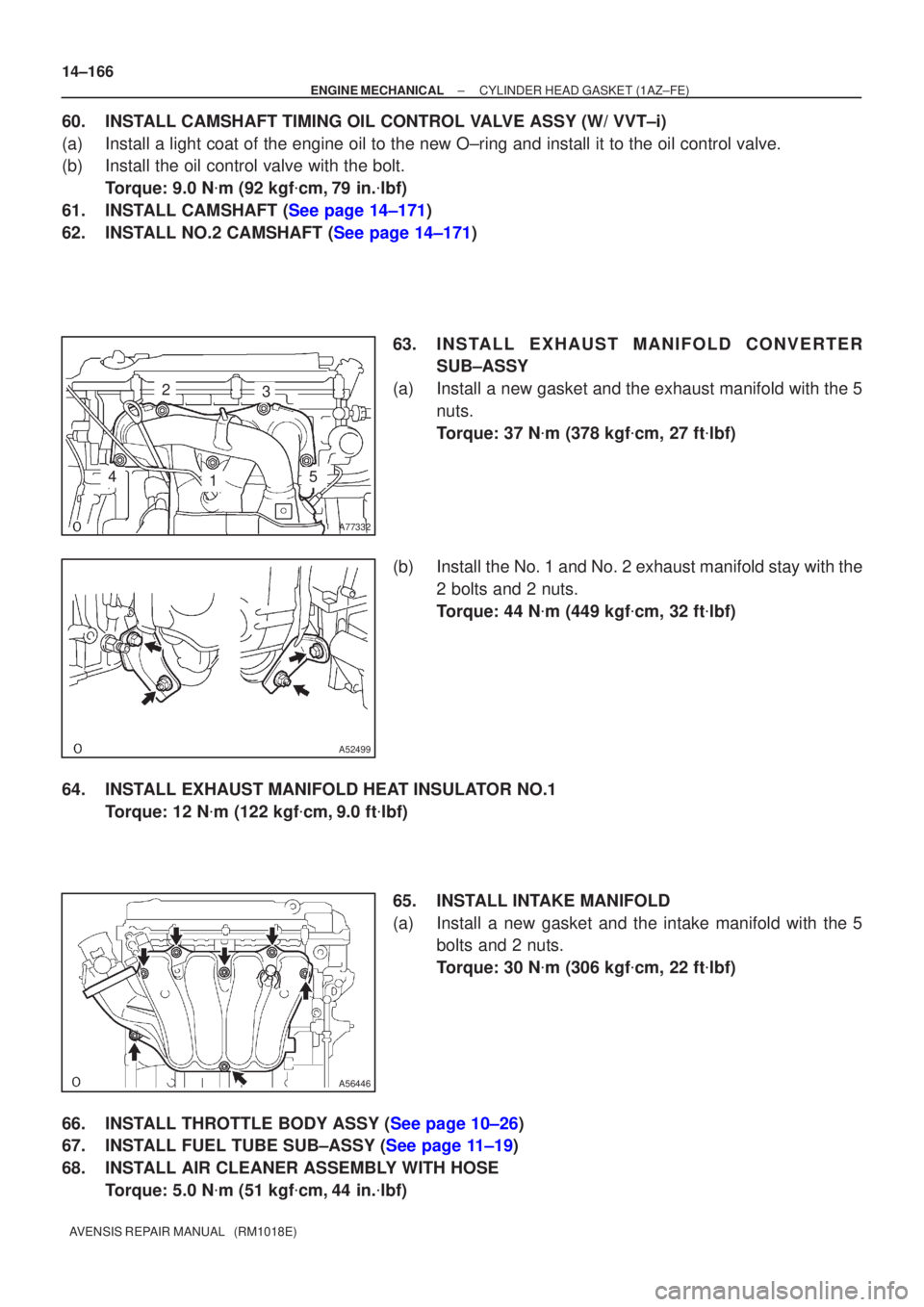

14±166
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
60.INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSY (W/ VVT±i)
(a)Install a light coat of the engine oil to the new O±ring and install \
it to the oil control valve.
(b)Install the oil control valve with the bolt. Torque: 9.0 N
m (92 kgf
cm,79 in.
lbf)
61.INSTALL CAMSHAFT (See page 14±171)
62.INSTALL NO.2 CAMSHAFT (See page 14±171)
63.INSTALL EXHAUST MANIFOLD CONVERTERSUB±ASSY
(a)Install a new gasket and the exhaust manifold with the 5 nuts.
Torque: 37 N
m (378 kgf
cm, 27 ft
lbf)
(b)Install the No. 1 and No. 2 exhaust manifold stay with the 2 bolts and 2 nuts.
Torque: 44 N
m (449 kgf
cm, 32 ft
lbf)
64.INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO.1 Torque: 12 N
m (122 kgf
cm,9.0 ft
lbf)
65.INSTALL INTAKE MANIFOLD
(a)Install a new gasket and the intake manifold with the 5 bolts and 2 nuts.
Torque: 30 N
m (306 kgf
cm, 22 ft
lbf)
66.INSTALL THROTTLE BODY ASSY (See page 10±26)
67.INSTALL FUEL TUBE SUB±ASSY (See page 11±19)
68. INSTALL AIR CLEANER ASSEMBLY WITH HOSE Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)

±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FE)

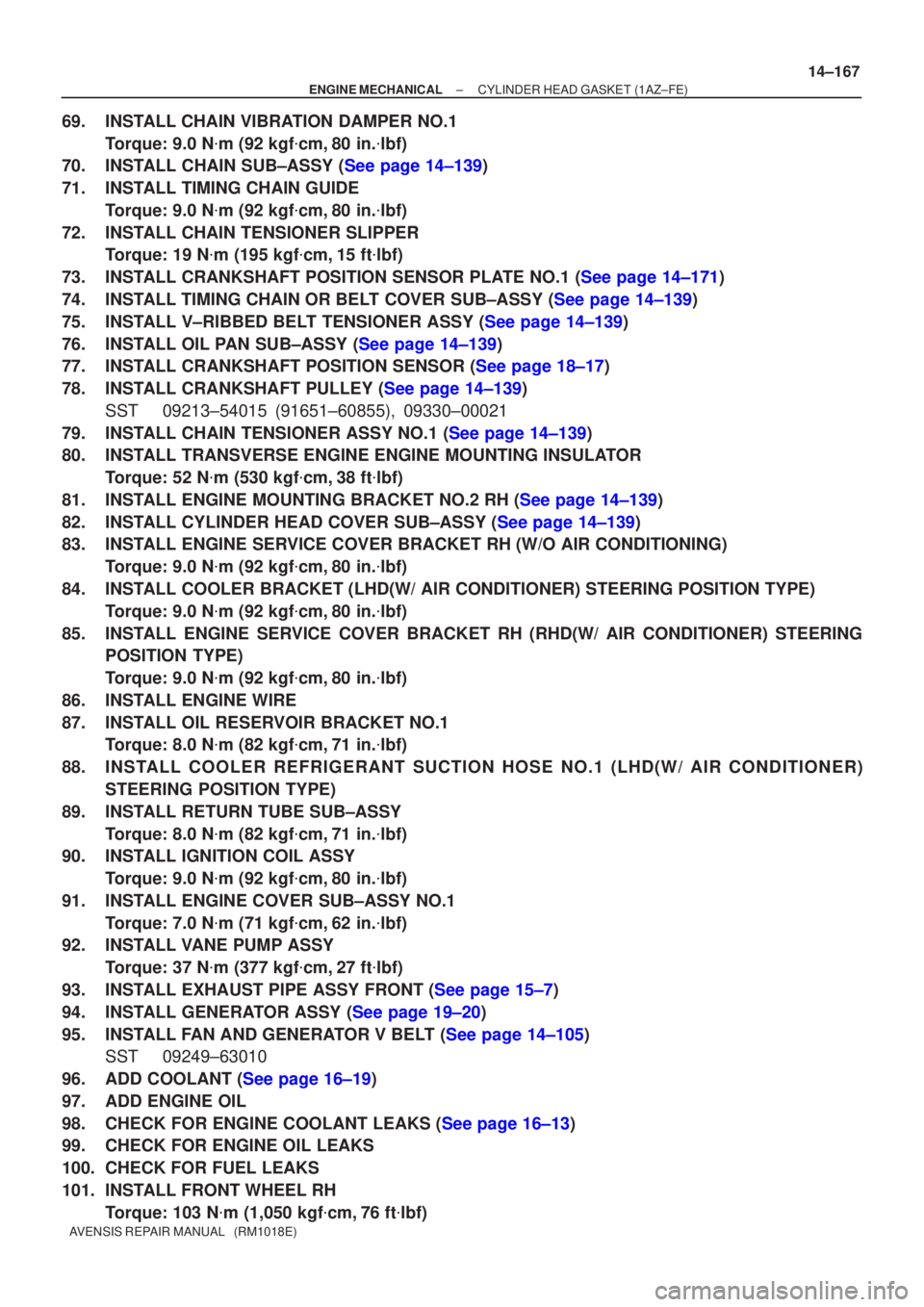

14±167
AVENSIS REPAIR MANUAL (RM1018E)
69.INSTALL CHAIN VIBRATION DAMPER NO.1
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
70.INSTALL CHAIN SUB±ASSY (See page 14±139)
71.INSTALL TIMING CHAIN GUIDE
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
72.INSTALL CHAIN TENSIONER SLIPPER Torque: 19 N
m (195 kgf
cm,15 ft
lbf)
73.INSTALL CRANKSHAFT POSITION SENSOR PLATE NO.1 (See page 14±171)
74.INSTALL TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
75.INSTALL V±RIBBED BELT TENSIONER ASSY (See page 14±139)
76.INSTALL OIL PAN SUB±ASSY (See page 14±139)
77.INSTALL CRANKSHAFT POSITION SENSOR (See page 18±17)
78.INSTALL CRANKSHAFT PULLEY (See page 14±139) SST09213±54015 (91651±60855), 09330±00021
79.INSTALL CHAIN TENSIONER ASSY NO.1 (See page 14±139)
80.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR Torque: 52 N
m (530 kgf
cm,38 ft
lbf)
81.INSTALL ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
82.INSTALL CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
83.INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
84.INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
85.INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
86.INSTALL ENGINE WIRE
87.INSTALL OIL RESERVOIR BRACKET NO.1 Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
88.IN STALL COOL ER REFRIGERANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITION ER)
STEERING POSITION TYPE)
89.INSTALL RETURN TUBE SUB±ASSY Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
90.INSTALL IGNITION COIL ASSY
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
91.INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N
m (71 kgf
cm,62 in.
lbf)
92.INSTALL VANE PUMP ASSY
Torque: 37 N
m (377 kgf
cm,27 ft
lbf)
93.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±7)
94.INSTALL GENERATOR ASSY (See page 19±20)
95.INSTALL FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
96.ADD COOLANT (See page 16±19)
97. ADD ENGINE OIL
98.CHECK FOR ENGINE COOLANT LEAKS (See page 16±13)
99. CHECK FOR ENGINE OIL LEAKS
100. CHECK FOR FUEL LEAKS
101. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)

141BO±01
A77339
A77292
14±254
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15)
2.REMOVE FRONT WHEEL RH
3.REMOVE RADIATOR SUPPORT OPENING COVER
4.REMOVE ENGINE ROOM COVER SIDE
5.REMOVE ENGINE UNDER COVER RH
6.REMOVE ENGINE UNDER COVER LH
7.DRAIN COOLANT (See page 16±19)
8.DRAIN ENGINE OIL
(a)Install a new gasket and the drain plug after draining engine oil. Torque: 25 N
m (255 kgf
cm,18 ft
lbf)
9.REMOVE ENGINE COVER SUB±ASSY NO.1
(a)Remove the 2 nuts and the engine cover No. 1.
10.REMOVE FUEL PRESSURE PULSATION DAMPER ASSY
11.SEPARATE FUEL TUBE SUB±ASSY (See page 11±33)
12.REMOVE FUEL PIPE SUB±ASSY NO.1 (See page 11±52) SST 09023±12900
13.REMOVE FUEL PUMP ASSY (See page 11±52)
14.REMOVE FAN AND GENERATOR V BELT (See page 14±185) SST 09249±63010
15.REMOVE GENERATOR ASSY (See page 19±20)
16.REMOVE EXHAUST PIPE ASSY FRONT (See page 15±7)
17. SEPARATE VANE PUMP ASSY
(a) Remove the 2 bolts and separate the vane pump.
18. REMOVE IGNITION COIL ASSY
(a) Remove the 4 bolts and 4 ignition coils.
