TOYOTA AVENSIS 2002 Repair Manual
Manufacturer: TOYOTA, Model Year: 2002, Model line: AVENSIS, Model: TOYOTA AVENSIS 2002Pages: 1690, PDF Size: 32.77 MB
Page 551 of 1690
A79194
A79148
SST
A79143
SST

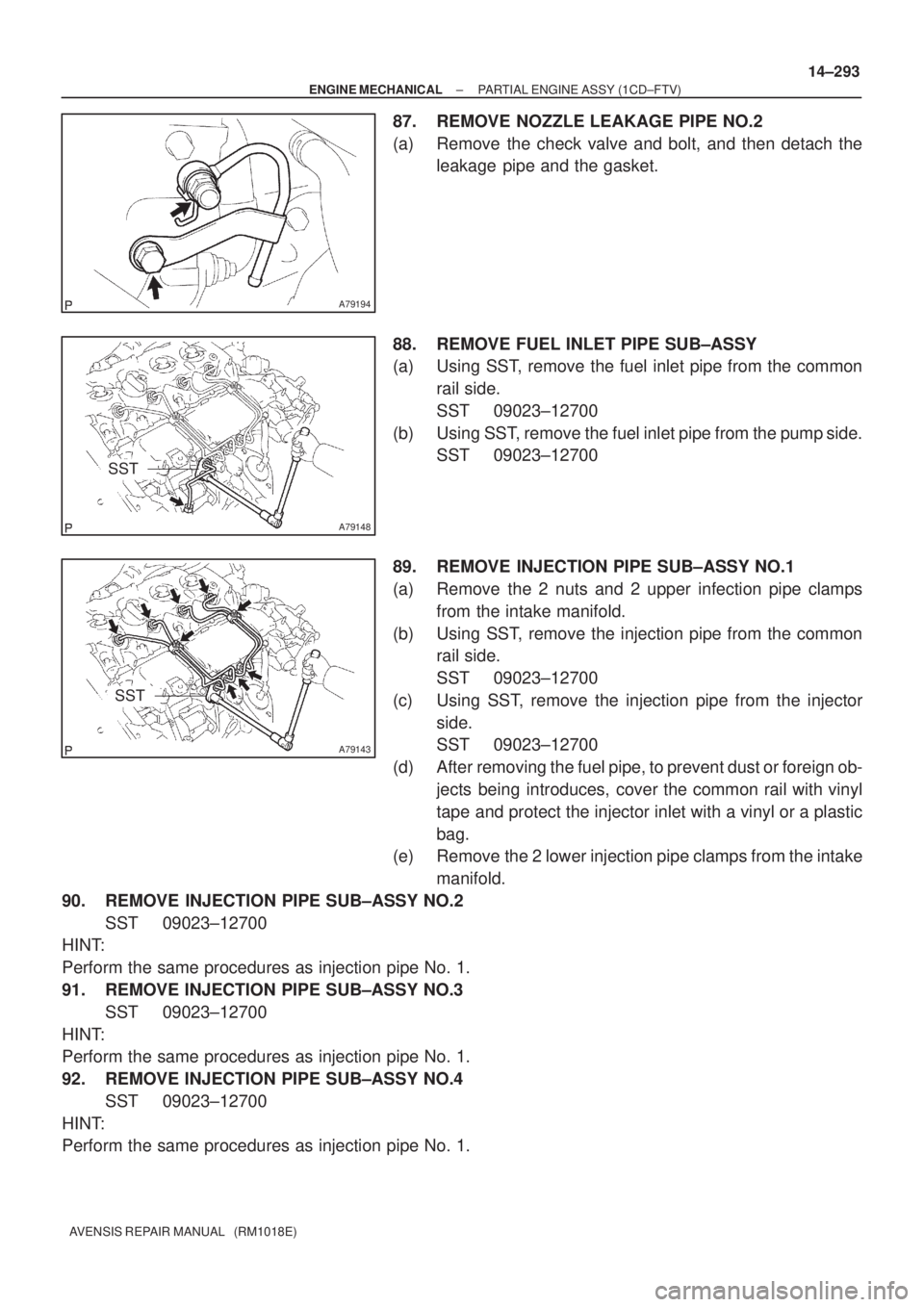

± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
14±293
AVENSIS REPAIR MANUAL (RM1018E)
87. REMOVE NOZZLE LEAKAGE PIPE NO.2
(a) Remove the check valve and bolt, and then detach the
leakage pipe and the gasket.
88. REMOVE FUEL INLET PIPE SUB±ASSY
(a) Using SST, remove the fuel inlet pipe from the common
rail side.
SST 09023±12700
(b) Using SST, remove the fuel inlet pipe from the pump side.
SST 09023±12700
89. REMOVE INJECTION PIPE SUB±ASSY NO.1
(a) Remove the 2 nuts and 2 upper infection pipe clamps
from the intake manifold.
(b) Using SST, remove the injection pipe from the common
rail side.
SST 09023±12700
(c) Using SST, remove the injection pipe from the injector
side.
SST 09023±12700
(d) After removing the fuel pipe, to prevent dust or foreign ob-
jects being introduces, cover the common rail with vinyl
tape and protect the injector inlet with a vinyl or a plastic
bag.
(e) Remove the 2 lower injection pipe clamps from the intake
manifold.
90. REMOVE INJECTION PIPE SUB±ASSY NO.2
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
91. REMOVE INJECTION PIPE SUB±ASSY NO.3
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
92. REMOVE INJECTION PIPE SUB±ASSY NO.4
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
Page 552 of 1690
A79150
A61175
A09671

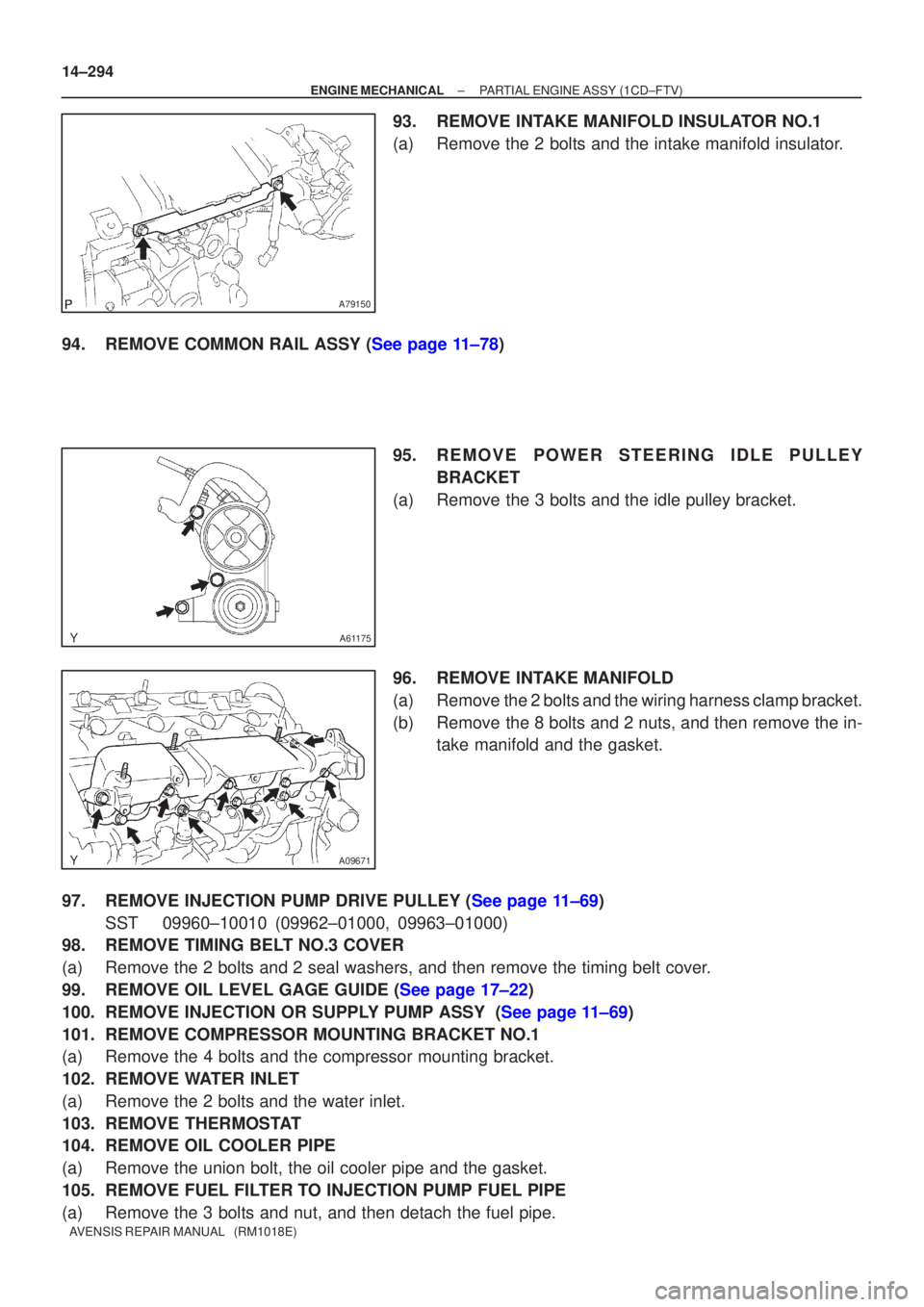

14±294
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
93.REMOVE INTAKE MANIFOLD INSULATOR NO.1
(a)Remove the 2 bolts and the intake manifold insulator.
94.REMOVE COMMON RAIL ASSY (See page 11±78) 95.REMOVE POWER STEERING IDLE PULLEY
BRACKET
(a)Remove the 3 bolts and the idle pulley bracket.
96.REMOVE INTAKE MANIFOLD
(a)Remove the 2 bolts and the wiring harness clamp bracket.
(b)Remove the 8 bolts and 2 nuts, and then remove the in- take manifold and the gasket.
97.REMOVE INJECTION PUMP DRIVE PULLEY (See page 11±69) SST 09960±10010 (09962±01000, 09963±01000)
98. REMOVE TIMING BELT NO.3 COVER
(a) Remove the 2 bolts and 2 seal washers, and then remove the timing belt c\
over.
99.REMOVE OIL LEVEL GAGE GUIDE (See page 17±22)
100.REMOVE INJECTION OR SUPPLY PUMP ASSY (See page 11±69)
101. REMOVE COMPRESSOR MOUNTING BRACKET NO.1
(a) Remove the 4 bolts and the compressor mounting bracket.
102. REMOVE WATER INLET
(a) Remove the 2 bolts and the water inlet.
103. REMOVE THERMOSTAT
104. REMOVE OIL COOLER PIPE
(a) Remove the union bolt, the oil cooler pipe and the gasket.
105. REMOVE FUEL FILTER TO INJECTION PUMP FUEL PIPE
(a) Remove the 3 bolts and nut, and then detach the fuel pipe.
Page 553 of 1690
A79173New O±Ring
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)

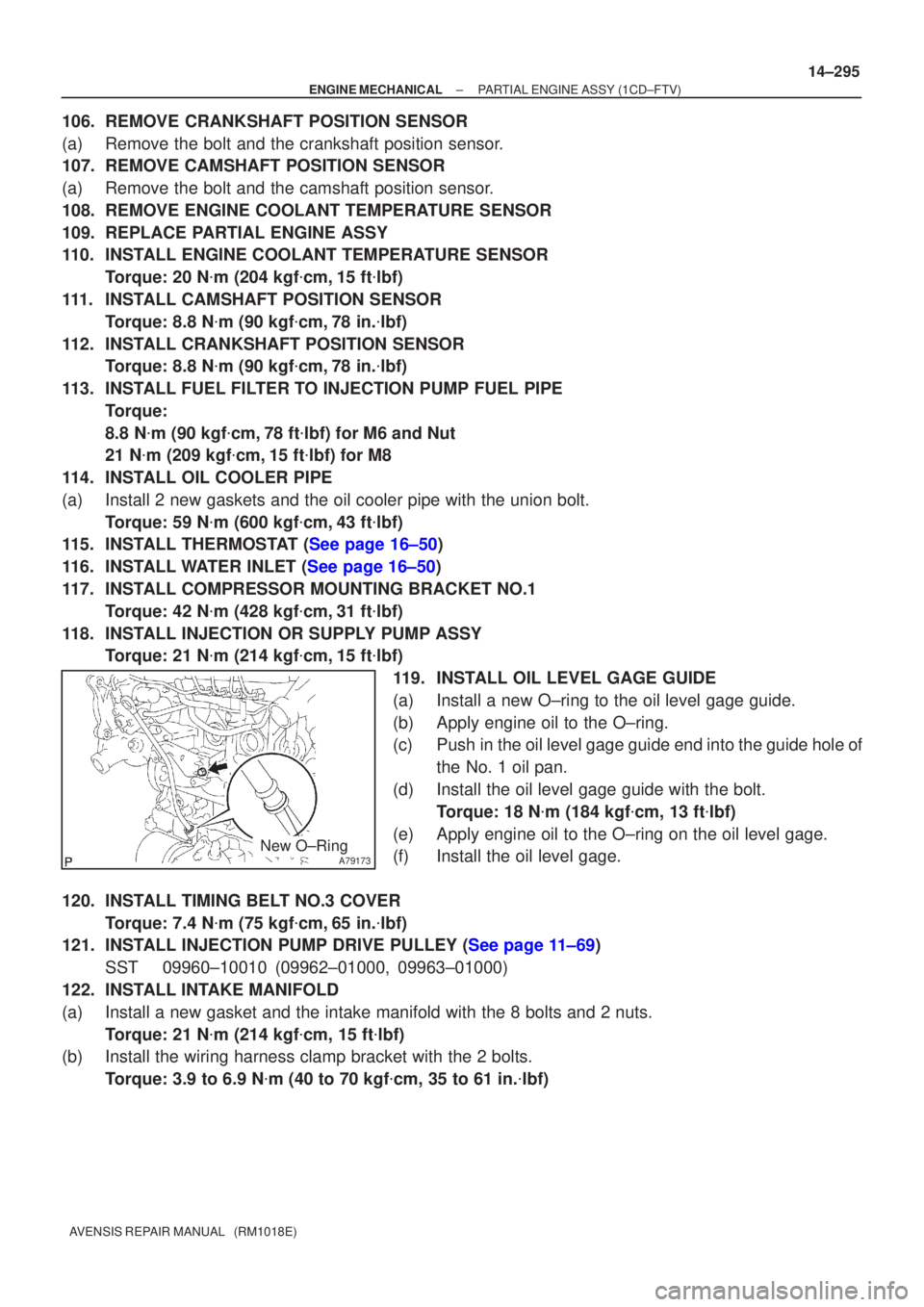

14±295
AVENSIS REPAIR MANUAL (RM1018E)
106.REMOVE CRANKSHAFT POSITION SENSOR
(a)Remove the bolt and the crankshaft position sensor.
107.REMOVE CAMSHAFT POSITION SENSOR
(a)Remove the bolt and the camshaft position sensor.
108.REMOVE ENGINE COOLANT TEMPERATURE SENSOR
109.REPLACE PARTIAL ENGINE ASSY
110.INSTALL ENGINE COOLANT TEMPERATURE SENSOR
Torque: 20 N m (204 kgf cm,15 ft lbf)
111.INSTALL CAMSHAFT POSITION SENSOR Torque: 8.8 N m (90 kgf cm,78 in. lbf)
112.INSTALL CRANKSHAFT POSITION SENSOR Torque: 8.8 N m (90 kgf cm,78 in. lbf)
113.INSTALL FUEL FILTER TO INJECTION PUMP FUEL PIPE Torque:
8.8 Nm (90 kgf cm,78 ft lbf) for M6 and Nut
21 N m (209 kgf cm,15 ft lbf) for M8
114.INSTALL OIL COOLER PIPE
(a)Install 2 new gaskets and the oil cooler pipe with the union bolt. Torque: 59 N m (600 kgf cm,43 ft lbf)
115.INSTALL THERMOSTAT (See page 16±50)
116.INSTALL WATER INLET (See page 16±50)
117. INSTALL COMPRESSOR MOUNTING BRACKET NO.1
Torque: 42 N m (428 kgf cm, 31 ft lbf)
118. INSTALL INJECTION OR SUPPLY PUMP ASSY Torque: 21 N m (214 kgf cm, 15 ft lbf)
119. INSTALL OIL LEVEL GAGE GUIDE
(a) Install a new O±ring to the oil level gage guide.
(b) Apply engine oil to the O±ring.
(c) Push in the oil level gage guide end into the guide hole of the No. 1 oil pan.
(d) Install the oil level gage guide with the bolt. Torque: 18 N m (184 kgf cm, 13 ft lbf)
(e) Apply engine oil to the O±ring on the oil level gage.
(f) Install the oil level gage.
120. INSTALL TIMING BELT NO.3 COVER Torque: 7.4 N m (75 kgf cm, 65 in. lbf)
121.INSTALL INJECTION PUMP DRIVE PULLEY (See page 11±69)
SST 09960±10010 (09962±01000, 09963±01000)
122. INSTALL INTAKE MANIFOLD
(a) Install a new gasket and the intake manifold with the 8 bolts and 2 nuts\
. Torque: 21 N m (214 kgf cm, 15 ft lbf)
(b) Install the wiring harness clamp bracket with the 2 bolts.
Torque: 3.9 to 6.9 N m (40 to 70 kgf cm, 35 to 61 in. lbf)
Page 554 of 1690
A61175
AA
B
A79147
Fulcrum
Length
30 cm
SST

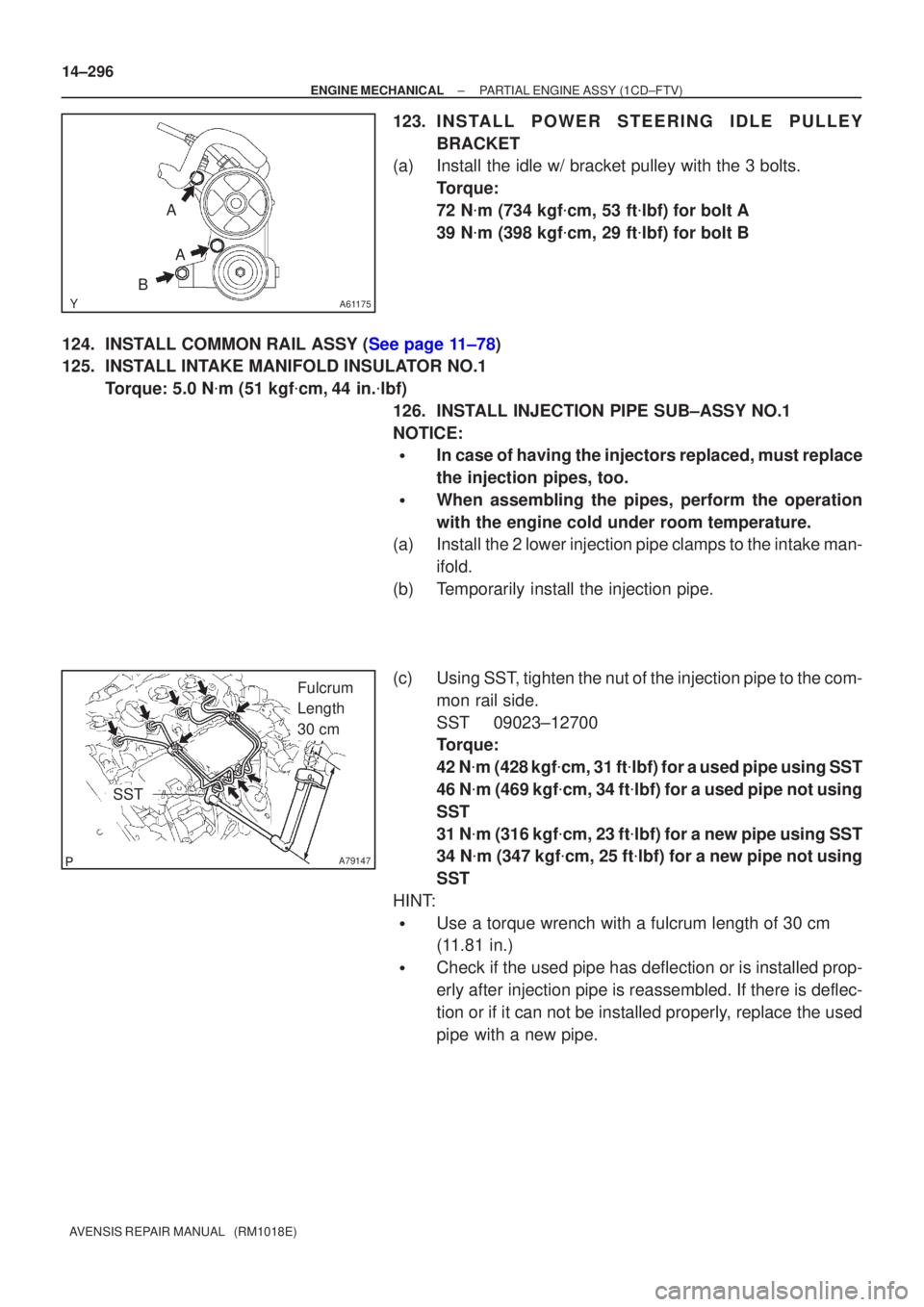

14±296
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
123.INSTALL POWER STEERING IDLE PULLEY BRACKET
(a)Install the idle w/ bracket pulley with the 3 bolts.
Torque:
72 Nm (734 kgf cm, 53 ft lbf) for bolt A
39 N m (398 kgf cm, 29 ft lbf) for bolt B
124.INSTALL COMMON RAIL ASSY (See page 11±78)
125. INSTALL INTAKE MANIFOLD INSULATOR NO.1 Torque: 5.0 N m (51 kgf cm, 44 in. lbf)
126. INSTALL INJECTION PIPE SUB±ASSY NO.1
NOTICE:
In case of having the injectors replaced, must replace
the injection pipes, too.
When assembling the pipes, perform the operation
with the engine cold under room temperature.
(a) Install the 2 lower injection pipe clamps to the intake man-
ifold.
(b) Temporarily install the injection pipe.
(c) Using SST, tighten the nut of the injection pipe to the com- mon rail side.
SST 09023±12700
Torque:
42 Nm (428 kgf cm, 31 ft lbf) for a used pipe using SST
46 N m (469 kgf cm, 34 ft lbf) for a used pipe not using
SST
31 N m (316 kgf cm, 23 ft lbf) for a new pipe using SST
34 N m (347 kgf cm, 25 ft lbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.
Page 555 of 1690
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)

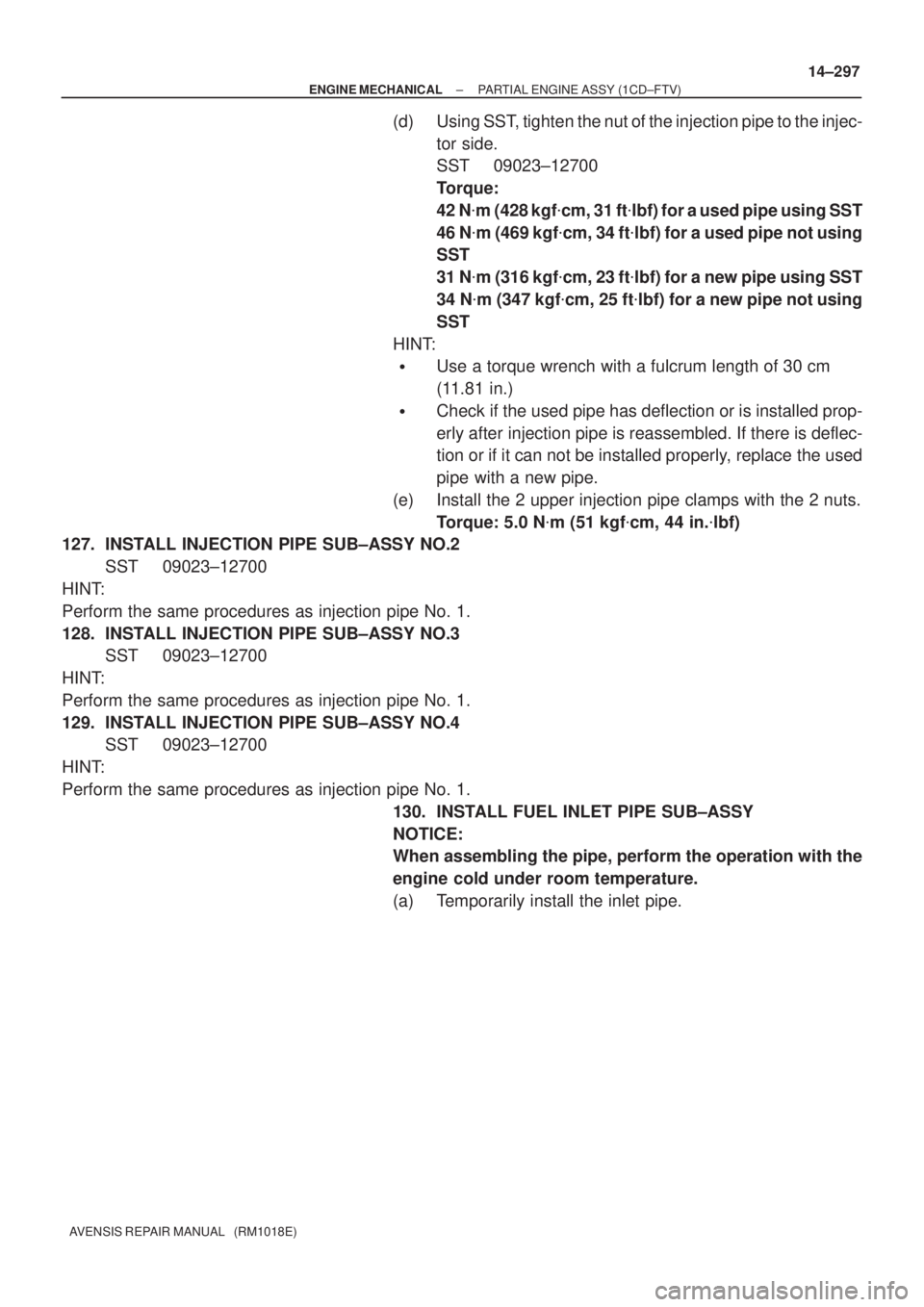

14±297
AVENSIS REPAIR MANUAL (RM1018E)
(d) Using SST, tighten the nut of the injection pipe to the injec-
tor side.
SST 09023±12700
Torque:
42 Nm (428 kgfcm, 31 ftlbf) for a used pipe using SST
46 Nm (469 kgfcm, 34 ftlbf) for a used pipe not using
SST
31 Nm (316 kgfcm, 23 ftlbf) for a new pipe using SST
34 Nm (347 kgfcm, 25 ftlbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after injection pipe is reassembled. If there is deflec-
tion or if it can not be installed properly, replace the used
pipe with a new pipe.
(e) Install the 2 upper injection pipe clamps with the 2 nuts.
Torque: 5.0 Nm (51 kgfcm, 44 in.lbf)
127. INSTALL INJECTION PIPE SUB±ASSY NO.2
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
128. INSTALL INJECTION PIPE SUB±ASSY NO.3
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
129. INSTALL INJECTION PIPE SUB±ASSY NO.4
SST 09023±12700
HINT:
Perform the same procedures as injection pipe No. 1.
130. INSTALL FUEL INLET PIPE SUB±ASSY
NOTICE:
When assembling the pipe, perform the operation with the
engine cold under room temperature.
(a) Temporarily install the inlet pipe.
Page 556 of 1690
A79149
Fulcrum
Length
30 cm
SST
A81587

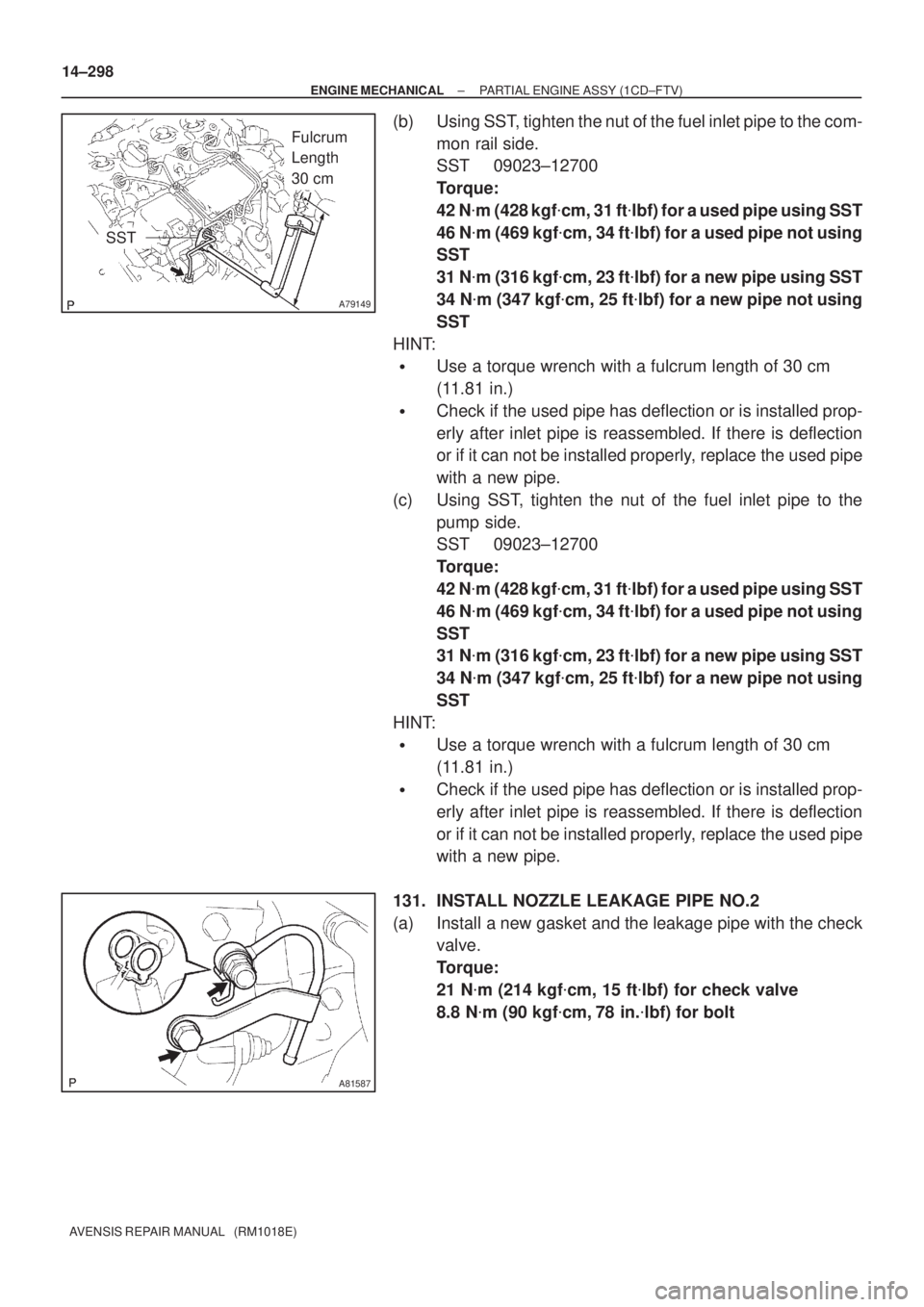

14±298
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
(b) Using SST, tighten the nut of the fuel inlet pipe to the com-
mon rail side.
SST 09023±12700
Torque:
42 Nm (428 kgfcm, 31 ftlbf) for a used pipe using SST
46 Nm (469 kgfcm, 34 ftlbf) for a used pipe not using
SST
31 Nm (316 kgfcm, 23 ftlbf) for a new pipe using SST
34 Nm (347 kgfcm, 25 ftlbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after inlet pipe is reassembled. If there is deflection
or if it can not be installed properly, replace the used pipe
with a new pipe.
(c) Using SST, tighten the nut of the fuel inlet pipe to the
pump side.
SST 09023±12700
Torque:
42 Nm (428 kgfcm, 31 ftlbf) for a used pipe using SST
46 Nm (469 kgfcm, 34 ftlbf) for a used pipe not using
SST
31 Nm (316 kgfcm, 23 ftlbf) for a new pipe using SST
34 Nm (347 kgfcm, 25 ftlbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after inlet pipe is reassembled. If there is deflection
or if it can not be installed properly, replace the used pipe
with a new pipe.
131. INSTALL NOZZLE LEAKAGE PIPE NO.2
(a) Install a new gasket and the leakage pipe with the check
valve.
Torque:
21 Nm (214 kgfcm, 15 ftlbf) for check valve
8.8 Nm (90 kgfcm, 78 in.lbf) for bolt
Page 557 of 1690
A79196
New O±Ring
New O±Ring
A79182
Collar
Groove
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)

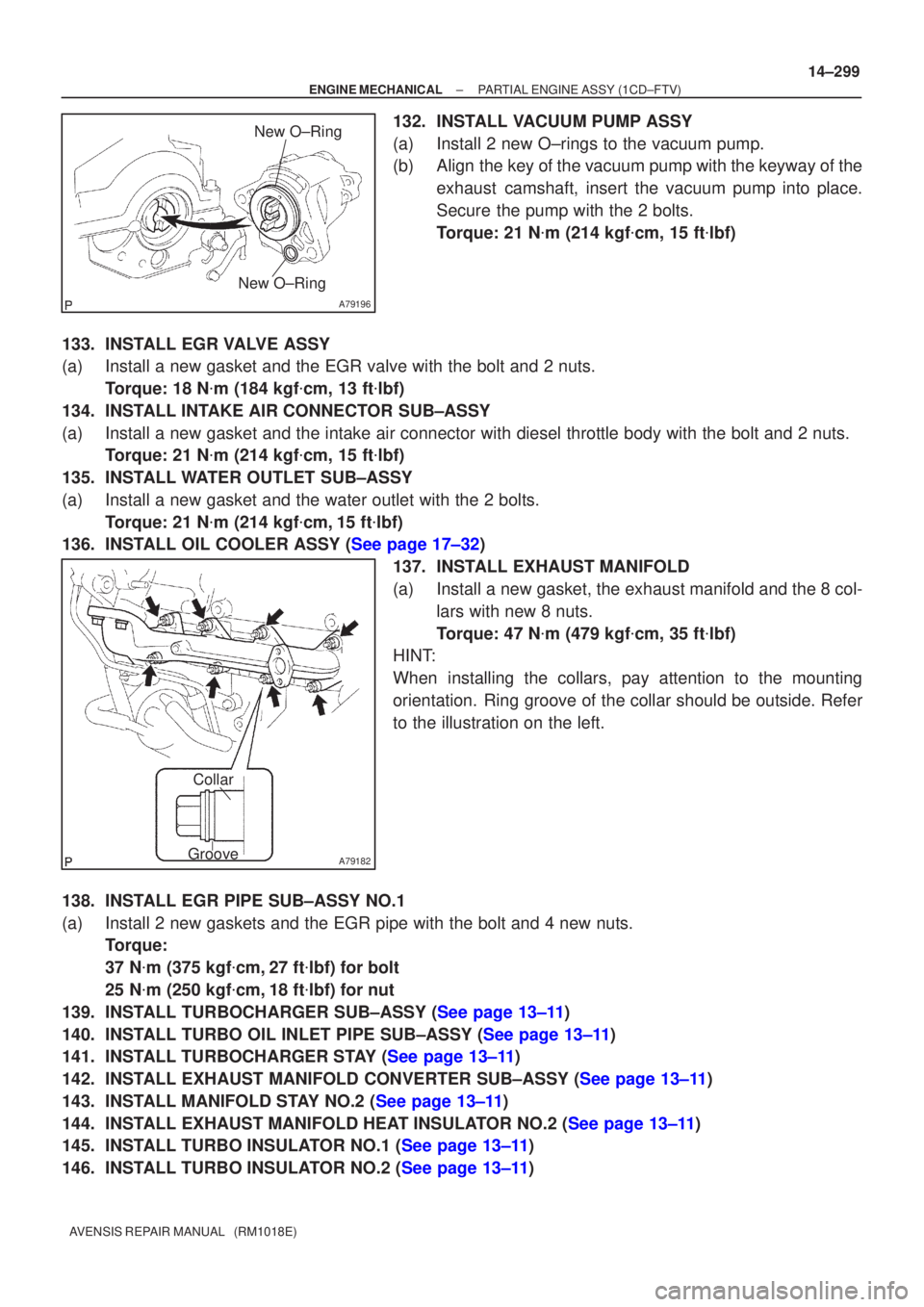

14±299
AVENSIS REPAIR MANUAL (RM1018E)
132.INSTALL VACUUM PUMP ASSY
(a)Install 2 new O±rings to the vacuum pump.
(b)Align the key of the vacuum pump with the keyway of the
exhaust camshaft, insert the vacuum pump into place.
Secure the pump with the 2 bolts.
Torque: 21 N m (214 kgf cm, 15 ft lbf)
133.INSTALL EGR VALVE ASSY
(a)Install a new gasket and the EGR valve with the bolt and 2 nuts. Torque: 18 N m (184 kgf cm, 13 ft lbf)
134.INSTALL INTAKE AIR CONNECTOR SUB±ASSY
(a)Install a new gasket and the intake air connector with diesel throttle b\
ody with the bolt and 2 nuts. Torque: 21 N m (214 kgf cm, 15 ft lbf)
135.INSTALL WATER OUTLET SUB±ASSY
(a)Install a new gasket and the water outlet with the 2 bolts. Torque: 21 N m (214 kgf cm,15 ft lbf)
136.INSTALL OIL COOLER ASSY (See page 17±32)
137.INSTALL EXHAUST MANIFOLD
(a)Install a new gasket, the exhaust manifold and the 8 col-lars with new 8 nuts.
Torque: 47 N m (479 kgf cm, 35 ft lbf)
HINT:
When installing the collars, pay attention to the mounting
orientation. Ring groove of the collar should be outside. Refer
to the illustration on the left.
138.INSTALL EGR PIPE SUB±ASSY NO.1
(a)Install 2 new gaskets and the EGR pipe with the bolt and 4 new nuts. Torque:
37 Nm (375 kgf cm,27 ft lbf) for bolt
25 N m (250 kgf cm,18 ft lbf) for nut
139.INSTALL TURBOCHARGER SUB±ASSY (See page 13±11)
140.INSTALL TURBO OIL INLET PIPE SUB±ASSY (See page 13±11)
141.INSTALL TURBOCHARGER STAY (See page 13±11)
142.INSTALL EXHAUST MANIFOLD CONVERTER SUB±ASSY (See page 13±11)
143.INSTALL MANIFOLD STAY NO.2 (See page 13±11)
144.INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO.2 (See page 13±11)
145.INSTALL TURBO INSULATOR NO.1 (See page 13±11)
146.INSTALL TURBO INSULATOR NO.2 (See page 13±11)
Page 558 of 1690
A61186
SST
A57108
Adhesive

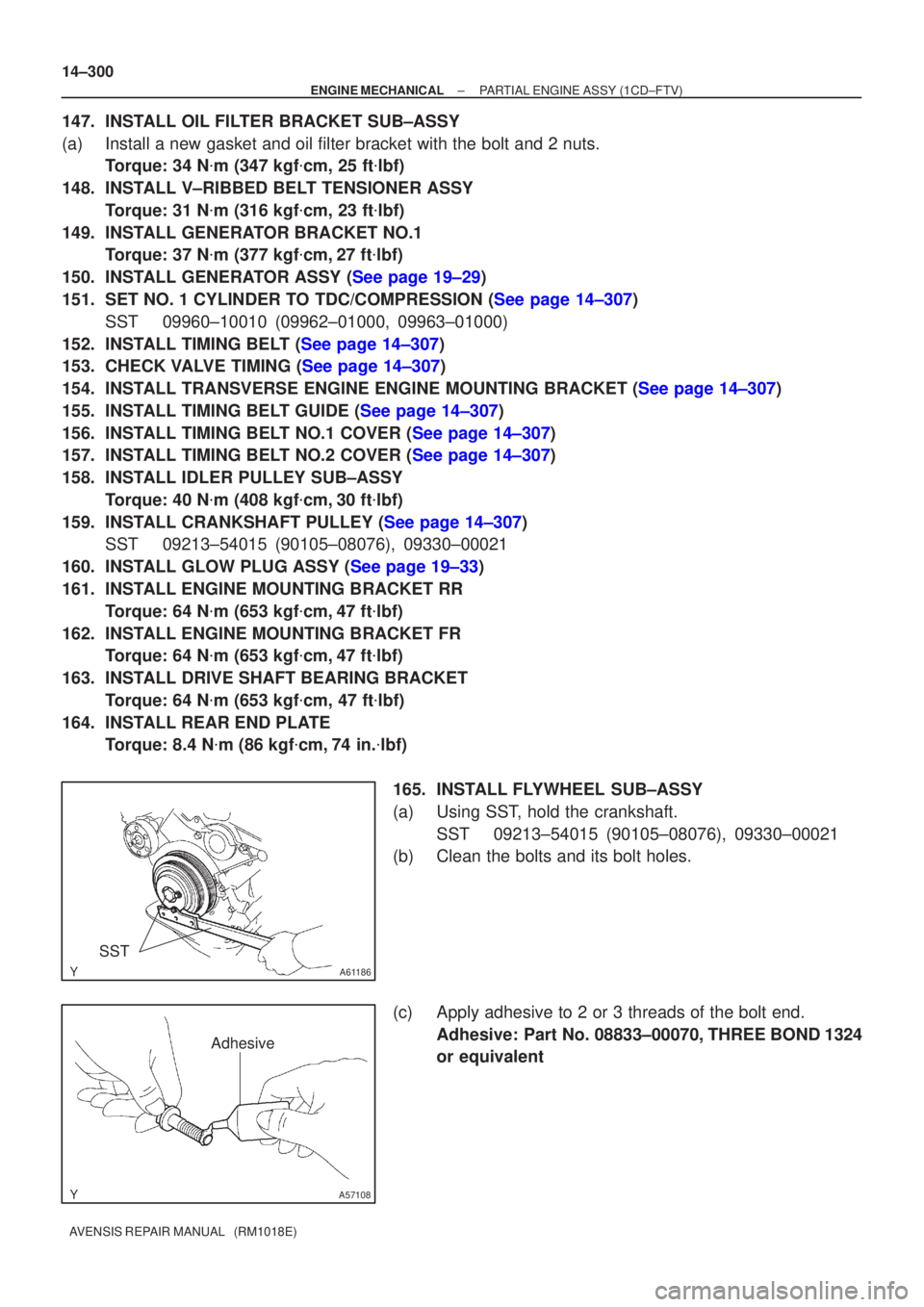

14±300
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
147. INSTALL OIL FILTER BRACKET SUB±ASSY
(a) Install a new gasket and oil filter bracket with the bolt and 2 nuts. Torque: 34 N m (347 kgf cm, 25 ft lbf)
148. INSTALL V±RIBBED BELT TENSIONER ASSY Torque: 31 N m (316 kgf cm, 23 ft lbf)
149. INSTALL GENERATOR BRACKET NO.1 Torque: 37 N m (377 kgf cm, 27 ft lbf)
150.INSTALL GENERATOR ASSY (See page 19±29)
151.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±307) SST 09960±10010 (09962±01000, 09963±01000)
152.INSTALL TIMING BELT (See page 14±307)
153.CHECK VALVE TIMING (See page 14±307)
154.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET (See page 14±307)
155.INSTALL TIMING BELT GUIDE (See page 14±307)
156.INSTALL TIMING BELT NO.1 COVER (See page 14±307)
157.INSTALL TIMING BELT NO.2 COVER (See page 14±307)
158. INSTALL IDLER PULLEY SUB±ASSY Torque: 40 N m (408 kgf cm, 30 ft lbf)
159.INSTALL CRANKSHAFT PULLEY (See page 14±307) SST 09213±54015 (90105±08076), 09330±00021
160.INSTALL GLOW PLUG ASSY (See page 19±33)
161. INSTALL ENGINE MOUNTING BRACKET RR Torque: 64 N m (653 kgf cm, 47 ft lbf)
162. INSTALL ENGINE MOUNTING BRACKET FR Torque: 64 N m (653 kgf cm, 47 ft lbf)
163. INSTALL DRIVE SHAFT BEARING BRACKET Torque: 64 N m (653 kgf cm, 47 ft lbf)
164. INSTALL REAR END PLATE Torque: 8.4 N m (86 kgf cm, 74 in. lbf)
165. INSTALL FLYWHEEL SUB±ASSY
(a) Using SST, hold the crankshaft. SST 09213±54015 (90105±08076), 09330±00021
(b) Clean the bolts and its bolt holes.
(c) Apply adhesive to 2 or 3 threads of the bolt end.
Adhesive: Part No. 08833±00070, THREE BOND 1324
or equivalent
Page 559 of 1690
A79183
2
1
3
4
5
6
7
8
A79180
A62711
A59792
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
14±301
AVENSIS REPAIR MANUAL (RM1018E)

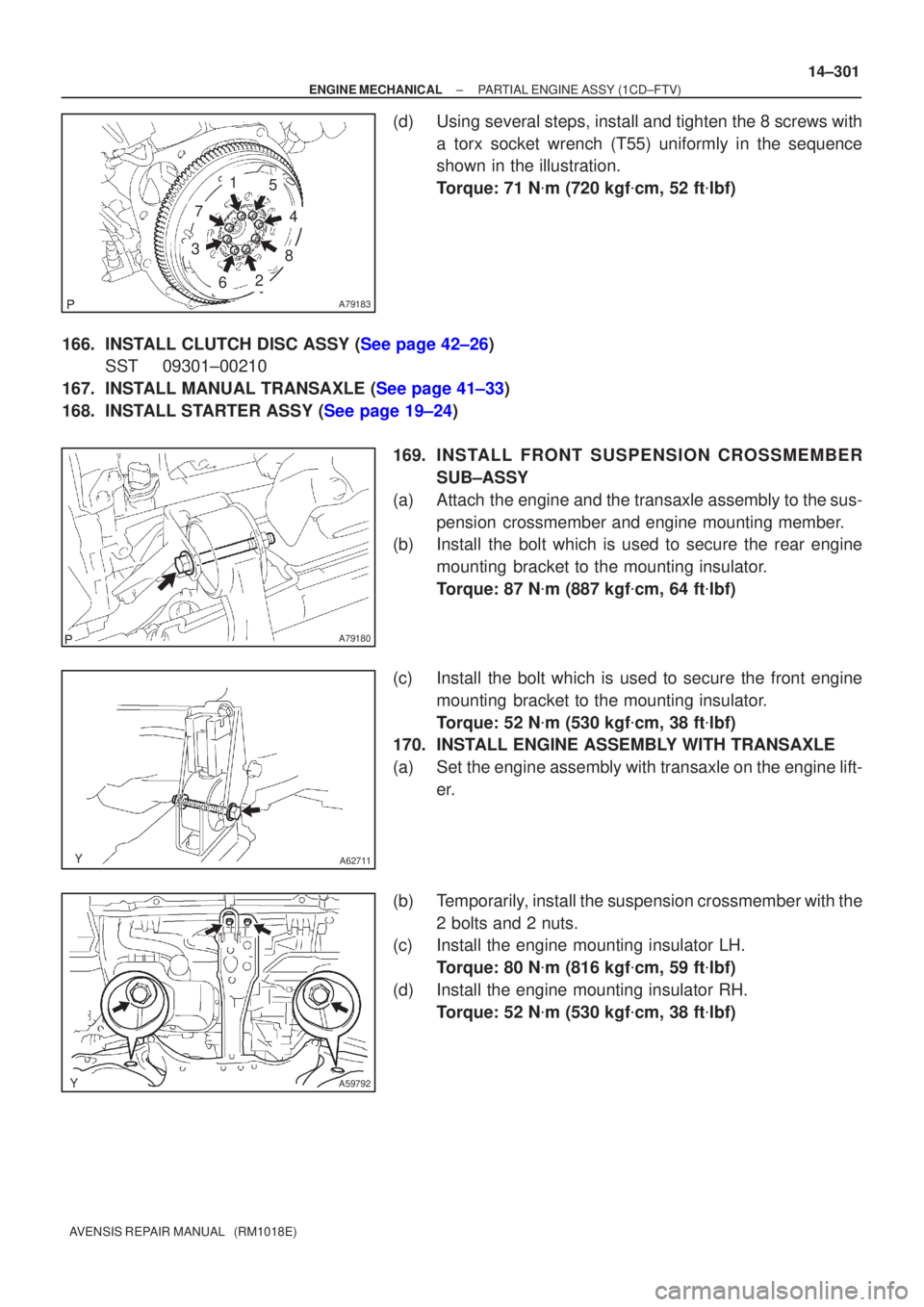

(d)Using several steps, install and tighten the 8 screws with
a torx socket wrench (T55) uniformly in the sequence
shown in the illustration.
Torque: 71 N m (720 kgf cm, 52 ft lbf)
166.INSTALL CLUTCH DISC ASSY (See page 42±26) SST 09301±00210
167.INSTALL MANUAL TRANSAXLE (See page 41±33)
168.INSTALL STARTER ASSY (See page 19±24)
169. INS TALL FRO NT SUSPENSION CROSSMEMBER
SUB±ASSY
(a) Attach the engine and the transaxle assembly to the sus- pension crossmember and engine mounting member.
(b) Install the bolt which is used to secure the rear engine
mounting bracket to the mounting insulator.
Torque: 87 N m (887 kgf cm, 64 ft lbf)
(c) Install the bolt which is used to secure the front engine mounting bracket to the mounting insulator.
Torque: 52 N m (530 kgf cm, 38 ft lbf)
170. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(a) Set the engine assembly with transaxle on the engine lift-
er.
(b) Temporarily, install the suspension crossmember with the 2 bolts and 2 nuts.
(c) Install the engine mounting insulator LH.
Torque: 80 N m (816 kgf cm, 59 ft lbf)
(d) Install the engine mounting insulator RH. Torque: 52 N m (530 kgf cm, 38 ft lbf)
Page 560 of 1690
A59792
BB
AA
A59793
AA
BBBBB
B
14±302
±
ENGINE MECHANICAL PARTIAL ENGINE ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

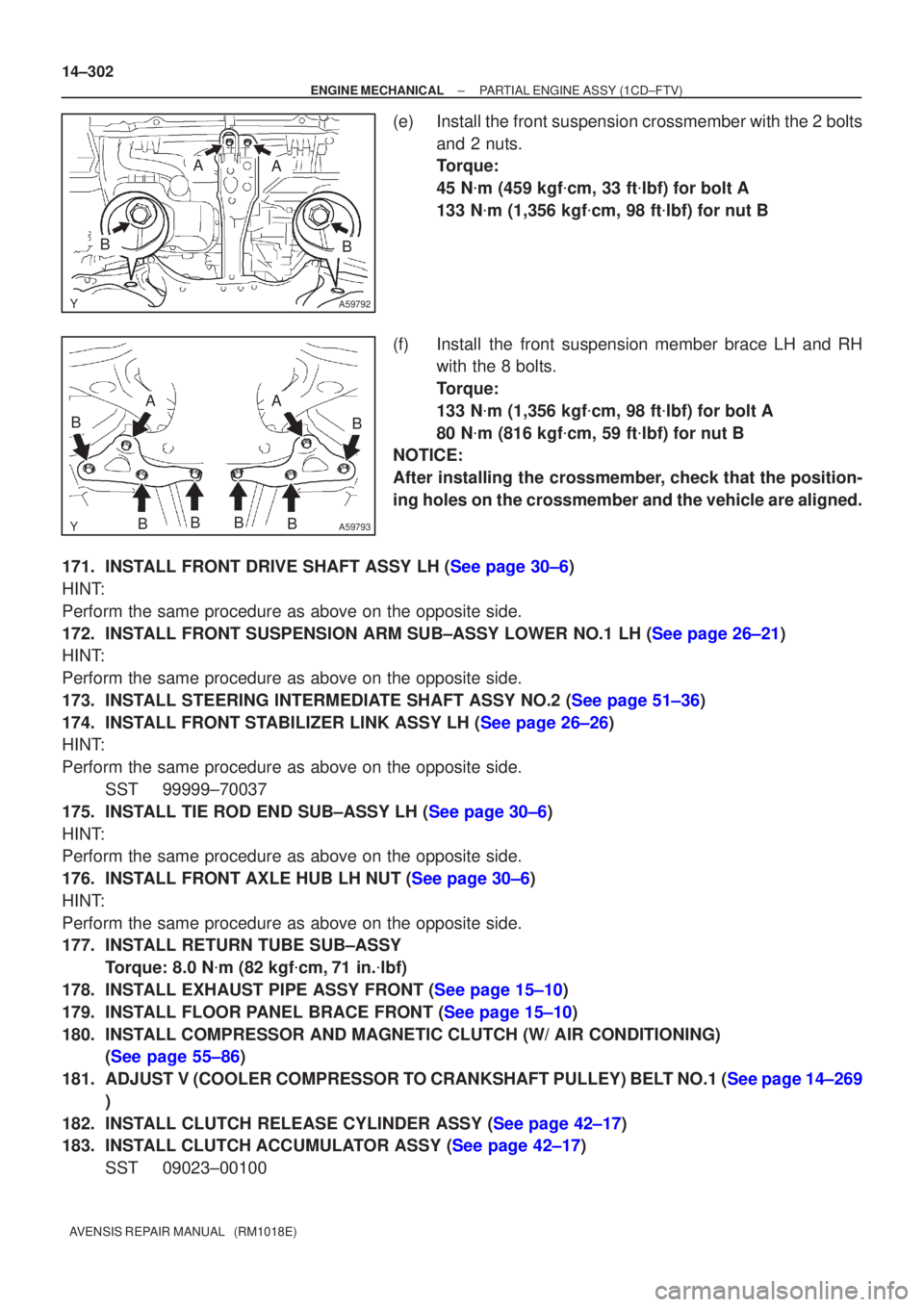

(e)Install the front suspension crossmember with the 2 bolts and 2 nuts.
Torque:
45 Nm (459 kgf cm, 33 ft lbf) for bolt A
133 N m (1,356 kgf cm, 98 ft lbf) for nut B
(f)Install the front suspension member brace LH and RH with the 8 bolts.
Torque:
133 N m (1,356 kgf cm, 98 ft lbf) for bolt A
80 N m (816 kgf cm, 59 ft lbf) for nut B
NOTICE:
After installing the crossmember, check that the position-
ing holes on the crossmember and the vehicle are aligned.
171.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side.
172.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 26±21)
HINT:
Perform the same procedure as above on the opposite side.
173.INSTALL STEERING INTERMEDIATE SHAFT ASSY NO.2 (See page 51±36)
174.INSTALL FRONT STABILIZER LINK ASSY LH (See page 26±26)
HINT:
Perform the same procedure as above on the opposite side. SST 99999±70037
175.INSTALL TIE ROD END SUB±ASSY LH (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side.
176.INSTALL FRONT AXLE HUB LH NUT (See page 30±6)
HINT:
Perform the same procedure as above on the opposite side.
177. INSTALL RETURN TUBE SUB±ASSY Torque: 8.0 N m (82 kgf cm, 71 in. lbf)
178.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±10)
179.INSTALL FLOOR PANEL BRACE FRONT (See page 15±10)
180. INSTALL COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR CONDITIONING) (See page 55±86)
181.ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269 )
182.INSTALL CLUTCH RELEASE CYLINDER ASSY (See page 42±17)
183.INSTALL CLUTCH ACCUMULATOR ASSY (See page 42±17) SST 09023±00100
