TOYOTA AVENSIS 2002 Repair Manual

760WC±01
B67619
Clip
76±32
± EXTERIOR/INTERIOR TRIMFRONT FLOOR FOOTREST
AVENSIS REPAIR MANUAL (RM1018E)

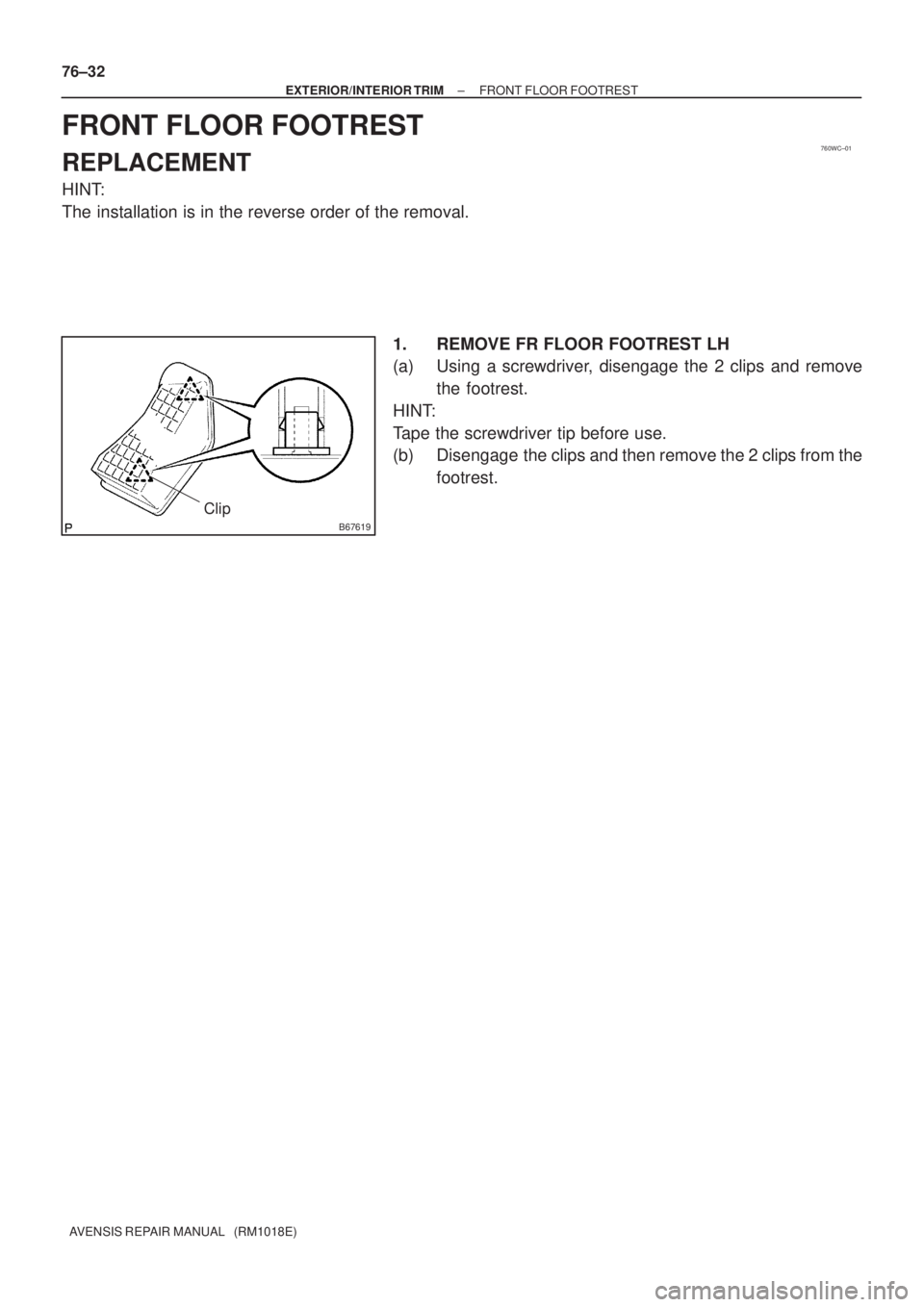

FRONT FLOOR FOOTREST
REPLACEMENT
HINT:
The installation is in the reverse order of the removal.
1. REMOVE FR FLOOR FOOTREST LH
(a) Using a screwdriver, disengage the 2 clips and remove
the footrest.
HINT:
Tape the screwdriver tip before use.
(b) Disengage the clips and then remove the 2 clips from the
footrest.

760X5±01
B68948
Sedan Models
Luggage Compartment Trim Hook No. 2
Rope Hook Assy Luggage Compartment Floor Carpet
Luggage Compartment Trim Inner LH
5.0 (51, 44 in.´lbf)
: Specified torqueN´m (kgf´cm, ft´lbf)
Rear Floor Finish Plate
Fuel Lid Lock Control Assy
Fuel Filler Opening Lid Lock Retainer
5.5 (56, 49 in.´lbf)
± EXTERIOR/INTERIOR TRIMFUEL LID LOCK CONTROL ASSY
76±11
AVENSIS REPAIR MANUAL (RM1018E)

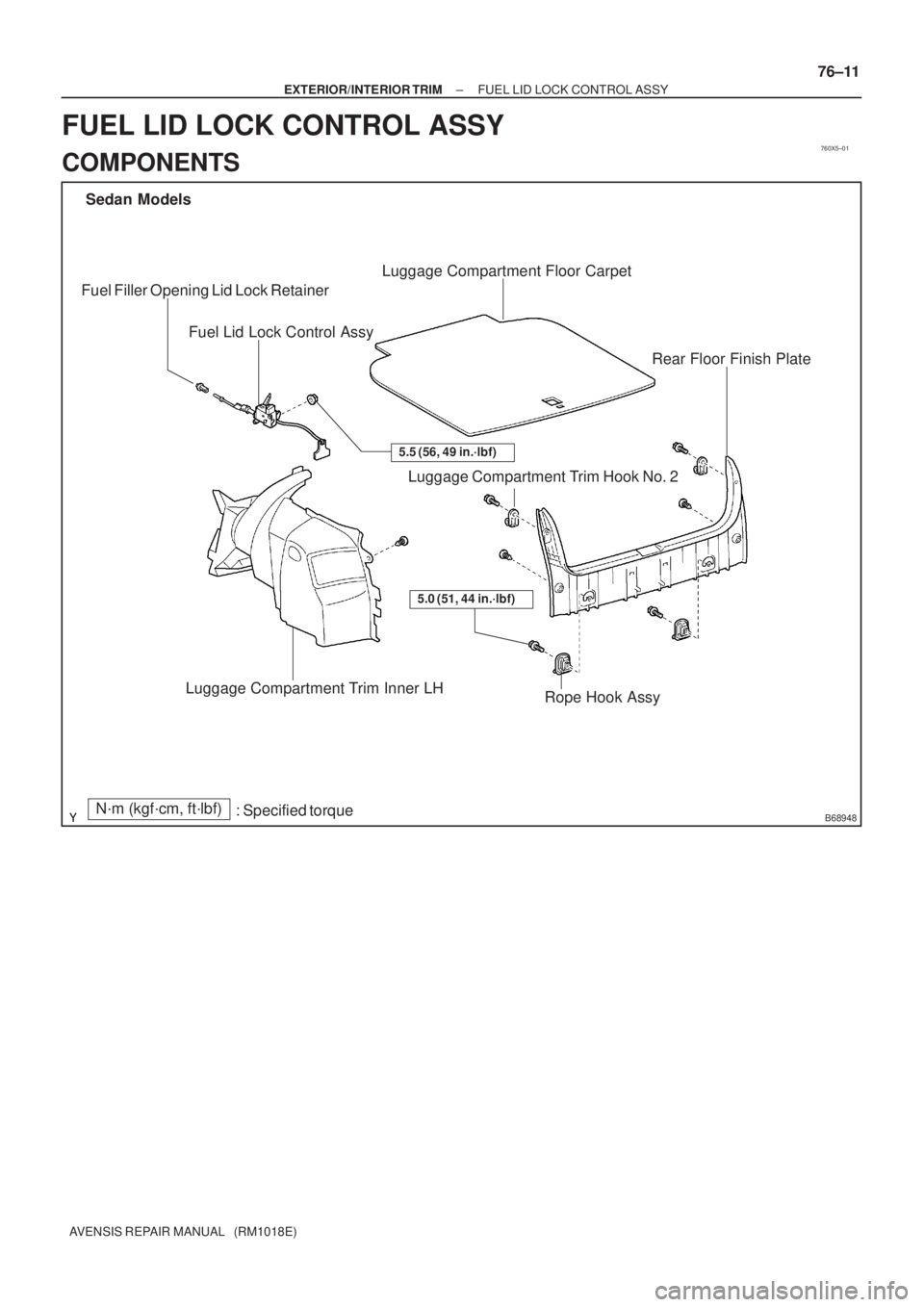

FUEL LID LOCK CONTROL ASSY
COMPONENTS

B68947

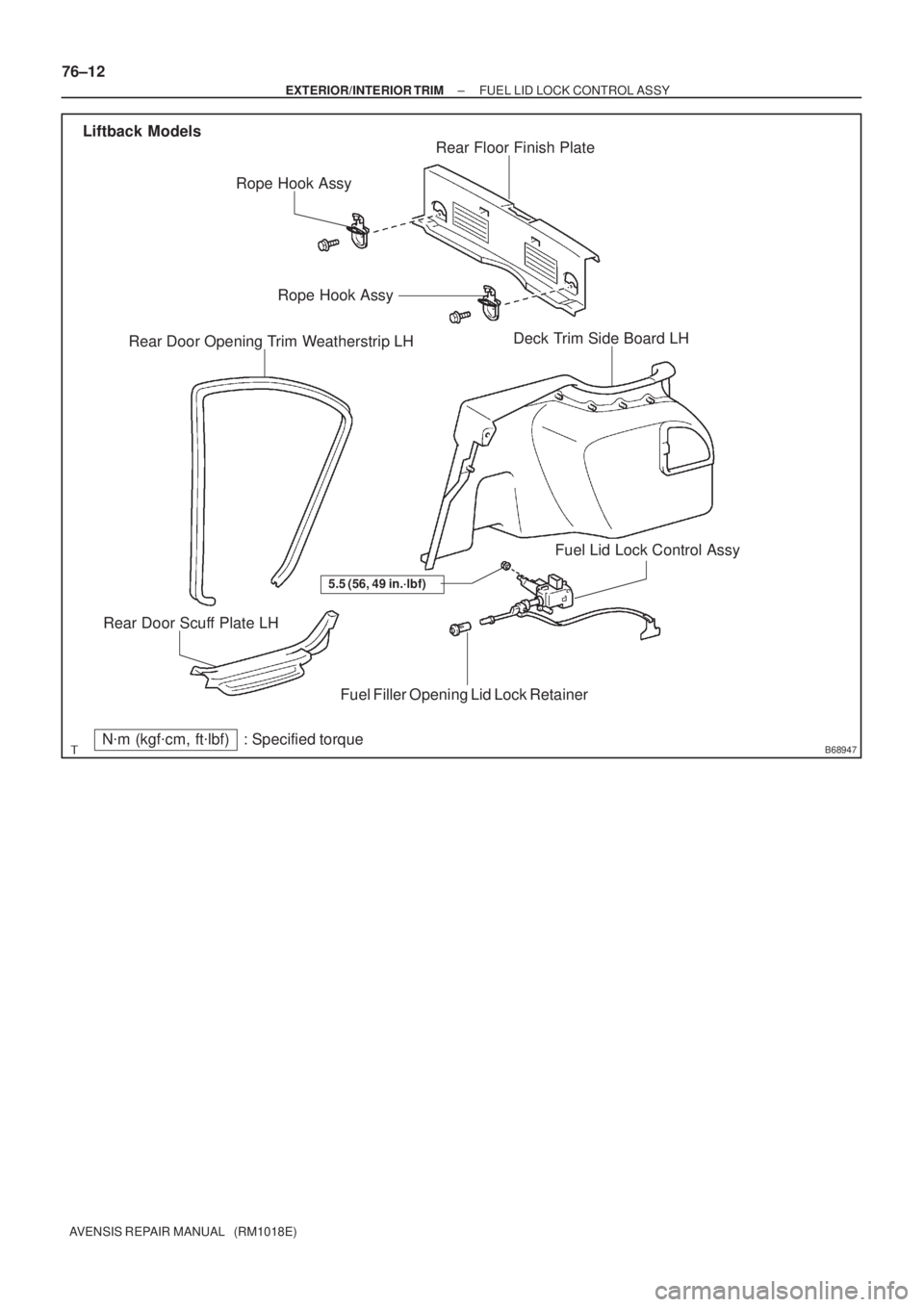

Liftback Models
Fuel Lid Lock Control Assy
Fuel Filler Opening Lid Lock Retainer
Rear Floor Finish Plate
Rear Door Opening Trim Weatherstrip LH
Rear Door Scuff Plate LHDeck Trim Side Board LH Rope Hook Assy
Rope Hook Assy
: Specified torqueN
m (kgf
cm, ft
lbf)
5.5 (56, 49 in.´lbf)
76±12
± EXTERIOR/INTERIOR TRIMFUEL LID LOCK CONTROL ASSY
AVENSIS REPAIR MANUAL (RM1018E)

B68946

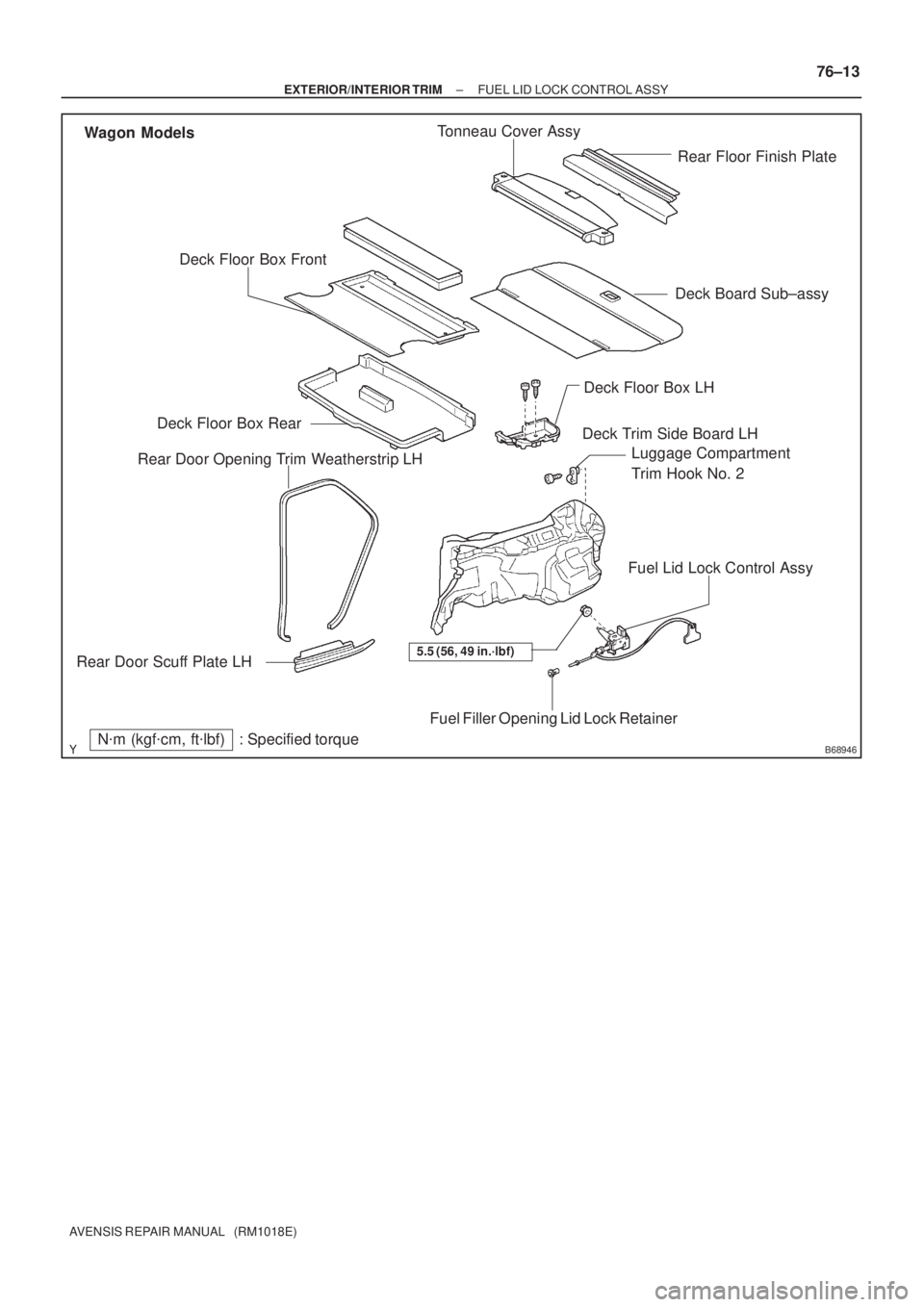

Wagon Models
Fuel Lid Lock Control Assy
Fuel Filler Opening Lid Lock Retainer
Deck Trim Side Board LH
Luggage Compartment
Trim Hook No. 2 Tonneau Cover Assy
Deck Board Sub±assy Deck Floor Box Front
Deck Floor Box LHRear Floor Finish Plate
Deck Floor Box Rear
Rear Door Opening Trim Weatherstrip LH
Rear Door Scuff Plate LH
: Specified torqueN
m (kgf
cm, ft
lbf)
5.5 (56, 49 in.´lbf)
± EXTERIOR/INTERIOR TRIMFUEL LID LOCK CONTROL ASSY
76±13
AVENSIS REPAIR MANUAL (RM1018E)

760X6±01
B68949
B69147
76±14
±
EXTERIOR/INTERIOR TRIM FUEL LID LOCK CONTROL ASSY
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated.
1.REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH (SEDAN MODELS) (See page 76±36)
(a) Remove the luggage compartment floor carpet.
(b) Remove the 2 rope hooks.
(c) Remove the rear floor finish plate.
(d) Remove the 2 luggage compartment trim hooks.
(e) Remove the luggage compartment trim inner.
2.REMOVE DECK TRIM SIDE BOARD LH (LIFTBACK MODELS) (See page 76±45)
(a) Remove the 2 rope hooks.
(b) Remove the rear floor finish plate.
(c) Remove the rear door opening trim weatherstrip LH.
(d) Remove the rear door scuff plate LH.
(e) Remove the deck trim side board.
3.REMOVE DECK TRIM SIDE PANEL ASSY LH (WAGON MODELS) (See page 76±54)
(a) Remove the rear door opening trim weatherstrip LH
(b) Remove the rear door scuff plate.
(c) Remove the tonneau cover.
(d) Remove the deck board.
(e) Remove the deck floor box rear.
(f) Remove the deck floor box LH.
(g) Remove the deck floor box front.
(h) Remove the rear floor finish plate.
(i) Remove the luggage compartment trim hook No. 2.
(j) Remove the deck trim side board.
4. REMOVE FUEL LID LOCK CONTROL ASSY
(a) Disconnect the connector.
(b) Remove the nut and fuel lid lock control.
5. REMOVE FUEL FILLER OPENING LID LOCKRETAINER
(a) Remove the fuel filler opening lid lock retainer, as shown
in the illustration.

B68950
A
Check Hole
B68951
Male Part
Female Part
± EXTERIOR/INTERIOR TRIMFUEL LID LOCK CONTROL ASSY
76±15
AVENSIS REPAIR MANUAL (RM1018E)

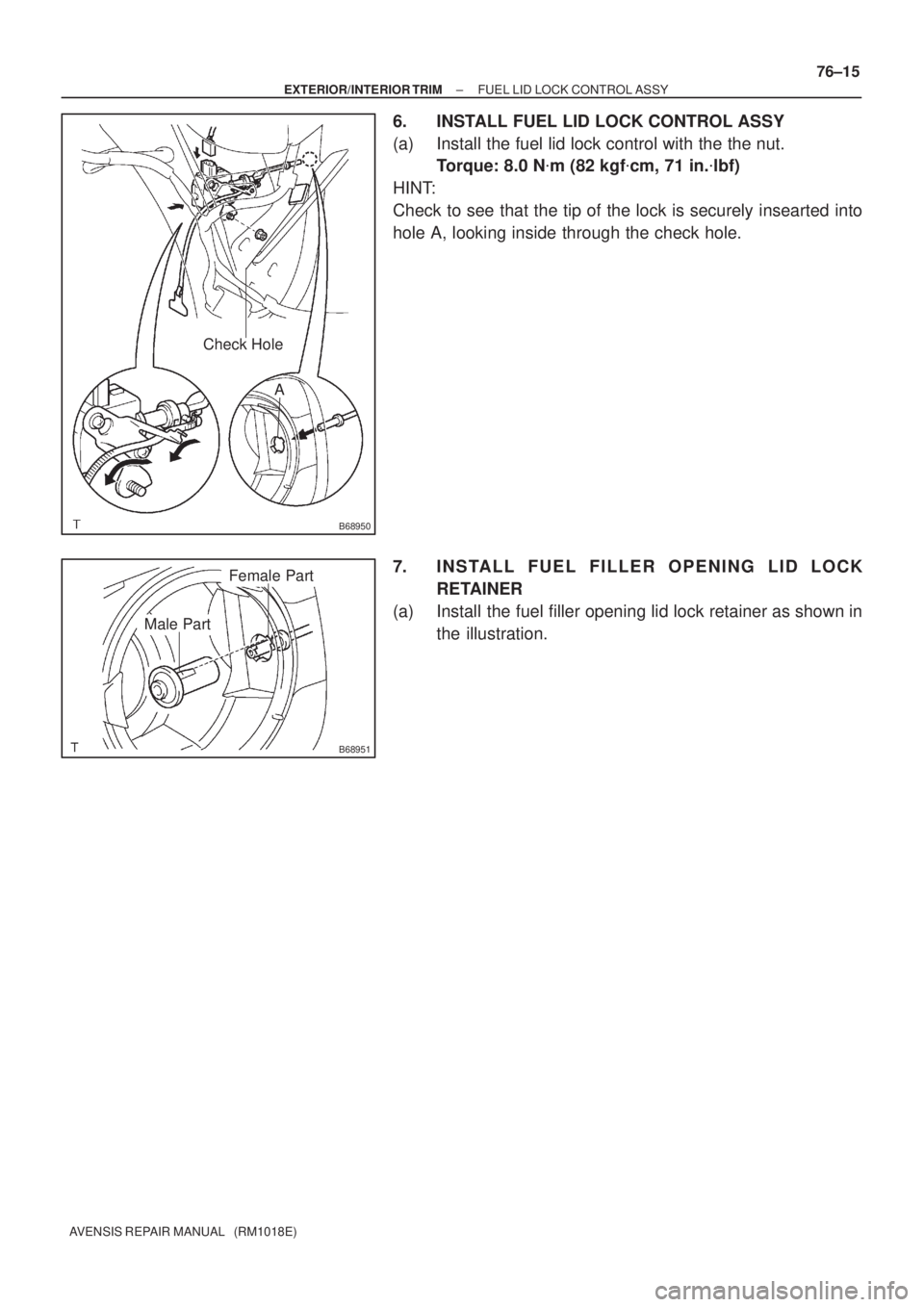

6. INSTALL FUEL LID LOCK CONTROL ASSY
(a) Install the fuel lid lock control with the the nut.
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
HINT:
Check to see that the tip of the lock is securely insearted into
hole A, looking inside through the check hole.
7. INSTALL FUEL FILLER OPENING LID LOCK
RETAINER
(a) Install the fuel filler opening lid lock retainer as shown in
the illustration.


B69320
Sedan Models
Liftback Models
Wagon ModelsSlit
Slit
Strap
Strap
Strap
Slit 76±16
± EXTERIOR/INTERIOR TRIMFUEL LID LOCK CONTROL ASSY
AVENSIS REPAIR MANUAL (RM1018E)

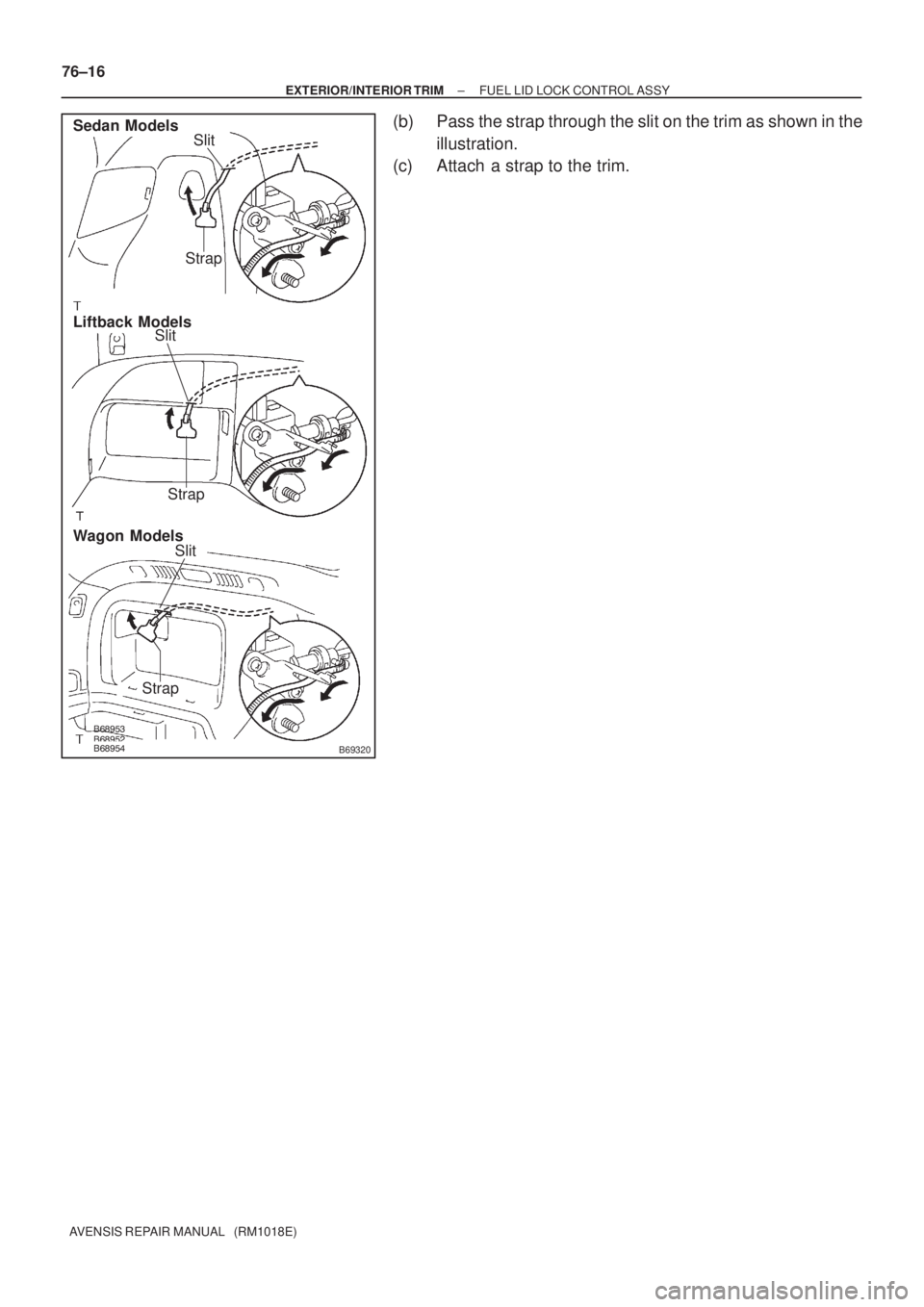

(b) Pass the strap through the slit on the trim as shown in the
illustration.
(c) Attach a strap to the trim.

760W9±01
B67626
NutClip
±
EXTERIOR/INTERIOR TRIM LUGGAGE COMPARTMENT DOOR GARNISH
SUB±ASSY OUTSIDE(SEDAN MODELS)76±27
AVENSIS REPAIR MANUAL (RM1018E)

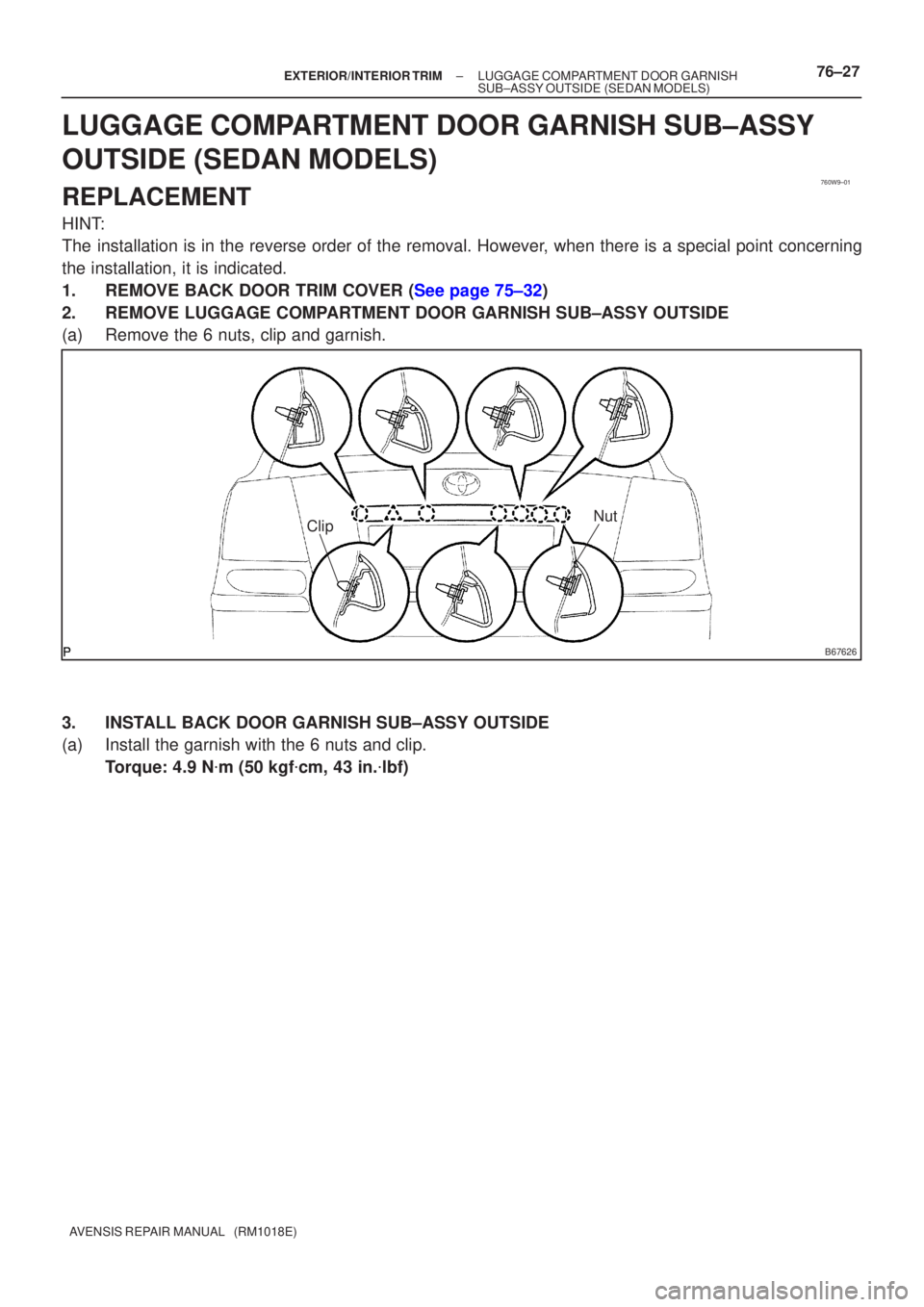

LUGGAGE COMPARTMENT DOOR GARNISH SUB±ASSY
OUTSIDE(SEDAN MODELS)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concerning
the installation, it is indicated.
1.REMOVE BACK DOOR TRIM COVER (See page 75±32)
2. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB±ASSY OUTSIDE
(a) Remove the 6 nuts, clip and garnish.
3. INSTALL BACK DOOR GARNISH SUB±ASSY OUTSIDE
(a) Install the garnish with the 6 nuts and clip.
Torque: 4.9 N
m (50 kgf
cm, 43 in.
lbf)

760W4±01
B67148
110.1 (4.335)
57.3 (2.256)
39.1 (1.717)120.9 (4.760)43.6 (1.717)39.1 (1.539)
106.8 (4.205)
53.9 (2.122) 39.7 (1.563)101.5 (3.996)
39.6 (1.559)24.4 (0.961)
mm (in.)
1
1
RH Side1
RH Side
1
LH Side1
LH Side
± EXTERIOR/INTERIOR TRIMNAME PLATE
76±17
AVENSIS REPAIR MANUAL (RM1018E)

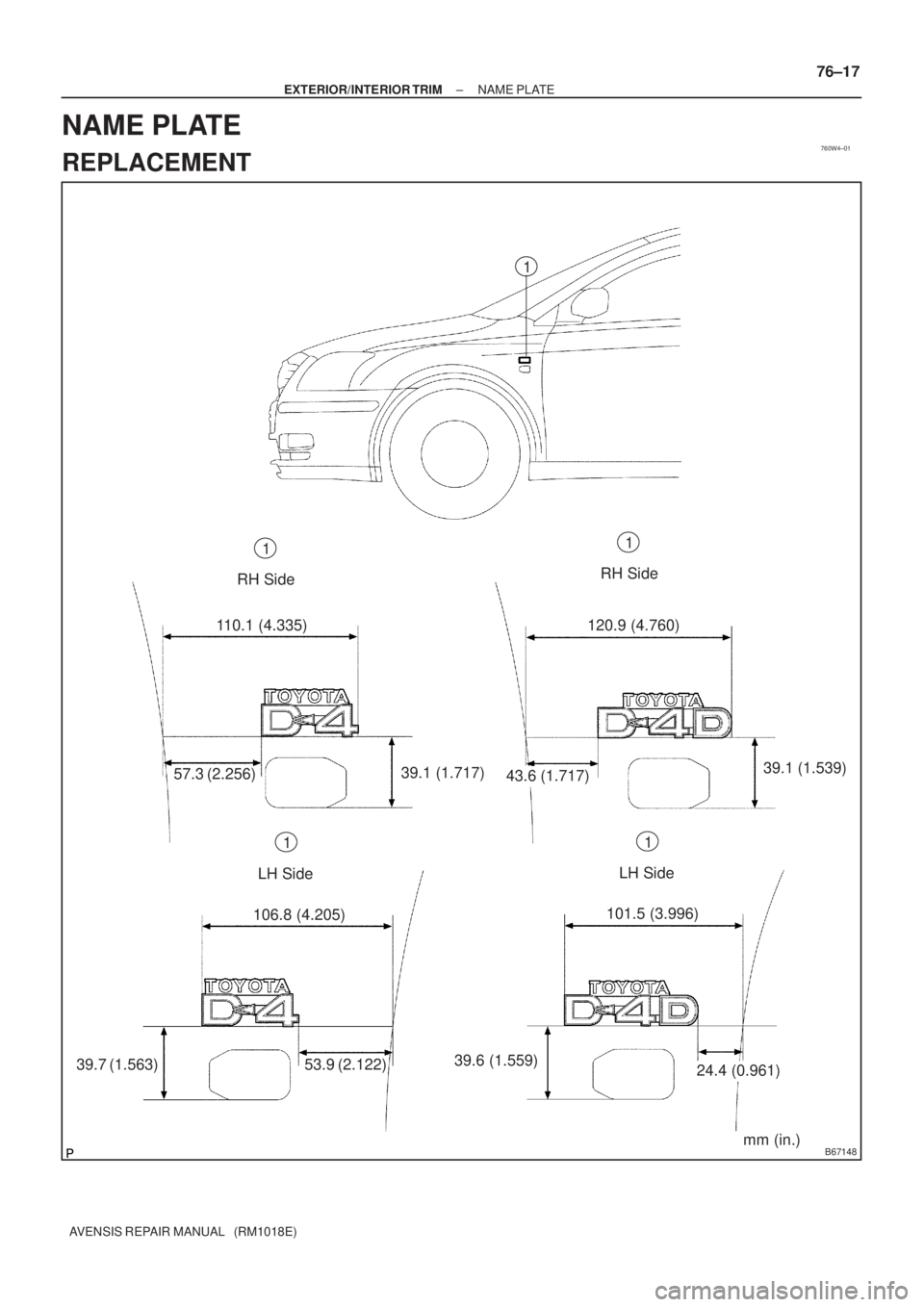

NAME PLATE
REPLACEMENT

B67145
59.0 (2.323)20.3 (0.799)
131.2 (5.165)91.1 (3.587)
115.4 (4.543)161.3 (6.350)14.6 (0.575)47.1 (1.854)
63.5 (2.450)26.6 (1.047)
97.1 (3.823)49 (1.929)
mm (in.) 1
2
3
12
3

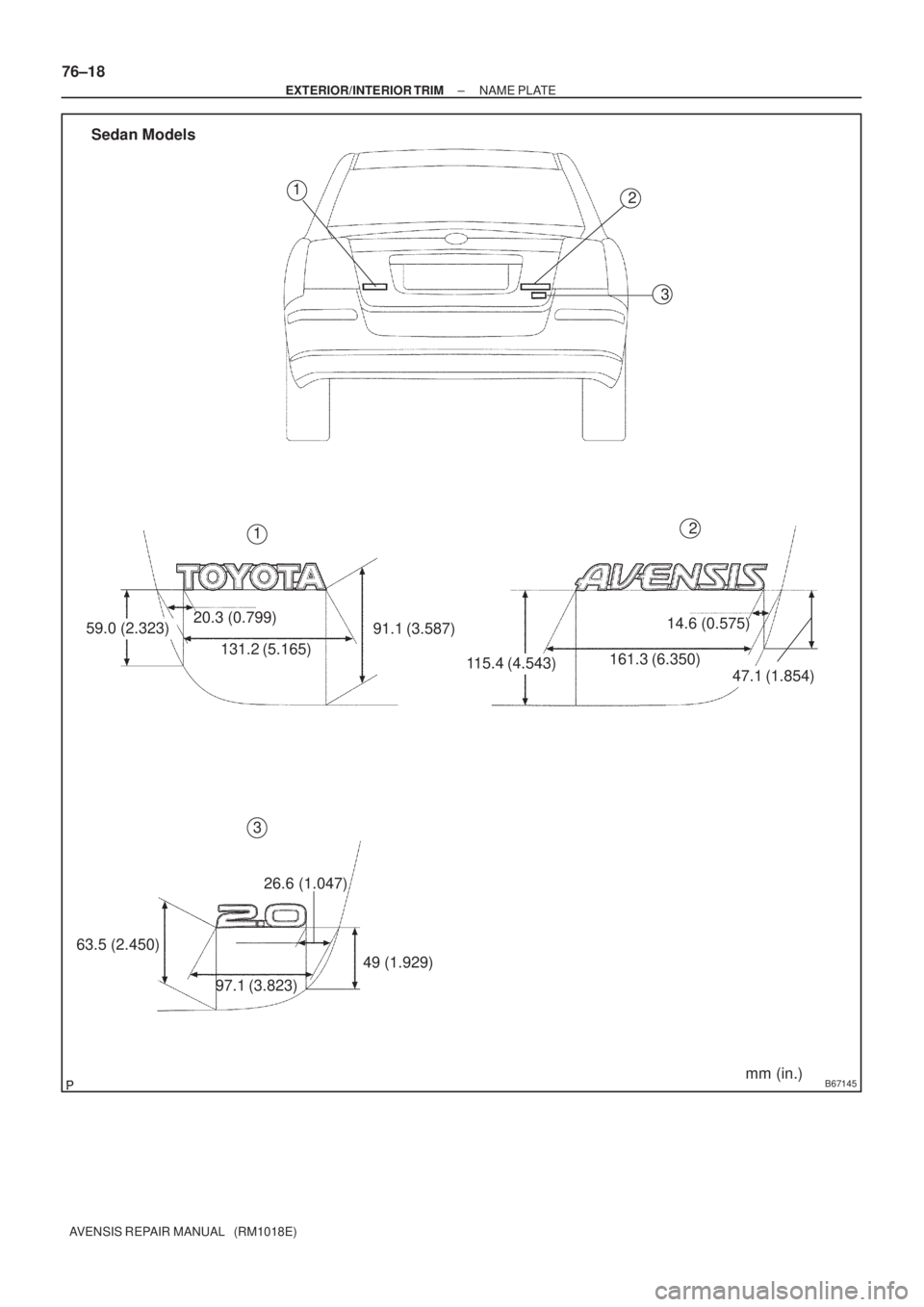

Sedan Models
76±18
± EXTERIOR/INTERIOR TRIMNAME PLATE
AVENSIS REPAIR MANUAL (RM1018E)
