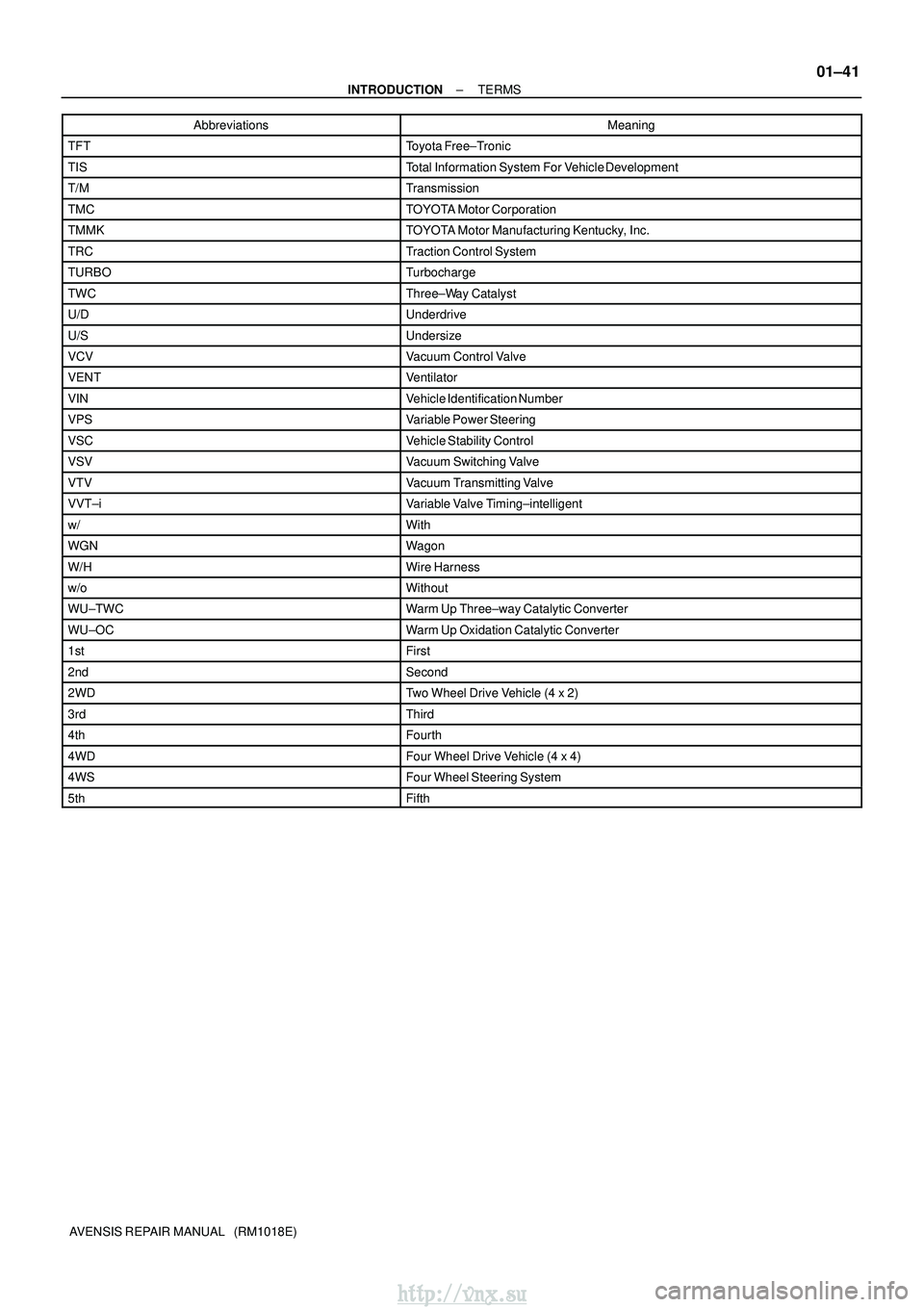

INTRODUCTION TERMS
01±41
AVENSIS REPAIR MANUAL (RM1018E)Abbreviations Meaning
TFTToyota Free±Tronic
TISTotal Information System For Vehicle Development
T/MTransmission
TMCTOYOTA Motor Corporation
TMMKTOYOTA Motor Manufacturing Kentucky, Inc.
TRCTraction Control System
TURBOTurbocharge
TWCThree±Way Catalyst
U/DUnderdrive
U/SUndersize
VCVVacuum Control Valve
VENTVentilator
VINVehicle Identification Number
VPSVariable Power Steering
VSCVehicle Stability Control
VSVVacuum Switching Valve
VTVVacuum Transmitting Valve
VVT±iVariable Valve Timing±intelligent
w/With
WGNWagon
W/HWire Harness
w/oWithout
WU±TWCWarm Up Three±way Catalytic Converter
WU±OCWarm Up Oxidation Catalytic Converter
1stFirst
2ndSecond
2WDTwo Wheel Drive Vehicle (4 x 2)
3rdThird
4thFourth
4WDFour Wheel Drive Vehicle (4 x 4)
4WSFour Wheel Steering System
5thFifth
http://vnx.su

010BA±14

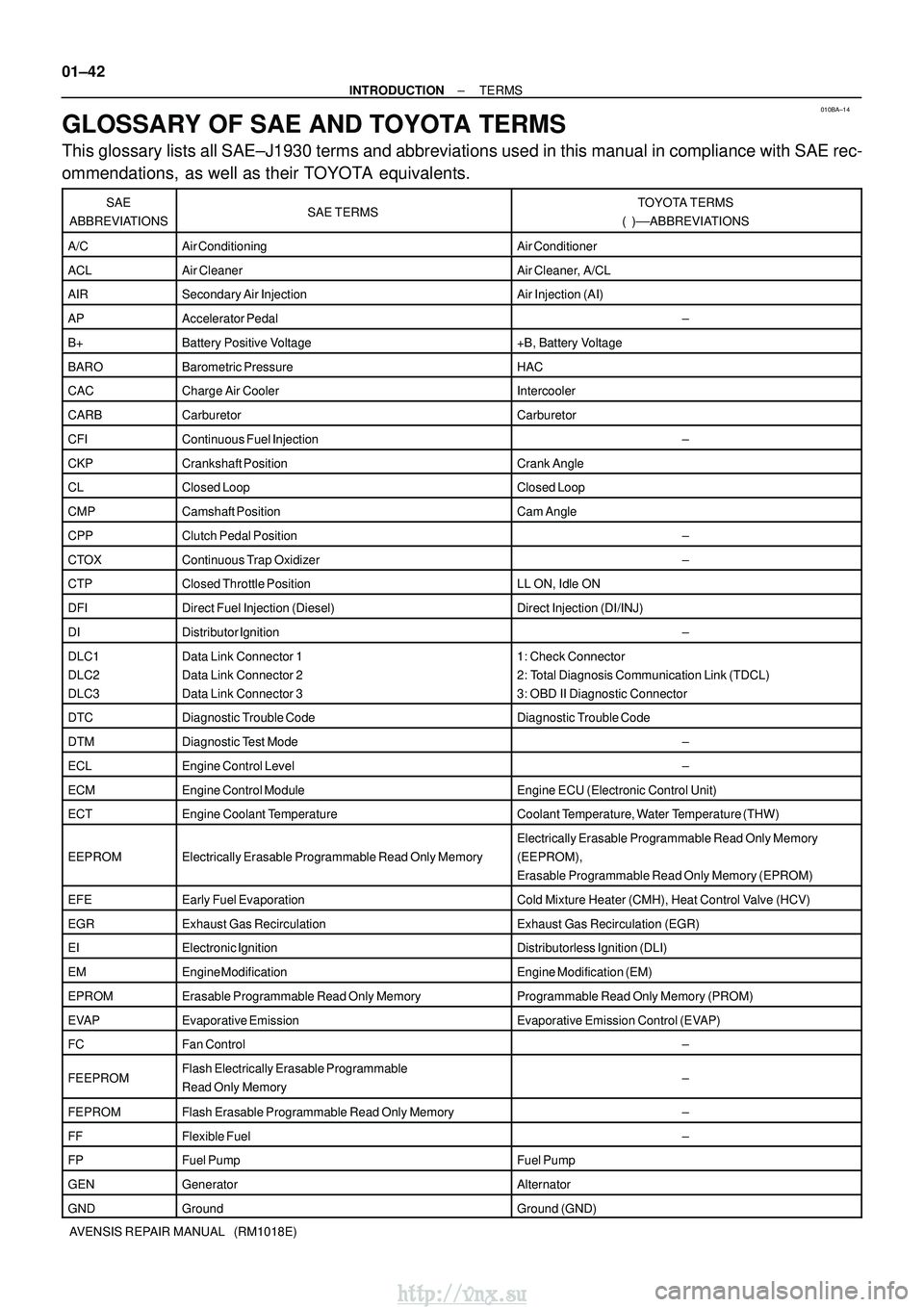

01±42
±
INTRODUCTION TERMS
AVENSIS REPAIR MANUAL (RM1018E)
GLOSSARY OF SAE AND TOYOTA TERMS
This glossary lists all SAE±J1930 terms and abbreviations used in this ma\
nual in compliance with SAE rec-
ommendations, as well as their TOYOTA equivalents.
SAE
ABBREVIATIONSSAE TERMSTOYOTA TERMS
( )±±ABBREVIATIONS
A/CAir ConditioningAir Conditioner
ACLAir CleanerAir Cleaner, A/CL
AIRSecondary Air InjectionAir Injection (AI)
APAccelerator Pedal±
B+Battery Positive Voltage+B, Battery Voltage
BAROBarometric PressureHAC
CACCharge Air CoolerIntercooler
CARBCarburetorCarburetor
CFIContinuous Fuel Injection±
CKPCrankshaft PositionCrank Angle
CLClosed LoopClosed Loop
CMPCamshaft PositionCam Angle
CPPClutch Pedal Position±
CTOXContinuous Trap Oxidizer±
CTPClosed Throttle PositionLL ON, Idle ON
DFIDirect Fuel Injection (Diesel)Direct Injection (DI/INJ)
DIDistributor Ignition±
DLC1
DLC2
DLC3Data Link Connector 1
Data Link Connector 2
Data Link Connector 31: Check Connector
2: Total Diagnosis Communication Link (TDCL)
3: OBD II Diagnostic Connector
DTCDiagnostic Trouble CodeDiagnostic Trouble Code
DTMDiagnostic Test Mode±
ECLEngine Control Level±
ECMEngine Control ModuleEngine ECU (Electronic Control Unit)
ECTEngine Coolant TemperatureCoolant Temperature, Water Temperature (THW)
EEPROMElectrically Erasable Programmable Read Only Memory
Electrically Erasable Programmable Read Only Memory
(EEPROM),
Erasable Programmable Read Only Memory (EPROM)
EFEEarly Fuel EvaporationCold Mixture Heater (CMH), Heat Control Valve (HCV)
EGRExhaust Gas RecirculationExhaust Gas Recirculation (EGR)
EIElectronic IgnitionDistributorless Ignition (DLI)
EMEngine ModificationEngine Modification (EM)
EPROMErasable Programmable Read Only MemoryProgrammable Read Only Memory (PROM)
EVAPEvaporative EmissionEvaporative Emission Control (EVAP)
FCFan Control±
FEEPROMFlash Electrically Erasable Programmable
Read Only Memory±
FEPROMFlash Erasable Programmable Read Only Memory±
FFFlexible Fuel±
FPFuel PumpFuel Pump
GENGeneratorAlternator
GNDGroundGround (GND)
http://vnx.su

±
INTRODUCTION TERMS
01±43
AVENSIS REPAIR MANUAL (RM1018E)
HO2S
Heated Oxygen SensorHeated Oxygen Sensor (HO2S)
IACIdle Air ControlIdle Speed Control (ISC)
IATIntake Air TemperatureIntake or Inlet Air Temperature
ICMIgnition Control Module±
IFIIndirect Fuel InjectionIndirect Injection (IDL)
IFSInertia Fuel±Shutoff±
ISCIdle Speed Control±
KSKnock SensorKnock Sensor
MAFMass Air FlowAir Flow Meter
MAPManifold Absolute PressureManifold Pressure Intake Vacuum
MCMixture Control
Electric Bleed Air Control Valve (EBCV)
Mixture Control Valve (MCV)
Electric Air Control Valve (EACV)
MDPManifold Differential Pressure±
MFIMultiport Fuel InjectionElectronic Fuel Injection (EFI)
MILMalfunction Indicator LampCheck Engine Lamp
MSTManifold Surface Temperature±
MVZManifold Vacuum Zone±
NVRAMNon±Volatile Random Access Memory±
O2SOxygen SensorOxygen Sensor, O2 Sensor (O2S)
OBDOn±Board DiagnosticOn±Board Diagnostic System (OBD)
OCOxidation Catalytic ConverterOxidation Catalyst Convert (OC), CCo
OPOpen LoopOpen Loop
PAIRPulsed Secondary Air InjectionAir Suction (AS)
PCMPowertrain Control Module±
PNPPark/Neutral Position±
PROMProgrammable Read Only Memory±
PSPPower Steering Pressure±
PTOXPeriodic Trap OxidizerDiesel Particulate Filter (DPF)
Diesel Particulate Trap (DPT)
RAMRandom Access MemoryRandom Access Memory (RAM)
RMRelay Module±
ROMRead Only MemoryRead Only Memory (ROM)
RPMEngine SpeedEngine Speed
SCSuperchargerSupercharger
SCBSupercharger BypassE±ABV
SFISequential Multiport Fuel InjectionElectronic Fuel Injection (EFI), Sequential Injection
SPLSmoke Puff Limiter±
SRIService Reminder Indicator±
SRTSystem Readiness Test±
STScan Tool±
TBThrottle BodyThrottle Body
TBIThrottle Body Fuel InjectionSingle Point Injection
Central Fuel Injection (Ci)
TCTurbochargerTurbocharger
TCCTorque Converter ClutchTorque Converter
http://vnx.su

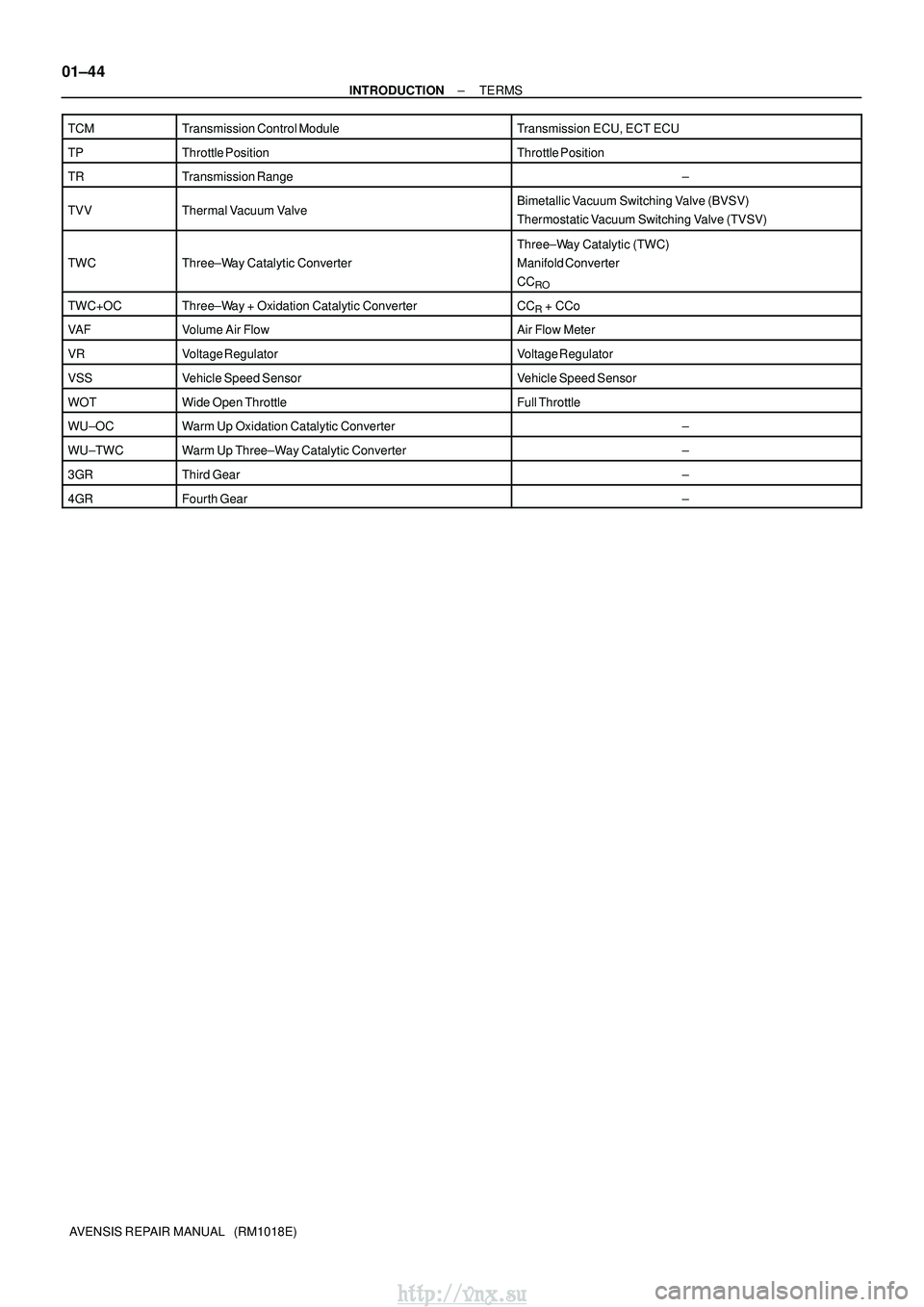

01±44
±
INTRODUCTION TERMS
AVENSIS REPAIR MANUAL (RM1018E)
TCM
Transmission Control ModuleTransmission ECU, ECT ECU
TPThrottle PositionThrottle Position
TRTransmission Range±
TVVThermal Vacuum ValveBimetallic Vacuum Switching Valve (BVSV)
Thermostatic Vacuum Switching Valve (TVSV)
TWCThree±Way Catalytic Converter
Three±Way Catalytic (TWC)
Manifold Converter
CC
RO
TWC+OCThree±Way + Oxidation Catalytic ConverterCCR + CCo
VA FVolume Air FlowAir Flow Meter
VRVoltage RegulatorVoltage Regulator
VSSVehicle Speed SensorVehicle Speed Sensor
WOTWide Open ThrottleFull Throttle
WU±OCWarm Up Oxidation Catalytic Converter±
WU±TWCWarm Up Three±Way Catalytic Converter±
3GRThird Gear±
4GRFourth Gear±
http://vnx.su

022KX±01
±

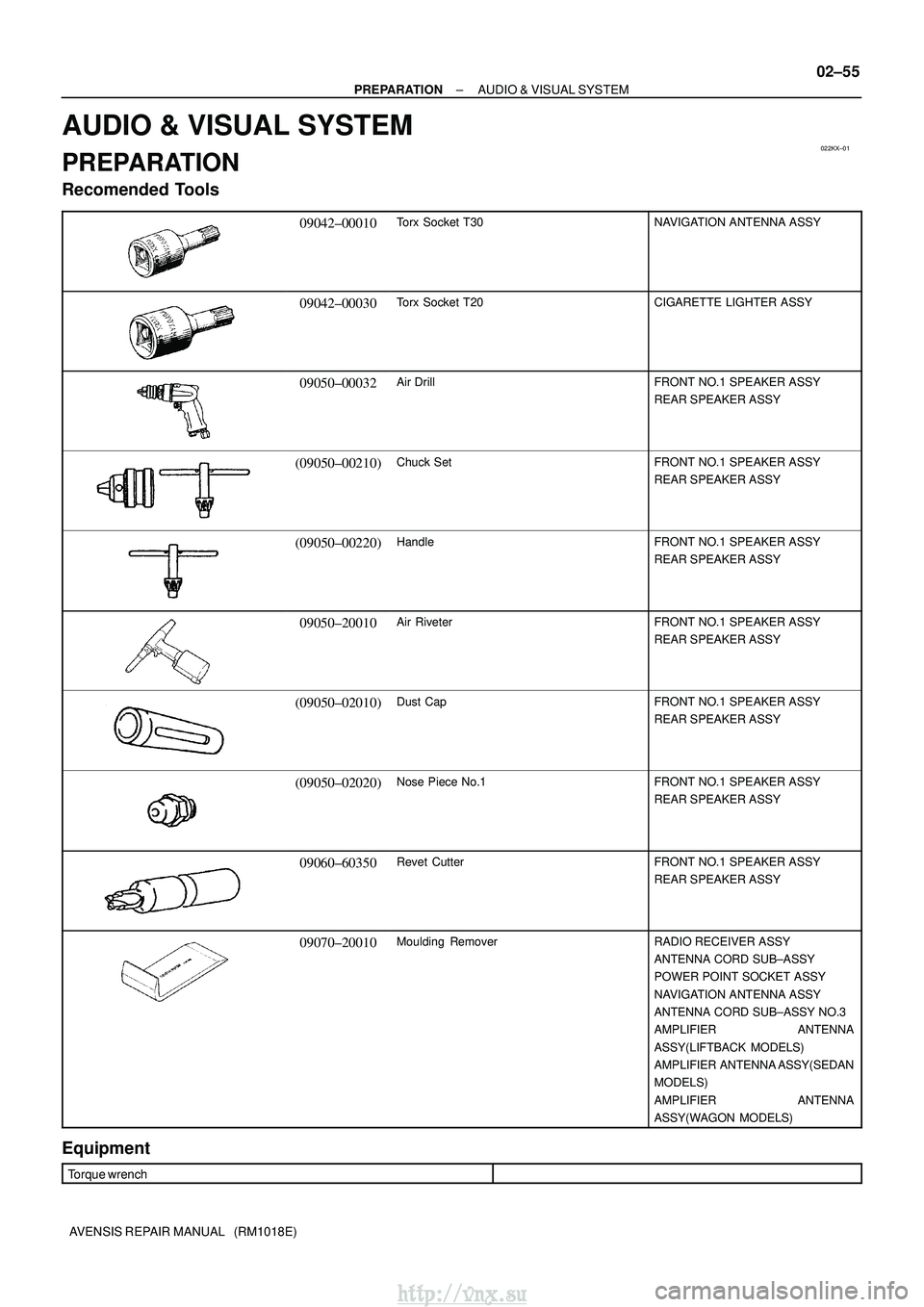

PREPARATION AUDIO & VISUAL SYSTEM
02±55
AVENSIS REPAIR MANUAL (RM1018E)
AUDIO & VISUAL SYSTEM
PREPARATION
Recomended Tools
09042±00010Torx Socket T30NAVIGATION ANTENNA ASSY
09042±00030Torx Socket T20CIGARETTE LIGHTER ASSY
09050±00032Air DrillFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±00210)Chuck SetFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±00220)HandleFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09050±20010Air RiveterFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±02010)Dust CapFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±02020)Nose Piece No.1FRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09060±60350Revet CutterFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09070±20010Moulding RemoverRADIO RECEIVER ASSY
ANTENNA CORD SUB±ASSY
POWER POINT SOCKET ASSY
NAVIGATION ANTENNA ASSY
ANTENNA CORD SUB±ASSY NO.3
AMPLIFIER ANTENNA
ASSY(LIFTBACK MODELS)
AMPLIFIER ANTENNA ASSY(SEDAN
MODELS)
AMPLIFIER ANTENNA
ASSY(WAGON MODELS)
Equipment
Torque wrench
http://vnx.su

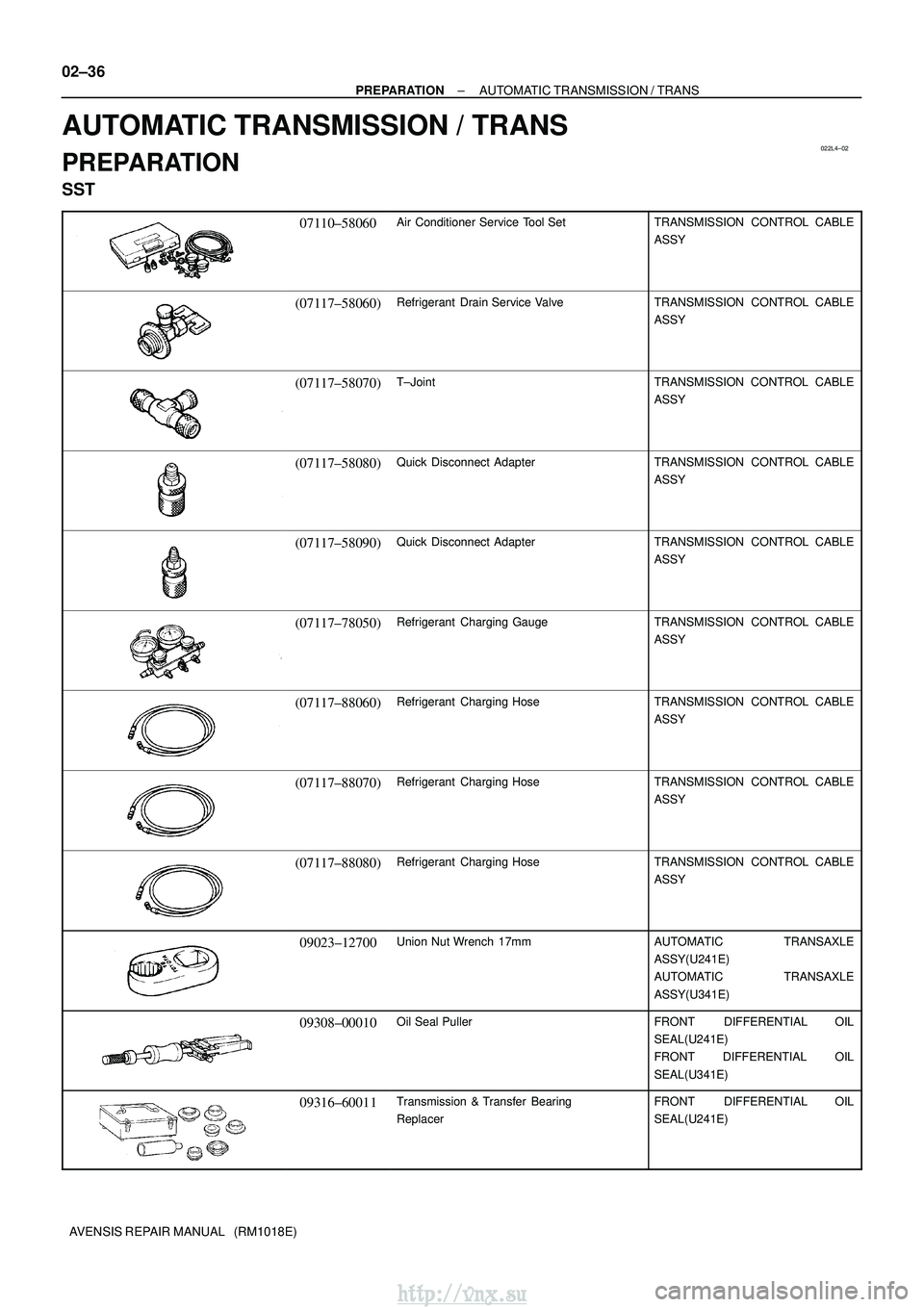

022L4±02
02±36
±
PREPARATION AUTOMATIC TRANSMISSION / TRANS
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSMISSION / TRANS
PREPARATION
SST
07110±58060Air Conditioner Service Tool SetTRANSMISSION CONTROL CABLE
ASSY
(07117±58060)Refrigerant Drain Service ValveTRANSMISSION CONTROL CABLE
ASSY
(07117±58070)T±JointTRANSMISSION CONTROL CABLE
ASSY
(07117±58080)Quick Disconnect AdapterTRANSMISSION CONTROL CABLE
ASSY
(07117±58090)Quick Disconnect AdapterTRANSMISSION CONTROL CABLE
ASSY
(07117±78050)Refrigerant Charging GaugeTRANSMISSION CONTROL CABLE
ASSY
(07117±88060)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
(07117±88070)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
(07117±88080)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
09023±12700Union Nut Wrench 17mmAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
09308±00010Oil Seal PullerFRONT DIFFERENTIAL OIL
SEAL(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09316±60011Transmission & Transfer Bearing
ReplacerFRONT DIFFERENTIAL OIL
SEAL(U241E)
http://vnx.su

±

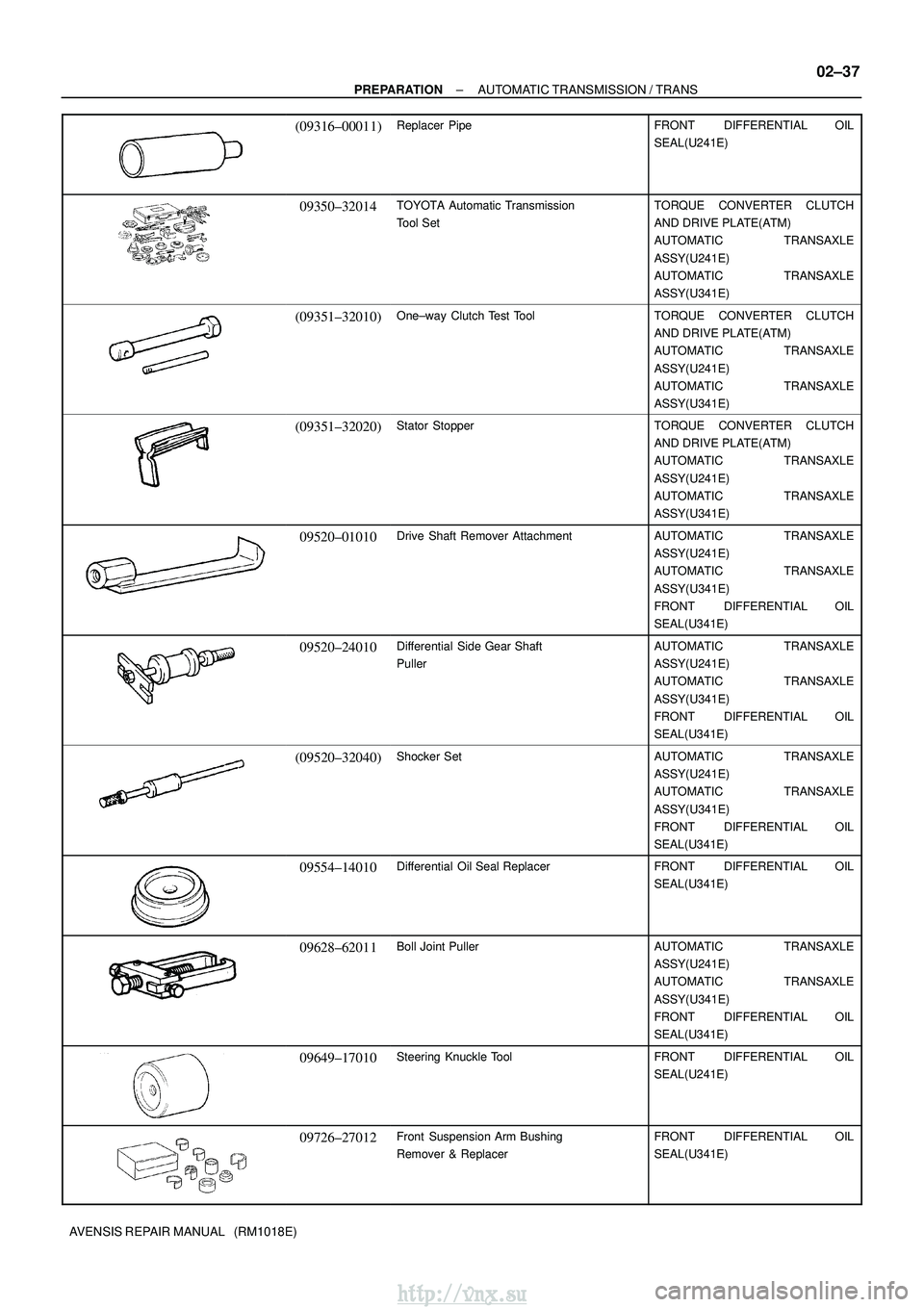

PREPARATION AUTOMATIC TRANSMISSION / TRANS
02±37
AVENSIS REPAIR MANUAL (RM1018E)
(09316±00011)Replacer PipeFRONT DIFFERENTIAL OIL
SEAL(U241E)
09350±32014TOYOTA Automatic Transmission
Tool SetTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09351±32010)One±way Clutch Test ToolTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09351±32020)Stator StopperTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
09520±01010Drive Shaft Remover AttachmentAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09520±24010Differential Side Gear Shaft
PullerAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
(09520±32040)Shocker SetAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09554±14010Differential Oil Seal ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
09628±62011Boll Joint PullerAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09649±17010Steering Knuckle ToolFRONT DIFFERENTIAL OIL
SEAL(U241E)
09726±27012Front Suspension Arm Bushing
Remover & ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
http://vnx.su

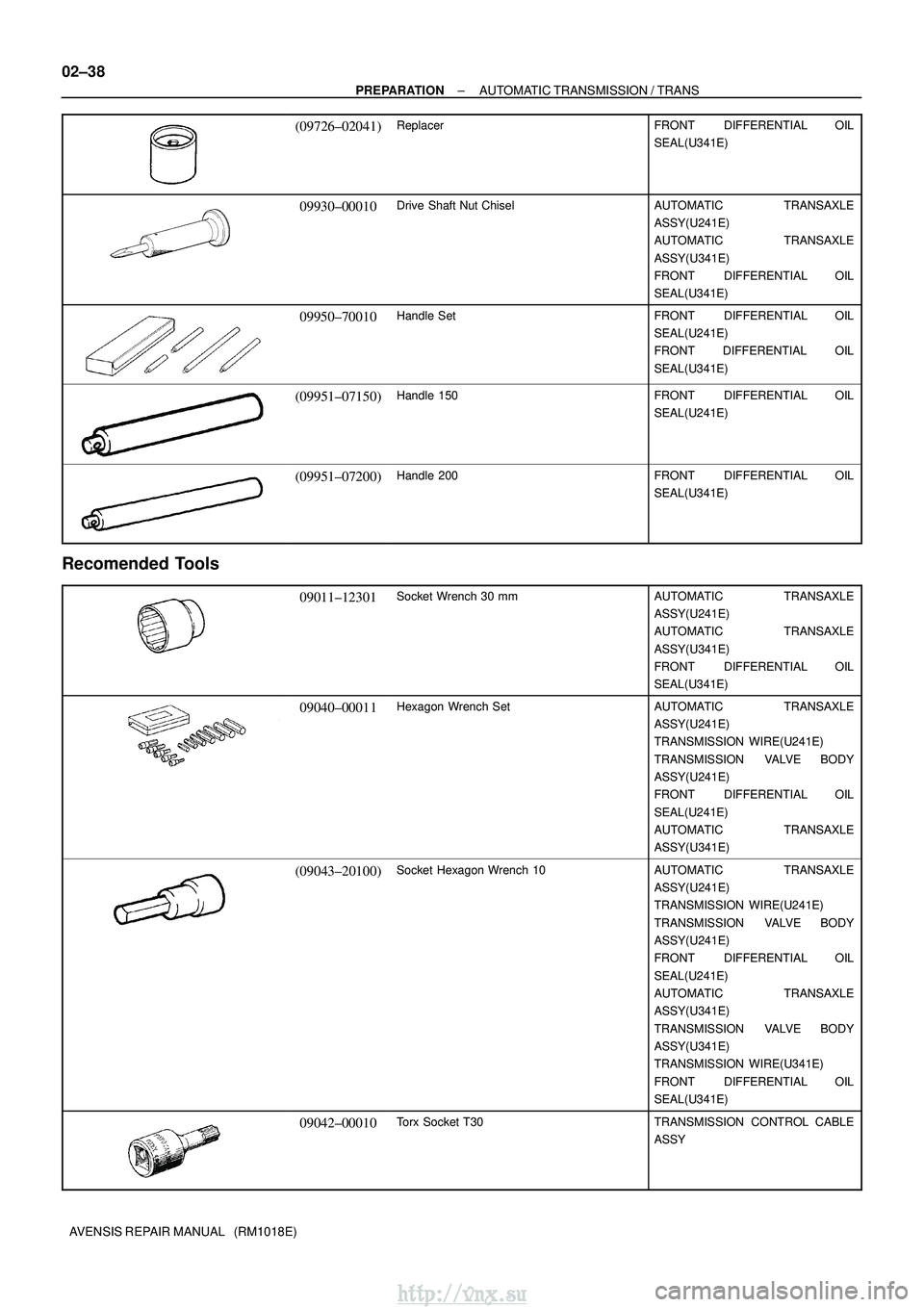

02±38
±
PREPARATION AUTOMATIC TRANSMISSION / TRANS
AVENSIS REPAIR MANUAL (RM1018E)
(09726±02041)ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
09930±00010Drive Shaft Nut ChiselAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09950±70010Handle SetFRONT DIFFERENTIAL OIL
SEAL(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
(09951±07150)Handle 150FRONT DIFFERENTIAL OIL
SEAL(U241E)
(09951±07200)Handle 200FRONT DIFFERENTIAL OIL
SEAL(U341E)
Recomended Tools
09011±12301Socket Wrench 30 mmAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09040±00011Hexagon Wrench SetAUTOMATIC TRANSAXLE
ASSY(U241E)
TRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09043±20100)Socket Hexagon Wrench 10AUTOMATIC TRANSAXLE
ASSY(U241E)
TRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
TRANSMISSION VALVE BODY
ASSY(U341E)
TRANSMISSION WIRE(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09042±00010Torx Socket T30TRANSMISSION CONTROL CABLE
ASSY
http://vnx.su

±

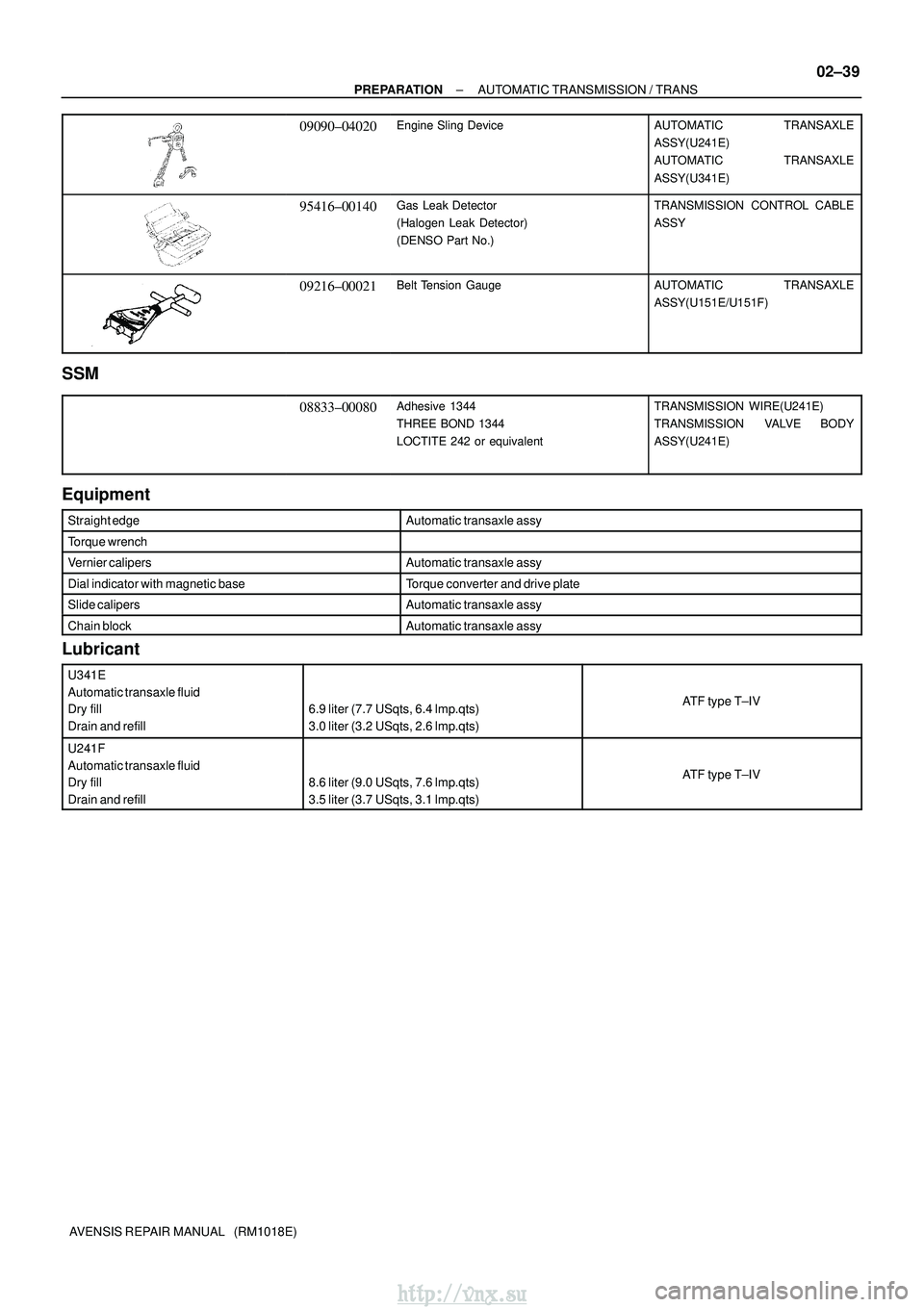

PREPARATION AUTOMATIC TRANSMISSION / TRANS
02±39
AVENSIS REPAIR MANUAL (RM1018E)
09090±04020Engine Sling DeviceAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
95416±00140Gas Leak Detector
(Halogen Leak Detector)
(DENSO Part No.)TRANSMISSION CONTROL CABLE
ASSY
09216±00021Belt Tension GaugeAUTOMATIC TRANSAXLE
ASSY(U151E/U151F)
SSM
08833±00080Adhesive 1344
THREE BOND 1344
LOCTITE 242 or equivalentTRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
Equipment
Straight edgeAutomatic transaxle assy
Torque wrench
Vernier calipersAutomatic transaxle assy
Dial indicator with magnetic baseTorque converter and drive plate
Slide calipersAutomatic transaxle assy
Chain blockAutomatic transaxle assy
Lubricant
U341E
Automatic transaxle fluid
Dry fill
Drain and refill
6.9 liter (7.7 USqts, 6.4 lmp.qts)
3.0 liter (3.2 USqts, 2.6 lmp.qts)ATF type T±IV
U241F
Automatic transaxle fluid
Dry fill
Drain and refill
8.6 liter (9.0 USqts, 7.6 lmp.qts)
3.5 liter (3.7 USqts, 3.1 lmp.qts)ATF type T±IV
http://vnx.su

022KS±01
±

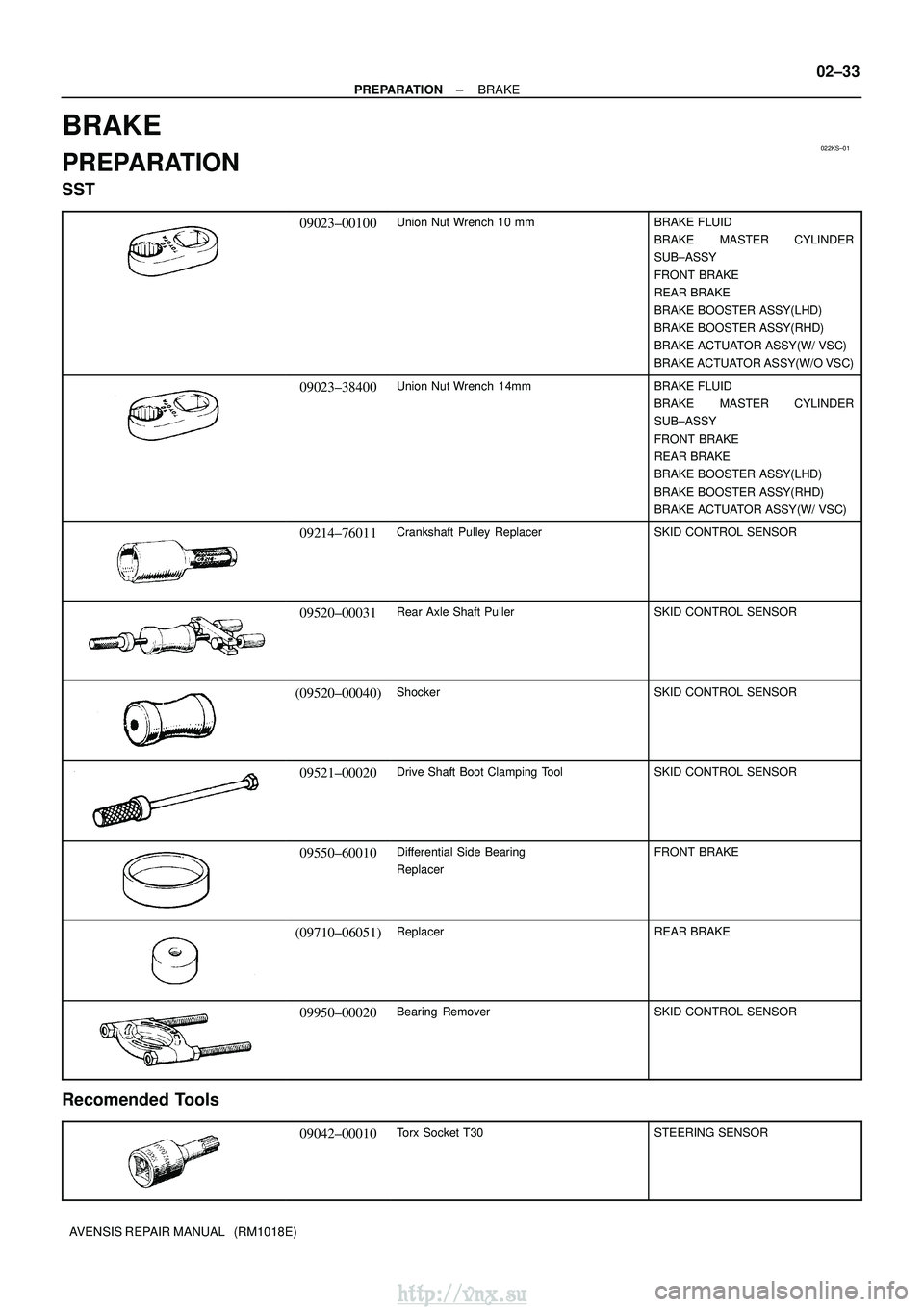

PREPARATION BRAKE
02±33
AVENSIS REPAIR MANUAL (RM1018E)
BRAKE
PREPARATION
SST
09023±00100Union Nut Wrench 10 mmBRAKE FLUID
BRAKE MASTER CYLINDER
SUB±ASSY
FRONT BRAKE
REAR BRAKE
BRAKE BOOSTER ASSY(LHD)
BRAKE BOOSTER ASSY(RHD)
BRAKE ACTUATOR ASSY(W/ VSC)
BRAKE ACTUATOR ASSY(W/O VSC)
09023±38400Union Nut Wrench 14mmBRAKE FLUID
BRAKE MASTER CYLINDER
SUB±ASSY
FRONT BRAKE
REAR BRAKE
BRAKE BOOSTER ASSY(LHD)
BRAKE BOOSTER ASSY(RHD)
BRAKE ACTUATOR ASSY(W/ VSC)
09214±76011Crankshaft Pulley ReplacerSKID CONTROL SENSOR
09520±00031Rear Axle Shaft PullerSKID CONTROL SENSOR
(09520±00040)ShockerSKID CONTROL SENSOR
09521±00020Drive Shaft Boot Clamping ToolSKID CONTROL SENSOR
09550±60010Differential Side Bearing
ReplacerFRONT BRAKE
(09710±06051)ReplacerREAR BRAKE
09950±00020Bearing RemoverSKID CONTROL SENSOR
Recomended Tools
09042±00010Torx Socket T30STEERING SENSOR
http://vnx.su
