TOYOTA AVENSIS 2003 Service Repair Manual

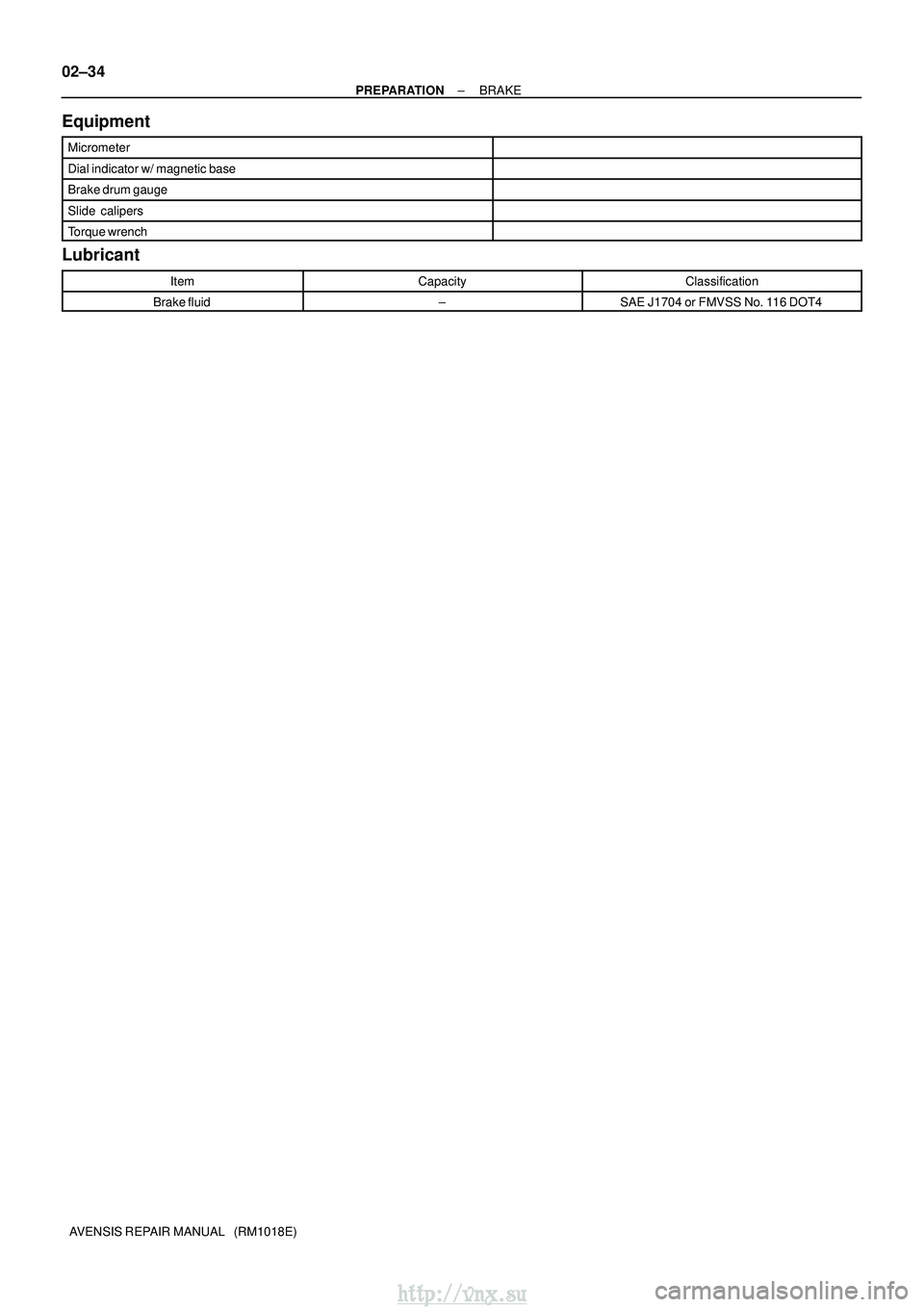

02±34
±
PREPARATION BRAKE
AVENSIS REPAIR MANUAL (RM1018E)
Equipment
Micrometer
Dial indicator w/ magnetic base
Brake drum gauge
Slide calipers
Torque wrench
Lubricant
ItemCapacityClassification
Brake fluid±SAE J1704 or FMVSS No. 116 DOT4
http://vnx.su

022KZ±01
±

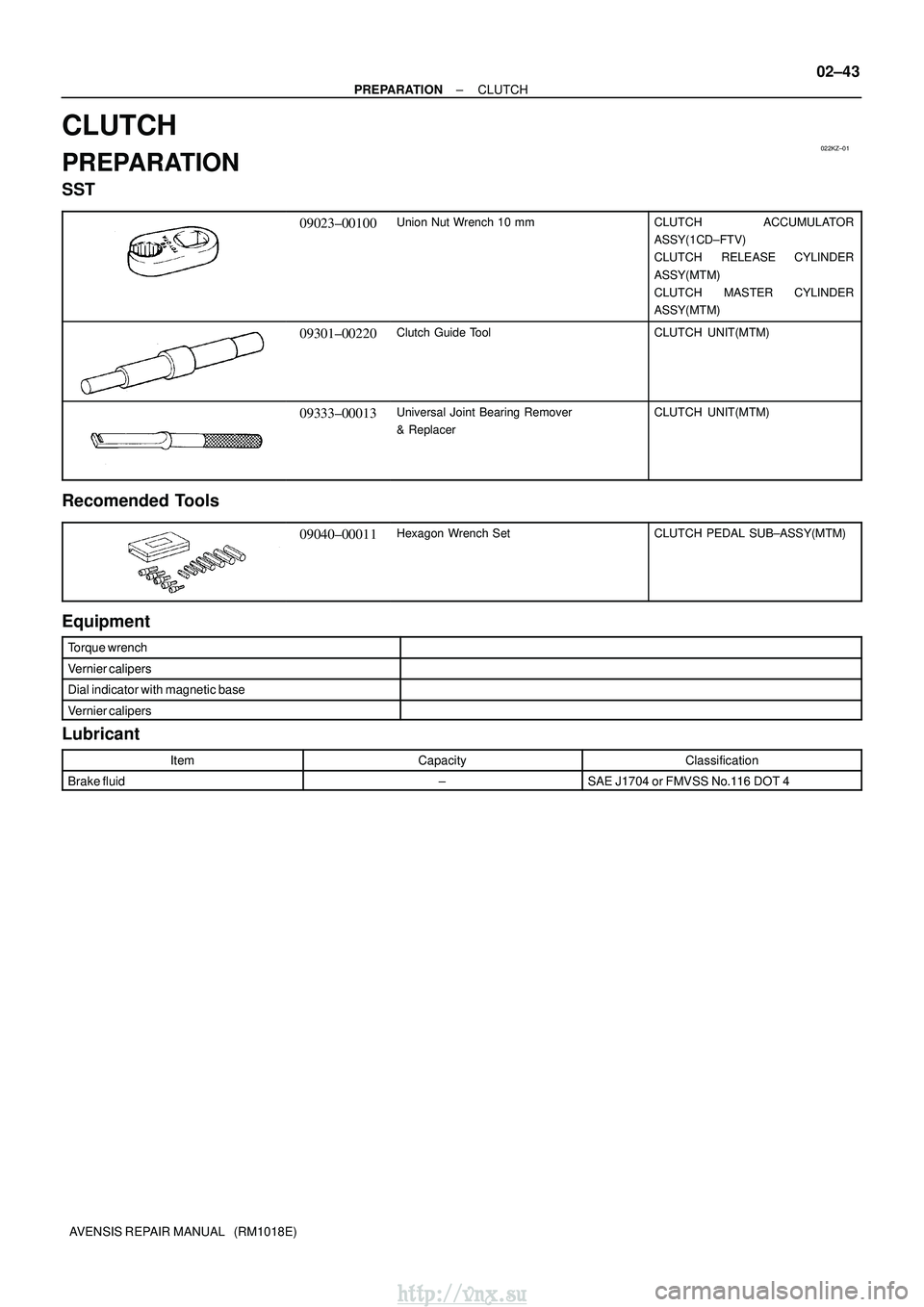

PREPARATION CLUTCH
02±43
AVENSIS REPAIR MANUAL (RM1018E)
CLUTCH
PREPARATION
SST
09023±00100Union Nut Wrench 10 mmCLUTCH ACCUMULATOR
ASSY(1CD±FTV)
CLUTCH RELEASE CYLINDER
ASSY(MTM)
CLUTCH MASTER CYLINDER
ASSY(MTM)
09301±00220Clutch Guide ToolCLUTCH UNIT(MTM)
09333±00013Universal Joint Bearing Remover
& ReplacerCLUTCH UNIT(MTM)
Recomended Tools
09040±00011Hexagon Wrench SetCLUTCH PEDAL SUB±ASSY(MTM)
Equipment
Torque wrench
Vernier calipers
Dial indicator with magnetic base
Vernier calipers
Lubricant
ItemCapacityClassification
Brake fluid±SAE J1704 or FMVSS No.116 DOT 4
http://vnx.su

022L2±01

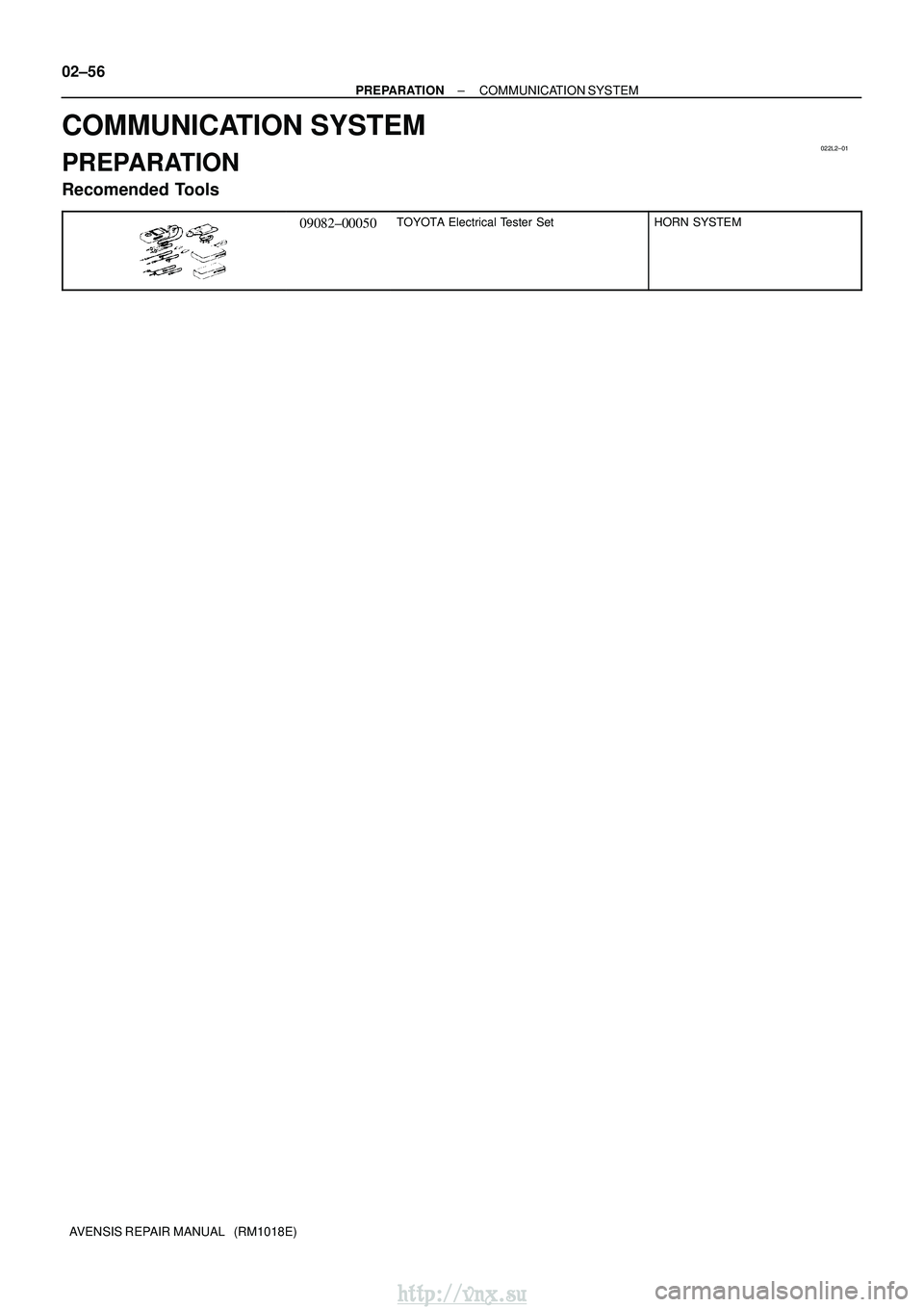

02±56
±
PREPARATION COMMUNICATION SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
COMMUNICATION SYSTEM
PREPARATION
Recomended Tools
09082±00050TOYOTA Electrical Tester SetHORN SYSTEM
http://vnx.su

022KA±01

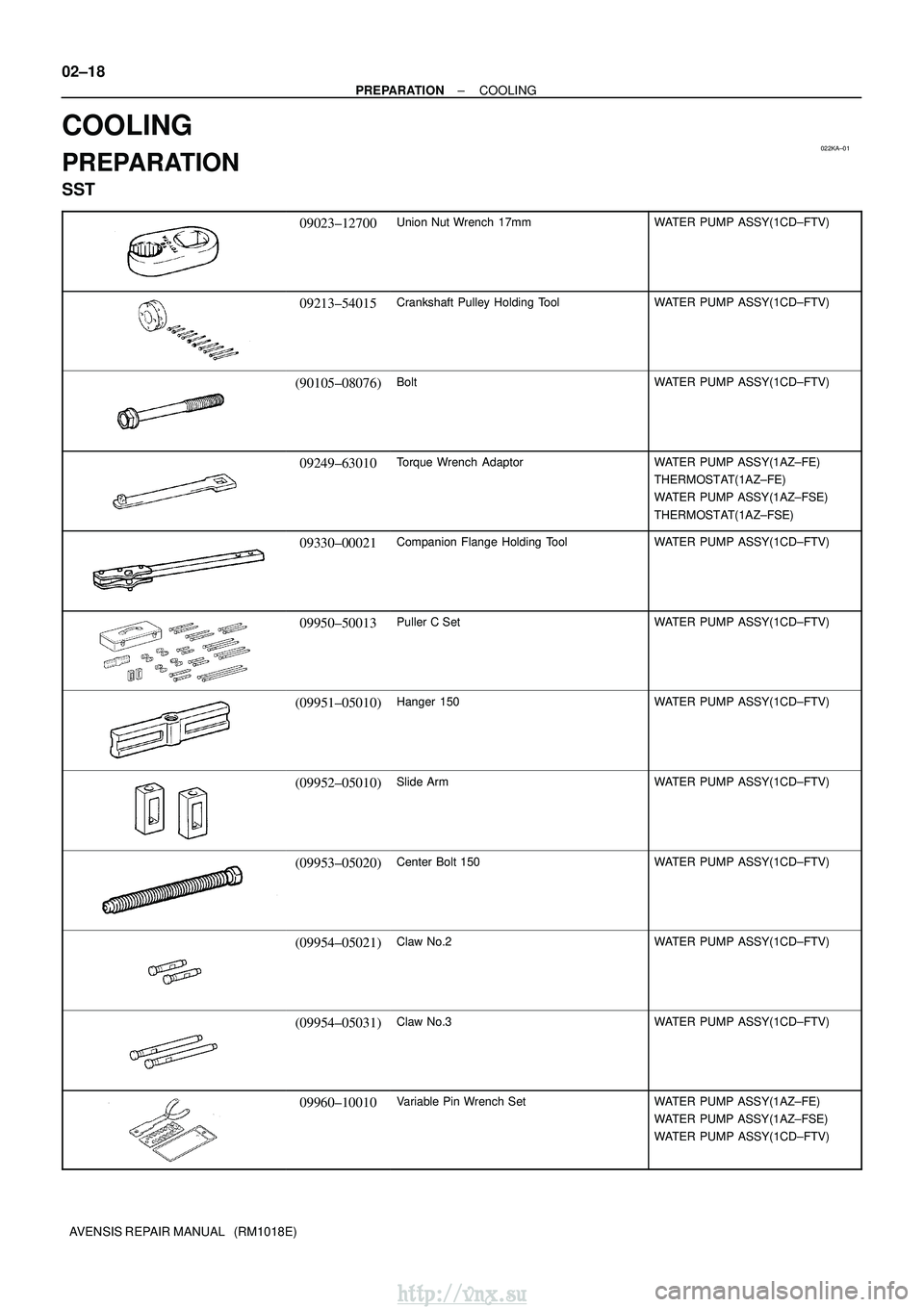

02±18
±
PREPARATION COOLING
AVENSIS REPAIR MANUAL (RM1018E)
COOLING
PREPARATION
SST
09023±12700Union Nut Wrench 17mmWATER PUMP ASSY(1CD±FTV)
09213±54015Crankshaft Pulley Holding ToolWATER PUMP ASSY(1CD±FTV)
(90105±08076)BoltWATER PUMP ASSY(1CD±FTV)
09249±63010Torque Wrench AdaptorWATER PUMP ASSY(1AZ±FE)
THERMOSTAT(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
THERMOSTAT(1AZ±FSE)
09330±00021Companion Flange Holding ToolWATER PUMP ASSY(1CD±FTV)
09950±50013Puller C SetWATER PUMP ASSY(1CD±FTV)
(09951±05010)Hanger 150WATER PUMP ASSY(1CD±FTV)
(09952±05010)Slide ArmWATER PUMP ASSY(1CD±FTV)
(09953±05020)Center Bolt 150WATER PUMP ASSY(1CD±FTV)
(09954±05021)Claw No.2WATER PUMP ASSY(1CD±FTV)
(09954±05031)Claw No.3WATER PUMP ASSY(1CD±FTV)
09960±10010Variable Pin Wrench SetWATER PUMP ASSY(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
WATER PUMP ASSY(1CD±FTV)
http://vnx.su

±

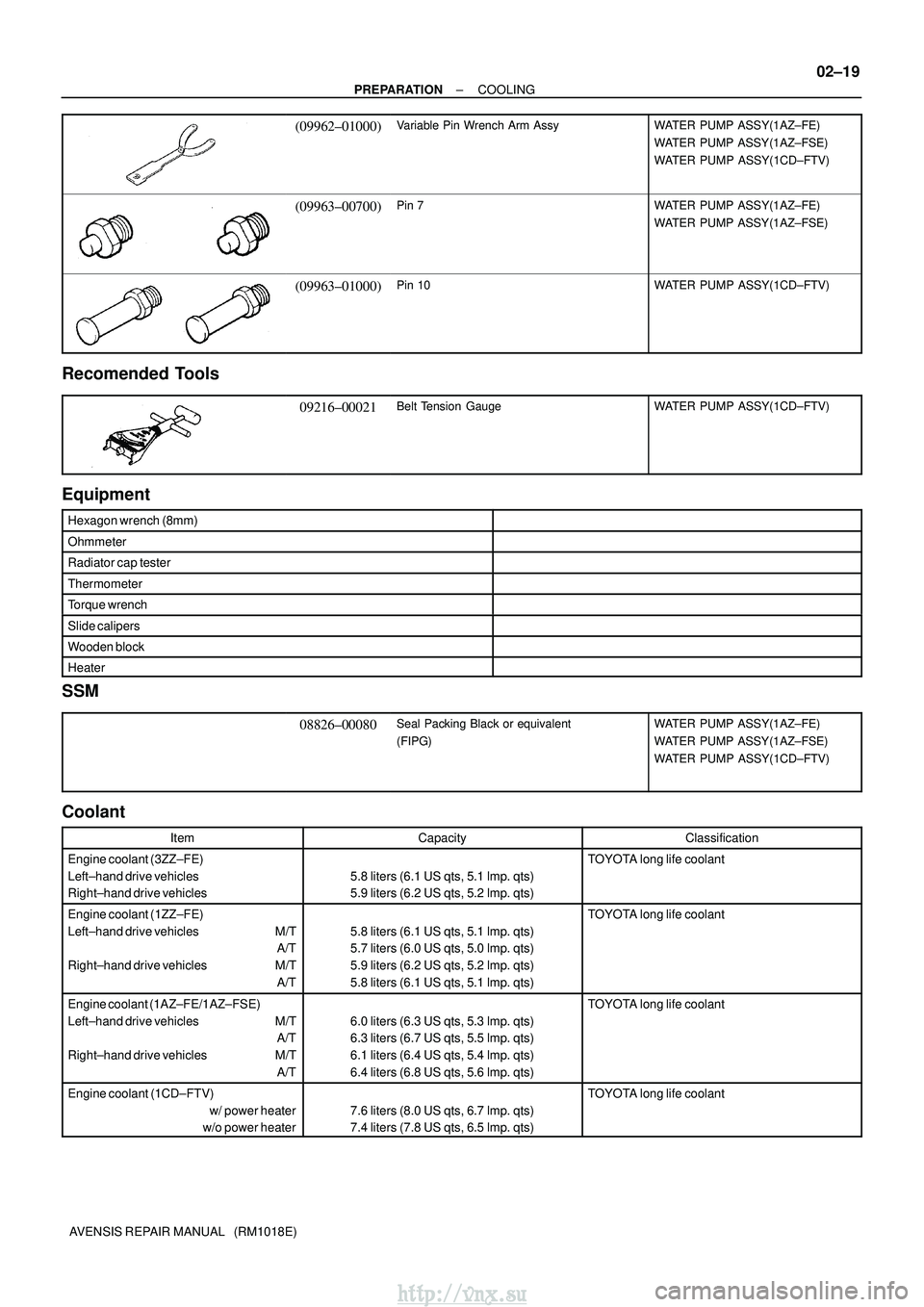

PREPARATION COOLING
02±19
AVENSIS REPAIR MANUAL (RM1018E)
(09962±01000)Variable Pin Wrench Arm AssyWATER PUMP ASSY(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
WATER PUMP ASSY(1CD±FTV)
(09963±00700)Pin 7WATER PUMP ASSY(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
(09963±01000)Pin 10WATER PUMP ASSY(1CD±FTV)
Recomended Tools
09216±00021Belt Tension GaugeWATER PUMP ASSY(1CD±FTV)
Equipment
Hexagon wrench (8mm)
Ohmmeter
Radiator cap tester
Thermometer
Torque wrench
Slide calipers
Wooden block
Heater
SSM
08826±00080Seal Packing Black or equivalent
(FIPG)WATER PUMP ASSY(1AZ±FE)
WATER PUMP ASSY(1AZ±FSE)
WATER PUMP ASSY(1CD±FTV)
Coolant
ItemCapacityClassification
Engine coolant (3ZZ±FE)
Left±hand drive vehicles
Right±hand drive vehicles
5.8 liters (6.1 US qts, 5.1 lmp. qts)
5.9 liters (6.2 US qts, 5.2 lmp. qts)
TOYOTA long life coolant
Engine coolant (1ZZ±FE)
Left±hand drive vehicles M/T
A/T
Right±hand drive vehicles M/T A/T
5.8 liters (6.1 US qts, 5.1 lmp. qts)
5.7 liters (6.0 US qts, 5.0 lmp. qts)
5.9 liters (6.2 US qts, 5.2 lmp. qts)
5.8 liters (6.1 US qts, 5.1 lmp. qts)
TOYOTA long life coolant
Engine coolant (1AZ±FE/1AZ±FSE)
Left±hand drive vehicles M/TA/T
Right±hand drive vehicles M/T A/T
6.0 liters (6.3 US qts, 5.3 lmp. qts)
6.3 liters (6.7 US qts, 5.5 lmp. qts)
6.1 liters (6.4 US qts, 5.4 lmp. qts)
6.4 liters (6.8 US qts, 5.6 lmp. qts)
TOYOTA long life coolant
Engine coolant (1CD±FTV)w/ power heater
w/o power heater
7.6 liters (8.0 US qts, 6.7 lmp. qts)
7.4 liters (7.8 US qts, 6.5 lmp. qts)
TOYOTA long life coolant
http://vnx.su

022LX±01
±

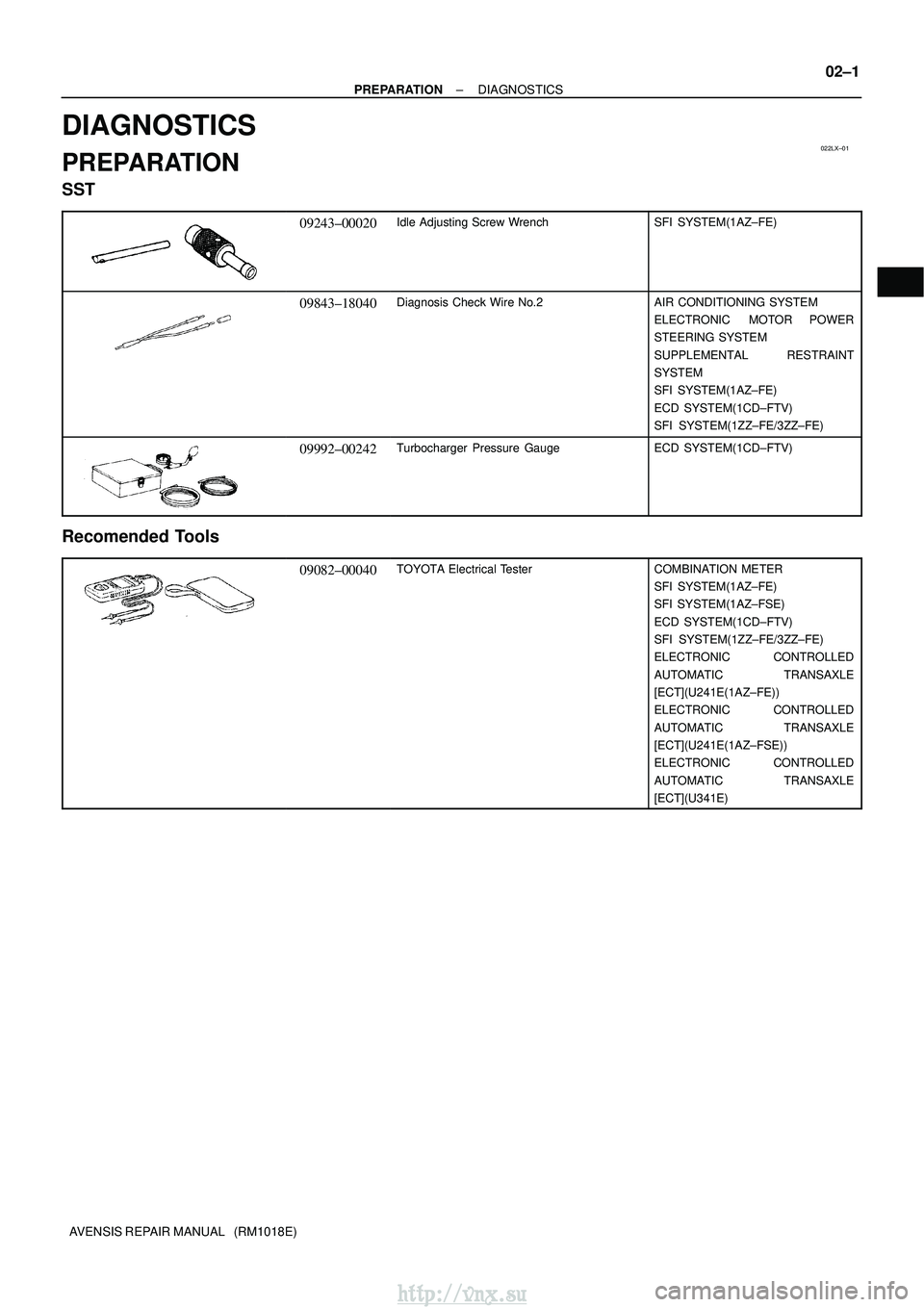

PREPARATION DIAGNOSTICS
02±1
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTICS
PREPARATION
SST
09243±00020Idle Adjusting Screw WrenchSFI SYSTEM(1AZ±FE)
09843±18040Diagnosis Check Wire No.2AIR CONDITIONING SYSTEM
ELECTRONIC MOTOR POWER
STEERING SYSTEM
SUPPLEMENTAL RESTRAINT
SYSTEM
SFI SYSTEM(1AZ±FE)
ECD SYSTEM(1CD±FTV)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
09992±00242Turbocharger Pressure GaugeECD SYSTEM(1CD±FTV)
Recomended Tools
09082±00040TOYOTA Electrical TesterCOMBINATION METER
SFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
ECD SYSTEM(1CD±FTV)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FSE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U341E)
http://vnx.su

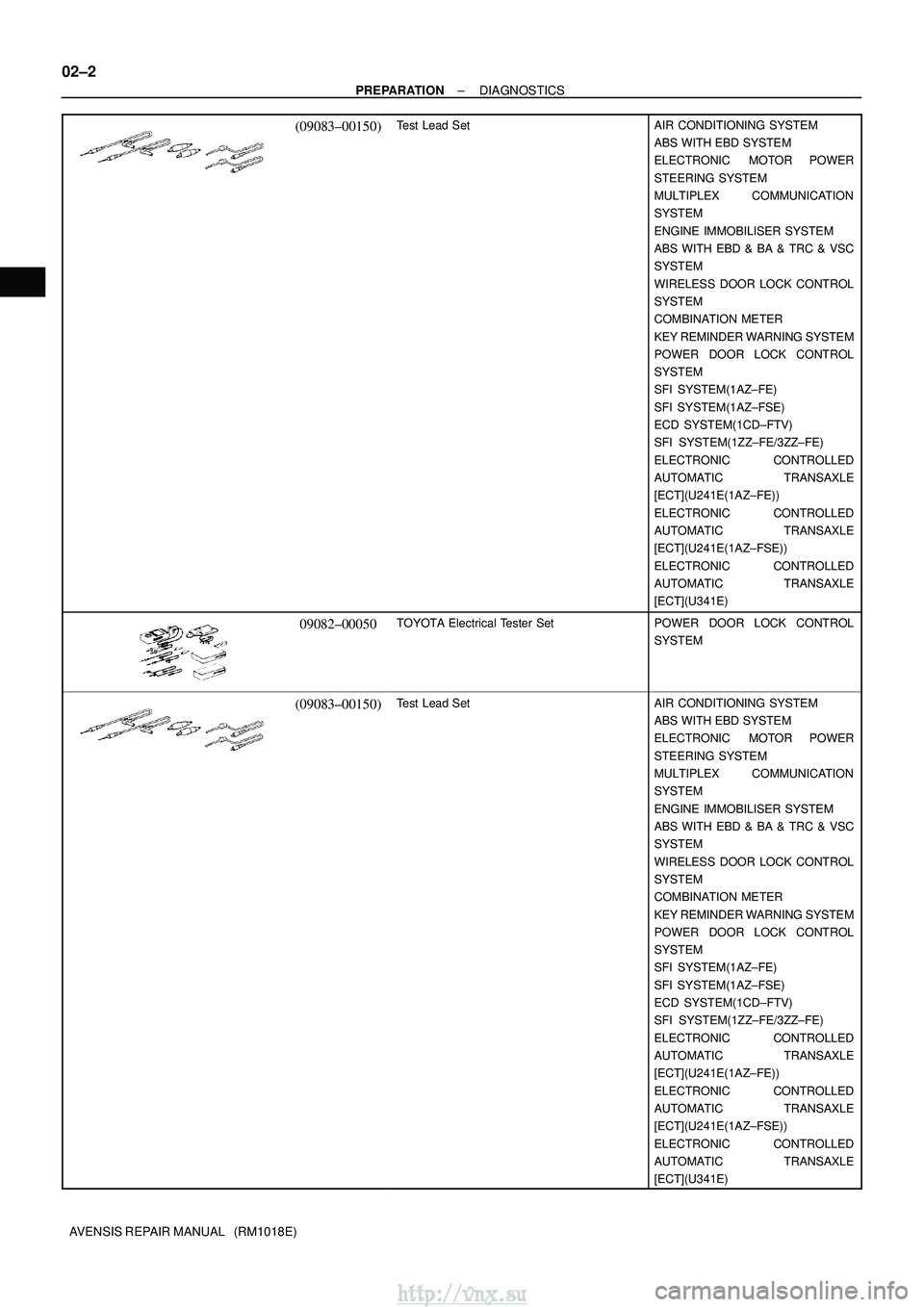

02±2
±
PREPARATION DIAGNOSTICS
AVENSIS REPAIR MANUAL (RM1018E)
(09083±00150)Test Lead SetAIR CONDITIONING SYSTEM
ABS WITH EBD SYSTEM
ELECTRONIC MOTOR POWER
STEERING SYSTEM
MULTIPLEX COMMUNICATION
SYSTEM
ENGINE IMMOBILISER SYSTEM
ABS WITH EBD & BA & TRC & VSC
SYSTEM
WIRELESS DOOR LOCK CONTROL
SYSTEM
COMBINATION METER
KEY REMINDER WARNING SYSTEM
POWER DOOR LOCK CONTROL
SYSTEM
SFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
ECD SYSTEM(1CD±FTV)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FSE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U341E)
09082±00050TOYOTA Electrical Tester SetPOWER DOOR LOCK CONTROL
SYSTEM
(09083±00150)Test Lead SetAIR CONDITIONING SYSTEM
ABS WITH EBD SYSTEM
ELECTRONIC MOTOR POWER
STEERING SYSTEM
MULTIPLEX COMMUNICATION
SYSTEM
ENGINE IMMOBILISER SYSTEM
ABS WITH EBD & BA & TRC & VSC
SYSTEM
WIRELESS DOOR LOCK CONTROL
SYSTEM
COMBINATION METER
KEY REMINDER WARNING SYSTEM
POWER DOOR LOCK CONTROL
SYSTEM
SFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
ECD SYSTEM(1CD±FTV)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FSE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U341E)
http://vnx.su

022KL±01
±

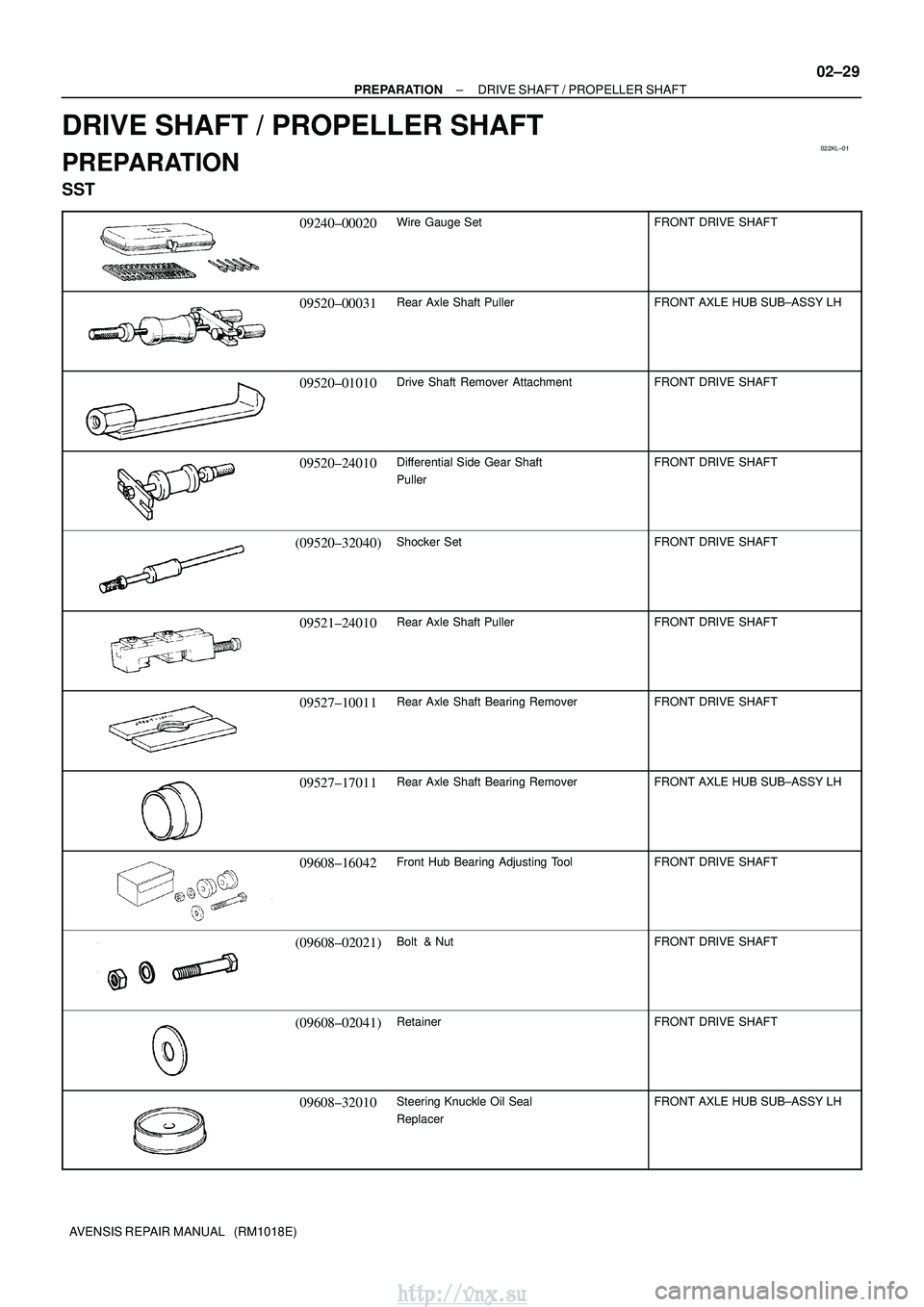

PREPARATION DRIVE SHAFT / PROPELLER SHAFT
02±29
AVENSIS REPAIR MANUAL (RM1018E)
DRIVE SHAFT / PROPELLER SHAFT
PREPARATION
SST
09240±00020Wire Gauge SetFRONT DRIVE SHAFT
09520±00031Rear Axle Shaft PullerFRONT AXLE HUB SUB±ASSY LH
09520±01010Drive Shaft Remover AttachmentFRONT DRIVE SHAFT
09520±24010Differential Side Gear Shaft
PullerFRONT DRIVE SHAFT
(09520±32040)Shocker SetFRONT DRIVE SHAFT
09521±24010Rear Axle Shaft PullerFRONT DRIVE SHAFT
09527±10011Rear Axle Shaft Bearing RemoverFRONT DRIVE SHAFT
09527±17011Rear Axle Shaft Bearing RemoverFRONT AXLE HUB SUB±ASSY LH
09608±16042Front Hub Bearing Adjusting ToolFRONT DRIVE SHAFT
(09608±02021)Bolt & NutFRONT DRIVE SHAFT
(09608±02041)RetainerFRONT DRIVE SHAFT
09608±32010Steering Knuckle Oil Seal
ReplacerFRONT AXLE HUB SUB±ASSY LH
http://vnx.su

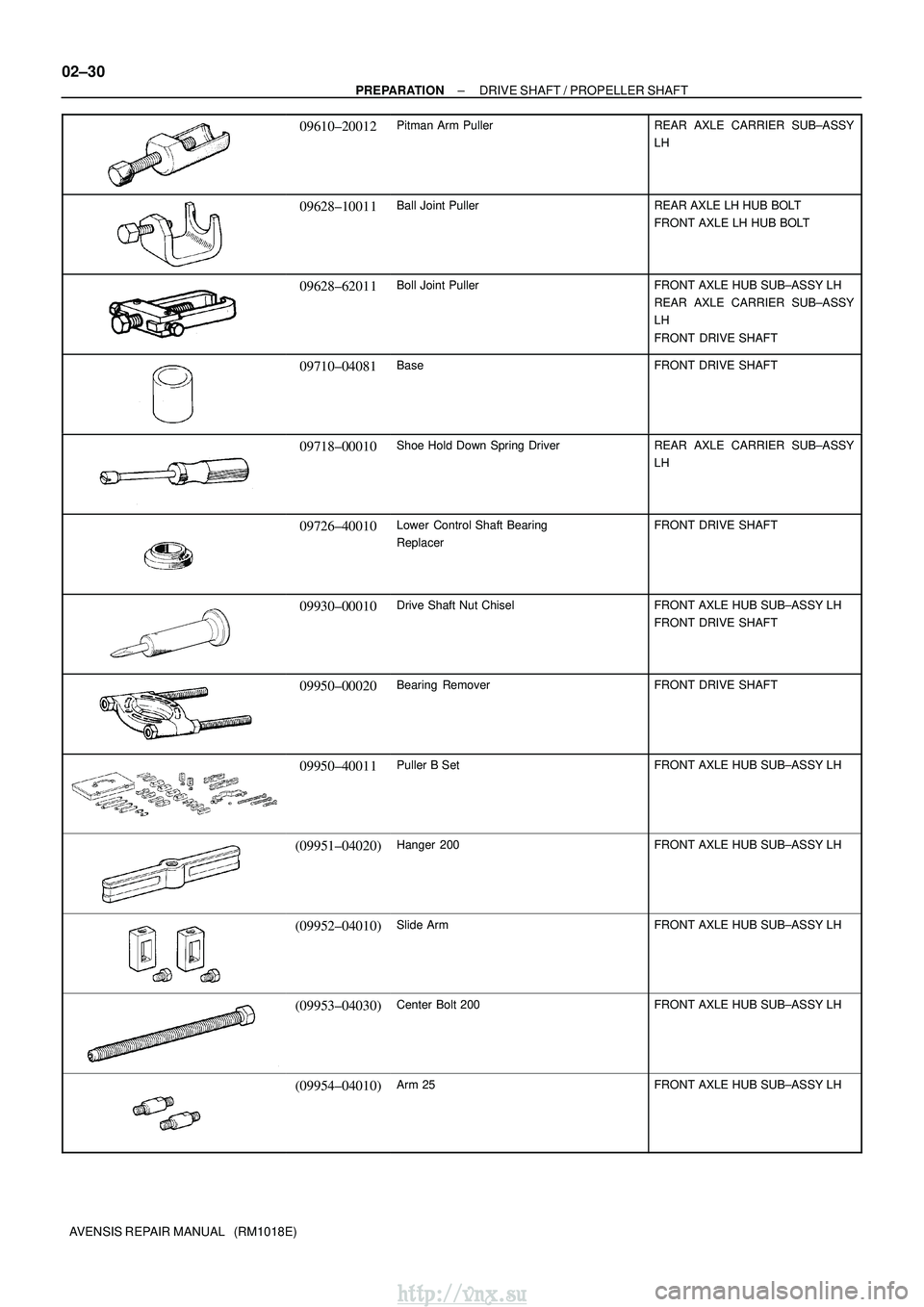

02±30
±
PREPARATION DRIVE SHAFT / PROPELLER SHAFT
AVENSIS REPAIR MANUAL (RM1018E)
09610±20012Pitman Arm PullerREAR AXLE CARRIER SUB±ASSY
LH
09628±10011Ball Joint PullerREAR AXLE LH HUB BOLT
FRONT AXLE LH HUB BOLT
09628±62011Boll Joint PullerFRONT AXLE HUB SUB±ASSY LH
REAR AXLE CARRIER SUB±ASSY
LH
FRONT DRIVE SHAFT
09710±04081BaseFRONT DRIVE SHAFT
09718±00010Shoe Hold Down Spring DriverREAR AXLE CARRIER SUB±ASSY
LH
09726±40010Lower Control Shaft Bearing
ReplacerFRONT DRIVE SHAFT
09930±00010Drive Shaft Nut ChiselFRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
09950±00020Bearing RemoverFRONT DRIVE SHAFT
09950±40011Puller B SetFRONT AXLE HUB SUB±ASSY LH
(09951±04020)Hanger 200FRONT AXLE HUB SUB±ASSY LH
(09952±04010)Slide ArmFRONT AXLE HUB SUB±ASSY LH
(09953±04030)Center Bolt 200FRONT AXLE HUB SUB±ASSY LH
(09954±04010)Arm 25FRONT AXLE HUB SUB±ASSY LH
http://vnx.su

±

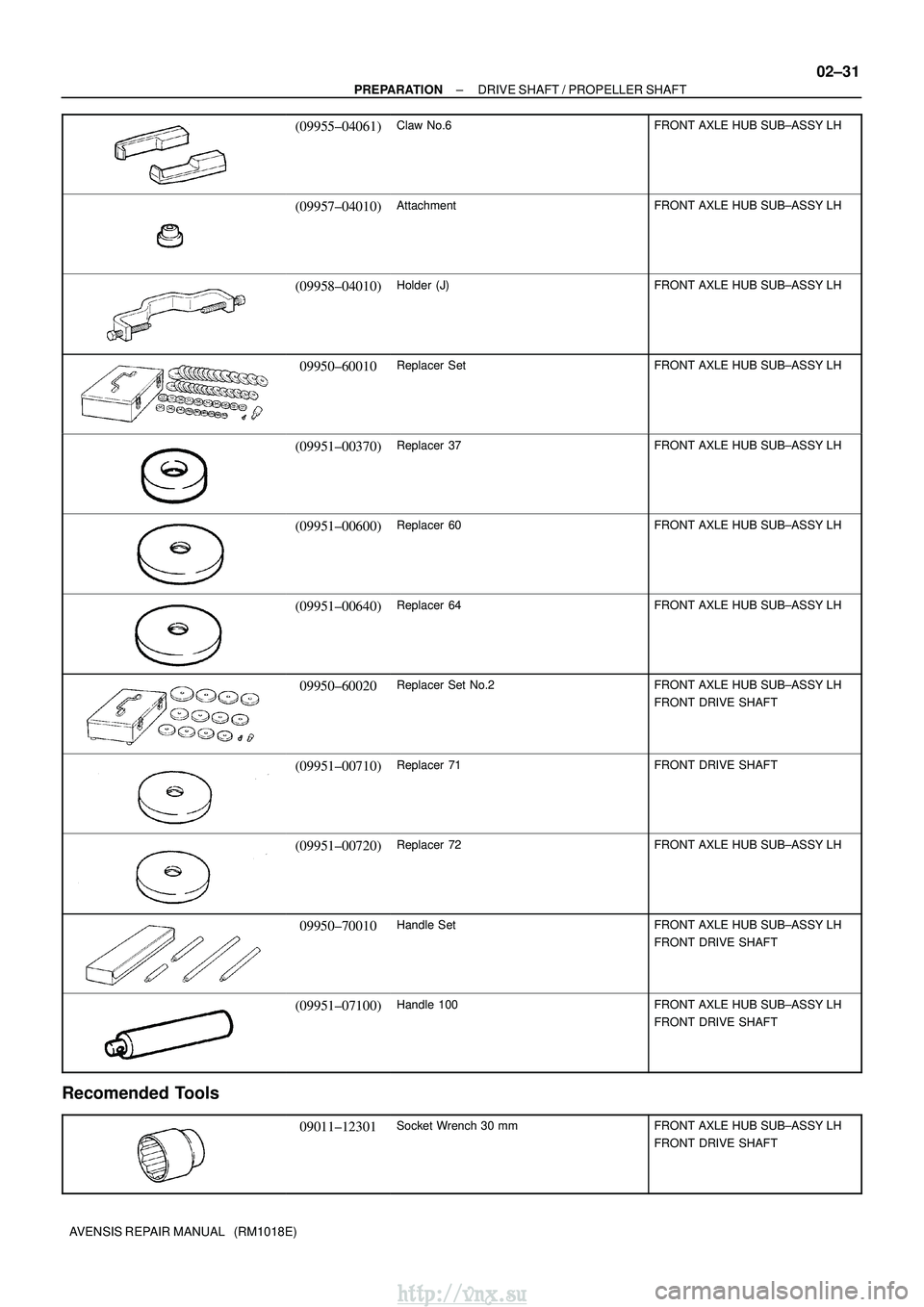

PREPARATION DRIVE SHAFT / PROPELLER SHAFT
02±31
AVENSIS REPAIR MANUAL (RM1018E)
(09955±04061)Claw No.6FRONT AXLE HUB SUB±ASSY LH
(09957±04010)AttachmentFRONT AXLE HUB SUB±ASSY LH
(09958±04010)Holder (J)FRONT AXLE HUB SUB±ASSY LH
09950±60010Replacer SetFRONT AXLE HUB SUB±ASSY LH
(09951±00370)Replacer 37FRONT AXLE HUB SUB±ASSY LH
(09951±00600)Replacer 60FRONT AXLE HUB SUB±ASSY LH
(09951±00640)Replacer 64FRONT AXLE HUB SUB±ASSY LH
09950±60020Replacer Set No.2FRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
(09951±00710)Replacer 71FRONT DRIVE SHAFT
(09951±00720)Replacer 72FRONT AXLE HUB SUB±ASSY LH
09950±70010Handle SetFRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
(09951±07100)Handle 100FRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
Recomended Tools
09011±12301Socket Wrench 30 mmFRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
