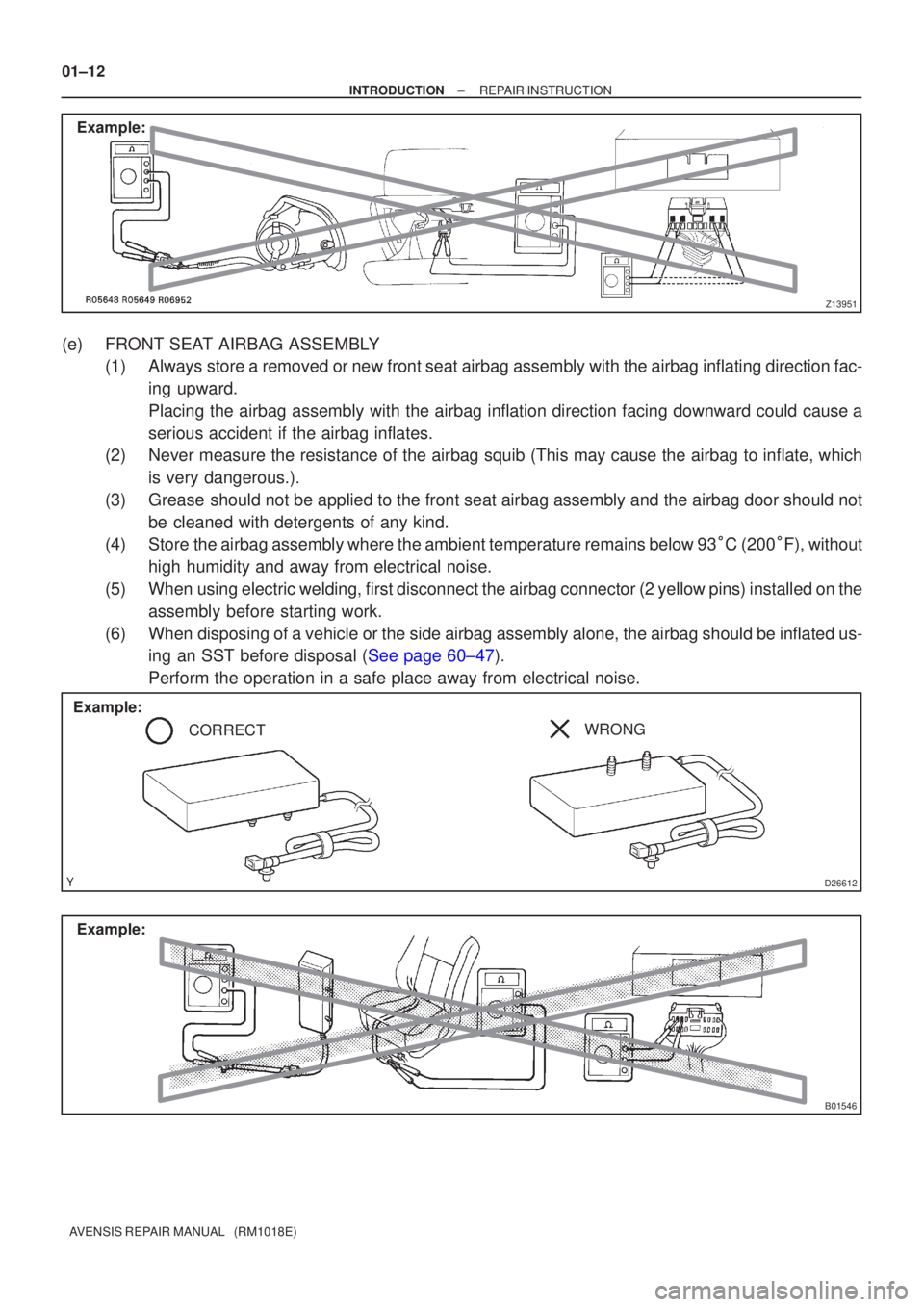

01±12
±
INTRODUCTION REPAIR INSTRUCTION
AVENSIS REPAIR MANUAL (RM1018E)
(e)FRONT SEAT AIRBAG ASSEMBLY (1)Always store a removed or new front seat airbag assembly with the airbag infla\
ting direction fac-
ing upward.
Placing the airbag assembly with the airbag inflation direction facing d\
ownward could cause a
serious accident if the airbag inflates.
(2)Never measure the resistance of the airbag squib (This may cause the ai\
rbag to inflate, which
is very dangerous.).
(3)Grease should not be applied to the front seat airbag assembly and the airbag d\
oor should not be cleaned with detergents of any kind.
(4)Store the airbag assembly where the ambient temperature remains below 93
C (200
F), without
high humidity and away from electrical noise.
(5)When using electric welding, first disconnect the airbag connector (2 yello\
w pins) installed on the assembly before starting work.
(6)When disposing of a vehicle or the side airbag assembly alone, the airbag sh\
ould be inflated us- ing an SST before disposal (See page 60±47).
Perform the operation in a safe place away from electrical noise.

D30399
Example:CORRECT WRONG
D30398
Example:
±

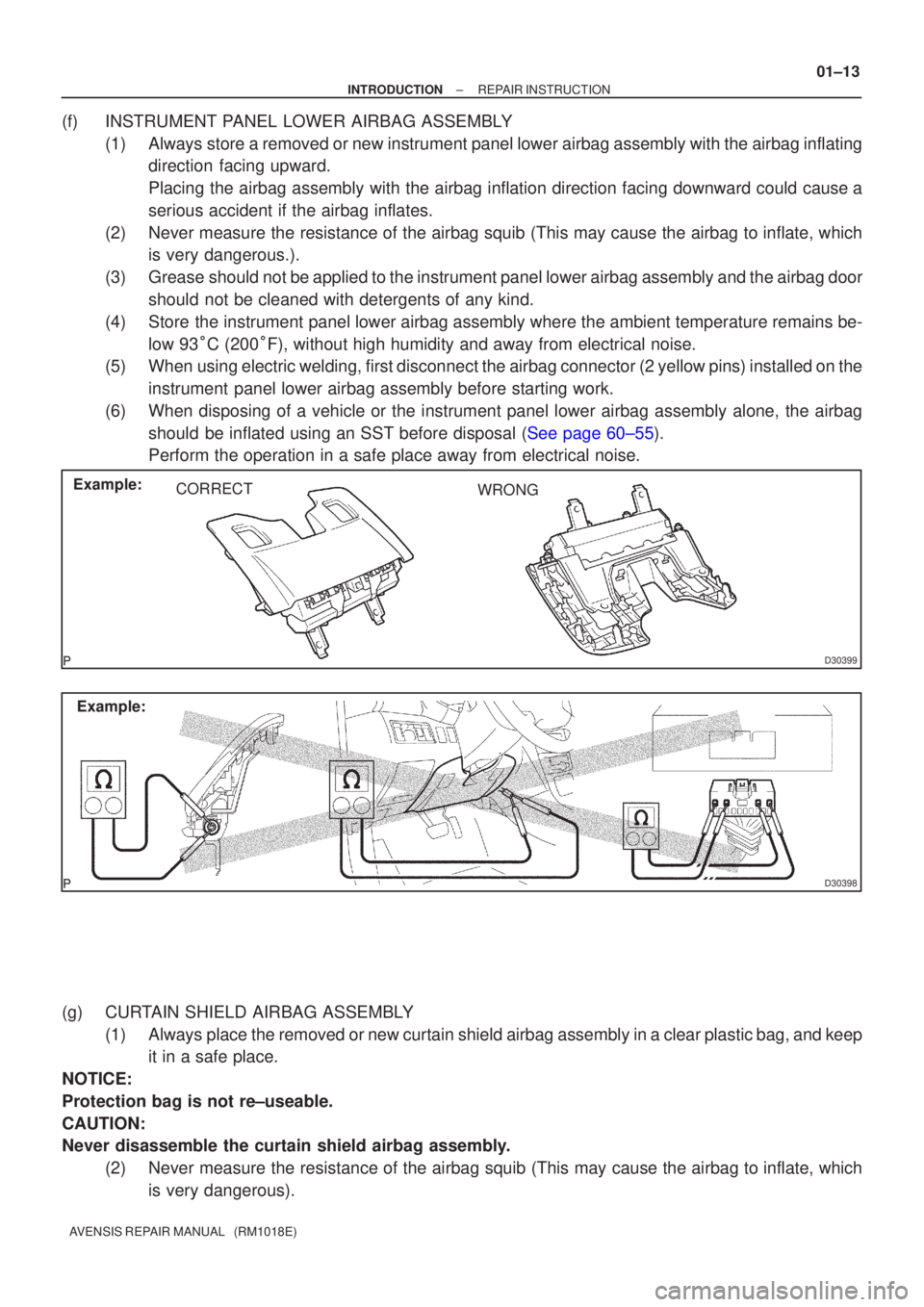

INTRODUCTION REPAIR INSTRUCTION
01±13
AVENSIS REPAIR MANUAL (RM1018E)
(f)INSTRUMENT PANEL LOWER AIRBAG ASSEMBLY
(1)Always store a removed or new instrument panel lower airbag assembly with the \
airbag inflatingdirection facing upward.
Placing the airbag assembly with the airbag inflation direction facing d\
ownward could cause a
serious accident if the airbag inflates.
(2)Never measure the resistance of the airbag squib (This may cause the ai\
rbag to inflate, which is very dangerous.).
(3)Grease should not be applied to the instrument panel lower airbag assembly and\
the airbag door should not be cleaned with detergents of any kind.
(4)Store the instrument panel lower airbag assembly where the ambient temperature remains be- low 93
C (200
F), without high humidity and away from electrical noise.
(5)When using electric welding, first disconnect the airbag connector (2 yello\
w pins) installed on the
instrument panel lower airbag assembly before starting work.
(6)When disposing of a vehicle or the instrument panel lower airbag assembly alone, the airbag should be inflated using an SST before disposal (See page 60±55).
Perform the operation in a safe place away from electrical noise.
(g) CURTAIN SHIELD AIRBAG ASSEMBLY (1) Always place the removed or new curtain shield airbag assembly in a clear plastic bag, and keepit in a safe place.
NOTICE:
Protection bag is not re±useable.
CAUTION:
Never disassemble the curtain shield airbag assembly. (2) Never measure the resistance of the airbag squib (This may cause the airbag to inflate, whichis very dangerous).

D26602
Example:CORRECT WRONG
Clear Plastic Bag
D26603
Example:

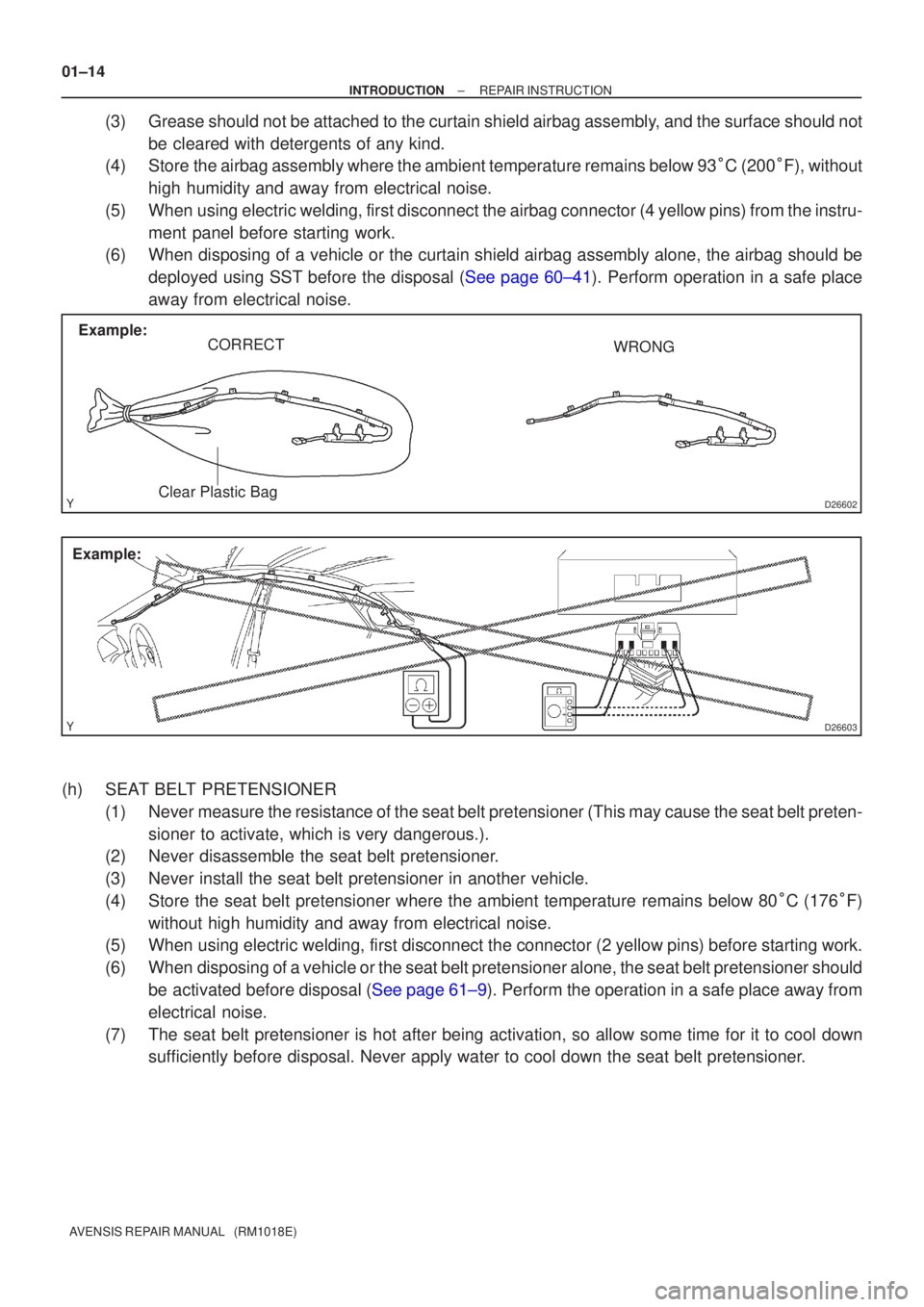

01±14
±
INTRODUCTION REPAIR INSTRUCTION
AVENSIS REPAIR MANUAL (RM1018E)
(3)Grease should not be attached to the curtain shield airbag assembly, and the surface should not be cleared with detergents of any kind.
(4)Store the airbag assembly where the ambient temperature remains below 93
C (200
F), without
high humidity and away from electrical noise.
(5)When using electric welding, first disconnect the airbag connector (4 yellow pins) from th\
e instru- ment panel before starting work.
(6)When disposing of a vehicle or the curtain shield airbag assembly alone, the airbag should be
deployed using SST before the disposal (See page 60±41). Perform operation in a safe place
away from electrical noise.
(h)SEAT BELT PRETENSIONER (1)Never measure the resistance of the seat belt pretensioner (This may cause t\
he seat belt preten-sioner to activate, which is very dangerous.).
(2)Never disassemble the seat belt pretensioner.
(3)Never install the seat belt pretensioner in another vehicle.
(4)Store the seat belt pretensioner where the ambient temperature remains b\
elow 80
C (176
F)
without high humidity and away from electrical noise.
(5)When using electric welding, first disconnect the connector (2 yellow pins) before starting work.
(6)When disposing of a vehicle or the seat belt pretensioner alone, the seat belt pretensi\
oner should
be activated before disposal (See page 61±9). Perform the operation in a safe place away from
electrical noise.
(7) The seat belt pretensioner is hot after being activation, so allow some \
time for it to cool down sufficiently before disposal. Never apply water to cool down the seat be\
lt pretensioner.

D26613
Example:
D25080
Negative (±)
Terminal
± INTRODUCTIONREPAIR INSTRUCTION
01±15
AVENSIS REPAIR MANUAL (RM1018E)
(8) Oil or water should not be put on the front seat outer belt and the front seat outer belt should be
cleaned with the appropriate detergents.
(i) AIRBAG SENSOR ASSEMBLY
(1) Never reuse the airbag sensor assembly involved in a collision where the SRS has deployed.
(2) The connectors to the airbag sensor assembly should be connected or disconnected with the
sensor mounted on the floor. If the connectors are connected or disconnected while the airbag
sensor assembly is not mounted to the floor, it could cause an undesired ignition of the supple-
mental restraint system.
(3) Work must be started after 90 seconds from the time the ignition switch is turned to the ºLOCKº
position and the negative (±) terminal cable is disconnected from the battery, even if only loosen-
ing the set bolts of the airbag sensor assembly.
(j) WIRE HARNESS AND CONNECTOR
(1) The SRS wire harness is integrated with the instrument panel wire harness assembly. All connec-
tors in the system are a standard yellow color. If the SRS wire harness becomes disconnected
or the connector becomes broken due to an accident, etc., repair or replace it.
3. ELECTRONIC CONTROL
(a) REMOVAL AND INSTALLATION OF BATTERY TERMI-
NAL
(1) Before performing electronic work, disconnect the
battery negative (±) terminal cable beforehand in
order to prevent it from shorting and burning out.
(2) When disconnecting and installing the terminal
cable, turn the ignition switch and lighting switch
OFF, and loosen the terminal nut completely. Per-
form these operations without twisting or prying the
terminal.
(3) When the battery terminal cable is removed, the
memories of the clock, radio, DTCs, etc. are erased.
So before removing it, check them and make a note
of their settings.
(4) When the battery negative (±) terminal cable is dis-
connected, memories of various systems are
erased. Therefore, refer to the PRE±CHECK for
each system to make sure whether or not the sys-
tem needs to be initialized after the battery negative

D01556
WRONG
D01563
01±16
± INTRODUCTIONREPAIR INSTRUCTION
AVENSIS REPAIR MANUAL (RM1018E)
(±) terminal cable is disconnected. If necessary, be
sure to initialize the system.
(b) HANDLING OF ELECTRONIC PARTS
(1) Do not open the cover or case of the ECU unless
absolutely necessary (If the IC terminals are
touched, the IC may be rendered inoperative by
static electricity).
(2) To disconnect electronic connectors, pull the con-
nector itself, not the wires.
(3) Be careful not to drop electronic components, such
as sensors or relays. If they are dropped on a hard
floor, they should be replaced and not be reused.
(4) When cleaning the engine with steam, protect the
electronic components, air filter and emission±re-
lated components from water.
(5) Never use an impact wrench to remove or install
temperature switches or temperature sensors.
(6) When checking the continuity at the wire connector,
insert the tester probe carefully to prevent terminals
from bending.
4. REMOVAL AND INSTALLATION OF FUEL CONTROL PARTS
(a) PLACE FOR REMOVING AND INSTALLING OF FUEL SYSTEM PARTS
(1) Work in a place with good air ventilation and without anything that could cause combustion
around you such as a welder, grinder, drill, electric motor or stove.
(2) Never work in a place such as a pit or nearby a pit, as there is a possibility that vaporized fuel
will collect in those places.
(b) REMOVING AND INSTALLING OF FUEL SYSTEM PARTS
(1) Prepare a fire extinguisher before starting operations.
(2) To prevent static electricity, install a ground on the fuel changer, vehicle and fuel tank, and do
not spray much water so as to prevent slipping.
(3) Never use any electric equipment like an electric motor or a working light, as they may create
sparks or a high temperature.
(4) Never use an iron hammer, as it may create sparks.
(5) Dispose of shop rags containing fuel deposits separately.
5. REMOVAL AND INSTALLATION OF ENGINE INTAKE
PARTS
(a) If any metal tip is mixed in the inlet pass, this may give a
bad effect to the engine and turbocharger.
(b) When removing and installing the inlet system parts,
close the opening of the removed inlet system parts and
the engine with a clean waste cloth or gum tape.
(c) When installing the inlet system parts, check that there is
no mixing of a metal tip.

D25081
Spring Type Clamp
Clamp Track
D20025
CG
DLC3
TS
D30964

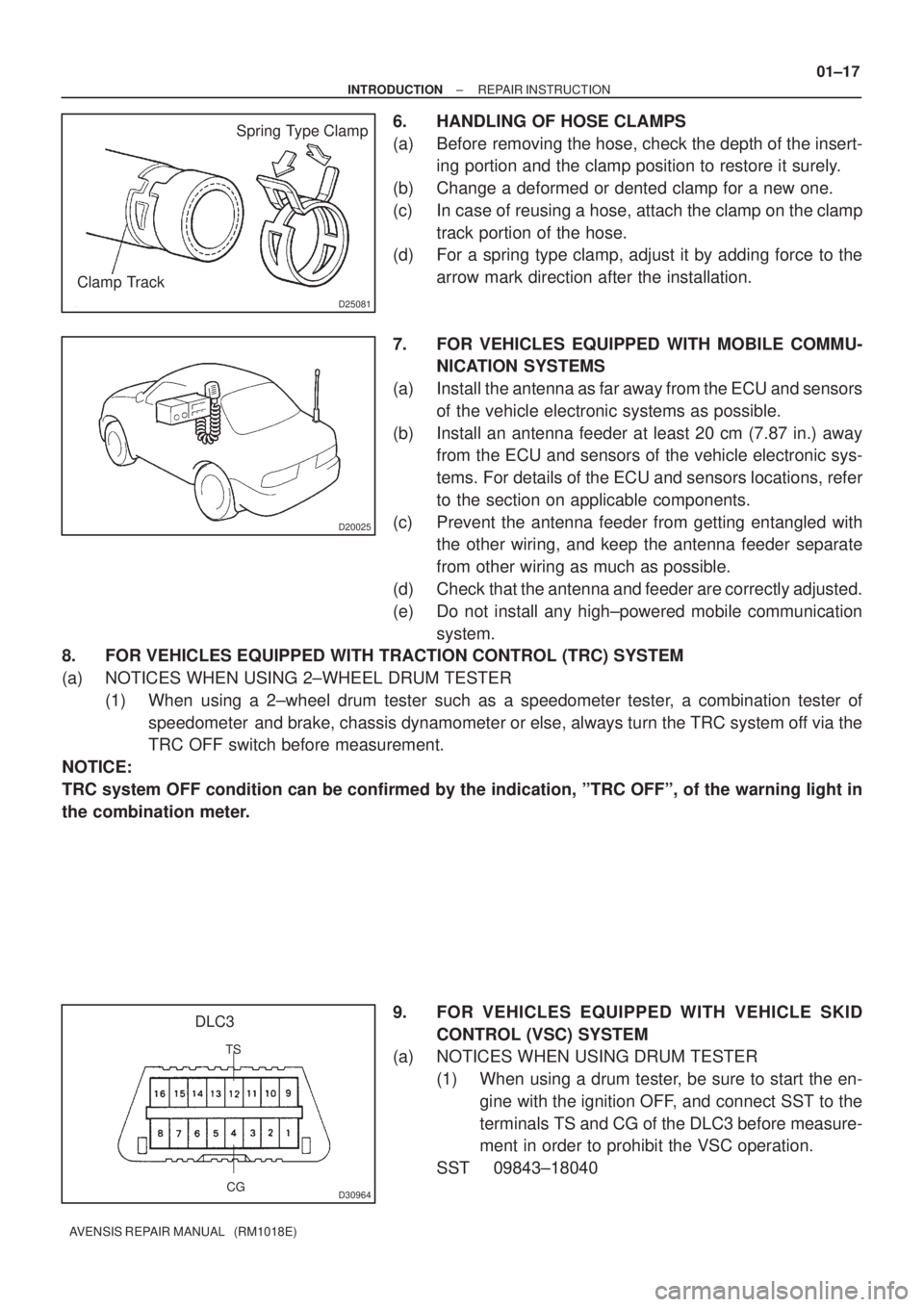

± INTRODUCTIONREPAIR INSTRUCTION
01±17
AVENSIS REPAIR MANUAL (RM1018E)
6. HANDLING OF HOSE CLAMPS
(a) Before removing the hose, check the depth of the insert-
ing portion and the clamp position to restore it surely.
(b) Change a deformed or dented clamp for a new one.
(c) In case of reusing a hose, attach the clamp on the clamp
track portion of the hose.
(d) For a spring type clamp, adjust it by adding force to the
arrow mark direction after the installation.
7. FOR VEHICLES EQUIPPED WITH MOBILE COMMU-
NICATION SYSTEMS
(a) Install the antenna as far away from the ECU and sensors
of the vehicle electronic systems as possible.
(b) Install an antenna feeder at least 20 cm (7.87 in.) away
from the ECU and sensors of the vehicle electronic sys-
tems. For details of the ECU and sensors locations, refer
to the section on applicable components.
(c) Prevent the antenna feeder from getting entangled with
the other wiring, and keep the antenna feeder separate
from other wiring as much as possible.
(d) Check that the antenna and feeder are correctly adjusted.
(e) Do not install any high±powered mobile communication
system.
8. FOR VEHICLES EQUIPPED WITH TRACTION CONTROL (TRC) SYSTEM
(a) NOTICES WHEN USING 2±WHEEL DRUM TESTER
(1) When using a 2±wheel drum tester such as a speedometer tester, a combination tester of
speedometer and brake, chassis dynamometer or else, always turn the TRC system off via the
TRC OFF switch before measurement.
NOTICE:
TRC system OFF condition can be confirmed by the indication, ºTRC OFFº, of the warning light in
the combination meter.
9. FOR VEHICLES EQUIPPED WITH VEHICLE SKID
CONTROL (VSC) SYSTEM
(a) NOTICES WHEN USING DRUM TESTER
(1) When using a drum tester, be sure to start the en-
gine with the ignition OFF, and connect SST to the
terminals TS and CG of the DLC3 before measure-
ment in order to prohibit the VSC operation.
SST 09843±18040

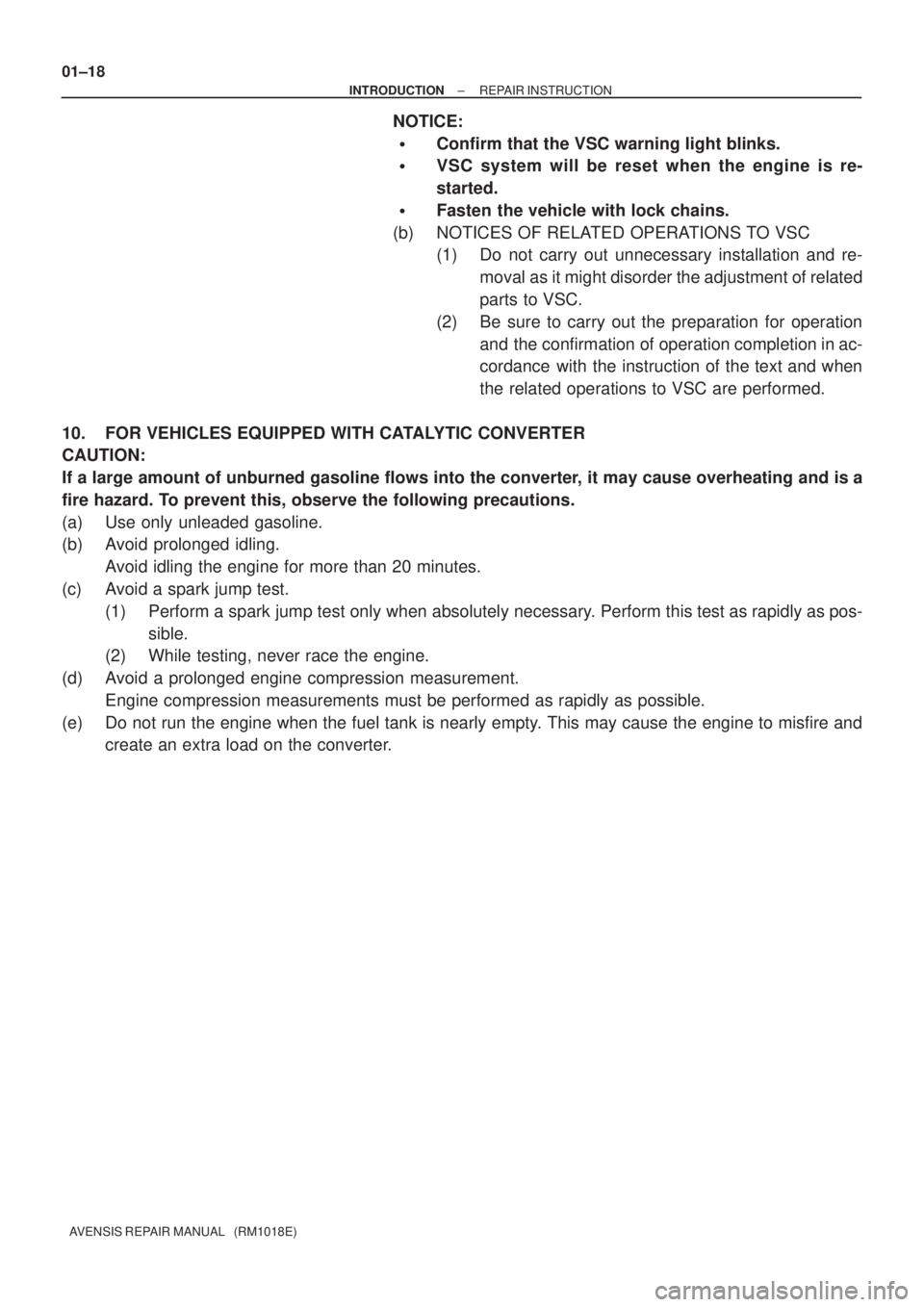

01±18
± INTRODUCTIONREPAIR INSTRUCTION
AVENSIS REPAIR MANUAL (RM1018E)
NOTICE:

Confirm that the VSC warning light blinks.

VSC system will be reset when the engine is re-
started.

Fasten the vehicle with lock chains.
(b) NOTICES OF RELATED OPERATIONS TO VSC
(1) Do not carry out unnecessary installation and re-
moval as it might disorder the adjustment of related
parts to VSC.
(2) Be sure to carry out the preparation for operation
and the confirmation of operation completion in ac-
cordance with the instruction of the text and when
the related operations to VSC are performed.
10. FOR VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
CAUTION:
If a large amount of unburned gasoline flows into the converter, it may cause overheating and is a
fire hazard. To prevent this, observe the following precautions.
(a) Use only unleaded gasoline.
(b) Avoid prolonged idling.
Avoid idling the engine for more than 20 minutes.
(c) Avoid a spark jump test.
(1) Perform a spark jump test only when absolutely necessary. Perform this test as rapidly as pos-
sible.
(2) While testing, never race the engine.
(d) Avoid a prolonged engine compression measurement.
Engine compression measurements must be performed as rapidly as possible.
(e) Do not run the engine when the fuel tank is nearly empty. This may cause the engine to misfire and
create an extra load on the converter.

022JT±01
± PREPARATIONPARKING BRAKE
02±35
AVENSIS REPAIR MANUAL (RM1018E)
PARKING BRAKE
PREPARATION
SST
09718±00010Shoe Hold Down Spring DriverPARKING BRAKE ASSY
PARKING BRAKE CABLE ASSY NO.3
Recomended Tools
09070±20010Moulding RemoverPARKING BRAKE CABLE ASSY NO.1
PARKING BRAKE LEVER SUB±ASSY
Equipment
Torque wrench
Slide calipers

022KS±01
± PREPARATIONBRAKE
02±33
AVENSIS REPAIR MANUAL (RM1018E)
BRAKE
PREPARATION

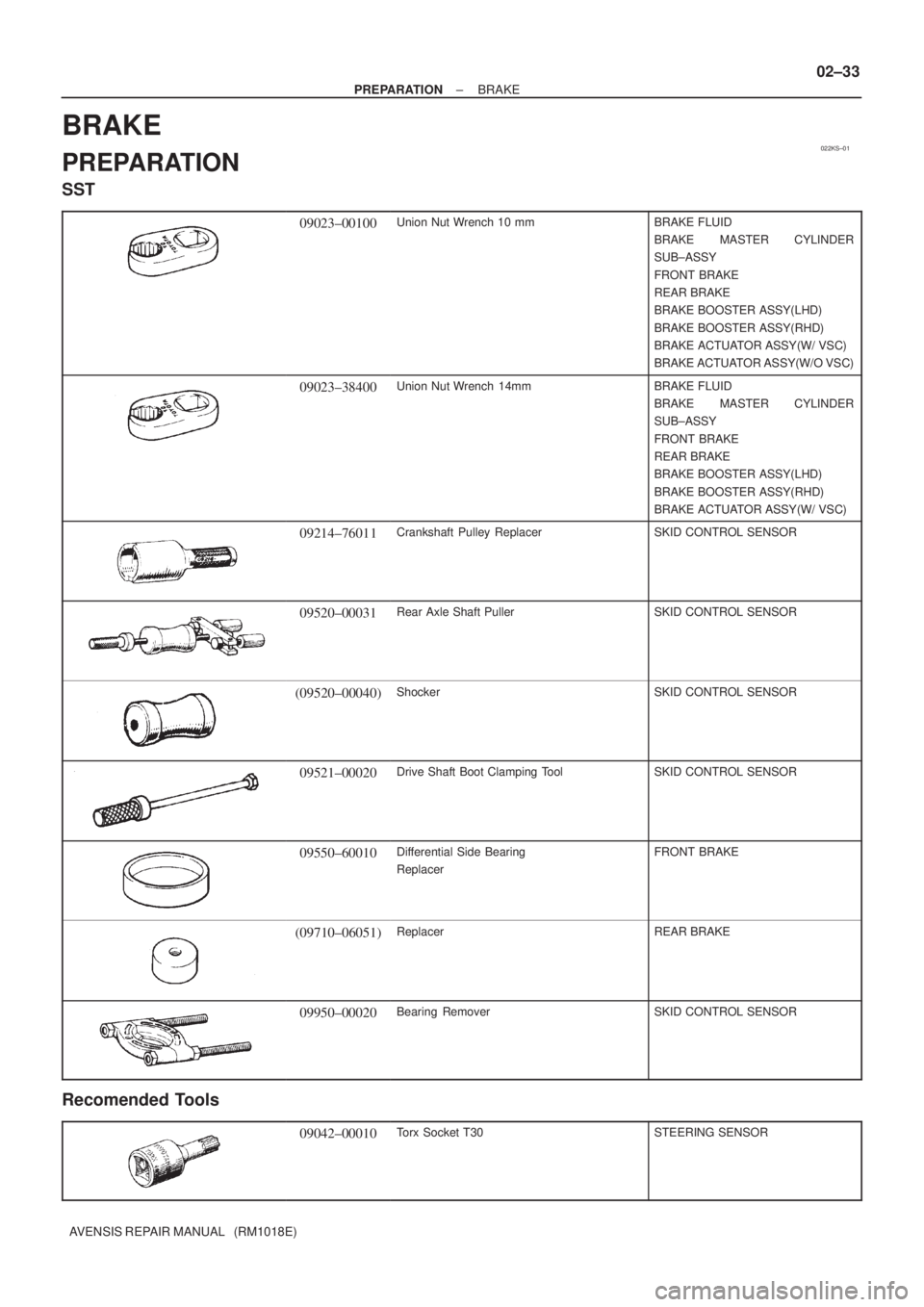

SST
09023±00100Union Nut Wrench 10 mmBRAKE FLUID
BRAKE MASTER CYLINDER
SUB±ASSY
FRONT BRAKE
REAR BRAKE
BRAKE BOOSTER ASSY(LHD)
BRAKE BOOSTER ASSY(RHD)
BRAKE ACTUATOR ASSY(W/ VSC)
BRAKE ACTUATOR ASSY(W/O VSC)
09023±38400Union Nut Wrench 14mmBRAKE FLUID
BRAKE MASTER CYLINDER
SUB±ASSY
FRONT BRAKE
REAR BRAKE
BRAKE BOOSTER ASSY(LHD)
BRAKE BOOSTER ASSY(RHD)
BRAKE ACTUATOR ASSY(W/ VSC)
09214±76011Crankshaft Pulley ReplacerSKID CONTROL SENSOR
09520±00031Rear Axle Shaft PullerSKID CONTROL SENSOR
(09520±00040)ShockerSKID CONTROL SENSOR
09521±00020Drive Shaft Boot Clamping ToolSKID CONTROL SENSOR
09550±60010Differential Side Bearing
ReplacerFRONT BRAKE
(09710±06051)ReplacerREAR BRAKE
09950±00020Bearing RemoverSKID CONTROL SENSOR
Recomended Tools
09042±00010Torx Socket T30STEERING SENSOR

02±34
± PREPARATIONBRAKE
AVENSIS REPAIR MANUAL (RM1018E)
Equipment
Micrometer
Dial indicator w/ magnetic base
Brake drum gauge
Slide calipers
Torque wrench
Lubricant
ItemCapacityClassification
Brake fluid±SAE J1704 or FMVSS No. 116 DOT4
