DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1217
AVENSIS REPAIR MANUAL (RM1018E)
DTCB0106/54OPEN IN P SQUIB CIRCUIT
CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assy center and the instr\
ument panel passenger airbag
assy.
This circuit actuates the SRS to deploy when the SRS deployment conditions a\
re fulfilled.
DTC B0106/54 is recorded when an open circuit is detected in the P squib\
circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0106/54
Open circuit in P+ wire harness or P± wire harness of P squib
P squib malfunction
Airbag sensor assy center malfunctionInstrument panel passenger airbag assy (P squib)
Airbag sensor assy center
Instrument panel wire
WIRING DIAGRAM
See page 05±1214.
INSPECTION PROCEDURE
1 CHECK INSTRUMENT PANEL WIRE(P SQUIB CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the instrument panel passenger airbag assy.
(d) Measure the resistance between P+ and P± of the con- nector ºCº.
OK:
Resistance: Below 1
NG REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK
056M0±03
Page 1272 of 5135
\b
\b H40577
P SquibAirbag
Sensor
Assy
Center
DTC B0106/54
DLC3
CG TC
P±
P+
Instrument Panel Wire
SST
C
D
05±1218
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

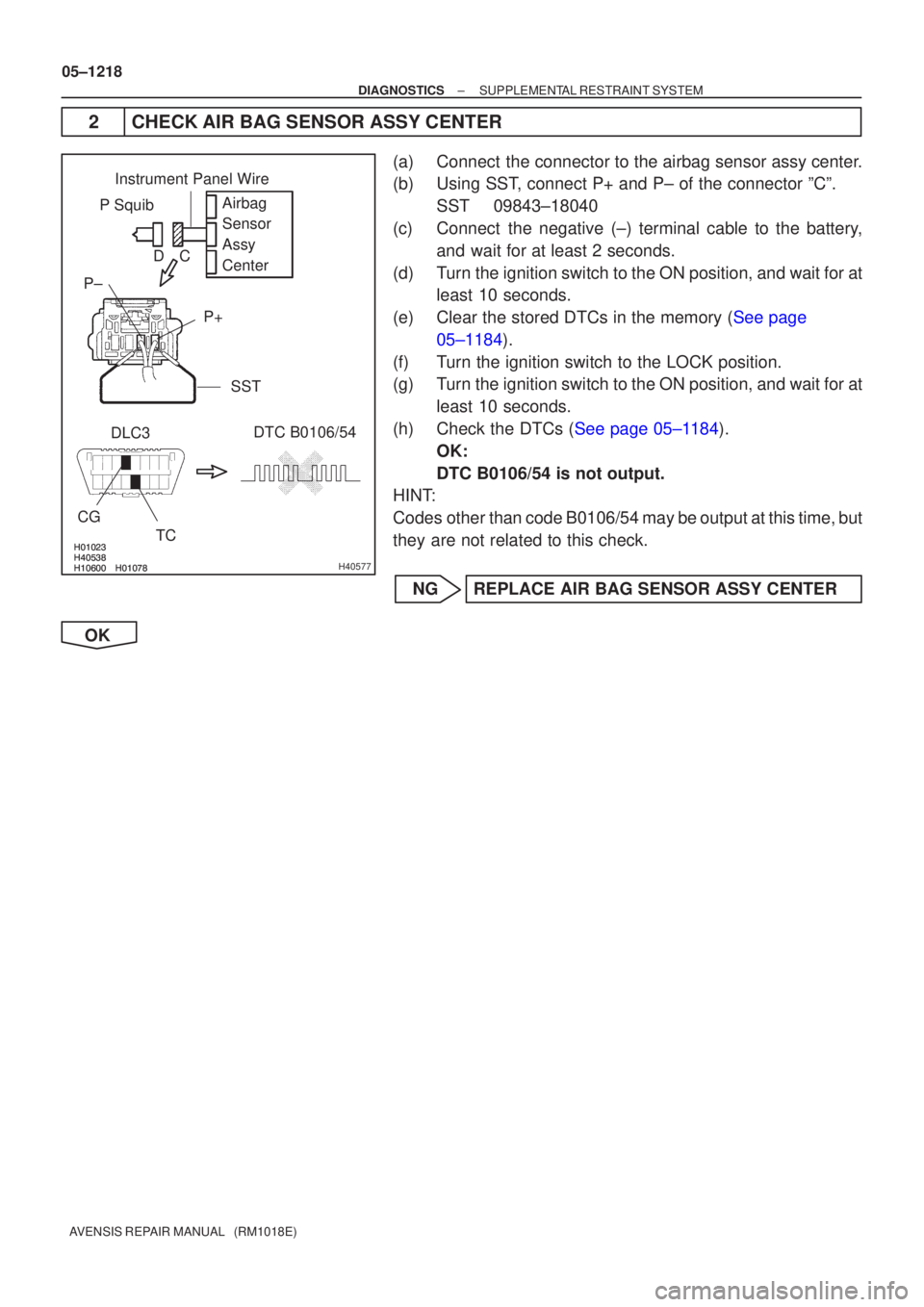

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Using SST, connect P+ and P± of the connector ºCº. SST09843±18040
(c)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page 05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184). OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1273 of 5135
\b\b\bH40043
DTC B0106/54
DLC3
CG TC
Airbag
Sensor
Assy
Center
P Squib
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1219
AVENSIS REPAIR MANUAL (RM1018E)

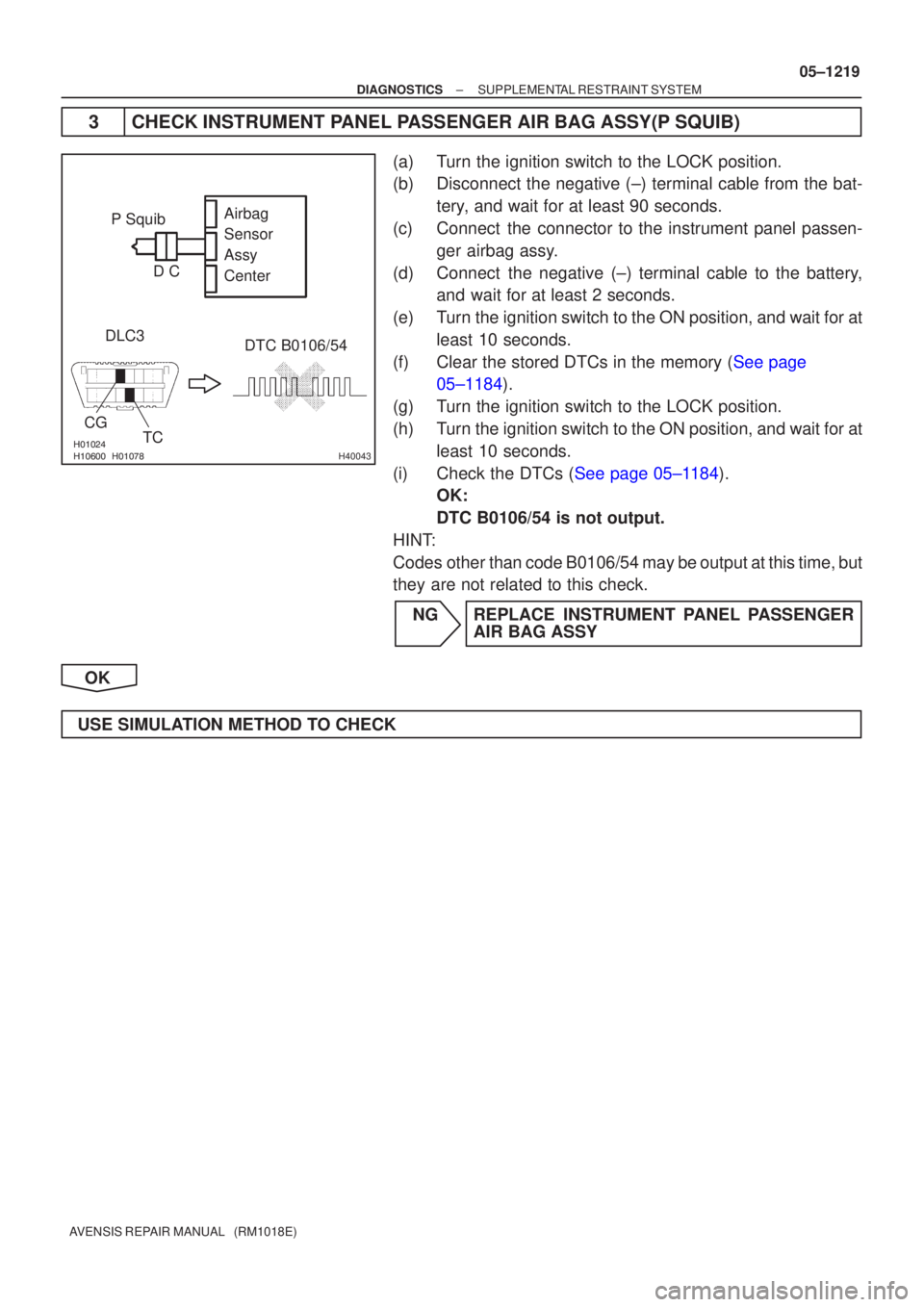

3CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the connector to the instrument panel passen- ger airbag assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
USE SIMULATION METHOD TO CHECK
Page 1274 of 5135
H01454
A29
P SquibAirbag Sensor Assy Center
Y±R
Y±G 1
210
P+ A27
P± 11
A27 05±1214
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DTC B0105/53 SHORT IN P SQUIB CIRCUIT
CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assy center and the instrument panel passenger airbag
assy.
This circuit actuates the SRS to deploy when the SRS deployment conditions are fulfilled.
DTC B0105/53 is recorded when a short circuit is detected in the P squib circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0105/53
Short circuit between P+ wire harness and P± wire har-
ness of P squib
P squib malfunction
Airbag sensor assy center malfunctionInstrument panel passenger airbag assy (P squib)
Airbag sensor assy center
Instrument panel wire
WIRING DIAGRAM
056LZ±03
Page 1275 of 5135
\b
\b
H40576
P SquibAirbag
Sensor
Assy
Center
P± P+
Instrument Panel Wire
A
B
C
D
\b\bH42107
P SquibAirbag
Sensor
Assy
Center
CG TC
DLC3
DTC B0105/53
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1215
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1CHECK INSTRUMENT PANEL WIRE(P SQUIB CIRCUIT)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Disconnect the connectors between the airbag sensor assy center and the instrument panel passenger airbag
assy.
(d)Release the activation prevention mechanism built in the
connector ºBº (See page 05±1184).
(e)Measure the resistance between P+ and P± of the con- nector ºEº.
OK:
Resistance: 1 M or Higher
NGREPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK
2CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(c)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(d)Clear the stored DTCs in the memory (See page
05±1184).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Check the DTCs (See page 05±1184).
OK:
DTC B0105/53 is not output.
HINT:
Codes other than code B0105/53 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1276 of 5135
H40041
P SquibDTC B0105/53
DLC3
CG TCAirbag
Sensor
Assy
Center
C
D
05±1216
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

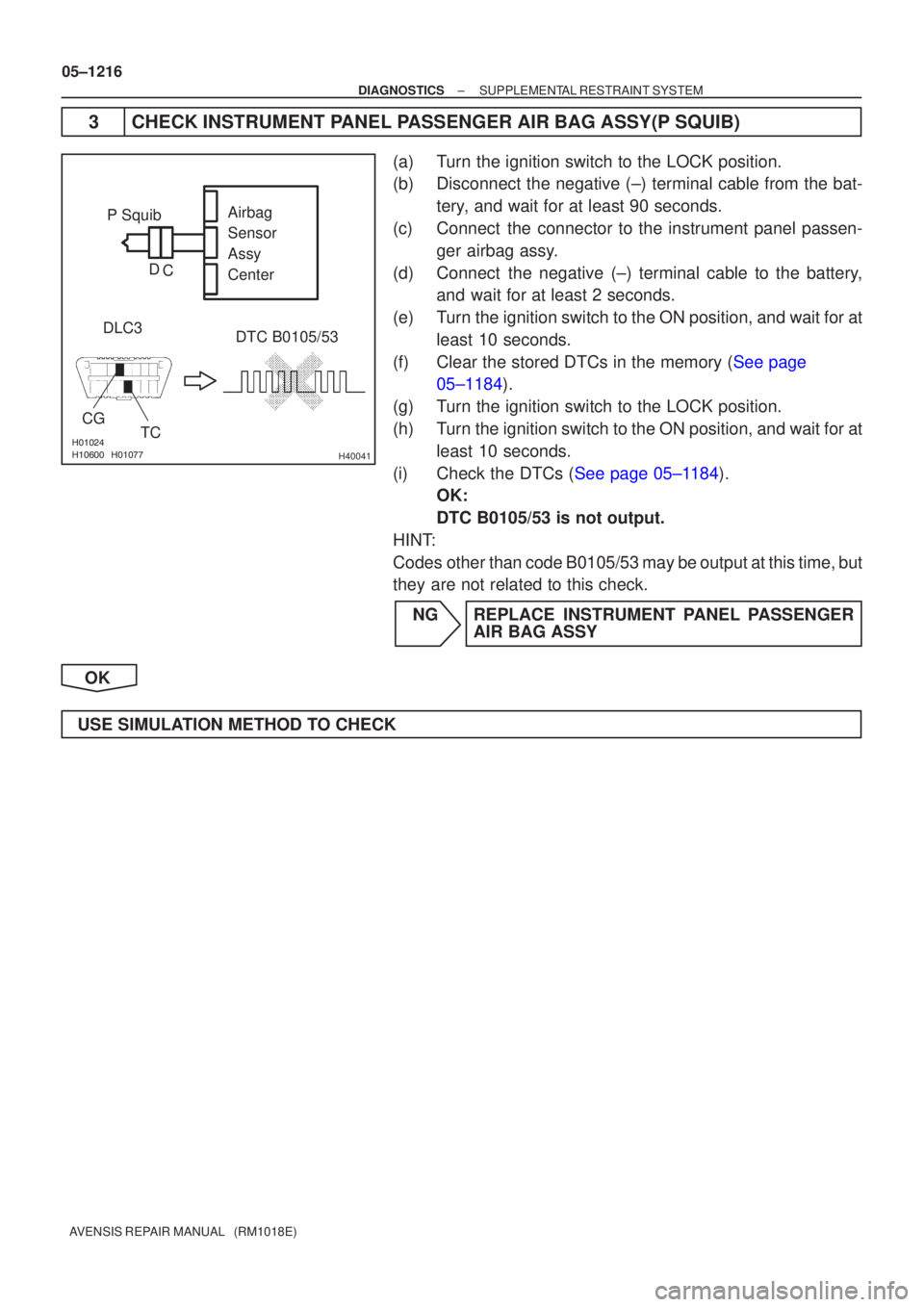

3CHECK INSTRUMENT PANEL PASSENGER AIR BAG ASSY(P SQUIB)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connector to the instrument panel passen- ger airbag assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g)Turn the ignition switch to the LOCK position.
(h)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0105/53 is not output.
HINT:
Codes other than code B0105/53 may be output at this time, but
they are not related to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
OK
USE SIMULATION METHOD TO CHECK
Page 1277 of 5135
H41439
D Squib
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Orange
A
B
C
D
E
F
05±1210
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

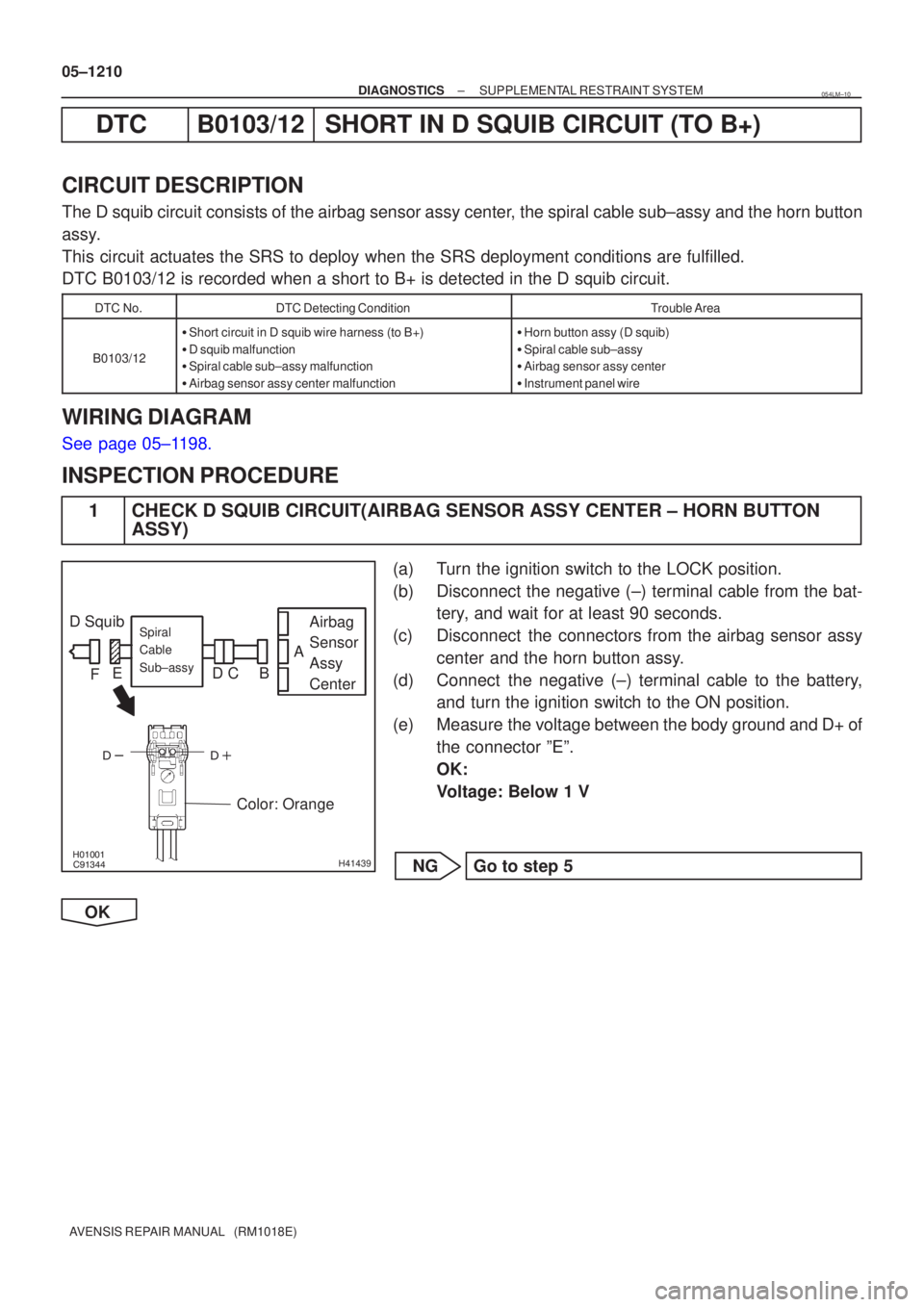

DTCB0103/12SHORT IN D SQUIB CIRCUIT (TO B+)
CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assy center, the spiral cable sub±assy and the horn button
assy.
This circuit actuates the SRS to deploy when the SRS deployment conditions a\
re fulfilled.
DTC B0103/12 is recorded when a short to B+ is detected in the D squib c\
ircuit.
DTC No.DTC Detecting ConditionTrouble Area
B0103/12
Short circuit in D squib wire harness (to B+)
D squib malfunction
Spiral cable sub±assy malfunction
Airbag sensor assy center malfunctionHorn button assy (D squib)
Spiral cable sub±assy
Airbag sensor assy center
Instrument panel wire
WIRING DIAGRAM
See page 05±1198.
INSPECTION PROCEDURE
1 CHECK D SQUIB CIRCUIT(AIRBAG SENSOR ASSY CENTER ± HORN BUTTON
ASSY)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the horn button assy.
(d) Connect the negative (±) terminal cable to the battery, and turn the ignition switch to the ON position.
(e) Measure the voltage between the body ground and D+ of the connector ºEº.
OK:
Voltage: Below 1 V
NG Go to step 5
OK
054LM±10
Page 1278 of 5135
\b
H42106
D SquibAirbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Orange
CGTC
DLC3
DTC B0103/12
Service Wire
C
D
E
F
D+
D±
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1211
AVENSIS REPAIR MANUAL (RM1018E)

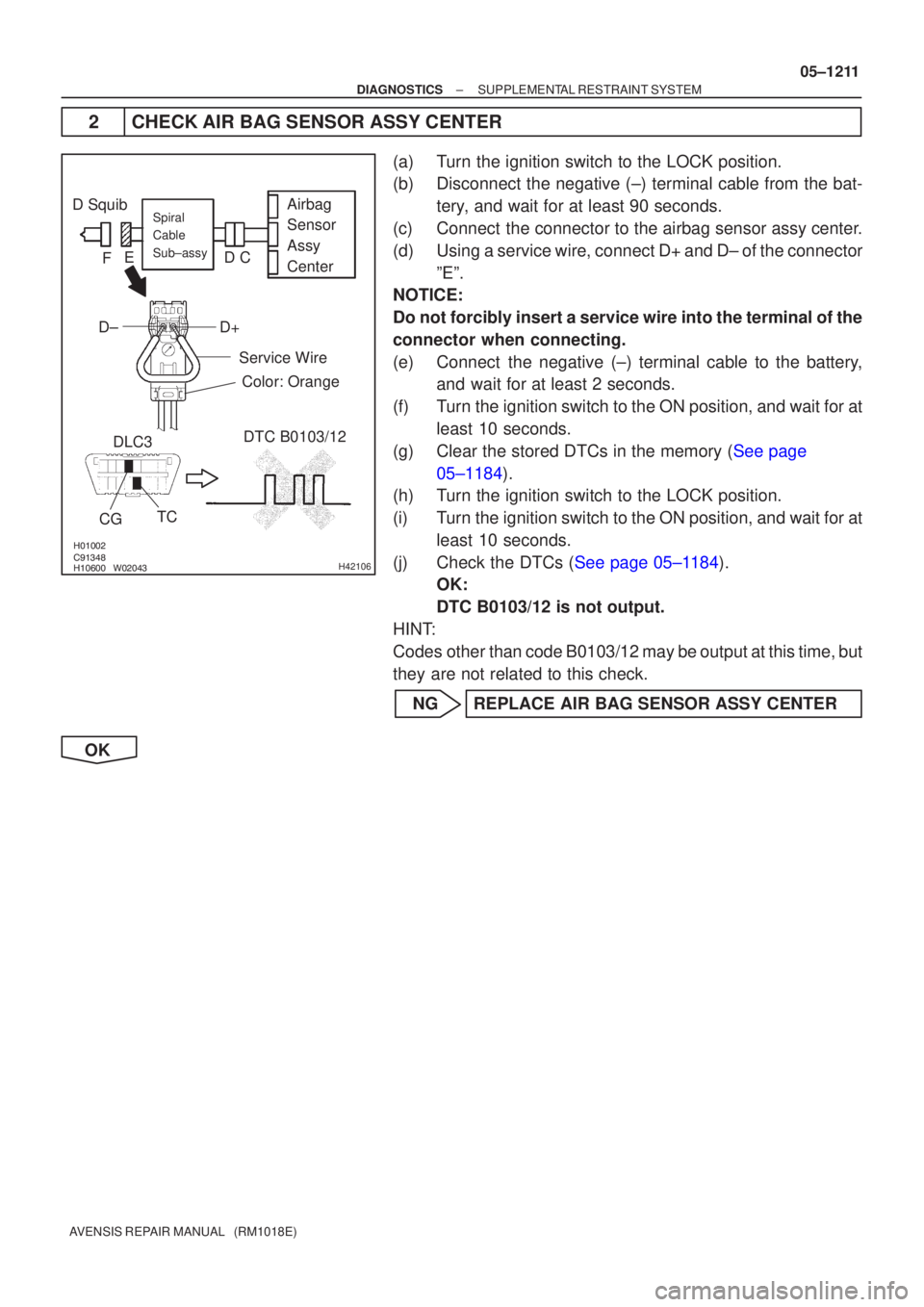

2CHECK AIR BAG SENSOR ASSY CENTER
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the connector to the airbag sensor assy center.
(d)Using a service wire, connect D+ and D± of the connector ºEº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(e)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(f)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Clear the stored DTCs in the memory (See page 05±1184).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(j)Check the DTCs (See page 05±1184). OK:
DTC B0103/12 is not output.
HINT:
Codes other than code B0103/12 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
Page 1279 of 5135
\bH40038
D SquibDLC3 DTC B0103/12
CG
TC Airbag
Sensor
Assy
Center
Spiral
Cable
Sub±assy
C
D
E
F
05±1212
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

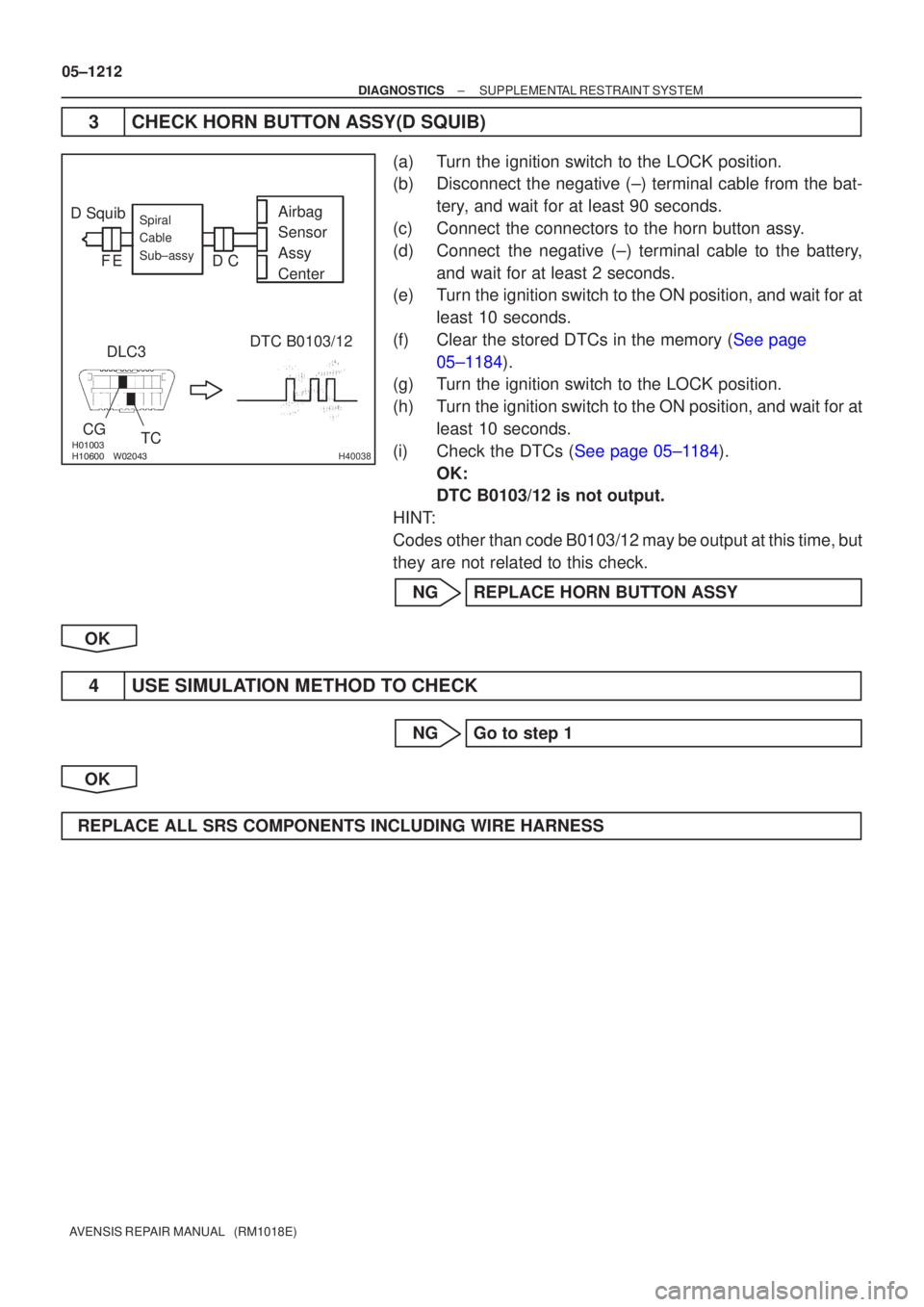

3CHECK HORN BUTTON ASSY(D SQUIB)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the horn button assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0103/12 is not output.
HINT:
Codes other than code B0103/12 may be output at this time, but
they are not related to this check.
NG REPLACE HORN BUTTON ASSY
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS
Page 1280 of 5135
H41440
D SquibAirbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Instrument Panel Wire
A
B C D
E F
H41441
D SquibAirbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Orange
A
B C D
E F
D±D+
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05±1213
AVENSIS REPAIR MANUAL (RM1018E)

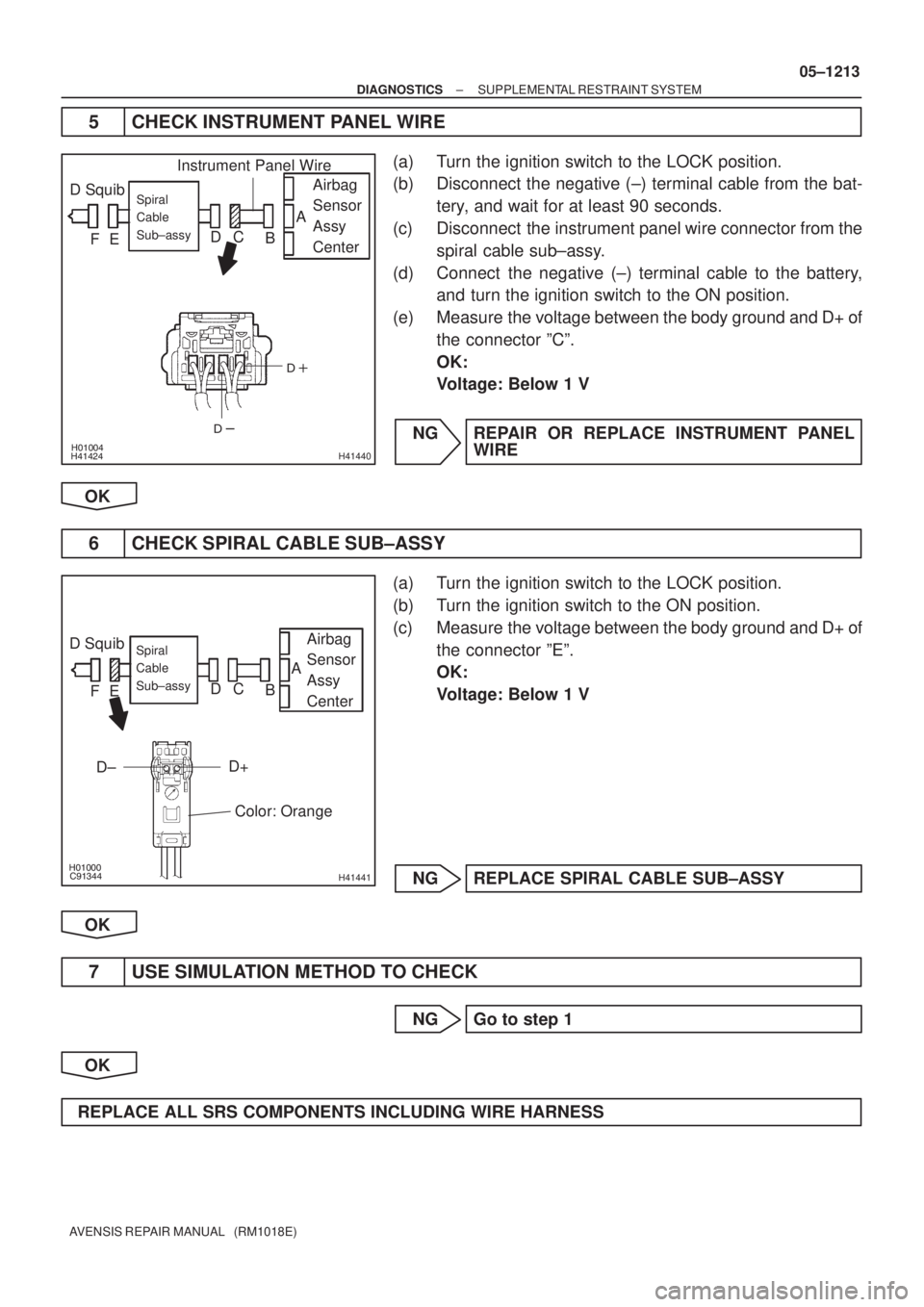

5 CHECK INSTRUMENT PANEL WIRE
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the instrument panel wire connector from the
spiral cable sub±assy.
(d) Connect the negative (±) terminal cable to the battery,
and turn the ignition switch to the ON position.
(e) Measure the voltage between the body ground and D+ of
the connector ºCº.
OK:
Voltage: Below 1 V
NG REPAIR OR REPLACE INSTRUMENT PANEL
WIRE
OK
6 CHECK SPIRAL CABLE SUB±ASSY
(a) Turn the ignition switch to the LOCK position.
(b) Turn the ignition switch to the ON position.
(c) Measure the voltage between the body ground and D+ of
the connector ºEº.
OK:
Voltage: Below 1 V
NG REPLACE SPIRAL CABLE SUB±ASSY
OK
7 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS
