Airbag Sensor Assy Center
P16
P/T Squib LH
A26 PL+ Y±B
A26PL± Y 1
28
7 05±1270
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

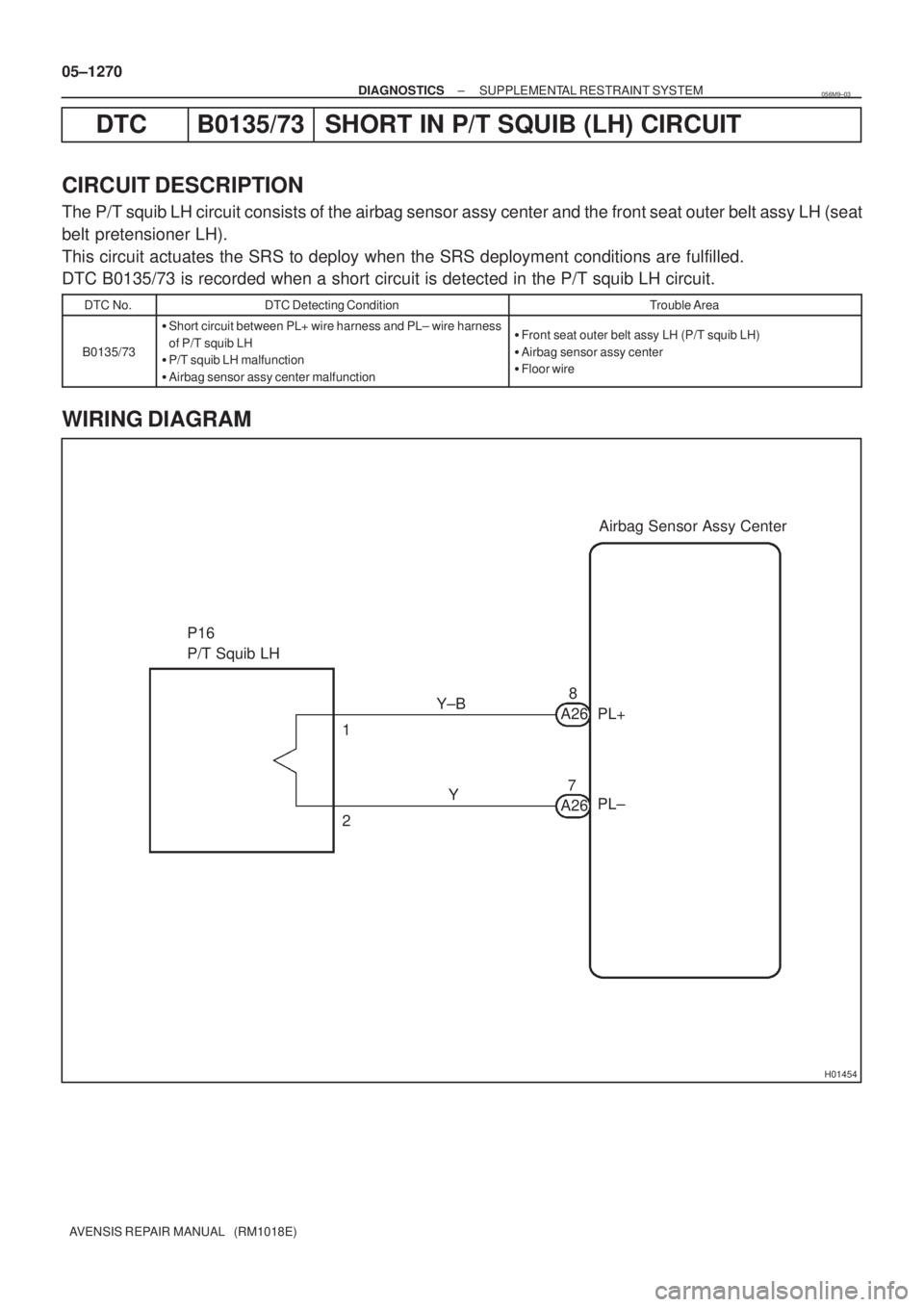

DTC B0135/73 SHORT IN P/T SQUIB (LH) CIRCUIT
CIRCUIT DESCRIPTION
The P/T squib LH circuit consists of the airbag sensor assy center and the front seat outer belt assy LH (seat
belt pretensioner LH).
This circuit actuates the SRS to deploy when the SRS deployment conditions are fulfilled.
DTC B0135/73 is recorded when a short circuit is detected in the P/T squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0135/73

Short circuit between PL+ wire harness and PL± wire harness
of P/T squib LH

P/T squib LH malfunction

Airbag sensor assy center malfunction
Front seat outer belt assy LH (P/T squib LH)

Airbag sensor assy center

Floor wire
WIRING DIAGRAM
056M9±03




H40056
P/T Squib LHPL±
PL+ Airbag
Sensor
Assy
CenterFloor Wire
A
B
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1271
AVENSIS REPAIR MANUAL (RM1018E)

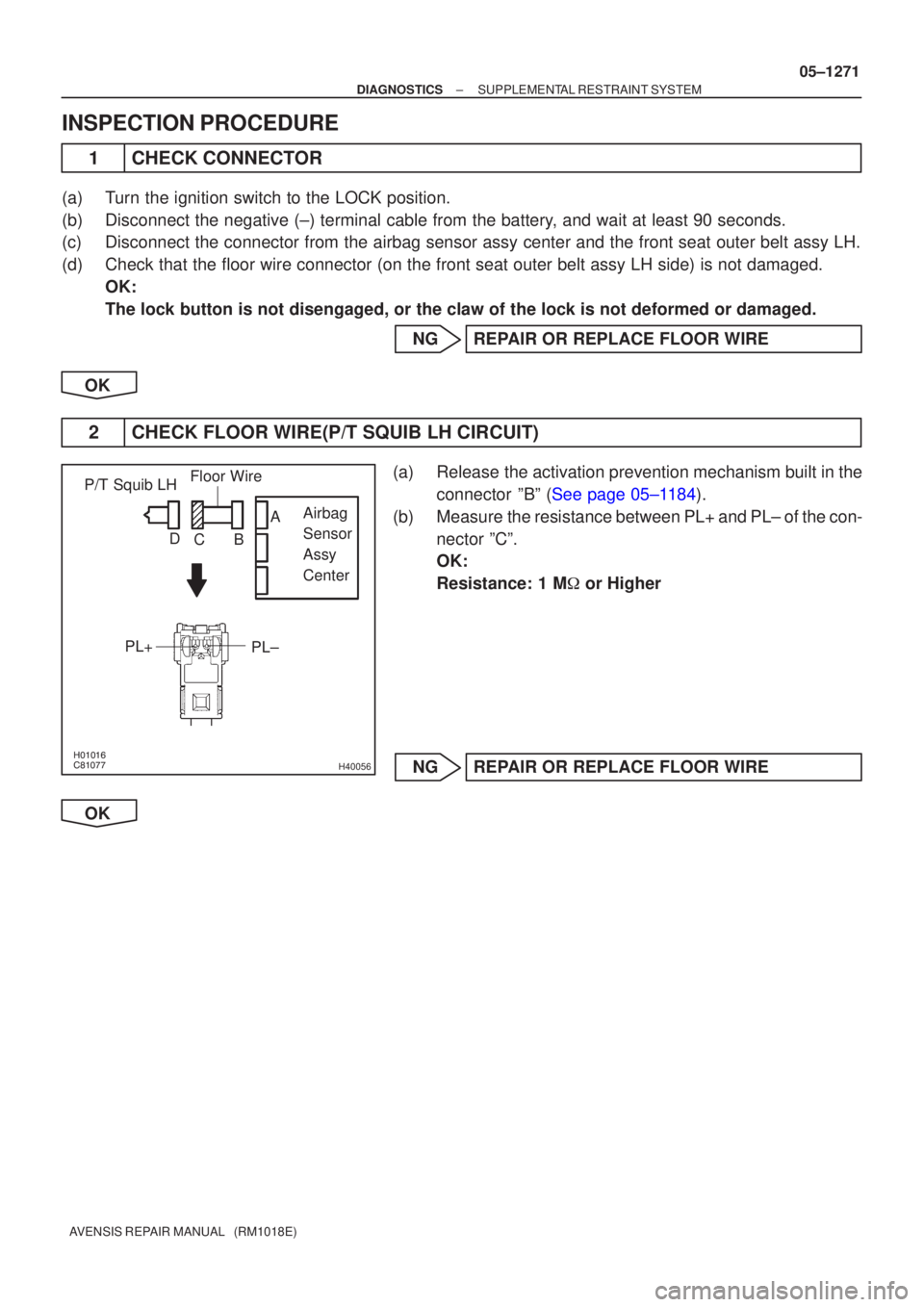

INSPECTION PROCEDURE
1CHECK CONNECTOR
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the battery, and wait at least 90 seconds.
(c)Disconnect the connector from the airbag sensor assy center and the fron\
t seat outer belt assy LH.
(d)Check that the floor wire connector (on the front seat outer belt assy \
LH side) is not damaged.
OK:
The lock button is not disengaged, or the claw of the lock is not deform\
ed or damaged.
NGREPAIR OR REPLACE FLOOR WIRE
OK
2CHECK FLOOR WIRE(P/T SQUIB LH CIRCUIT)
(a)Release the activation prevention mechanism built in the connector ºBº (See page 05±1184).
(b) Measure the resistance between PL+ and PL± of the con- nector ºCº.
OK:
Resistance: 1 M
or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK








H40057
P/T Squib LHDLC3TC
CG
DTC B0135/73 Airbag
Sensor
Assy
Center
C
D







H40058
Airbag
Sensor
Assy
Center
P/T Squib LH
DLC3 TC
CG
DTC B0135/73
C
D
05±1272
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

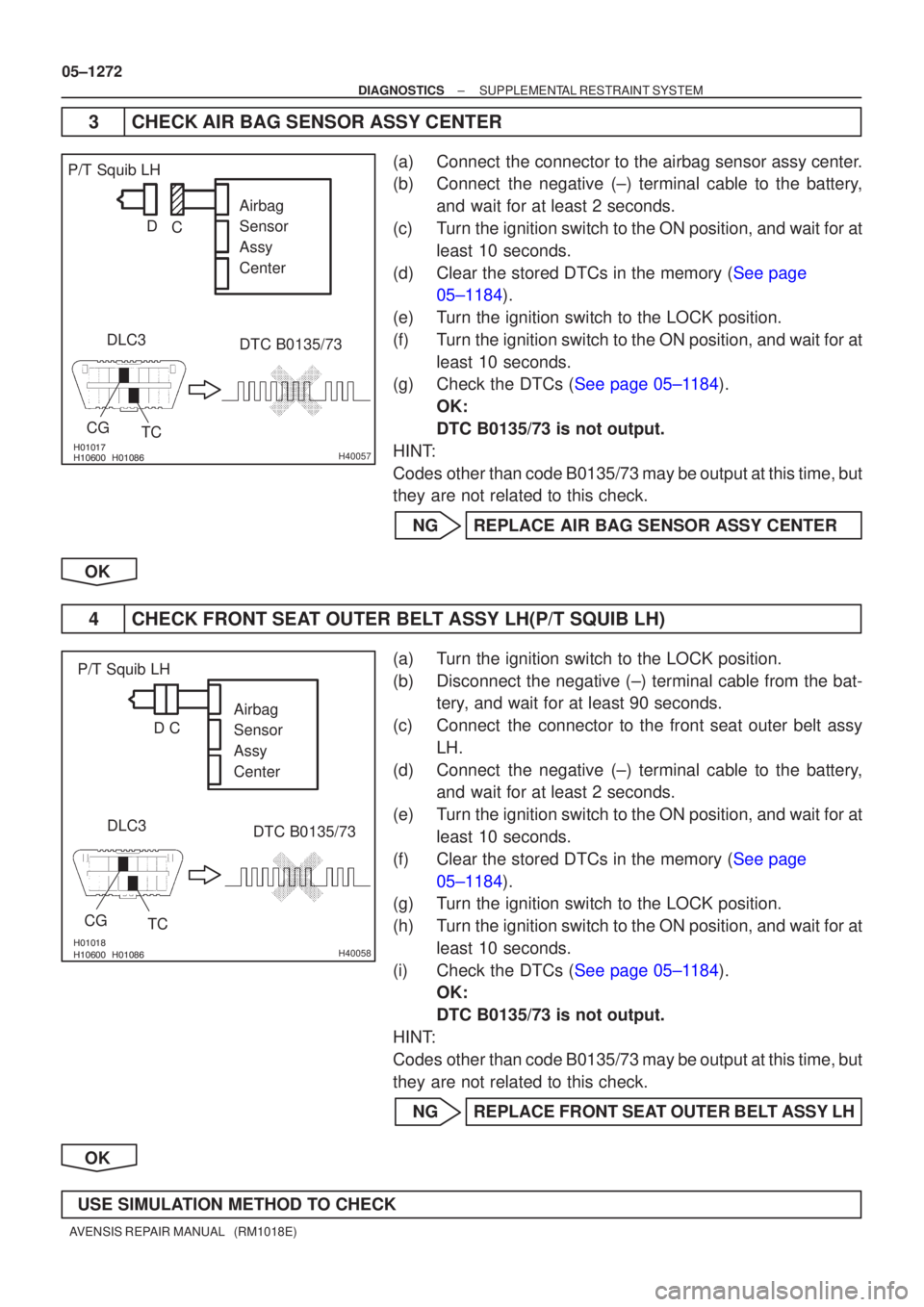

3 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(d)Clear the stored DTCs in the memory (See page 05±1184).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Check the DTCs (See page 05±1184).
OK:
DTC B0135/73 is not output.
HINT:
Codes other than code B0135/73 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
4 CHECK FRONT SEAT OUTER BELT ASSY LH(P/T SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c) Connect the connector to the front seat outer belt assy LH.
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0135/73 is not output.
HINT:
Codes other than code B0135/73 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY LH
OK
USE SIMULATION METHOD TO CHECK




H40048
P/T Squib RHPR±
PR+ Airbag
Sensor
Assy
Center
Floor Wire No.2
A
B
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1267
AVENSIS REPAIR MANUAL (RM1018E)
DTC B0133/62 SHORT IN P/T SQUIB (RH) CIRCUIT (TO B+)
CIRCUIT DESCRIPTION
The P/T squib RH circuit consists of the airbag sensor assy center and the \
front seat outer belt assy RH (seat
belt pretensioner RH).
This circuit actuates the SRS to deploy when the SRS deployment conditio\
ns are fulfilled.
DTC B0133/62 is recorded when a short to B+ is detected in the P/T squib\
RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0133/62

Short circuit in P/T squib RH wire harness (to B+)

P/T squib RH malfunction

Airbag sensor assy center malfunction
Front seat outer belt assy RH (P/T squib RH)

Airbag sensor assy center

Floor wire No.2
WIRING DIAGRAM
See page 05±1258.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(P/T SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the front seat outer belt assy RH.
(d) Connect the negative (±) terminal cable to the battery, and turn the ignition switch to the ON position.
(e) Measure the voltage between the body ground and PR+ of the connector ºCº.
OK:
Voltage: Below 1 V
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
054M2±07




\b







\b
H40953
P/T Squib RHDLC3 DTC B0133/62 TC
CG
Airbag
Sensor
Assy
Center
PR±
PR+
Floor Wire No.2
Service Wire
C
D
05±1268
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

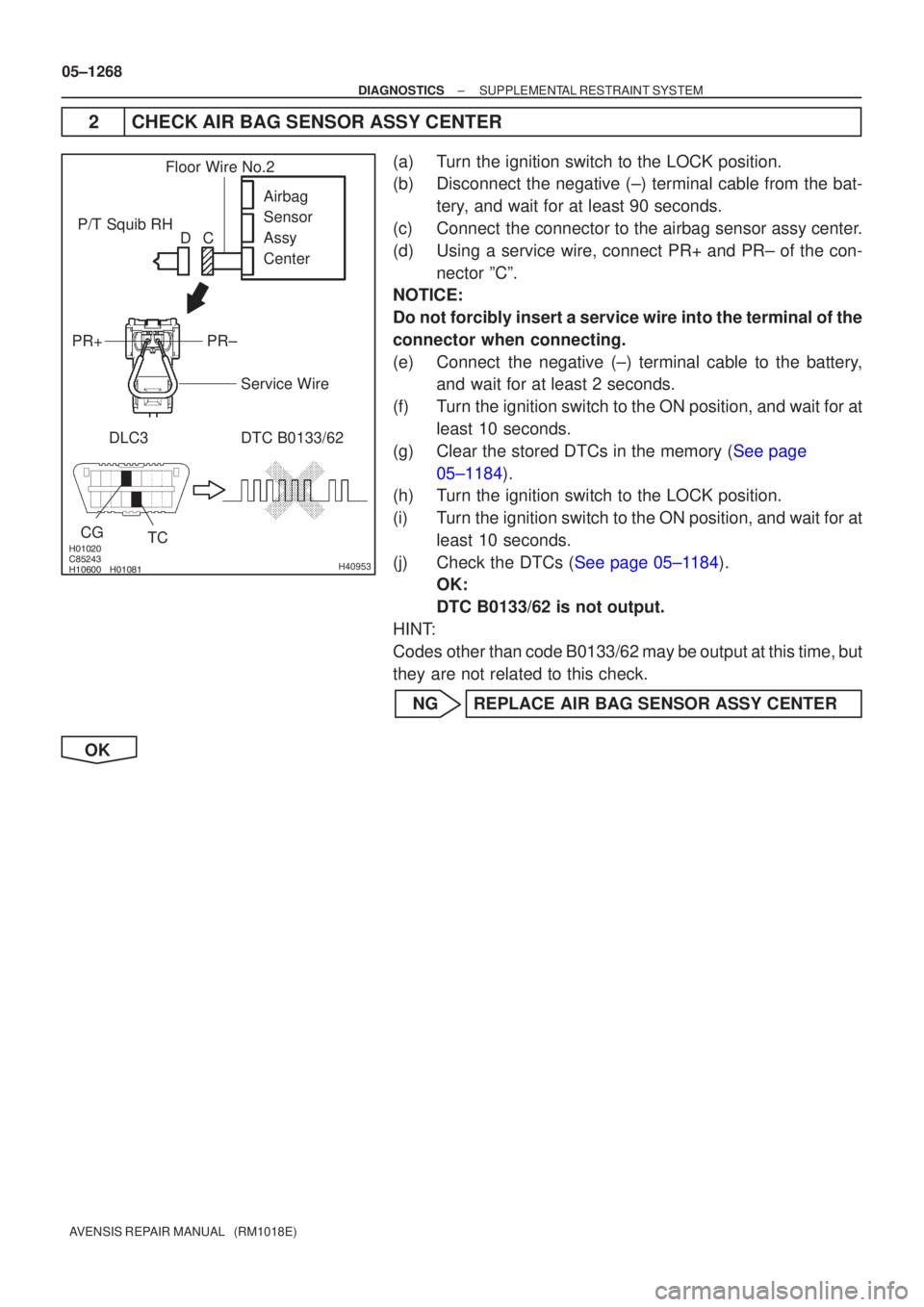

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect PR+ and PR± of the con- nector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(e) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Clear the stored DTCs in the memory (See page 05±1184).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(j)Check the DTCs (See page 05±1184). OK:
DTC B0133/62 is not output.
HINT:
Codes other than code B0133/62 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK








H40055
P/T Squib RHDLC3 DTC B0133/62
TC
CG
Airbag
Sensor
Assy
Center
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1269
AVENSIS REPAIR MANUAL (RM1018E)
3 CHECK FRONT SEAT OUTER BELT ASSY RH(P/T SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the front seat outer belt assy RH.
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0133/62 is not output.
HINT:
Codes other than code B0133/62 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY RH
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS




H40048
P/T Squib RHPR±
PR+ Airbag
Sensor
Assy
Center
Floor Wire No.2
A
B
C
D
05±1264
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

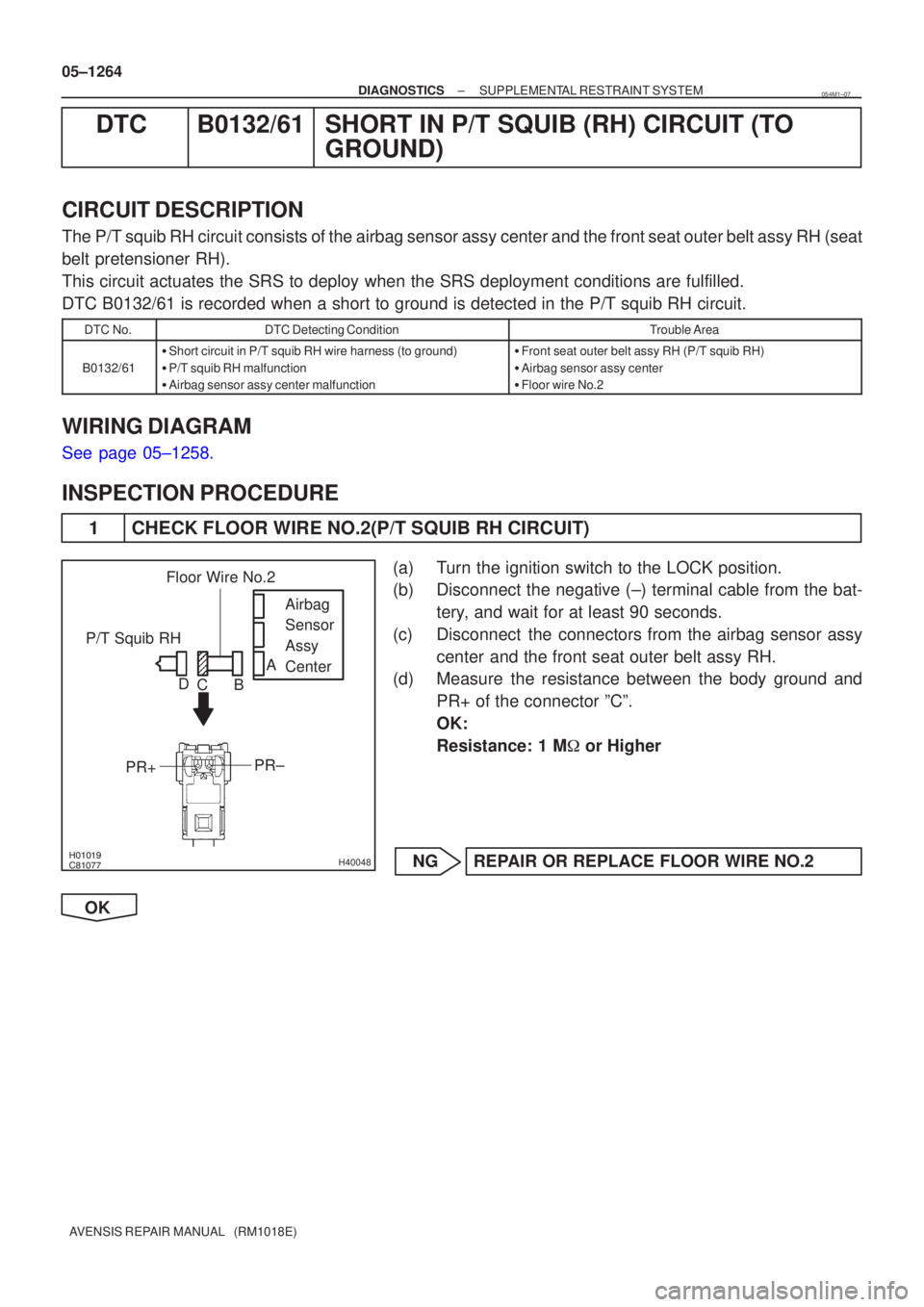

DTC B0132/61 SHORT IN P/T SQUIB (RH) CIRCUIT (TO GROUND)
CIRCUIT DESCRIPTION
The P/T squib RH circuit consists of the airbag sensor assy center and the \
front seat outer belt assy RH (seat
belt pretensioner RH).
This circuit actuates the SRS to deploy when the SRS deployment conditio\
ns are fulfilled.
DTC B0132/61 is recorded when a short to ground is detected in the P/T s\
quib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0132/61

Short circuit in P/T squib RH wire harness (to ground)

P/T squib RH malfunction

Airbag sensor assy center malfunction
Front seat outer belt assy RH (P/T squib RH)

Airbag sensor assy center

Floor wire No.2
WIRING DIAGRAM
See page 05±1258.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(P/T SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the front seat outer belt assy RH.
(d) Measure the resistance between the body ground and
PR+ of the connector ºCº.
OK:
Resistance: 1 M
or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
054M1±07

\f




\f


\f

\b

H40952
P/T Squib RHDLC3 DTC B0132/61
TC
CG
Airbag
Sensor
Assy
Center
PR±
PR+
Floor Wire No.2
Service Wire
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1265
AVENSIS REPAIR MANUAL (RM1018E)
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect PR+ and PR± of the con-
nector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(c) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(e)Clear the stored DTCs in the memory (See page
05±1184).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(h)Check the DTCs (See page 05±1184).
OK:
DTC B0132/61 is not output.
HINT:
Codes other than code B0132/61 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK








H40053
Airbag
Sensor
Assy
Center
P/T Squib RH
DLC3 DTC B0132/61
TC
CG
C
D
05±1266
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3 CHECK FRONT SEAT OUTER BELT ASSY RH(P/T SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c) Connect the connector to the front seat outer belt assy RH.
(d) Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B0132/61 is not output.
HINT:
Codes other than code B0132/61 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY RH
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS




H40048
P/T Squib RHAirbag
Sensor
Assy
Center
PR±
PR+
Floor Wire No.2
A
B
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1261
AVENSIS REPAIR MANUAL (RM1018E)
DTC B0131/64 OPEN IN P/T (RH) CIRCUIT
CIRCUIT DESCRIPTION
The P/T squib RH circuit consists of the airbag sensor assy center and the \
front seat outer belt assy RH (seat
belt pretensioner RH).
This circuit actuates the SRS to deploy when the SRS deployment conditio\
ns are fulfilled.
DTC B0131/64 is recorded when an open circuit is detected in the P/T squ\
ib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0131/64

Open circuit in PR+ wire harness or PR± wire harness of P/T
squib RH

P/T squib RH malfunction

Airbag sensor assy center malfunction
Front seat outer belt assy RH (P/T squib RH)

Airbag sensor assy center

Floor wire No.2
WIRING DIAGRAM
See page 05±1258.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE NO.2(P/T SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the front seat outer belt assy RH.
(d) Measure the resistance between PR+ and PR± of the connector ºCº.
OK:
Resistance: Below 1

NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
056M8±03
