\b H42140
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
DLC3
CG TC DTC B1181/18
D Squib
(2nd step)
C
D
E
F







H41478
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Instrument Panel Wire
D Squib
(2nd step) C
D
E
FB A
05±1352
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

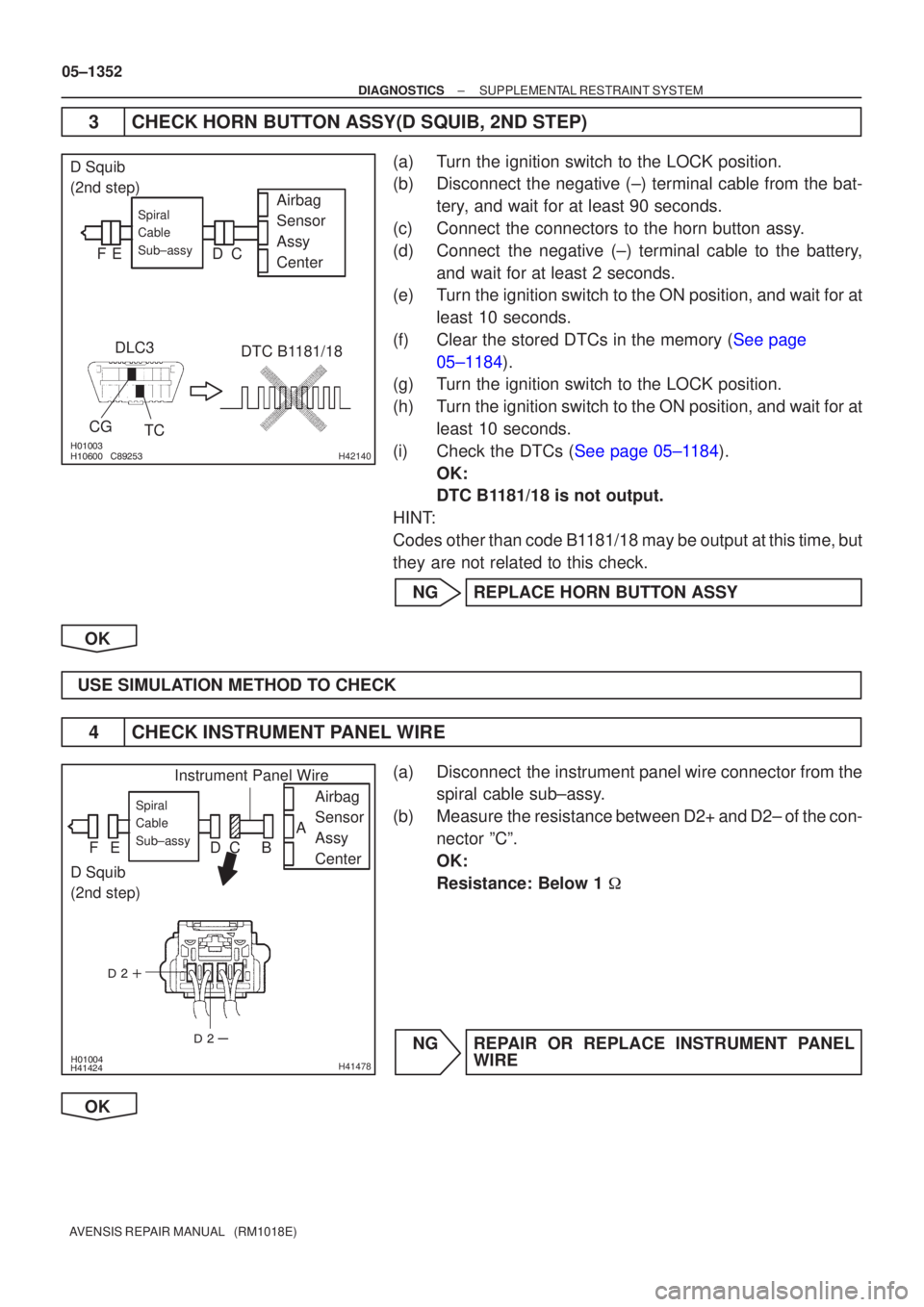

3CHECK HORN BUTTON ASSY(D SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the horn button assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1181/18 is not output.
HINT:
Codes other than code B1181/18 may be output at this time, but
they are not related to this check.
NG REPLACE HORN BUTTON ASSY
OK
USE SIMULATION METHOD TO CHECK
4 CHECK INSTRUMENT PANEL WIRE
(a) Disconnect the instrument panel wire connector from the spiral cable sub±assy.
(b) Measure the resistance between D2+ and D2± of the con- nector ºCº.
OK:
Resistance: Below 1

NG REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK









H41479
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Black
D Squib
(2nd step)
C D E FBA
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05±1353
AVENSIS REPAIR MANUAL (RM1018E)
5 CHECK SPIRAL CABLE SUB±ASSY
(a) Measure the resistance between D2+ and D2± of the con-
nector ºEº.
OK:
Resistance: Below 1

NG REPLACE SPIRAL CABLE SUB±ASSY
OK
USE SIMULATION METHOD TO CHECK

H01451
Airbag Sensor Assy Center
A30
D Squib (2nd step)
Spiral Cable
Sub±assyY±R Y±G
D2+
D2± 4A27
3A271716 05±1346
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DTC B1180/17 SHORT IN D SQUIB (2ND STEP) CIRCUIT
CIRCUIT DESCRIPTION
The D squib (2nd step) circuit consists of the airbag sensor assy center, the spiral cable sub±assy and the
horn button assy.
This circuit actuates the SRS to deploy when the SRS deployment conditions are fulfilled.
DTC B1180/17 is recorded when a short circuit is detected in the D squib (2nd step) circuit.
DTC No.DTC Detecting ConditionTrouble Area
B1180/17

Short circuit between D2+ wire harness and D2± wire har-
ness of D squib (2nd step)

D squib (2nd step) malfunction

Spiral cable sub±assy malfunction

Airbag sensor assy center malfunction
Horn button assy (D squib, 2nd step)

Spiral cable sub±assy

Airbag sensor assy center

Instrument panel wire
WIRING DIAGRAM
056MQ±03

\b






H41475
D Squib
(2nd step)
Airbag
Sensor
Assy
Center
Spiral
Cable
Sub±assy
Color: Black
A
B
C
D
E
F
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1347
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
1CHECK CONNECTOR
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the battery, and wait for at least 90 seconds.
(c)Disconnect the connectors from the airbag sensor assy center and the hor\
n button assy.
(d)Check that the spiral cable sub±assy connector (on the horn button a\
ssy side) is not damaged.
OK:
The lock button is not disengaged, or the claw of the lock is not deform\
ed or damaged.
NGREPLACE SPIRAL CABLE SUB±ASSY
OK
2CHECK D SQUIB CIRCUIT(2ND STEP)
(a)Release the activation prevention mechanism built in the connector ºBº (See page 05±1184).
(b) Measure the resistance between D2+ and D2± of the con- nector ºEº.
OK:
Resistance: 1 M
or Higher
NG Go to step 5
OK







\bH42137
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
DLC3
CG TC DTC B1180/17
D Squib
(2nd step)
C
D
E
F








\bH42138
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
DLC3
CG TC DTC B1180/17
D Squib
(2nd step)
C
D
E
F
05±1348
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
3CHECK AIR BAG SENSOR ASSY CENTER
(a)Connect the connector to the airbag sensor assy center.
(b)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(c)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(d)Clear the stored DTCs in the memory (See page 05±1184).
(e)Turn the ignition switch to the LOCK position.
(f)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Check the DTCs (See page 05±1184).
OK:
DTC B1180/17 is not output.
HINT:
Codes other than code B1180/17 may be output at this time, but
they are not related to this check.
NGREPLACE AIR BAG SENSOR ASSY CENTER
OK
4CHECK HORN BUTTON ASSY(D SQUIB, 2ND STEP)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connectors to the horn button assy.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1180/17 is not output.
HINT:
Codes other than code B1180/17 may be output at this time, but
they are not related to this check.
NG REPLACE HORN BUTTON ASSY
OK
USE SIMULATION METHOD TO CHECK




\b



\bH41478
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Instrument Panel Wire
D Squib
(2nd step) A
B
C
D
E
F
\b







H41479
Airbag
Sensor
Assy
CenterSpiral
Cable
Sub±assy
Color: Black
D Squib
(2nd step)
A
B
C
D
E
F
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1349
AVENSIS REPAIR MANUAL (RM1018E)
5CHECK INSTRUMENT PANEL WIRE
(a)Disconnect the instrument panel wire connector from the
spiral cable sub±assy.
(b)Release the activation prevention mechanism built in the connector ºBº (See page 05±1184).
(c)Measure the resistance between D2+ and D2± of the con- nector ºCº.
OK:
Resistance: 1 M
or Higher
NGREPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK
6CHECK SPIRAL CABLE SUB±ASSY
(a)Release the activation prevention mechanism built in the connector ºDº (See page 05±1184).
(b) Measure the resistance between D2+ and D2± of the con- nector ºEº.
OK:
Resistance: 1 M
or Higher
NG REPLACE SPIRAL CABLE SUB±ASSY
OK
USE SIMULATION METHOD TO CHECK



\b



H41469
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center
Floor Wire
A
B
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1343
AVENSIS REPAIR MANUAL (RM1018E)
DTC B1168/86 SHORT IN CURTAIN SHIELD SQUIB (LH)
CIRCUIT (TO B+)
CIRCUIT DESCRIPTION
The curtain shield squib LH circuit consists of the airbag sensor assy cent\
er and the curtain shield airbag
assy LH.
This circuit actuates the SRS to deploy when the SRS deployment conditio\
ns are fulfilled.
DTC B1168/86 is recorded when a short to B+ is detected in the curtain shield \
squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B1168/86

Short circuit in curtain shield squib LH wire harness (to B+)

Curtain shield squib LH malfunction

Airbag sensor assy center malfunction
Curtain shield airbag assy LH (Curtain shield squib LH)

Airbag sensor assy center

Floor wire
HINT:
DTC B1168/86 is indicated only for the vehicle equipped with the curtain shiel\
d airbag.
WIRING DIAGRAM
See page 05±1334.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(CURTAIN SHIELD SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the curtain shield airbag assy LH.
(d) Connect the negative (±) terminal cable to the battery, and turn the ignition switch to the ON position.
(e) Measure the voltage between the body ground and ICL+ of the connector ºCº.
OK:
Voltage: Below 1 V
NG REPAIR OR REPLACE FLOOR WIRE
OK
054MK±05





\b



H42136
Airbag
Sensor
Assy
Center
DLC3
CGTC DTC B1168/86
Floor WireCurtain Shield
Squib LH
Service Wire
ICL±
ICL+ C
D
05±1344
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
2CHECK AIR BAG SENSOR ASSY CENTER
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat- tery, and wait for at least 90 seconds.
(c)Connect the connector to the airbag sensor assy center.
(d)Using a service wire, connect ICL+ and ICL± of the con- nector ºCº.
NOTICE:
Do not forcibly insert a service wire into the terminal of the
connector when connecting.
(e)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(f)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(g)Clear the stored DTCs in the memory (See page 05±1184).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 10 seconds.
(j)Check the DTCs (See page 05±1184). OK:
DTC B1168/86 is not output.
HINT:
Codes other than code B1168/86 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK







H40949
Airbag
Sensor
Assy
Center
CG DLC3
TC DTC B1168/86
Curtain Shield
Squib LH
C
D
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
05±1345
AVENSIS REPAIR MANUAL (RM1018E)
3CHECK CURTAIN SHIELD AIR BAG ASSY LH(CURTAIN SHIELD SQUIB LH)
(a)Turn the ignition switch to the LOCK position.
(b)Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c)Connect the connector to the curtain shield airbag assy LH.
(d)Connect the negative (±) terminal cable to the battery, and wait for at least 2 seconds.
(e)Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(f)Clear the stored DTCs in the memory (See page 05±1184).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at least 10 seconds.
(i)Check the DTCs (See page 05±1184). OK:
DTC B1168/86 is not output.
HINT:
Codes other than code B1168/86 may be output at this time, but
they are not related to this check.
NG REPLACE CURTAIN SHIELD AIR BAG ASSY LH
OK
4 USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING WIRE HARNESS



\b



H41469
Curtain Shield
Squib LH
Airbag
Sensor
Assy
Center
Floor Wire
A
B
C
D
05±1340
±
DIAGNOSTICS SUPPLEMENTAL RESTRAINT SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
DTC B1167/85 SHORT IN CURTAIN SHIELD SQUIB (LH) CIRCUIT (TO GROUND)
CIRCUIT DESCRIPTION
The curtain shield squib LH circuit consists of the airbag sensor assy cent\
er and the curtain shield airbag
assy LH.
This circuit actuates the SRS to deploy when the SRS deployment conditio\
ns are fulfilled.
DTC B1167/85 is recorded when a short to ground is detected in the curtain shi\
eld squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B1167/85

Short circuit in curtain shield squib LH wire harness
(to ground)

Curtain shield squib LH malfunction

Airbag sensor assy malfunction
Curtain shield airbag assy LH (Curtain Shield Squib LH)

Airbag sensor assy center

Floor wire
HINT:
DTC B1167/85 is indicated only for the vehicle equipped with the curtain shiel\
d airbag.
WIRING DIAGRAM
See page 05±1334.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(CURTAIN SHIELD SQUIB LH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (±) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy center and the curtain shield airbag assy LH.
(d) Measure the resistance between the body ground and ICL+ of the connector ºCº.
OK:
Resistance: 1 M
or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
054MJ±05
