TOYOTA AVENSIS 2005 Service Repair Manual

A78518
(e)(e)
(e)
(e)
(f)
(f) 11±94
± FUELFUEL TANK ASSY (GASOLINE)
AVENSIS REPAIR MANUAL (RM1018E)

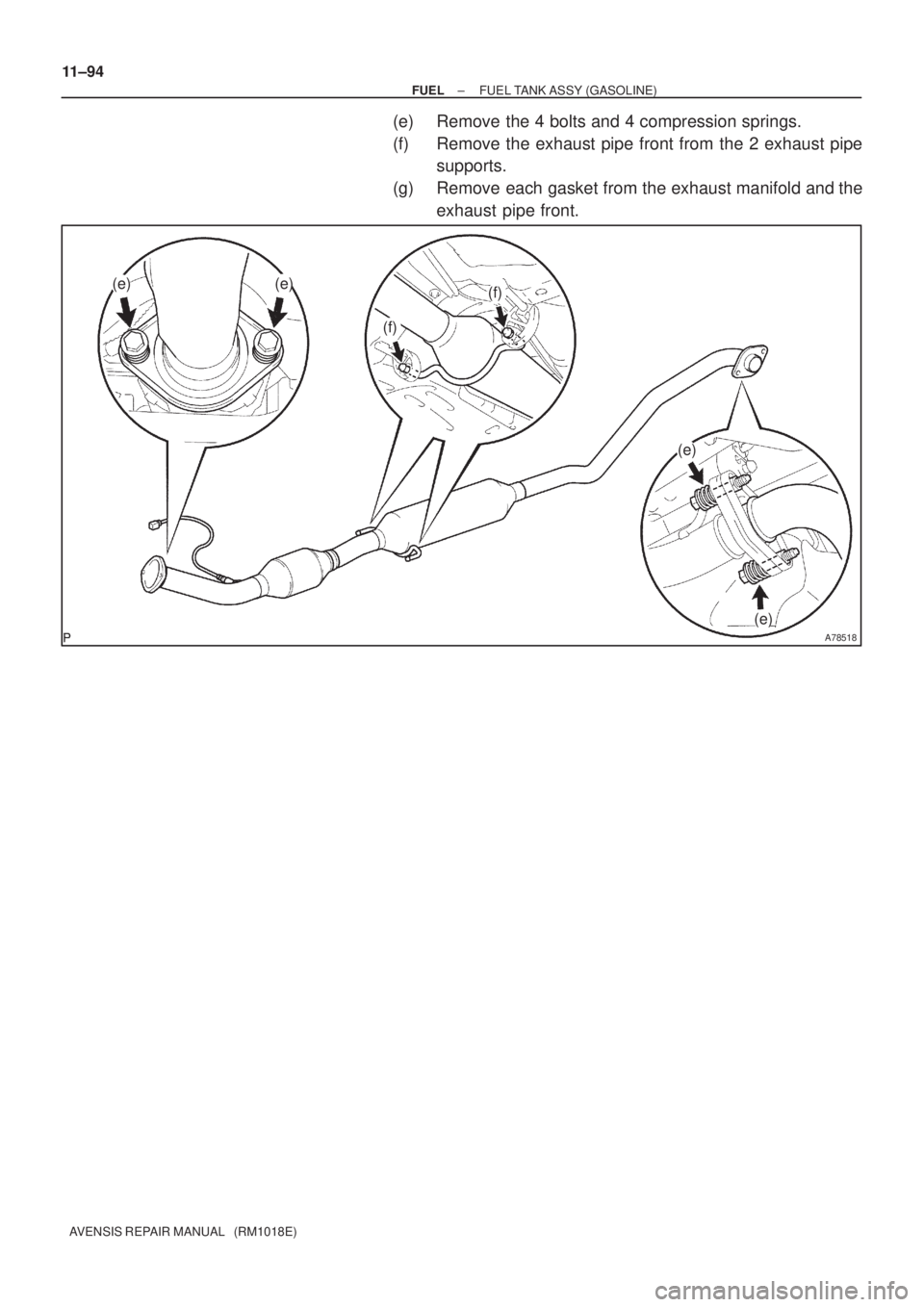

(e) Remove the 4 bolts and 4 compression springs.
(f) Remove the exhaust pipe front from the 2 exhaust pipe
supports.
(g) Remove each gasket from the exhaust manifold and the
exhaust pipe front.

A78519
(a)
(b)
(a)(b)
(a)
(a)
A77883
A77884
± FUELFUEL TANK ASSY (GASOLINE)
11±95
AVENSIS REPAIR MANUAL (RM1018E)

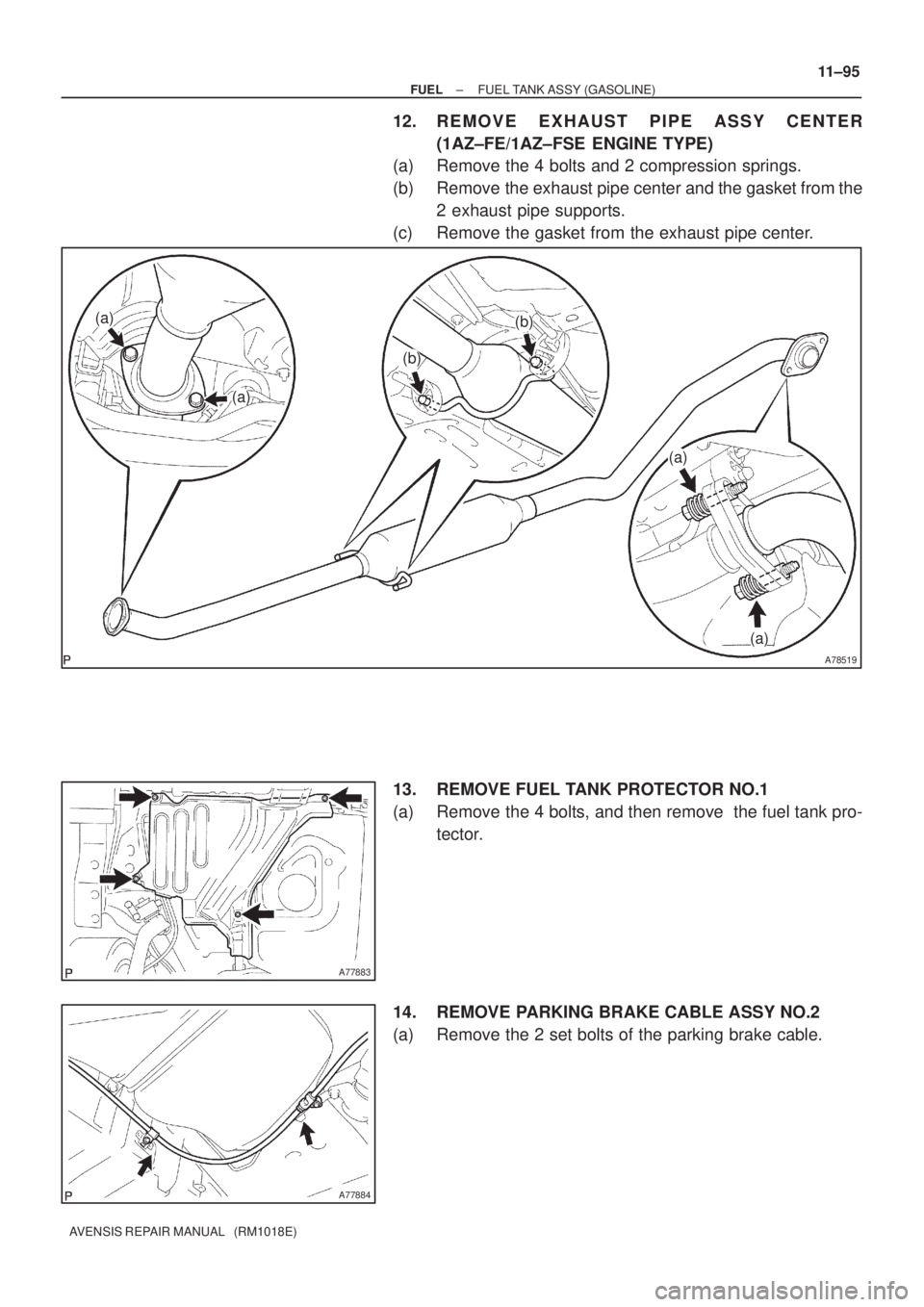

12. REMOVE EXHAUST PIPE ASSY CENTER
(1AZ±FE/1AZ±FSE ENGINE TYPE)
(a) Remove the 4 bolts and 2 compression springs.
(b) Remove the exhaust pipe center and the gasket from the
2 exhaust pipe supports.
(c) Remove the gasket from the exhaust pipe center.
13. REMOVE FUEL TANK PROTECTOR NO.1
(a) Remove the 4 bolts, and then remove the fuel tank pro-
tector.
14. REMOVE PARKING BRAKE CABLE ASSY NO.2
(a) Remove the 2 set bolts of the parking brake cable.

A77885
A77886
A77887
A78450
11±96
± FUELFUEL TANK ASSY (GASOLINE)
AVENSIS REPAIR MANUAL (RM1018E)

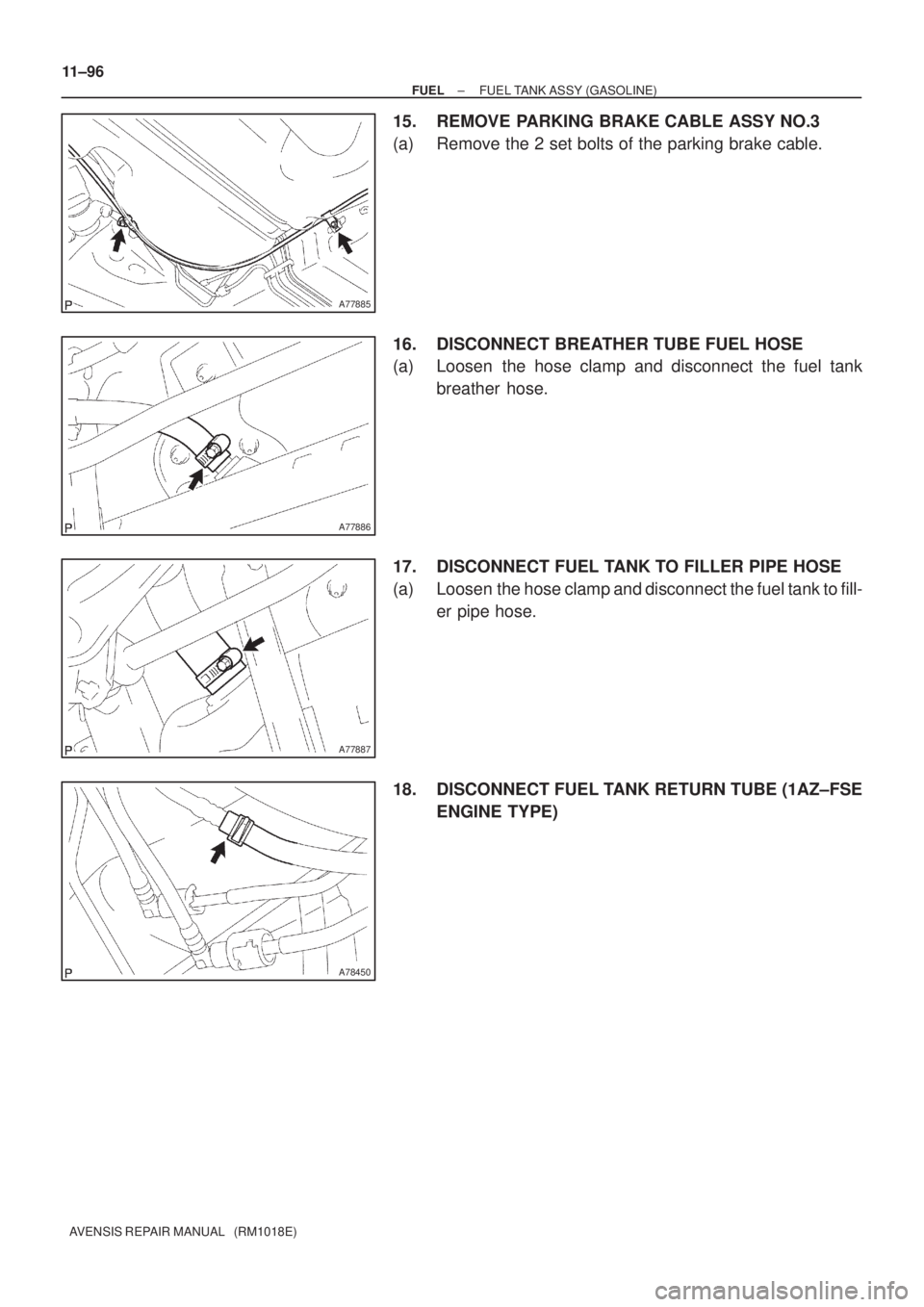

15. REMOVE PARKING BRAKE CABLE ASSY NO.3
(a) Remove the 2 set bolts of the parking brake cable.
16. DISCONNECT BREATHER TUBE FUEL HOSE
(a) Loosen the hose clamp and disconnect the fuel tank
breather hose.
17. DISCONNECT FUEL TANK TO FILLER PIPE HOSE
(a) Loosen the hose clamp and disconnect the fuel tank to fill-
er pipe hose.
18. DISCONNECT FUEL TANK RETURN TUBE (1AZ±FSE
ENGINE TYPE)

A77888
1
2
3
Retainer
Pinch
Pinch
2
A63387
Retainer
Pipe
O±ring Fuel Tube Connector
A77889
2
Pinch1
Pinch1
A60576
Nylon Tube
Pipe
O±ringFuel Tube
Connector Clip
Fuel Tube
Connector
A77890
± FUELFUEL TANK ASSY (GASOLINE)
11±97
AVENSIS REPAIR MANUAL (RM1018E)

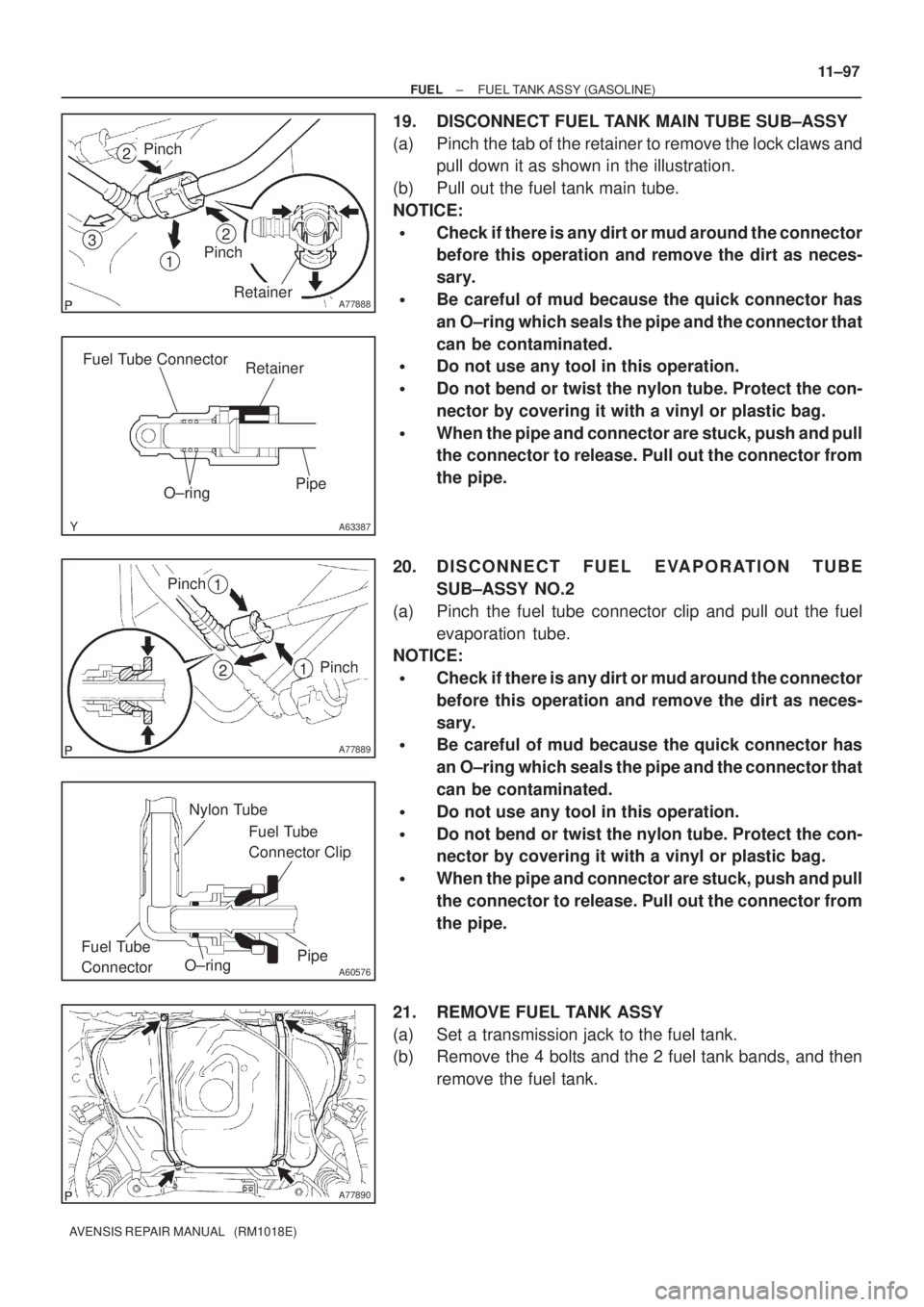

19. DISCONNECT FUEL TANK MAIN TUBE SUB±ASSY
(a) Pinch the tab of the retainer to remove the lock claws and
pull down it as shown in the illustration.
(b) Pull out the fuel tank main tube.
NOTICE:

Check if there is any dirt or mud around the connector
before this operation and remove the dirt as neces-
sary.

Be careful of mud because the quick connector has
an O±ring which seals the pipe and the connector that
can be contaminated.

Do not use any tool in this operation.

Do not bend or twist the nylon tube. Protect the con-
nector by covering it with a vinyl or plastic bag.

When the pipe and connector are stuck, push and pull
the connector to release. Pull out the connector from
the pipe.
20. DISCONNECT FUEL EVAPORATION TUBE
SUB±ASSY NO.2
(a) Pinch the fuel tube connector clip and pull out the fuel
evaporation tube.
NOTICE:

Check if there is any dirt or mud around the connector
before this operation and remove the dirt as neces-
sary.

Be careful of mud because the quick connector has
an O±ring which seals the pipe and the connector that
can be contaminated.

Do not use any tool in this operation.

Do not bend or twist the nylon tube. Protect the con-
nector by covering it with a vinyl or plastic bag.

When the pipe and connector are stuck, push and pull
the connector to release. Pull out the connector from
the pipe.
21. REMOVE FUEL TANK ASSY
(a) Set a transmission jack to the fuel tank.
(b) Remove the 4 bolts and the 2 fuel tank bands, and then
remove the fuel tank.

A77894
A77891
A77892
A77893
Upper
Fuel Tank
Rear
Hose Clamp
A81617
Push 11±98
± FUELFUEL TANK ASSY (GASOLINE)
AVENSIS REPAIR MANUAL (RM1018E)

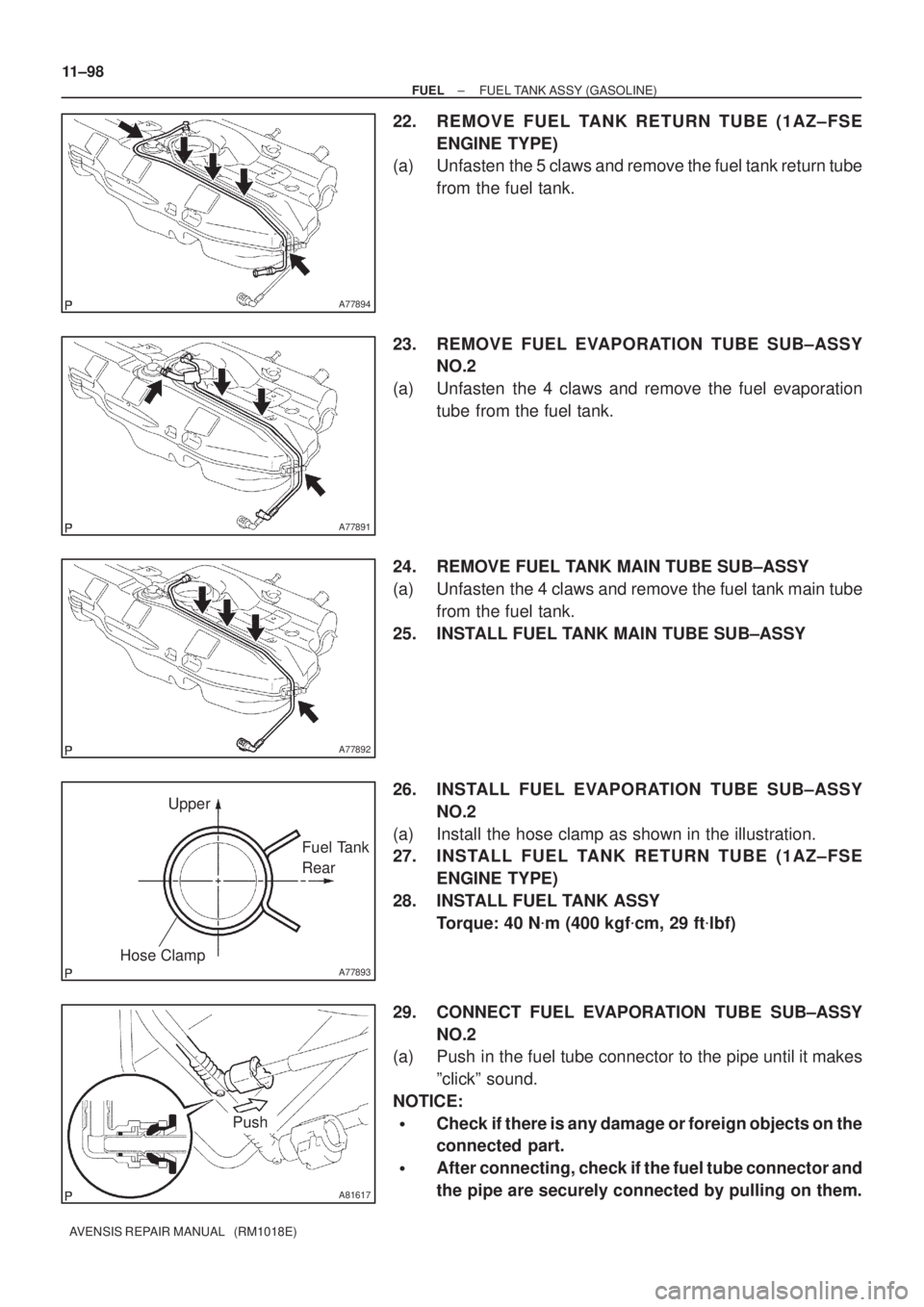

22. REMOVE FUEL TANK RETURN TUBE (1AZ±FSE
ENGINE TYPE)
(a) Unfasten the 5 claws and remove the fuel tank return tube
from the fuel tank.
23. REMOVE FUEL EVAPORATION TUBE SUB±ASSY
NO.2
(a) Unfasten the 4 claws and remove the fuel evaporation
tube from the fuel tank.
24. REMOVE FUEL TANK MAIN TUBE SUB±ASSY
(a) Unfasten the 4 claws and remove the fuel tank main tube
from the fuel tank.
25. INSTALL FUEL TANK MAIN TUBE SUB±ASSY
26. INSTALL FUEL EVAPORATION TUBE SUB±ASSY
NO.2
(a) Install the hose clamp as shown in the illustration.
27. INSTALL FUEL TANK RETURN TUBE (1AZ±FSE
ENGINE TYPE)
28. INSTALL FUEL TANK ASSY
Torque: 40 N
m (400 kgf
cm, 29 ft
lbf)
29. CONNECT FUEL EVAPORATION TUBE SUB±ASSY
NO.2
(a) Push in the fuel tube connector to the pipe until it makes
ºclickº sound.
NOTICE:

Check if there is any damage or foreign objects on the
connected part.

After connecting, check if the fuel tube connector and
the pipe are securely connected by pulling on them.

A81618
Push
2
1
Retainer
A77857
A78440
New Gasket
A77857
± FUELFUEL TANK ASSY (GASOLINE)
11±99
AVENSIS REPAIR MANUAL (RM1018E)

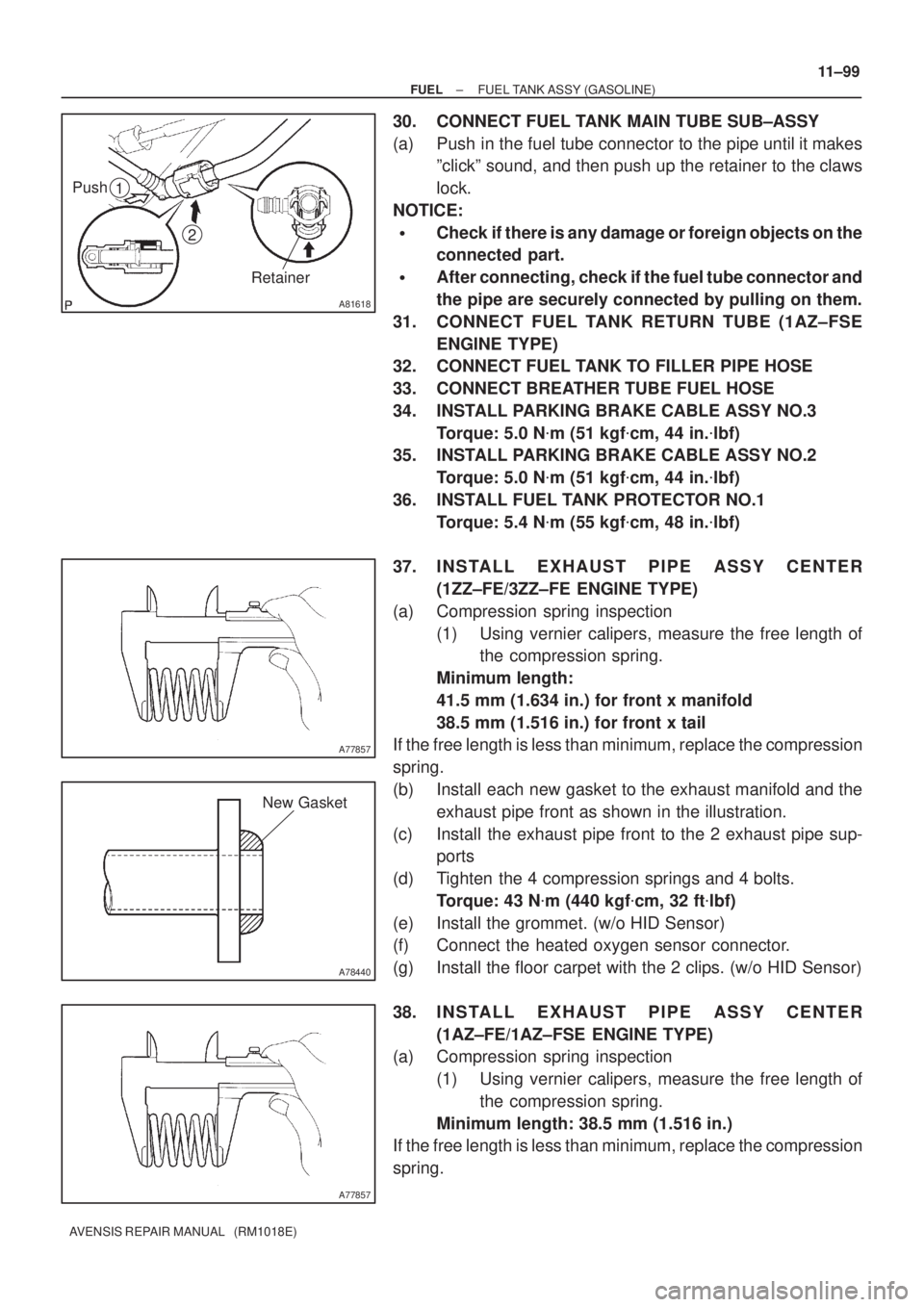

30. CONNECT FUEL TANK MAIN TUBE SUB±ASSY
(a) Push in the fuel tube connector to the pipe until it makes
ºclickº sound, and then push up the retainer to the claws
lock.
NOTICE:

Check if there is any damage or foreign objects on the
connected part.

After connecting, check if the fuel tube connector and
the pipe are securely connected by pulling on them.
31. CONNECT FUEL TANK RETURN TUBE (1AZ±FSE
ENGINE TYPE)
32. CONNECT FUEL TANK TO FILLER PIPE HOSE
33. CONNECT BREATHER TUBE FUEL HOSE
34. INSTALL PARKING BRAKE CABLE ASSY NO.3
Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
35. INSTALL PARKING BRAKE CABLE ASSY NO.2
Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
36. INSTALL FUEL TANK PROTECTOR NO.1
Torque: 5.4 N
m (55 kgf
cm, 48 in.
lbf)
37. INSTALL EXHAUST PIPE ASSY CENTER
(1ZZ±FE/3ZZ±FE ENGINE TYPE)
(a) Compression spring inspection
(1) Using vernier calipers, measure the free length of
the compression spring.
Minimum length:
41.5 mm (1.634 in.) for front x manifold
38.5 mm (1.516 in.) for front x tail
If the free length is less than minimum, replace the compression
spring.
(b) Install each new gasket to the exhaust manifold and the
exhaust pipe front as shown in the illustration.
(c) Install the exhaust pipe front to the 2 exhaust pipe sup-
ports
(d) Tighten the 4 compression springs and 4 bolts.
Torque: 43 N
m (440 kgf
cm, 32 ft
lbf)
(e) Install the grommet. (w/o HID Sensor)
(f) Connect the heated oxygen sensor connector.
(g) Install the floor carpet with the 2 clips. (w/o HID Sensor)
38. INSTALL EXHAUST PIPE ASSY CENTER
(1AZ±FE/1AZ±FSE ENGINE TYPE)
(a) Compression spring inspection
(1) Using vernier calipers, measure the free length of
the compression spring.
Minimum length: 38.5 mm (1.516 in.)
If the free length is less than minimum, replace the compression
spring.

A78440
New Gasket
11±100
±
FUEL FUEL TANK ASSY(GASOLINE)
AVENSIS REPAIR MANUAL (RM1018E)

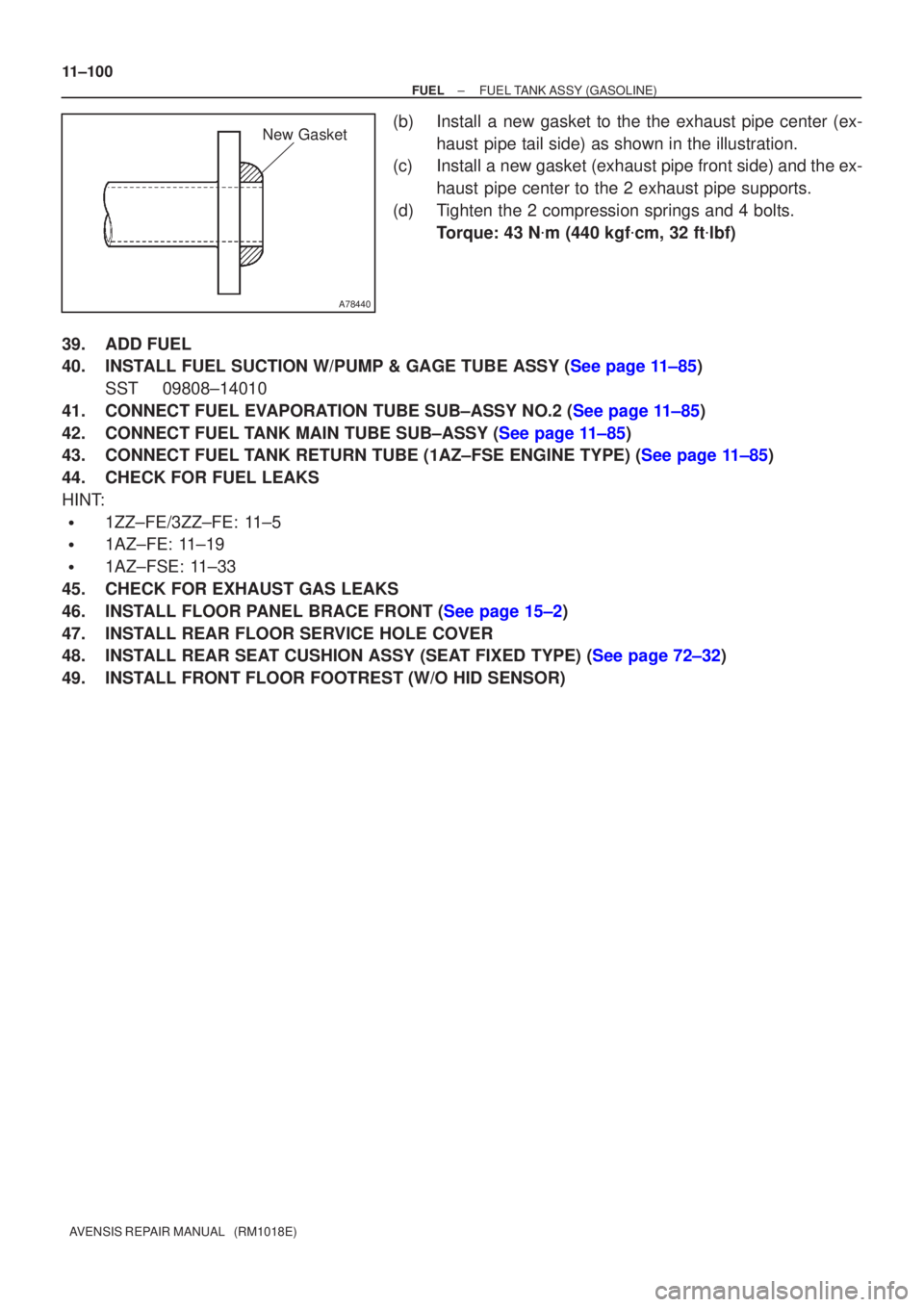

(b)Install a new gasket to the the exhaust pipe center (ex- haust pipe tail side) as shown in the illustration.
(c)Install a new gasket (exhaust pipe front side) and the ex-
haust pipe center to the 2 exhaust pipe supports.
(d)Tighten the 2 compression springs and 4 bolts. Torque: 43 N
m (440 kgf
cm, 32 ft
lbf)
39.ADD FUEL
40.INSTALL FUEL SUCTION W/PUMP & GAGE TUBE ASSY (See page 11±85) SST 09808±14010
41.CONNECT FUEL EVAPORATION TUBE SUB±ASSY NO.2 (See page 11±85)
42.CONNECT FUEL TANK MAIN TUBE SUB±ASSY (See page 11±85)
43.CONNECT FUEL TANK RETURN TUBE (1AZ±FSE ENGINE TYPE) (See page 11±85)
44. CHECK FOR FUEL LEAKS
HINT:

1ZZ±FE/3ZZ±FE: 11±5

1AZ±FE: 11±19

1AZ±FSE: 11±33
45. CHECK FOR EXHAUST GAS LEAKS
46.INSTALL FLOOR PANEL BRACE FRONT (See page 15±2)
47. INSTALL REAR FLOOR SERVICE HOLE COVER
48.INSTALL REAR SEAT CUSHION ASSY (SEAT FIXED TYPE) (See page 72±32)
49. INSTALL FRONT FLOOR FOOTREST (W/O HID SENSOR)

110U6±01
A78441
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torqueSeat Fixed Type:
Rear Seat Cushion Assembly
Rear Floor Service Hole Cover
Fuel Pump Connector
Fuel Evaporation Tube
Sub±assy No. 2 Fuel Tank Main Tube
Sub±assy
Tube Joint Clip
Fuel Pump Gauge Retainer
Fuel Suction
w/ Pump & Gage Tube Assy

Fuel Suction Tube
Set Gasket x4
1AZ±FSE:
Fuel Tank Return Tube
± FUELFUEL TANK ASSY (GASOLINE)
11±89
AVENSIS REPAIR MANUAL (RM1018E)
FUEL TANK ASSY (GASOLINE)
COMPONENTS

A78517

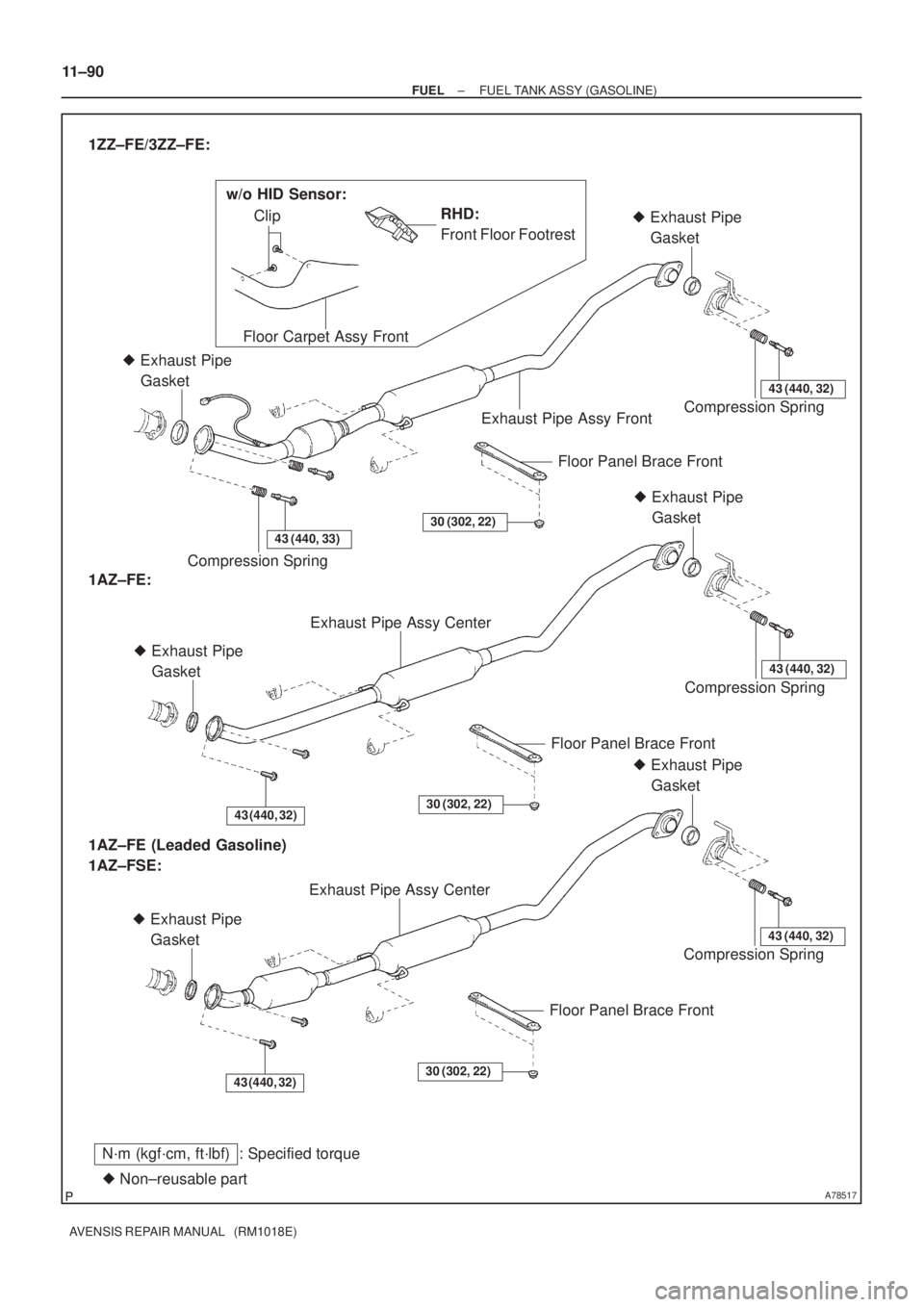

N´m (kgf´cm, ft´lbf) : Specified torque

Non±reusable partRHD:
Front Floor Footrest 1ZZ±FE/3ZZ±FE:
Floor Carpet Assy FrontClip
Compression Spring
Exhaust Pipe
Gasket
Exhaust Pipe Assy Front
Floor Panel Brace Front
43 (440, 33)
30 (302, 22)

Exhaust Pipe
Gasket
Compression Spring
43 (440, 32)
Exhaust Pipe Assy Center
43 (440, 32)

Exhaust Pipe
Gasket
Floor Panel Brace Front
30 (302, 22)
Compression Spring
43 (440, 32)

Exhaust Pipe
Gasket
1AZ±FE:
Exhaust Pipe Assy Center
43 (440, 32)

Exhaust Pipe
Gasket
Floor Panel Brace Front
30 (302, 22)
Compression Spring
43 (440, 32)

Exhaust Pipe
Gasket
1AZ±FE (Leaded Gasoline)
1AZ±FSE:
w/o HID Sensor: 11±90
± FUELFUEL TANK ASSY (GASOLINE)
AVENSIS REPAIR MANUAL (RM1018E)

A77881

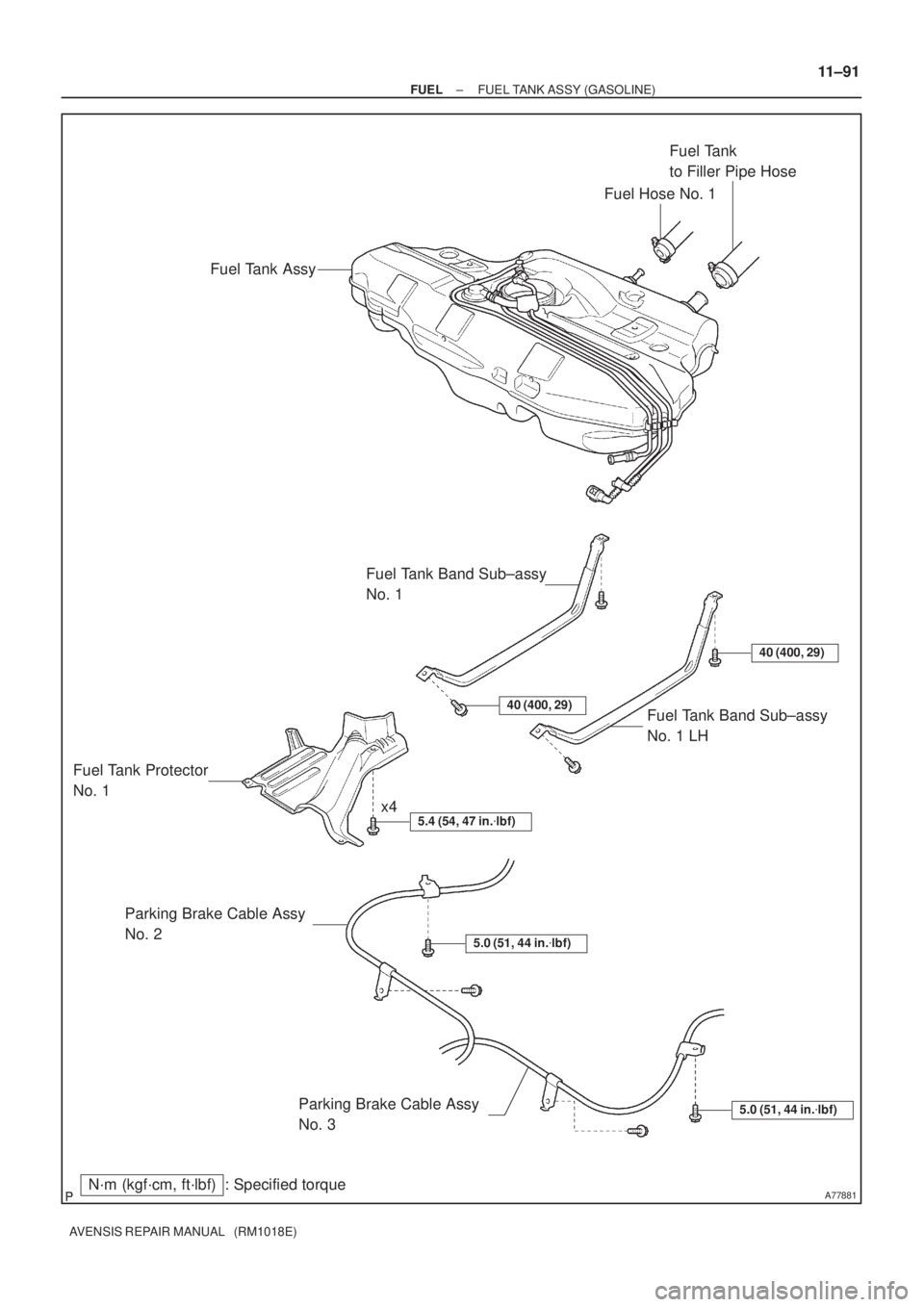

Fuel Tank AssyFuel Hose No. 1Fuel Tank
to Filler Pipe Hose
Fuel Tank Band Sub±assy
No. 1
Fuel Tank Band Sub±assy
No. 1 LH
Fuel Tank Protector
No. 1
Parking Brake Cable Assy
No. 2
Parking Brake Cable Assy
No. 3
5.0 (51, 44 in.
lbf)
5.0 (51, 44 in.
lbf)
5.4 (54, 47 in.
lbf)x4
40 (400, 29)
40 (400, 29)
N´m (kgf´cm, ft´lbf) : Specified torque
± FUELFUEL TANK ASSY (GASOLINE)
11±91
AVENSIS REPAIR MANUAL (RM1018E)
