TOYOTA AVENSIS 2005 Service Repair Manual

F40230
SST
SST
F40231
SST
F40232
SST
SST
F40229
± DRIVE SHAFT / PROPELLER SHAFTFRONT AXLE HUB SUB±ASSY LH
30±25
AVENSIS REPAIR MANUAL (RM1018E)

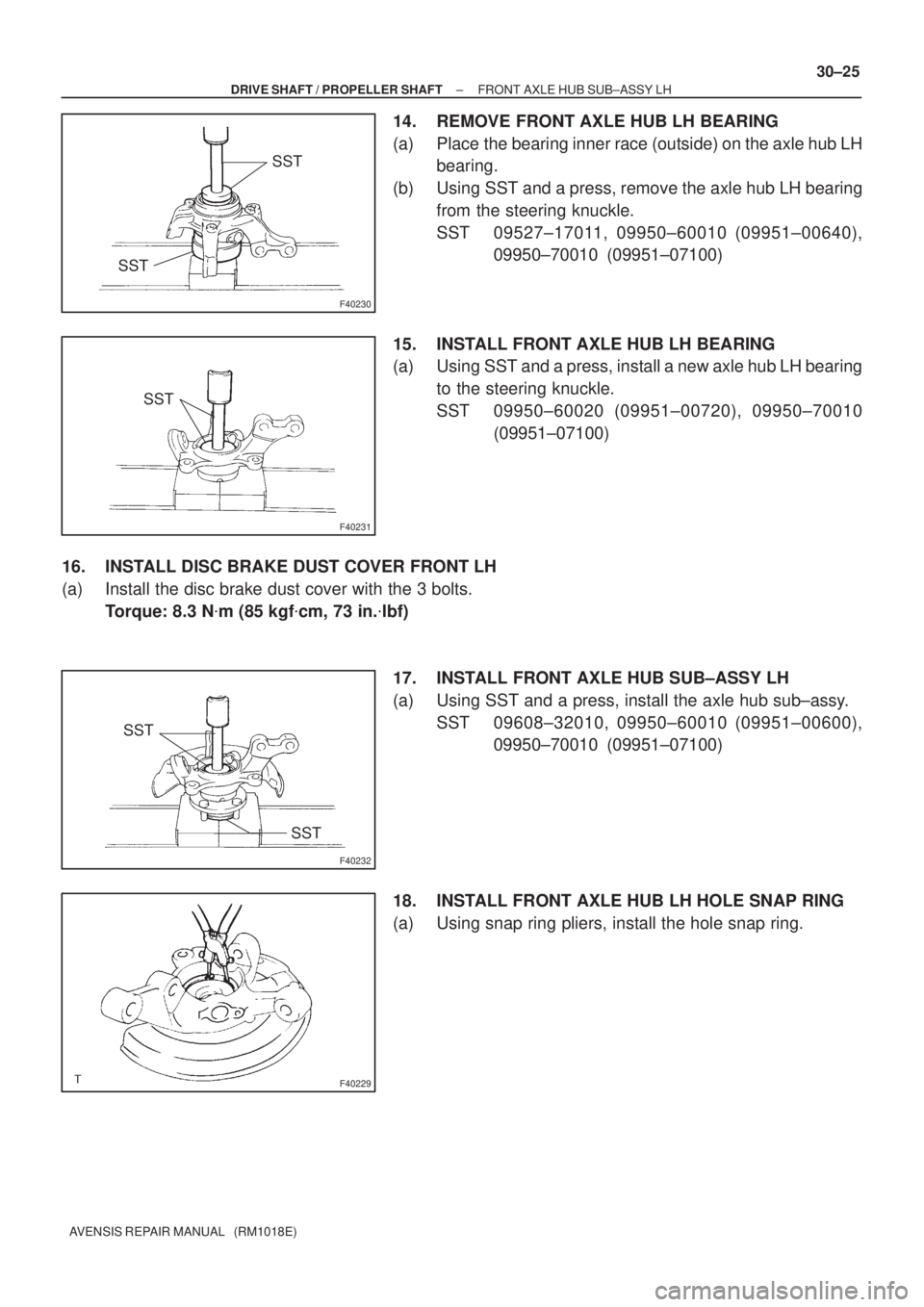

14. REMOVE FRONT AXLE HUB LH BEARING
(a) Place the bearing inner race (outside) on the axle hub LH
bearing.
(b) Using SST and a press, remove the axle hub LH bearing
from the steering knuckle.
SST 09527±17011, 09950±60010 (09951±00640),
09950±70010 (09951±07100)
15. INSTALL FRONT AXLE HUB LH BEARING
(a) Using SST and a press, install a new axle hub LH bearing
to the steering knuckle.
SST 09950±60020 (09951±00720), 09950±70010
(09951±07100)
16. INSTALL DISC BRAKE DUST COVER FRONT LH
(a) Install the disc brake dust cover with the 3 bolts.
Torque: 8.3 N
m (85 kgf
cm, 73 in.
lbf)
17. INSTALL FRONT AXLE HUB SUB±ASSY LH
(a) Using SST and a press, install the axle hub sub±assy.
SST 09608±32010, 09950±60010 (09951±00600),
09950±70010 (09951±07100)
18. INSTALL FRONT AXLE HUB LH HOLE SNAP RING
(a) Using snap ring pliers, install the hole snap ring.

C83023
C80293
30±26
±
DRIVE SHAFT / PROPELLER SHAFT FRONT AXLE HUB SUB±ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

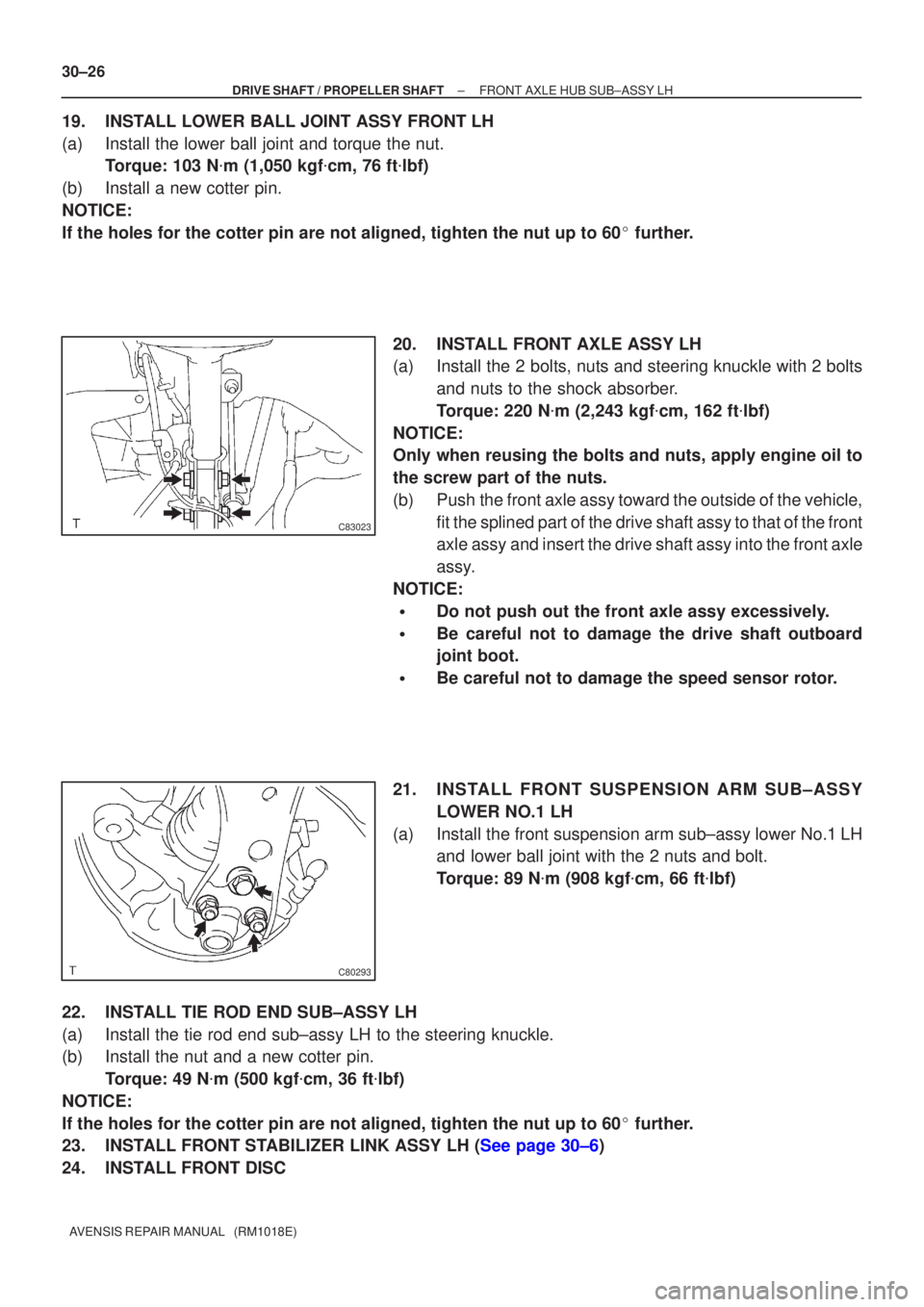

19.INSTALL LOWER BALL JOINT ASSY FRONT LH
(a)Install the lower ball joint and torque the nut. Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
(b)Install a new cotter pin.
NOTICE:
If the holes for the cotter pin are not aligned, tighten the nut up to 6\
0  further.
20.INSTALL FRONT AXLE ASSY LH
(a)Install the 2 bolts, nuts and steering knuckle with 2 bolts and nuts to the shock absorber.
Torque: 220 N
m (2,243 kgf
cm, 162 ft
lbf)
NOTICE:
Only when reusing the bolts and nuts, apply engine oil to
the screw part of the nuts.
(b)Push the front axle assy toward the outside of the vehicle, fit the splined part of the drive shaft assy to that of the front
axle assy and insert the drive shaft assy into the front axle
assy.
NOTICE:

Do not push out the front axle assy excessively.

Be careful not to damage the drive shaft outboard
joint boot.

Be careful not to damage the speed sensor rotor.
21.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH
(a)Install the front suspension arm sub±assy lower No.1 LH and lower ball joint with the 2 nuts and bolt.
Torque: 89 N
m (908 kgf
cm, 66 ft
lbf)
22.INSTALL TIE ROD END SUB±ASSY LH
(a)Install the tie rod end sub±assy LH to the steering knuckle.
(b)Install the nut and a new cotter pin. Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
NOTICE:
If the holes for the cotter pin are not aligned, tighten the nut up to 6\
0  further.
23.INSTALL FRONT STABILIZER LINK ASSY LH (See page 30±6)
24. INSTALL FRONT DISC

C67088
F44775
C80291
±
DRIVE SHAFT / PROPELLER SHAFT FRONT AXLE HUB SUB±ASSY LH
30±27
AVENSIS REPAIR MANUAL (RM1018E)

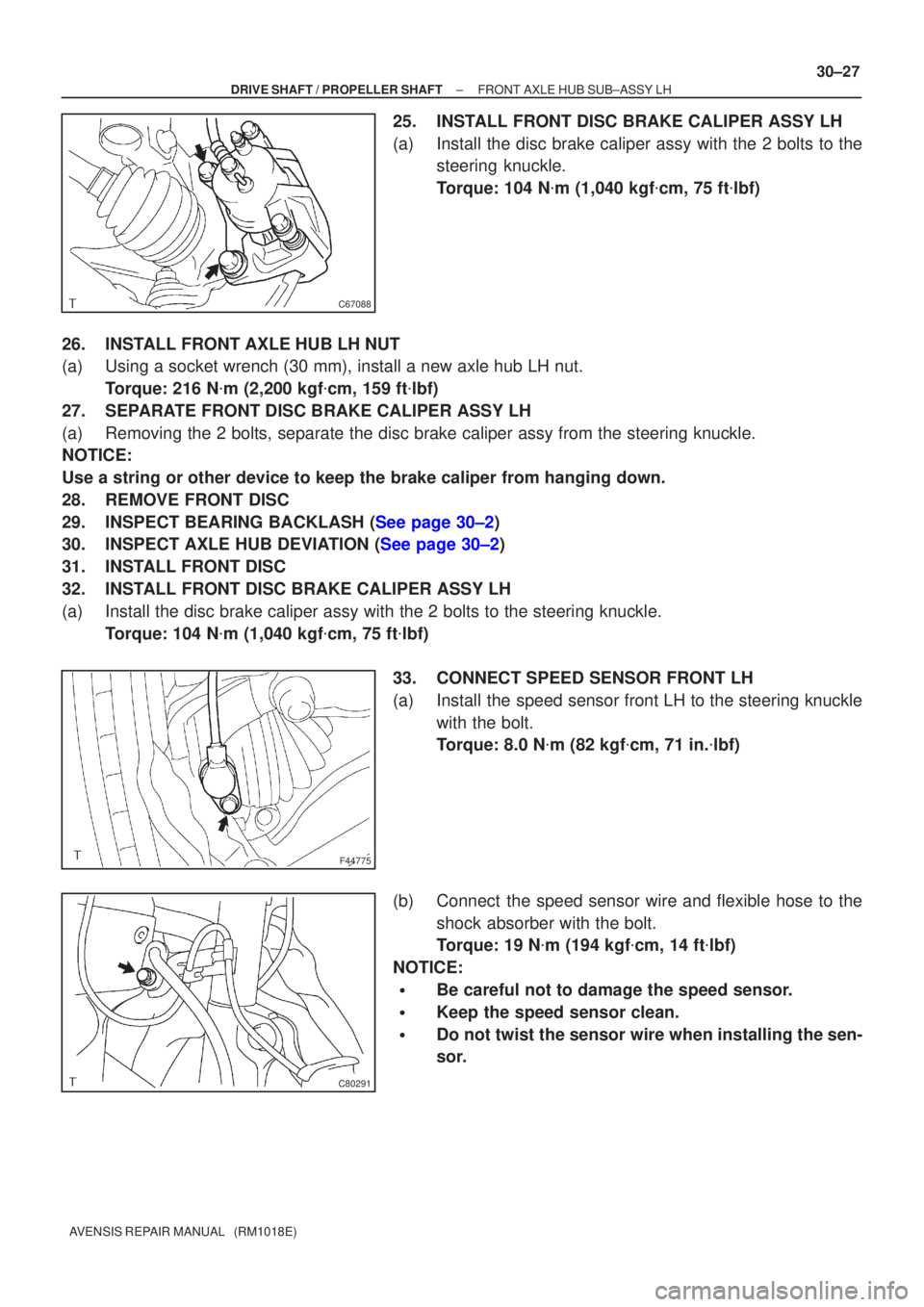

25. INSTALL FRONT DISC BRAKE CALIPER ASSY LH
(a) Install the disc brake caliper assy with the 2 bolts to the
steering knuckle.
Torque: 104 N
m (1,040 kgf
cm, 75 ft
lbf)
26. INSTALL FRONT AXLE HUB LH NUT
(a) Using a socket wrench (30 mm), install a new axle hub LH nut. Torque: 216 N
m (2,200 kgf
cm, 159 ft
lbf)
27. SEPARATE FRONT DISC BRAKE CALIPER ASSY LH
(a) Removing the 2 bolts, separate the disc brake caliper assy from the stee\
ring knuckle.
NOTICE:
Use a string or other device to keep the brake caliper from hanging down\
.
28. REMOVE FRONT DISC
29.INSPECT BEARING BACKLASH (See page 30±2)
30.INSPECT AXLE HUB DEVIATION (See page 30±2)
31. INSTALL FRONT DISC
32. INSTALL FRONT DISC BRAKE CALIPER ASSY LH
(a) Install the disc brake caliper assy with the 2 bolts to the steering knu\
ckle. Torque: 104 N
m (1,040 kgf
cm, 75 ft
lbf)
33. CONNECT SPEED SENSOR FRONT LH
(a) Install the speed sensor front LH to the steering knuckle with the bolt.
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
(b) Connect the speed sensor wire and flexible hose to the shock absorber with the bolt.
Torque: 19 N
m (194 kgf
cm, 14 ft
lbf)
NOTICE:

Be careful not to damage the speed sensor.

Keep the speed sensor clean.

Do not twist the sensor wire when installing the sen-
sor.

C68609
30±28
±
DRIVE SHAFT / PROPELLER SHAFT FRONT AXLE HUB SUB±ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

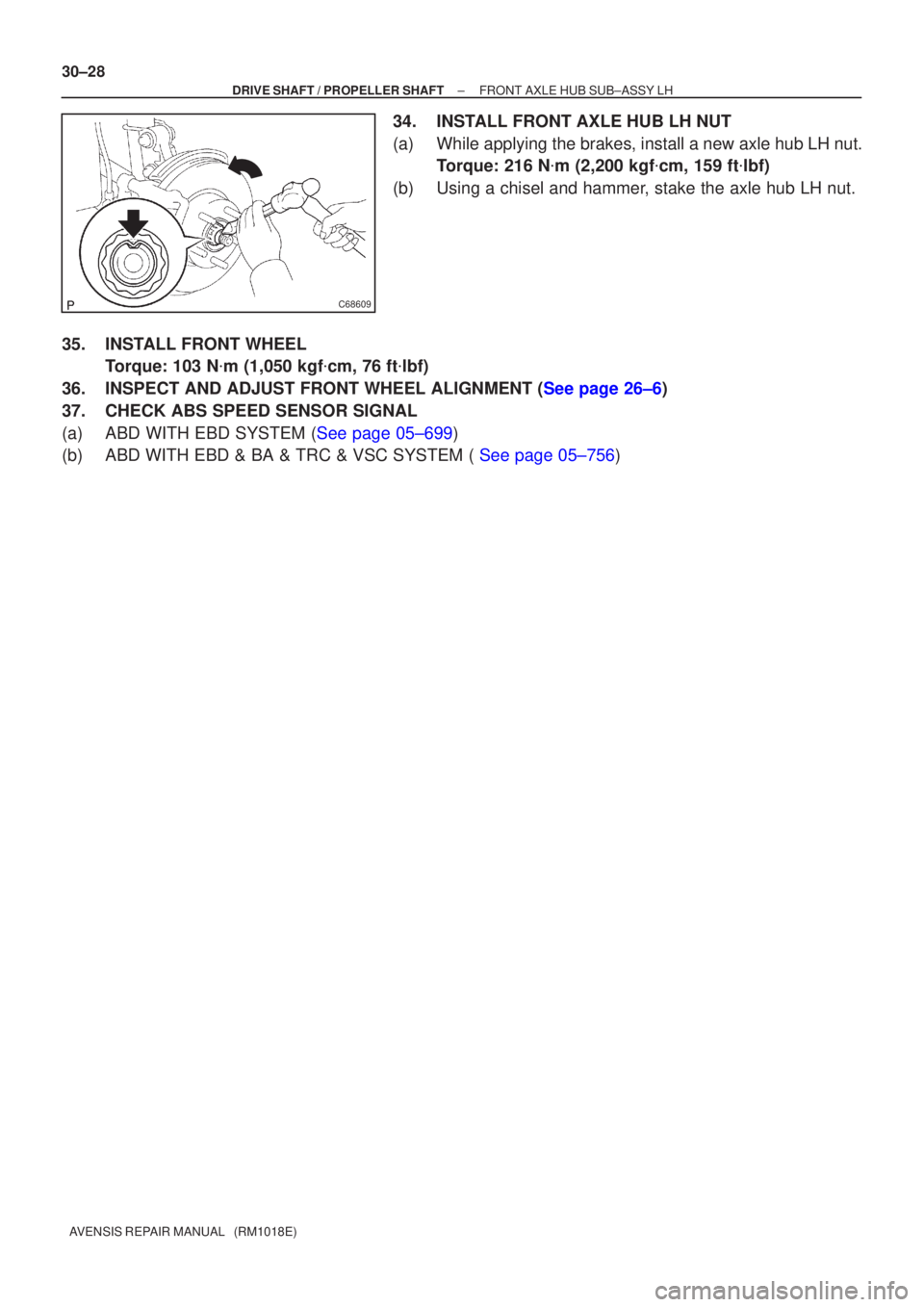

34. INSTALL FRONT AXLE HUB LH NUT
(a) While applying the brakes, install a new axle hub LH nut. Torque: 216 N
m (2,200 kgf
cm, 159 ft
lbf)
(b) Using a chisel and hammer, stake the axle hub LH nut.
35. INSTALL FRONT WHEEL Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
36.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See page 26±6)
37. CHECK ABS SPEED SENSOR SIGNAL
(a)ABD WITH EBD SYSTEM (See page 05±699)
(b)ABD WITH EBD & BA & TRC & VSC SYSTEM ( See page 05±756)

30091±02

D30592
Speed Sensor Front LH
Lower Ball Joint
Assy Front LH
N
m (kgf
cm, ft
lbf): Specified torque
8.0 (82, 71 in.
lbf)
49 (500, 36)
Tie Rod End Sub±assy LH
Cotter Pin
Front Disc
Front Axle Assy LH
19 (194, 14)
Front Stabilizer Link Assy LH
74 (755, 55)
220 (2,243, 162)
Front Drive Shaft
Assy LH
Front Axle Hub LH Nut
216 (2,200, 159)

Front Axle
LH Hub Bolt
89 (908, 66)
Steering Knuckle LH
Disc Brake Dust Cover Front LH
8.3 (85, 73 in.
lbf)
8.3 (85, 73 in.
lbf)Front Axle
Hub Sub±assy LH
Front Disc Brake
Caliper Assy LH
Front Suspension Arm
Sub±assy Lower No. 1 LH

Front Axle Hub
LH Bearing

Cotter Pin
103 (1,050, 76)
102 (1,040, 75)

Non±reusable parts
Front Axle Hub
LH Snap Ring
± DRIVE SHAFT / PROPELLER SHAFTFRONT AXLE HUB SUB±ASSY LH
30±21
AVENSIS REPAIR MANUAL (RM1018E)

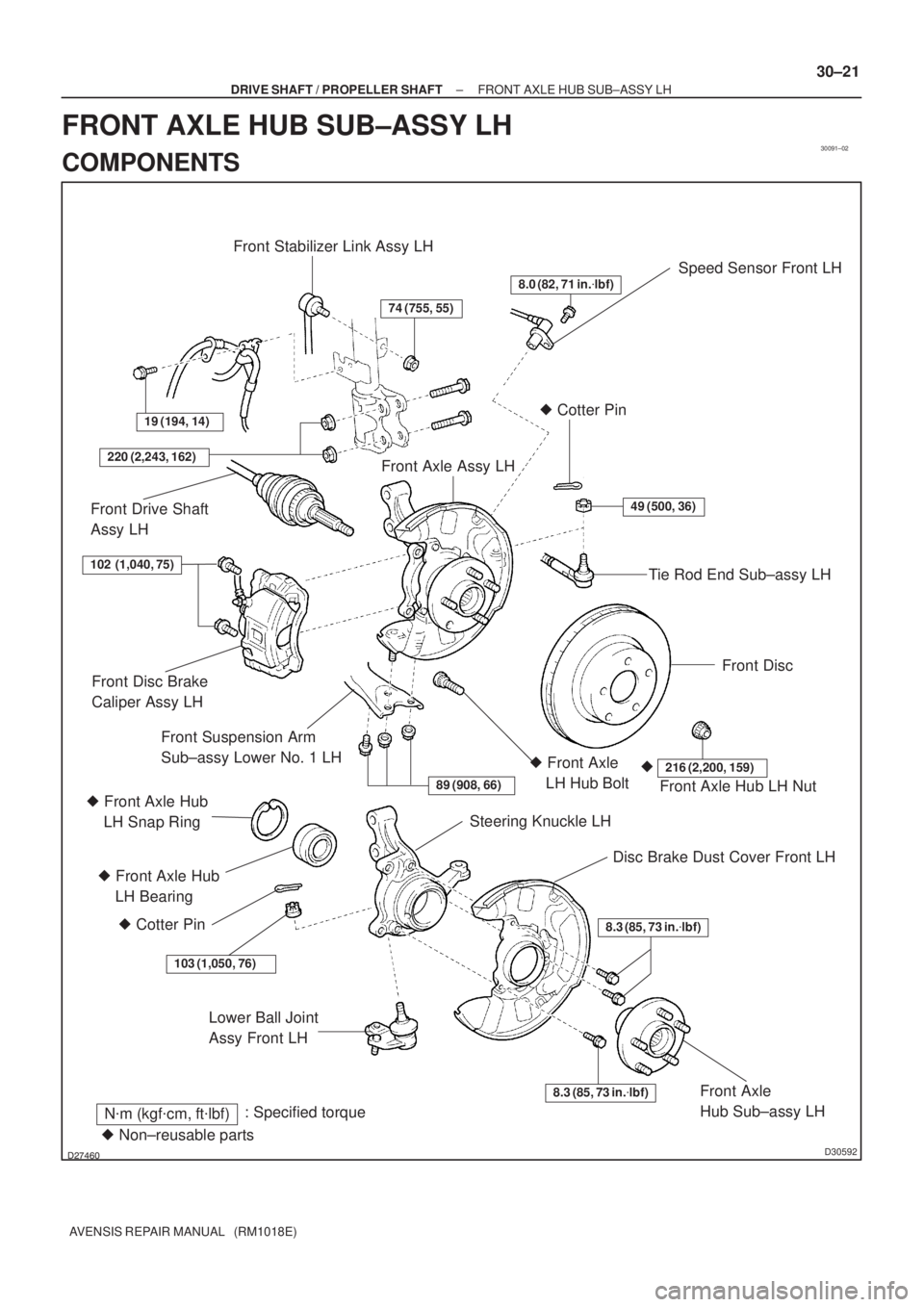

FRONT AXLE HUB SUB±ASSY LH
COMPONENTS

300JX±01

F45751
SST
F13686
Hold
Turn
C80291
30±6
± DRIVE SHAFT / PROPELLER SHAFTFRONT DRIVE SHAFT
AVENSIS REPAIR MANUAL (RM1018E)

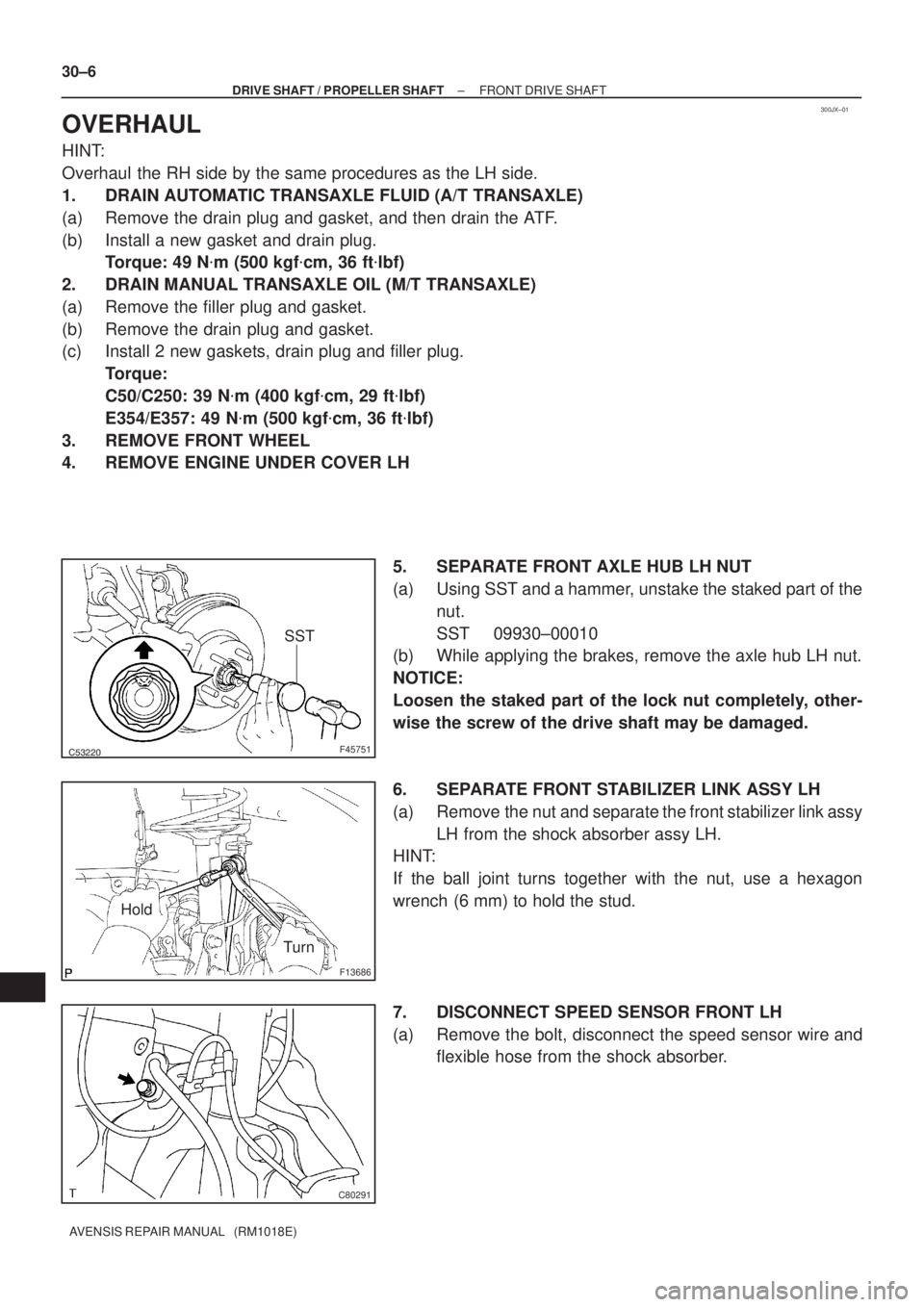

OVERHAUL
HINT:
Overhaul the RH side by the same procedures as the LH side.
1. DRAIN AUTOMATIC TRANSAXLE FLUID (A/T TRANSAXLE)
(a) Remove the drain plug and gasket, and then drain the ATF.
(b) Install a new gasket and drain plug.
Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
2. DRAIN MANUAL TRANSAXLE OIL (M/T TRANSAXLE)
(a) Remove the filler plug and gasket.
(b) Remove the drain plug and gasket.
(c) Install 2 new gaskets, drain plug and filler plug.
Torque:
C50/C250: 39 N
m (400 kgf
cm, 29 ft
lbf)
E354/E357: 49 N
m (500 kgf
cm, 36 ft
lbf)
3. REMOVE FRONT WHEEL
4. REMOVE ENGINE UNDER COVER LH
5. SEPARATE FRONT AXLE HUB LH NUT
(a) Using SST and a hammer, unstake the staked part of the
nut.
SST 09930±00010
(b) While applying the brakes, remove the axle hub LH nut.
NOTICE:
Loosen the staked part of the lock nut completely, other-
wise the screw of the drive shaft may be damaged.
6. SEPARATE FRONT STABILIZER LINK ASSY LH
(a) Remove the nut and separate the front stabilizer link assy
LH from the shock absorber assy LH.
HINT:
If the ball joint turns together with the nut, use a hexagon
wrench (6 mm) to hold the stud.
7. DISCONNECT SPEED SENSOR FRONT LH
(a) Remove the bolt, disconnect the speed sensor wire and
flexible hose from the shock absorber.

F44775
F40217
SSTTurn
Hold
C80293
D27403
F40148SST
± DRIVE SHAFT / PROPELLER SHAFTFRONT DRIVE SHAFT
30±7
AVENSIS REPAIR MANUAL (RM1018E)

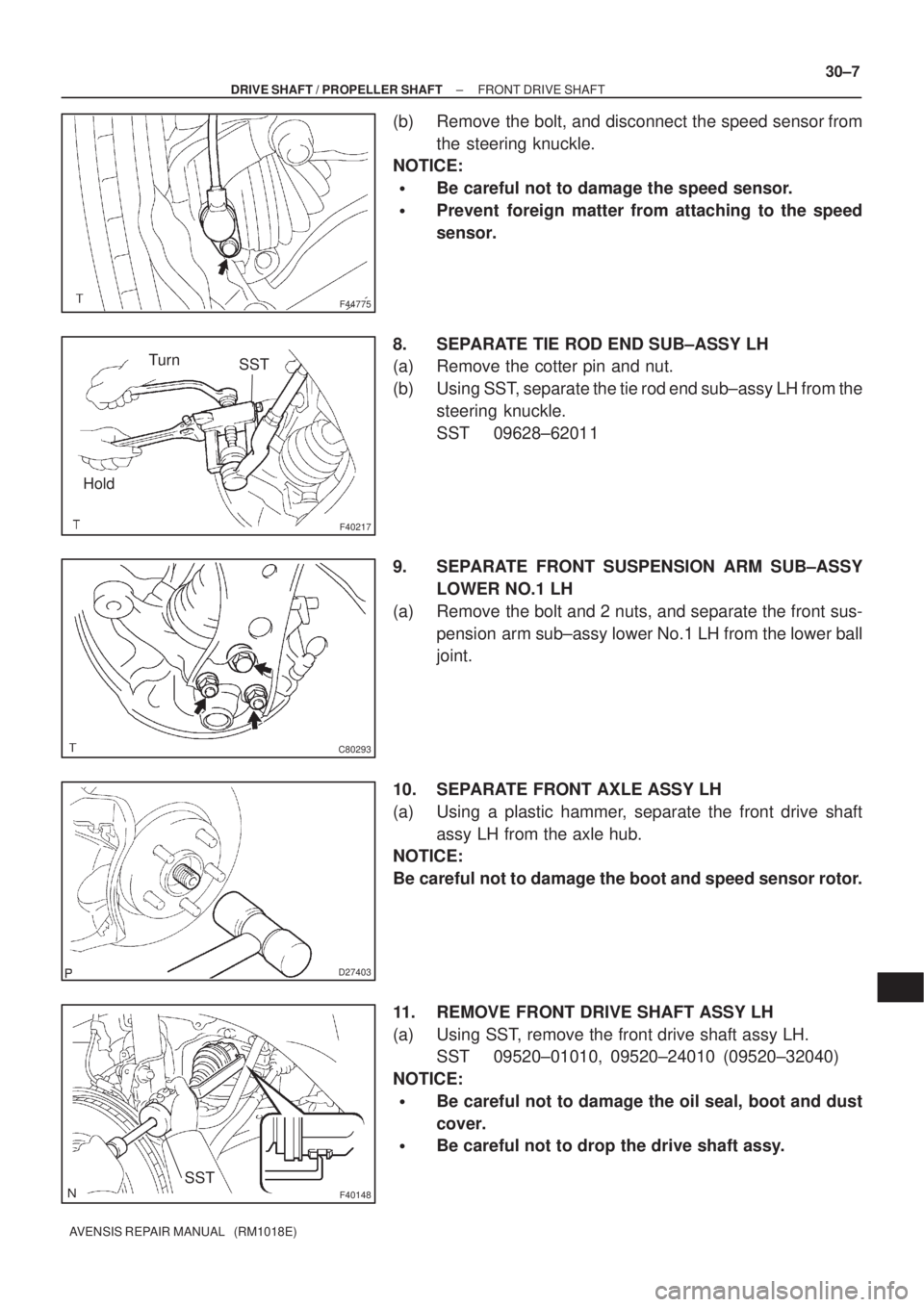

(b) Remove the bolt, and disconnect the speed sensor from
the steering knuckle.
NOTICE:

Be careful not to damage the speed sensor.

Prevent foreign matter from attaching to the speed
sensor.
8. SEPARATE TIE ROD END SUB±ASSY LH
(a) Remove the cotter pin and nut.
(b) Using SST, separate the tie rod end sub±assy LH from the
steering knuckle.
SST 09628±62011
9. SEPARATE FRONT SUSPENSION ARM SUB±ASSY
LOWER NO.1 LH
(a) Remove the bolt and 2 nuts, and separate the front sus-
pension arm sub±assy lower No.1 LH from the lower ball
joint.
10. SEPARATE FRONT AXLE ASSY LH
(a) Using a plastic hammer, separate the front drive shaft
assy LH from the axle hub.
NOTICE:
Be careful not to damage the boot and speed sensor rotor.
11. REMOVE FRONT DRIVE SHAFT ASSY LH
(a) Using SST, remove the front drive shaft assy LH.
SST 09520±01010, 09520±24010 (09520±32040)
NOTICE:

Be careful not to damage the oil seal, boot and dust
cover.

Be careful not to drop the drive shaft assy.

C83155
1AZ±FSE/
1AZ±FE:
F44774
1CD±FTV:
F40218
SST
C91598
C86265
30±8
± DRIVE SHAFT / PROPELLER SHAFTFRONT DRIVE SHAFT
AVENSIS REPAIR MANUAL (RM1018E)

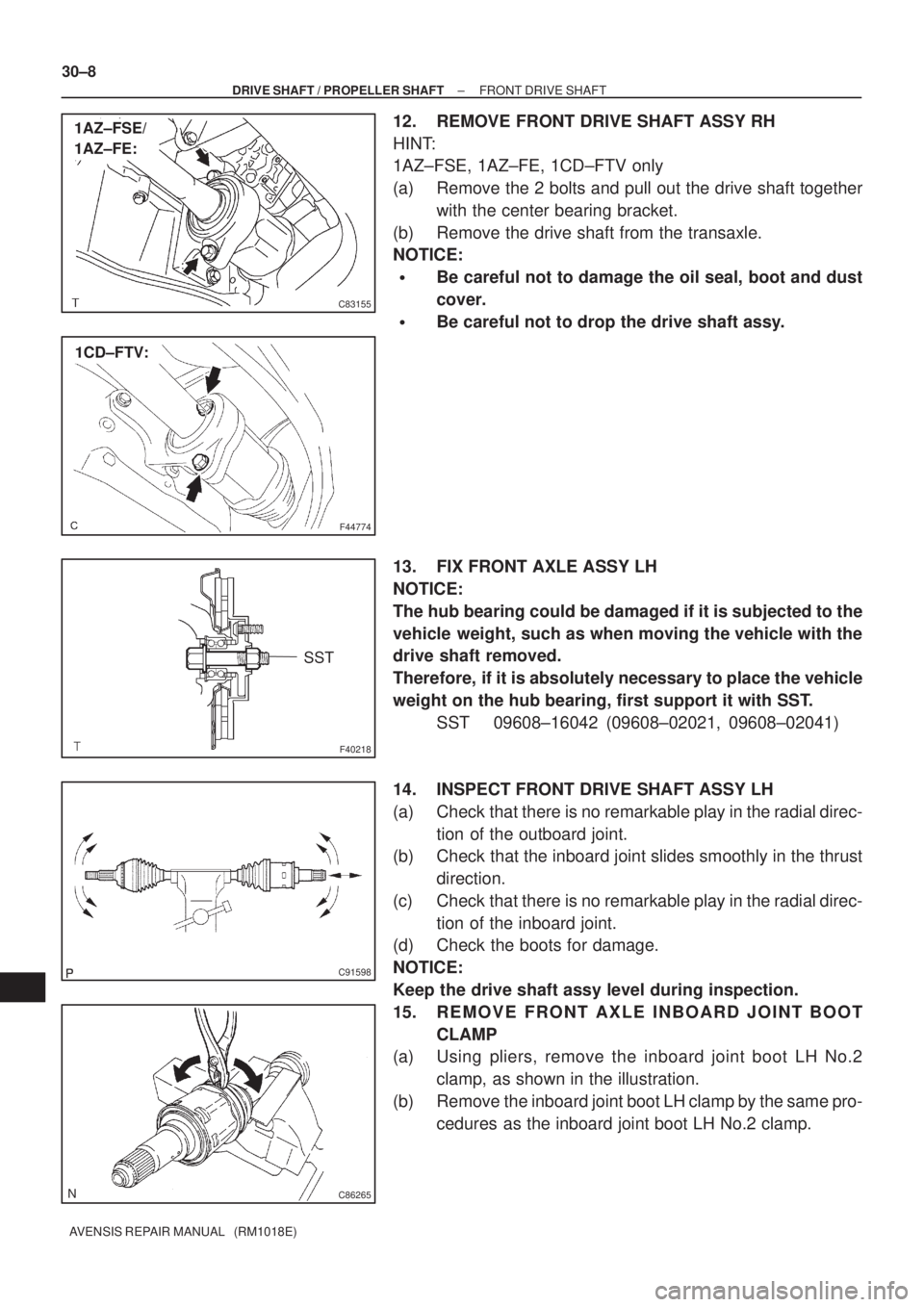

12. REMOVE FRONT DRIVE SHAFT ASSY RH
HINT:
1AZ±FSE, 1AZ±FE, 1CD±FTV only
(a) Remove the 2 bolts and pull out the drive shaft together
with the center bearing bracket.
(b) Remove the drive shaft from the transaxle.
NOTICE:

Be careful not to damage the oil seal, boot and dust
cover.

Be careful not to drop the drive shaft assy.
13. FIX FRONT AXLE ASSY LH
NOTICE:
The hub bearing could be damaged if it is subjected to the
vehicle weight, such as when moving the vehicle with the
drive shaft removed.
Therefore, if it is absolutely necessary to place the vehicle
weight on the hub bearing, first support it with SST.
SST 09608±16042 (09608±02021, 09608±02041)
14. INSPECT FRONT DRIVE SHAFT ASSY LH
(a) Check that there is no remarkable play in the radial direc-
tion of the outboard joint.
(b) Check that the inboard joint slides smoothly in the thrust
direction.
(c) Check that there is no remarkable play in the radial direc-
tion of the inboard joint.
(d) Check the boots for damage.
NOTICE:
Keep the drive shaft assy level during inspection.
15. REMOVE FRONT AXLE INBOARD JOINT BOOT
CLAMP
(a) Using pliers, remove the inboard joint boot LH No.2
clamp, as shown in the illustration.
(b) Remove the inboard joint boot LH clamp by the same pro-
cedures as the inboard joint boot LH No.2 clamp.


F45461
Matchmarks
G24058
C91601
Matchmarks
F44759
± DRIVE SHAFT / PROPELLER SHAFTFRONT DRIVE SHAFT
30±9
AVENSIS REPAIR MANUAL (RM1018E)

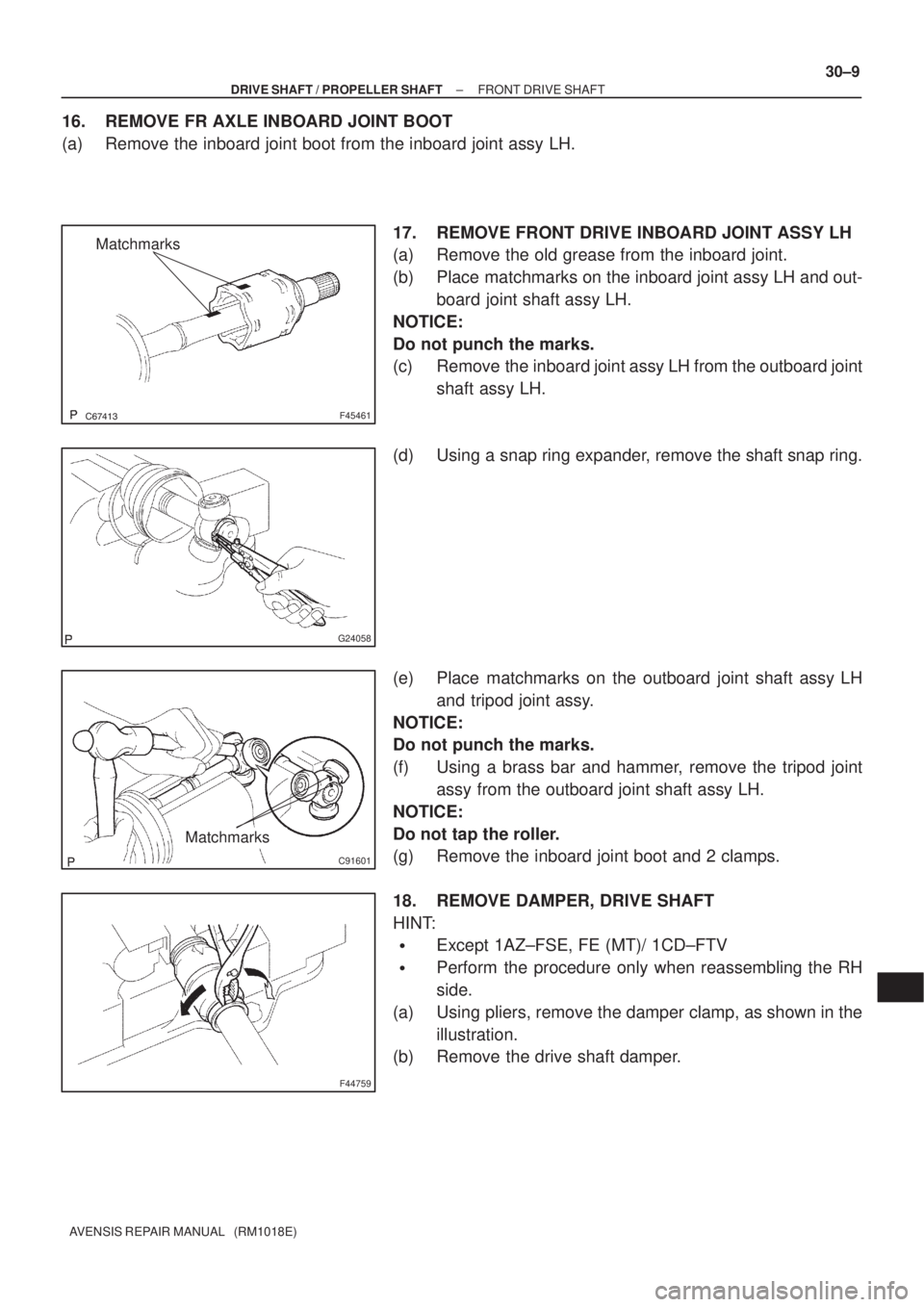

16. REMOVE FR AXLE INBOARD JOINT BOOT
(a) Remove the inboard joint boot from the inboard joint assy LH.
17. REMOVE FRONT DRIVE INBOARD JOINT ASSY LH
(a) Remove the old grease from the inboard joint.
(b) Place matchmarks on the inboard joint assy LH and out-
board joint shaft assy LH.
NOTICE:
Do not punch the marks.
(c) Remove the inboard joint assy LH from the outboard joint
shaft assy LH.
(d) Using a snap ring expander, remove the shaft snap ring.
(e) Place matchmarks on the outboard joint shaft assy LH
and tripod joint assy.
NOTICE:
Do not punch the marks.
(f) Using a brass bar and hammer, remove the tripod joint
assy from the outboard joint shaft assy LH.
NOTICE:
Do not tap the roller.
(g) Remove the inboard joint boot and 2 clamps.
18. REMOVE DAMPER, DRIVE SHAFT
HINT:

Except 1AZ±FSE, FE (MT)/ 1CD±FTV

Perform the procedure only when reassembling the RH
side.
(a) Using pliers, remove the damper clamp, as shown in the
illustration.
(b) Remove the drive shaft damper.

C81167
C57543
F40647
SST
C67101
30±10
± DRIVE SHAFT / PROPELLER SHAFTFRONT DRIVE SHAFT
AVENSIS REPAIR MANUAL (RM1018E)

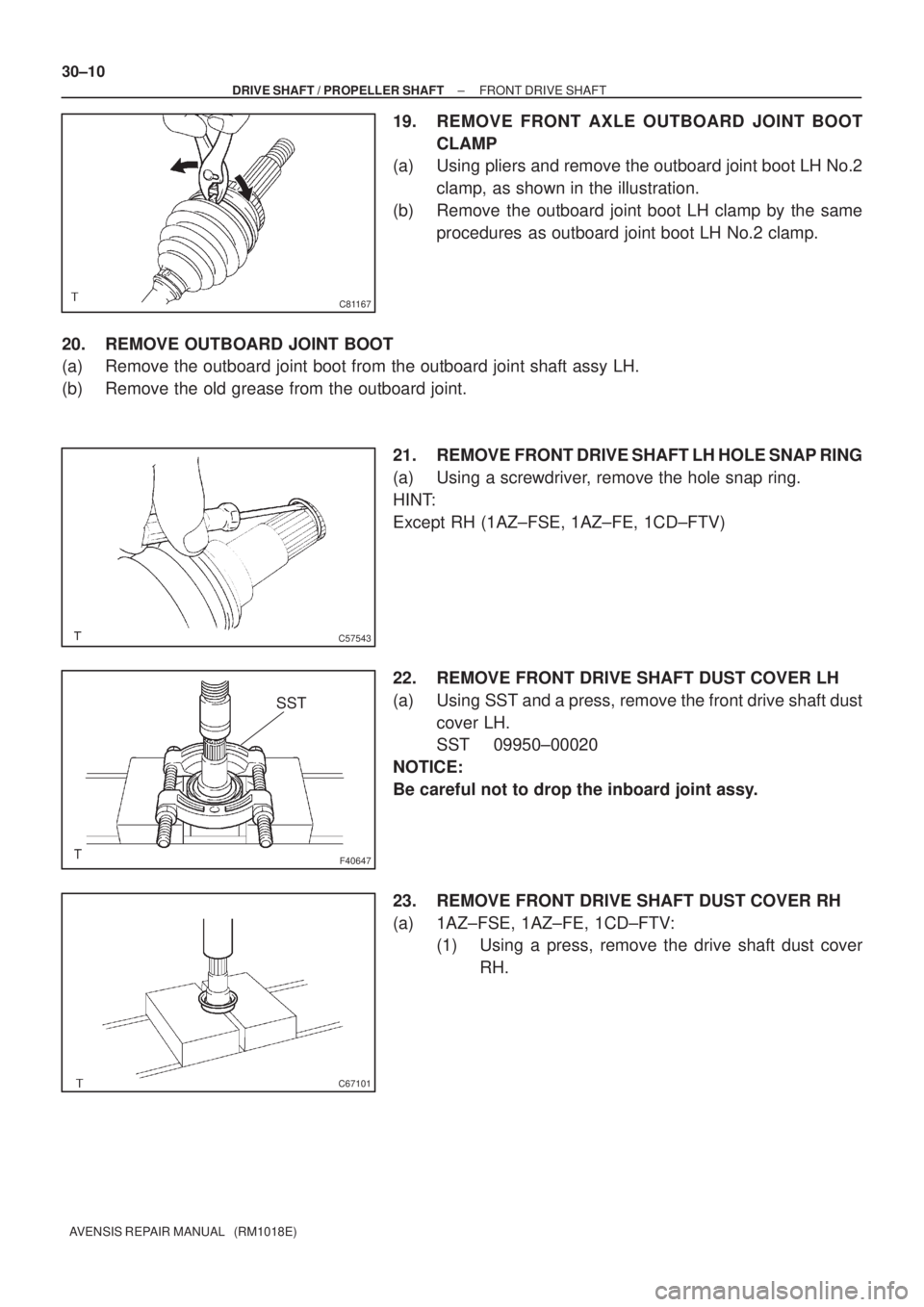

19. REMOVE FRONT AXLE OUTBOARD JOINT BOOT
CLAMP
(a) Using pliers and remove the outboard joint boot LH No.2
clamp, as shown in the illustration.
(b) Remove the outboard joint boot LH clamp by the same
procedures as outboard joint boot LH No.2 clamp.
20. REMOVE OUTBOARD JOINT BOOT
(a) Remove the outboard joint boot from the outboard joint shaft assy LH.
(b) Remove the old grease from the outboard joint.
21. REMOVE FRONT DRIVE SHAFT LH HOLE SNAP RING
(a) Using a screwdriver, remove the hole snap ring.
HINT:
Except RH (1AZ±FSE, 1AZ±FE, 1CD±FTV)
22. REMOVE FRONT DRIVE SHAFT DUST COVER LH
(a) Using SST and a press, remove the front drive shaft dust
cover LH.
SST 09950±00020
NOTICE:
Be careful not to drop the inboard joint assy.
23. REMOVE FRONT DRIVE SHAFT DUST COVER RH
(a) 1AZ±FSE, 1AZ±FE, 1CD±FTV:
(1) Using a press, remove the drive shaft dust cover
RH.
