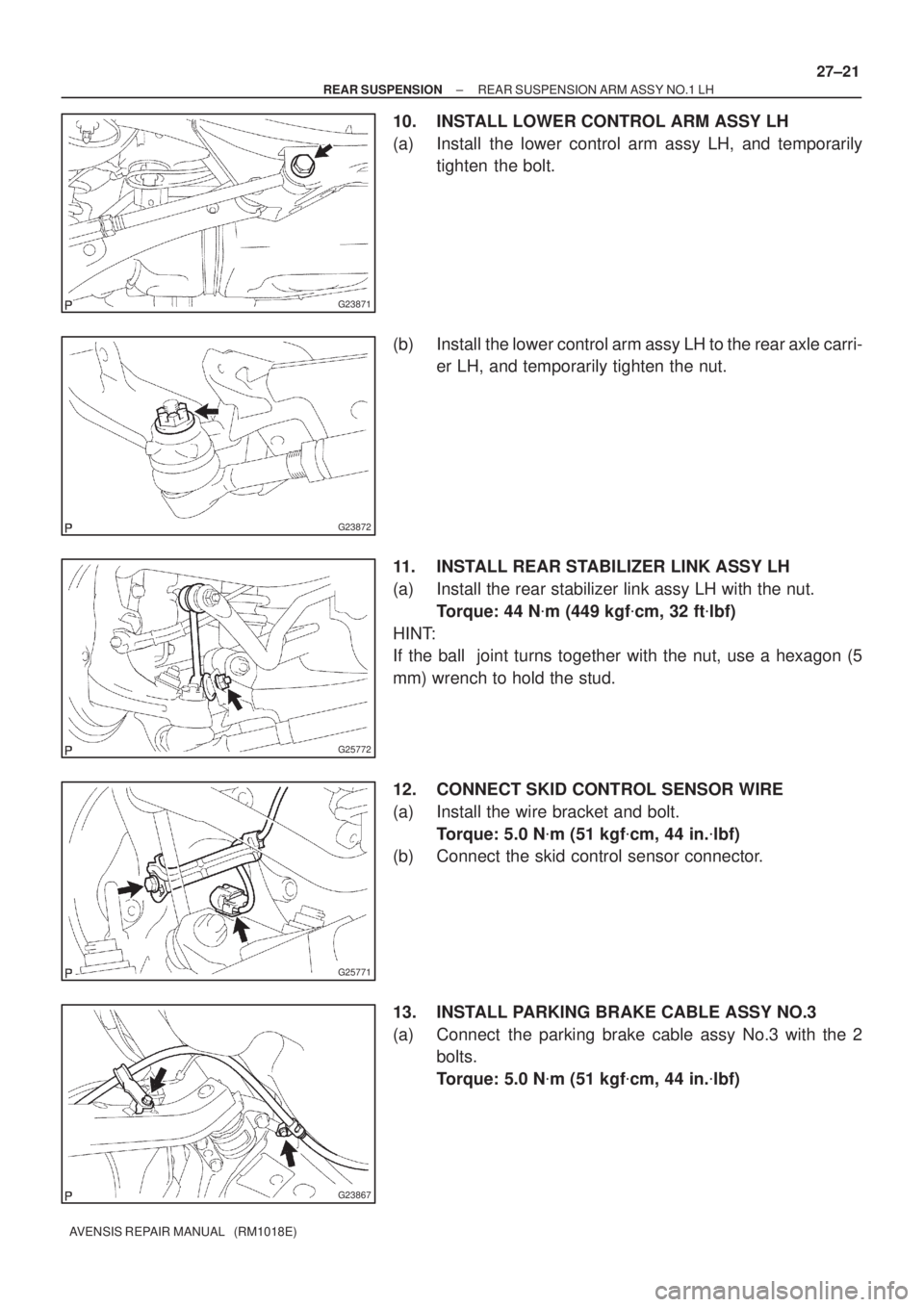

Page 2571 of 5135
G23871
G23872
G25772
G25771
G23867
± REAR SUSPENSIONREAR SUSPENSION ARM ASSY NO.1 LH
27±21
AVENSIS REPAIR MANUAL (RM1018E)
10. INSTALL LOWER CONTROL ARM ASSY LH
(a) Install the lower control arm assy LH, and temporarily
tighten the bolt.
(b) Install the lower control arm assy LH to the rear axle carri-
er LH, and temporarily tighten the nut.
11. INSTALL REAR STABILIZER LINK ASSY LH
(a) Install the rear stabilizer link assy LH with the nut.
Torque: 44 Nm (449 kgfcm, 32 ftlbf)
HINT:
If the ball joint turns together with the nut, use a hexagon (5
mm) wrench to hold the stud.
12. CONNECT SKID CONTROL SENSOR WIRE
(a) Install the wire bracket and bolt.
Torque: 5.0 Nm (51 kgfcm, 44 in.lbf)
(b) Connect the skid control sensor connector.
13. INSTALL PARKING BRAKE CABLE ASSY NO.3
(a) Connect the parking brake cable assy No.3 with the 2
bolts.
Torque: 5.0 Nm (51 kgfcm, 44 in.lbf)
Page 2572 of 5135
G23875
G23874
G23865
G23880
27±22
± REAR SUSPENSIONREAR SUSPENSION ARM ASSY NO.1 LH
AVENSIS REPAIR MANUAL (RM1018E)

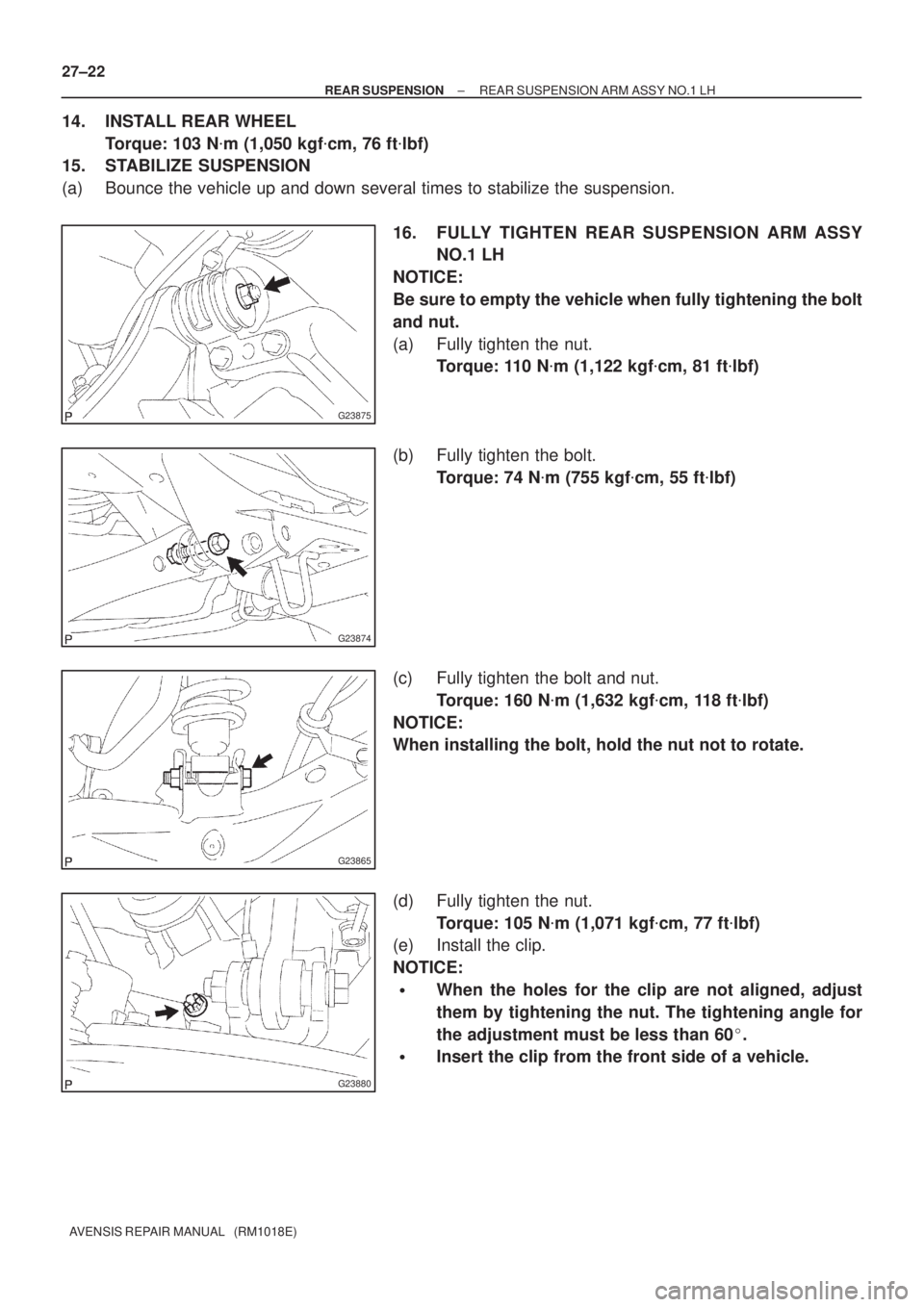

14. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgfcm, 76 ftlbf)
15. STABILIZE SUSPENSION
(a) Bounce the vehicle up and down several times to stabilize the suspension.
16. FULLY TIGHTEN REAR SUSPENSION ARM ASSY
NO.1 LH
NOTICE:
Be sure to empty the vehicle when fully tightening the bolt
and nut.
(a) Fully tighten the nut.
Torque: 110 Nm (1,122 kgfcm, 81 ftlbf)
(b) Fully tighten the bolt.
Torque: 74 Nm (755 kgfcm, 55 ftlbf)
(c) Fully tighten the bolt and nut.
Torque: 160 Nm (1,632 kgfcm, 118 ftlbf)
NOTICE:
When installing the bolt, hold the nut not to rotate.
(d) Fully tighten the nut.
Torque: 105 Nm (1,071 kgfcm, 77 ftlbf)
(e) Install the clip.
NOTICE:
When the holes for the clip are not aligned, adjust
them by tightening the nut. The tightening angle for
the adjustment must be less than 60.
Insert the clip from the front side of a vehicle.

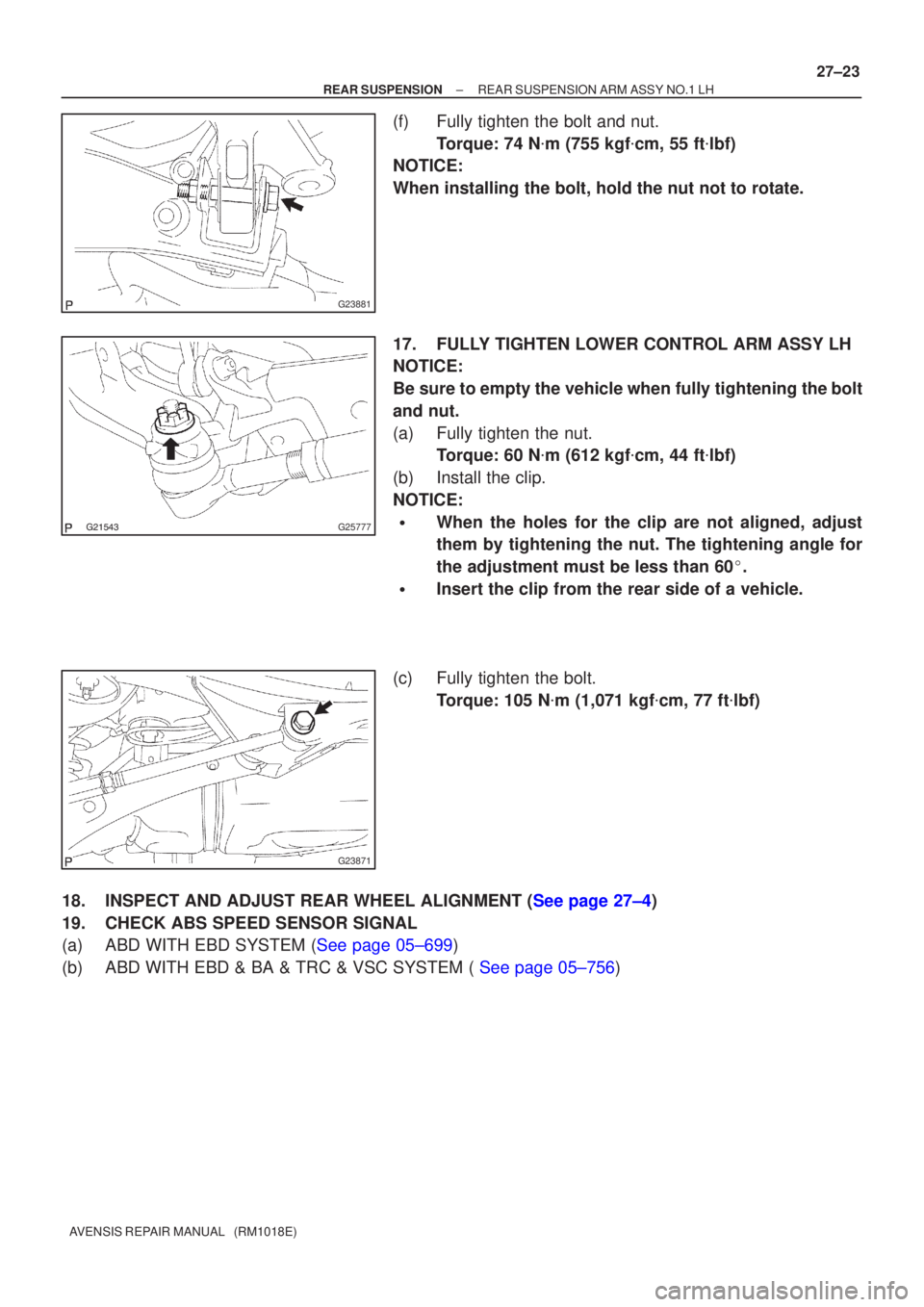

Page 2573 of 5135
G23881
G25777
G23871
±
REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH
27±23
AVENSIS REPAIR MANUAL (RM1018E)
(f) Fully tighten the bolt and nut.
Torque: 74 N m (755 kgf cm, 55 ft lbf)
NOTICE:
When installing the bolt, hold the nut not to rotate.
17. FULLY TIGHTEN LOWER CONTROL ARM ASSY LH
NOTICE:
Be sure to empty the vehicle when fully tightening the bolt
and nut.
(a) Fully tighten the nut. Torque: 60 N m (612 kgf cm, 44 ft lbf)
(b) Install the clip.
NOTICE:
When the holes for the clip are not aligned, adjust
them by tightening the nut. The tightening angle for
the adjustment must be less than 60 .
Insert the clip from the rear side of a vehicle.
(c) Fully tighten the bolt. Torque: 105 N m (1,071 kgf cm, 77 ft lbf)
18.INSPECT AND ADJUST REAR WHEEL ALIGNMENT (See page 27±4)
19. CHECK ABS SPEED SENSOR SIGNAL
(a)ABD WITH EBD SYSTEM (See page 05±699)
(b)ABD WITH EBD & BA & TRC & VSC SYSTEM ( See page 05±756)

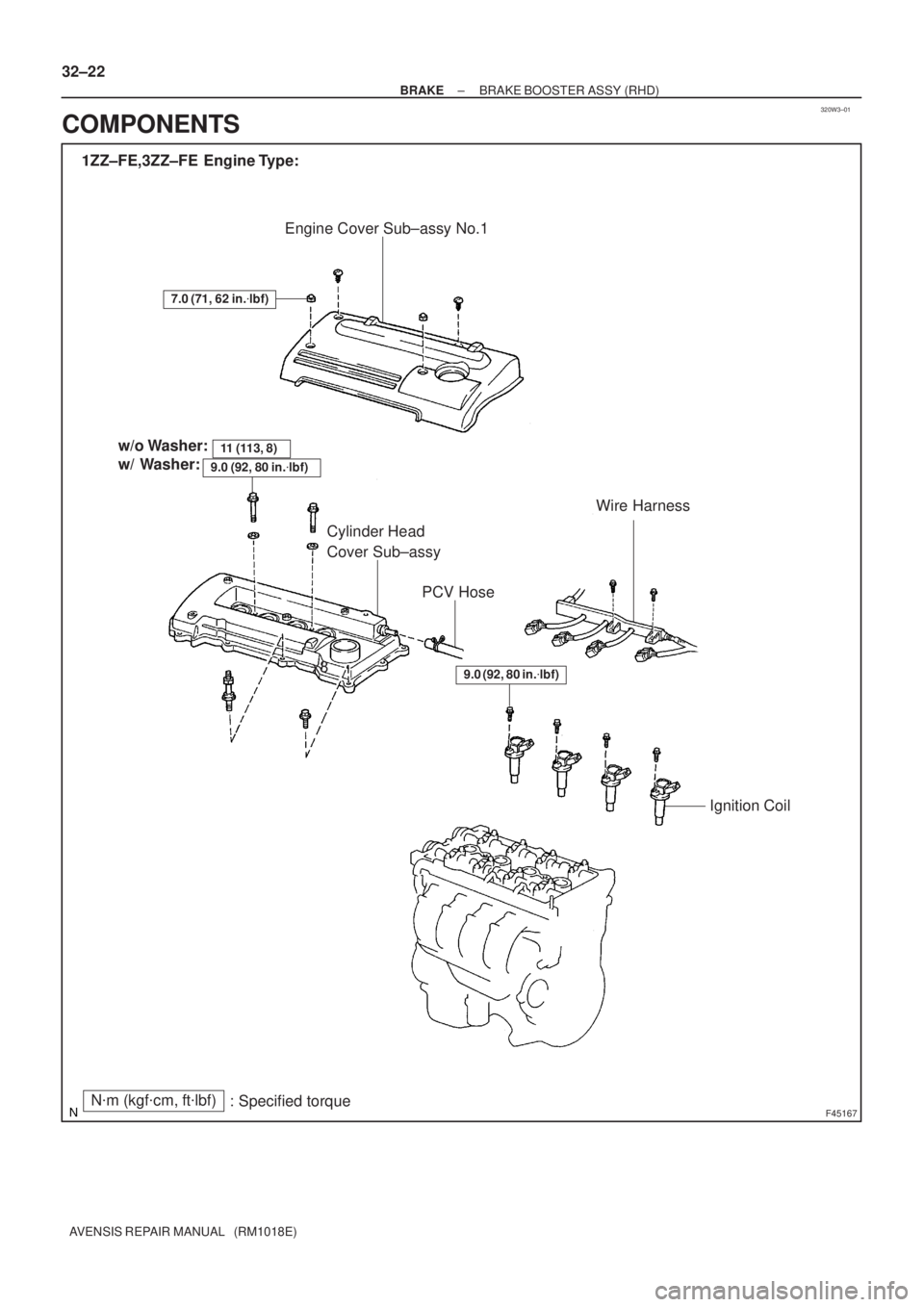

Page 2574 of 5135
320W3±01
F45167
Engine Cover Sub±assy No.1
1ZZ±FE,3ZZ±FE Engine Type:
Wire Harness
Ignition Coil Cylinder Head
Cover Sub±assy
7.0 (71, 62 in.lbf)
PCV Hose
Nm (kgfcm, ftlbf)
: Specified torquex8 w/o Washer:
w/ Washer:
11 (113, 8)
9.0 (92, 80 in.lbf)
9.0 (92, 80 in.lbf)
32±22
± BRAKEBRAKE BOOSTER ASSY (RHD)
AVENSIS REPAIR MANUAL (RM1018E)
COMPONENTS

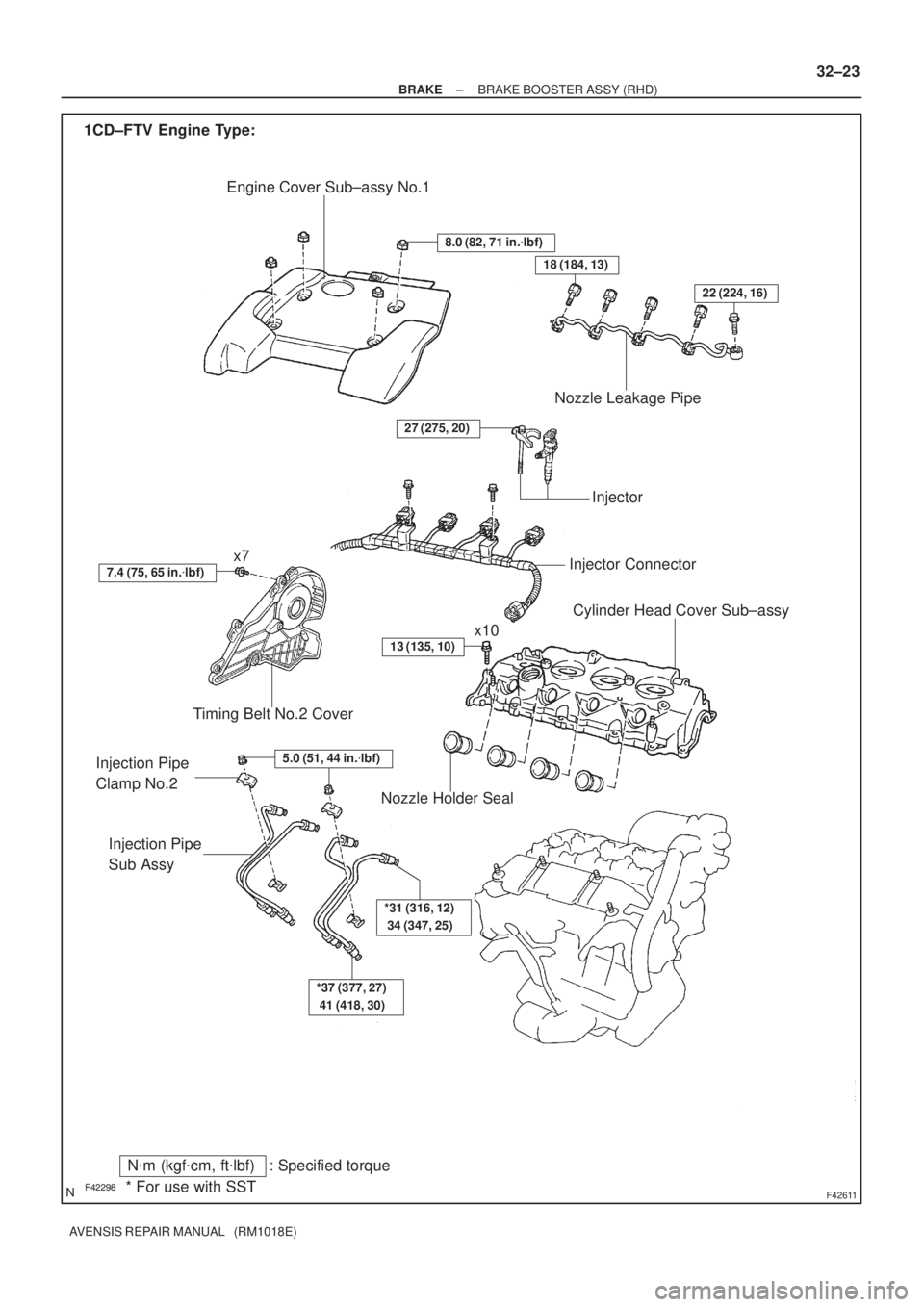

Page 2575 of 5135
F42611
Engine Cover Sub±assy No.1
Timing Belt No.2 Cover
x7
Injector Connector
Cylinder Head Cover Sub±assy
Injection Pipe
Sub Assy
Nozzle Holder Seal
Nozzle Leakage Pipe
Injector
x10 1CD±FTV Engine Type:
8.0 (82, 71 in.lbf)
Nm (kgfcm, ftlbf) : Specified torque
* For use with SST
13 (135, 10)
5.0 (51, 44 in.lbf)
*37 (377, 27)
41 (418, 30)
*31 (316, 12)
34 (347, 25)
7.4 (75, 65 in.lbf)
Injection Pipe
Clamp No.2
27 (275, 20)
18 (184, 13)
22 (224, 16)
± BRAKEBRAKE BOOSTER ASSY (RHD)
32±23
AVENSIS REPAIR MANUAL (RM1018E)

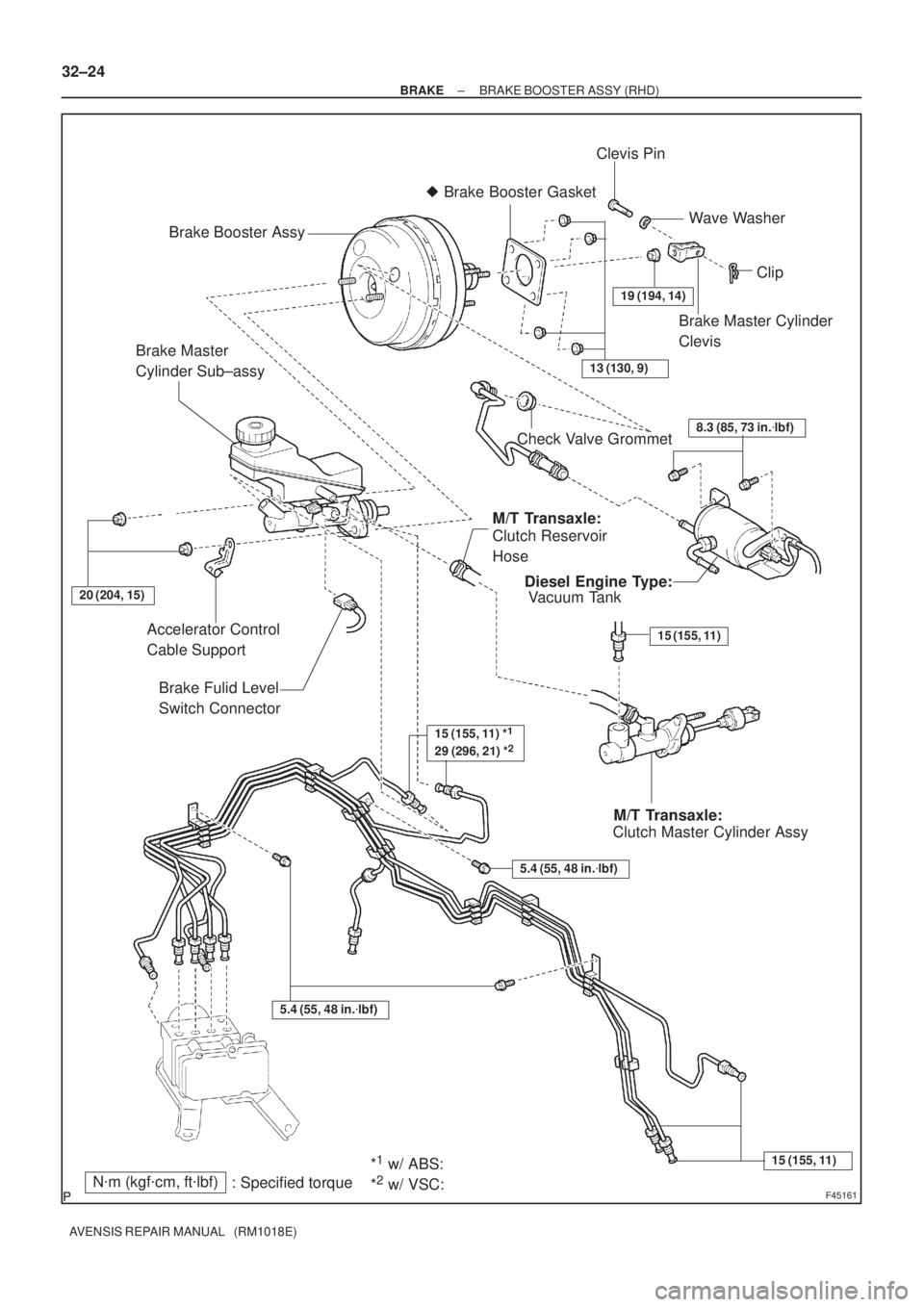

Page 2576 of 5135
F45161
Brake Master
Cylinder Sub±assy
Clutch Master Cylinder AssyM/T Transaxle: Vacuum Tank Diesel Engine Type:
Brake Fulid Level
Switch Connector Accelerator Control
Cable Support
20 (204, 15)
19 (194, 14)
Clutch Reservoir
Hose M/T Transaxle: Brake Booster Assy Brake Booster Gasket
Brake Master Cylinder
ClevisClip Clevis Pin
13 (130, 9)
15 (155, 11) *1
29 (296, 21) *2
15 (155, 11)
Nm (kgfcm, ftlbf)
: Specified torque
5.4 (55, 48 in.lbf)
8.3 (85, 73 in.lbf)
Wave Washer
Check Valve Grommet
15 (155, 11)
5.4 (55, 48 in.lbf)
*1 w/ ABS:
*2 w/ VSC:
32±24
± BRAKEBRAKE BOOSTER ASSY (RHD)
AVENSIS REPAIR MANUAL (RM1018E)
Page 2577 of 5135
320GN±02
BR2238
GOOD NO GOOD
2nd3rd
1st
BR2237
G24221
Ventilation No Ventilation
± BRAKEBRAKE BOOSTER ASSY (RHD)
32±21
AVENSIS REPAIR MANUAL (RM1018E)
BRAKE BOOSTER ASSY (RHD)
ON±VEHICLE INSPECTION
1. INSPECT BRAKE BOOSTER
(a) Airtightness check.
(1) Start the engine and stop it after 1 or 2 minutes. De-
press the brake pedal several times slowly.
HINT:
If the pedal can be depressed to the f;oor the first time, but on
the 2nd or 3rd time cannot be depreesed as far, the booster is
airtight.
(2) Depress the brake pedal while the engine is run-
ning, and stop the engine with the pedal depressed.
HINT:
If there is no change in the pedal reserve distance after holding
the pedal for 30 seconds, the booster is airtight.
(b) Operating check.
(1) Depress the brake pedal several times with the igni-
tion switch off and check that there is no change in
the pedal reserve distance.
(2) Depress the brake pedal and start the engine.
HINT:
If the pedal goes down slightly, operation is normal.
2. INSPECT VACUUM CHECK VALVE
(a) Inspect vacuum check valve.
(1) Slide the clip and disconnect the vacuum hose.
(2) Remove the vacuum check valve.
(3) Check that there is ventilation from the booster to
the engine, and no ventilation from the engine to the
booster.
(4) If any fault is found, replace the vacuum check
valve.
Page 2578 of 5135
320W7±01
F40019
F42620
±
BRAKE BRAKE BOOSTER ASSY (LHD)
32±19
AVENSIS REPAIR MANUAL (RM1018E)

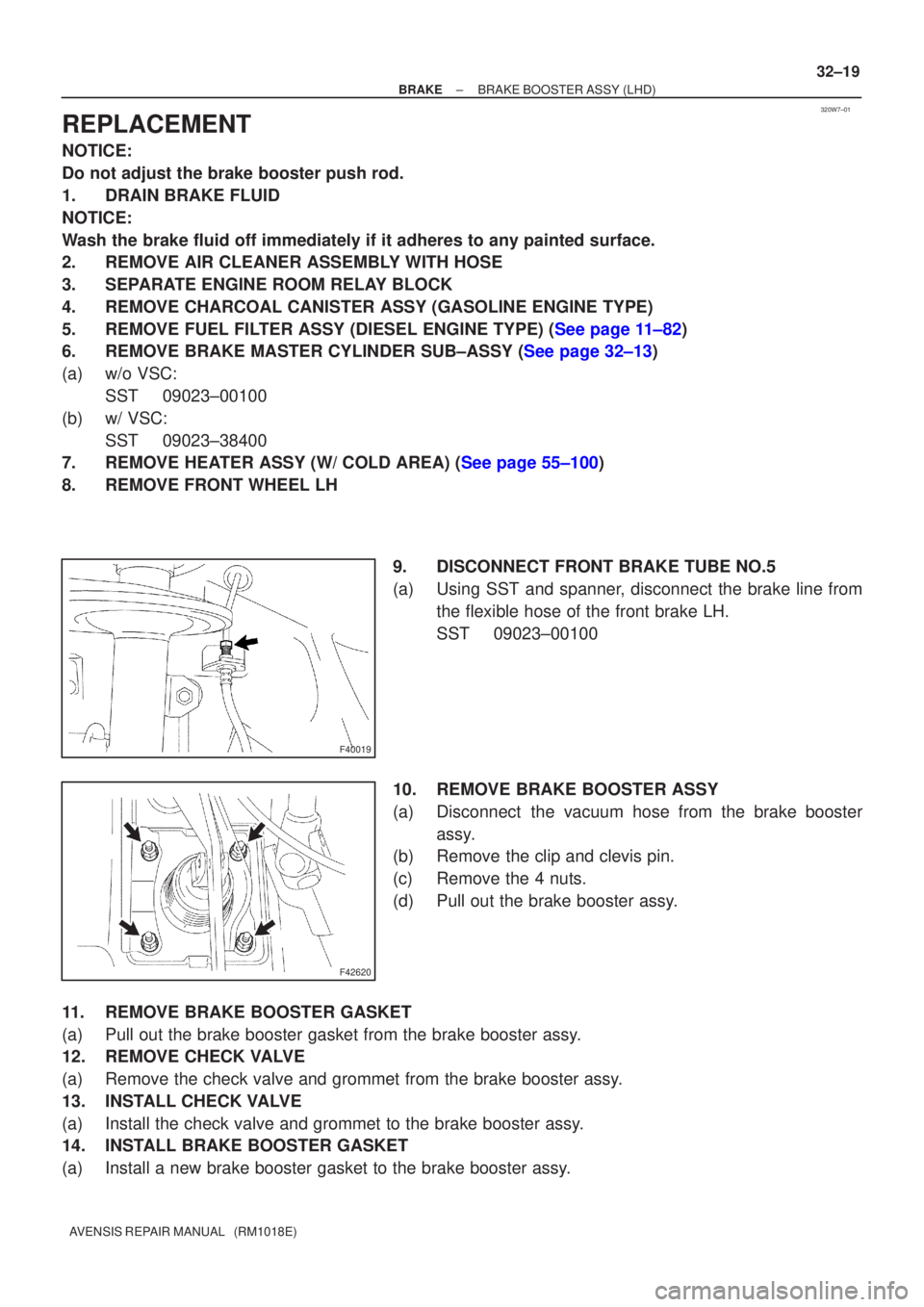

REPLACEMENT
NOTICE:
Do not adjust the brake booster push rod.
1. DRAIN BRAKE FLUID
NOTICE:
Wash the brake fluid off immediately if it adheres to any painted surface\
.
2. REMOVE AIR CLEANER ASSEMBLY WITH HOSE
3. SEPARATE ENGINE ROOM RELAY BLOCK
4. REMOVE CHARCOAL CANISTER ASSY (GASOLINE ENGINE TYPE)
5.REMOVE FUEL FILTER ASSY (DIESEL ENGINE TYPE) (See page 11±82)
6.REMOVE BRAKE MASTER CYLINDER SUB±ASSY (See page 32±13)
(a) w/o VSC:
SST 09023±00100
(b) w/ VSC: SST 09023±38400
7.REMOVE HEATER ASSY (W/ COLD AREA) (See page 55±100)
8. REMOVE FRONT WHEEL LH
9. DISCONNECT FRONT BRAKE TUBE NO.5
(a) Using SST and spanner, disconnect the brake line fromthe flexible hose of the front brake LH.
SST 09023±00100
10. REMOVE BRAKE BOOSTER ASSY
(a) Disconnect the vacuum hose from the brake booster assy.
(b) Remove the clip and clevis pin.
(c) Remove the 4 nuts.
(d) Pull out the brake booster assy.
11. REMOVE BRAKE BOOSTER GASKET
(a) Pull out the brake booster gasket from the brake booster assy.
12. REMOVE CHECK VALVE
(a) Remove the check valve and grommet from the brake booster assy.
13. INSTALL CHECK VALVE
(a) Install the check valve and grommet to the brake booster assy.
14. INSTALL BRAKE BOOSTER GASKET
(a) Install a new brake booster gasket to the brake booster assy.

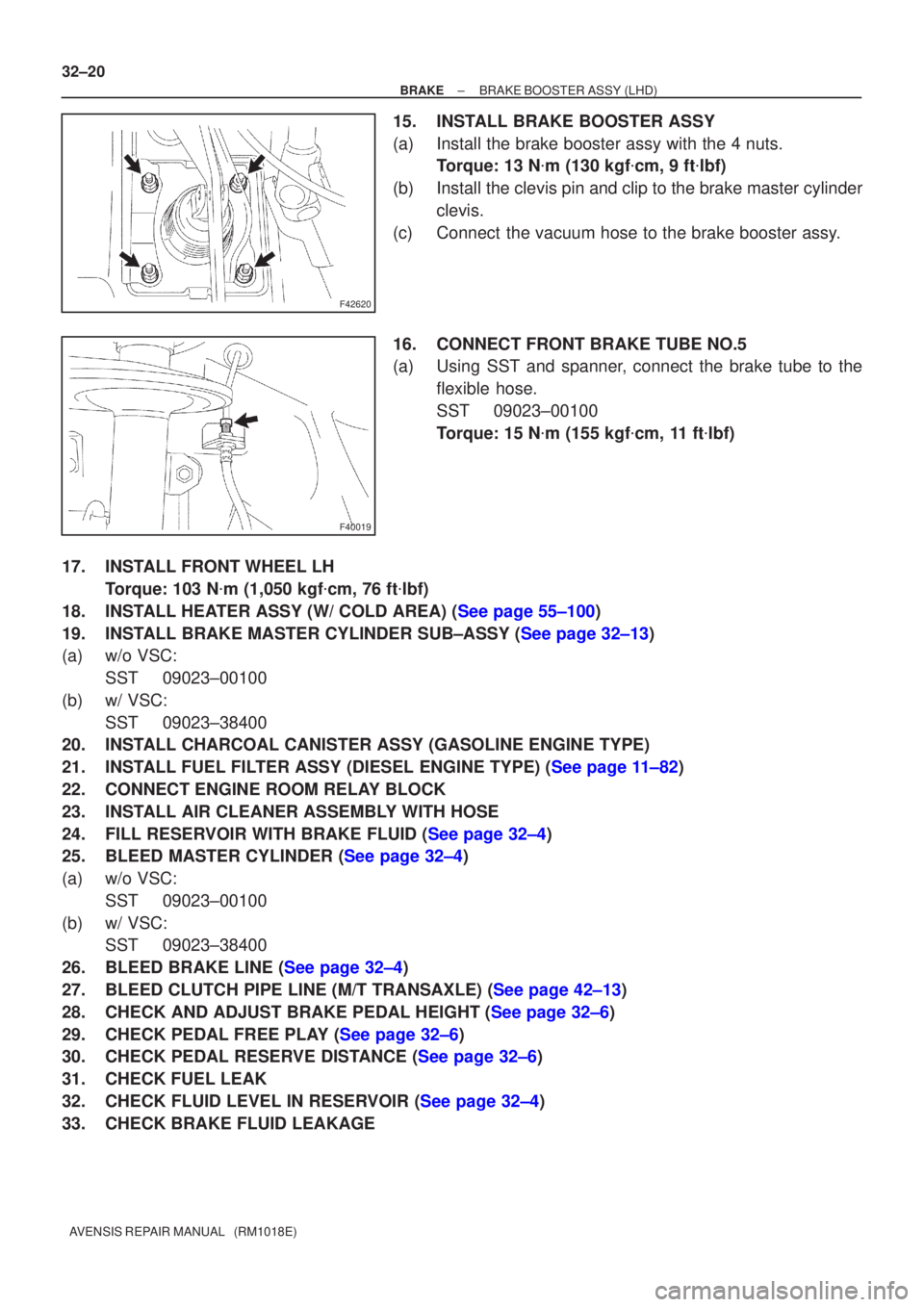

Page 2579 of 5135
F42620
F40019
32±20
±
BRAKE BRAKE BOOSTER ASSY (LHD)
AVENSIS REPAIR MANUAL (RM1018E)
15. INSTALL BRAKE BOOSTER ASSY
(a) Install the brake booster assy with the 4 nuts. Torque: 13 N m (130 kgf cm, 9 ft lbf)
(b) Install the clevis pin and clip to the brake master cylinder clevis.
(c) Connect the vacuum hose to the brake booster assy.
16. CONNECT FRONT BRAKE TUBE NO.5
(a) Using SST and spanner, connect the brake tube to the flexible hose.
SST 09023±00100
Torque: 15 N m (155 kgf cm, 11 ft lbf)
17. INSTALL FRONT WHEEL LH Torque: 103 N m (1,050 kgf cm, 76 ft lbf)
18.INSTALL HEATER ASSY (W/ COLD AREA) (See page 55±100)
19.INSTALL BRAKE MASTER CYLINDER SUB±ASSY (See page 32±13)
(a) w/o VSC: SST 09023±00100
(b) w/ VSC: SST 09023±38400
20. INSTALL CHARCOAL CANISTER ASSY (GASOLINE ENGINE TYPE)
21.INSTALL FUEL FILTER ASSY (DIESEL ENGINE TYPE) (See page 11±82)
22. CONNECT ENGINE ROOM RELAY BLOCK
23. INSTALL AIR CLEANER ASSEMBLY WITH HOSE
24.FILL RESERVOIR WITH BRAKE FLUID (See page 32±4)
25.BLEED MASTER CYLINDER (See page 32±4)
(a) w/o VSC:
SST 09023±00100
(b) w/ VSC: SST 09023±38400
26.BLEED BRAKE LINE (See page 32±4)
27.BLEED CLUTCH PIPE LINE (M/T TRANSAXLE) (See page 42±13)
28.CHECK AND ADJUST BRAKE PEDAL HEIGHT (See page 32±6)
29.CHECK PEDAL FREE PLAY (See page 32±6)
30.CHECK PEDAL RESERVE DISTANCE (See page 32±6)
31. CHECK FUEL LEAK
32.CHECK FLUID LEVEL IN RESERVOIR (See page 32±4)
33. CHECK BRAKE FLUID LEAKAGE

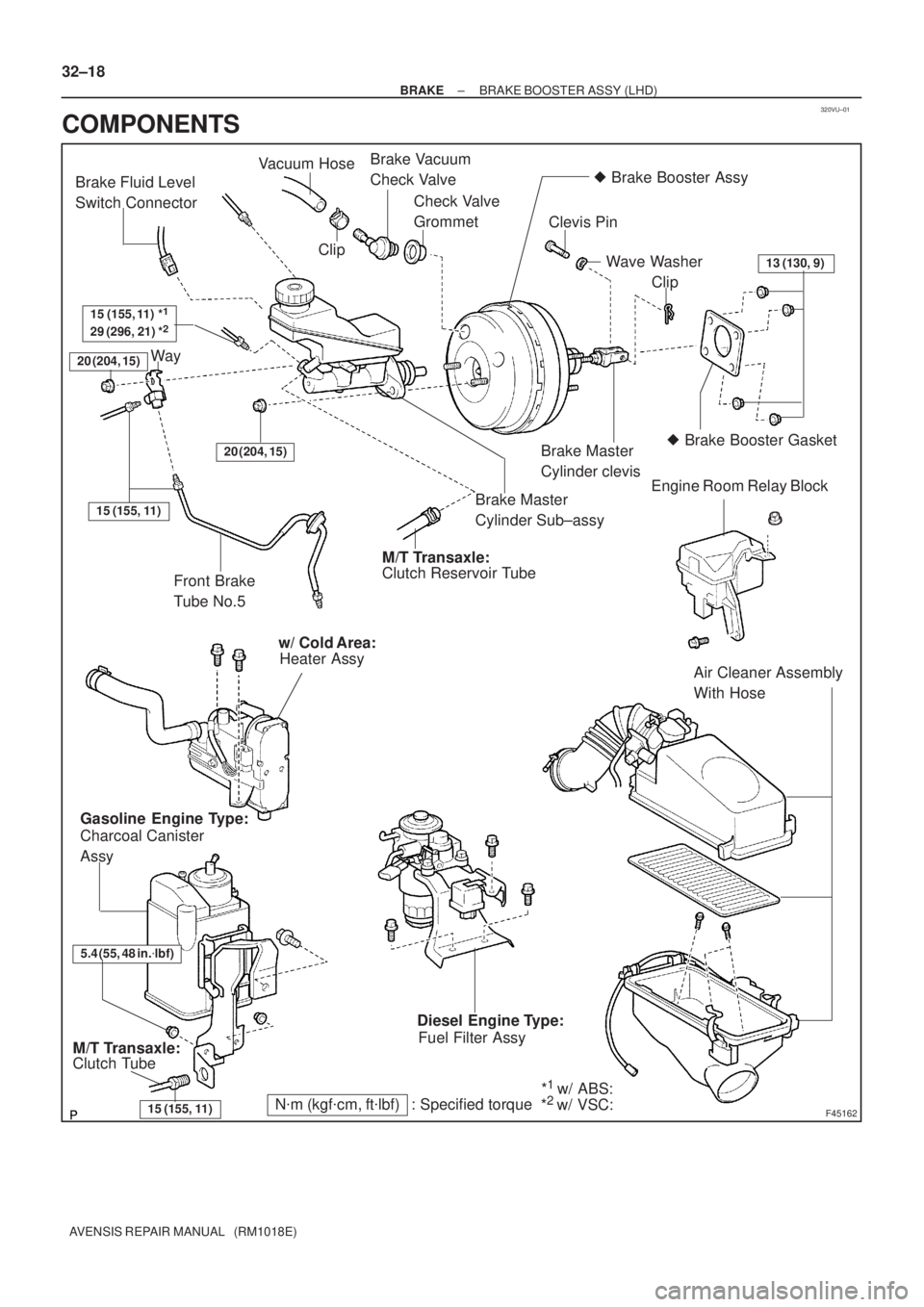

Page 2580 of 5135
320VU±01
F45162
Vacuum Hose
ClipBrake Vacuum
Check Valve
Check Valve
Grommet
Clevis Pin
Clip Wave Washer
13 (130, 9)
Engine Room Relay Block Way
Clutch Reservoir Tube M/T Transaxle:
Front Brake
Tube No.5
15 (155, 11) *1
29 (296, 21) *2
Brake Fluid Level
Switch Connector
Brake Booster Gasket
20 (204, 15)
20 (204, 15)
Brake Master
Cylinder Sub±assy
Brake Booster Assy
Brake Master
Cylinder clevis
15 (155, 11)
Fuel Filter Assy Diesel Engine Type: Heater Assy w/ Cold Area:
Air Cleaner Assembly
With Hose
Clutch Tube M/T Transaxle:Gasoline Engine Type:
15 (155, 11)
*1
w/ ABS:
*2
w/ VSC:Nm (kgfcm, ftlbf) : Specified torque
5.4 (55, 48 in.lbf)
Charcoal Canister
Assy
32±18
± BRAKEBRAKE BOOSTER ASSY (LHD)
AVENSIS REPAIR MANUAL (RM1018E)
COMPONENTS
