TOYOTA AVENSIS 2005 Service Repair Manual

A76889
FCECM
IB1 Engine Room
R/B No. 1
Engine Room
J/B No. 1
B±G
FL MAIN
BatteryGR
ECW±B 1AE9 10
32 51
1
3 5
4B 1EFI
EFI
Relay
B±G
F25
Fuel
Pump 4
5
W±B 10 Engine
Room
J/B No. 4 1
24 4
4
4 4A 1C8
Circuit
Opening
Relay B±Y
1
2
1
Engine Room
R/B No. 4
BR B±WB±WB±WB±W
L±BG±Y G±Y GR
B±YGR
MREL E98
IE12
6
IC3
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±265
AVENSIS REPAIR MANUAL (RM1018E)

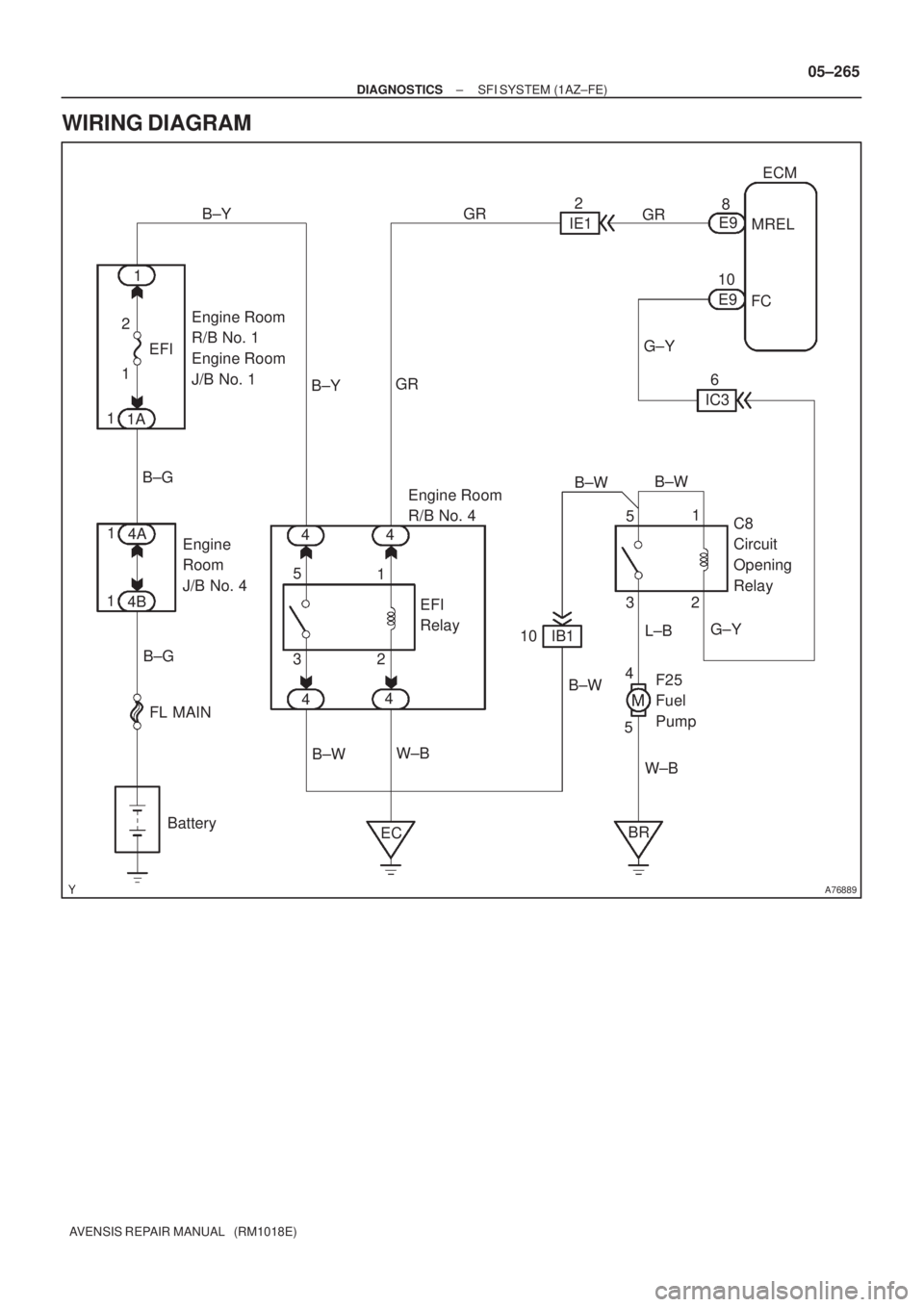

WIRING DIAGRAM

B16200
C8
A18294
FC (+)E1 (±)
ECM Connector
E12E9
05±266
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

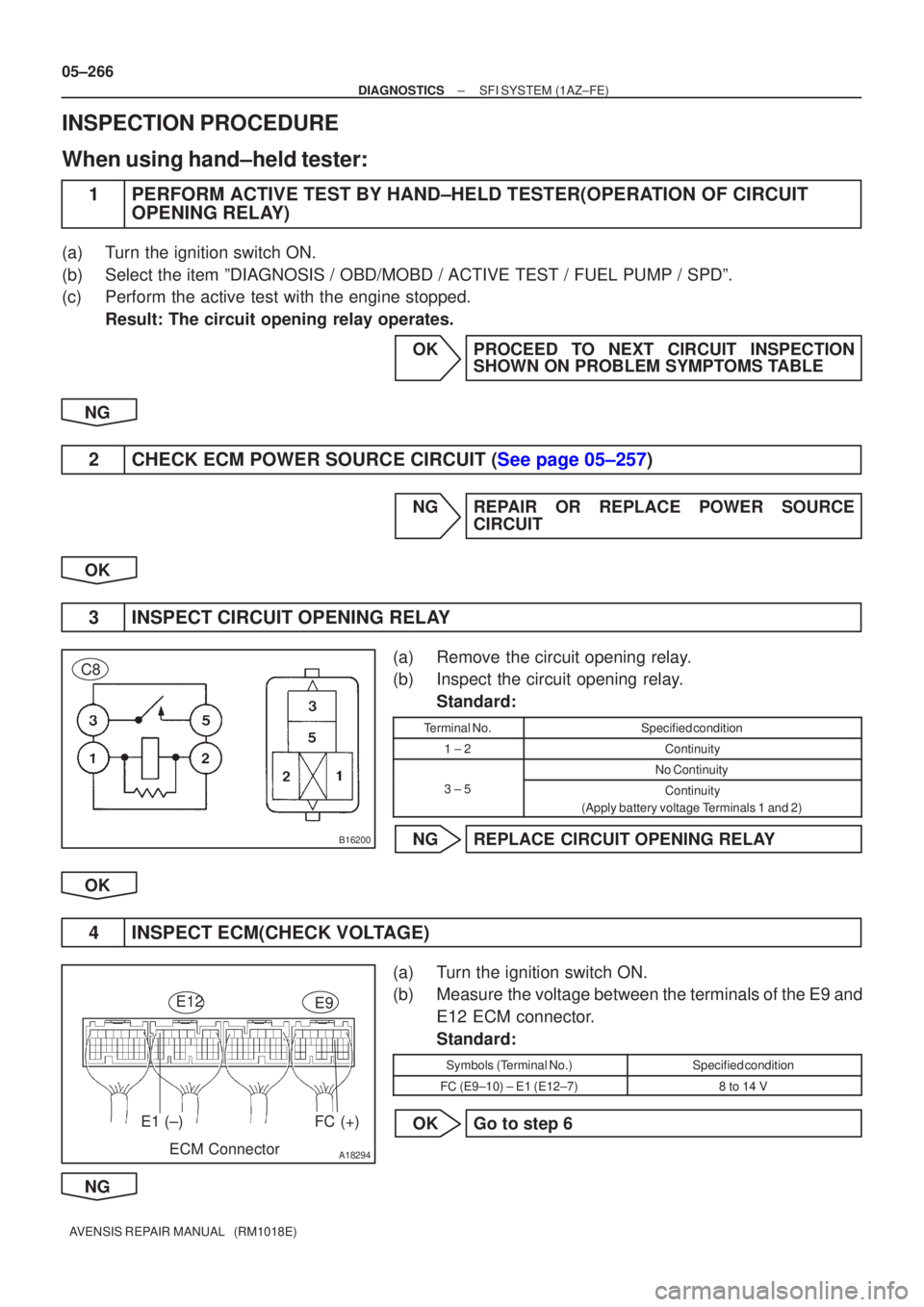

INSPECTION PROCEDURE
When using hand±held tester:
1PERFORM ACTIVE TEST BY HAND±HELD TESTER(OPERATION OF CIRCUIT OPENING RELAY)
(a)Turn the ignition switch ON.
(b)Select the item ºDIAGNOSIS / OBD/MOBD / ACTIVE TEST / FUEL PUMP / SPD\
º.
(c)Perform the active test with the engine stopped.
Result: The circuit opening relay operates.
OKPROCEED TO NEXT CIRCUIT INSPECTIONSHOWN ON PROBLEM SYMPTOMS TABLE
NG
2CHECK ECM POWER SOURCE CIRCUIT (See page 05±257)
NG REPAIR OR REPLACE POWER SOURCE CIRCUIT
OK
3 INSPECT CIRCUIT OPENING RELAY
(a) Remove the circuit opening relay.
(b) Inspect the circuit opening relay. Standard:
Terminal No.Specified condition
1 ± 2Continuity
No Continuity
3 ± 5Continuity
(Apply battery voltage Terminals 1 and 2)
NG REPLACE CIRCUIT OPENING RELAY
OK
4 INSPECT ECM(CHECK VOLTAGE)
(a) Turn the ignition switch ON.
(b) Measure the voltage between the terminals of the E9 and E12 ECM connector.
Standard:
Symbols (Terminal No.)Specified condition
FC (E9±10) ± E1 (E12±7)8 to 14 V
OK Go to step 6
NG

A66053
Engine Room R/B No.4EFI Relay
123
5
A79099
Wire Harness Side
C8
Circuit Opening Relay Connector
A65748
E9
MRELFC
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±267
AVENSIS REPAIR MANUAL (RM1018E)

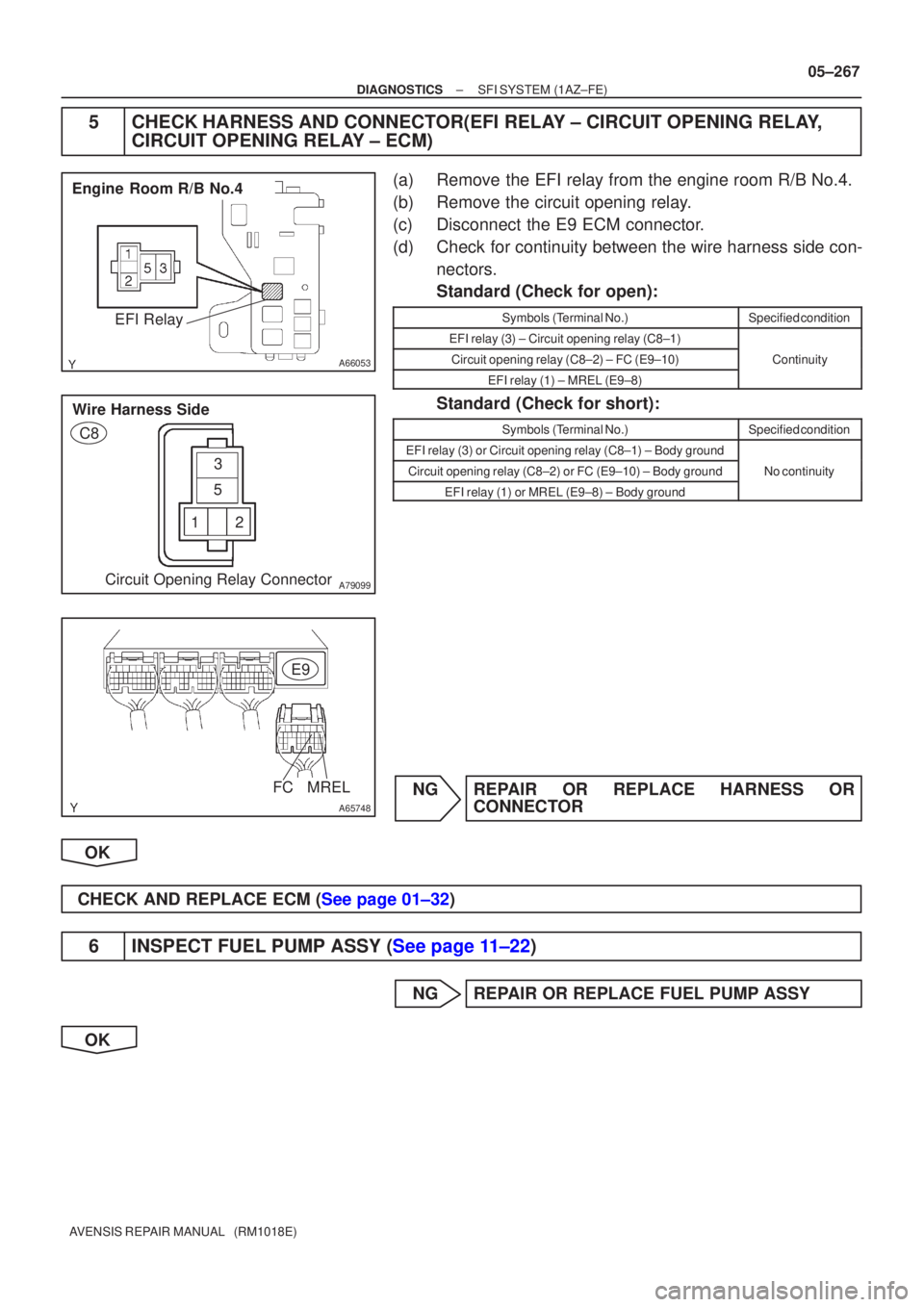

5CHECK HARNESS AND CONNECTOR(EFI RELAY ± CIRCUIT OPENING RELAY,
CIRCUIT OPENING RELAY ± ECM)
(a)Remove the EFI relay from the engine room R/B No.4.
(b)Remove the circuit opening relay.
(c)Disconnect the E9 ECM connector.
(d)Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
EFI relay (3) ± Circuit opening relay (C8±1)
Circuit opening relay (C8±2) ± FC (E9±10)Continuity
EFI relay (1) ± MREL (E9±8)
y
Standard (Check for short):
Symbols (Terminal No.)Specified condition
EFI relay (3) or Circuit opening relay (C8±1) ± Body ground
Circuit opening relay (C8±2) or FC (E9±10) ± Body groundNo continuity
EFI relay (1) or MREL (E9±8) ± Body ground
y
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
CHECK AND REPLACE ECM (See page 01±32)
6INSPECT FUEL PUMP ASSY (See page 11±22)
NG REPAIR OR REPLACE FUEL PUMP ASSY
OK

123
5
A79099
Wire Harness Side
C8
Circuit Opening Relay Connector
A66276
Fuel Pump Connector
Wire Harness Side
F25
05±268
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

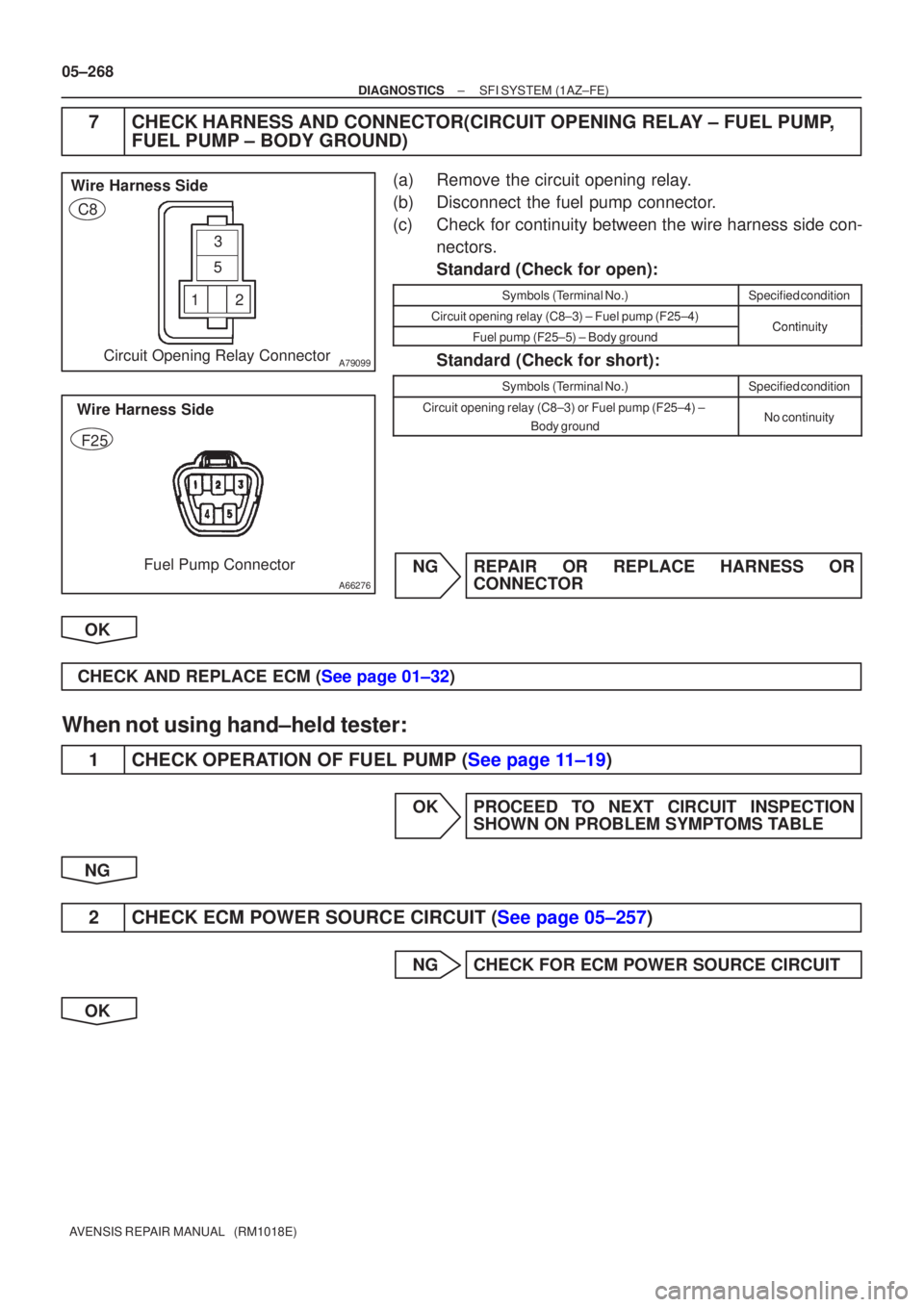

7CHECK HARNESS AND CONNECTOR(CIRCUIT OPENING RELAY ± FUEL PUMP, FUEL PUMP ± BODY GROUND)
(a)Remove the circuit opening relay.
(b)Disconnect the fuel pump connector.
(c)Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
Circuit opening relay (C8±3) ± Fuel pump (F25±4)ContinuityFuel pump (F25±5) ± Body groundContinuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
Circuit opening relay (C8±3) or Fuel pump (F25±4) ±
Body groundNo continuity
NGREPAIR OR REPLACE HARNESS ORCONNECTOR
OK
CHECK AND REPLACE ECM (See page 01±32)
When not using hand±held tester:
1CHECK OPERATION OF FUEL PUMP (See page 11±19)
OKPROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
NG
2CHECK ECM POWER SOURCE CIRCUIT (See page 05±257)
NG CHECK FOR ECM POWER SOURCE CIRCUIT
OK

B16200
C8
A18294
FC (+)E1 (±)
ECM Connector
E12E9
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±269
AVENSIS REPAIR MANUAL (RM1018E)

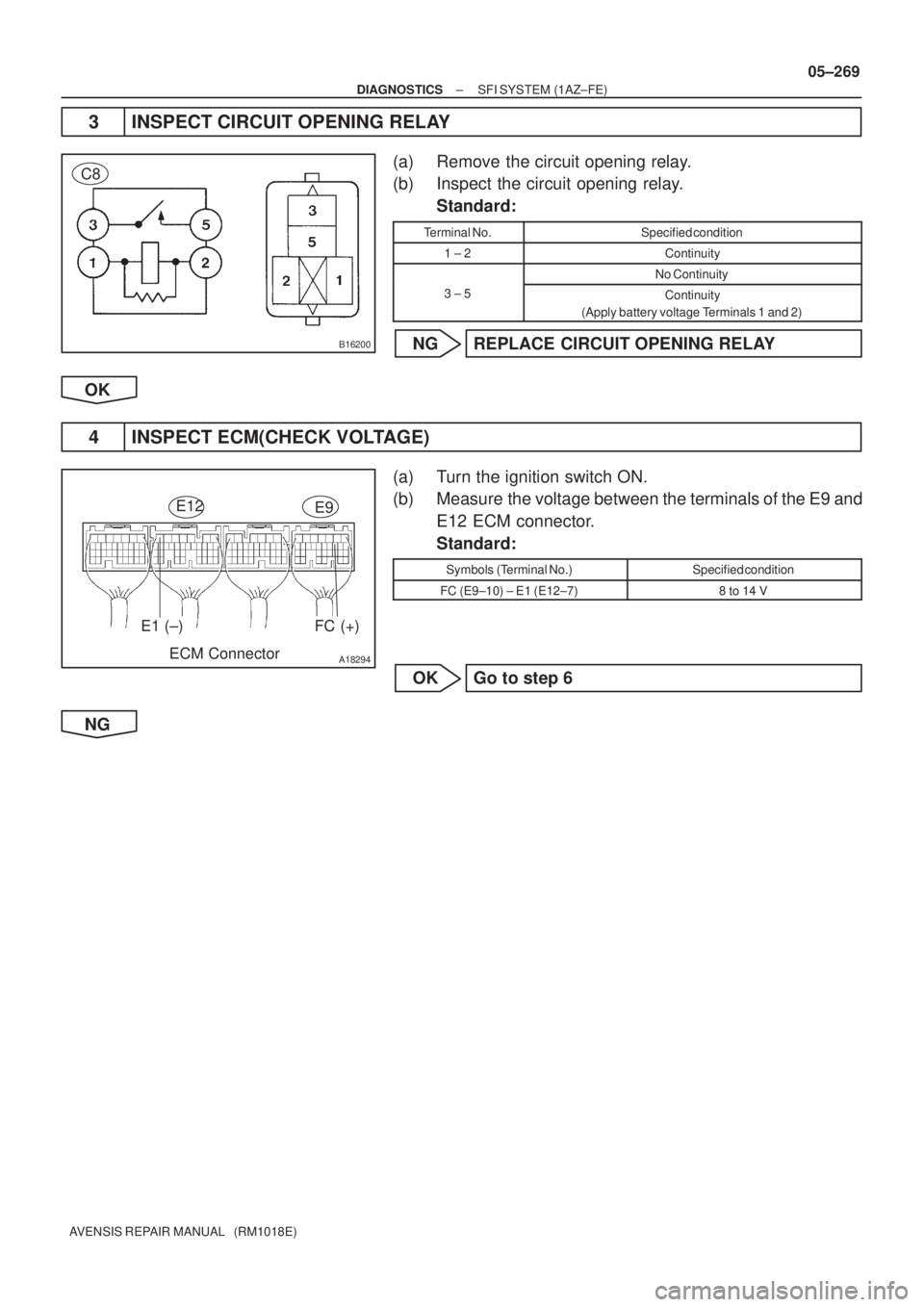

3 INSPECT CIRCUIT OPENING RELAY
(a) Remove the circuit opening relay.
(b) Inspect the circuit opening relay.
Standard:
Terminal No.Specified condition
1 ± 2Continuity
No Continuity
3 ± 5Continuity
(Apply battery voltage Terminals 1 and 2)
NG REPLACE CIRCUIT OPENING RELAY
OK
4 INSPECT ECM(CHECK VOLTAGE)
(a) Turn the ignition switch ON.
(b) Measure the voltage between the terminals of the E9 and
E12 ECM connector.
Standard:
Symbols (Terminal No.)Specified condition
FC (E9±10) ± E1 (E12±7)8 to 14 V
OK Go to step 6
NG

A66053
Engine Room R/B No.4EFI Relay
123
5
A79099
Wire Harness Side
C8
Circuit Opening Relay Connector
A65748
E9
MRELFC
05±270
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
5CHECK HARNESS AND CONNECTOR(EFI RELAY ± CIRCUIT OPENING RELAY, CIRCUIT OPENING RELAY ± ECM)
(a)Remove the EFI relay from the engine room R/B No.4.
(b)Remove the circuit opening relay.
(c)Disconnect the E9 ECM connector.
(d)Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
EFI relay (3) ± Circuit opening relay (C8±1)
Circuit opening relay (C8±2) ± FC (E9±10)Continuity
EFI relay (1) ± MREL (E9±8)
y
Standard (Check for short):
Symbols (Terminal No.)Specified condition
EFI relay (3) or Circuit opening relay (C8±1) ± Body ground
Circuit opening relay (C8±2) or FC (E9±10) ± Body groundNo continuity
EFI relay (1) or MREL (E9±8) ± Body ground
y
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
CHECK AND REPLACE ECM (See page 01±32)
6INSPECT FUEL PUMP ASSY (See page 11±22)
NG REPAIR OR REPLACE FUEL PUMP ASSY
OK

123
5
A79099
Wire Harness Side
C8
Circuit Opening Relay Connector
A66276
Fuel Pump Connector
Wire Harness Side
F25
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±271
AVENSIS REPAIR MANUAL (RM1018E)

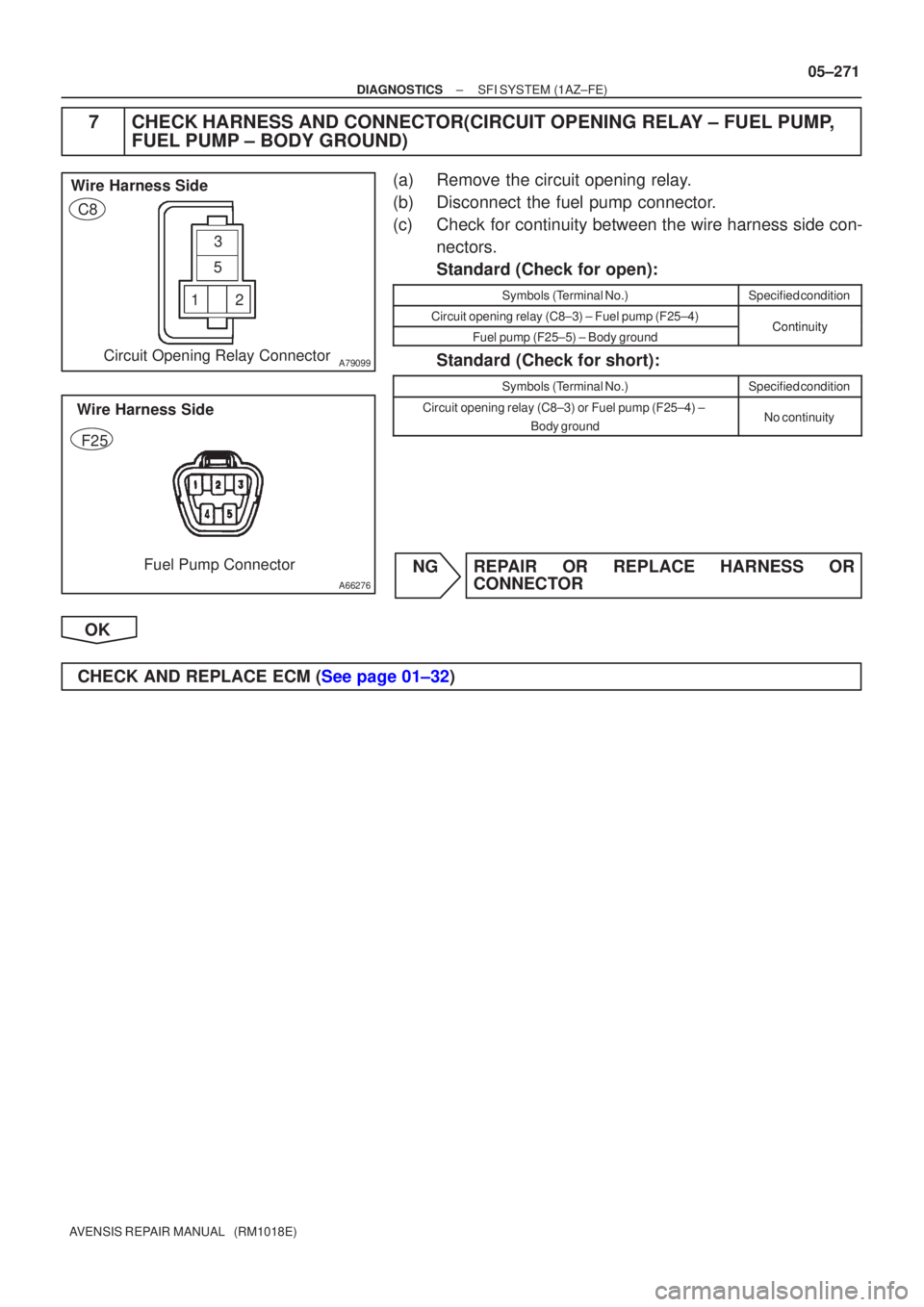

7CHECK HARNESS AND CONNECTOR(CIRCUIT OPENING RELAY ± FUEL PUMP,
FUEL PUMP ± BODY GROUND)
(a)Remove the circuit opening relay.
(b)Disconnect the fuel pump connector.
(c)Check for continuity between the wire harness side con-
nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
Circuit opening relay (C8±3) ± Fuel pump (F25±4)ContinuityFuel pump (F25±5) ± Body groundContinuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
Circuit opening relay (C8±3) or Fuel pump (F25±4) ±
Body groundNo continuity
NGREPAIR OR REPLACE HARNESS ORCONNECTOR
OK
CHECK AND REPLACE ECM (See page 01±32)

A76869
Engine Room R/B No.1
Engine Room J/B No.1
EFI
12
1 1A1
B±G
4A
4B 11
Engine
Room J/B No.4
B±G
FL MAIN
Battery
EFBR B±Y
IE3
IO1 77
(LHD)(RHD)B±Y3
E9 BATTECM
E1 7
E12
A66054
Engine Room R/B No.1
EFI Fuse
05±262
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

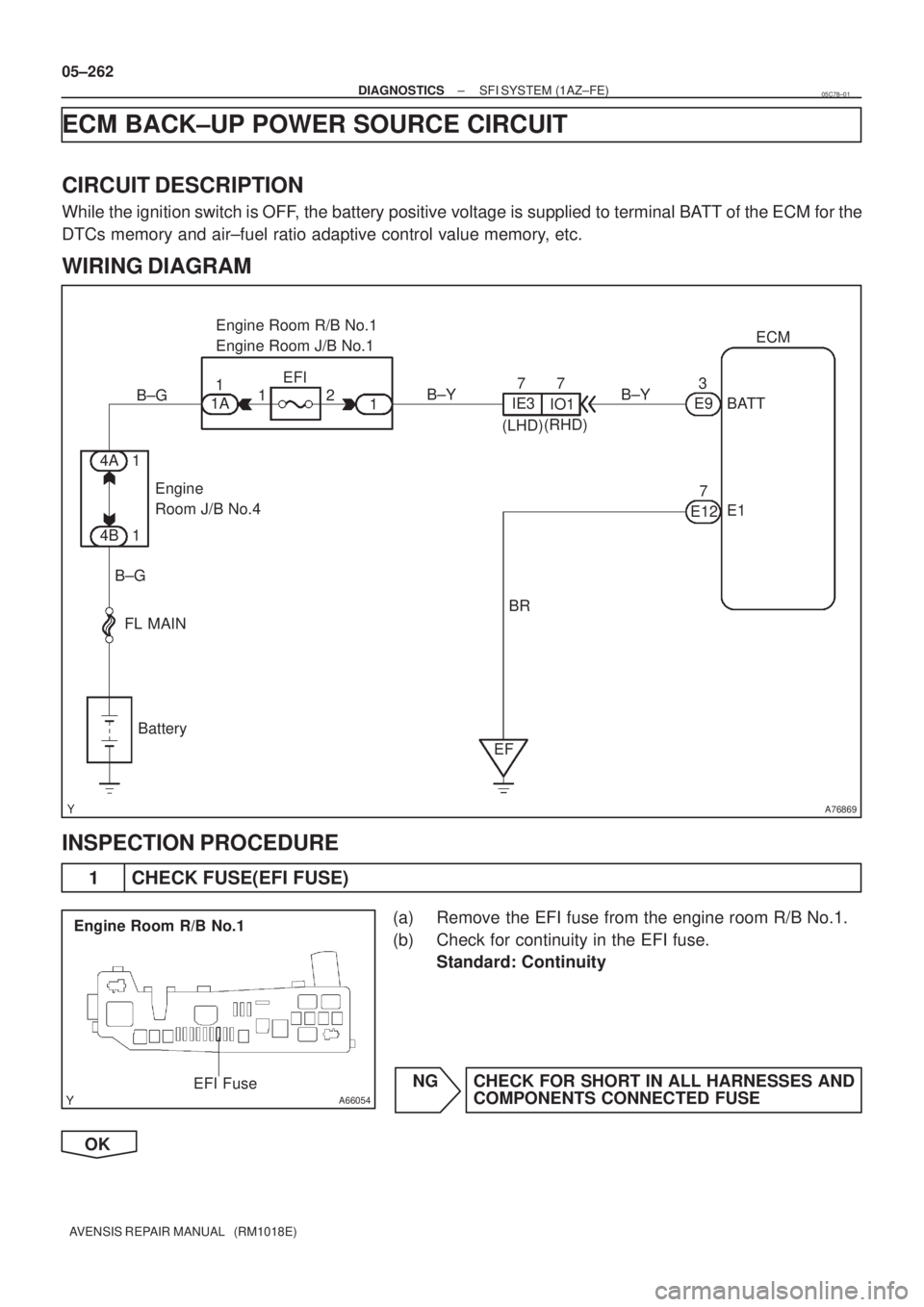

ECM BACK±UP POWER SOURCE CIRCUIT
CIRCUIT DESCRIPTION
While the ignition switch is OFF, the battery positive voltage is supplied to terminal BATT of the ECM for the
DTCs memory and air±fuel ratio adaptive control value memory, etc.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 CHECK FUSE(EFI FUSE)
(a) Remove the EFI fuse from the engine room R/B No.1.
(b) Check for continuity in the EFI fuse.
Standard: Continuity
NG CHECK FOR SHORT IN ALL HARNESSES AND
COMPONENTS CONNECTED FUSE
OK
05C78±01

A18294
BATT (+)E1 (±)
ECM Connector
E9E12
A65748
E9
ECM Connector
BATT

A79078
Engine Room R/B No.1 EFI Fuse2
1
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±263
AVENSIS REPAIR MANUAL (RM1018E)

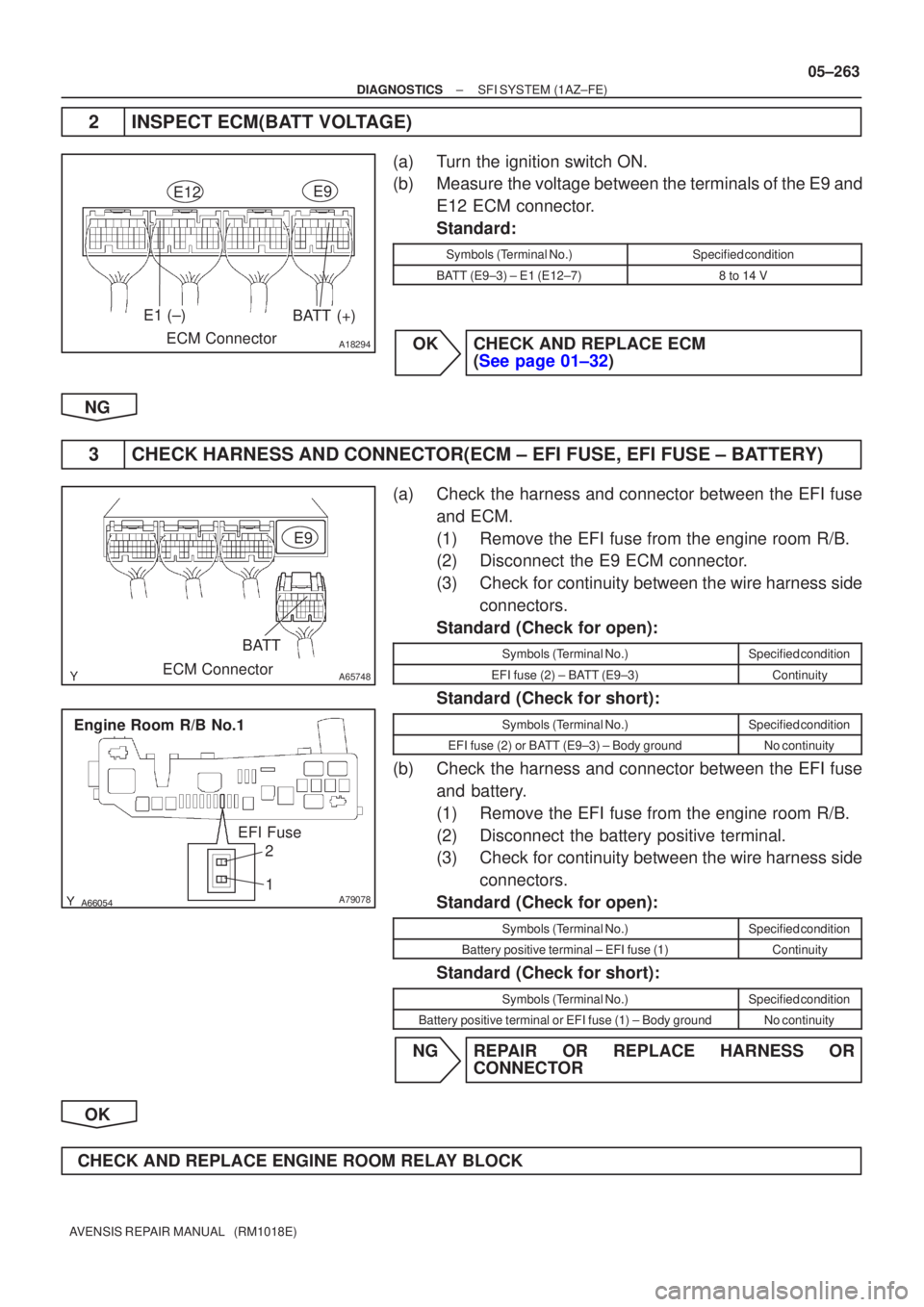

2INSPECT ECM(BATT VOLTAGE)
(a)Turn the ignition switch ON.
(b)Measure the voltage between the terminals of the E9 and
E12 ECM connector.
Standard:
Symbols (Terminal No.)Specified condition
BATT (E9±3) ± E1 (E12±7)8 to 14 V
OKCHECK AND REPLACE ECM (See page 01±32)
NG
3 CHECK HARNESS AND CONNECTOR(ECM ± EFI FUSE, EFI FUSE ± BATTERY)
(a) Check the harness and connector between the EFI fuse and ECM.
(1) Remove the EFI fuse from the engine room R/B.
(2) Disconnect the E9 ECM connector.
(3) Check for continuity between the wire harness sideconnectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
EFI fuse (2) ± BATT (E9±3)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
EFI fuse (2) or BATT (E9±3) ± Body groundNo continuity
(b) Check the harness and connector between the EFI fuse and battery.
(1) Remove the EFI fuse from the engine room R/B.
(2) Disconnect the battery positive terminal.
(3) Check for continuity between the wire harness sideconnectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
Battery positive terminal ± EFI fuse (1)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
Battery positive terminal or EFI fuse (1) ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
CHECK AND REPLACE ENGINE ROOM RELAY BLOCK

A79123
I13
Ignition SW
4
6
IE4B±R
IP1 1
1(LHD)
B±R
11B±Y B±R
DHIGN
DA18 2Driver Side J/B
22
EFI
1 AM2
1
1A 1
B±GEngine Room
R/B No.1
Engine Room
J/B No.1 (RHD)
14A
14BEngine Room
J/B No.4
B±G
FL MAIN
BatteryB±W
(LHD)B±W
(LHD)
J8
J/C CC B±W
(RHD)B±W
(RHD)
J/C J26 J27AE
ECM
IGSW
E99
GR
IE12
GR
E98
MREL
44
51
EFI
Relay+B 1
E9 B±R
Engine Room
R/B No.4
Engine Room
R/B No.444
4
4E1 7
E12
IK1 8
1
2
EF ECW±B
B±RBR B±W
EFI
No.132
B±R
EA1 12
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±257
AVENSIS REPAIR MANUAL (RM1018E)

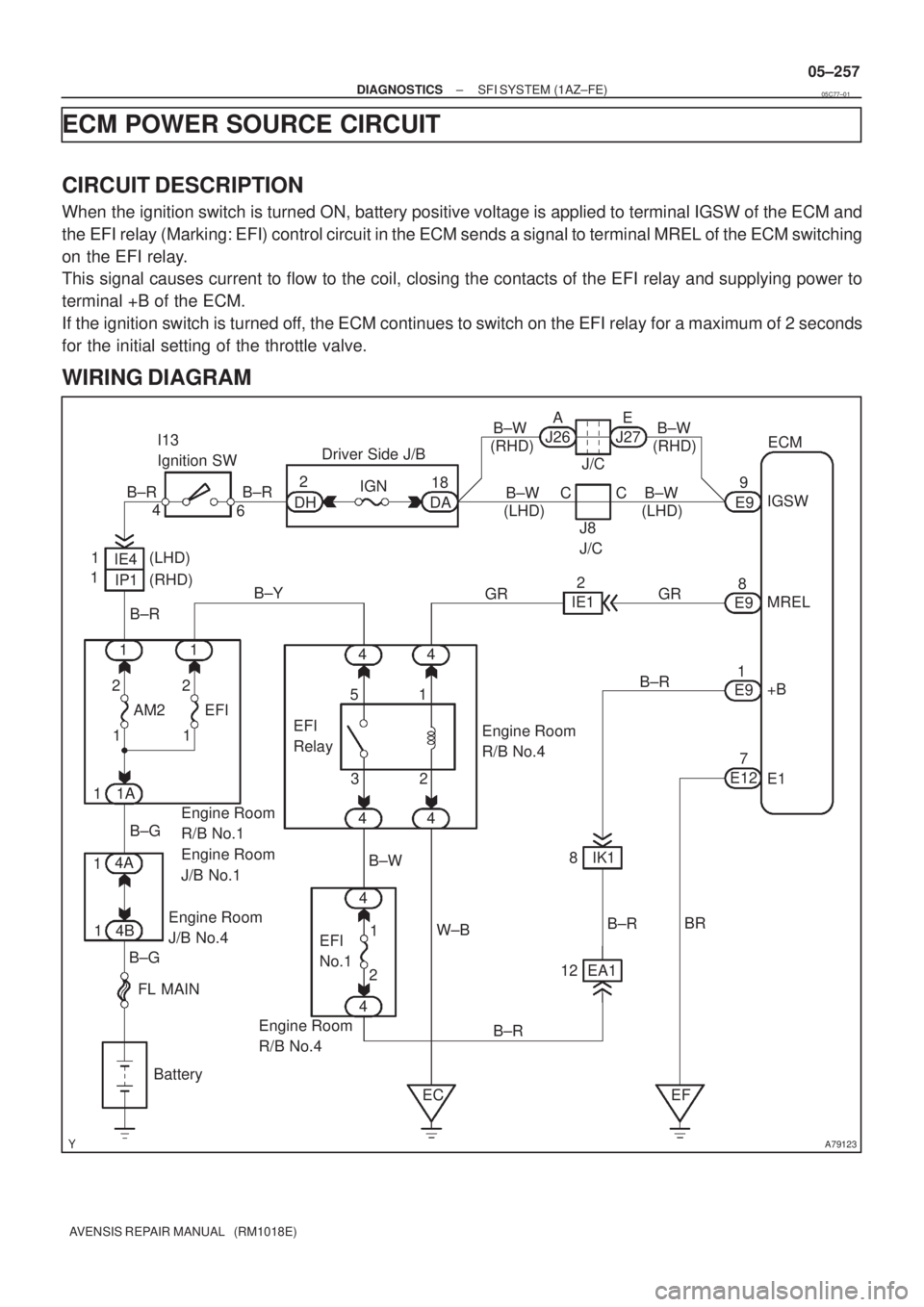

ECM POWER SOURCE CIRCUIT
CIRCUIT DESCRIPTION
When the ignition switch is turned ON, battery positive voltage is applied to terminal IGSW of the ECM and
the EFI relay (Marking: EFI) control circuit in the ECM sends a signal to terminal MREL of the ECM switching
on the EFI relay.
This signal causes current to flow to the coil, closing the contacts of the EFI relay and supplying power to
terminal +B of the ECM.
If the ignition switch is turned off, the ECM continues to switch on the EFI relay for a maximum of 2 seconds
for the initial setting of the throttle valve.
WIRING DIAGRAM
05C77±01
