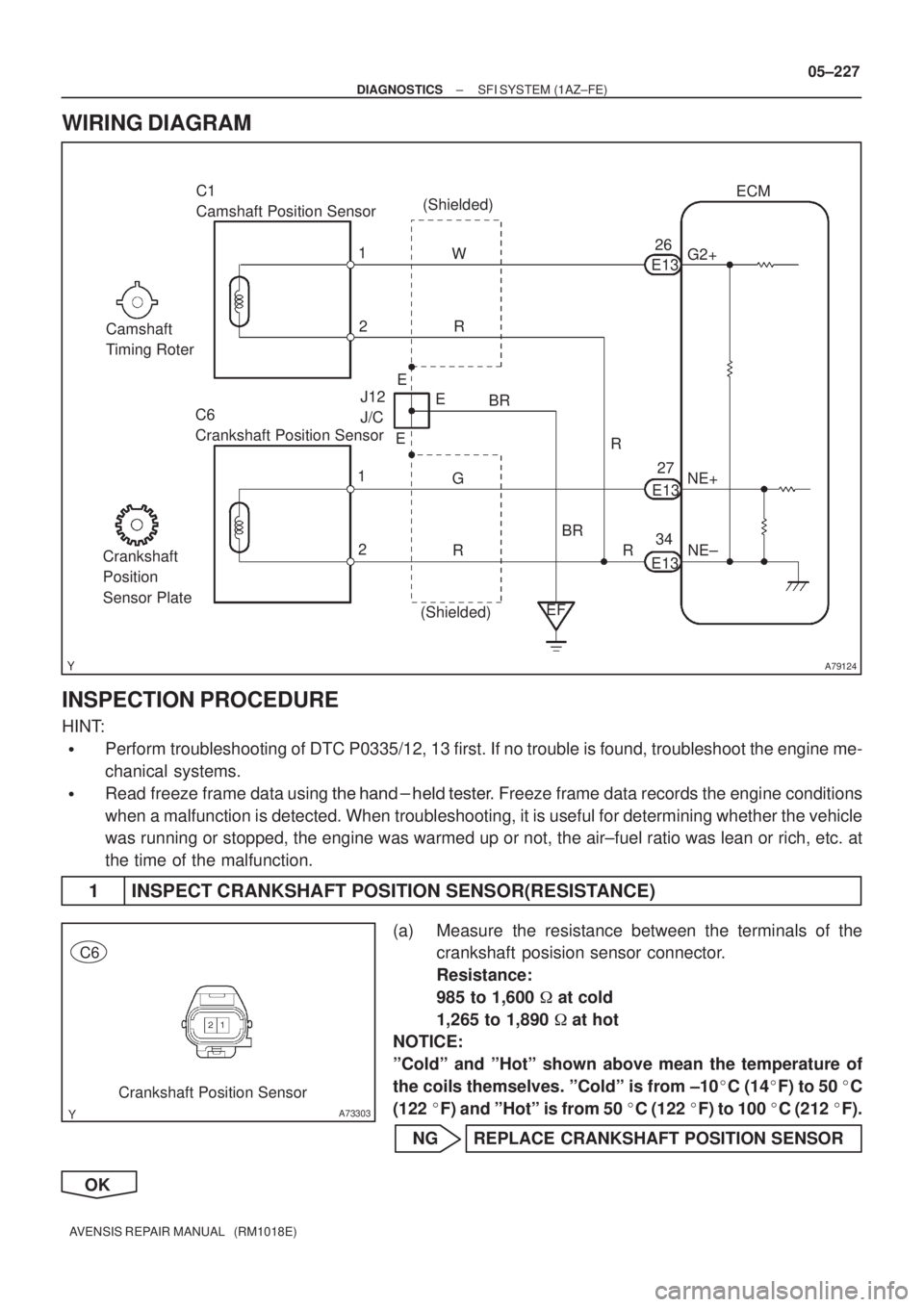

A79124
C1
Camshaft Position Sensor
C6
Crankshaft Position SensorR W
2 1
EF BR
G J12
J/CE1326ECM
G2+
NE+
NE± (Shielded)
R
BRE13
E1327
34
2 1
(Shielded)E E
E
R R
Crankshaft
Position
Sensor PlateCamshaft
Timing Roter
A73303
Crankshaft Position Sensor C6
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±227
AVENSIS REPAIR MANUAL (RM1018E)
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:

Perform troubleshooting of DTC P0335/12, 13 first. If no trouble is found, troubleshoot the engine me-
chanical systems.

Read freeze frame data using    
 Freeze frame data records the engine conditions
when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle
was running or stopped, the engine was warmed up or not, the air±fuel ratio was lean or rich, etc. at
the time of the malfunction.
1 INSPECT CRANKSHAFT POSITION SENSOR(RESISTANCE)
(a) Measure the resistance between the terminals of the
crankshaft posision sensor connector.
Resistance:
985 to 1,600
at cold
1,265 to 1,890
at hot
NOTICE:
ºColdº and ºHotº shown above mean the temperature of
the coils themselves. ºColdº is from ±10C (14F) to 50 C
(122 F) and ºHotº is from 50 C (122 F) to 100 C (212 F).
NG REPLACE CRANKSHAFT POSITION SENSOR
OK


A66132
Wire Harness SideNE+ NE±
Crankshaft Position Sensor Connector
C6
A65743NE±
NE+
E13
ECM Connector
05±228
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

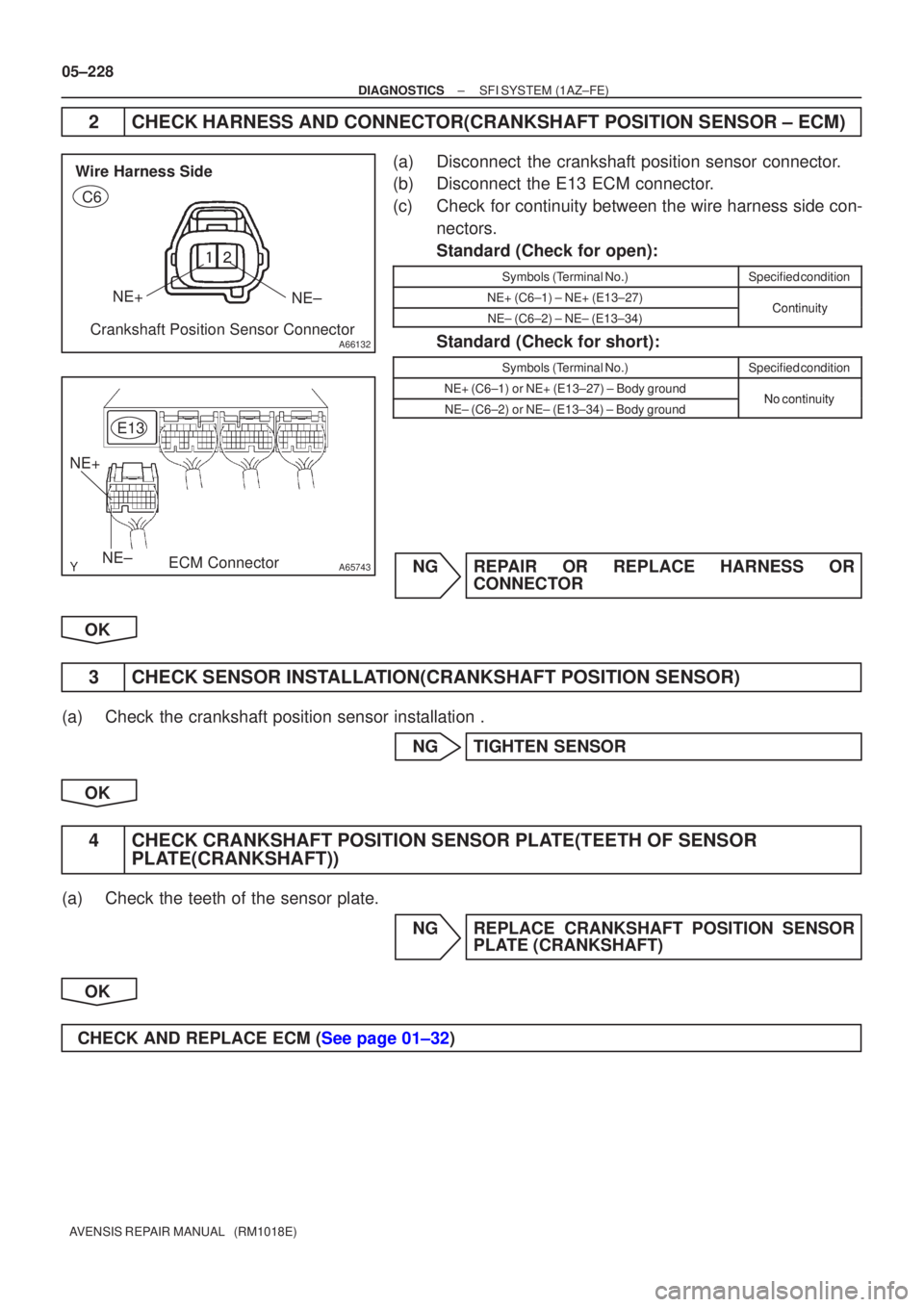

2CHECK HARNESS AND CONNECTOR(CRANKSHAFT POSITION SENSOR ± ECM)
(a)Disconnect the crankshaft position sensor connector.
(b)Disconnect the E13 ECM connector.
(c)Check for continuity between the wire harness side con- nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
NE+ (C6±1) ± NE+ (E13±27)ContinuityNE± (C6±2) ± NE± (E13±34)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
NE+ (C6±1)or NE+ (E13±27) ± Body groundNocontinuityNE± (C6±2)or NE± (E13±34) ± Body groundNo continuity
NGREPAIR OR REPLACE HARNESS OR CONNECTOR
OK
3CHECK SENSOR INSTALLATION(CRANKSHAFT POSITION SENSOR)
(a)Check the crankshaft position sensor installation . NGTIGHTEN SENSOR
OK
4CHECK CRANKSHAFT POSITION SENSOR PLATE(TEETH OF SENSOR PLATE(CRANKSHAFT))
(a)Check the teeth of the sensor plate.
NGREPLACE CRANKSHAFT POSITION SENSORPLATE (CRANKSHAFT)
OK
CHECK AND REPLACE ECM (See page 01±32)



A05134
KNK Signal Waveform 05±222
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

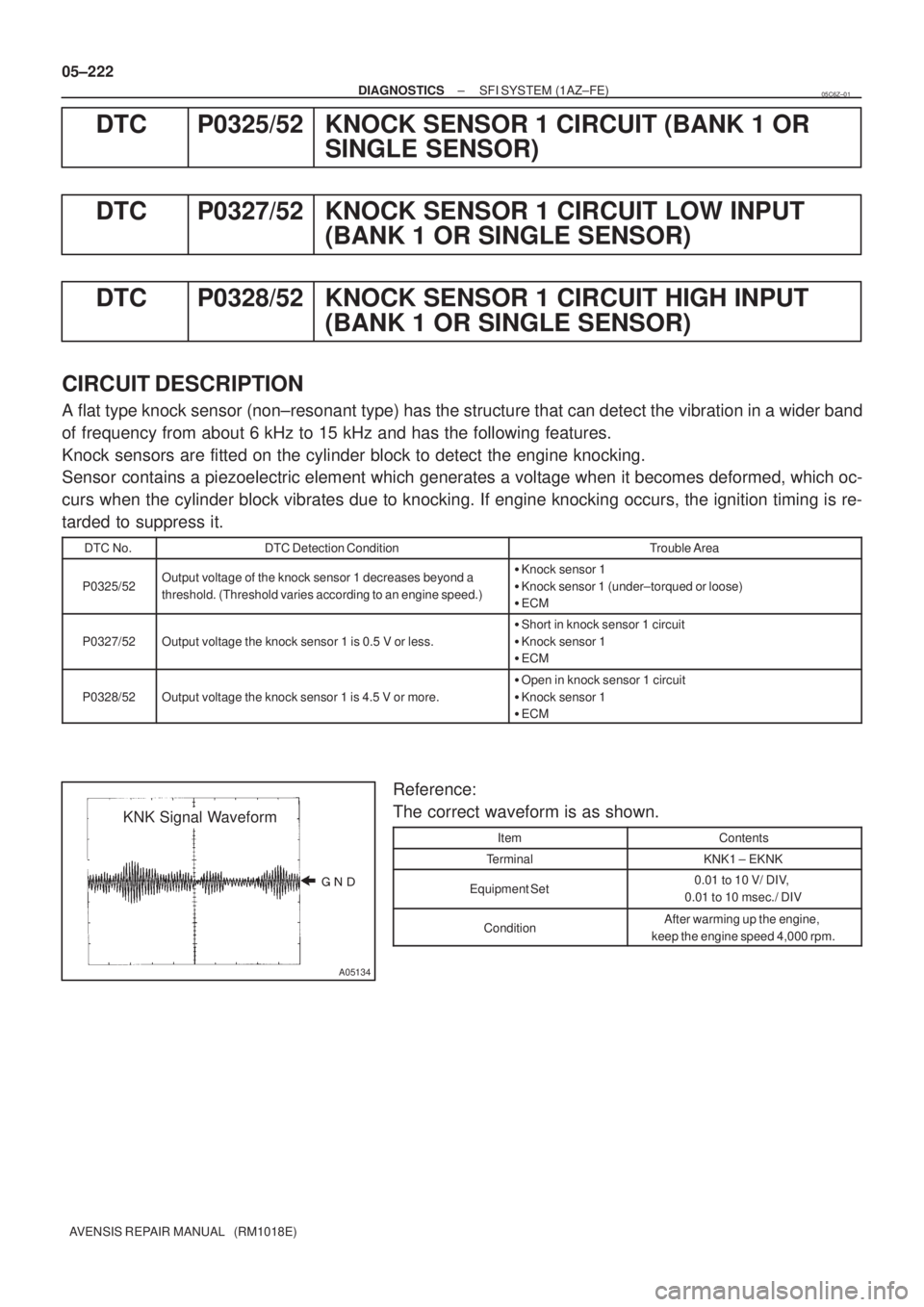

DTC P0325/52 KNOCK SENSOR 1 CIRCUIT (BANK 1 OR
SINGLE SENSOR)
DTC P0327/52 KNOCK SENSOR 1 CIRCUIT LOW INPUT
(BANK 1 OR SINGLE SENSOR)
DTC P0328/52 KNOCK SENSOR 1 CIRCUIT HIGH INPUT
(BANK 1 OR SINGLE SENSOR)
CIRCUIT DESCRIPTION
A flat type knock sensor (non±resonant type) has the structure that can detect the vibration in a wider band
of frequency from about 6 kHz to 15 kHz and has the following features.
Knock sensors are fitted on the cylinder block to detect the engine knocking.
Sensor contains a piezoelectric element which generates a voltage when it becomes deformed, which oc-
curs when the cylinder block vibrates due to knocking. If engine knocking occurs, the ignition timing is re-
tarded to suppress it.
DTC No.DTC Detection ConditionTrouble Area
P0325/52Output voltage of the knock sensor 1 decreases beyond a
threshold. (Threshold varies according to an engine speed.)
Knock sensor 1

Knock sensor 1 (under±torqued or loose)

ECM
P0327/52Output voltage the knock sensor 1 is 0.5 V or less.

Short in knock sensor 1 circuit

Knock sensor 1

ECM
P0328/52Output voltage the knock sensor 1 is 4.5 V or more.

Open in knock sensor 1 circuit

Knock sensor 1

ECM
Reference:
The correct waveform is as shown.
ItemContents
TerminalKNK1 ± EKNK
Equipment Set0.01 to 10 V/ DIV,
0.01 to 10 msec./ DIV
ConditionAfter warming up the engine,
keep the engine speed 4,000 rpm.
05C6Z±01

A76872
K1
Knock SensorECM
KNK1
E12
(Shielded)
1 BR D
E
J13 J12 1
B B
J/C EKNK
E12 2
W
2
EFJ12
J13
D
E
BR BR
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
05±223
AVENSIS REPAIR MANUAL (RM1018E)

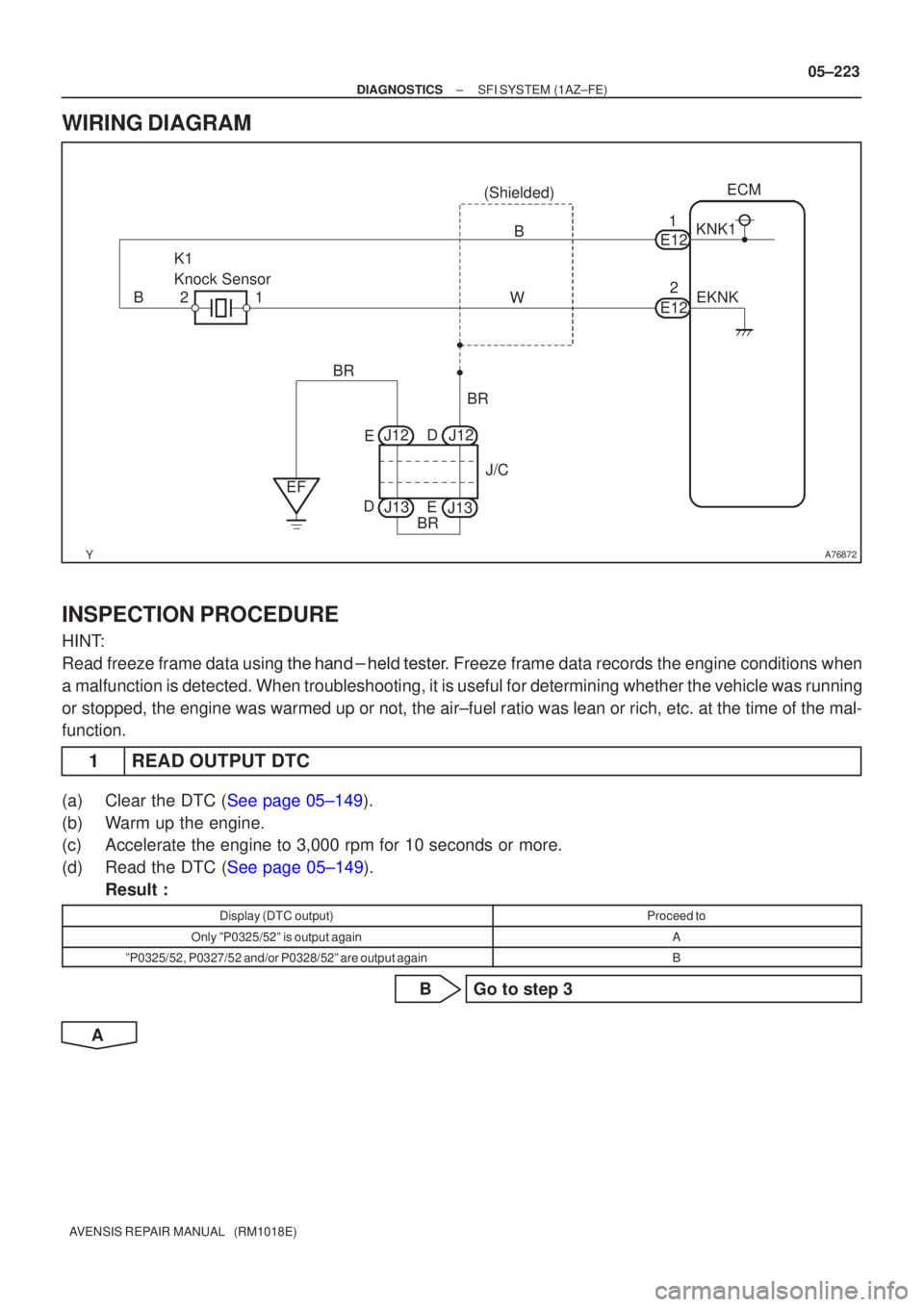

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Read freeze frame data using \f \b\f\f
 Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determi\
ning whether the vehicle was running
or stopped, the engine was warmed up or not, the air±fuel ratio was lea\
n or rich, etc. at the time of the mal-
function.
1READ OUTPUT DTC
(a)Clear the DTC (See page 05±149).
(b) Warm up the engine.
(c) Accelerate the engine to 3,000 rpm for 10 seconds or more.
(d)Read the DTC (
See page 05±149).

Result :
Display (DTC output)Proceed to
Only ºP0325/52º is output againA
ºP0325/52, P0327/52 and/or P0328/52º are output againB
B Go to step 3
A

A65745
E12
ECM ConnectorKNK1
EKNK
A79072
E12
ECM ConnectorKNK1
EKNK
05±224
±
DIAGNOSTICS SFI SYSTEM(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

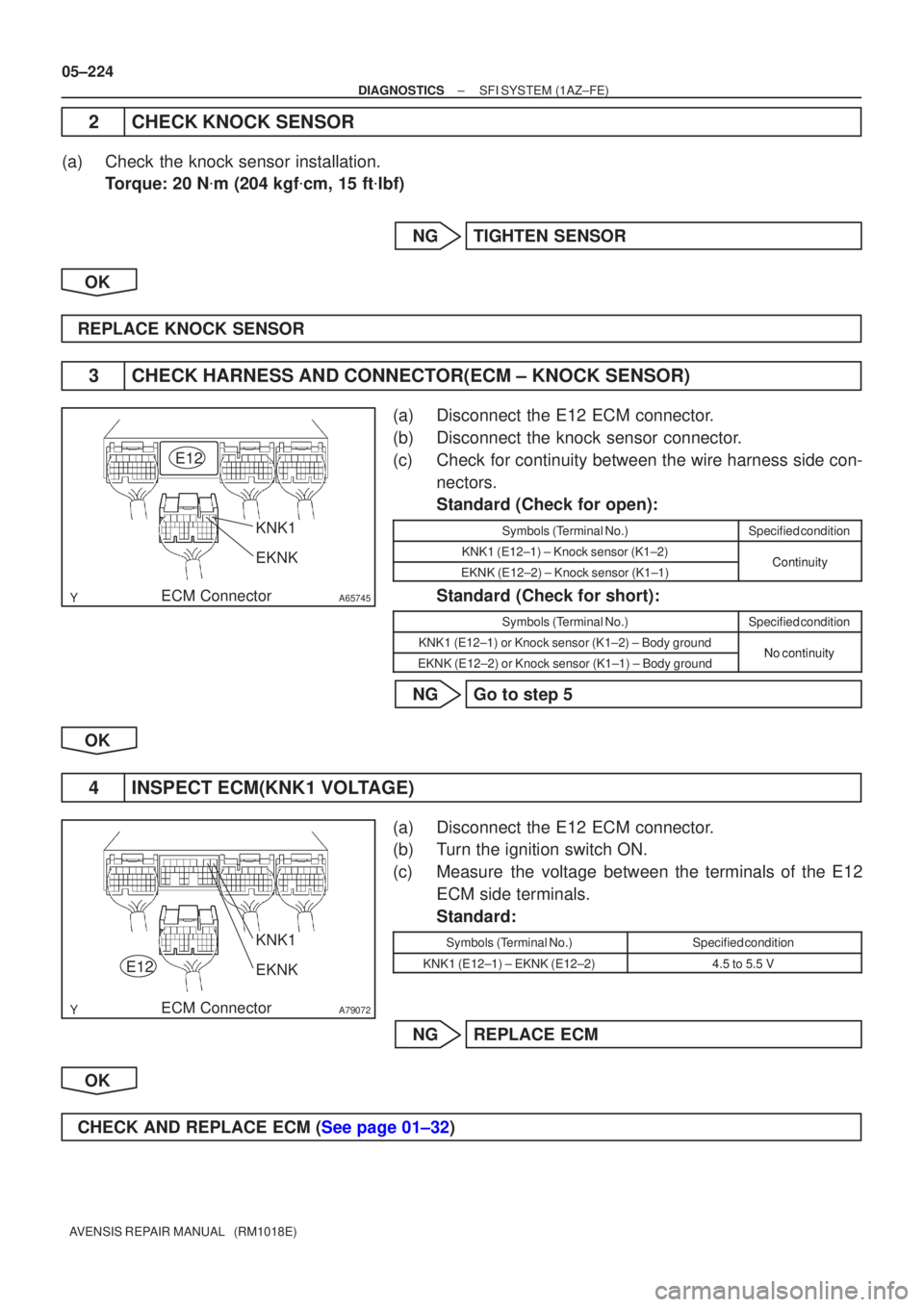

2CHECK KNOCK SENSOR
(a)Check the knock sensor installation. Torque: 20 N
m (204 kgf
cm, 15 ft
lbf)
NGTIGHTEN SENSOR
OK
REPLACE KNOCK SENSOR
3CHECK HARNESS AND CONNECTOR(ECM ± KNOCK SENSOR)
(a)Disconnect the E12 ECM connector.
(b)Disconnect the knock sensor connector.
(c)Check for continuity between the wire harness side con- nectors.
Standard (Check for open):
Symbols (Terminal No.)Specified condition
KNK1 (E12±1) ± Knock sensor (K1±2)ContinuityEKNK (E12±2) ± Knock sensor (K1±1)Continuity
Standard (Check for short):
Symbols (Terminal No.)Specified condition
KNK1 (E12±1) or Knock sensor (K1±2) ± Body groundNocontinuityEKNK (E12±2) or Knock sensor (K1±1) ± Body groundNo continuity
NGGo to step 5
OK
4INSPECT ECM(KNK1 VOLTAGE)
(a)Disconnect the E12 ECM connector.
(b)Turn the ignition switch ON.
(c)Measure the voltage between the terminals of the E12 ECM side terminals.
Standard:
Symbols (Terminal No.)Specified condition
KNK1 (E12±1) ± EKNK (E12±2)4.5 to 5.5 V
NGREPLACE ECM
OK
CHECK AND REPLACE ECM (See page 01±32)

A65174
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±225
AVENSIS REPAIR MANUAL (RM1018E)

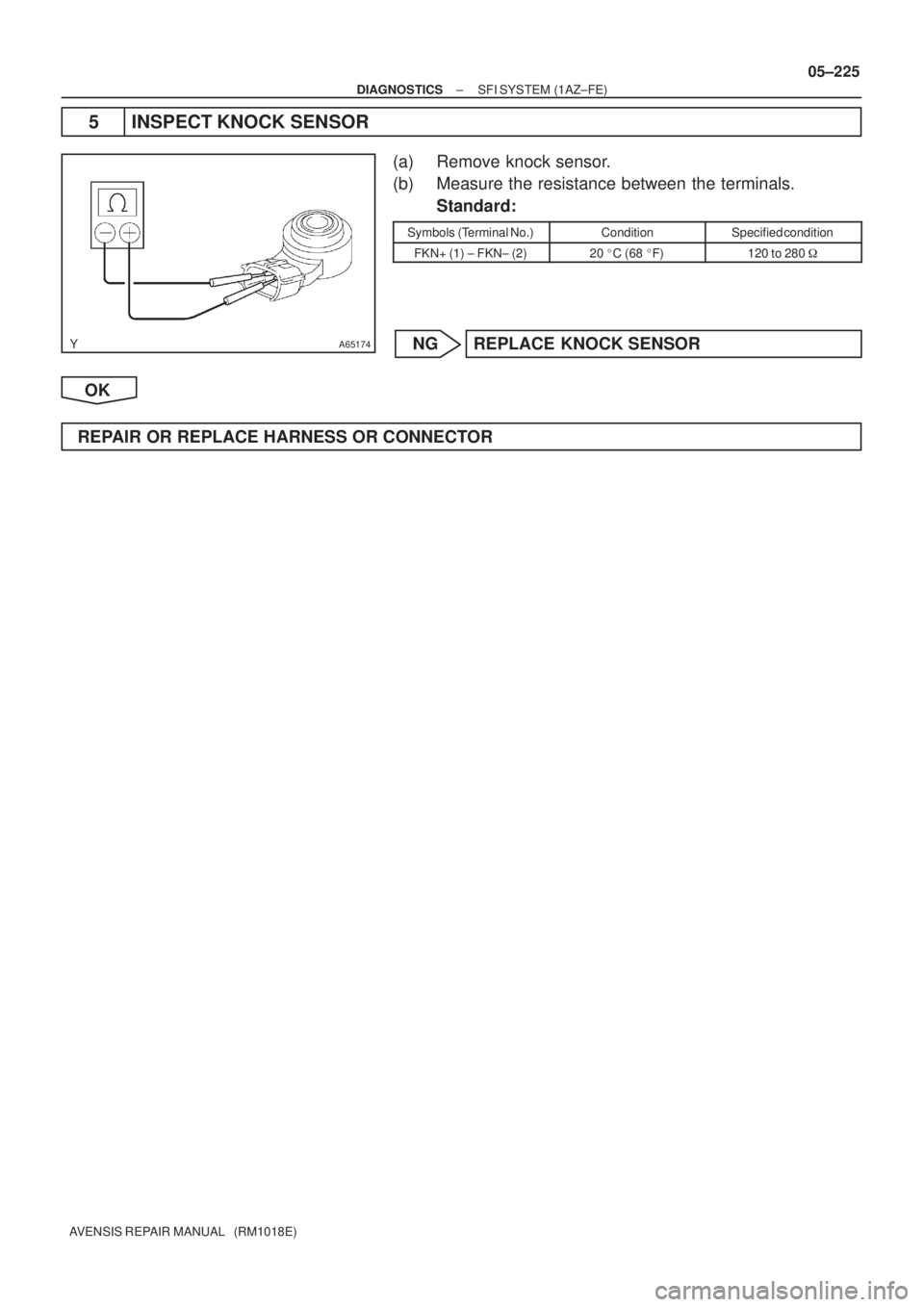

5 INSPECT KNOCK SENSOR
(a) Remove knock sensor.
(b) Measure the resistance between the terminals.
Standard:
Symbols (Terminal No.)ConditionSpecified condition
FKN+ (1) ± FKN± (2)20
C (68
F)120 to 280

NG REPLACE KNOCK SENSOR
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR

05CDV±01
A76858
Ignition Coil Assy
Camshaft Position Sensor VSV for EVAP
Combination Meter
DLC3
VSV for Intake Air Control ValveFuel Pump ECM
Knock Sensor Camshaft Timing Oil Control Valve
(OCV)
Injector
Crankshaft Position
Sensor
Park/Neutral Position Switch
(Only for A/T Models)Engine Coolant
Temperature Sensor
Mass Air Flow Meter
Throttle Body Assy
Accelerator Pedal Assy
Heated Oxygen Sensor
(Bank 2 Sensor 2)
Circuit Opening Relay
Heated Oxygen Sensor
(Bank 1 Sensor 2)
Heated Oxygen Sensor
(Bank 2 Sensor 1)
Heated Oxygen Sensor
(Bank 1 Sensor 1)
Manifold Absolute Pressure Sensor
Fuel Pump (For High Pressure)
Engine Room R/B No. 1Engine Room R/B No. 4Injector Driver (EDU)
Brake Booster
Pressure Sensor
Fuel Pressure Sensor
(For Low Pressure)
± DIAGNOSTICSSFI SYSTEM (1AZ±FSE)
05±317
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION

05CID±01
±
DIAGNOSTICS SFI SYSTEM(1AZ±FSE)
05±309
AVENSIS REPAIR MANUAL (RM1018E)

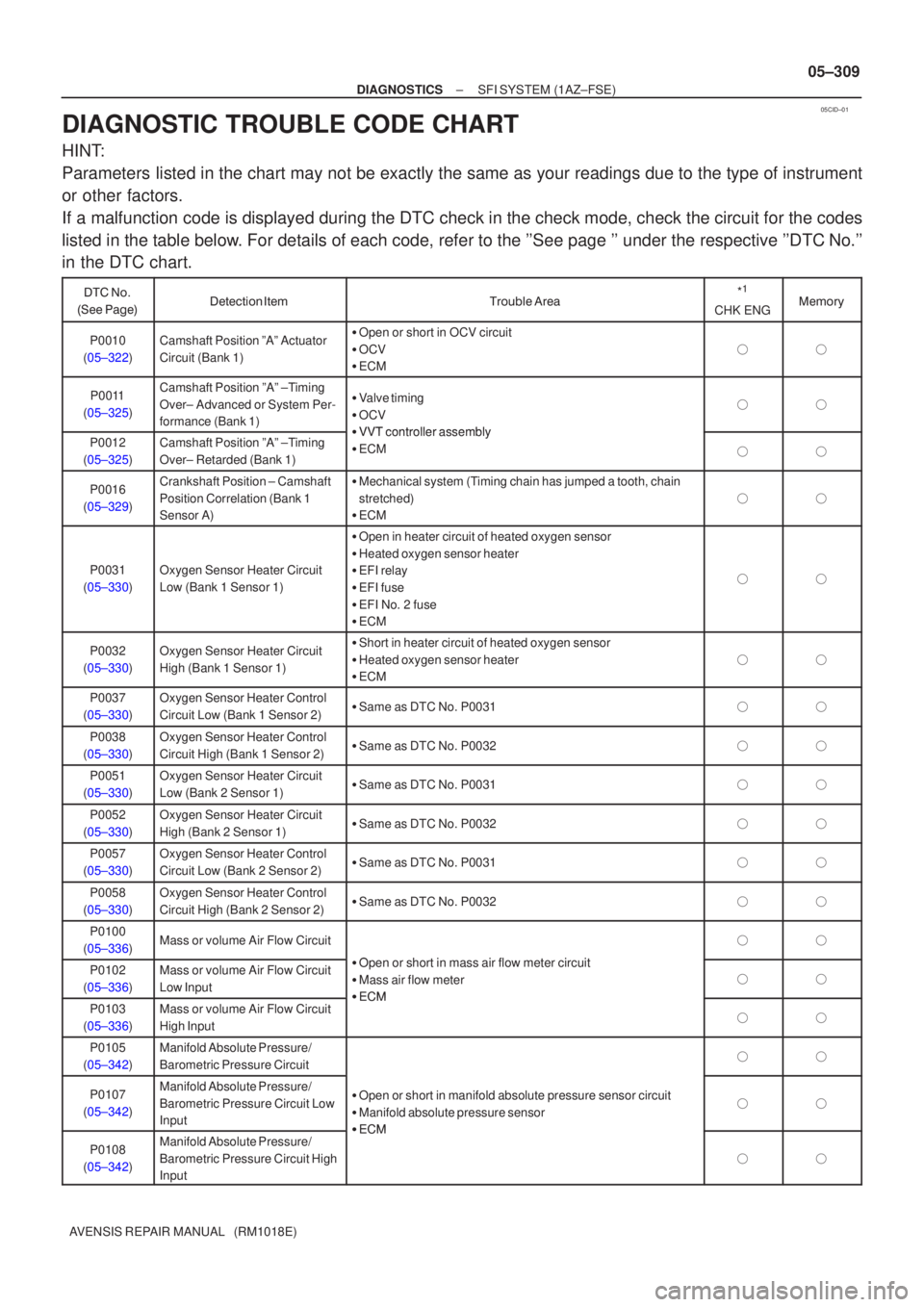

DIAGNOSTIC TROUBLE CODE CHART
HINT:
Parameters listed in the chart may not be exactly the same as your readings due to\
the type of instrument
or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit f\
or the codes
listed in the table below. For details of each code, refer to the ''See page '' under the respective ''DTC No.''
in the DTC chart.



\f  \b
 *1
CHK ENG
P0010
(05±322)Camshaft Position ºAº Actuator
Circuit (Bank 1)
Open or short in OCV circuit

OCV

ECM

P0011
(05±325)Camshaft Position ºAº ±Timing
Over± Advanced or System Per-
formance (Bank 1)
Valve timing

OCV

VVT controller assembly

P0012
(05±325)Camshaft Position ºAº ±Timing
Over± Retarded (Bank 1)
VVT controller assembly

ECM

P0016
(05±329)Crankshaft Position ± Camshaft
Position Correlation (Bank 1
Sensor A)
Mechanical system (Timing chain has jumped a tooth, chain
stretched)

ECM

P0031
(05±330)Oxygen Sensor Heater Circuit
Low (Bank 1 Sensor 1)

Open in heater circuit of heated oxygen sensor

Heated oxygen sensor heater

EFI relay

EFI fuse

EFI No. 2 fuse

ECM

P0032
(05±330)Oxygen Sensor Heater Circuit
High (Bank 1 Sensor 1)
Short in heater circuit of heated oxygen sensor

Heated oxygen sensor heater

ECM

P0037
(05±330)Oxygen Sensor Heater Control
Circuit Low (Bank 1 Sensor 2)
Same as DTC No. P0031
P0038
(05±330)Oxygen Sensor Heater Control
Circuit High (Bank 1 Sensor 2)
Same as DTC No. P0032
P0051
(05±330)Oxygen Sensor Heater Circuit
Low (Bank 2 Sensor 1)
Same as DTC No. P0031
P0052
(05±330)Oxygen Sensor Heater Circuit
High (Bank 2 Sensor 1)
Same as DTC No. P0032
P0057
(05±330)Oxygen Sensor Heater Control
Circuit Low (Bank 2 Sensor 2)
Same as DTC No. P0031
P0058
(05±330)Oxygen Sensor Heater Control
Circuit High (Bank 2 Sensor 2)
Same as DTC No. P0032
P0100
(05±336)Mass or volume Air Flow Circuit
Ohti ifltiit

P0102
(05±336)Mass or volume Air Flow Circuit
Low Input
Open or short in mass air flow meter circuit

Mass air flow meter

ECM

P0103
(05±336)Mass or volume Air Flow Circuit
High Input
ECM

P0105
(05±342)Manifold Absolute Pressure/
Barometric Pressure Circuit
P0107
(05±342)Manifold Absolute Pressure/
Barometric Pressure Circuit Low
Input
Open or short in manifold absolute pressure sensor circuit

Manifold absolute pressure sensor

ECM

P0108
(05±342)Manifold Absolute Pressure/
Barometric Pressure Circuit High
Input
ECM


05±310
±
DIAGNOSTICS SFI SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)


\f
*
1
CHK ENG

 \b

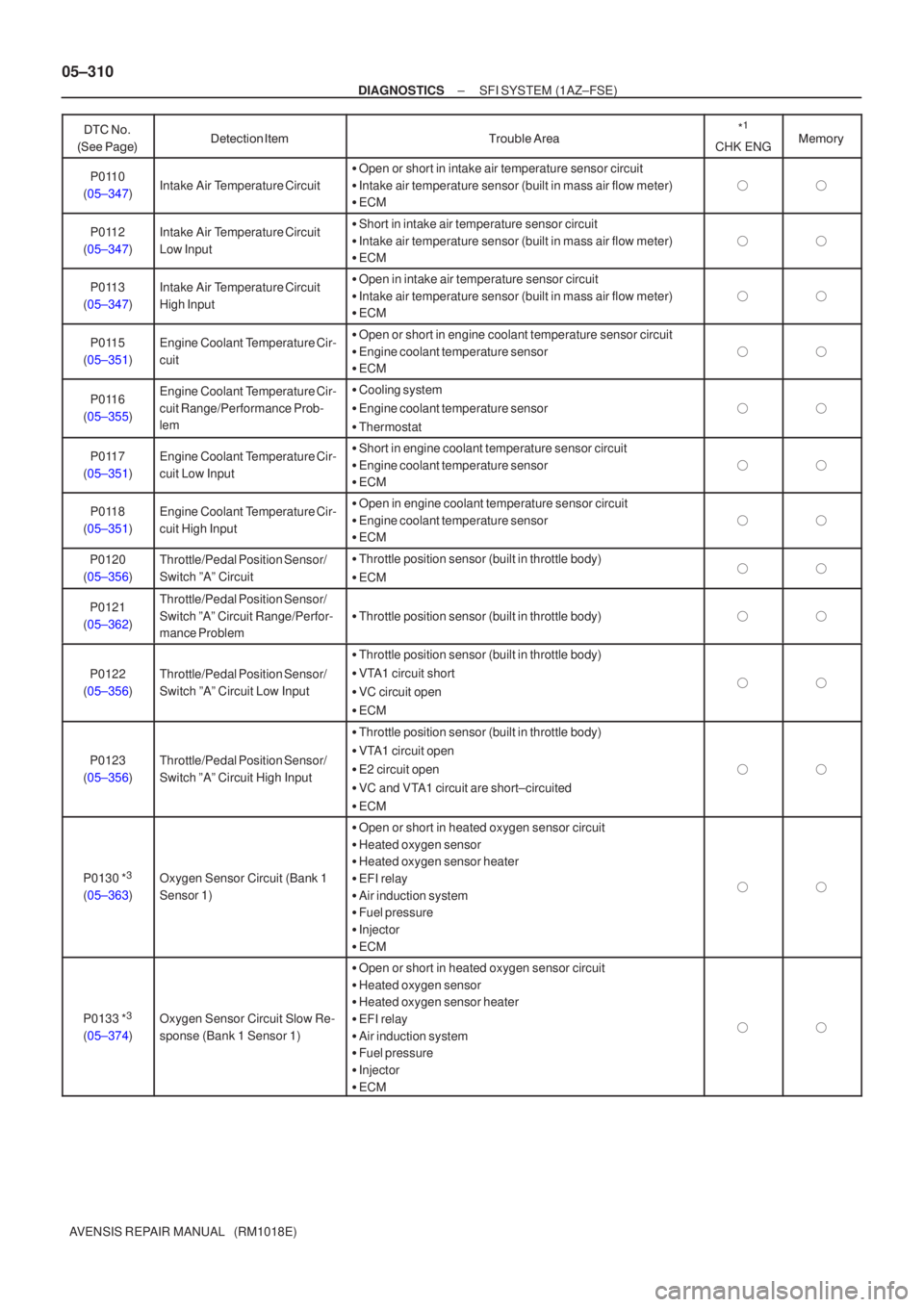

P0110
(05±347)Intake Air Temperature Circuit

Open or short in intake air temperature sensor circuit

Intake air temperature sensor (built in mass air flow meter)

ECM

P0112
(05±347)Intake Air Temperature Circuit
Low Input
Short in intake air temperature sensor circuit

Intake air temperature sensor (built in mass air flow meter)

ECM

P0113
(05±347)Intake Air Temperature Circuit
High Input
Open in intake air temperature sensor circuit

Intake air temperature sensor (built in mass air flow meter)

ECM

P0115
(05±351)Engine Coolant Temperature Cir-
cuit
Open or short in engine coolant temperature sensor circuit

Engine coolant temperature sensor

ECM

P0116
(05±355)Engine Coolant Temperature Cir-
cuit Range/Performance Prob-
lem
Cooling system

Engine coolant temperature sensor

Thermostat

P0117
(05±351)Engine Coolant Temperature Cir-
cuit Low Input
Short in engine coolant temperature sensor circuit

Engine coolant temperature sensor

ECM

P0118
(05±351)Engine Coolant Temperature Cir-
cuit High Input
Open in engine coolant temperature sensor circuit

Engine coolant temperature sensor

ECM

P0120
(05±356)Throttle/Pedal Position Sensor/
Switch ºAº Circuit
Throttle position sensor (built in throttle body)

ECM
P0121
(05±362)Throttle/Pedal Position Sensor/
Switch ºAº Circuit Range/Perfor-
mance Problem

Throttle position sensor (built in throttle body)
P0122
(05±356)Throttle/Pedal Position Sensor/
Switch ºAº Circuit Low Input

Throttle position sensor (built in throttle body)

VTA1 circuit short

VC circuit open

ECM

P0123
(05±356)Throttle/Pedal Position Sensor/
Switch ºAº Circuit High Input

Throttle position sensor (built in throttle body)

VTA1 circuit open

E2 circuit open

VC and VTA1 circuit are short±circuited

ECM

P0130 *3
(05±363)
Oxygen Sensor Circuit (Bank 1
Sensor 1)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay

Air induction system

Fuel pressure

Injector

ECM

P0133 *3
(05±374)
Oxygen Sensor Circuit Slow Re-
sponse (Bank 1 Sensor 1)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay

Air induction system

Fuel pressure

Injector

ECM


±

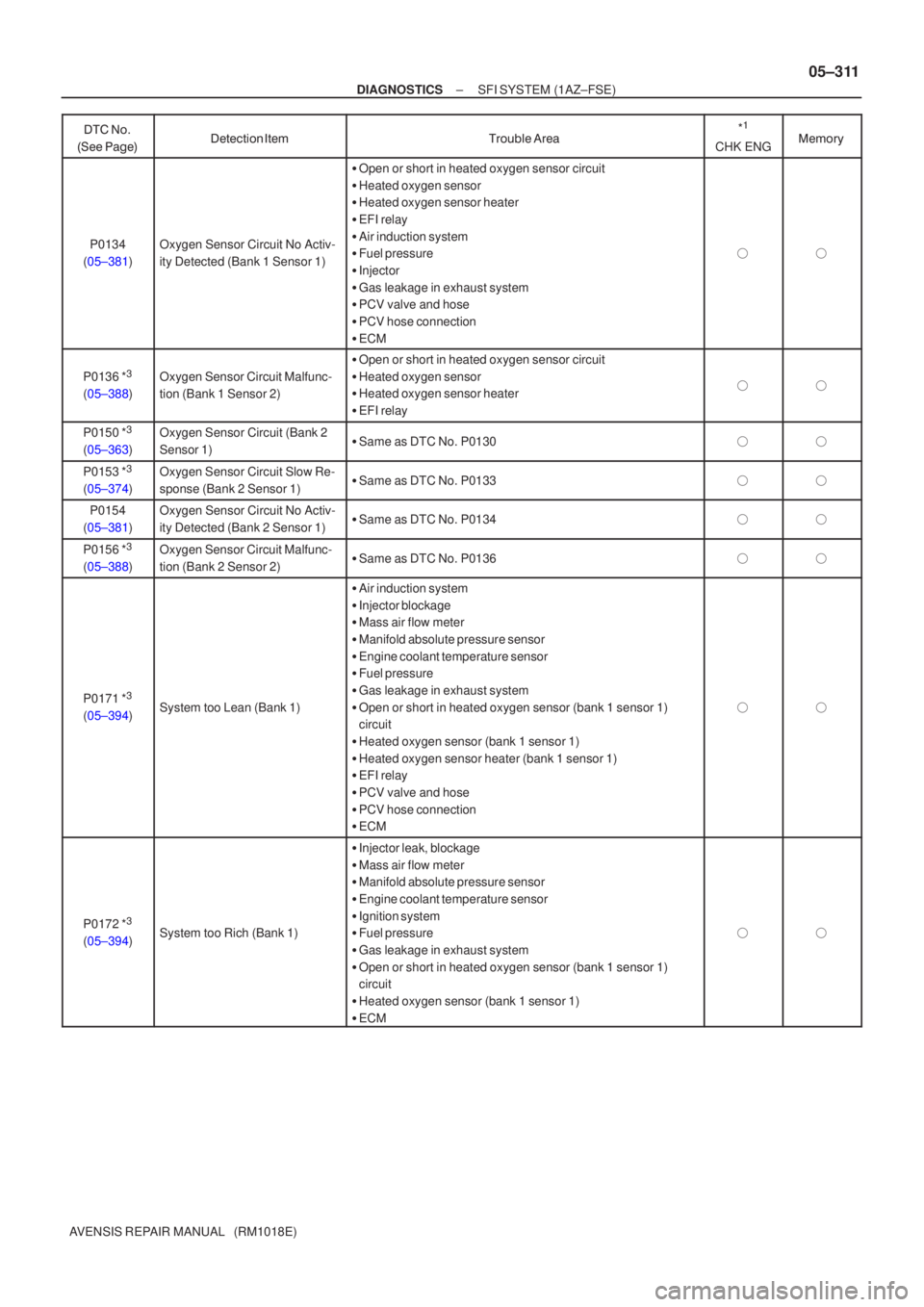

DIAGNOSTICS SFI SYSTEM (1AZ±FSE)
05±311
AVENSIS REPAIR MANUAL (RM1018E)


\f
*
1
CHK ENG

 \b
P0134
(05±381)Oxygen Sensor Circuit No Activ-
ity Detected (Bank 1 Sensor 1)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay

Air induction system

Fuel pressure

Injector

Gas leakage in exhaust system

PCV valve and hose

PCV hose connection

ECM

P0136 *3
(05±388)
Oxygen Sensor Circuit Malfunc-
tion (Bank 1 Sensor 2)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay

P0150 *3
(05±363)
Oxygen Sensor Circuit (Bank 2
Sensor 1)
Same as DTC No. P0130
P0153 *3
(05±374)
Oxygen Sensor Circuit Slow Re-
sponse (Bank 2 Sensor 1)
Same as DTC No. P0133
P0154
(05±381)Oxygen Sensor Circuit No Activ-
ity Detected (Bank 2 Sensor 1)
Same as DTC No. P0134
P0156 *3
(05±388)
Oxygen Sensor Circuit Malfunc-
tion (Bank 2 Sensor 2)
Same as DTC No. P0136
P0171 *3
(05±394)System too Lean (Bank 1)

Air induction system

Injector blockage

Mass air flow meter

Manifold absolute pressure sensor

Engine coolant temperature sensor

Fuel pressure

Gas leakage in exhaust system

Open or short in heated oxygen sensor (bank 1 sensor 1)
circuit

Heated oxygen sensor (bank 1 sensor 1)

Heated oxygen sensor heater (bank 1 sensor 1)

EFI relay

PCV valve and hose

PCV hose connection

ECM

P0172 *3
(05±394)System too Rich (Bank 1)

Injector leak, blockage

Mass air flow meter

Manifold absolute pressure sensor

Engine coolant temperature sensor

Ignition system

Fuel pressure

Gas leakage in exhaust system

Open or short in heated oxygen sensor (bank 1 sensor 1)
circuit

Heated oxygen sensor (bank 1 sensor 1)

ECM
