± INTRODUCTIONTERMS
01±37
AVENSIS REPAIR MANUAL (RM1018E)
TERMS

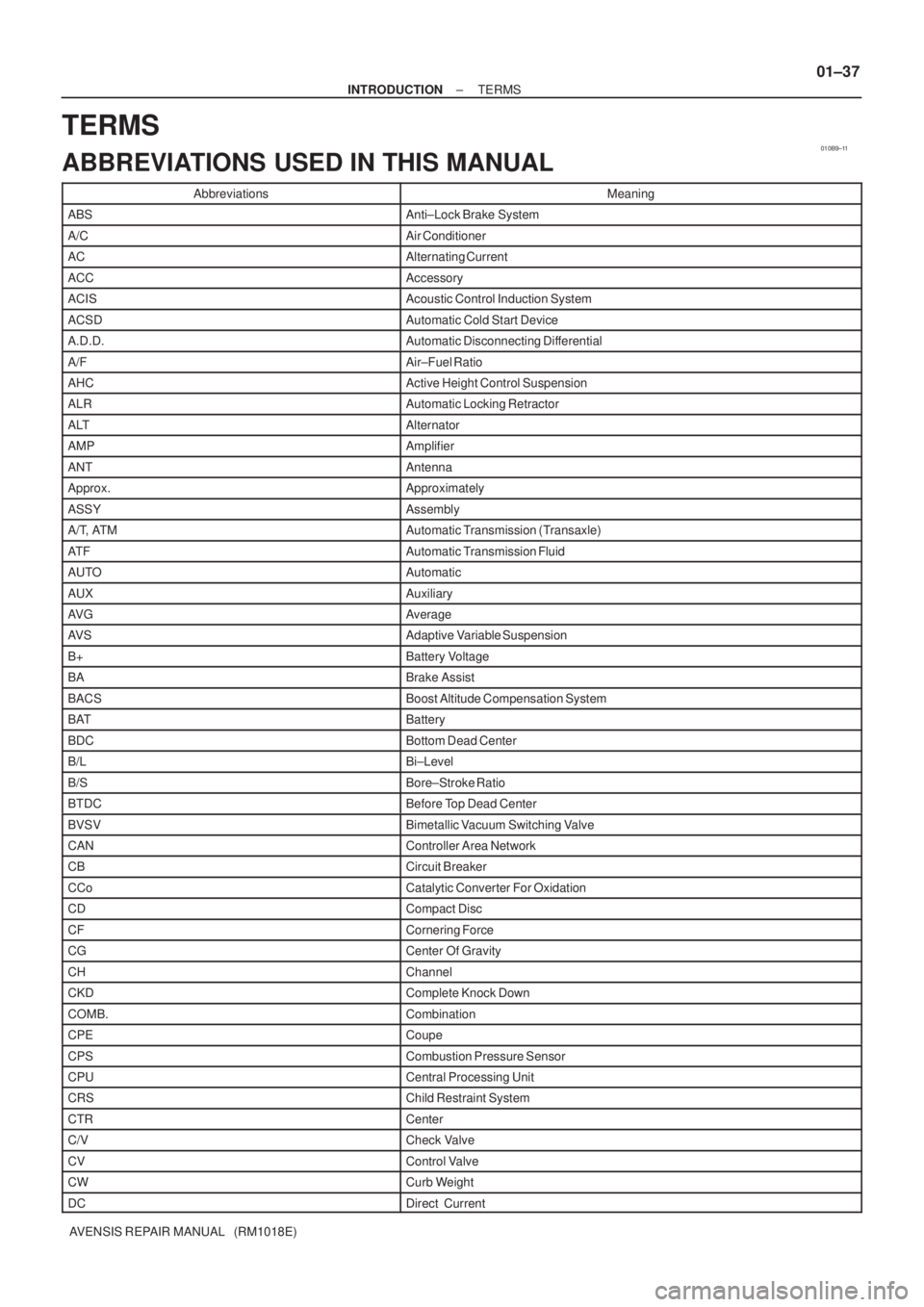

ABBREVIATIONS USED IN THIS MANUAL
AbbreviationsMeaning
ABSAnti±Lock Brake System
A/CAir Conditioner
ACAlternating Current
ACCAccessory
ACISAcoustic Control Induction System
ACSDAutomatic Cold Start Device
A.D.D.Automatic Disconnecting Differential
A/FAir±Fuel Ratio
AHCActive Height Control Suspension
ALRAutomatic Locking Retractor
ALTAlternator
AMPAmplifier
ANTAntenna
Approx.Approximately
ASSYAssembly
A/T, ATMAutomatic Transmission (Transaxle)
AT FAutomatic Transmission Fluid
AUTOAutomatic
AUXAuxiliary
AV GAverage
AV SAdaptive Variable Suspension
B+Battery Voltage
BABrake Assist
BACSBoost Altitude Compensation System
BATBattery
BDCBottom Dead Center
B/LBi±Level
B/SBore±Stroke Ratio
BTDCBefore Top Dead Center
BVSVBimetallic Vacuum Switching Valve
CANController Area Network
CBCircuit Breaker
CCoCatalytic Converter For Oxidation
CDCompact Disc
CFCornering Force
CGCenter Of Gravity
CHChannel
CKDComplete Knock Down
COMB.Combination
CPECoupe
CPSCombustion Pressure Sensor
CPUCentral Processing Unit
CRSChild Restraint System
CTRCenter
C/VCheck Valve
CVControl Valve
CWCurb Weight
DCDirect Current

± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS01±25
AVENSIS REPAIR MANUAL (RM1018E)
SYMPTOM CONFIRMATION AND DIAGNOSTIC TROUBLE CODE
HINT:

The diagnostic system in AVENSIS has various functions. The first function is the Diagnostic Trouble
Code (DTC) Check, in which a malfunction in the signal circuits to the ECU is stored in code form in
the ECU memory. Another function is the Input Signal Check, which checks if the signals from various
switches are sent to the ECU correctly. By using these check functions, it is possible to quickly narrow
down potential problem areas and troubleshooting can be performed effectively. The diagnostic func-
tions are incorporated in the following systems in the AVENSIS.
SystemDiagnostic Trouble
Code CheckInput Signal Check
(Sensor Check)Diagnostic Test
Mode (Active Test)
SFI System (1AZ±FE/1AZ±FSE, 1ZZ±FE/3ZZ±FE)

(with Check Mode)


ECD System (1CD±FTV)

(with Check Mode)


ABS with EBD System



ABS with EBD & BA & TRC & VSC System



Electronically Controlled Automatic Transmission [ECT]

(with Check Mode)

Air Conditioning System


Supplemental Restraint System

Audio System

Power Door Lock Control System


Wireless Door Lock Control System

Key Reminder Warning System

Engine Immobiliser System


Theft Deterrent System


Multiplex Communication System

Cruise Control System



In the DTC check, it is very important to determine whether the problem indicated by the DTC is still
occurring or has occurred in the past but returned to normal at present. In addition during the problem
symptom check, it a check must be made on whether the malfunction indicated by the DTC is directly
related to the problem symptom or not. For this reason, the DTC should be checked before and after
symptom confirmation to determine the current conditions. If this is not done, it may, depending on the
case, result in unnecessary troubleshooting for systems that are operating normally. This would make
more difficult to detect the problem area or to try to repair irrelevant areas. Therefore, always follow
the procedures in the correct order and perform the DTC check.

A flow chart showing how to proceed with troubleshooting using the diagnostic trouble code (DTC)
check is shown the this page. This flow chart shows how to utilize the DTC check effectively. Then,
by carefully checking the results, this chart indicates how to proceed either to the DTC troubleshooting
or to the troubleshooting of the problem symptoms table.
1 DTC check
2 Make a note of DTCs displayed and then clear the memory
3 Symptom confirmation

010B6±13
±
INTRODUCTION HOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS01±21
AVENSIS REPAIR MANUAL (RM1018E)

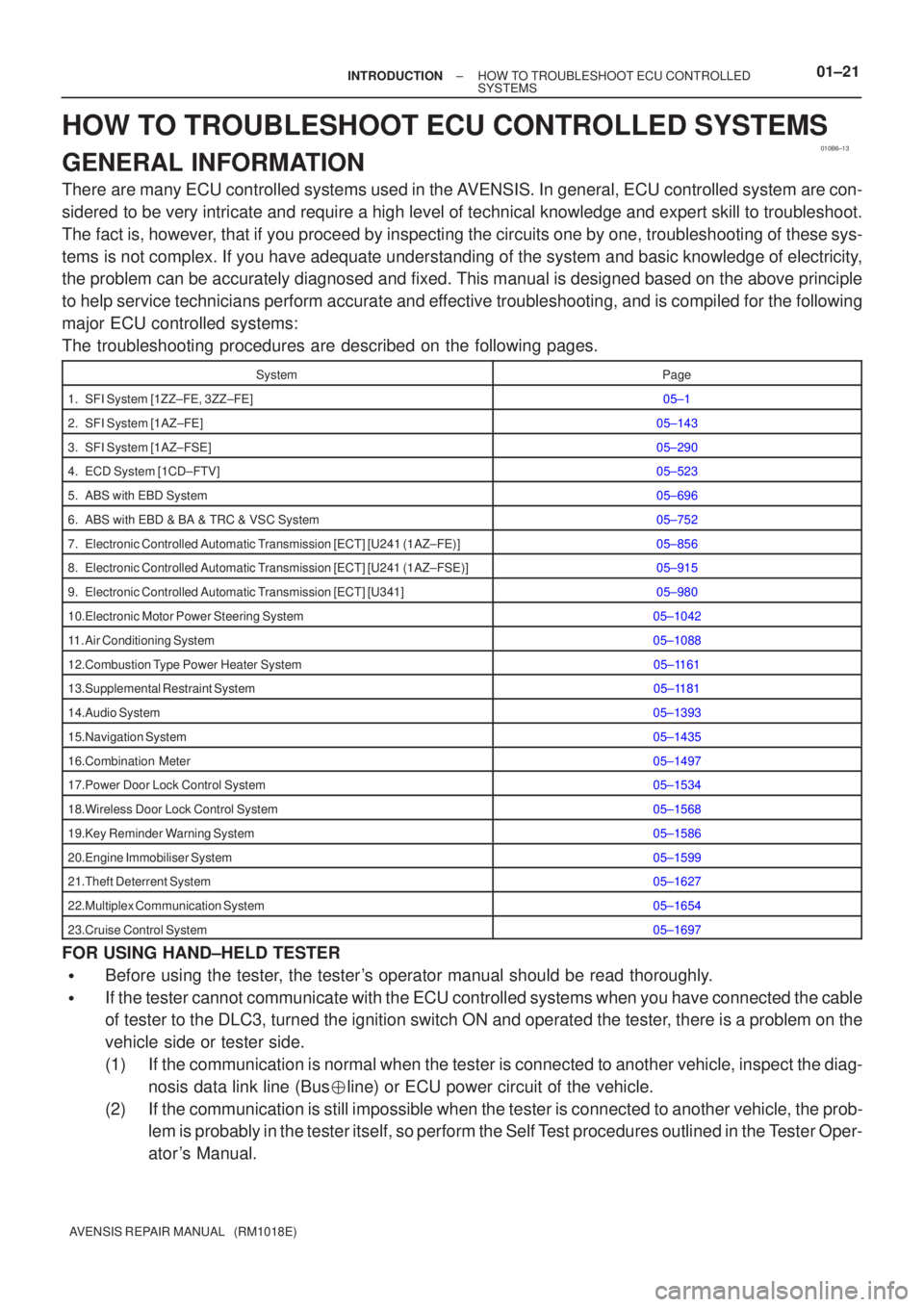

HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS
GENERAL INFORMATION
There are many ECU controlled systems used in the AVENSIS. In general, ECU controlled system are con-
sidered to be very intricate and require a high level of technical knowledge an\
d expert skill to troubleshoot.
The fact is, however, that if you proceed by inspecting the circuits one by one, troubleshoo\
ting of these sys-
tems is not complex. If you have adequate understanding of the system and ba\
sic knowledge of electricity,
the problem can be accurately diagnosed and fixed. This manual is design\
ed based on the above principle
to help service technicians perform accurate and effective troubleshooting, and is compiled for the following
major ECU controlled systems:
The troubleshooting procedures are described on the following pages.
SystemPage
1. SFI System [1ZZ±FE, 3ZZ±FE]05±1
2. SFI System [1AZ±FE]05±143
3. SFI System [1AZ±FSE]05±290
4. ECD System [1CD±FTV]05±523
5. ABS with EBD System05±696
6. ABS with EBD & BA & TRC & VSC System05±752
7. Electronic Controlled Automatic Transmission [ECT] [U241 (1AZ±FE)]05±856
8. Electronic Controlled Automatic Transmission [ECT] [U241 (1AZ±FSE)]05±915
9. Electronic Controlled Automatic Transmission [ECT] [U341]05±980
10.Electronic Motor Power Steering System05±1042
11. Air Conditioning System05±1088
12.Combustion Type Power Heater System05±1161
13.Supplemental Restraint System05±1181
14.Audio System05±1393
15.Navigation System05±1435
16.Combination Meter05±1497
17.Power Door Lock Control System05±1534
18.Wireless Door Lock Control System05±1568
19.Key Reminder Warning System05±1586
20.Engine Immobiliser System05±1599
21.Theft Deterrent System05±1627
22.Multiplex Communication System05±1654
23.Cruise Control System05±1697
FOR USING HAND±HELD TESTER

Before using the tester, the tester's operator manual should be read thoroughly.

If the tester cannot communicate with the ECU controlled systems when you \
have connected the cable
of tester to the DLC3, turned the ignition switch ON and operated the test\
er, there is a problem on the
vehicle side or tester side.
(1) If the communication is normal when the tester is connected to another veh\
icle, inspect the diag-
nosis data link line (Bus
line) or ECU power circuit of the vehicle.
(2) If the communication is still impossible when the tester is connected to a\
nother vehicle, the prob- lem is probably in the tester itself, so perform the Self Test procedures outlined in the Tester Oper-
ator 's Manual.

022L4±02
02±36
± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSMISSION / TRANS
PREPARATION

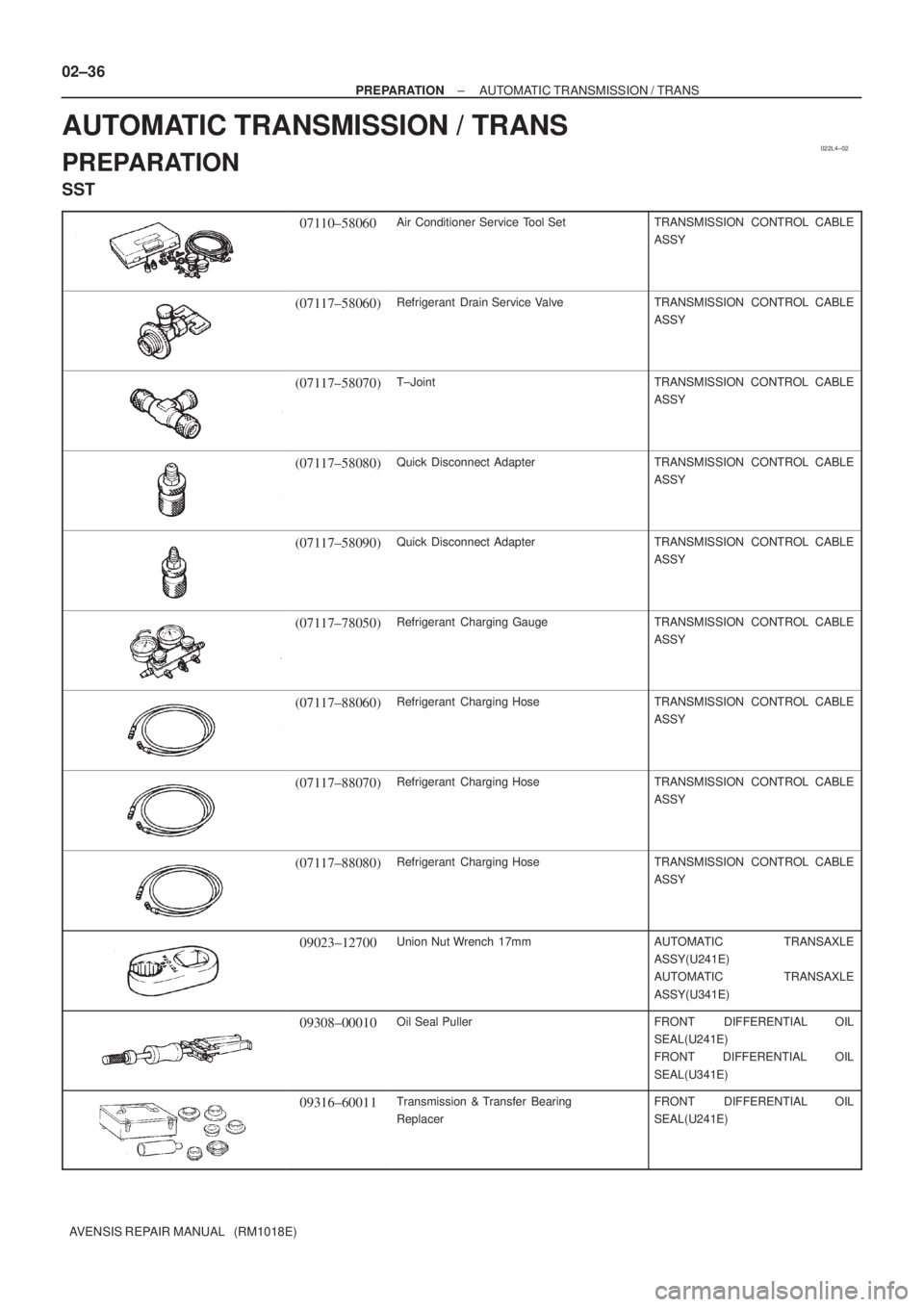

SST
07110±58060Air Conditioner Service Tool SetTRANSMISSION CONTROL CABLE
ASSY
(07117±58060)Refrigerant Drain Service ValveTRANSMISSION CONTROL CABLE
ASSY
(07117±58070)T±JointTRANSMISSION CONTROL CABLE
ASSY
(07117±58080)Quick Disconnect AdapterTRANSMISSION CONTROL CABLE
ASSY
(07117±58090)Quick Disconnect AdapterTRANSMISSION CONTROL CABLE
ASSY
(07117±78050)Refrigerant Charging GaugeTRANSMISSION CONTROL CABLE
ASSY
(07117±88060)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
(07117±88070)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
(07117±88080)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
09023±12700Union Nut Wrench 17mmAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
09308±00010Oil Seal PullerFRONT DIFFERENTIAL OIL
SEAL(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)

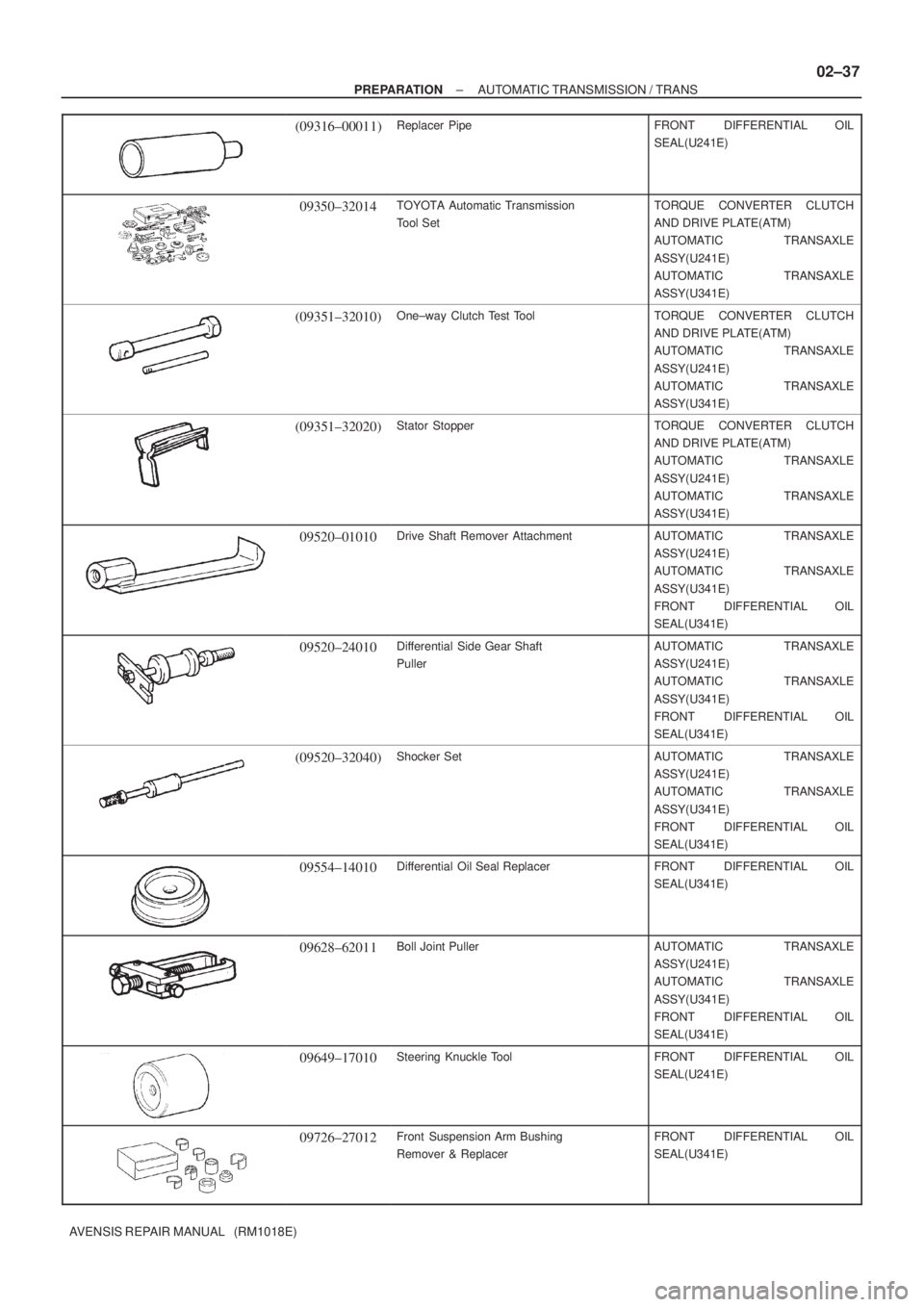

09316±60011Transmission & Transfer Bearing
ReplacerFRONT DIFFERENTIAL OIL
SEAL(U241E)

± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
02±37
AVENSIS REPAIR MANUAL (RM1018E)
(09316±00011)Replacer PipeFRONT DIFFERENTIAL OIL
SEAL(U241E)
09350±32014TOYOTA Automatic Transmission
Tool SetTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09351±32010)One±way Clutch Test ToolTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09351±32020)Stator StopperTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
09520±01010Drive Shaft Remover AttachmentAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09520±24010Differential Side Gear Shaft
PullerAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
(09520±32040)Shocker SetAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09554±14010Differential Oil Seal ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
09628±62011Boll Joint PullerAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09649±17010Steering Knuckle ToolFRONT DIFFERENTIAL OIL
SEAL(U241E)

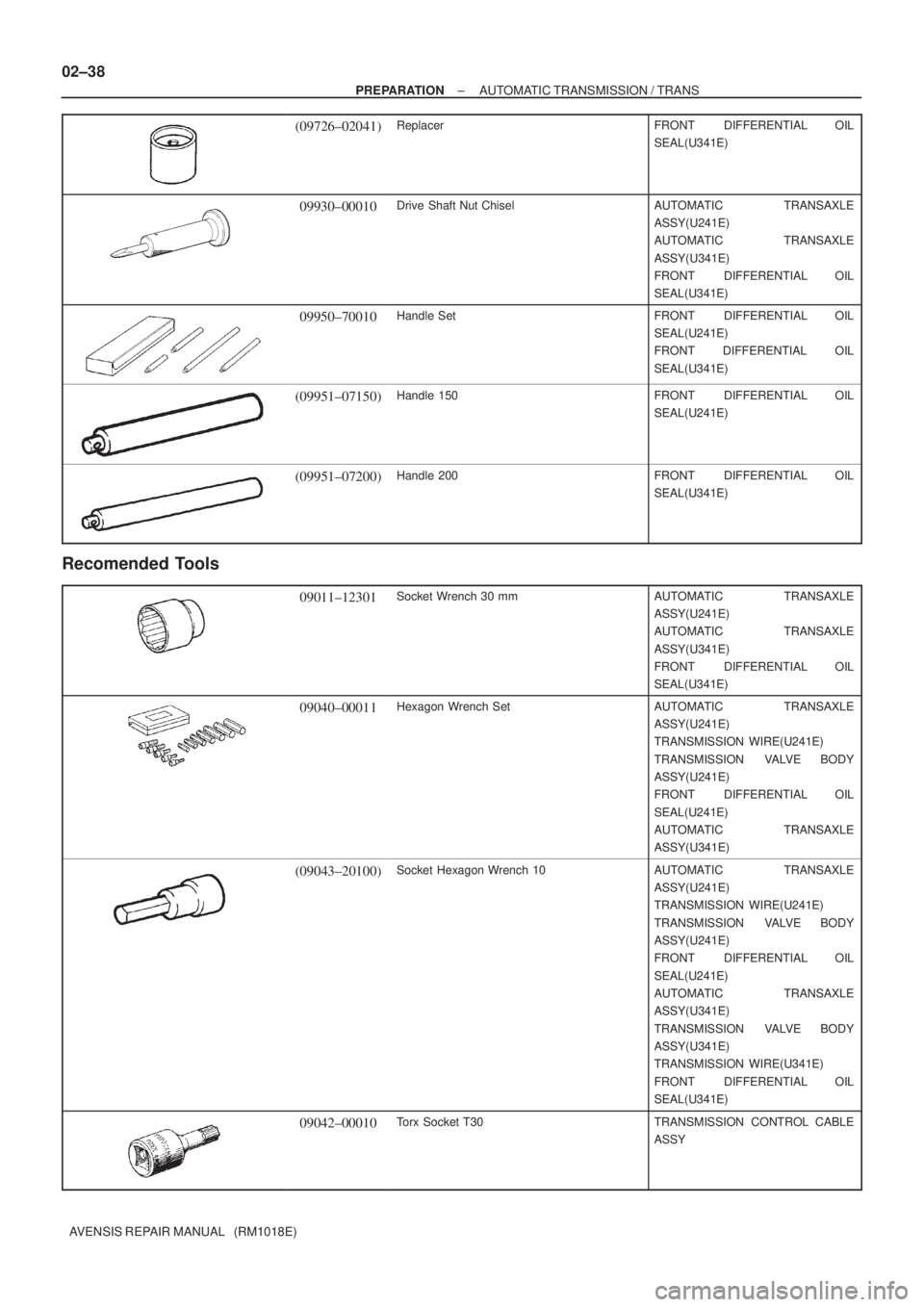

09726±27012Front Suspension Arm Bushing
Remover & ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)

02±38
± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
AVENSIS REPAIR MANUAL (RM1018E)
(09726±02041)ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
09930±00010Drive Shaft Nut ChiselAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09950±70010Handle SetFRONT DIFFERENTIAL OIL
SEAL(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
(09951±07150)Handle 150FRONT DIFFERENTIAL OIL
SEAL(U241E)
(09951±07200)Handle 200FRONT DIFFERENTIAL OIL
SEAL(U341E)
Recomended Tools
09011±12301Socket Wrench 30 mmAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09040±00011Hexagon Wrench SetAUTOMATIC TRANSAXLE
ASSY(U241E)
TRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09043±20100)Socket Hexagon Wrench 10AUTOMATIC TRANSAXLE
ASSY(U241E)
TRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
TRANSMISSION VALVE BODY
ASSY(U341E)
TRANSMISSION WIRE(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09042±00010Torx Socket T30TRANSMISSION CONTROL CABLE
ASSY

± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
02±39
AVENSIS REPAIR MANUAL (RM1018E)
09090±04020Engine Sling DeviceAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)

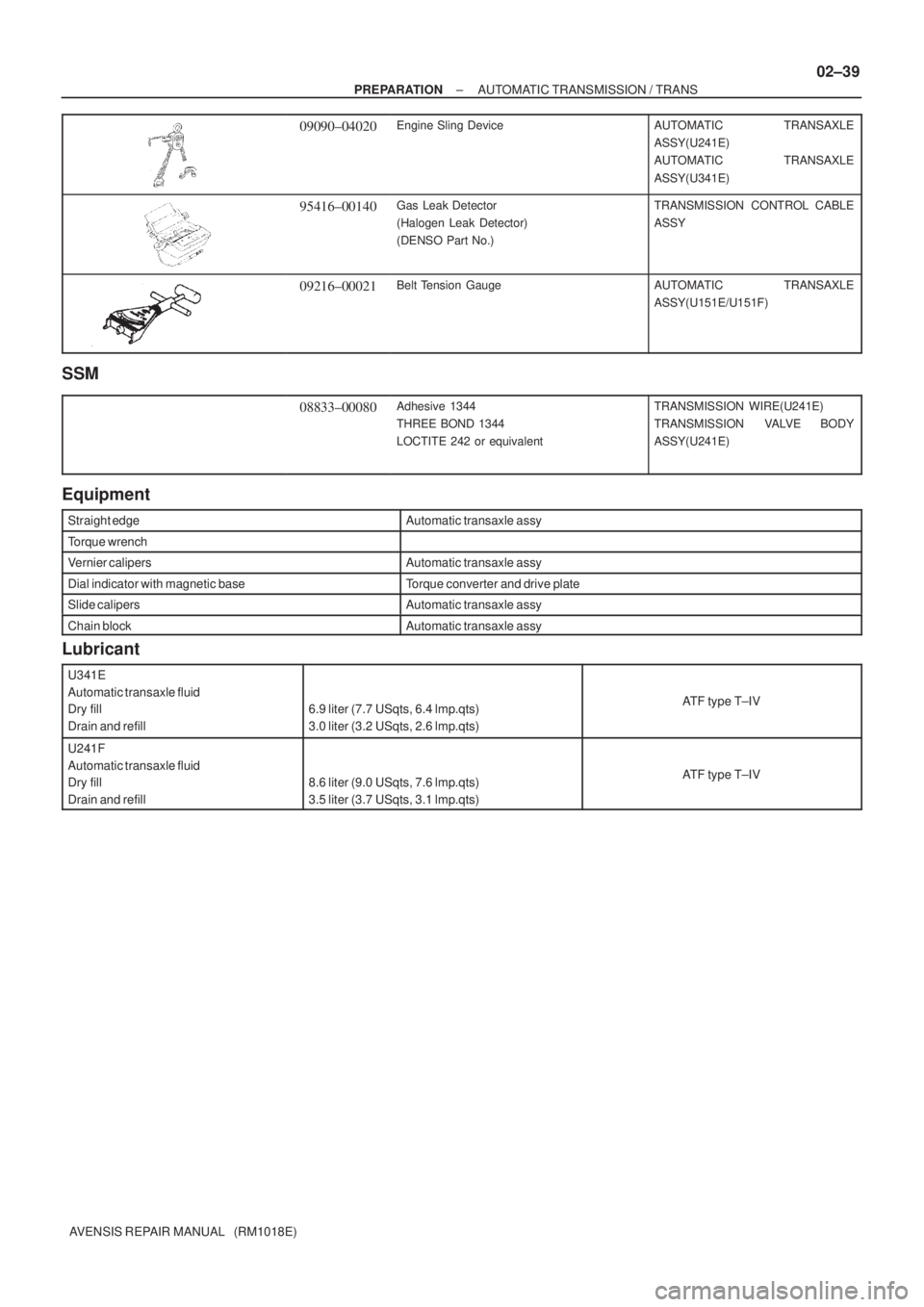

95416±00140Gas Leak Detector
(Halogen Leak Detector)
(DENSO Part No.)TRANSMISSION CONTROL CABLE
ASSY
09216±00021Belt Tension GaugeAUTOMATIC TRANSAXLE
ASSY(U151E/U151F)
SSM
08833±00080Adhesive 1344
THREE BOND 1344
LOCTITE 242 or equivalentTRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
Equipment
Straight edgeAutomatic transaxle assy
Torque wrench
Vernier calipersAutomatic transaxle assy
Dial indicator with magnetic baseTorque converter and drive plate
Slide calipersAutomatic transaxle assy
Chain blockAutomatic transaxle assy
Lubricant
U341E
Automatic transaxle fluid
Dry fill
Drain and refill
6.9 liter (7.7 USqts, 6.4 lmp.qts)
3.0 liter (3.2 USqts, 2.6 lmp.qts)ATF type T±IV
U241F
Automatic transaxle fluid
Dry fill
Drain and refill
8.6 liter (9.0 USqts, 7.6 lmp.qts)
3.5 liter (3.7 USqts, 3.1 lmp.qts)ATF type T±IV

030AA±10
03±50
± SERVICE SPECIFICATIONSAUTOMATIC TRANSMISSION / TRANSAXLE
AVENSIS REPAIR MANUAL (RM1018E)

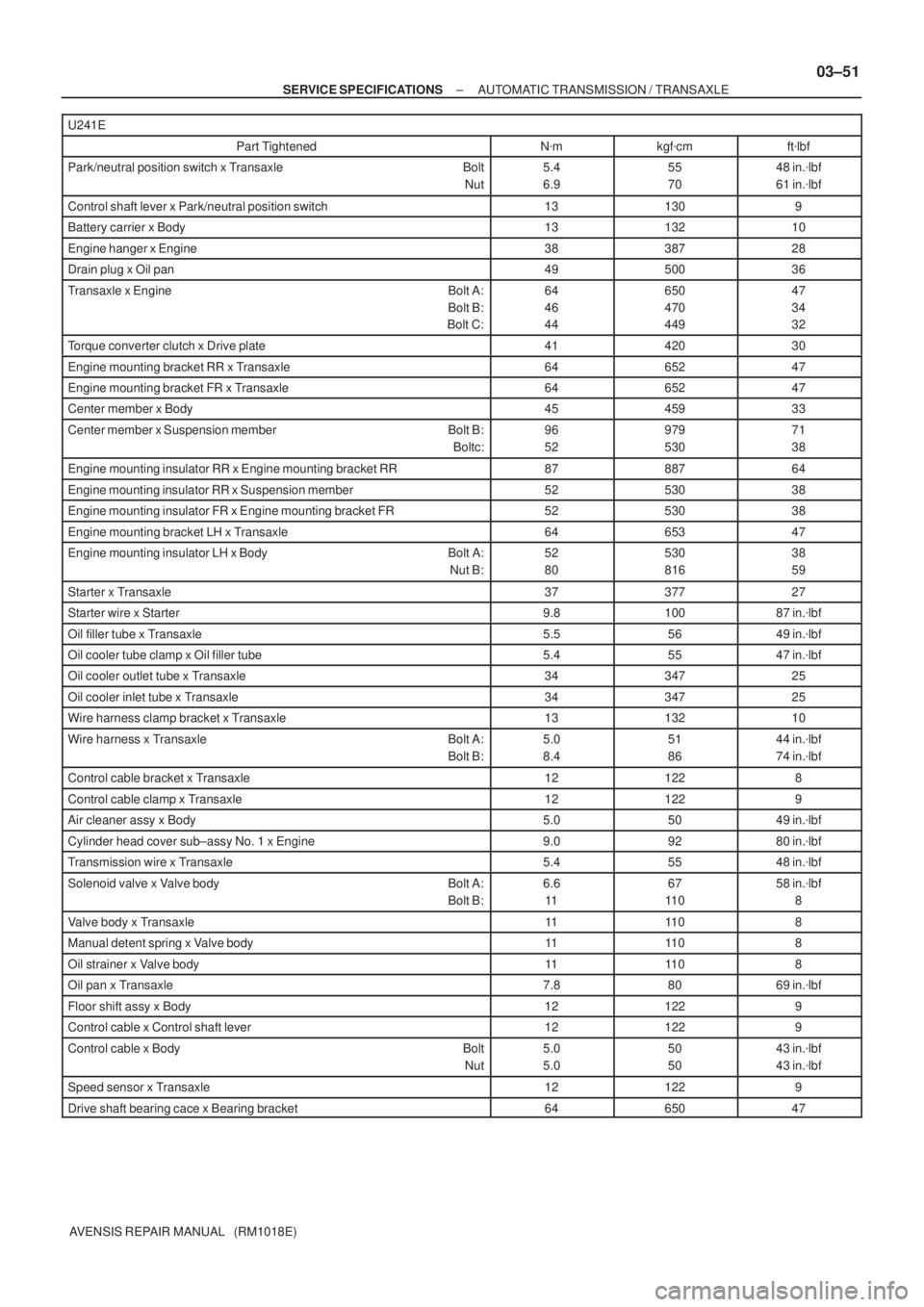

TORQUE SPECIFICATION
U341E
Part TightenedN
mkgf
cmft
lbf
Park/neutral position switch x Transaxle Bolt
Nut5.4
6.955
7048 in.
lbf
61 in.
lbf
Control shaft lever x Park/neutral position switch131309
Battery carrier x Body1313210
Engine hanger x Engine3838728
Drain plug x Oil pan4950036
Transaxle x Engine Bolt A:
Bolt B:
Bolt C:64
46
23650
470
23547
34
17
Torque converter clutch x Drive plate2828520
Engine mounting bracket RR x Transaxle6465347
Engine mounting bracket FR x Transaxle6465347
Center member x Body Bolt A:4545933
Center member x Suspension member Bolt B:
BoltC:96
52979
53071
38
Engine mounting insulator RR x Engine mounting bracket RR8788764
Engine mounting insulator RR x Suspension member5253038
Engine mounting insulator FR x Engine mounting bracket FR5253038
Engine mounting bracket LH x Transaxle6465347
Engine mounting insulator LH x Body Bolt A:
Nut B:52
80530
81538
59
Starter x Transaxle3737727
Starter wire x Starter9.810087 in.
lbf
Froor panel brace x Body3030222
Oil filler tube x Transaxle Bolt A:121229
Oil cooler tube clamp x Oil filler tube Bolt B:5.55649 in.
lbf
Oil cooler outlet tube x Transaxle3535725
Oil cooler inlet tube x Transaxle3535725
Wire harness clamp bracket x Transaxle121229
Wire harness x Transaxle Bolt A:
Bolt B:5
2651
26544 in.
lbf
19
Control cable bracket x Transaxle121229
Control cable support x Transaxle121229
Air cleaner assy x Body7.07162 in.
lbf
Cylinder head cover No. 2 x Engine7.07162 in.
lbf
Speed sensor x Transaxle5.45548 in.
lbf
Transmission wire x Transaxle5.45548
Solenoid valve x Valve body Bolt A:
Bolt B:11
1111 0
11 08
8
Valve body x Transaxle1111 08
ATF temperature sensor x Valve body1111 08
Oil strainer x Valve body1111 08
Oil pan x Transaxle7.88069 in.
lbf
Floor shift assembly x Body121229
Control cable x Control shaft lever121229

± SERVICE SPECIFICATIONSAUTOMATIC TRANSMISSION / TRANSAXLE
03±51
AVENSIS REPAIR MANUAL (RM1018E) U241E
Part TightenedN
mkgf
cmft
lbf
Park/neutral position switch x Transaxle Bolt
Nut5.4
6.955
7048 in.
lbf
61 in.
lbf
Control shaft lever x Park/neutral position switch131309
Battery carrier x Body1313210
Engine hanger x Engine3838728
Drain plug x Oil pan4950036
Transaxle x Engine Bolt A:
Bolt B:
Bolt C:64
46
44650
470
44947
34
32
Torque converter clutch x Drive plate4142030
Engine mounting bracket RR x Transaxle6465247
Engine mounting bracket FR x Transaxle6465247
Center member x Body4545933
Center member x Suspension member Bolt B:
Boltc:96
52979
53071
38
Engine mounting insulator RR x Engine mounting bracket RR8788764
Engine mounting insulator RR x Suspension member5253038
Engine mounting insulator FR x Engine mounting bracket FR5253038
Engine mounting bracket LH x Transaxle6465347
Engine mounting insulator LH x Body Bolt A:
Nut B:52
80530
81638
59
Starter x Transaxle3737727
Starter wire x Starter9.810087 in.
lbf
Oil filler tube x Transaxle5.55649 in.
lbf
Oil cooler tube clamp x Oil filler tube5.45547 in.
lbf
Oil cooler outlet tube x Transaxle3434725
Oil cooler inlet tube x Transaxle3434725
Wire harness clamp bracket x Transaxle1313210
Wire harness x Transaxle Bolt A:
Bolt B:5.0
8.451
8644 in.
lbf
74 in.
lbf
Control cable bracket x Transaxle121228
Control cable clamp x Transaxle121229
Air cleaner assy x Body5.05049 in.
lbf
Cylinder head cover sub±assy No. 1 x Engine9.09280 in.
lbf
Transmission wire x Transaxle5.45548 in.
lbf
Solenoid valve x Valve body Bolt A:
Bolt B:6.6
1167
11 058 in.
lbf
8
Valve body x Transaxle1111 08
Manual detent spring x Valve body1111 08
Oil strainer x Valve body1111 08
Oil pan x Transaxle7.88069 in.
lbf
Floor shift assy x Body121229
Control cable x Control shaft lever121229
Control cable x Body Bolt
Nut5.0
5.050
5043 in.
lbf
43 in.
lbf
Speed sensor x Transaxle121229
Drive shaft bearing cace x Bearing bracket6465047

030A9±10
± SERVICE SPECIFICATIONSAUTOMATIC TRANSMISSION / TRANSAXLE
03±45
AVENSIS REPAIR MANUAL (RM1018E)

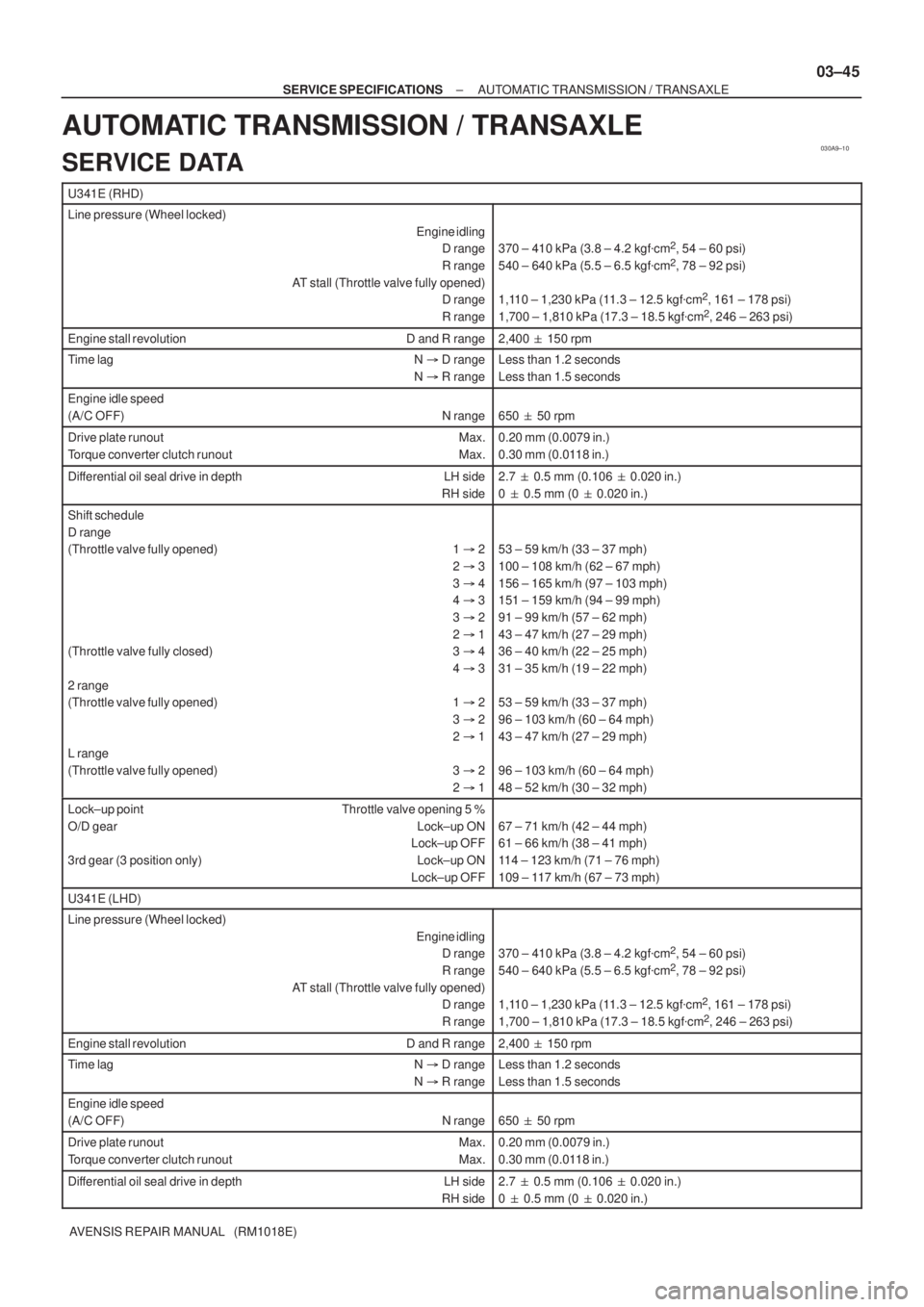

AUTOMATIC TRANSMISSION / TRANSAXLE
SERVICE DATA
U341E (RHD)
Line pressure (Wheel locked)
Engine idling
D range
R range
AT stall (Throttle valve fully opened)
D range
R range
370 ± 410 kPa (3.8 ± 4.2 kgfcm2, 54 ± 60 psi)
540 ± 640 kPa (5.5 ± 6.5 kgfcm2, 78 ± 92 psi)
1,110 ± 1,230 kPa (11.3 ± 12.5 kgfcm
2, 161 ± 178 psi)
1,700 ± 1,810 kPa (17.3 ± 18.5 kgfcm2, 246 ± 263 psi)
Engine stall revolution D and R range2,400
150 rpm
Time lag N
D range
N
R rangeLess than 1.2 seconds
Less than 1.5 seconds
Engine idle speed
(A/C OFF) N range
650
50 rpm
Drive plate runout Max.
Torque converter clutch runout Max.0.20 mm (0.0079 in.)
0.30 mm (0.0118 in.)
Differential oil seal drive in depth LH side
RH side2.7
0.5 mm (0.106
0.020 in.)
0
0.5 mm (0
0.020 in.)
Shift schedule
D range
(Throttle valve fully opened) 1
2
2
3
3
4
4
3
3
2
2
1
(Throttle valve fully closed) 3
4
4
3
2 range
(Throttle valve fully opened) 1
2
3
2
2
1
L range
(Throttle valve fully opened) 3
2
2
1
53 ± 59 km/h (33 ± 37 mph)
100 ± 108 km/h (62 ± 67 mph)
156 ± 165 km/h (97 ± 103 mph)
151 ± 159 km/h (94 ± 99 mph)
91 ± 99 km/h (57 ± 62 mph)
43 ± 47 km/h (27 ± 29 mph)
36 ± 40 km/h (22 ± 25 mph)
31 ± 35 km/h (19 ± 22 mph)
53 ± 59 km/h (33 ± 37 mph)
96 ± 103 km/h (60 ± 64 mph)
43 ± 47 km/h (27 ± 29 mph)
96 ± 103 km/h (60 ± 64 mph)
48 ± 52 km/h (30 ± 32 mph)
Lock±up point Throttle valve opening 5 %
O/D gear Lock±up ON
Lock±up OFF
3rd gear (3 position only) Lock±up ON
Lock±up OFF
67 ± 71 km/h (42 ± 44 mph)
61 ± 66 km/h (38 ± 41 mph)
114 ± 123 km/h (71 ± 76 mph)
109 ± 117 km/h (67 ± 73 mph)
U341E (LHD)
Line pressure (Wheel locked)
Engine idling
D range
R range
AT stall (Throttle valve fully opened)
D range
R range
370 ± 410 kPa (3.8 ± 4.2 kgfcm2, 54 ± 60 psi)
540 ± 640 kPa (5.5 ± 6.5 kgfcm2, 78 ± 92 psi)
1,110 ± 1,230 kPa (11.3 ± 12.5 kgfcm
2, 161 ± 178 psi)
1,700 ± 1,810 kPa (17.3 ± 18.5 kgfcm2, 246 ± 263 psi)
Engine stall revolution D and R range2,400
150 rpm
Time lag N
D range
N
R rangeLess than 1.2 seconds
Less than 1.5 seconds
Engine idle speed
(A/C OFF) N range
650
50 rpm
Drive plate runout Max.
Torque converter clutch runout Max.0.20 mm (0.0079 in.)
0.30 mm (0.0118 in.)
Differential oil seal drive in depth LH side
RH side2.7
0.5 mm (0.106
0.020 in.)
0
0.5 mm (0
0.020 in.)
