TOYOTA AVENSIS 2013 (in English) Owner's Manual

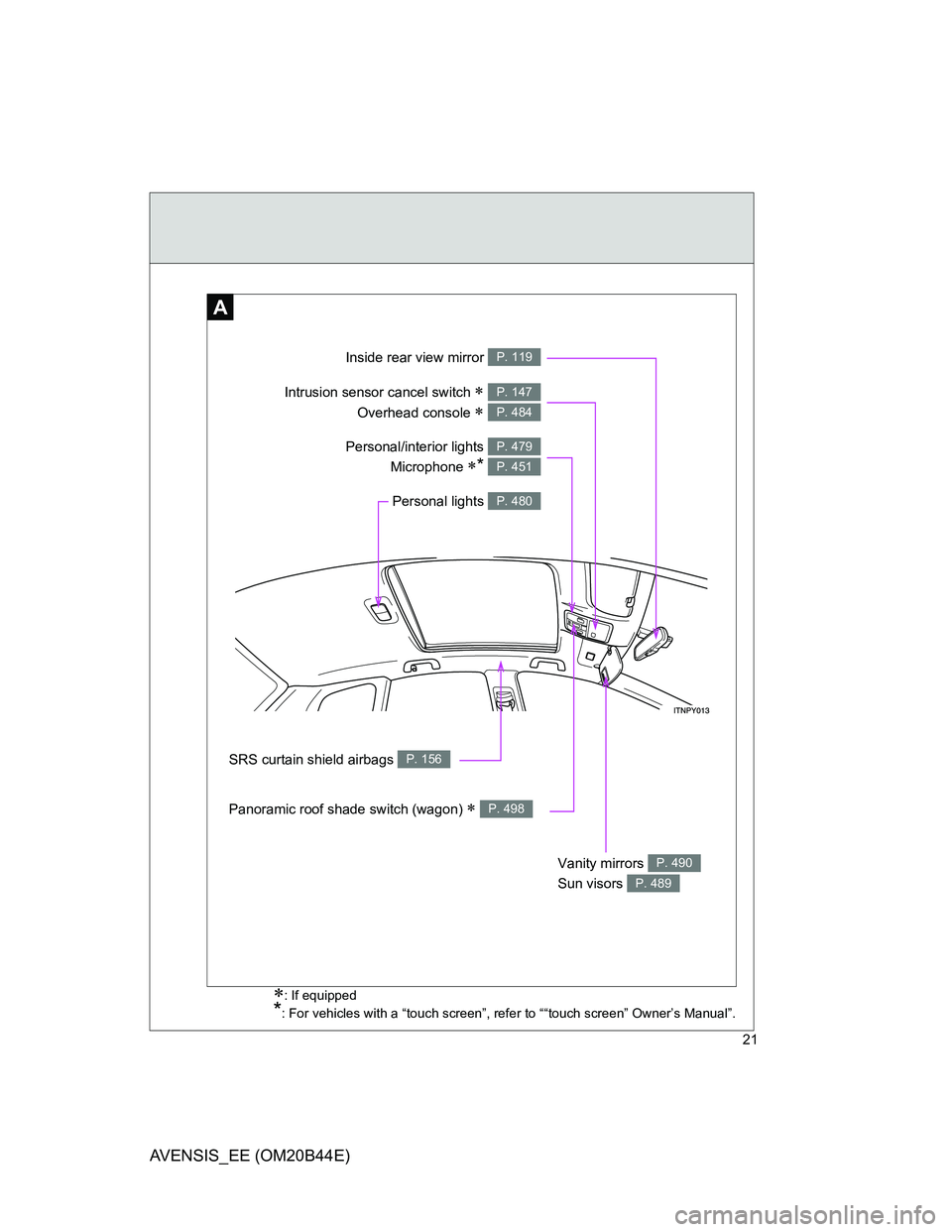

21
AVENSIS_EE (OM20B44E)
A
Inside rear view mirror P. 119
Panoramic roof shade switch (wagon)  P. 498
Vanity mirrors
Sun visors P. 490
P. 489
SRS curtain shield airbags P. 156
Personal lights P. 480
Personal/interior lights
Microphone
*
P. 479
P. 451
Intrusion sensor cancel switch 
Overhead console

P. 147
P. 484
: If equipped
*: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s Manual”.

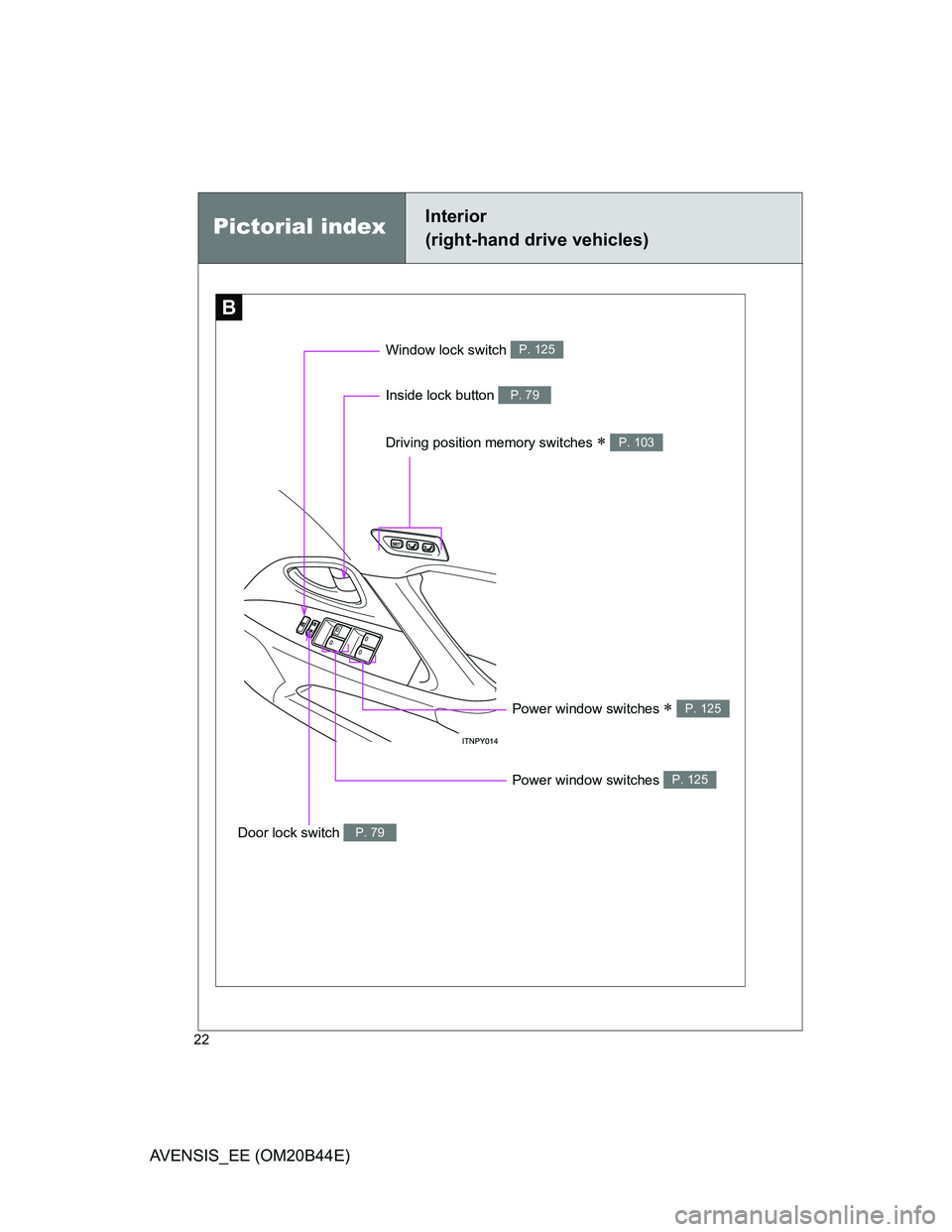

22
AVENSIS_EE (OM20B44E)
B
Window lock switch P. 125
Power window switches  P. 125
Door lock switch P. 79
Pictorial indexInterior
(right-hand drive vehicles)
Driving position memory switches  P. 103
Inside lock button P. 79
Power window switches P. 125

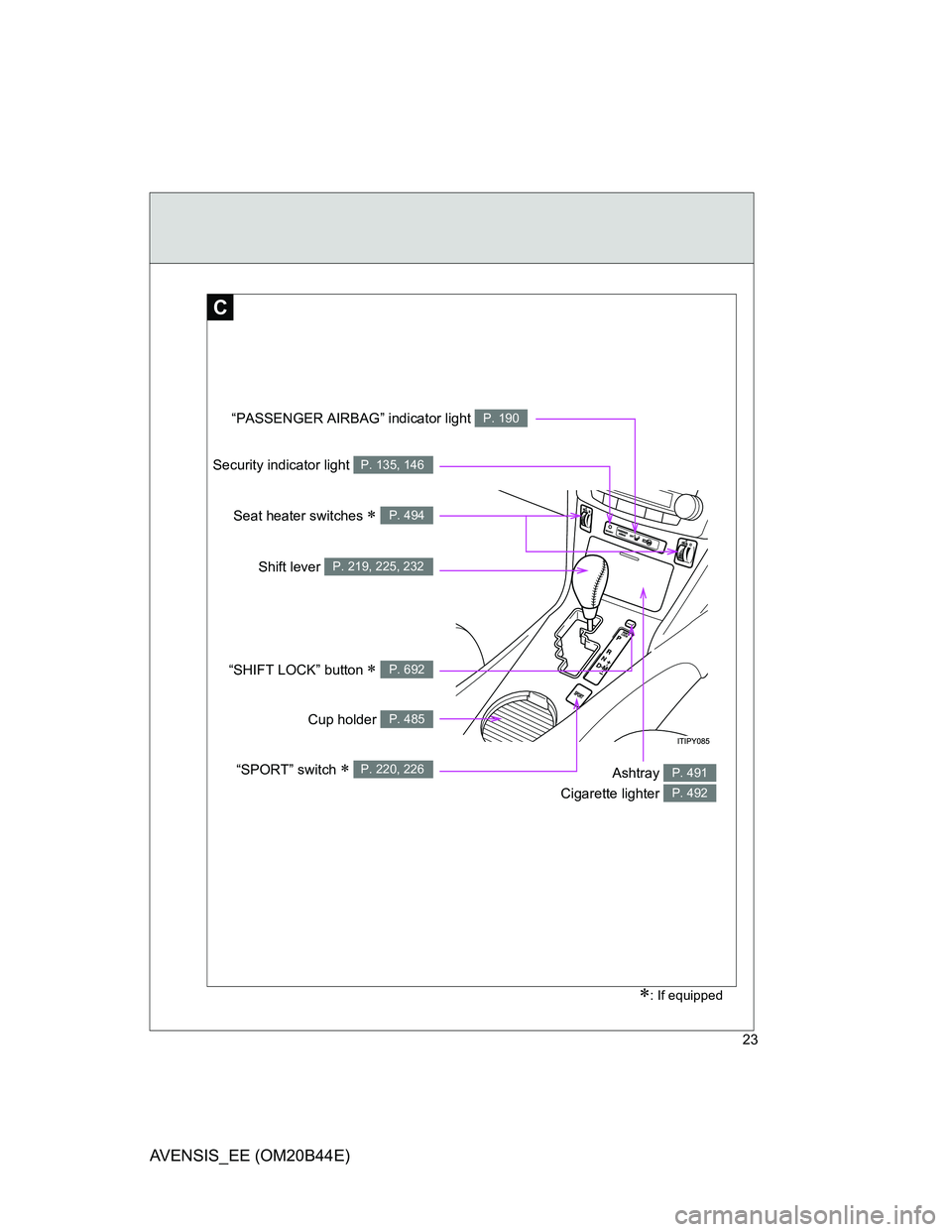

23
AVENSIS_EE (OM20B44E)
C
Security indicator light P. 135, 146
: If equipped
“SHIFT LOCK” button  P. 692
Shift lever P. 219, 225, 232
Seat heater switches  P. 494
Ashtray
Cigarette lighter P. 491
P. 492
“PASSENGER AIRBAG” indicator light P. 190
Cup holder P. 485
“SPORT” switch  P. 220, 226

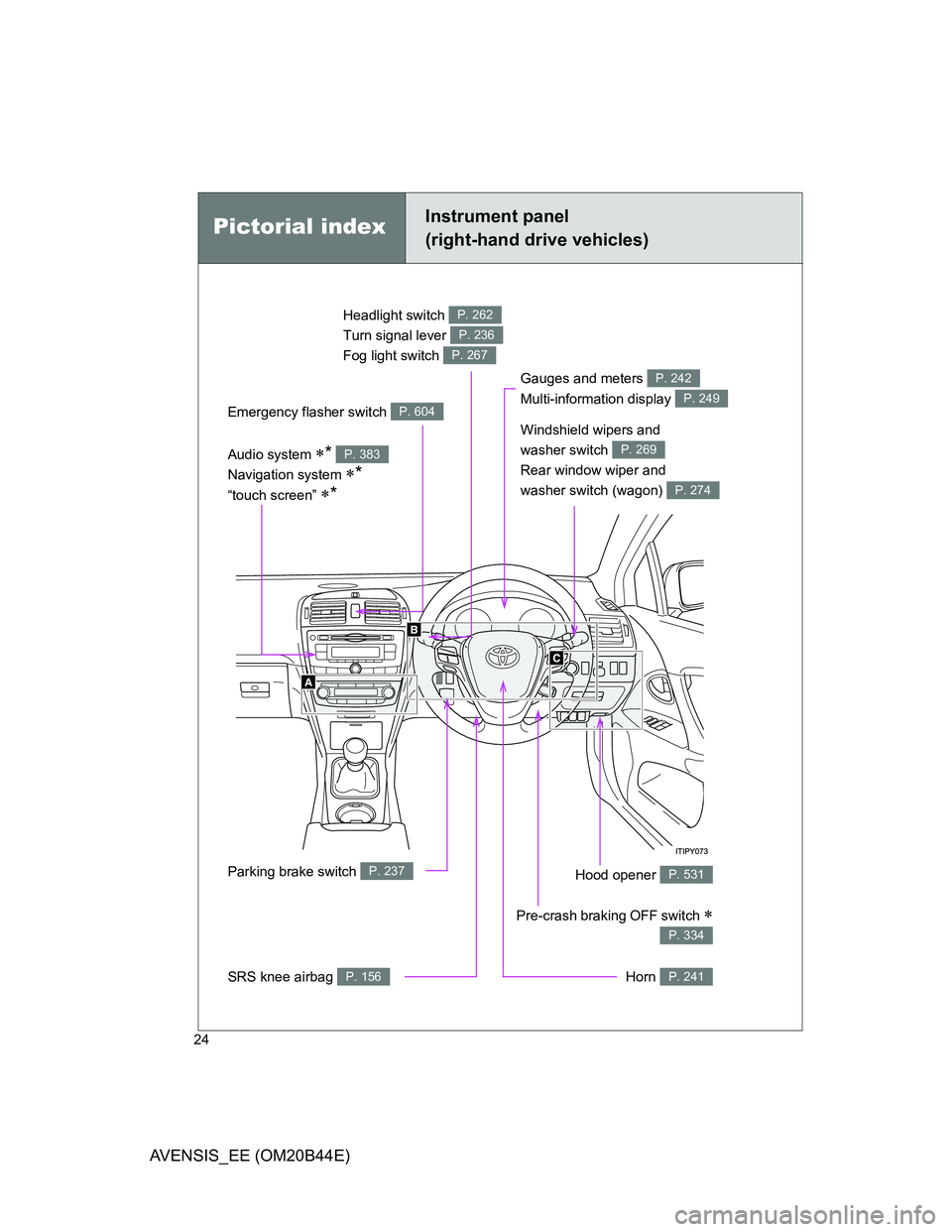

24
AVENSIS_EE (OM20B44E)
Headlight switch
Turn signal lever
Fog light switch P. 262
P. 236
P. 267
Gauges and meters
Multi-information display P. 242
P. 249
Audio system *
Navigation system
*
“touch screen” *
P. 383
Parking brake switch P. 237Hood opener P. 531
SRS knee airbag P. 156
Pictorial indexInstrument panel
(right-hand drive vehicles)
Windshield wipers and
washer switch
Rear window wiper and
washer switch (wagon)
P. 269
P. 274
Pre-crash braking OFF switch 
P. 334
Emergency flasher switch P. 604
Horn P. 241

25
AVENSIS_EE (OM20B44E)

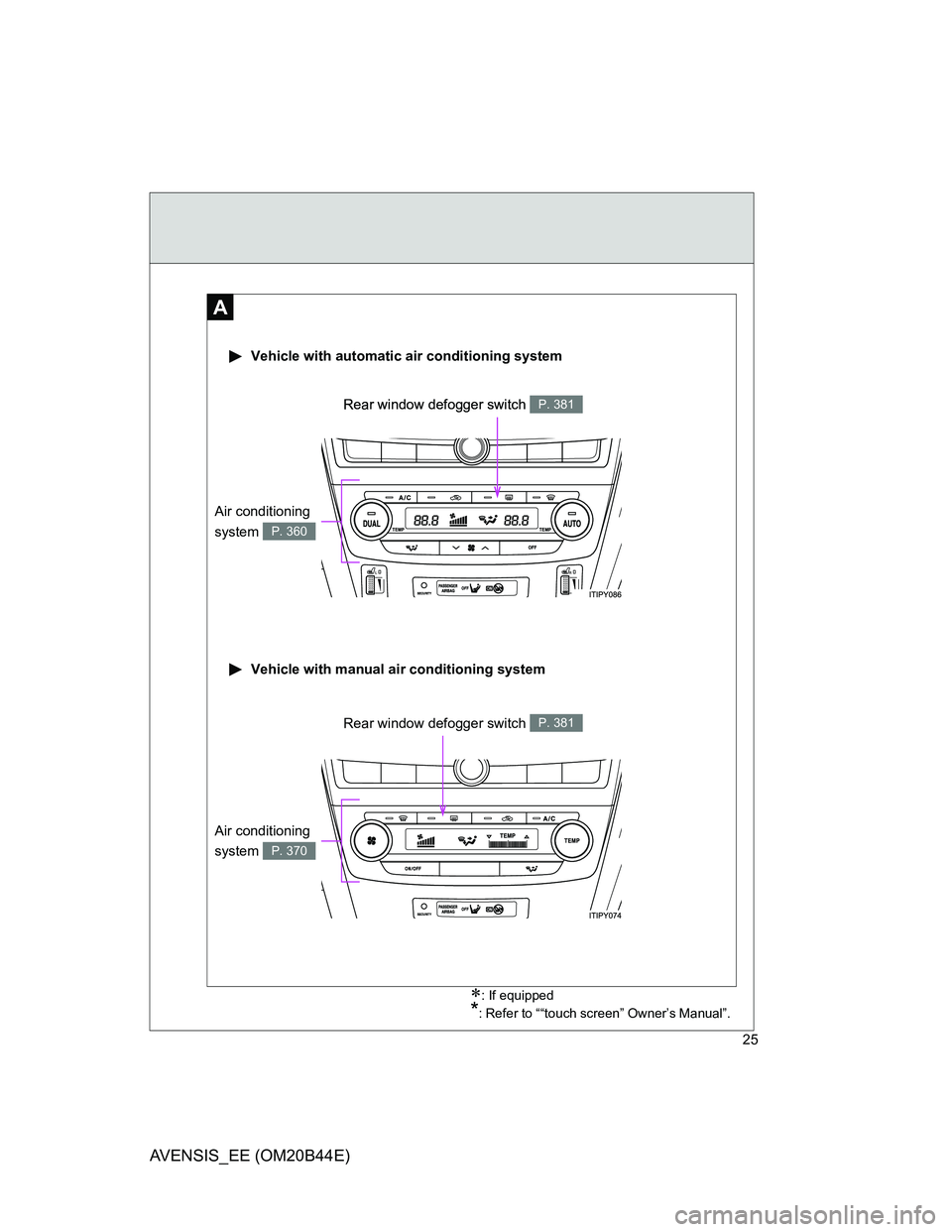

A
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.
Rear window defogger switch P. 381
Vehicle with automatic air conditioning system
Vehicle with manual air conditioning system
Rear window defogger switch P. 381
Rear window defogger switch P. 381
Air conditioning
system
P. 360
Air conditioning
system
P. 370

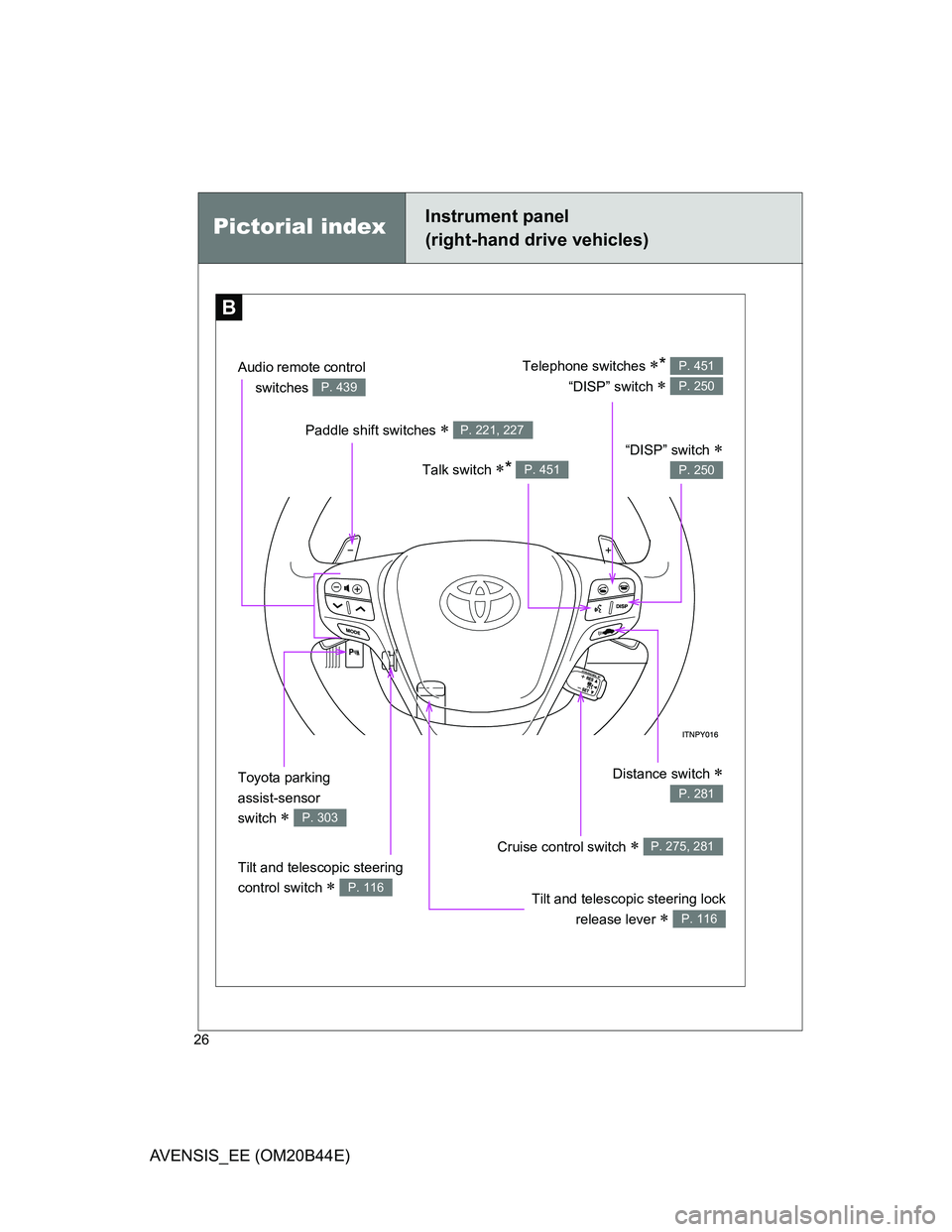

26
AVENSIS_EE (OM20B44E)
B
Pictorial indexInstrument panel
(right-hand drive vehicles)
Paddle shift switches  P. 221, 227
Talk switch * P. 451
“DISP” switch 
P. 250
Cruise control switch  P. 275, 281
Audio remote control
switches
P. 439
Telephone switches *
“DISP” switch

P. 451
P. 250
Toyota parking
assist-sensor
switch
 P. 303
Distance switch 
P. 281
Tilt and telescopic steering
control switch
 P. 116Tilt and telescopic steering lock
release lever
 P. 116

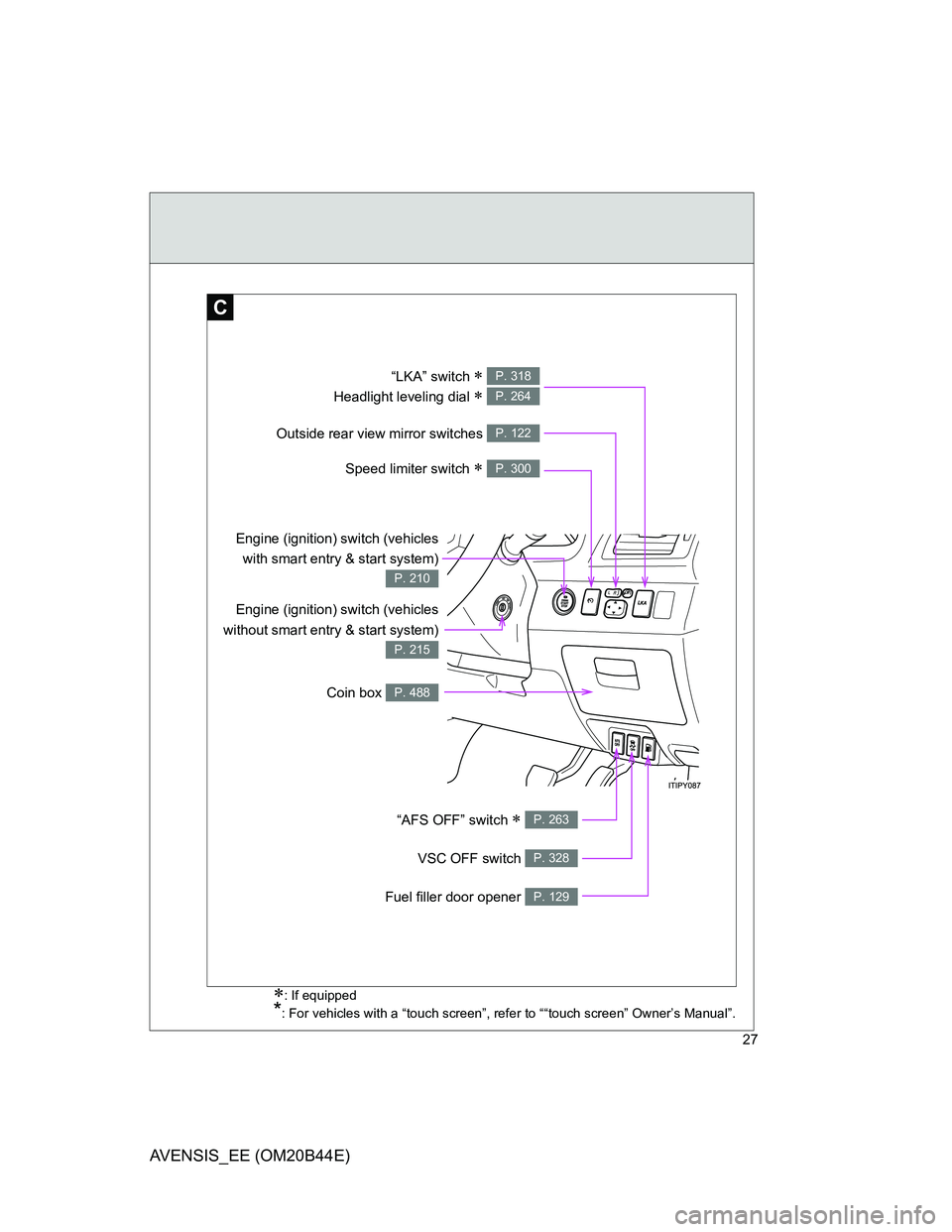

27
AVENSIS_EE (OM20B44E)
C
Outside rear view mirror switches P. 122
“LKA” switch 
Headlight leveling dial

P. 318
P. 264
Speed limiter switch  P. 300
Coin box P. 488
“AFS OFF” switch  P. 263
VSC OFF switch P. 328
Fuel filler door opener P. 129
Engine (ignition) switch (vehicles
without smart entry & start system)
P. 215
Engine (ignition) switch (vehicles
with smart entry & start system)
P. 210
: If equipped
*: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s Manual”.

28
AVENSIS_EE (OM20B44E)

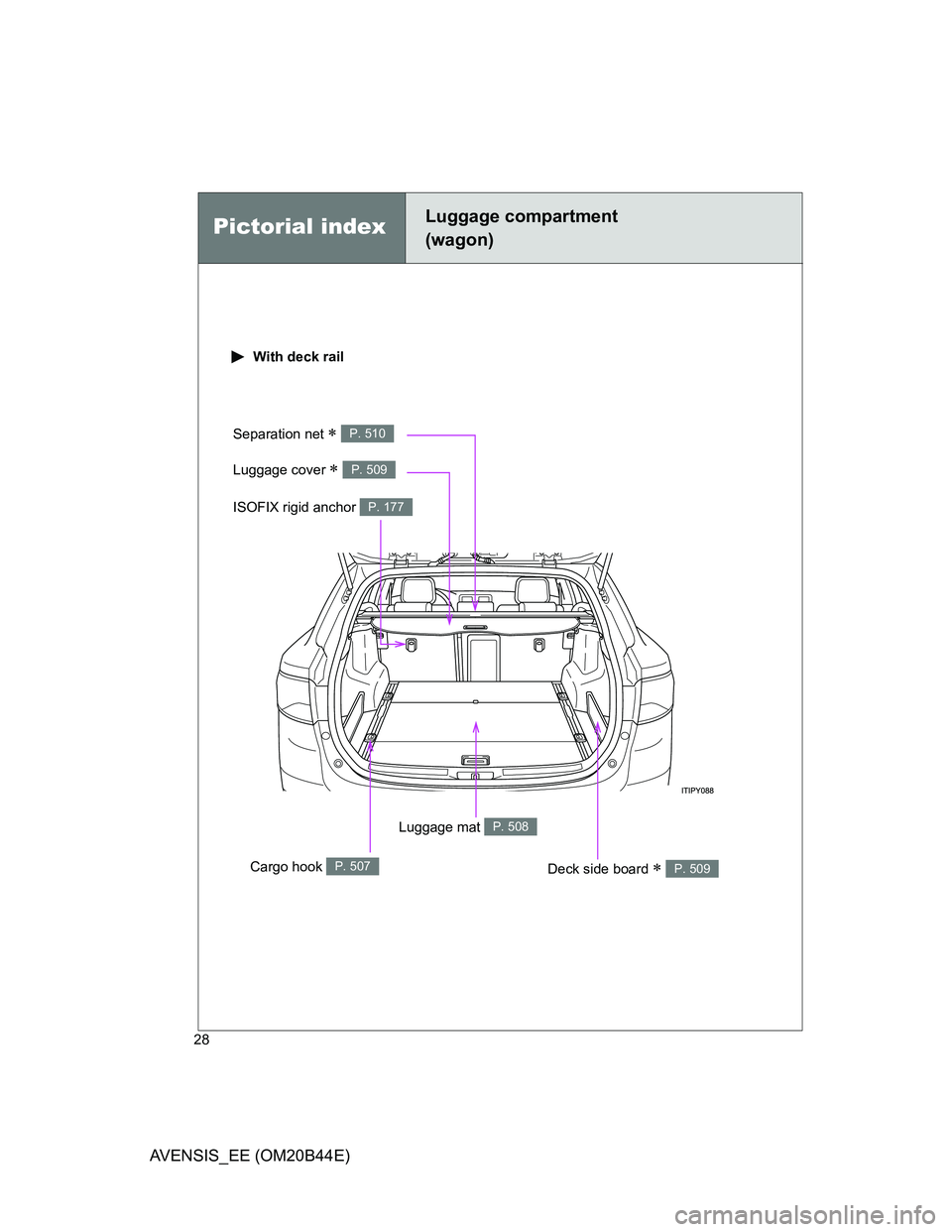

Pictorial indexLuggage compartment
(wagon)
With deck rail
Luggage mat P. 508
Deck side board  P. 509
Separation net  P. 510
Luggage cover  P. 509
Cargo hook P. 507
ISOFIX rigid anchor P. 177

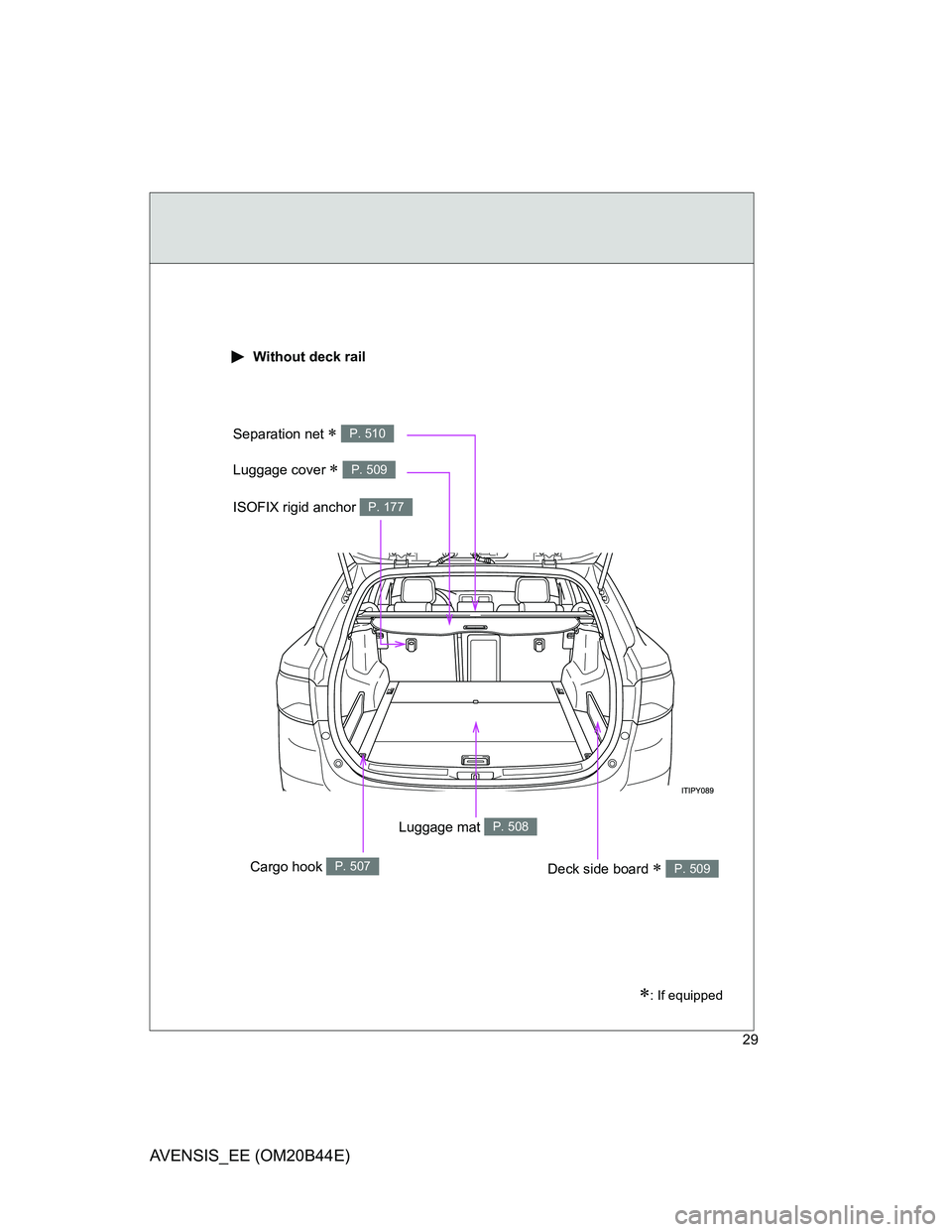

29
AVENSIS_EE (OM20B44E)
: If equipped
Without deck rail
Luggage mat P. 508
Deck side board  P. 509
Separation net  P. 510
Luggage cover  P. 509
Cargo hook P. 507
ISOFIX rigid anchor P. 177

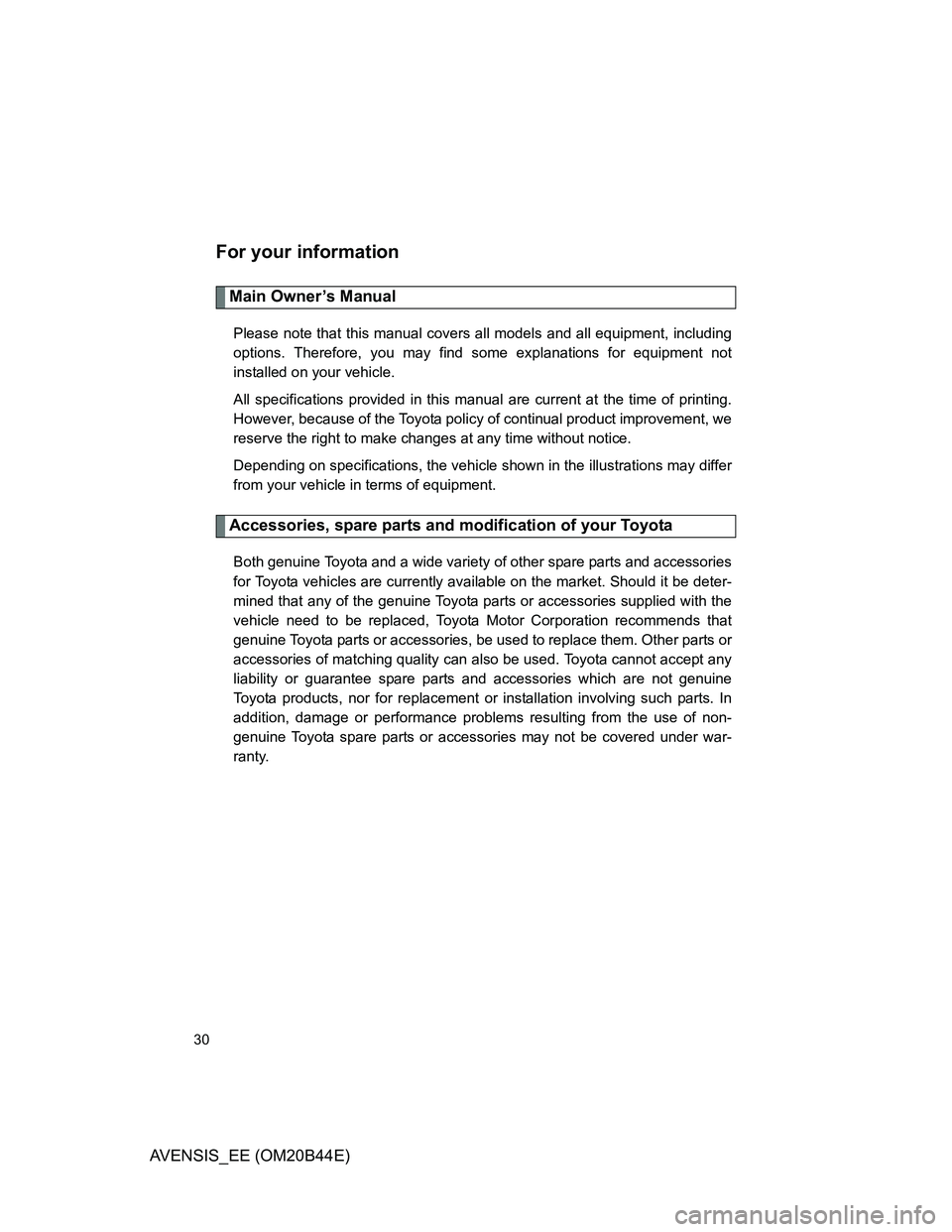

30
AVENSIS_EE (OM20B44E)
For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be deter-
mined that any of the genuine Toyota parts or accessories supplied with the
vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problems resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under war-
ranty.
