Page 451 of 772

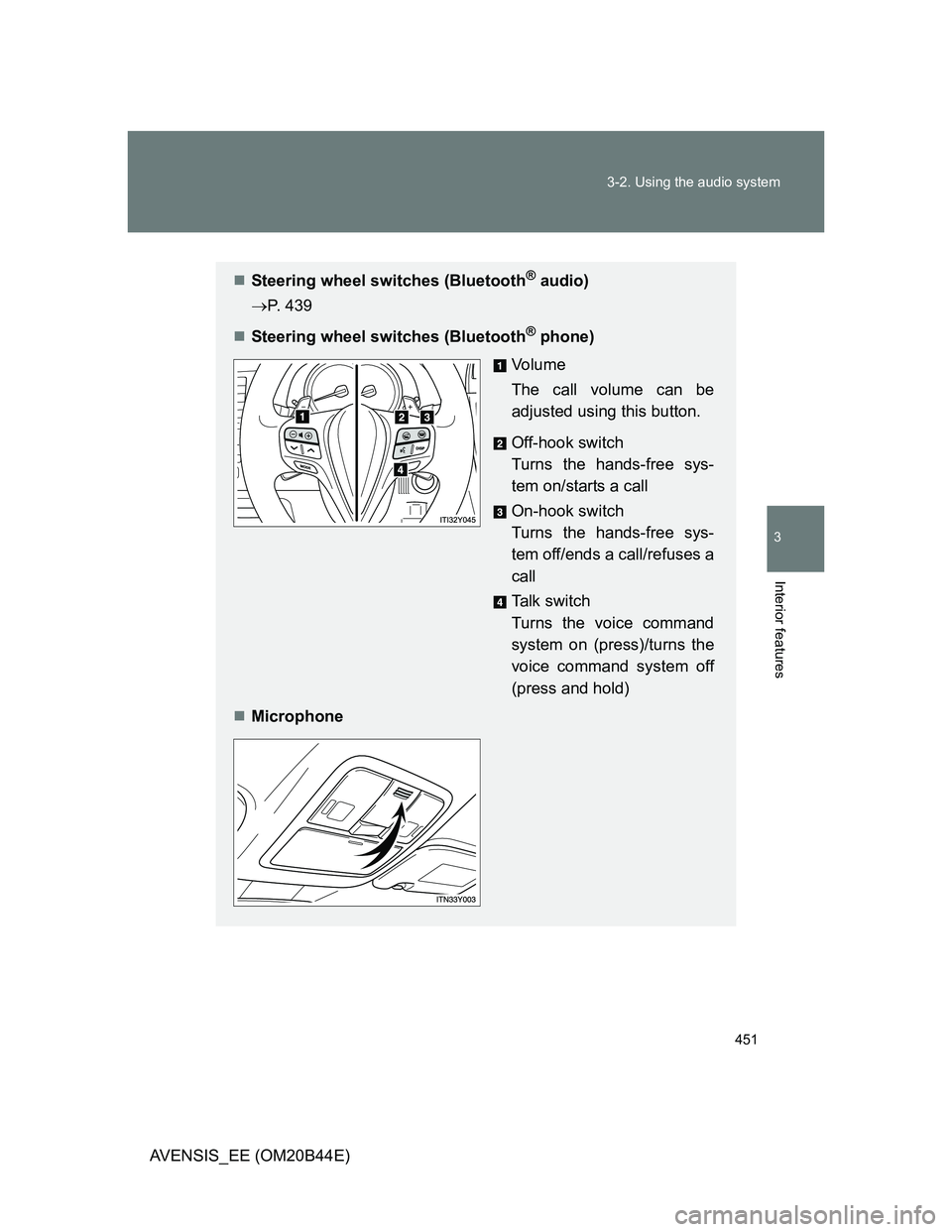

451 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
Steering wheel switches (Bluetooth® audio)
P. 439
Steering wheel switches (Bluetooth
® phone)
Vo l u m e
The call volume can be
adjusted using this button.
Off-hook switch
Turns the hands-free sys-
tem on/starts a call
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuses a
call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
Microphone
Page 452 of 772

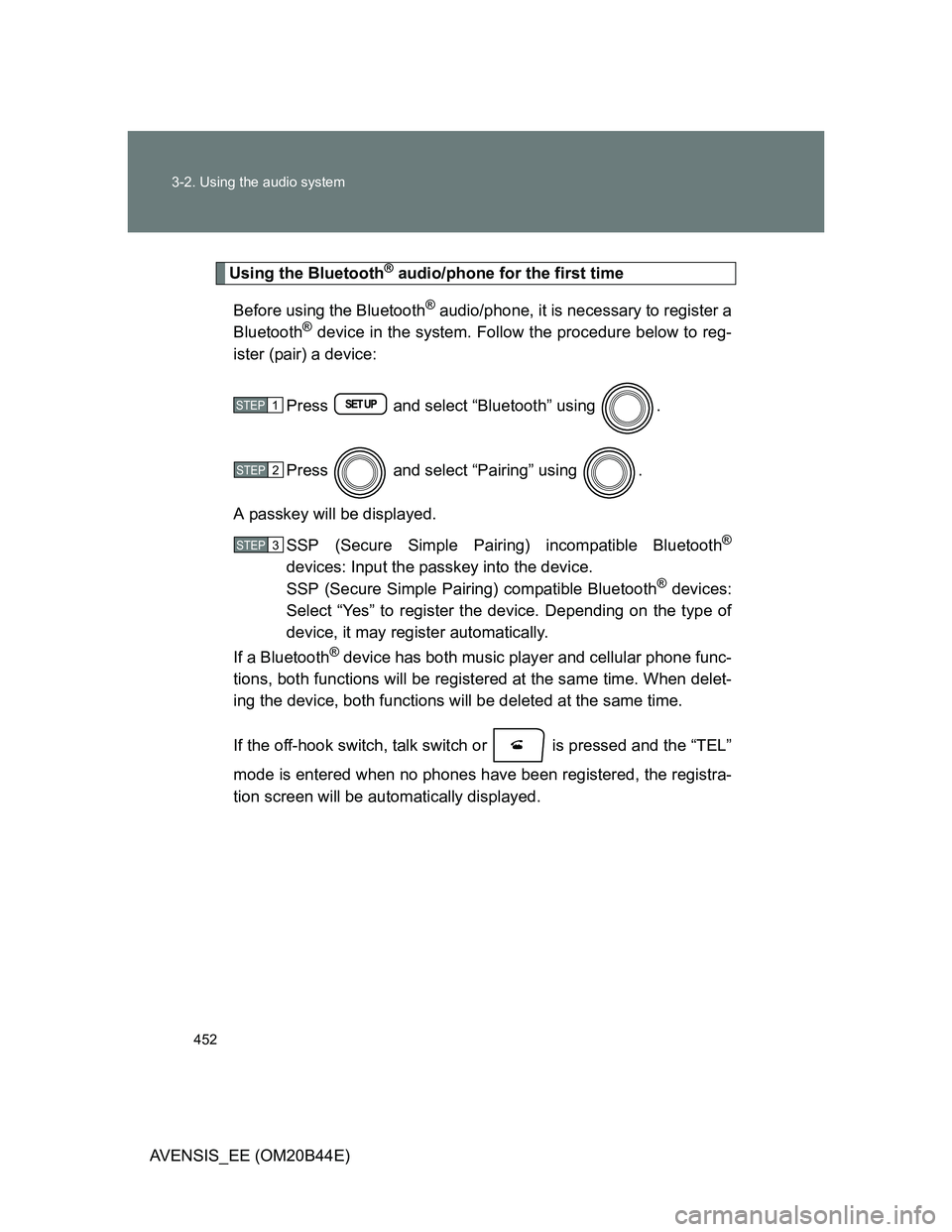

452 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Using the Bluetooth® audio/phone for the first time
Before using the Bluetooth
® audio/phone, it is necessary to register a
Bluetooth® device in the system. Follow the procedure below to reg-
ister (pair) a device:
Press and select “Bluetooth” using .
Press and select “Pairing” using .
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth
®
devices: Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth
® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch, talk switch or is pressed and the “TEL”
mode is entered when no phones have been registered, the registra-
tion screen will be automatically displayed.
STEP1
STEP2
STEP3
Page 453 of 772

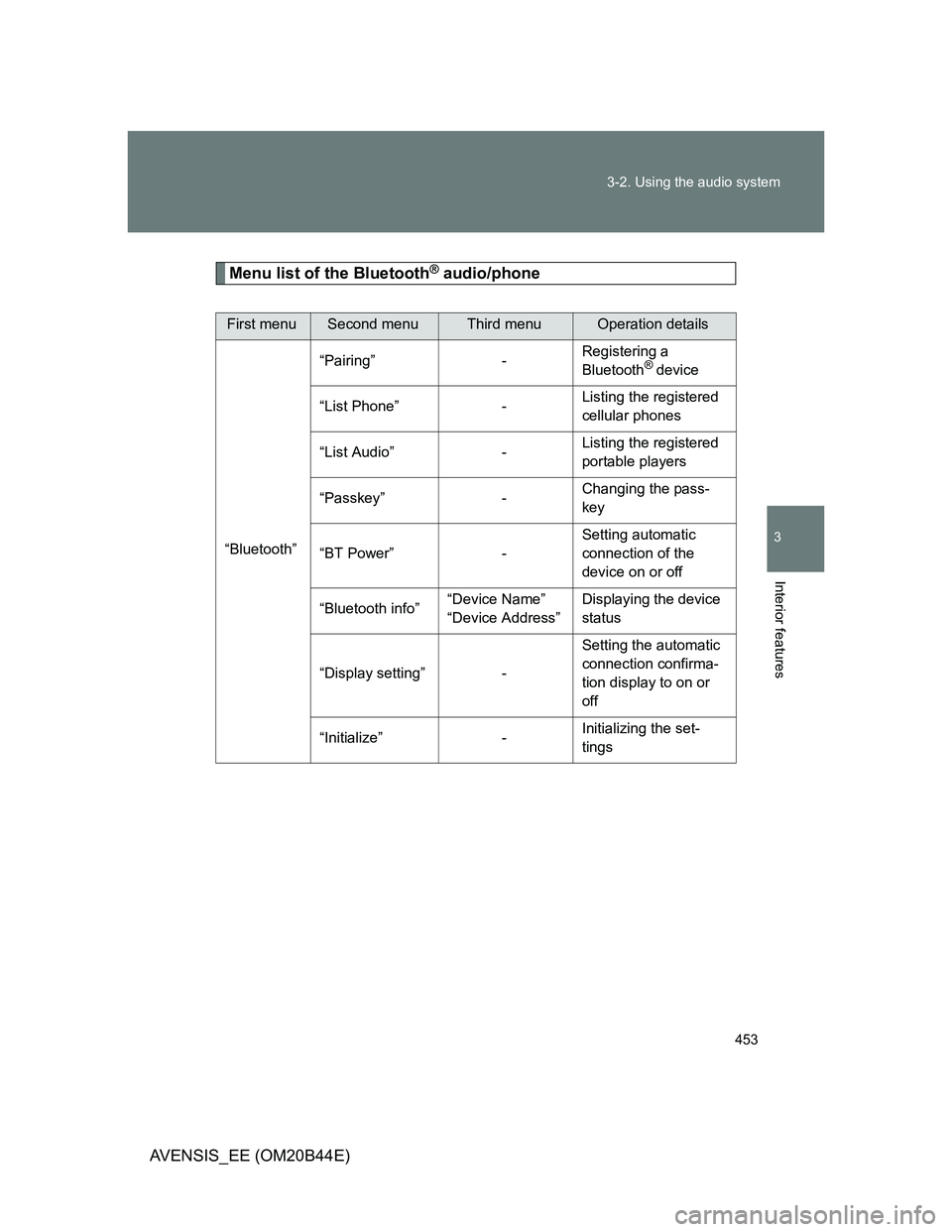

453 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth”“Pairing” -Registering a
Bluetooth
® device
“List Phone” -Listing the registered
cellular phones
“List Audio” -Listing the registered
portable players
“Passkey” -Changing the pass-
key
“BT Power” -Setting automatic
connection of the
device on or off
“Bluetooth info”“Device Name”
“Device Address”Displaying the device
status
“Display setting” -Setting the automatic
connection confirma-
tion display to on or
off
“Initialize” -Initializing the set-
tings
Page 454 of 772

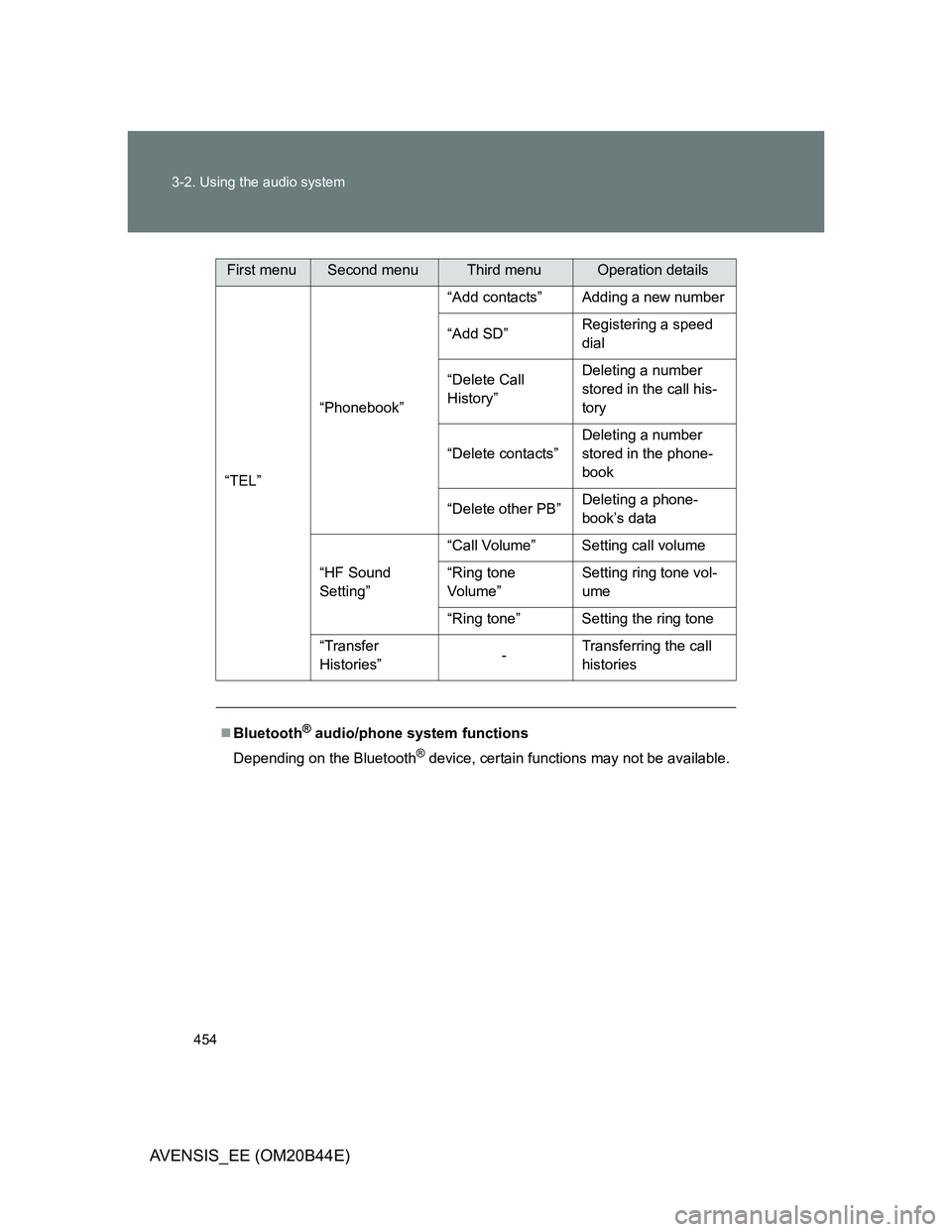

454 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
“TEL”“Phonebook”“Add contacts” Adding a new number
“Add SD”Registering a speed
dial
“Delete Call
History”Deleting a number
stored in the call his-
tory
“Delete contacts”Deleting a number
stored in the phone-
book
“Delete other PB”Deleting a phone-
book’s data
“HF Sound
Setting”“Call Volume” Setting call volume
“Ring tone
Vo l u me ”Setting ring tone vol-
ume
“Ring tone” Setting the ring tone
“Transfer
Histories”-Transferring the call
histories
Bluetooth
® audio/phone system functions
Depending on the Bluetooth
® device, certain functions may not be available.
First menuSecond menuThird menuOperation details
Page 455 of 772
455
3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)

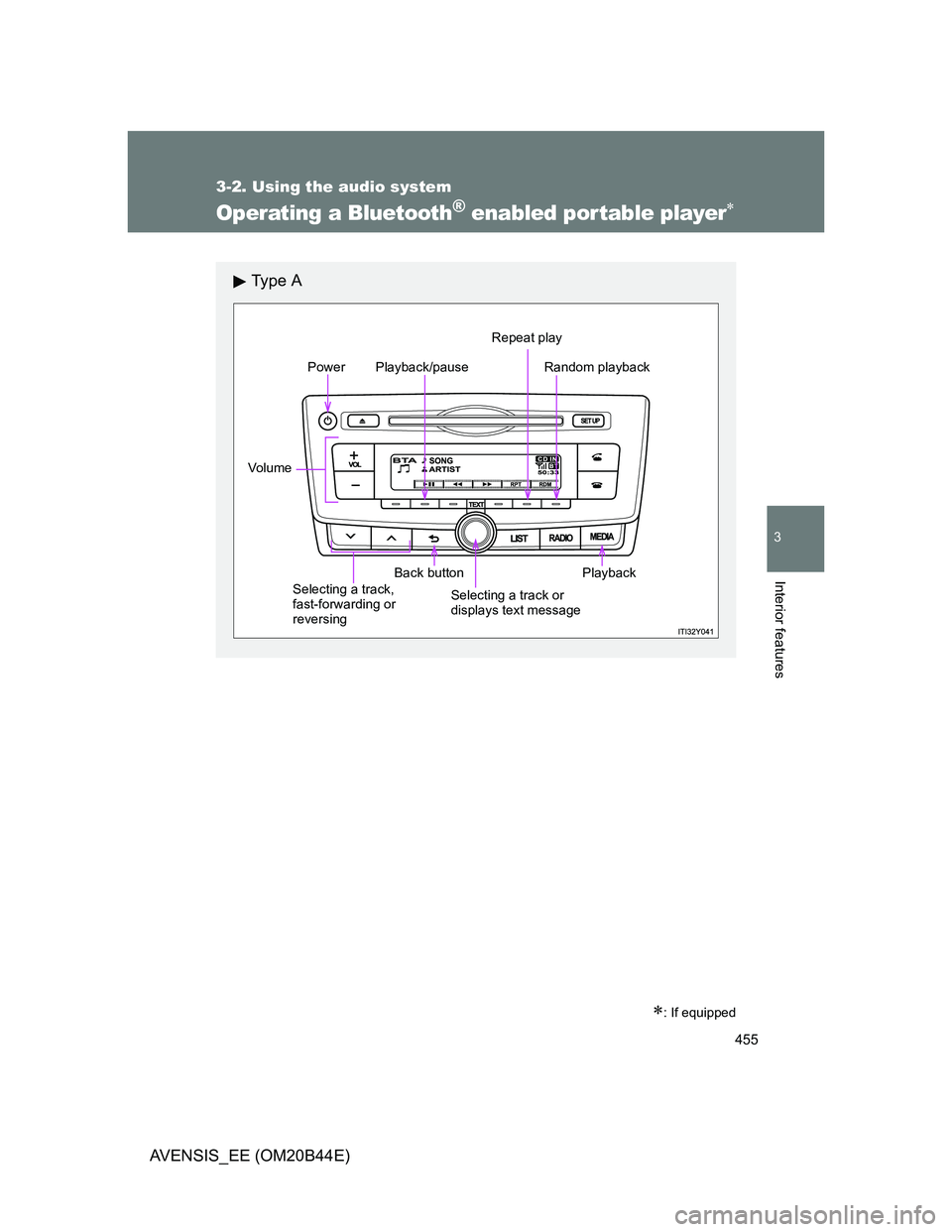

Operating a Bluetooth® enabled portable player
: If equipped
Ty p e A
Power
Vo lu m e
Back buttonPlayback/pauseRepeat play
Random playback
Playback
Selecting a track,
fast-forwarding or
reversingSelecting a track or
displays text message
Page 456 of 772

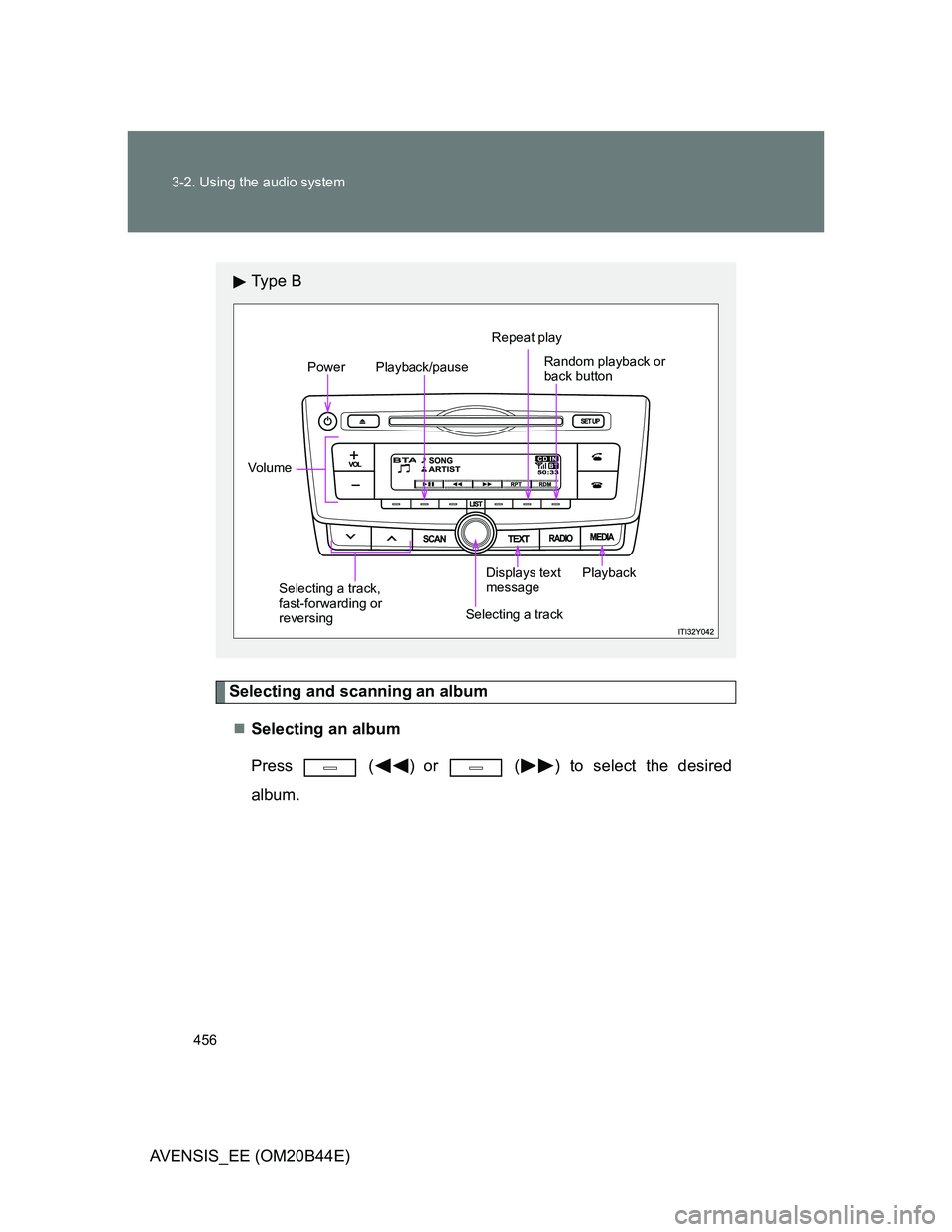

456 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Selecting and scanning an album
Selecting an album
Press ( ) or ( ) to select the desired
album.
Ty p e B
Power
Vo lu m ePlayback/pauseRepeat play
Random playback or
back button
Playback
Selecting a track,
fast-forwarding or
reversingSelecting a trackDisplays text
message
Page 457 of 772

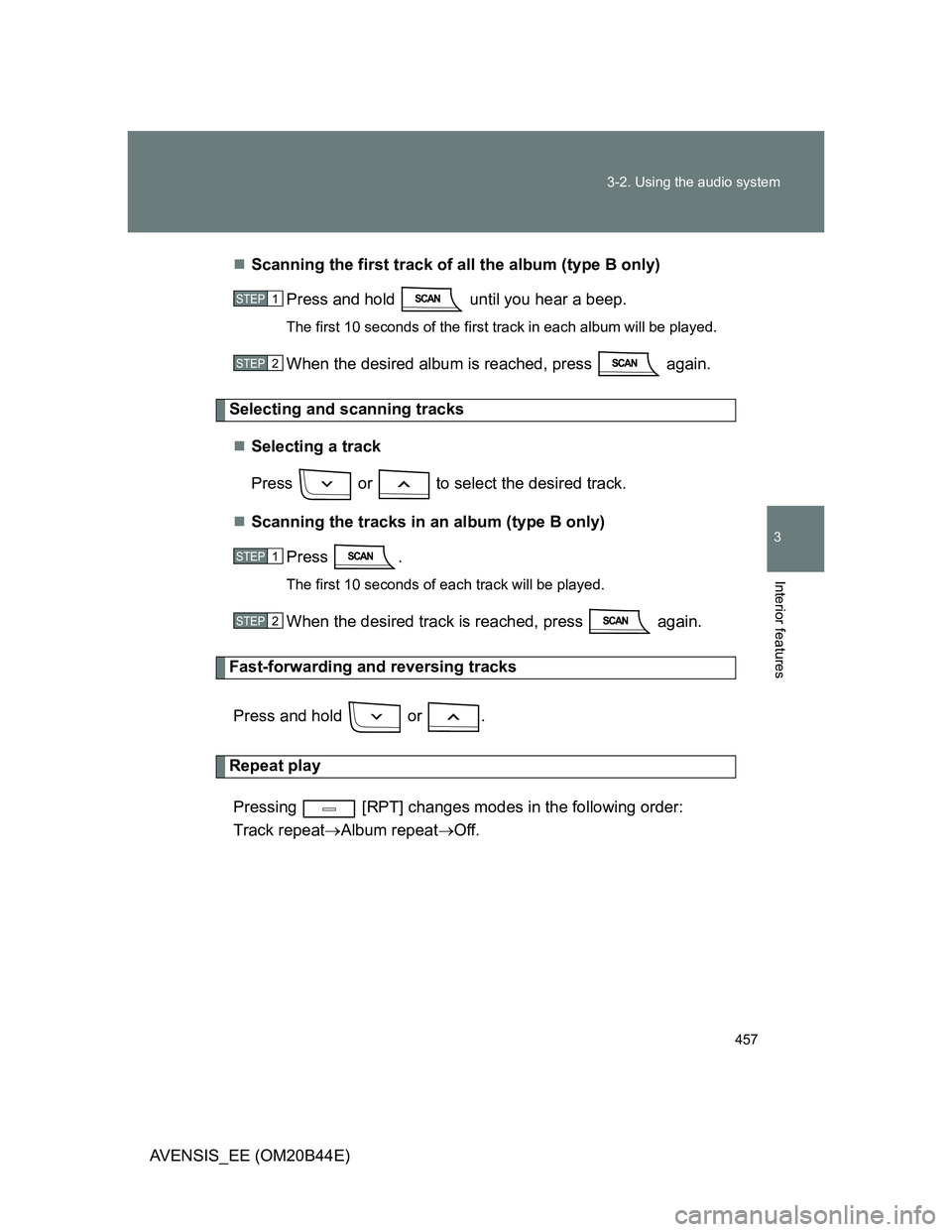

457 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)Scanning the first track of all the album (type B only)
Press and hold until you hear a beep.
The first 10 seconds of the first track in each album will be played.
When the desired album is reached, press again.
Selecting and scanning tracks
Selecting a track
Press or to select the desired track.
Scanning the tracks in an album (type B only)
Press .
The first 10 seconds of each track will be played.
When the desired track is reached, press again.
Fast-forwarding and reversing tracks
Press and hold or .
Repeat play
Pressing [RPT] changes modes in the following order:
Track repeatAlbum repeatOff.
STEP1
STEP2
STEP1
STEP2
Page 458 of 772

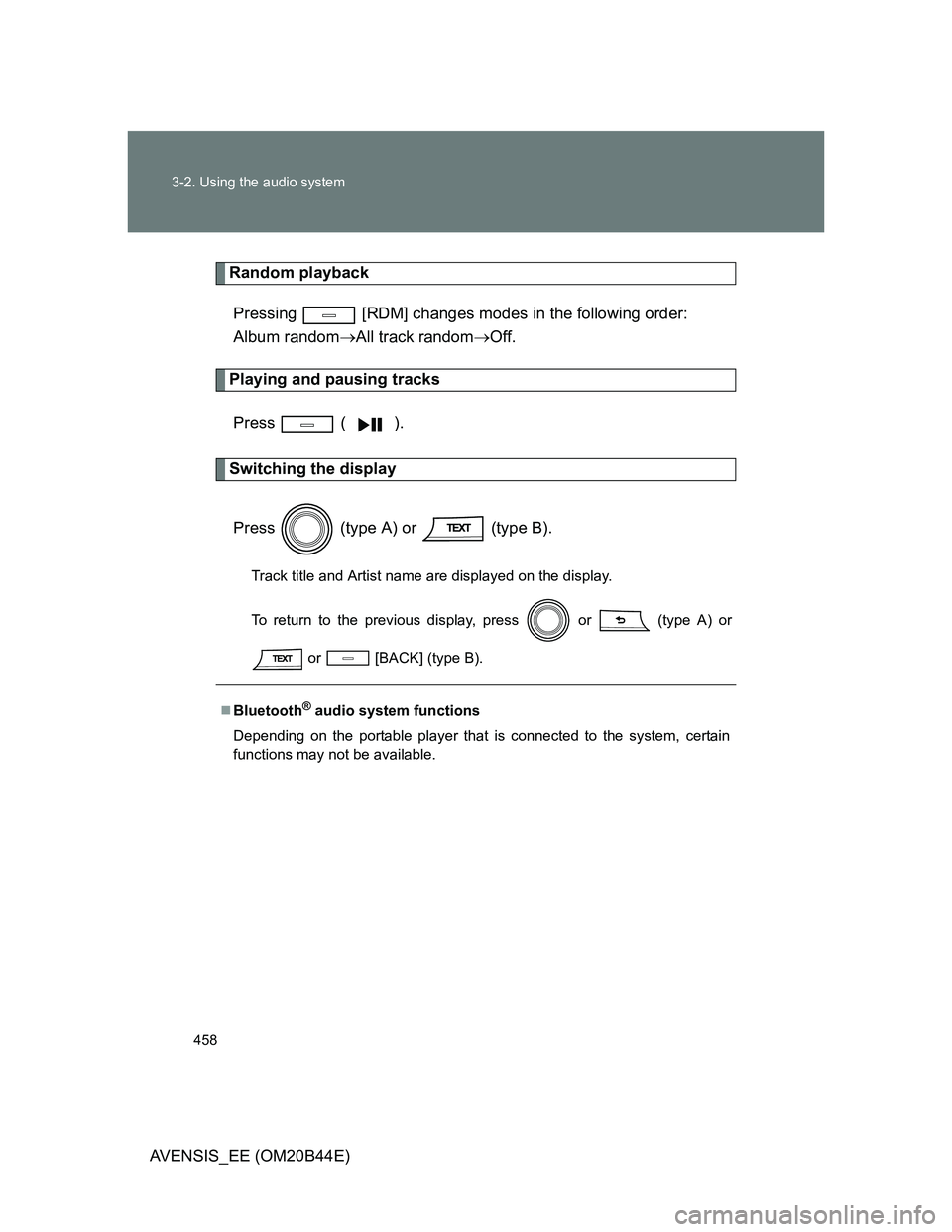

458 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Random playback
Pressing [RDM] changes modes in the following order:
Album randomAll track randomOff.
Playing and pausing tracks
Press ( ).
Switching the display
Press (type A) or (type B).
Track title and Artist name are displayed on the display.
To return to the previous display, press
or (type A) or
or [BACK] (type B).
Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Page 459 of 772

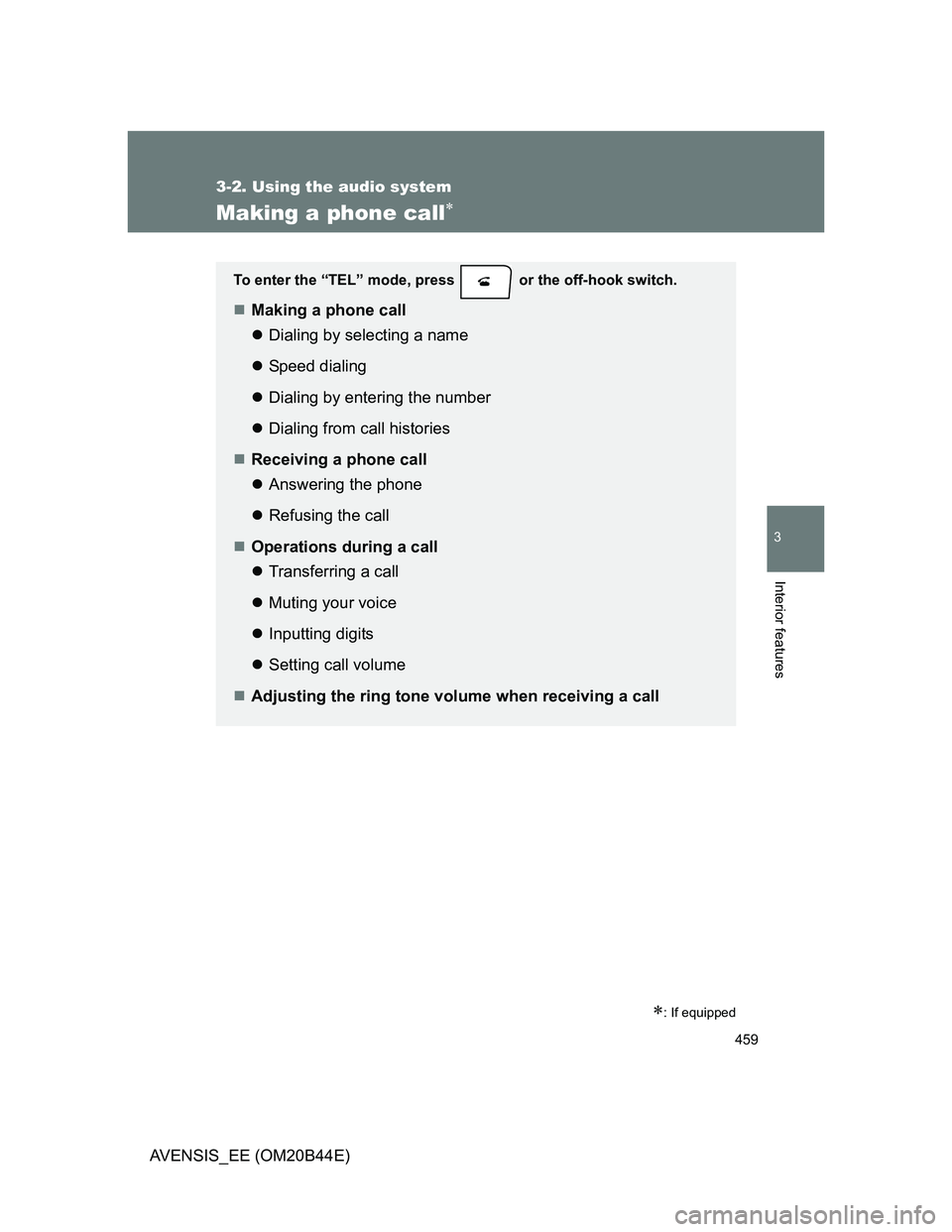

459
3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
Making a phone call
: If equipped
To enter the “TEL” mode, press or the off-hook switch.
Making a phone call
Dialing by selecting a name
Speed dialing
Dialing by entering the number
Dialing from call histories
Receiving a phone call
Answering the phone
Refusing the call
Operations during a call
Transferring a call
Muting your voice
Inputting digits
Setting call volume
Adjusting the ring tone volume when receiving a call
Page 460 of 772

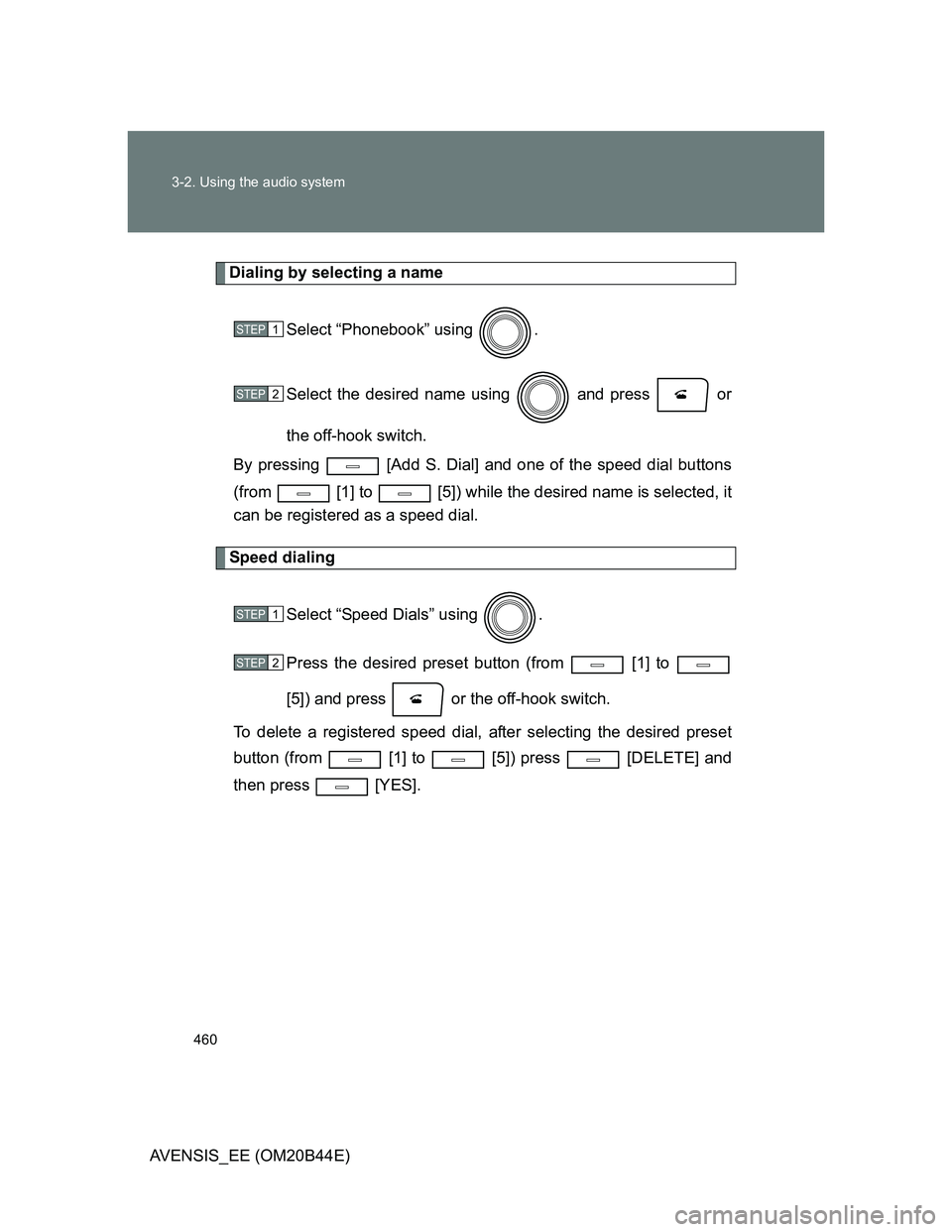

460 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Dialing by selecting a name
Select “Phonebook” using .
Select the desired name using and press or
the off-hook switch.
By pressing [Add S. Dial] and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it
can be registered as a speed dial.
Speed dialing
Select “Speed Dials” using .
Press the desired preset button (from [1] to
[5]) and press or the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press [DELETE] and
then press [YES].
STEP1
STEP2
STEP1
STEP2
