671 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_EE (OM20B44E)

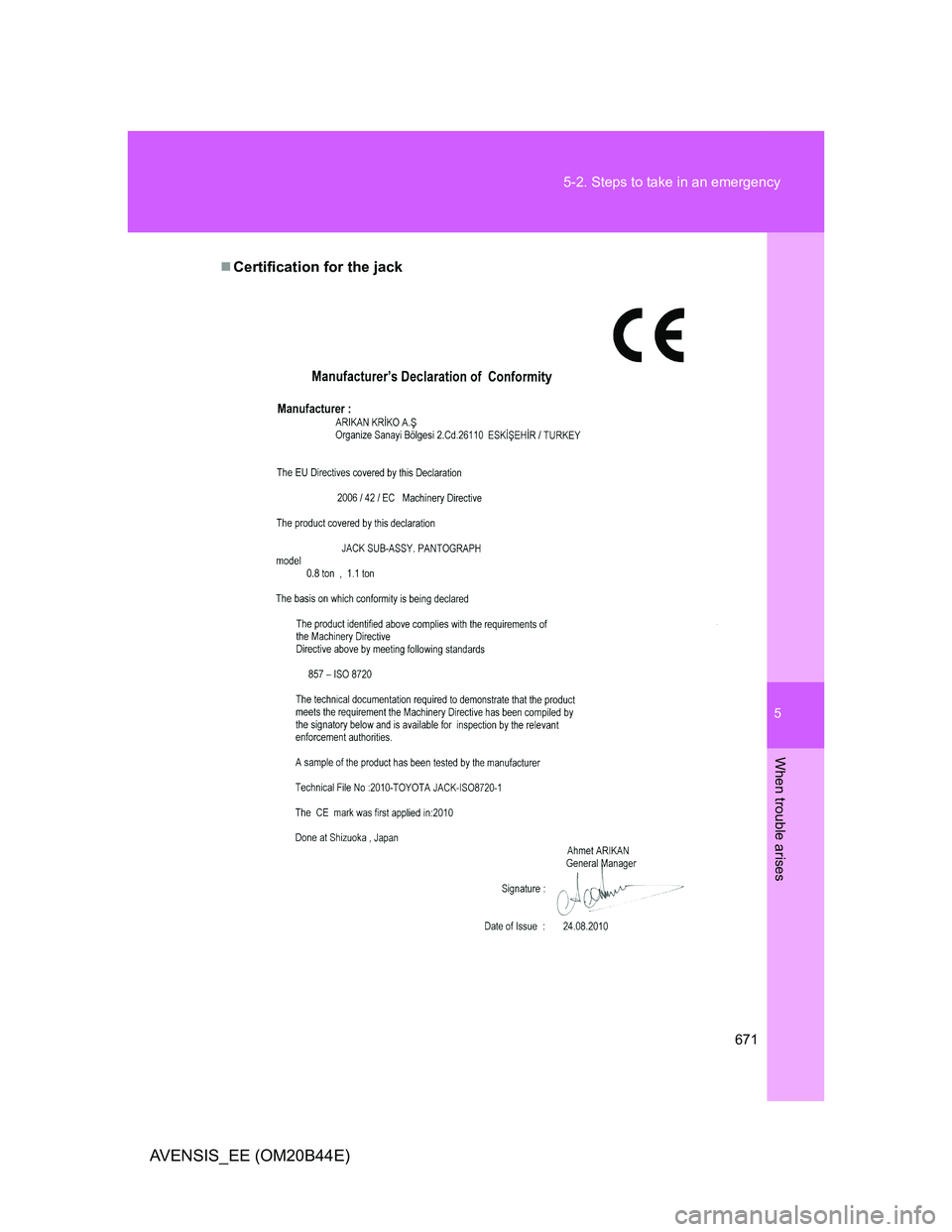

Certification for the jack

672 5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.

5
673 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_EE (OM20B44E)
CAUTION

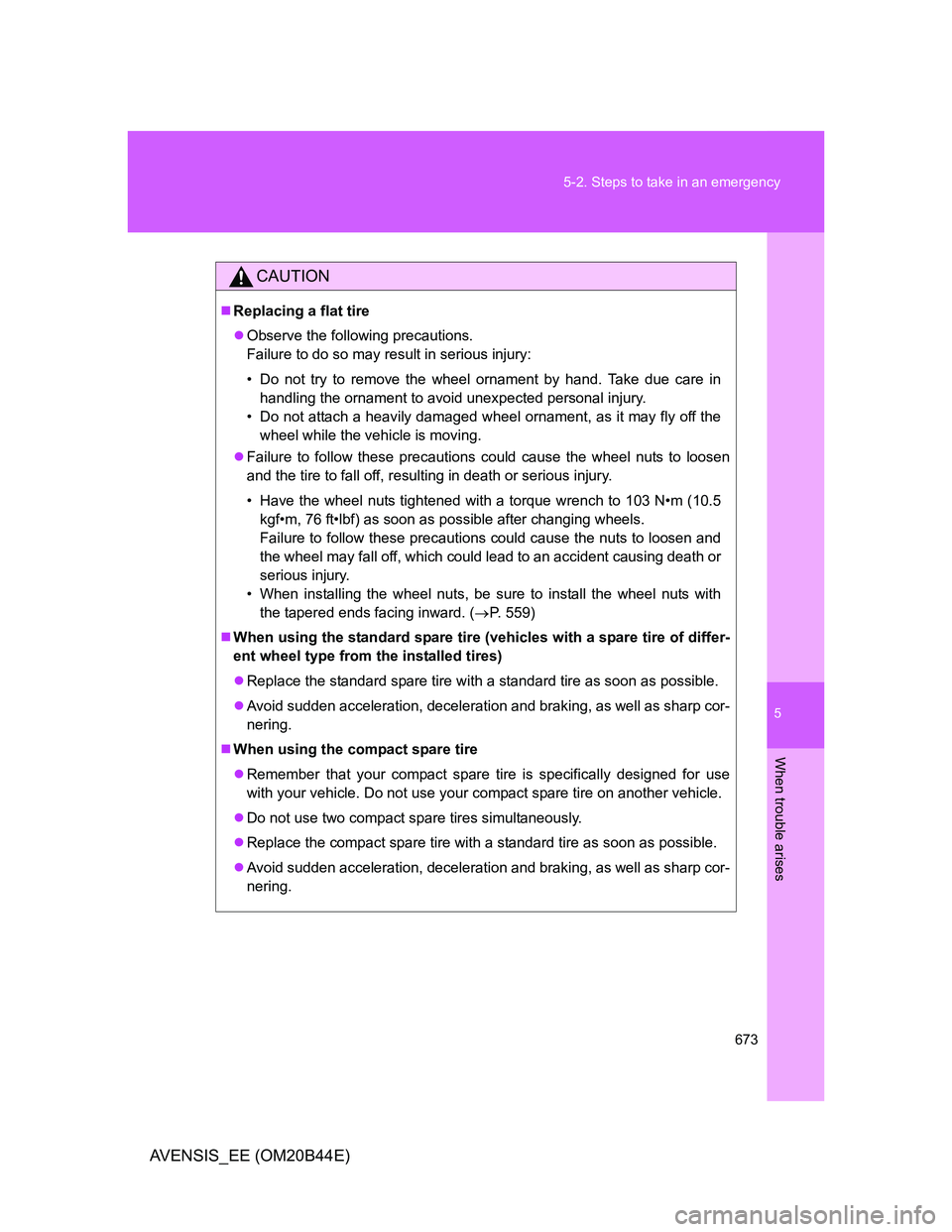

Replacing a flat tire
Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5
kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and
the wheel may fall off, which could lead to an accident causing death or
serious injury.
• When installing the wheel nuts, be sure to install the wheel nuts with
the tapered ends facing inward. (P. 559)
When using the standard spare tire (vehicles with a spare tire of differ-
ent wheel type from the installed tires)
Replace the standard spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
When using the compact spare tire
Remember that your compact spare tire is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
Do not use two compact spare tires simultaneously.
Replace the compact spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.

674 5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)

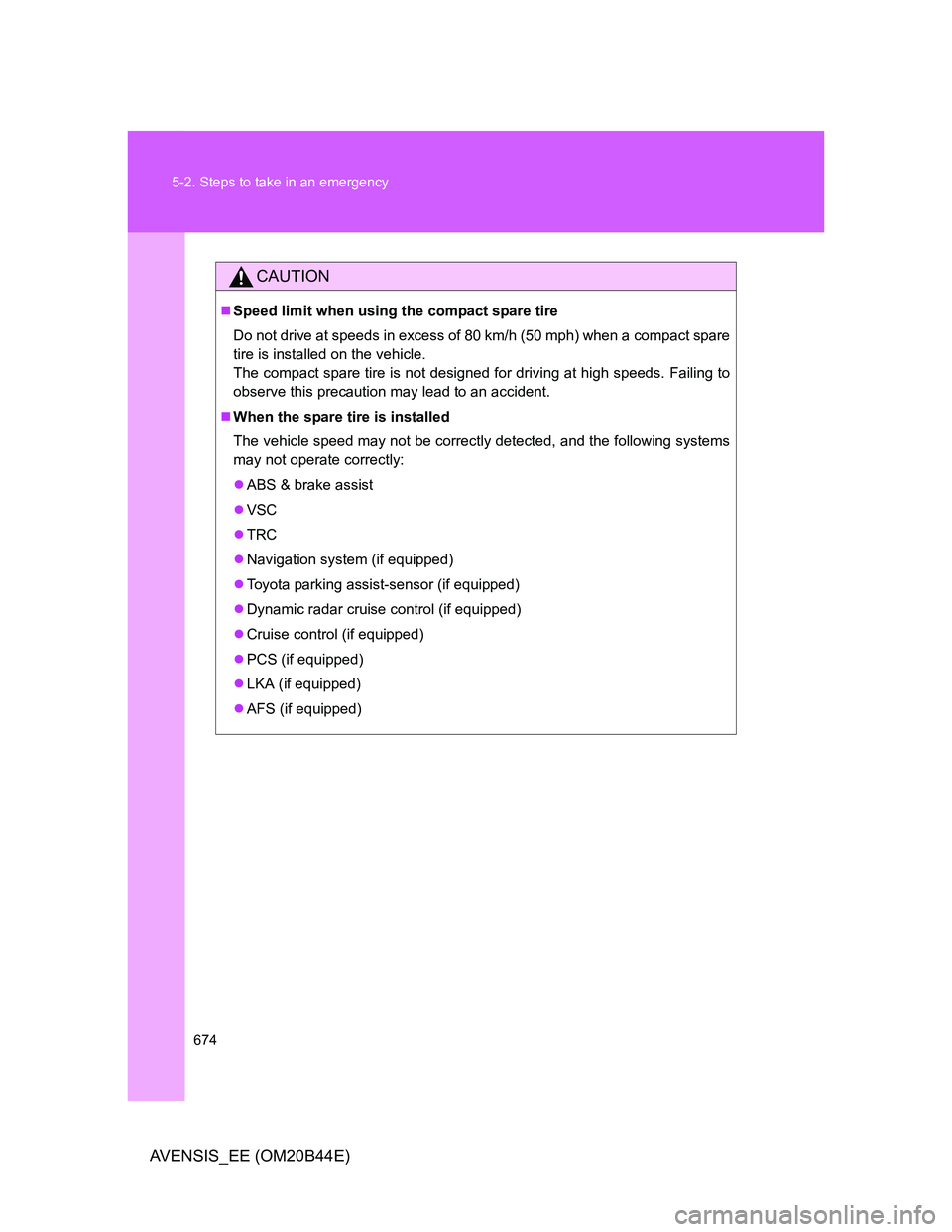

CAUTION
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident.
When the spare tire is installed
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
ABS & brake assist
VSC
TRC
Navigation system (if equipped)
Toyota parking assist-sensor (if equipped)
Dynamic radar cruise control (if equipped)
Cruise control (if equipped)
PCS (if equipped)
LKA (if equipped)
AFS (if equipped)

5
675 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_EE (OM20B44E)

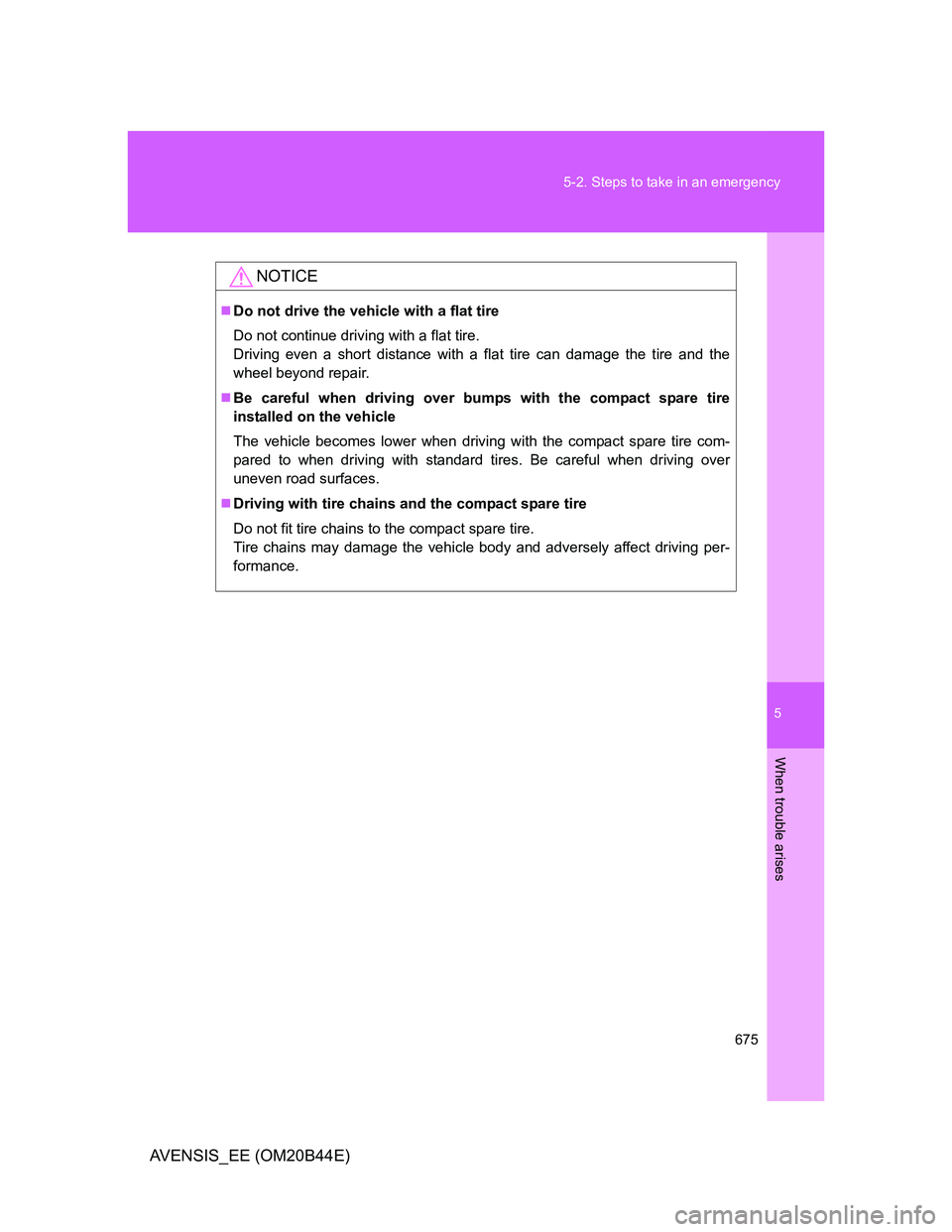

NOTICE
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.

676
5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)

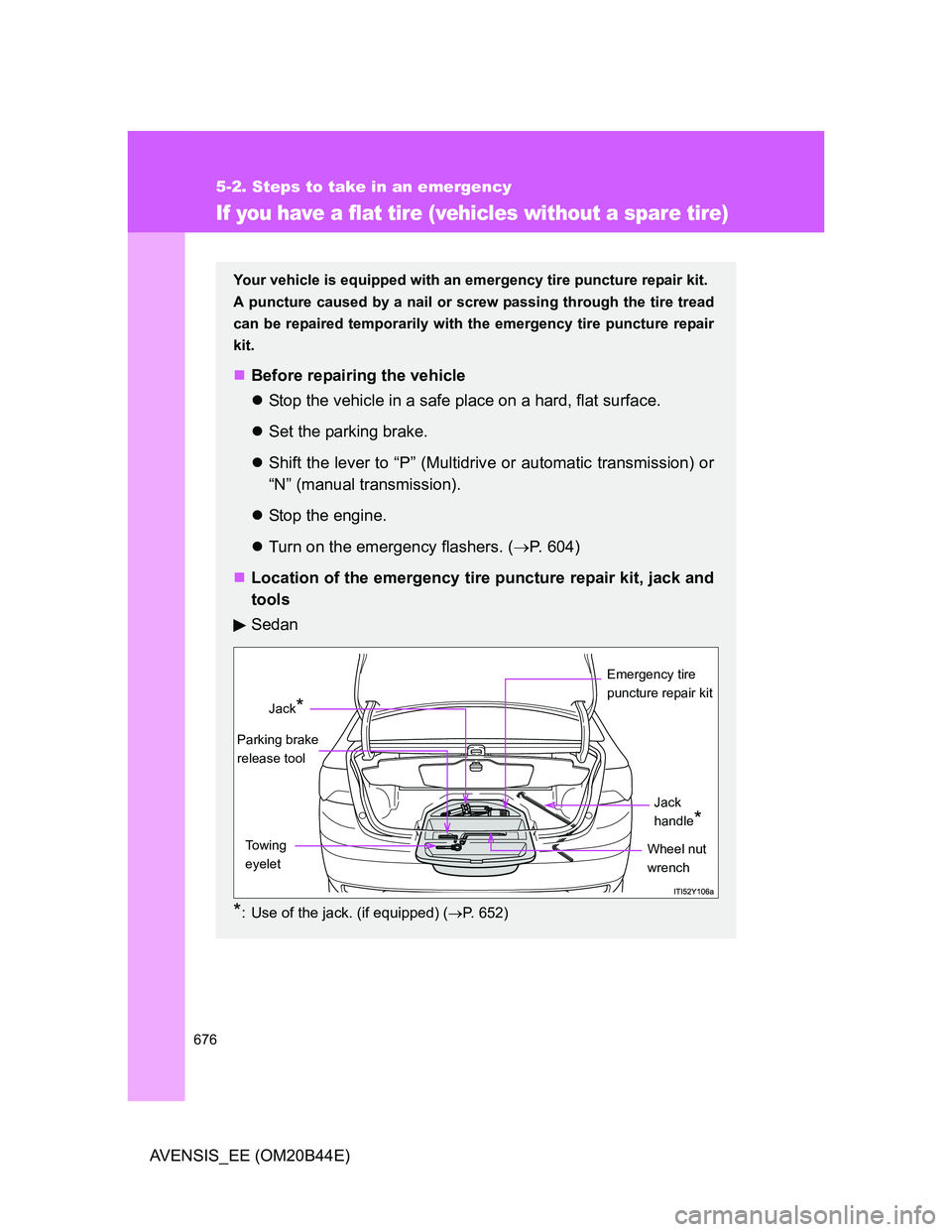

If you have a flat tire (vehicles without a spare tire)
Your vehicle is equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily with the emergency tire puncture repair
kit.
Before repairing the vehicle
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Shift the lever to “P” (Multidrive or automatic transmission) or
“N” (manual transmission).
Stop the engine.
Turn on the emergency flashers. (P. 604)
Location of the emergency tire puncture repair kit, jack and
tools
Sedan
*: Use of the jack. (if equipped) (P. 652)
Jack*
Emergency tire
puncture repair kit
Jack
handle
*
Wheel nut
wrench
Parking brake
release tool
To w i n g
eyelet

5
677 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_EE (OM20B44E)

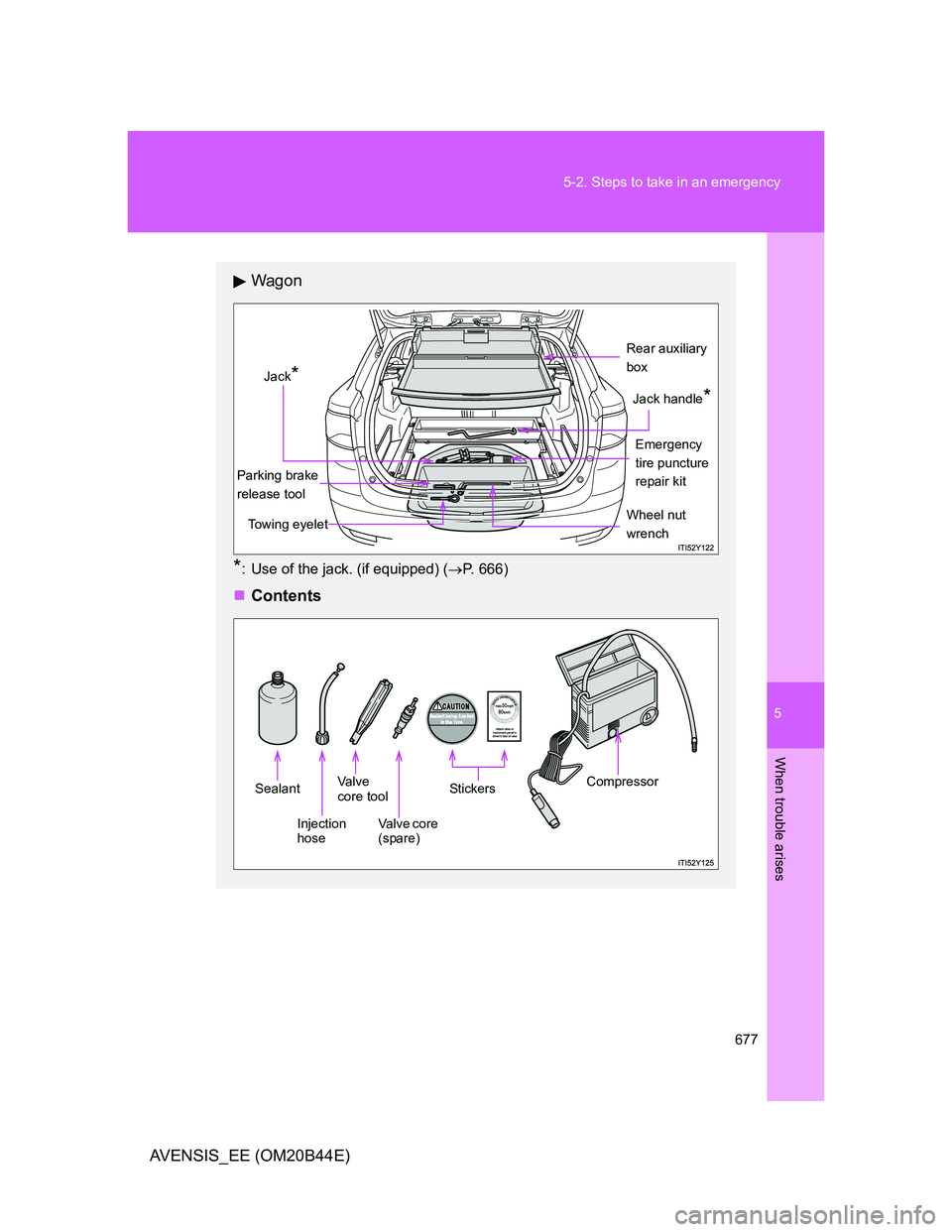

Wagon
*: Use of the jack. (if equipped) (P. 666)
Contents
Jack handle*
Emergency
tire puncture
repair kit
Wheel nut
wrenchTowing eyelet
Parking brake
release tool
Jack*
Rear auxiliary
box
Sealant
Injection
hose
Va l v e
core tool
Va l v e c o r e
(spare)
CompressorStickers

678 5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)

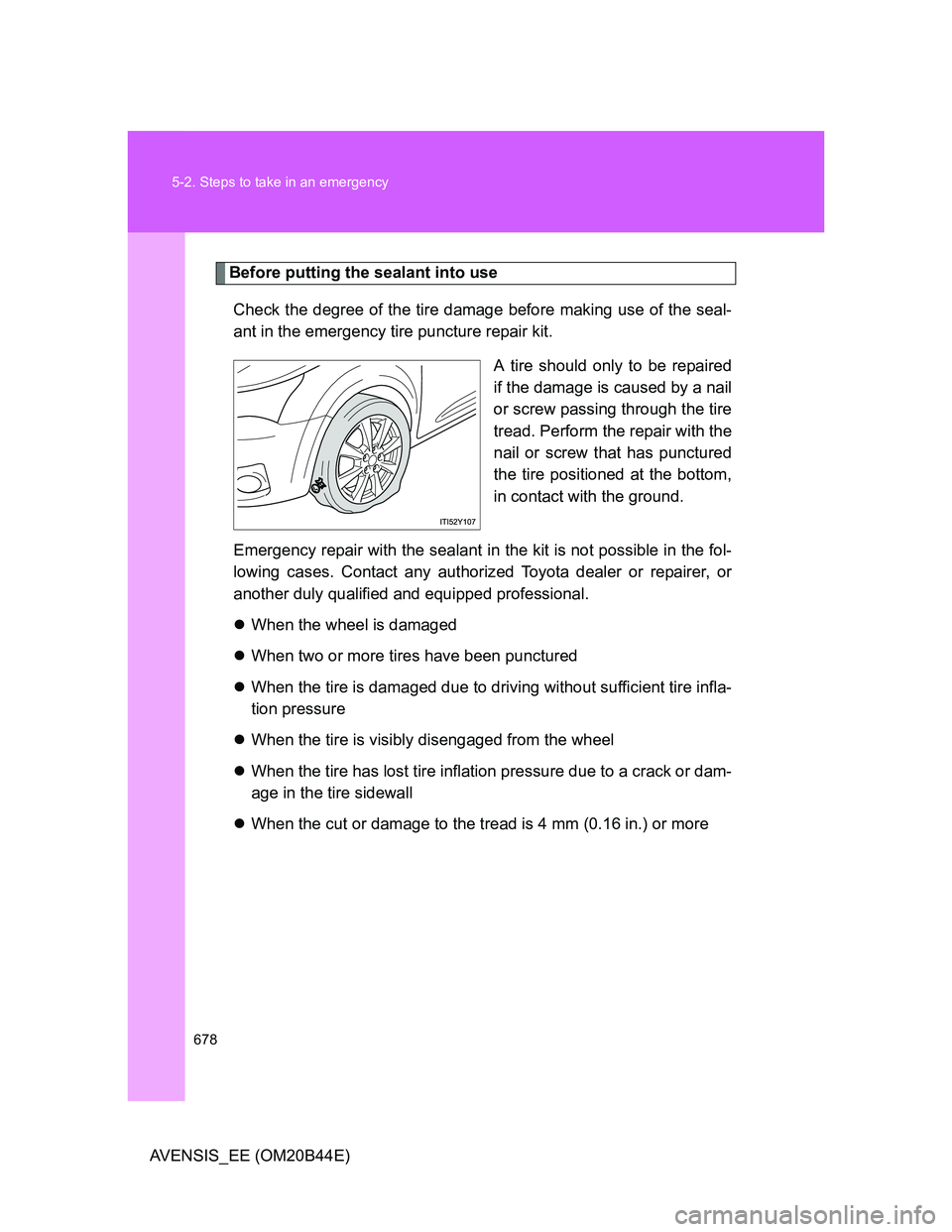

Before putting the sealant into use
Check the degree of the tire damage before making use of the seal-
ant in the emergency tire puncture repair kit.
A tire should only to be repaired
if the damage is caused by a nail
or screw passing through the tire
tread. Perform the repair with the
nail or screw that has punctured
the tire positioned at the bottom,
in contact with the ground.
Emergency repair with the sealant in the kit is not possible in the fol-
lowing cases. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
When the wheel is damaged
When two or more tires have been punctured
When the tire is damaged due to driving without sufficient tire infla-
tion pressure
When the tire is visibly disengaged from the wheel
When the tire has lost tire inflation pressure due to a crack or dam-
age in the tire sidewall
When the cut or damage to the tread is 4 mm (0.16 in.) or more

5
679 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_EE (OM20B44E)

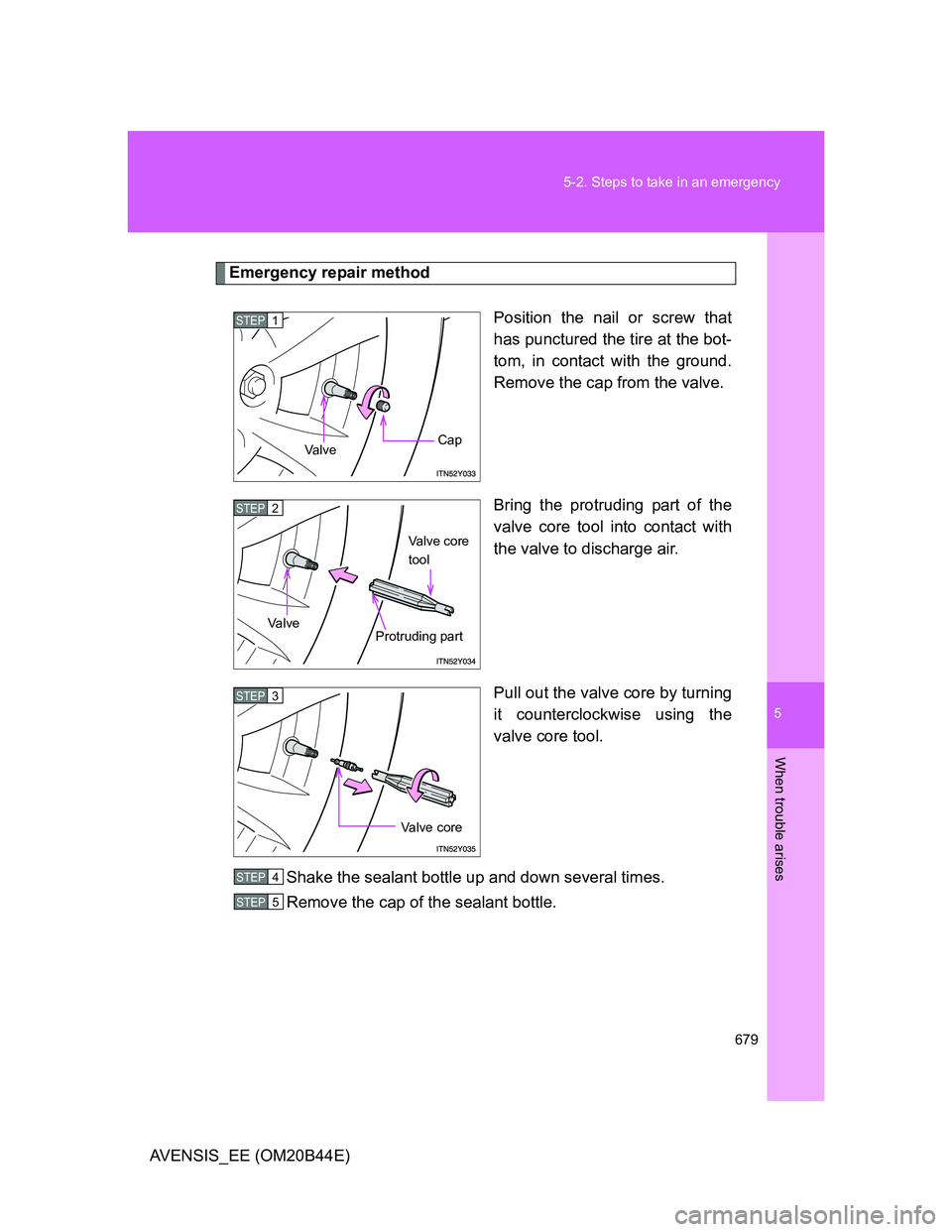

Emergency repair method
Position the nail or screw that
has punctured the tire at the bot-
tom, in contact with the ground.
Remove the cap from the valve.
Bring the protruding part of the
valve core tool into contact with
the valve to discharge air.
Pull out the valve core by turning
it counterclockwise using the
valve core tool.
Shake the sealant bottle up and down several times.
Remove the cap of the sealant bottle.
STEP1
Cap
Va l v e
STEP2
Va l v e c o r e
tool
Protruding partVa l v e
STEP3
Va l v e c o r e
STEP4
STEP5

680 5-2. Steps to take in an emergency

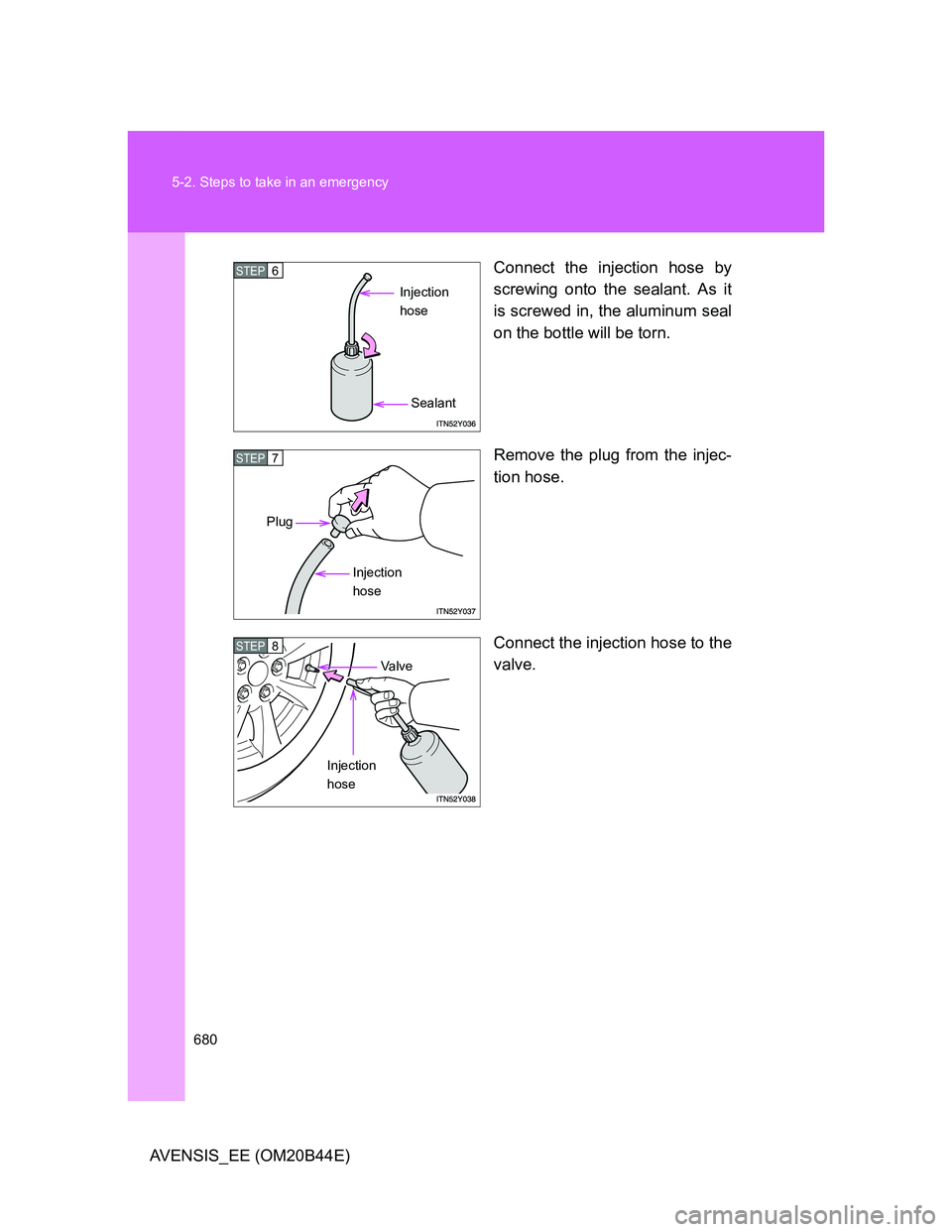

AVENSIS_EE (OM20B44E)Connect the injection hose by
screwing onto the sealant. As it
is screwed in, the aluminum seal
on the bottle will be torn.
Remove the plug from the injec-
tion hose.
Connect the injection hose to the
valve.
STEP6
Injection
hose
Sealant
STEP7
Injection
hose
Plug
STEP8
Va l v e
Injection
hose
